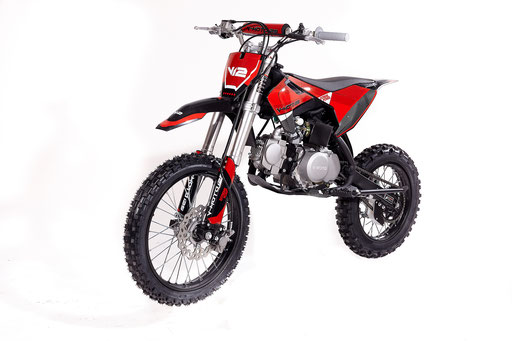

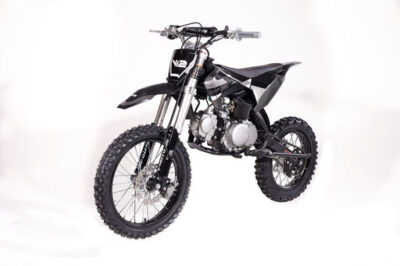

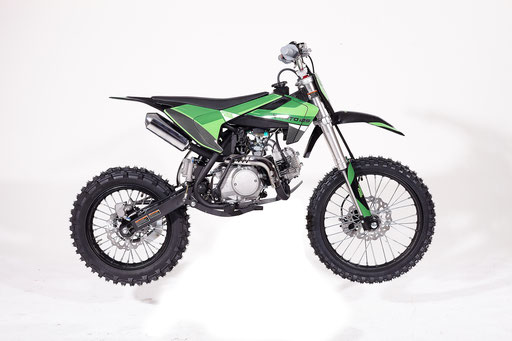

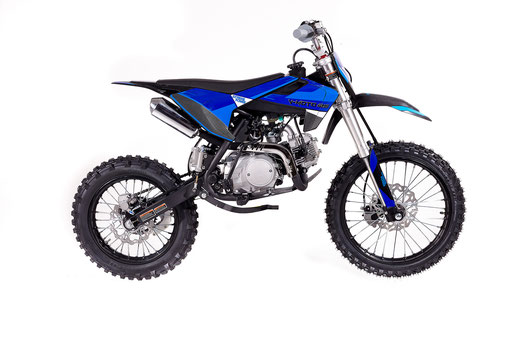

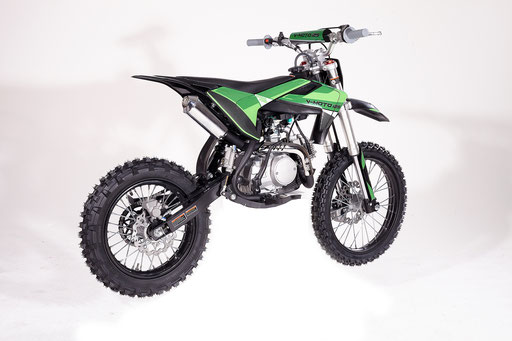

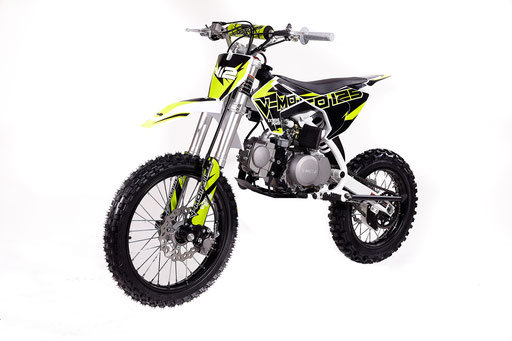

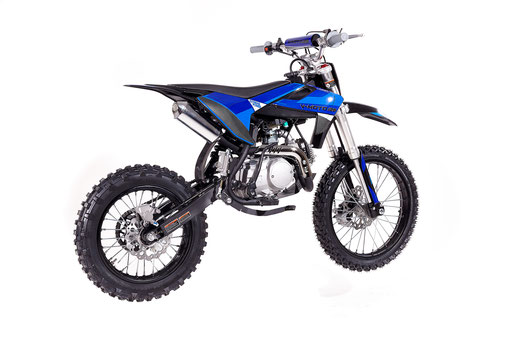

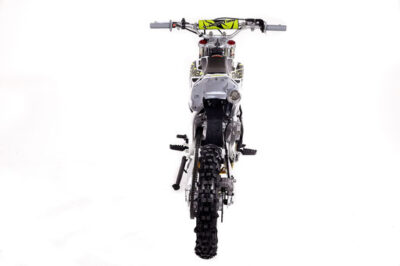

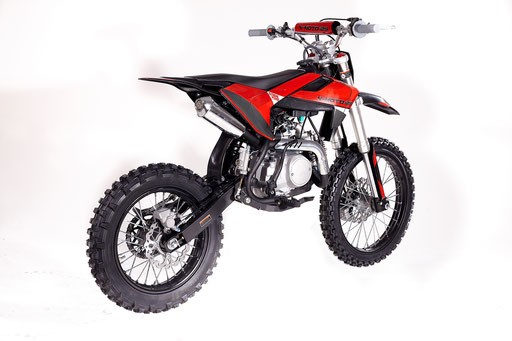

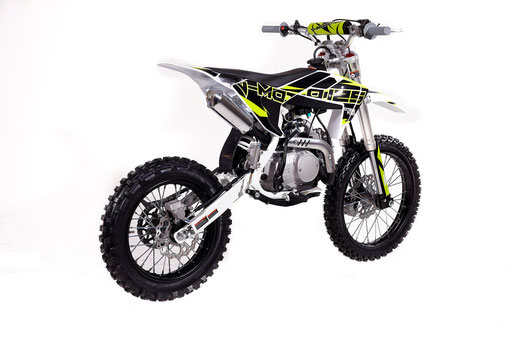

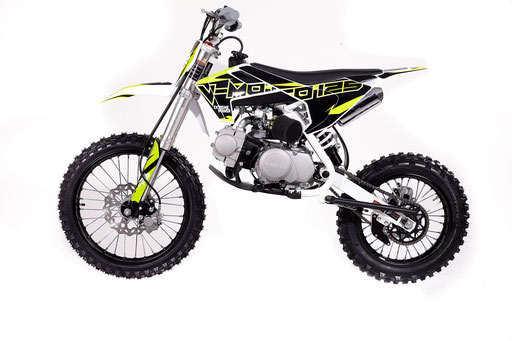

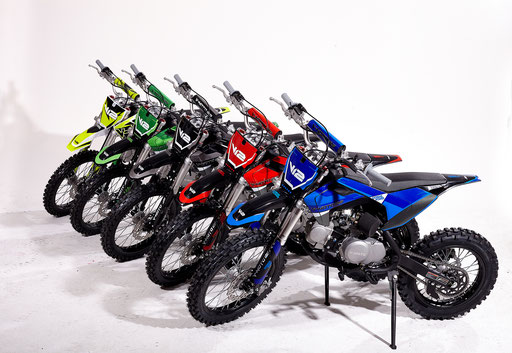

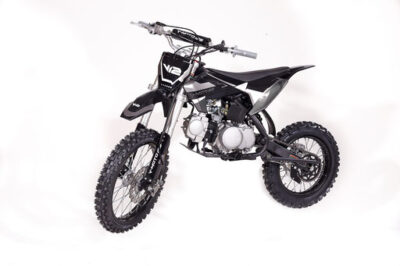

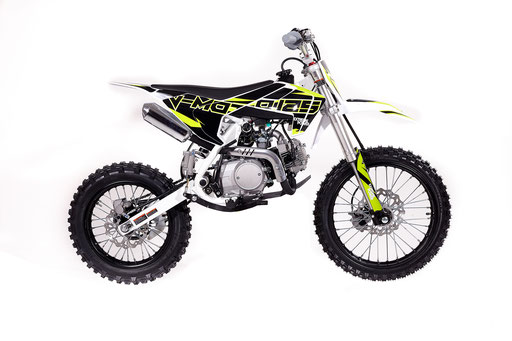

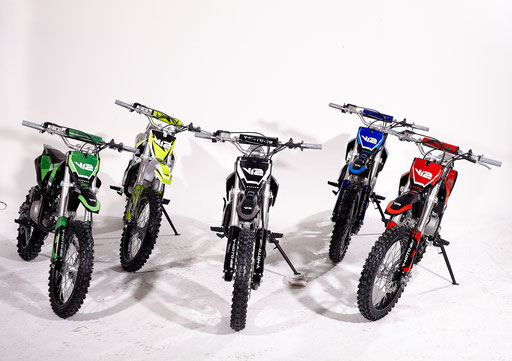

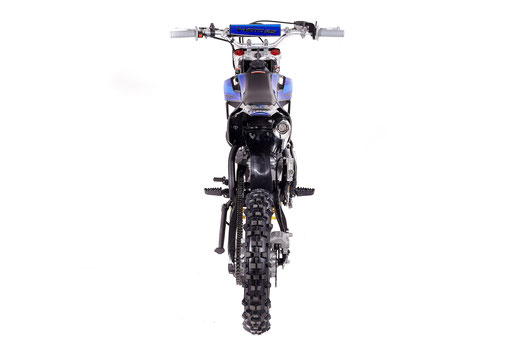

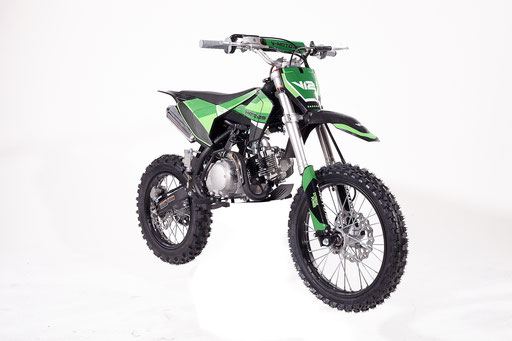

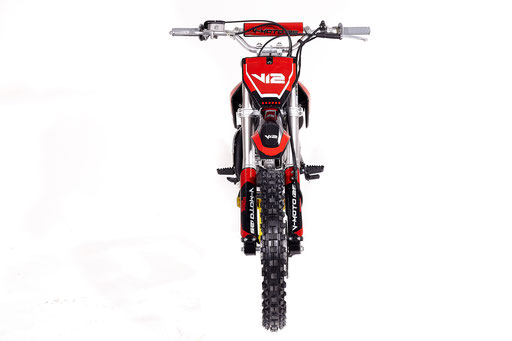

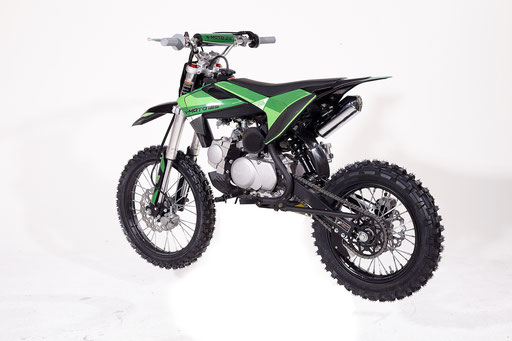

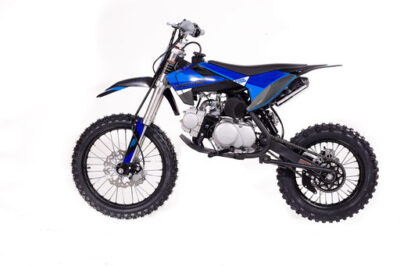

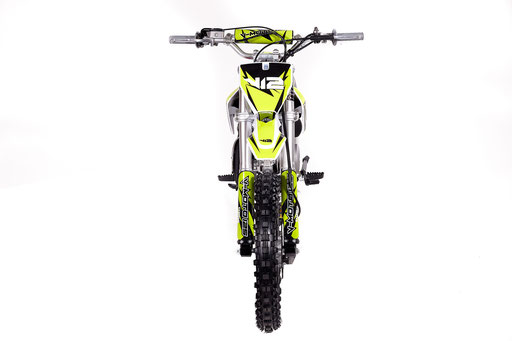

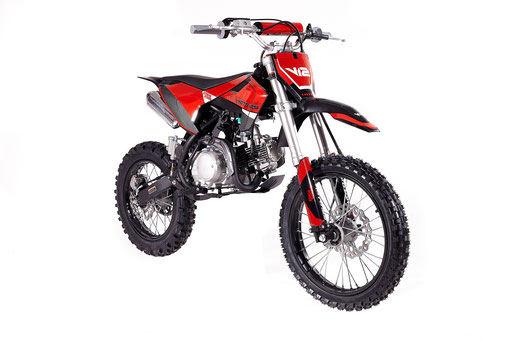

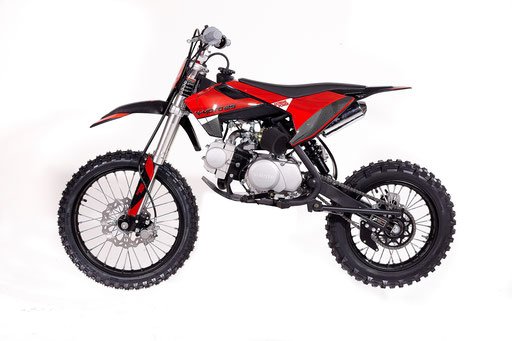

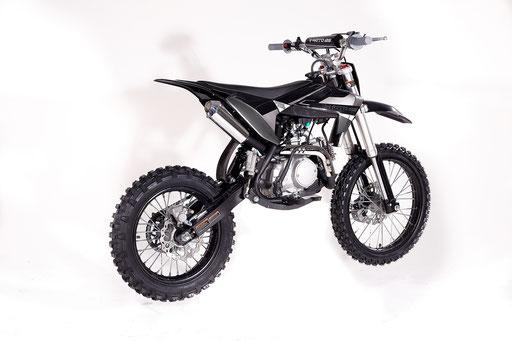

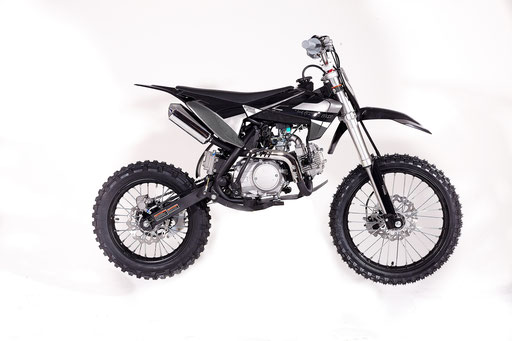

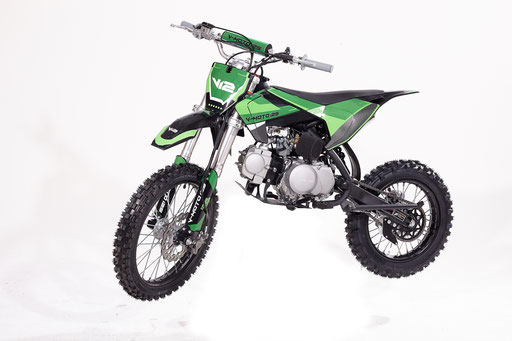

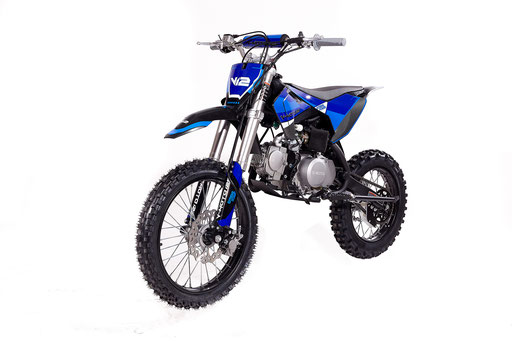

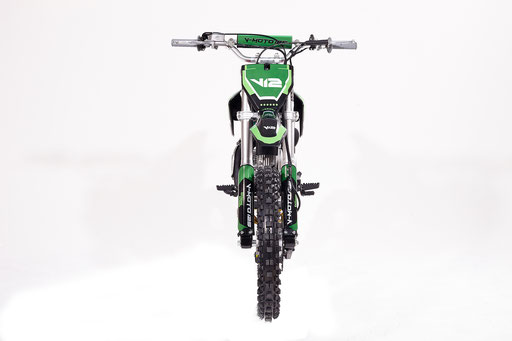

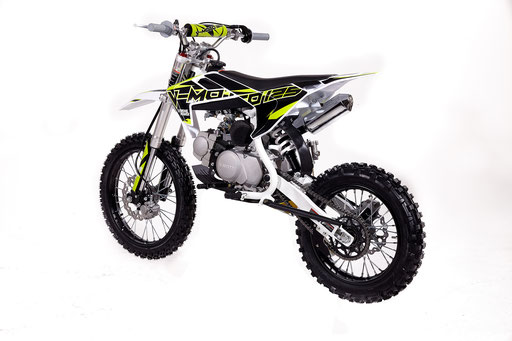

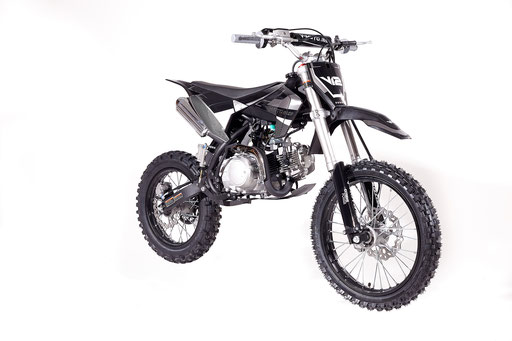

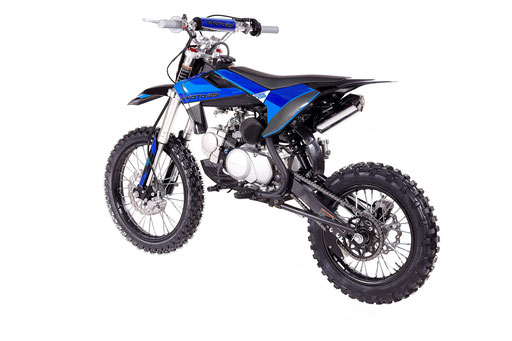

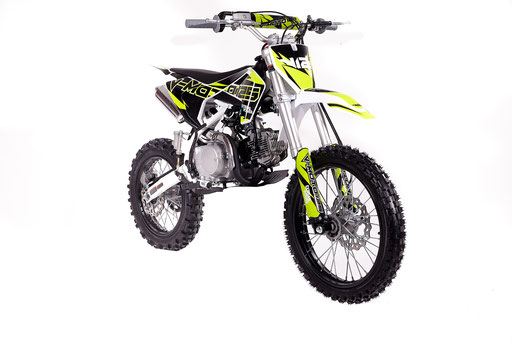

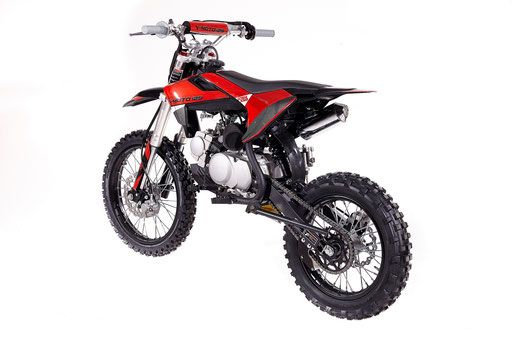

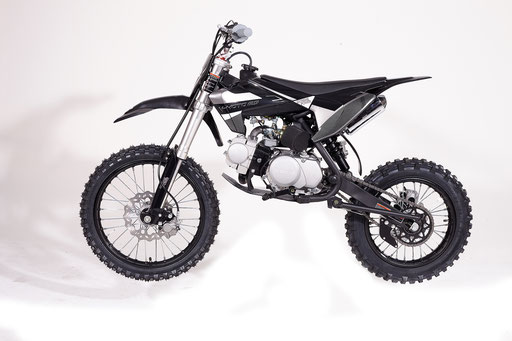

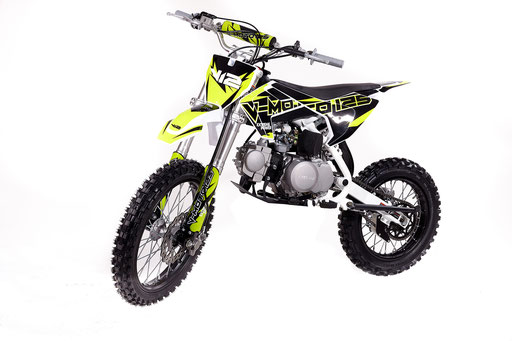

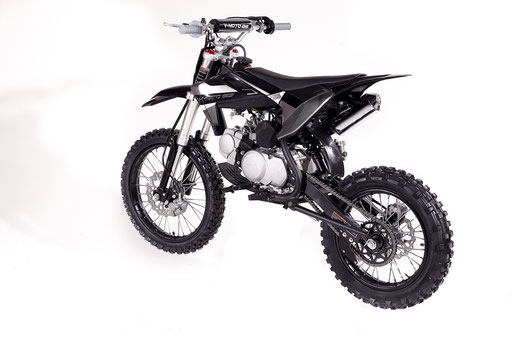

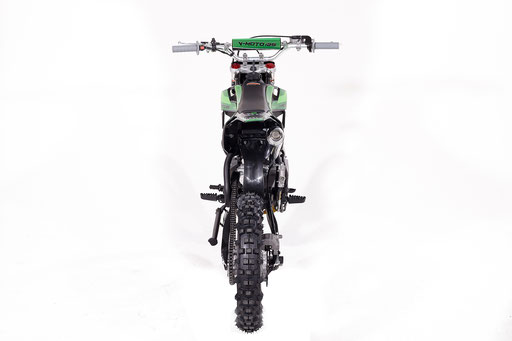

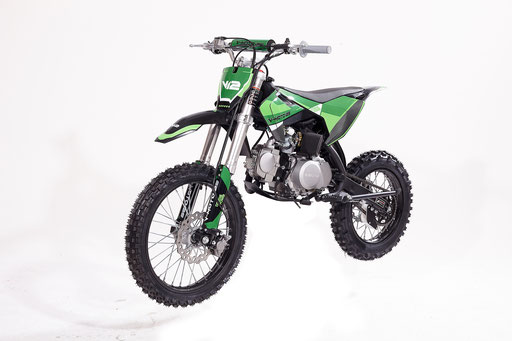

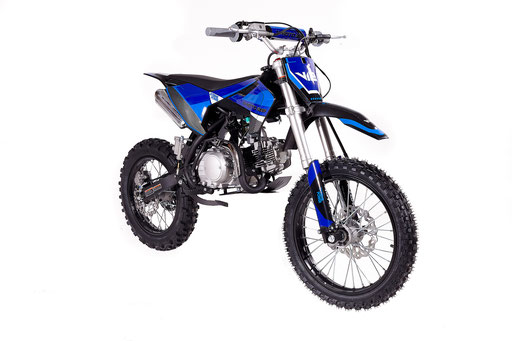

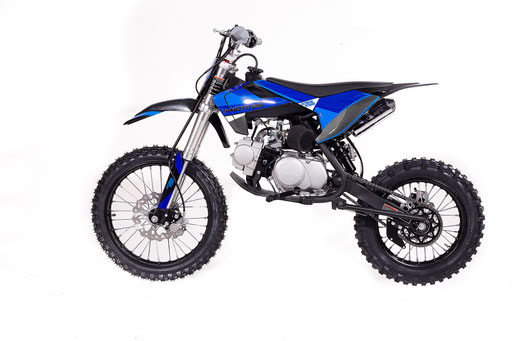

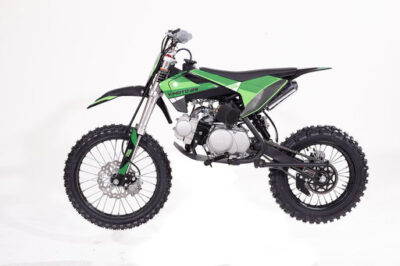

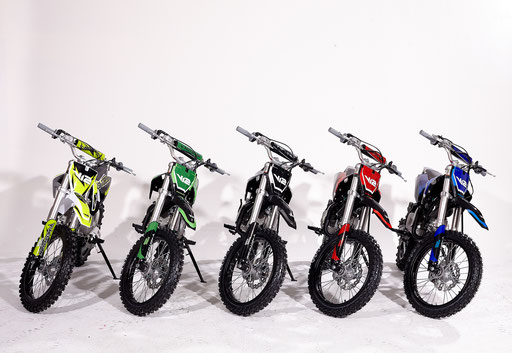

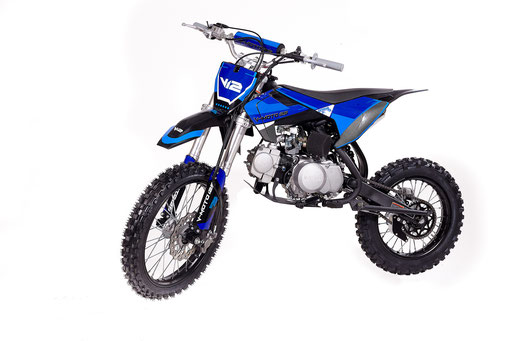

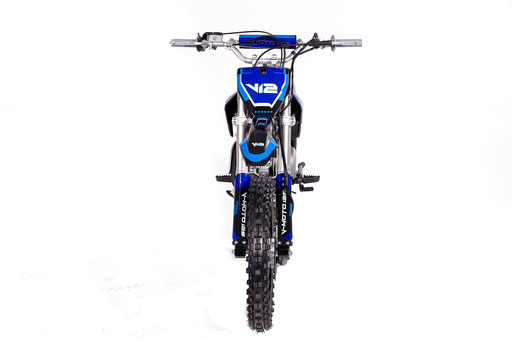

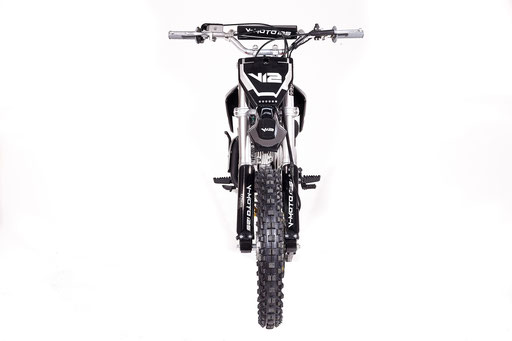

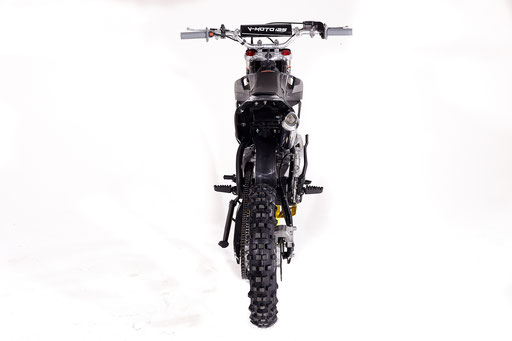

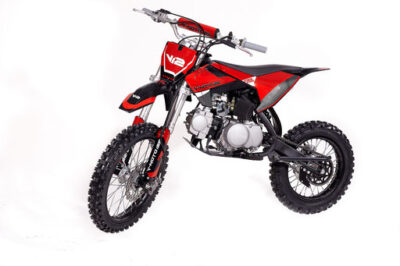

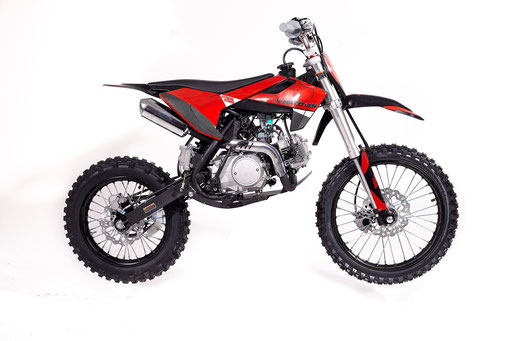

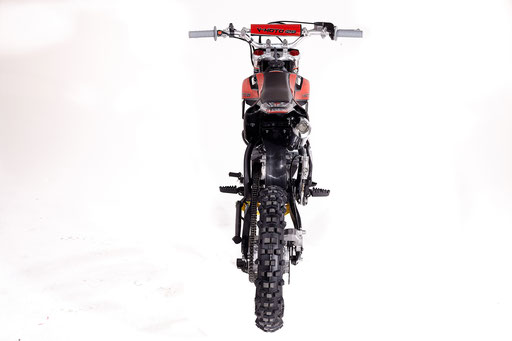

V12 125cc

V12 125cc

Description

Engine System
Engine Type ZM125cc, Single Cylinder, 4-Stroke, Air Cooled
 Displacement 124 ml
Max Power 6.2(1±10%)/7000(1±5%) kw/r/min
 Max Torque 9.0(1±10%)/5000(1±5%) N.m/r/min
Compression Ratio 9.6:1
Shift Type  4-Gear Manual Shift
 Start Type Kick Start
Carburetor  PZ26 Jingke Carburetor
Drive Train #428,14/41T
Size Data
 L x W x H 64.1″ * 29.5″ * 41.3″
Wheel Base 42.3″
Tires FT: 70/100-17 – RR: 90/100-14
Seat Height 32.6″
Ground Clearance 13.5
Fuel Capacity 3.5 L
Frame/Suspension/Brake/Wheel system
Frame Cradle Type Steel Tube Frame
Front Fork Non-Adjustable Inverted 700mm Forks, Travel – 4.3″

Tube – 1.2″

Rear Shock Coil Spring shock – 10.8″ , Travel – 1.6″
Swing-Arm Steel – 14.9″
Handle Bar Steel
Wheels Steel 1.6 x 17″ / 1.85 x 14″ Rims, Cast Hubs
Front Brake Single Piston Caliper, 210mm Disc
 Rear Brake Single Piston Caliper, 190mm Disc
Exhaust Stainless Steel Header Pipe, Haxagon Aluminum Silencer
Packing and Loading
Packing Size 54.5″ * 14.7″ * 29.7″
N.W/KG 145.5 LBS
G.N/KG 172 LBS
