16+
4‑Stroke, SOHC, Oil-Cooled
Limited Warranty
Top Speed

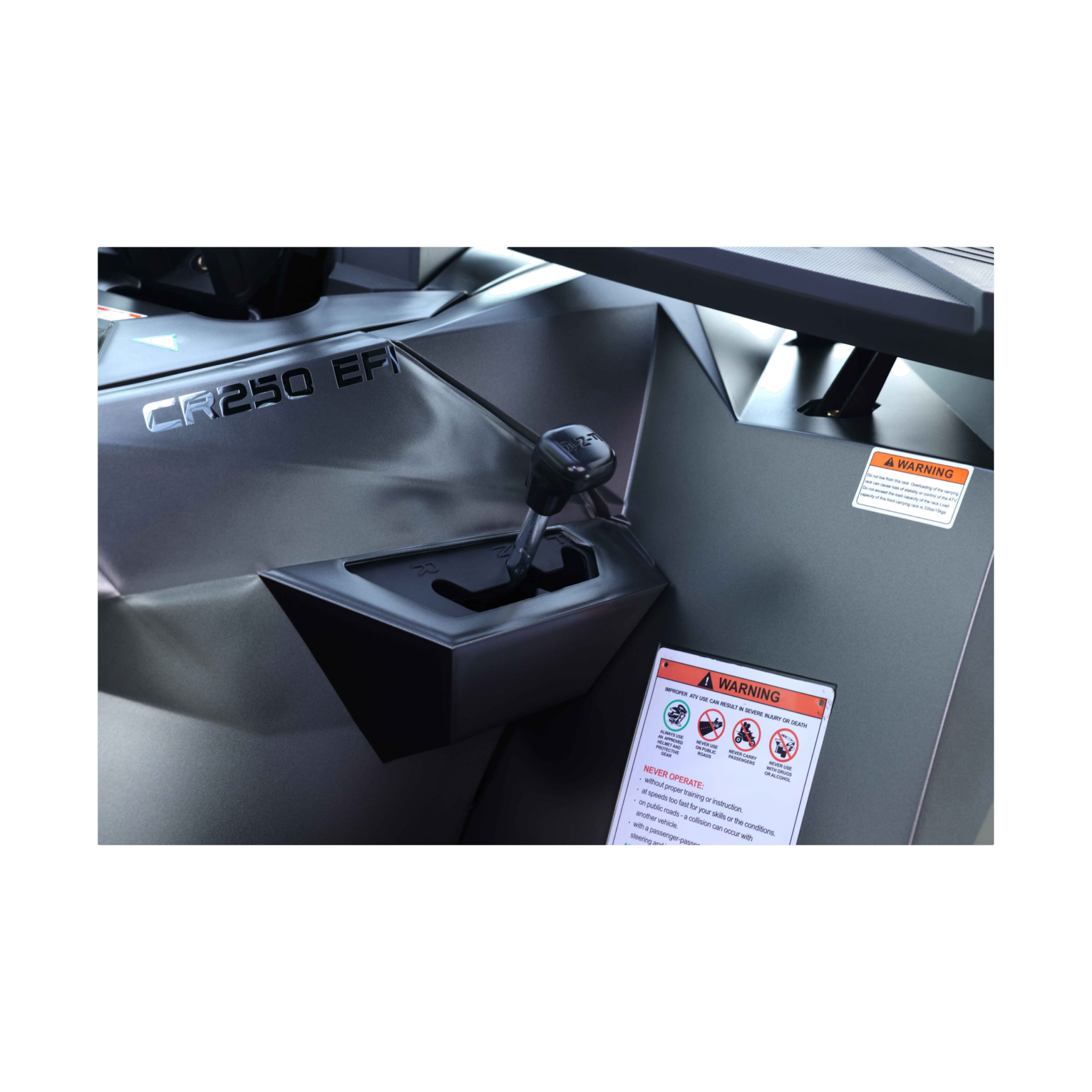

(CVT) Transmission
| Specification : | |
| Engine: | 224.2CC, CVT, F+N+R, Four-stroke, single cylinder, SOHC |
| Battery | 12V12AH |

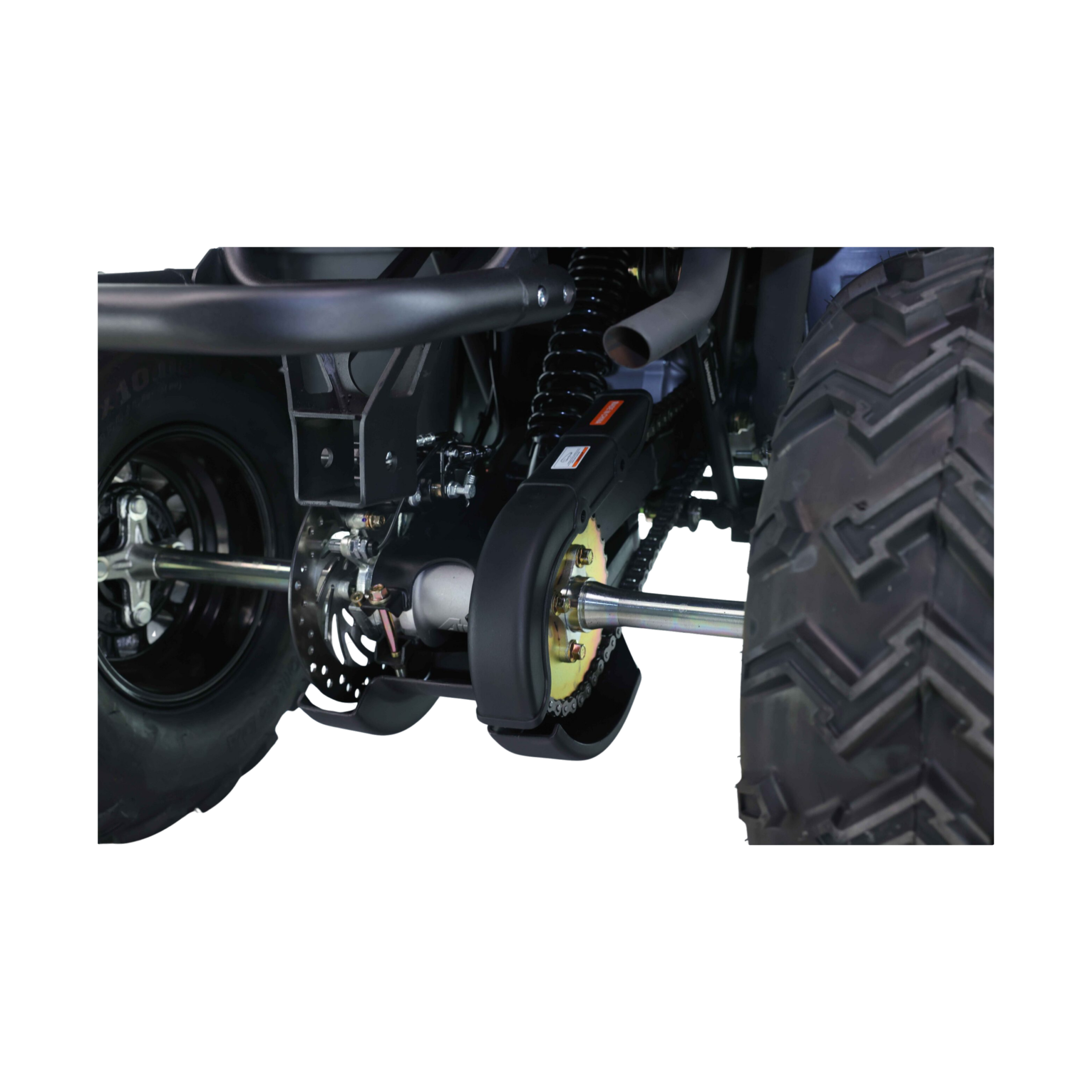

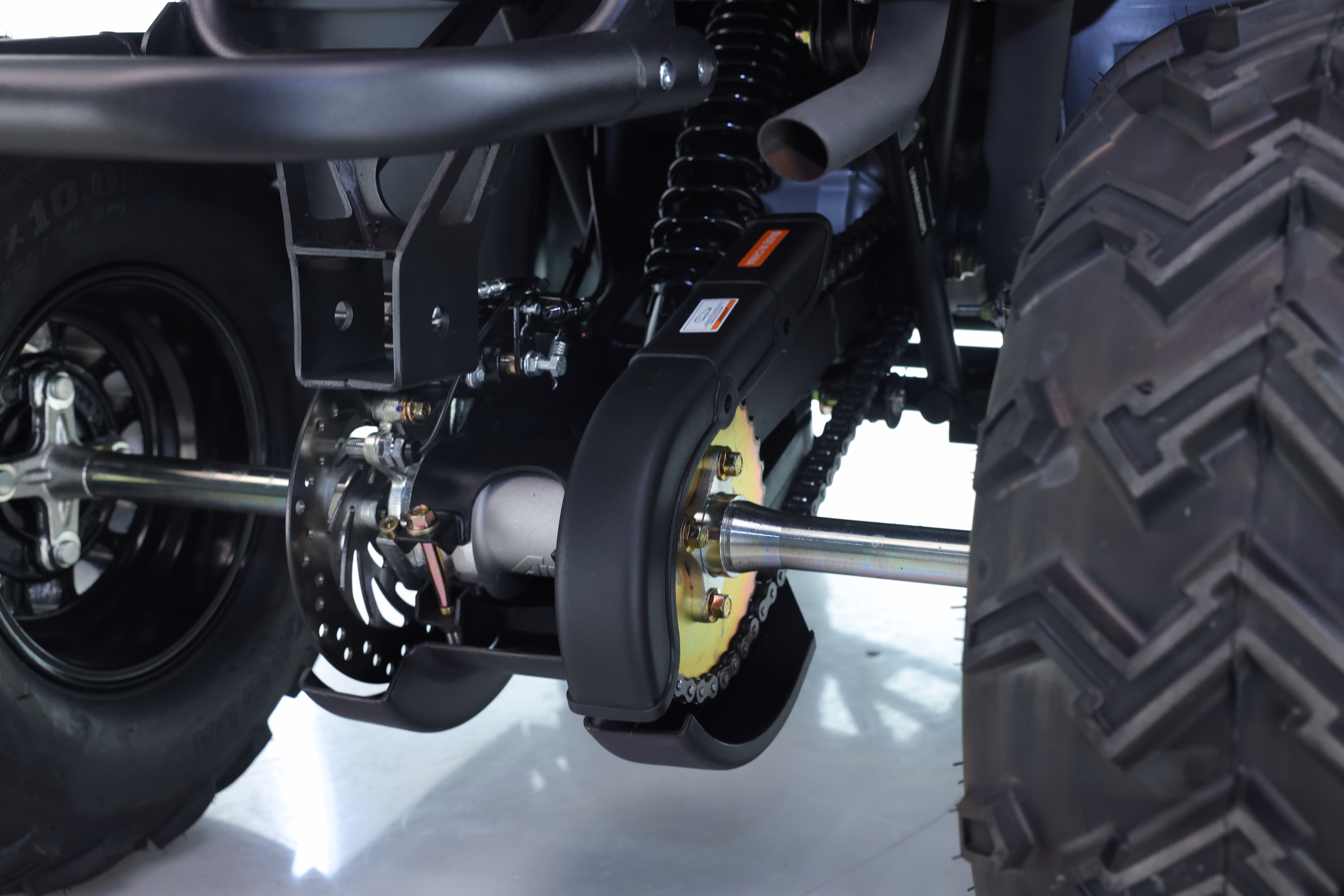

| Drive: | Chain drive, rear drive |
| Cooling: | Oil cooling |
| Ignition: | Electric start |
| Max Power: | 10.8kW/7500rpm |
| Max Torque: | 15.5Nm/6100rpm |
| Max Speed: | 70km/h |

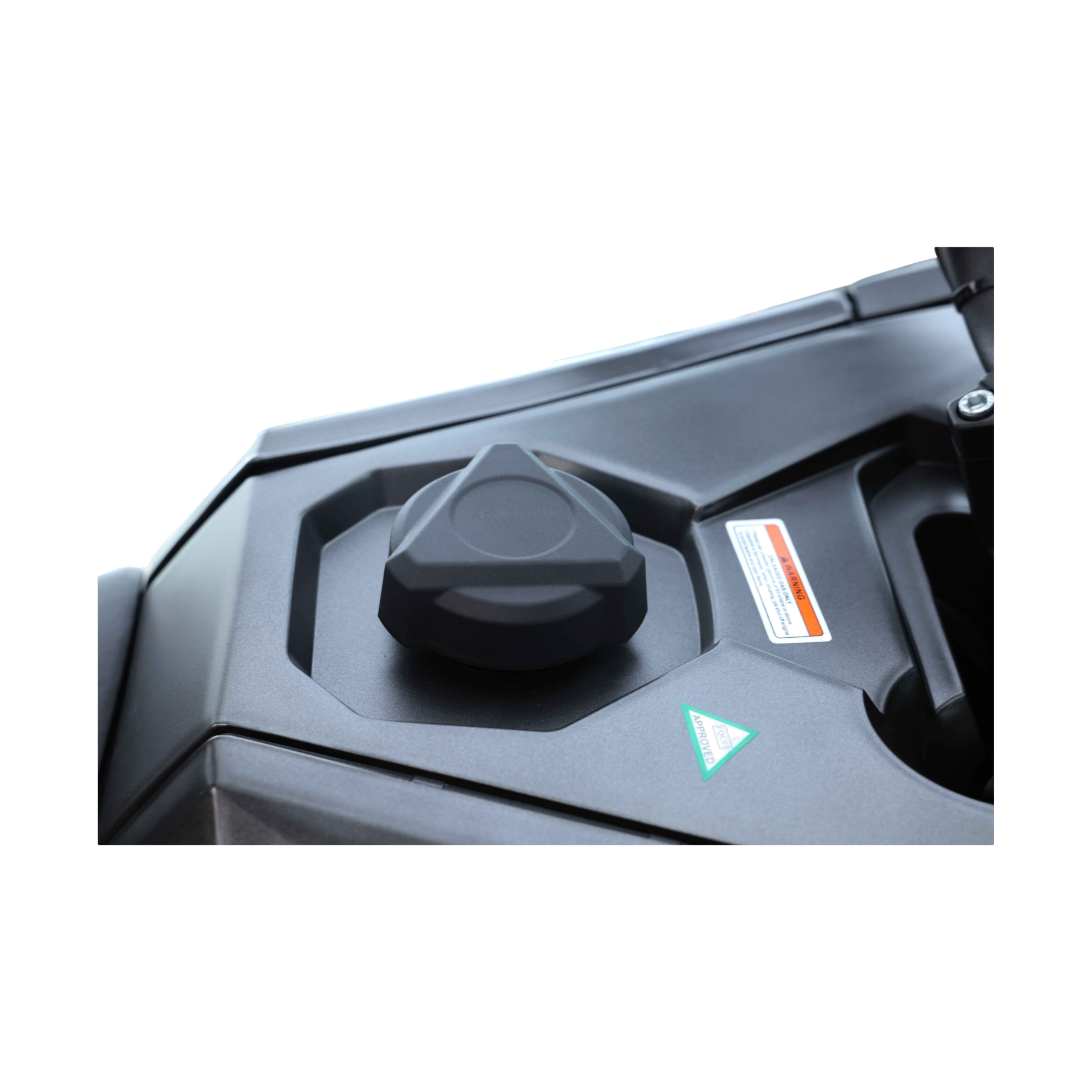

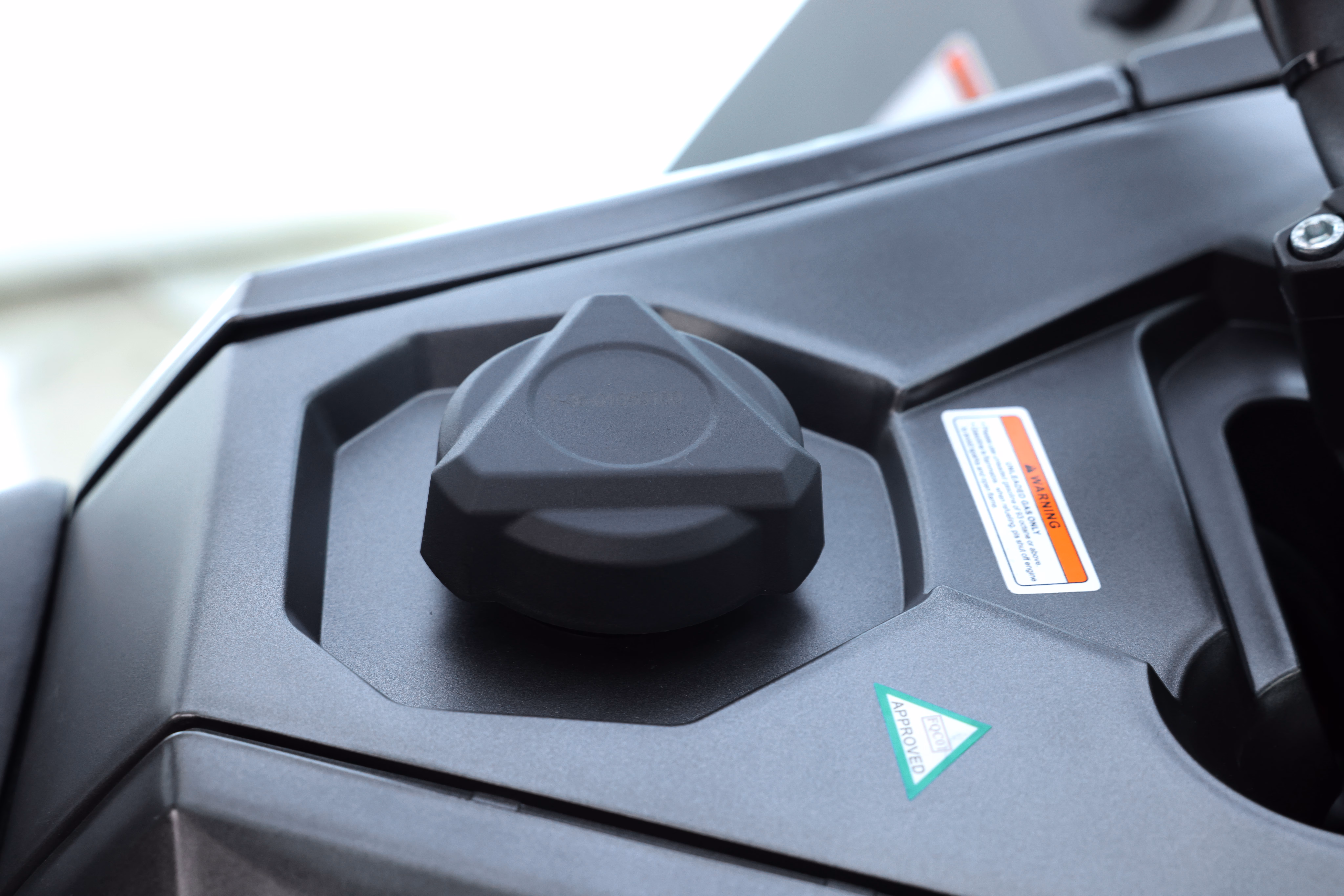

| Tank capacity: | Steel, 14L, with oil measurement sensor |

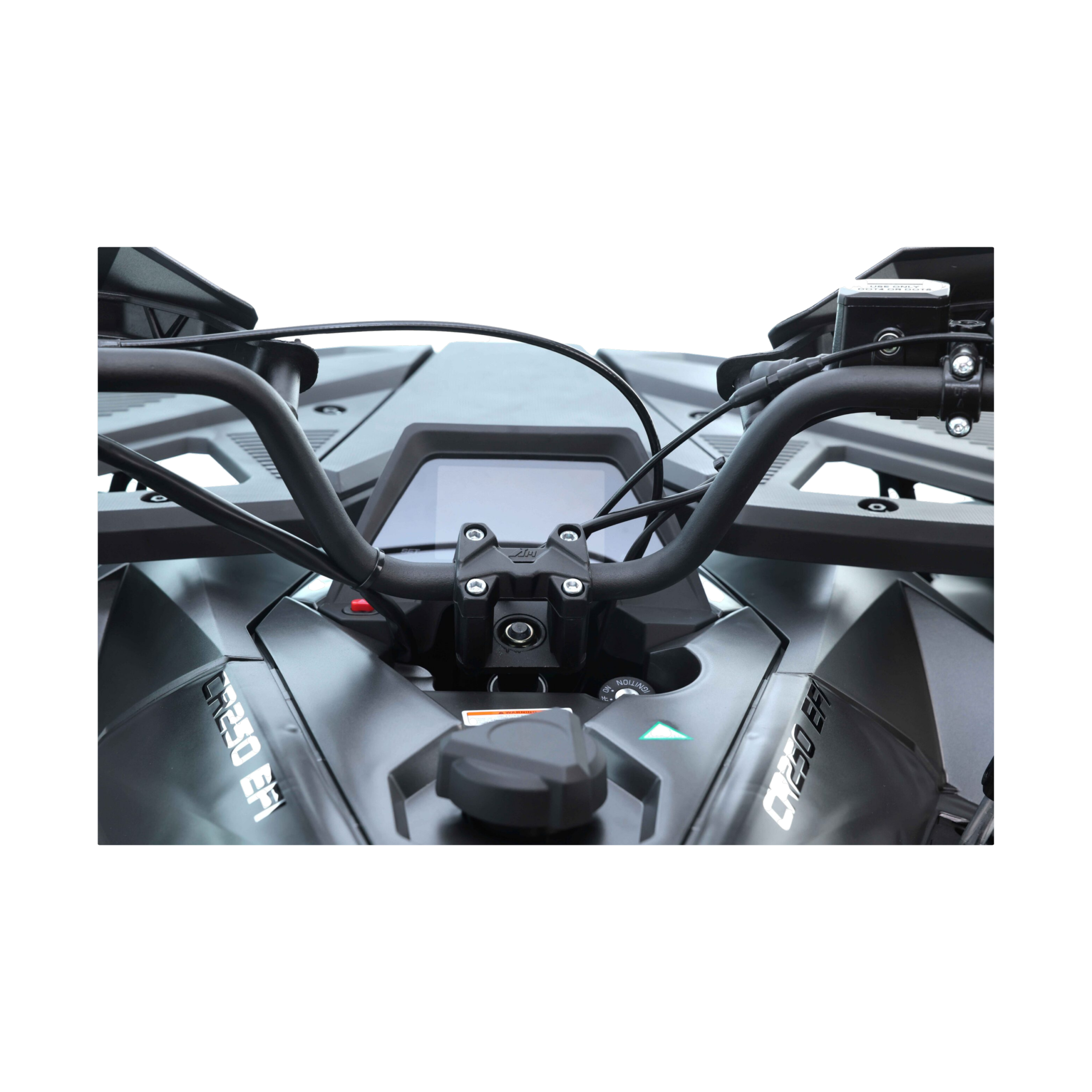

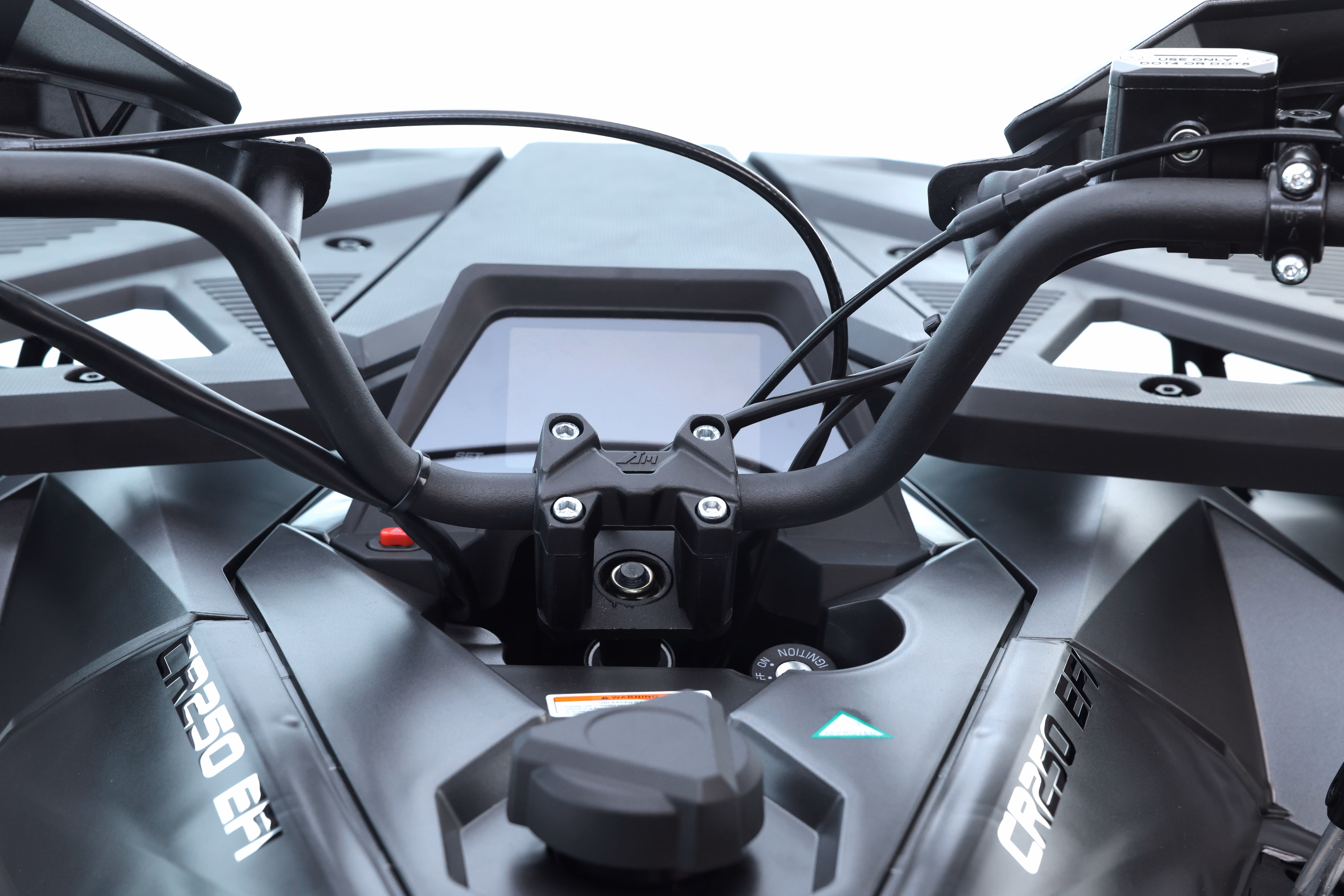

| Speed meter: | HD LCD screen |

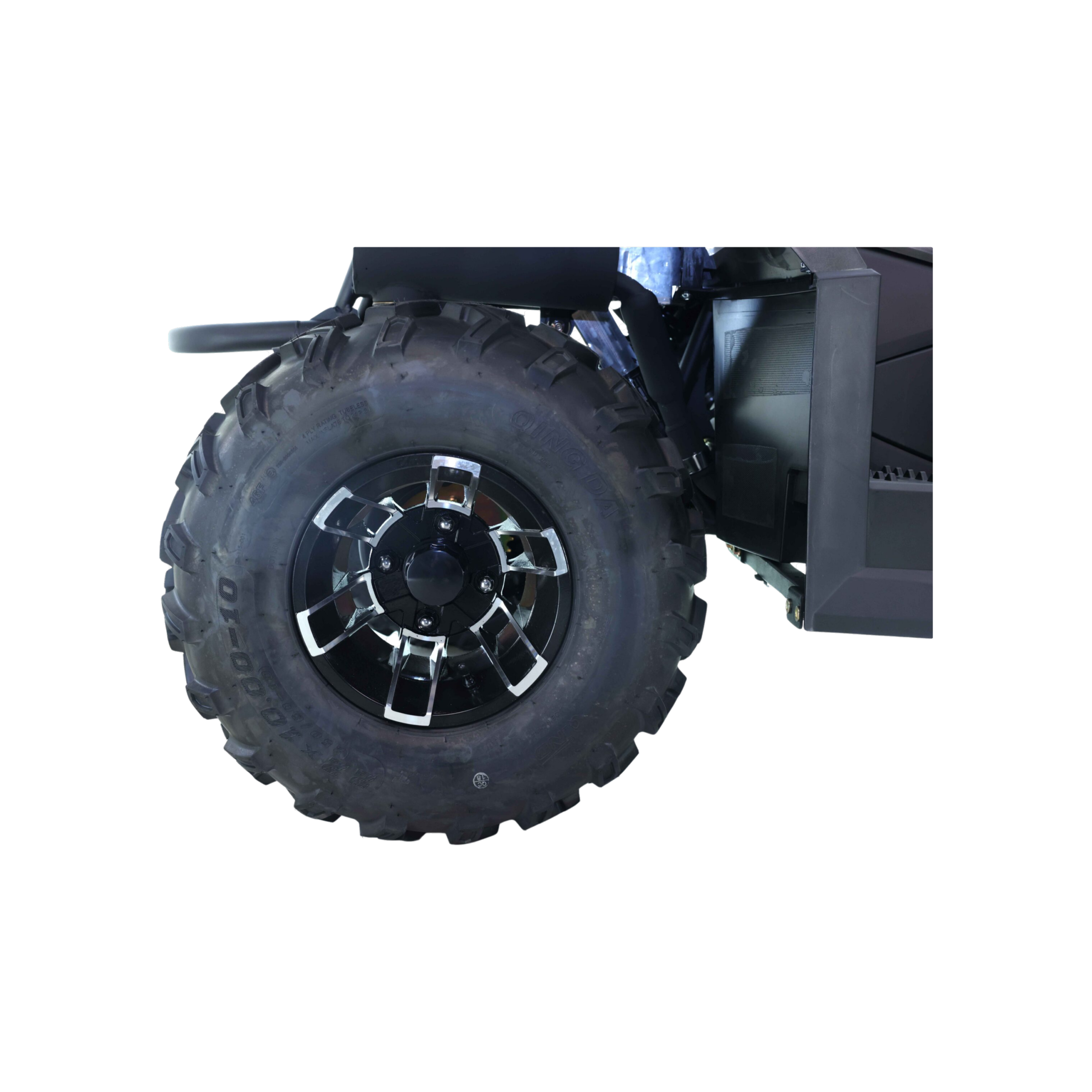

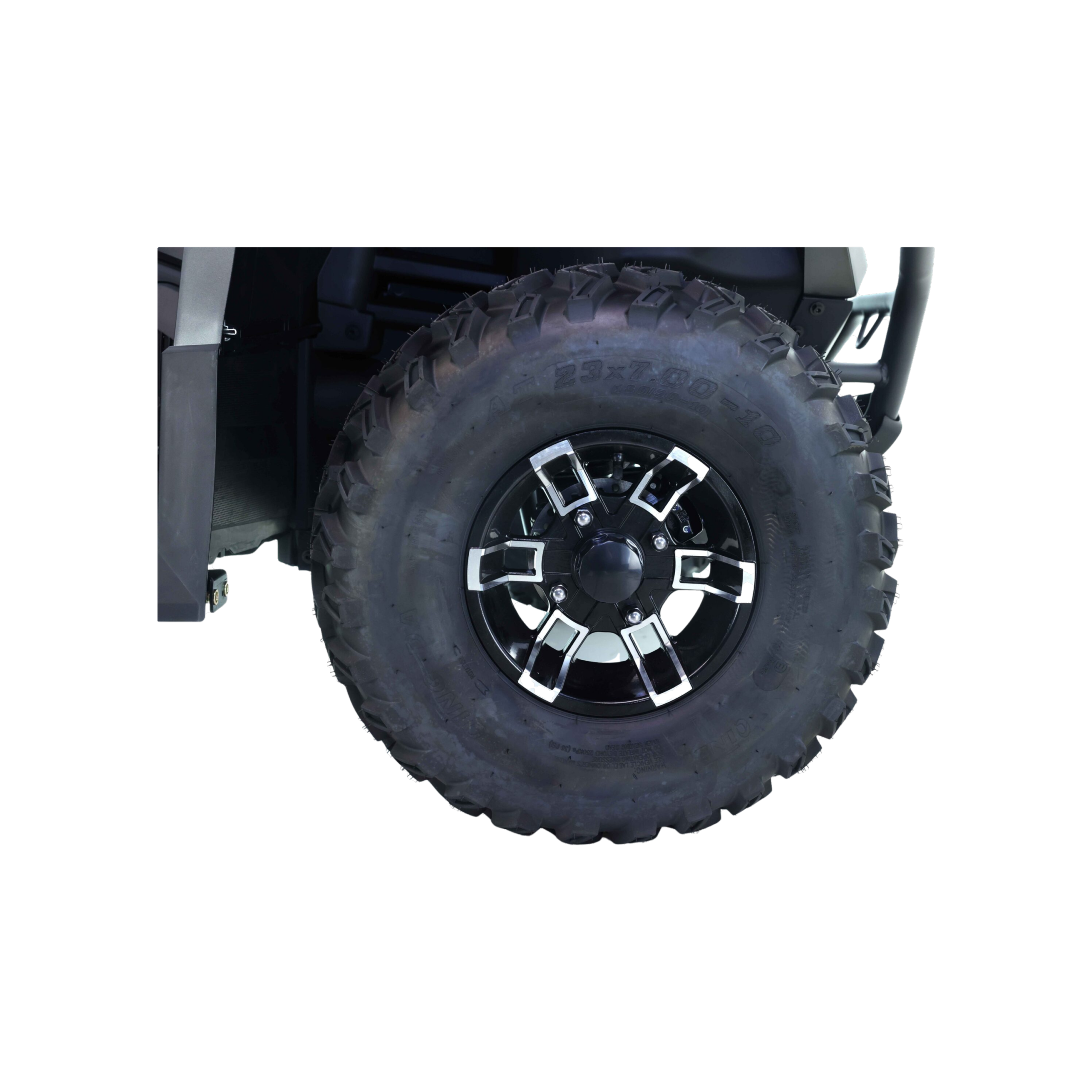

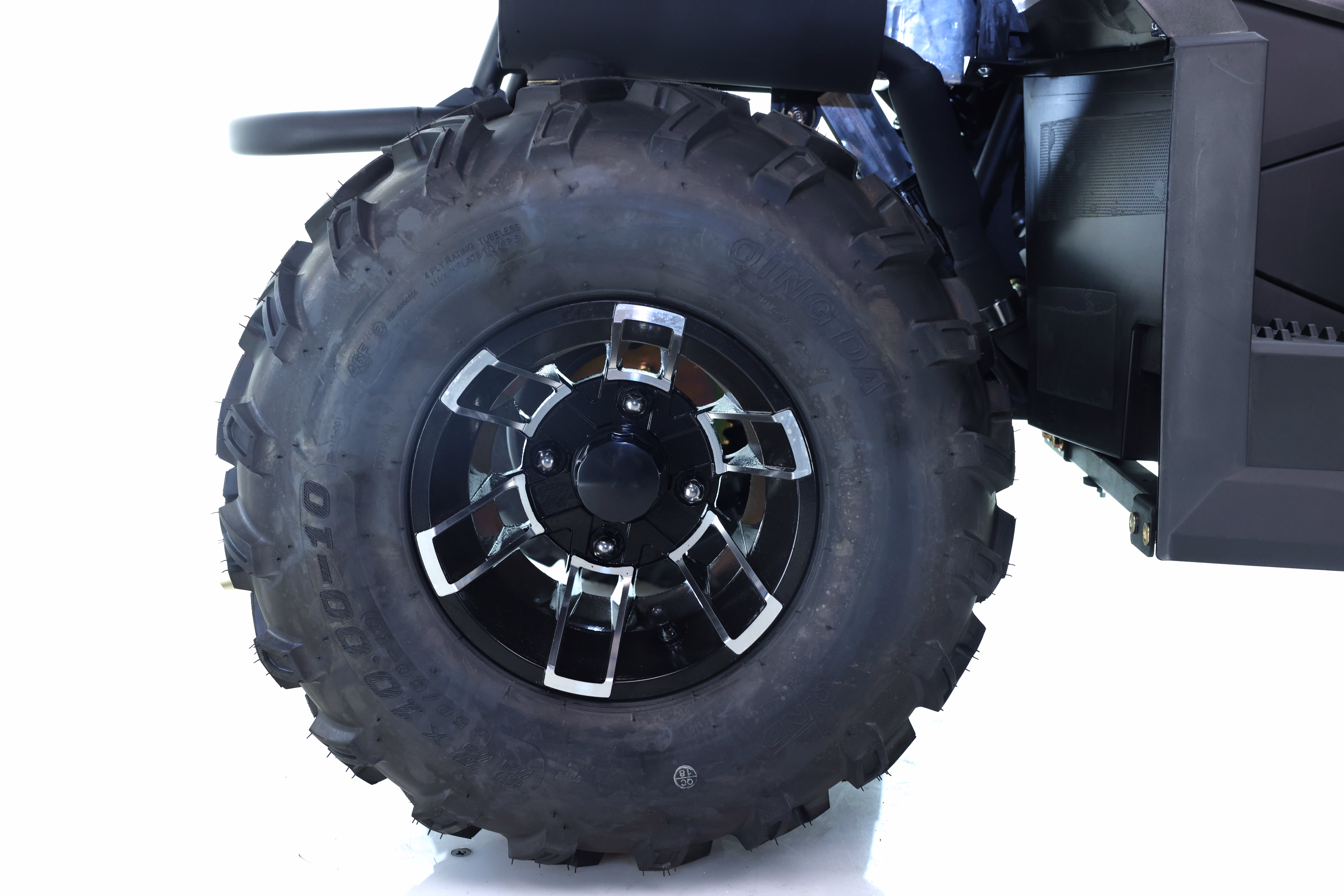

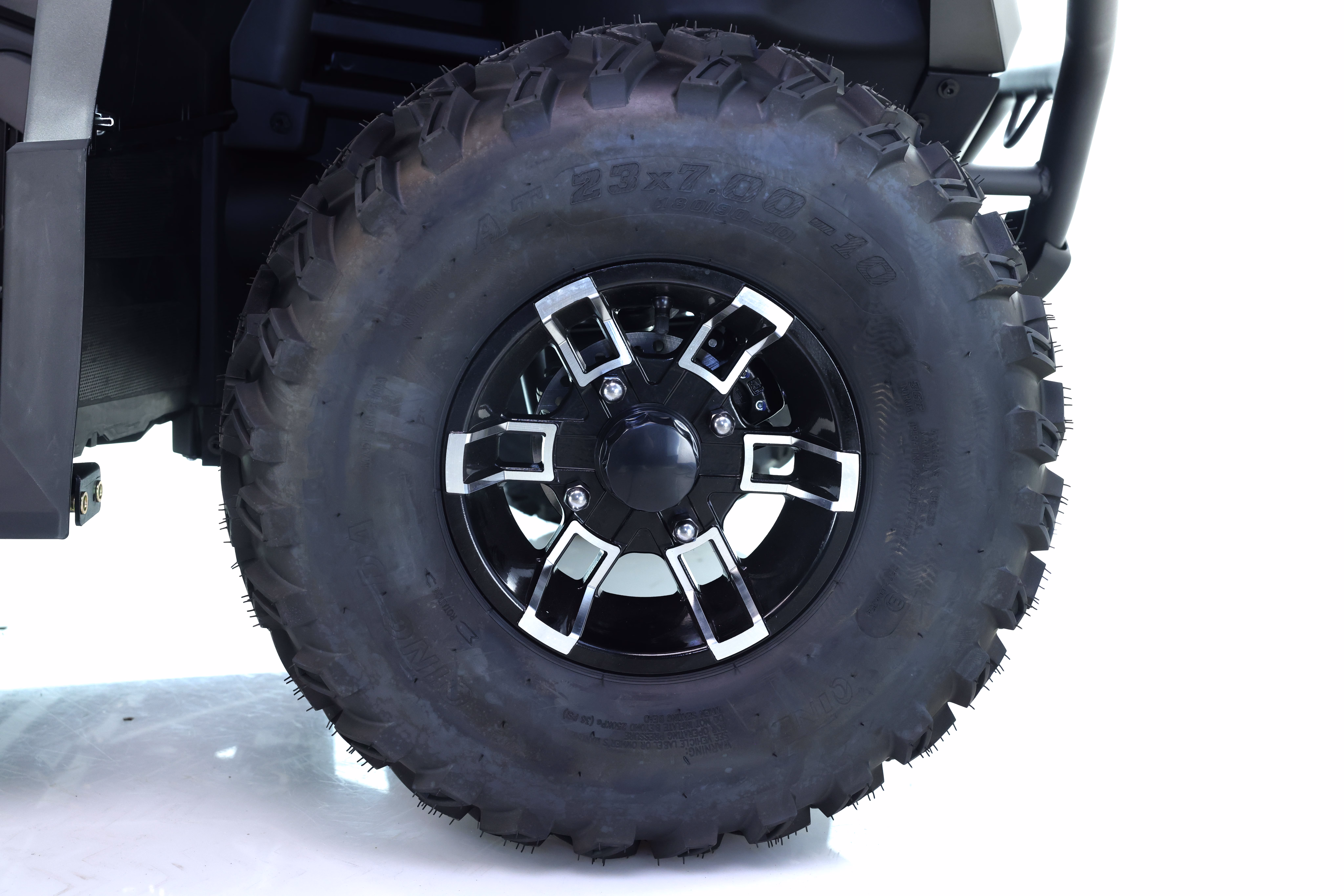

| F & R Tyre : | “W” pattern , Front tyre 23×7-10, Aluminium alloy “W” pattern, Rear tyre 22×10-10, Aluminium alloy |

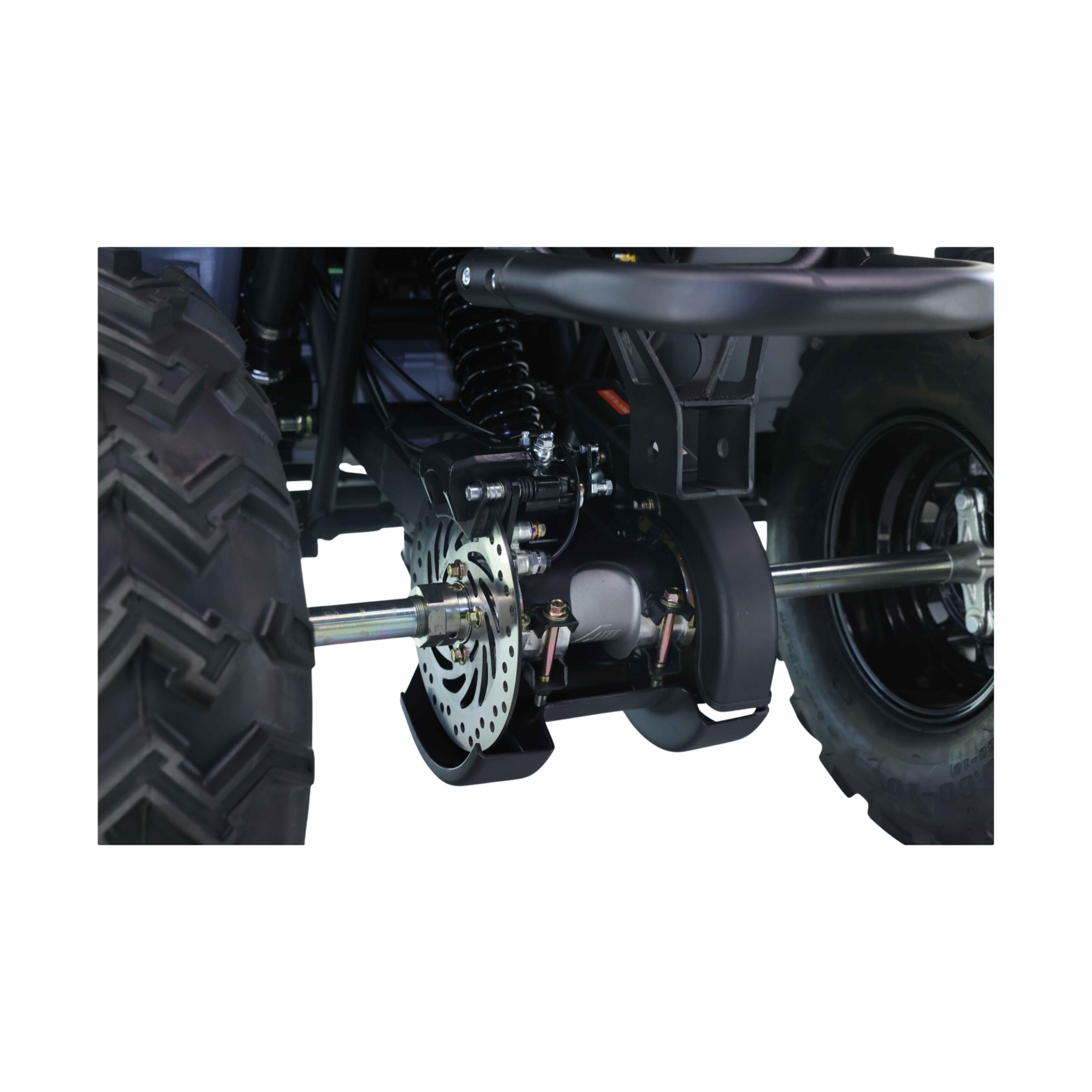

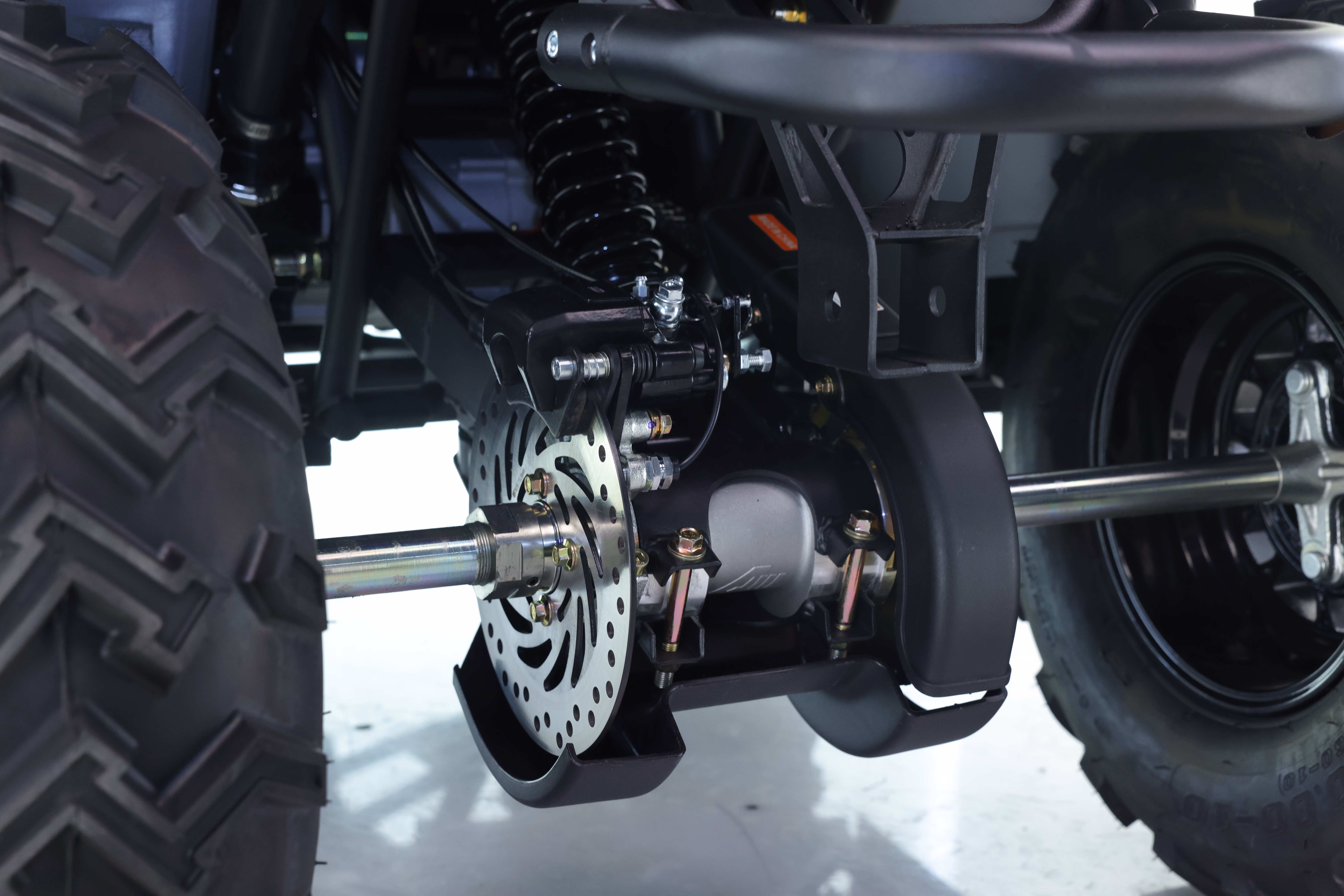

| Brake: | F hydraulic disc brake by hand, R hydraulic disc brake by foot |

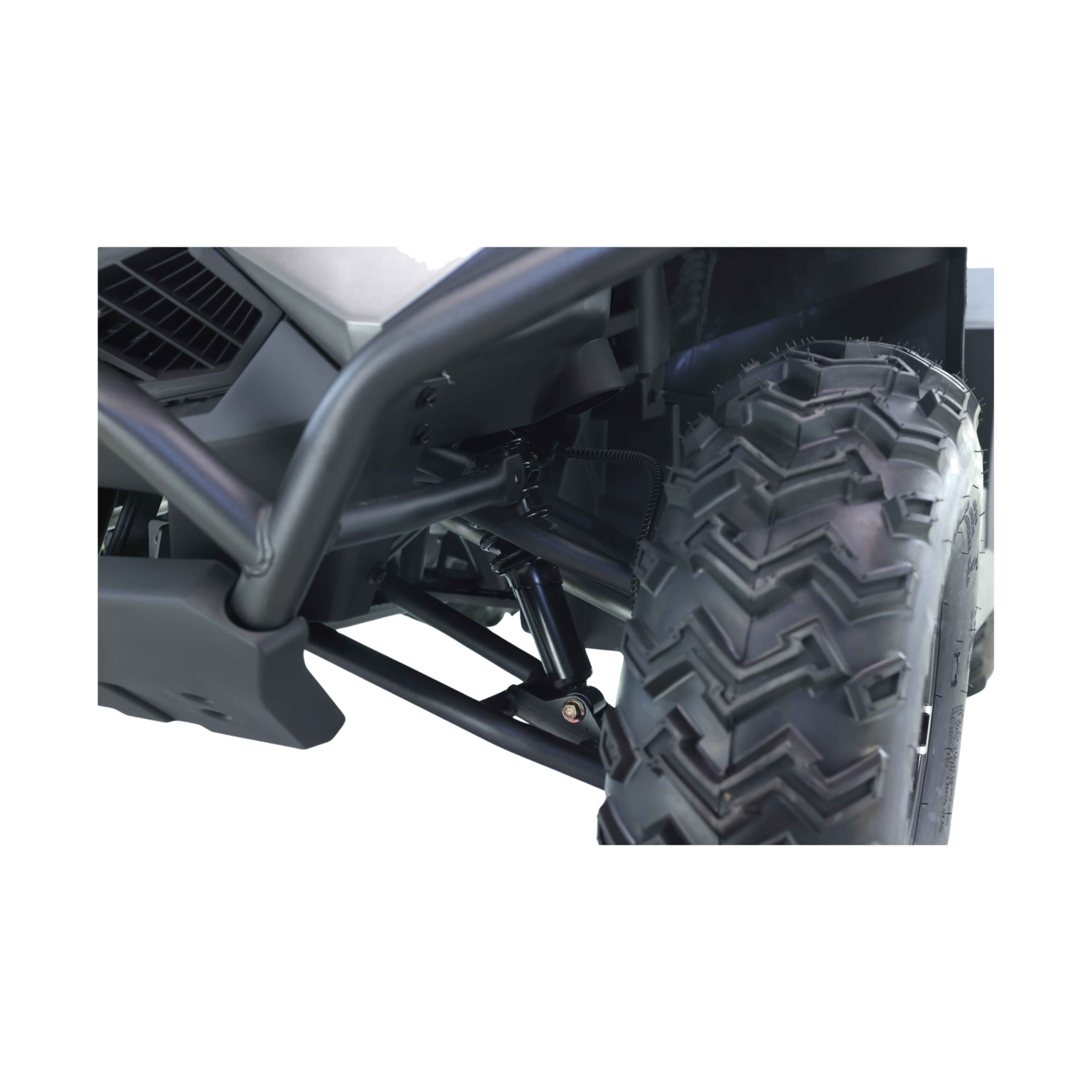

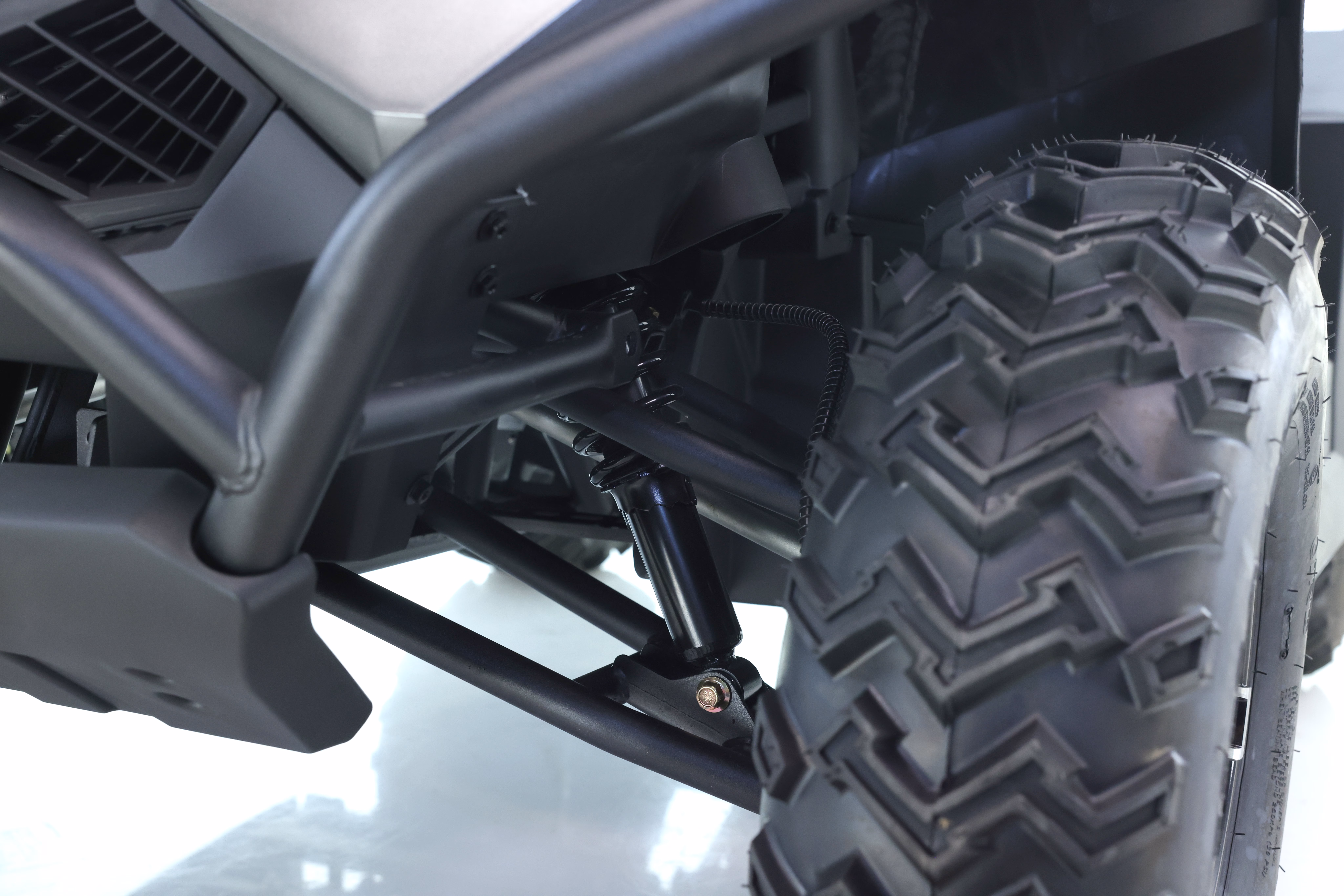

| Suspension | Front: Double wishbone independent suspension Rear : Flat fork non-independent suspension |

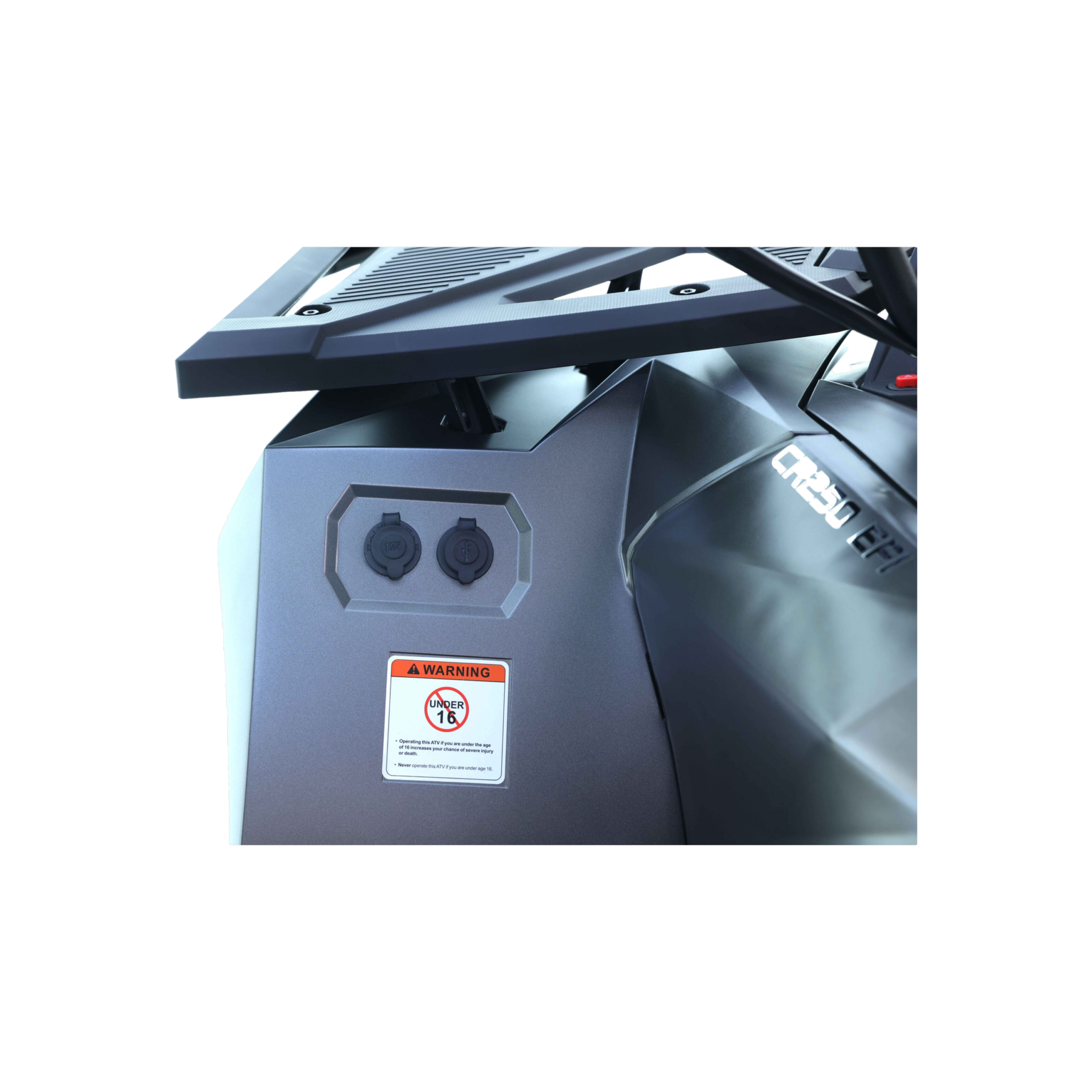

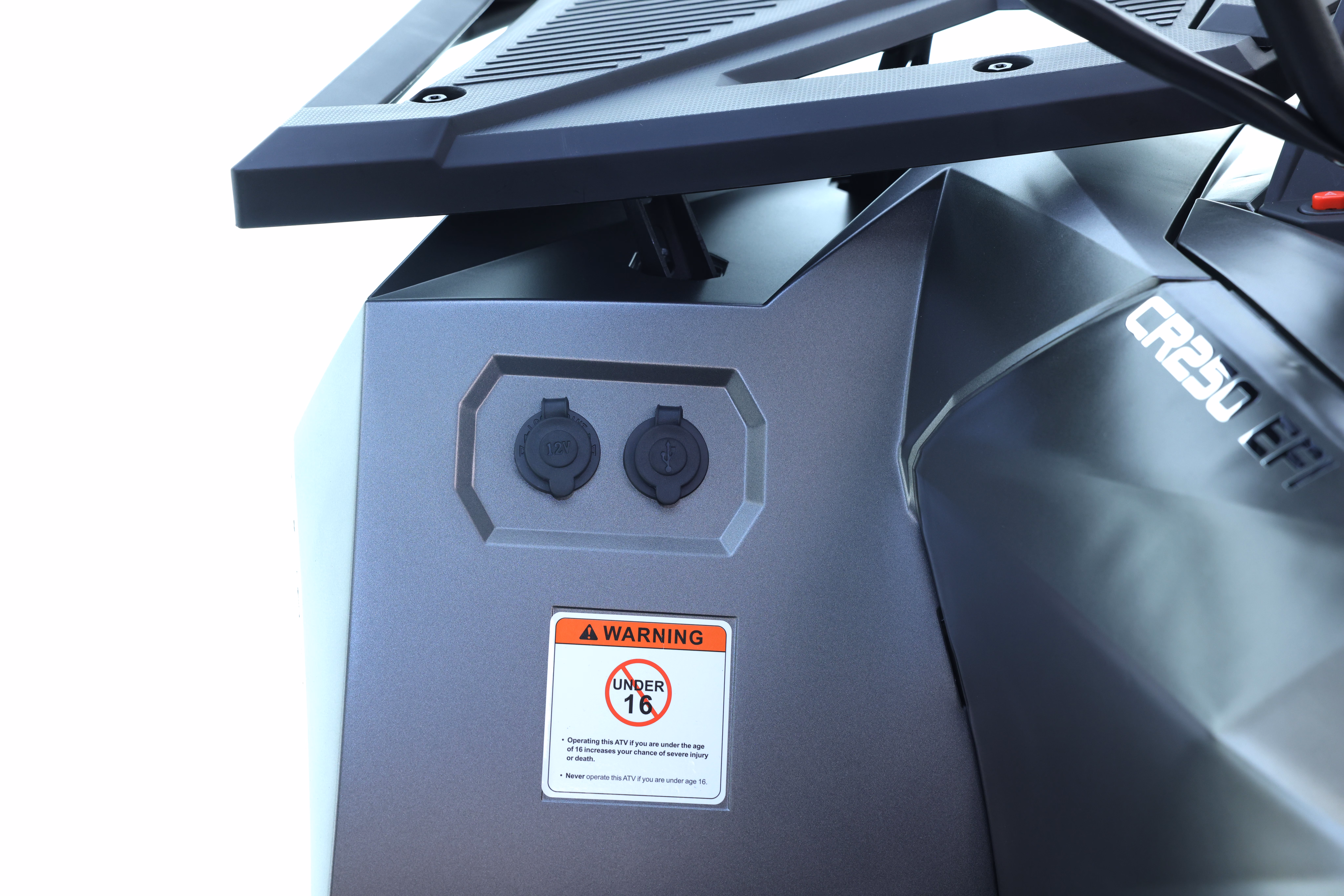

| USB port: | With |

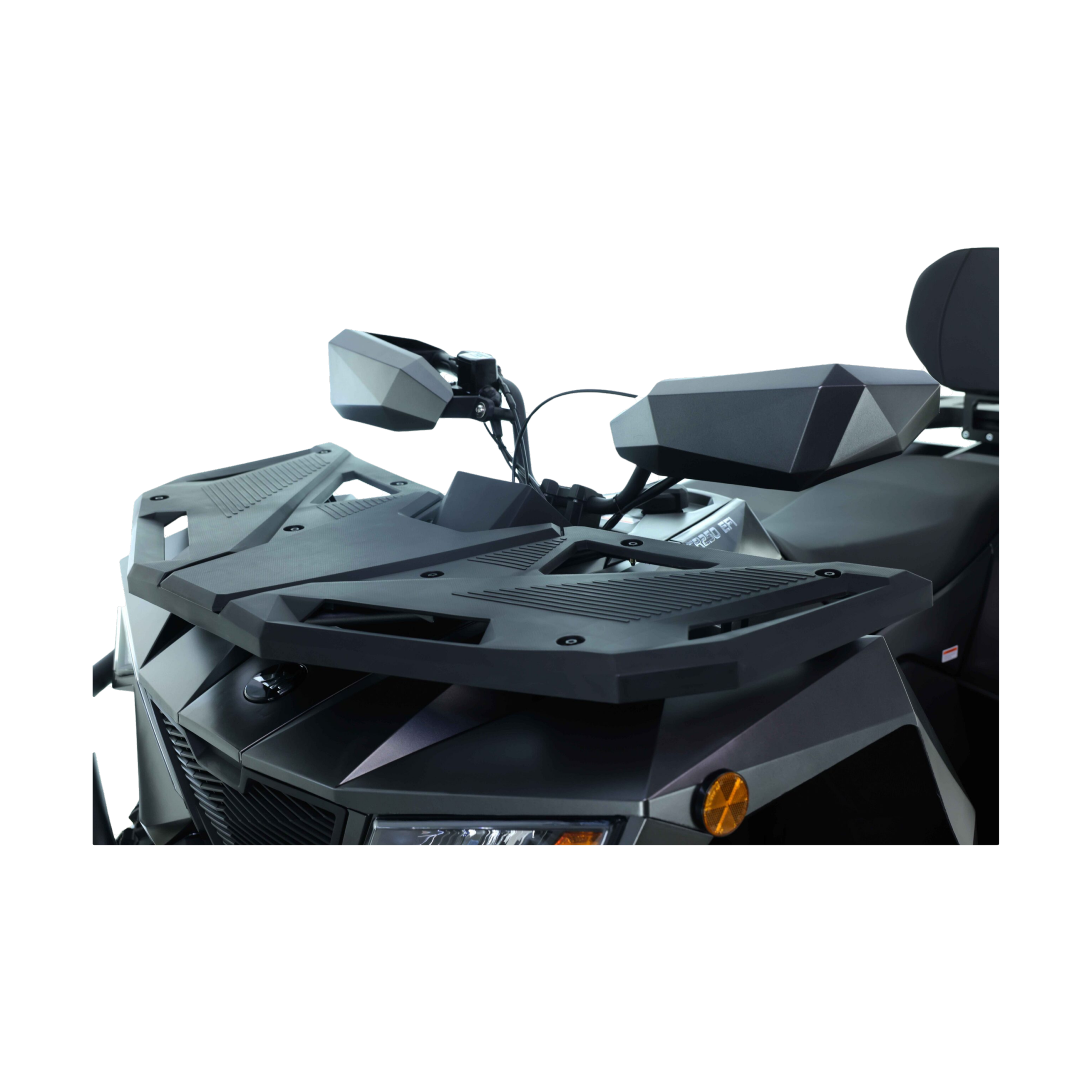

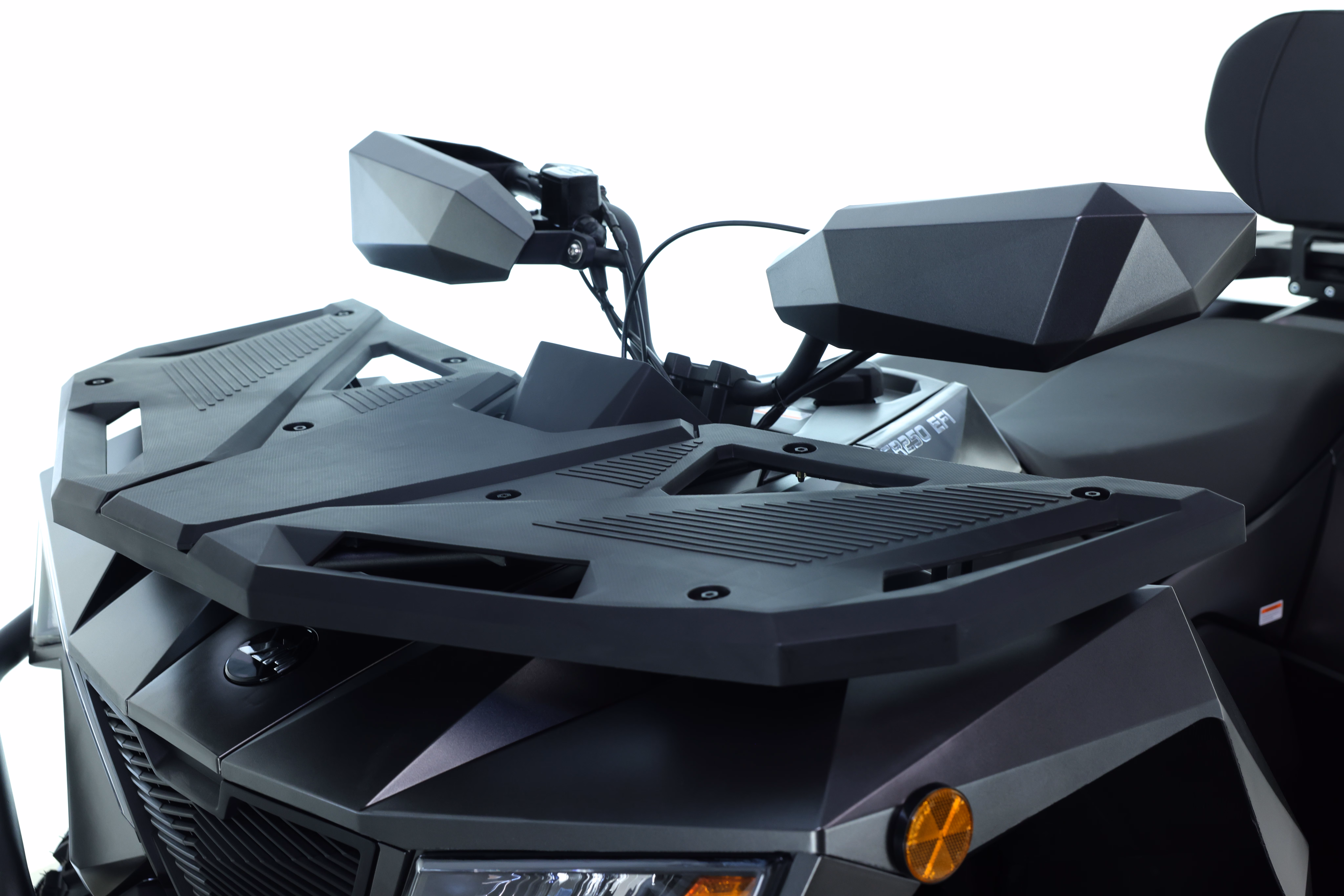

| Rear & Front Rack: | With |

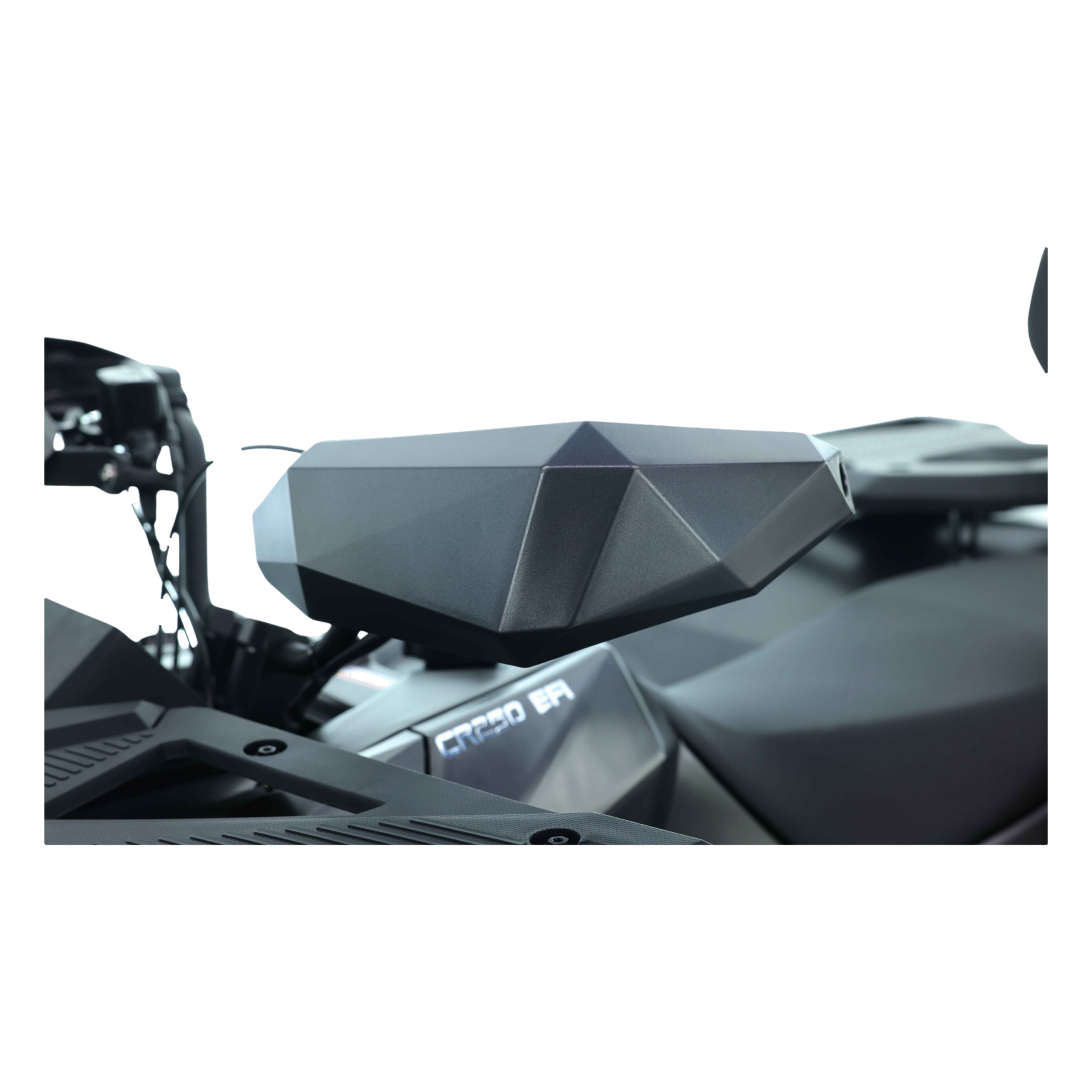

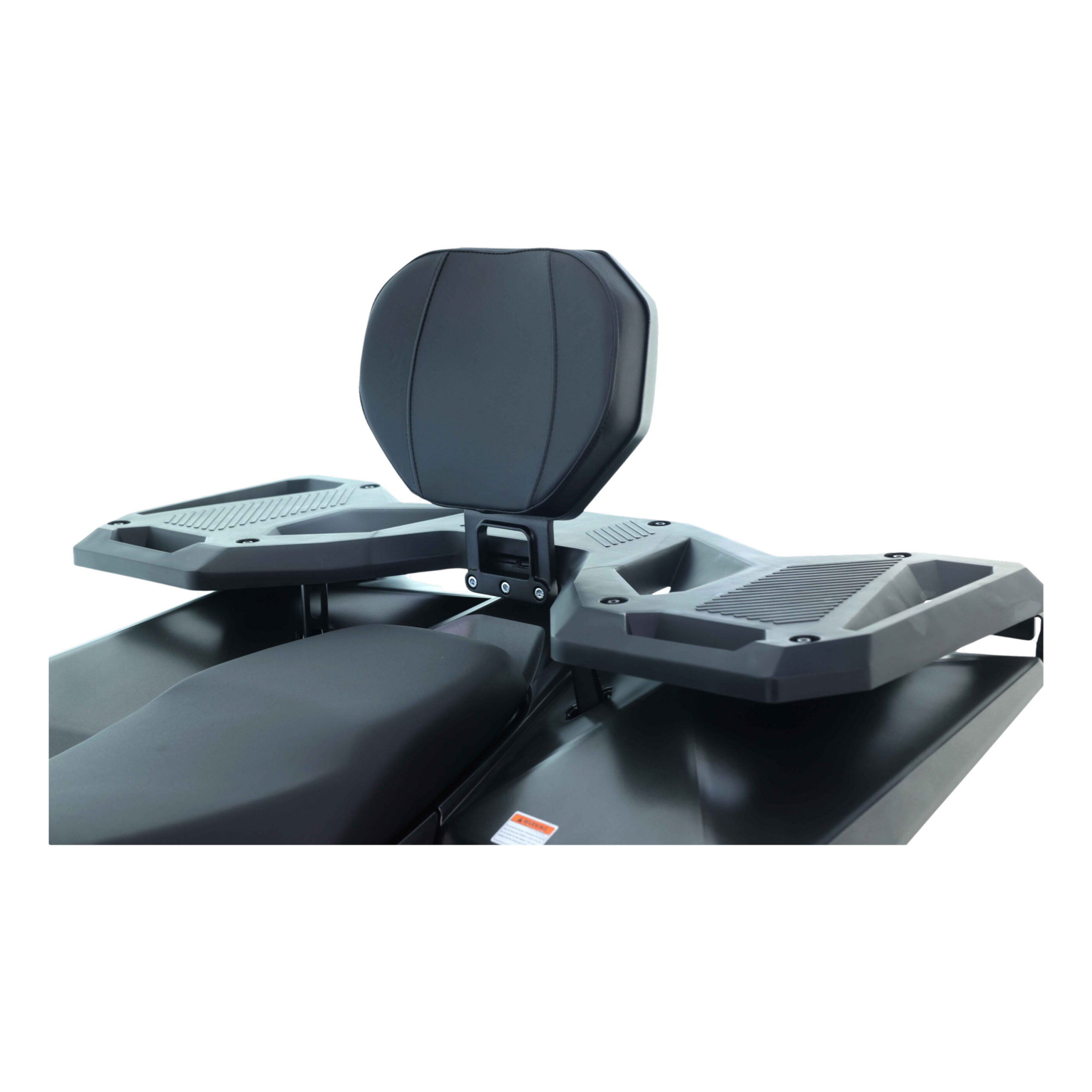

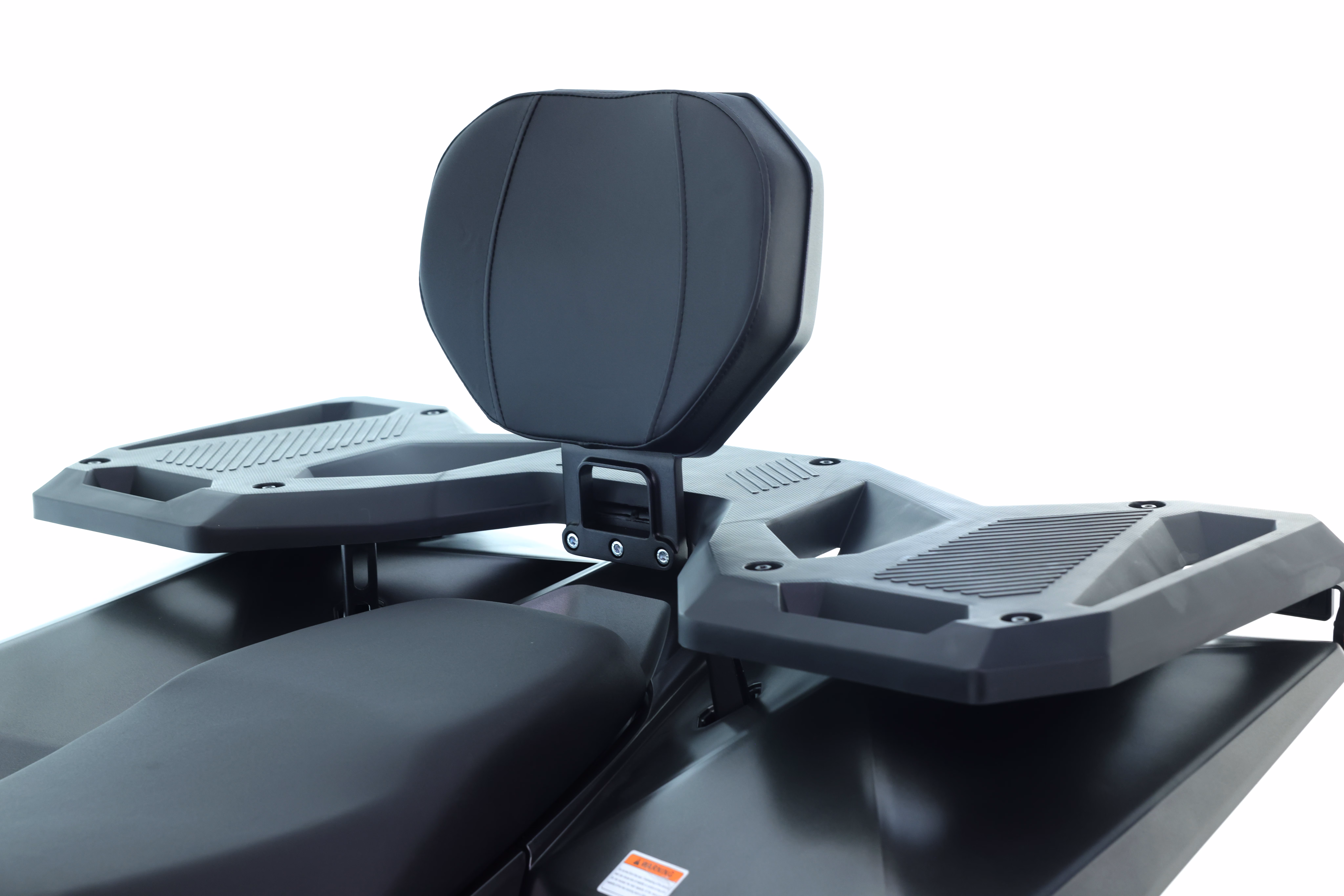

| Rear backrest | With |

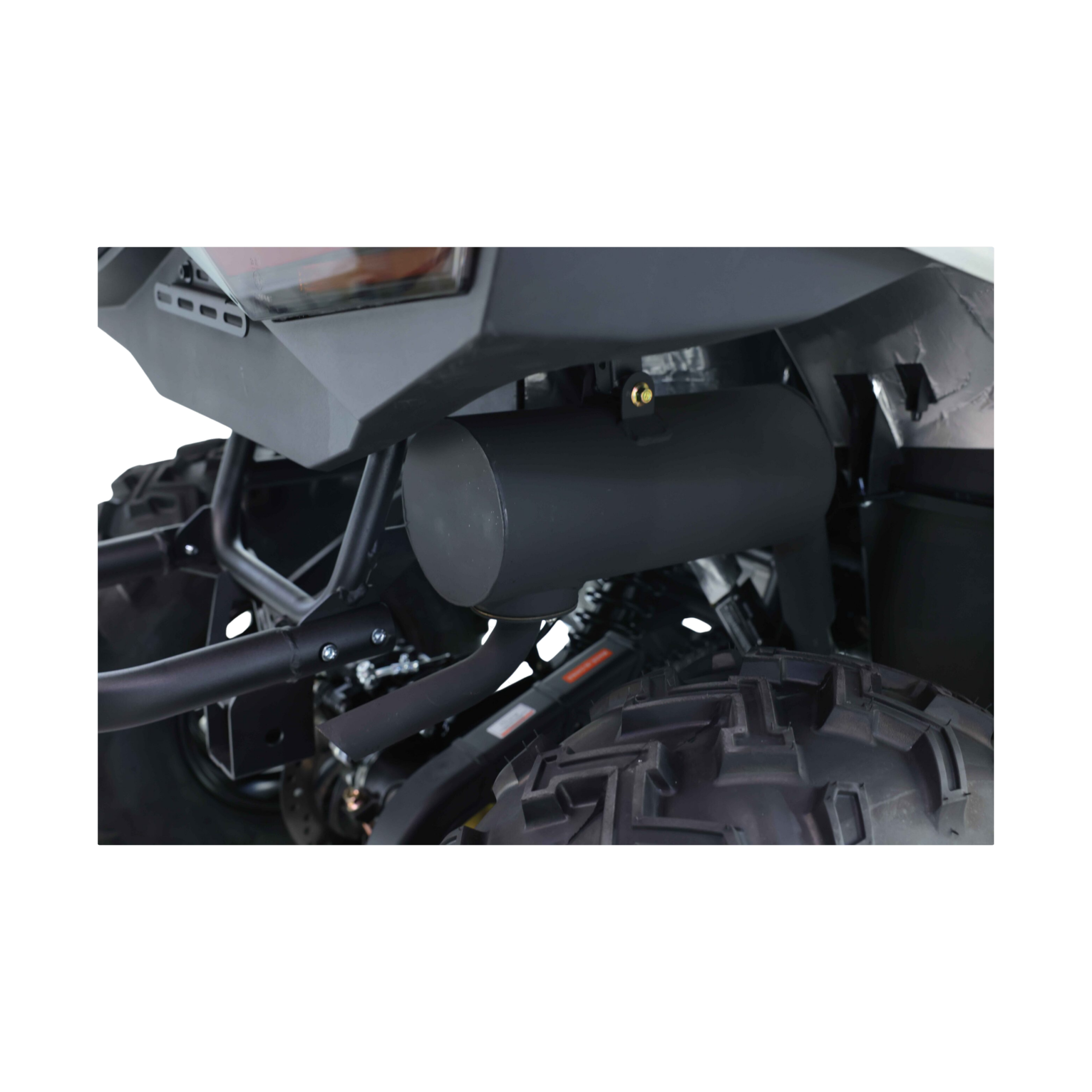

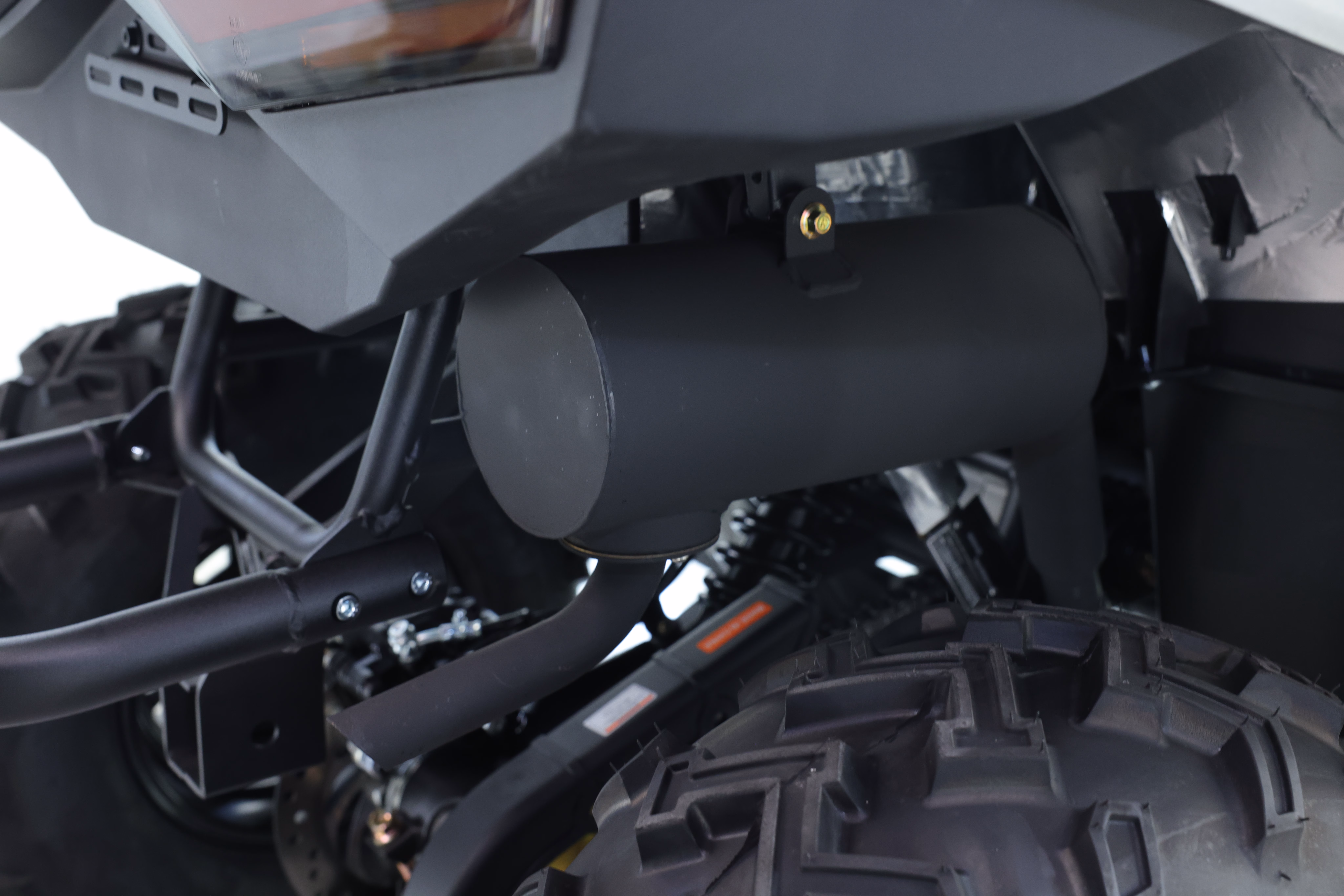

| Muffler: | Steel |
| Horn: | With |

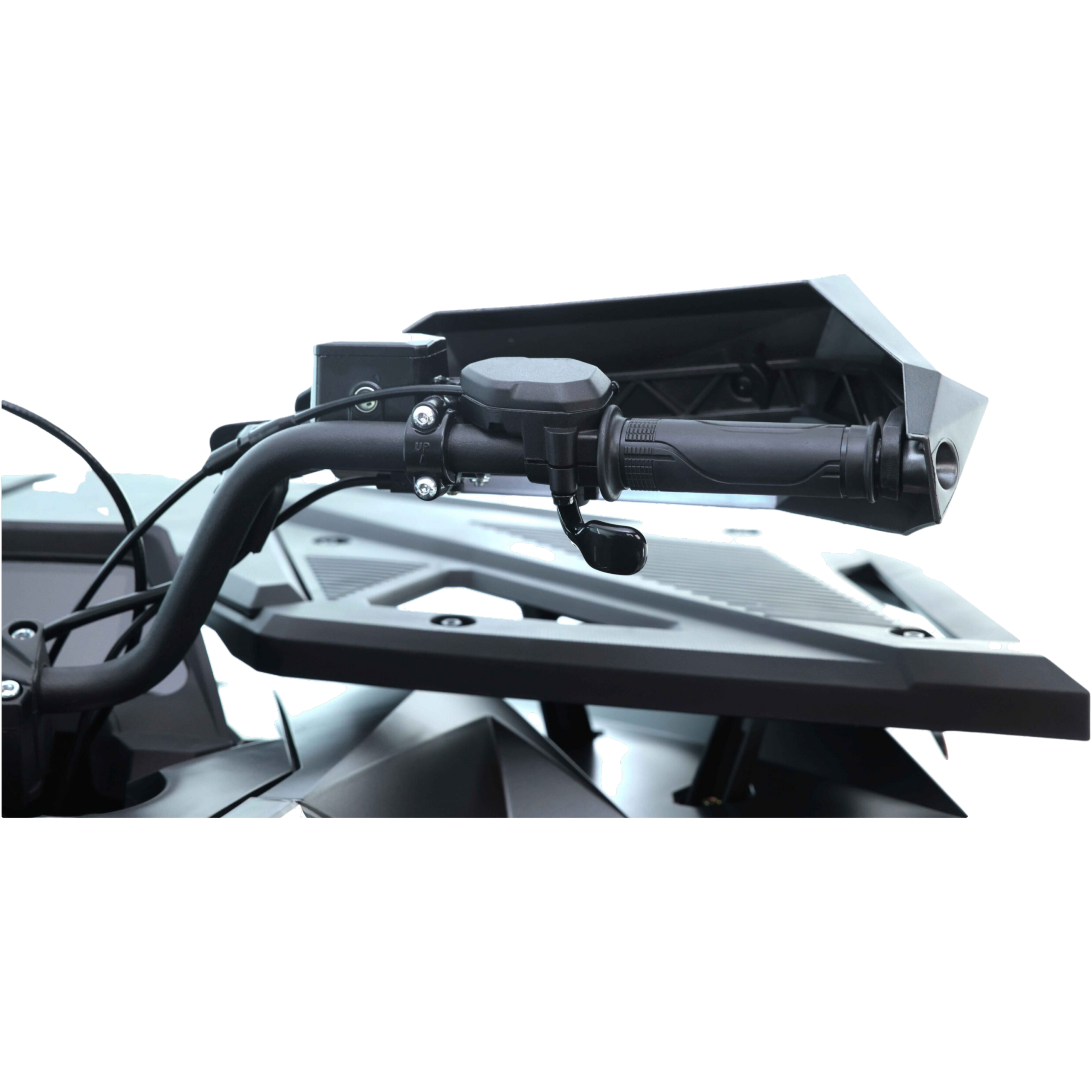

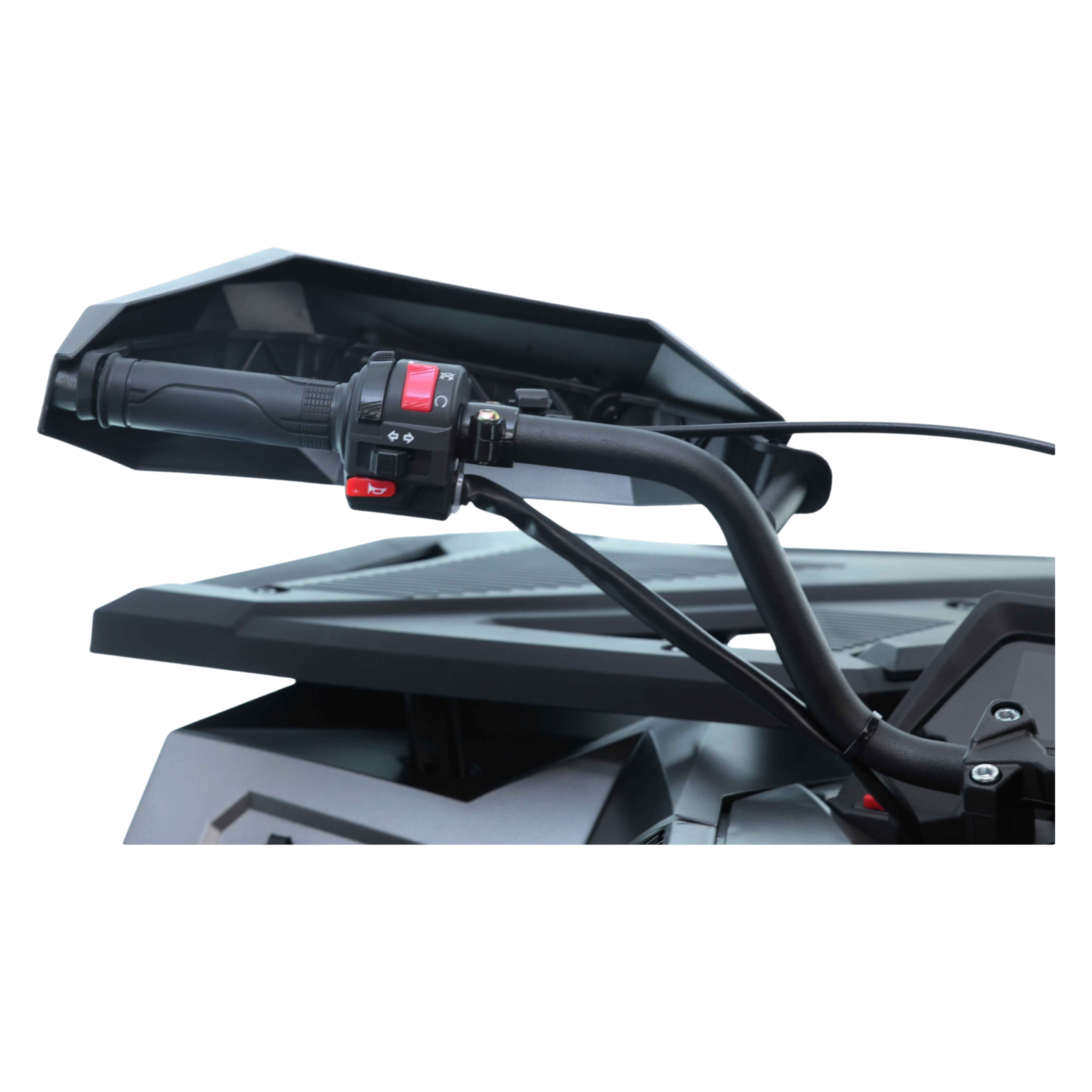

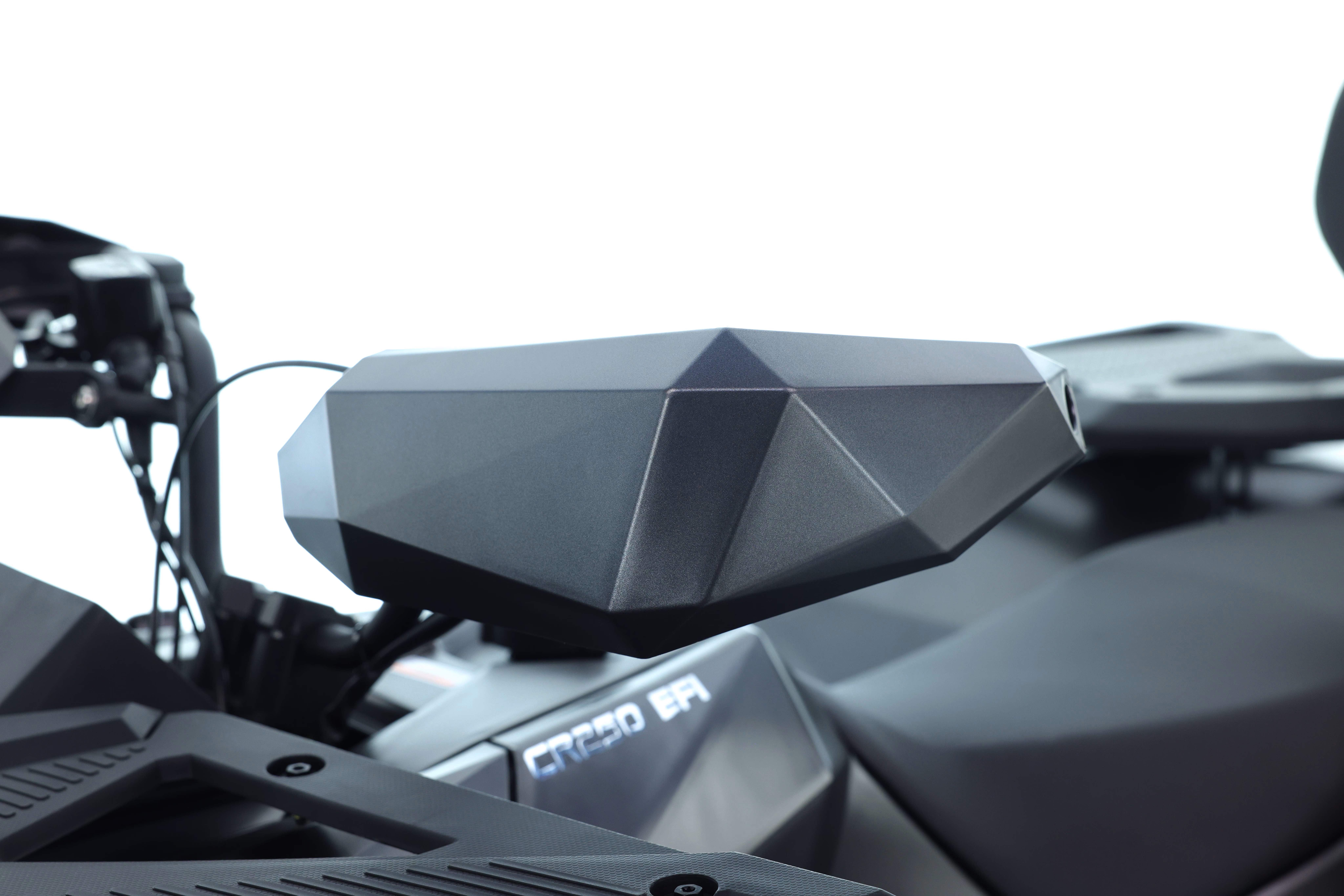

| Handlebar protector: | With |

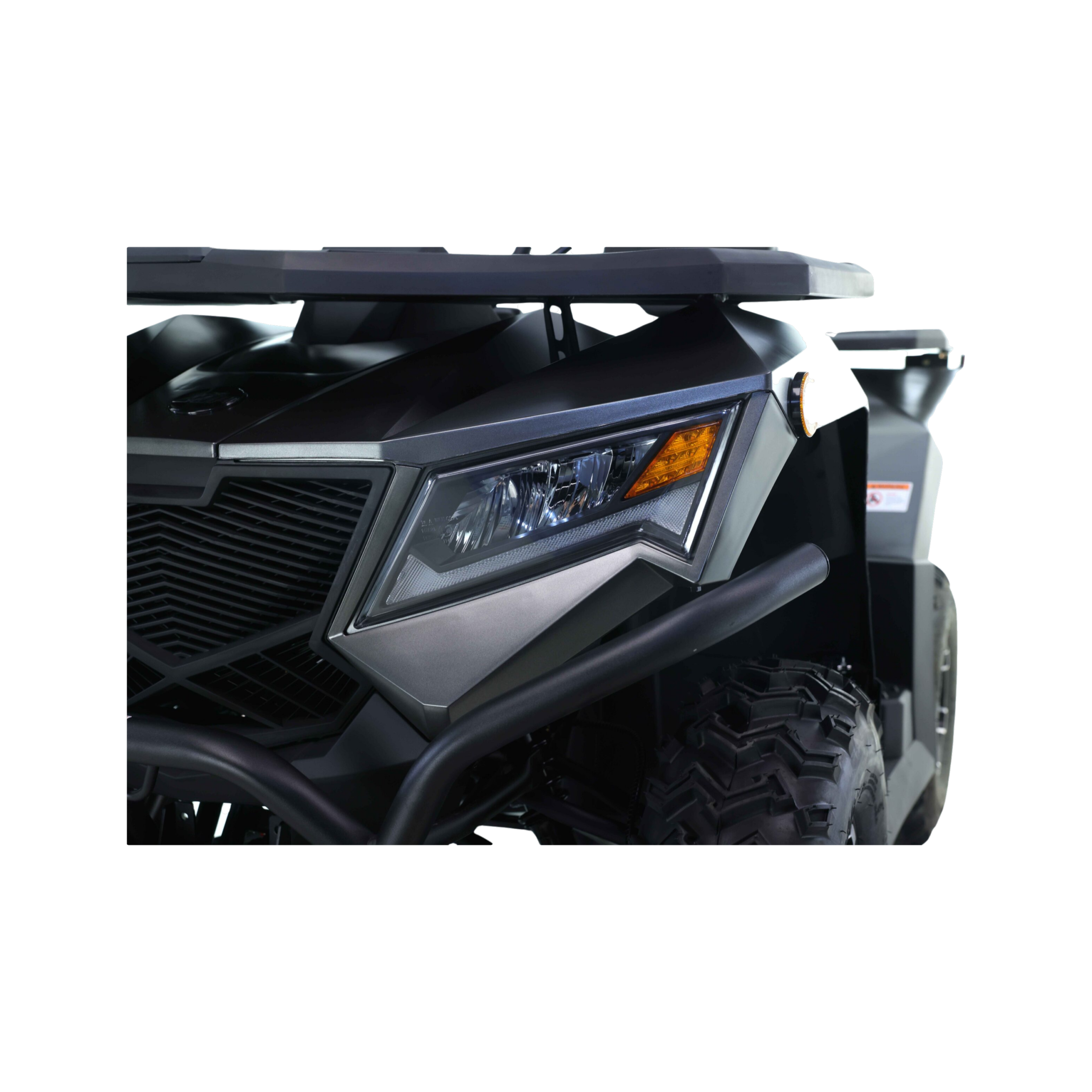

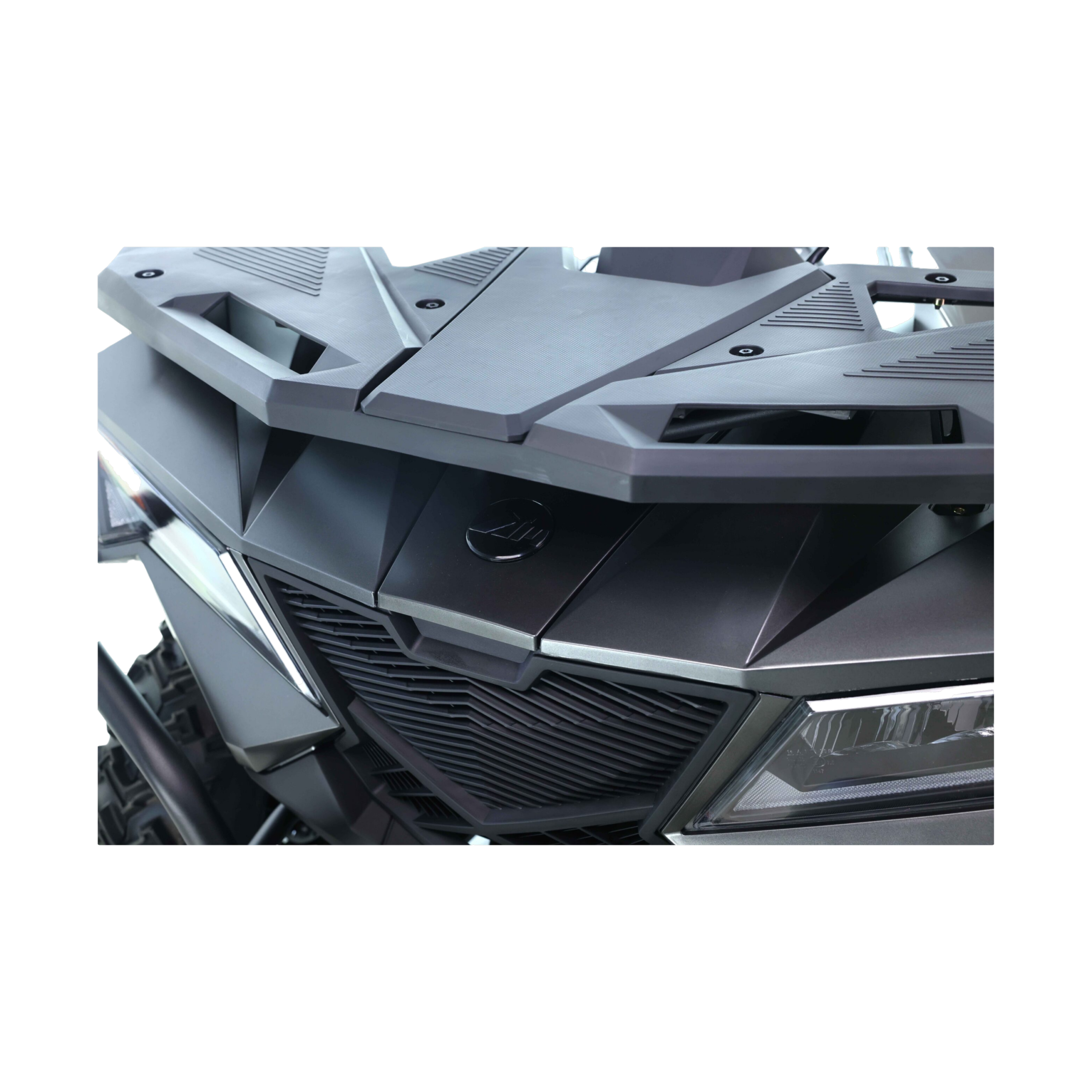

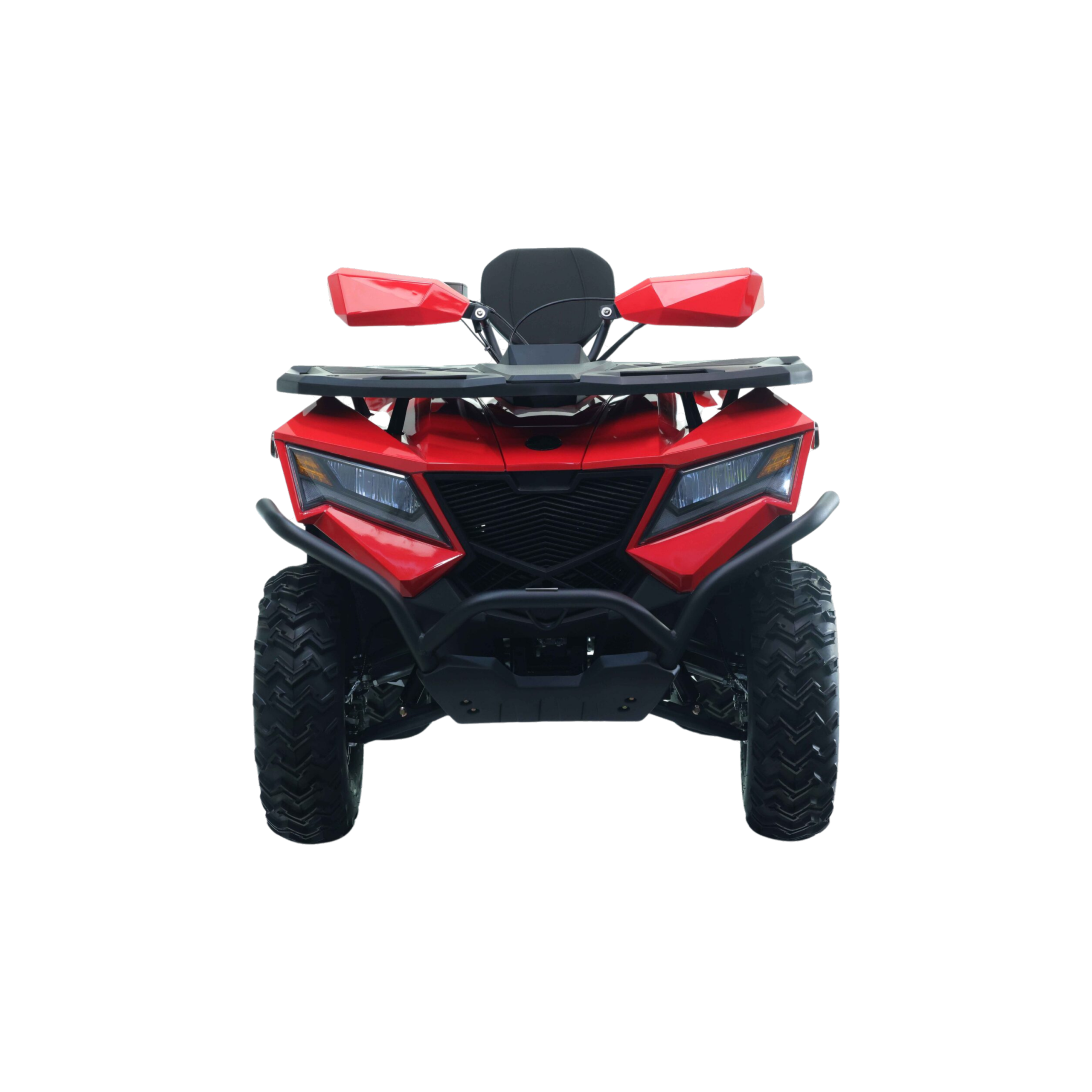

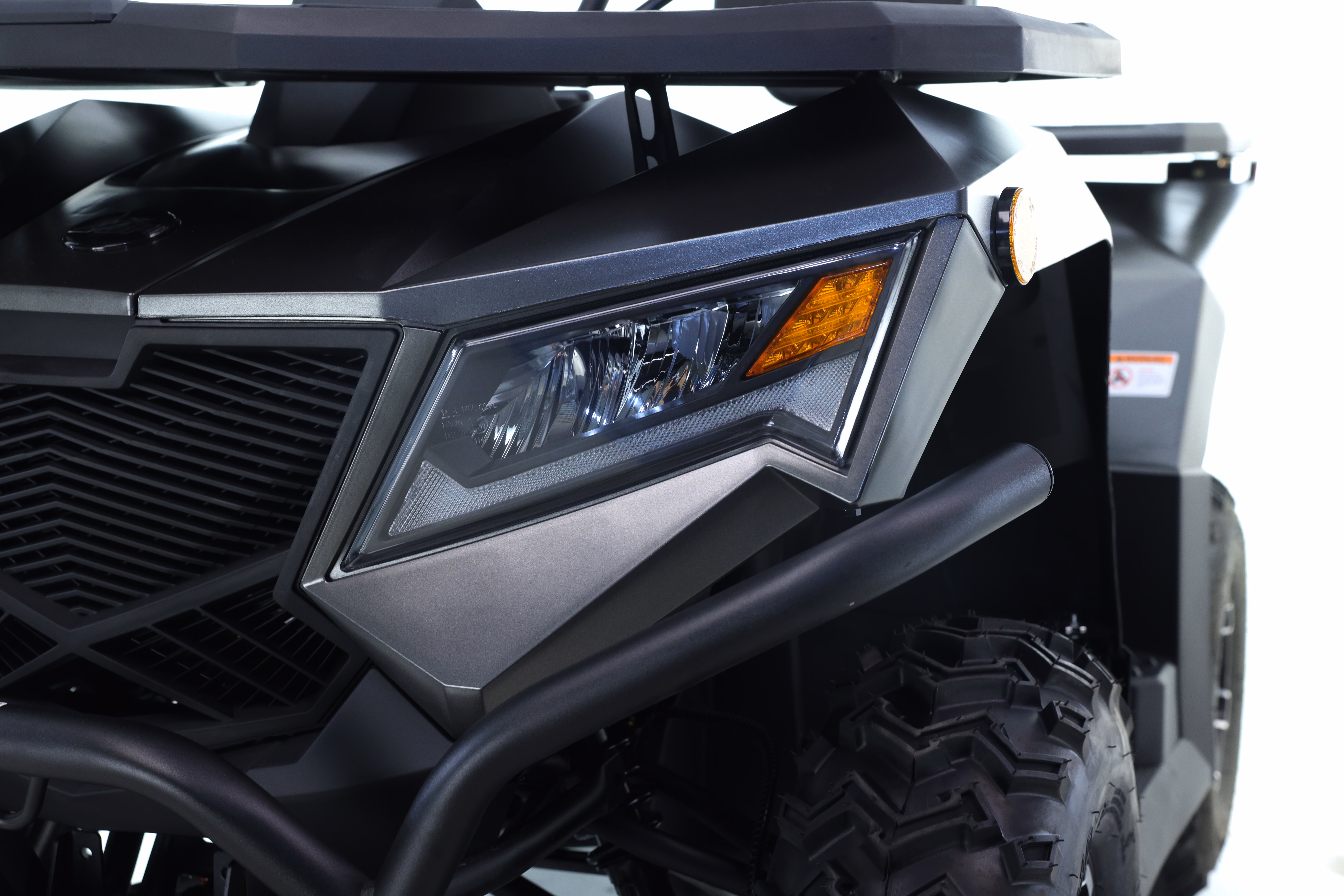

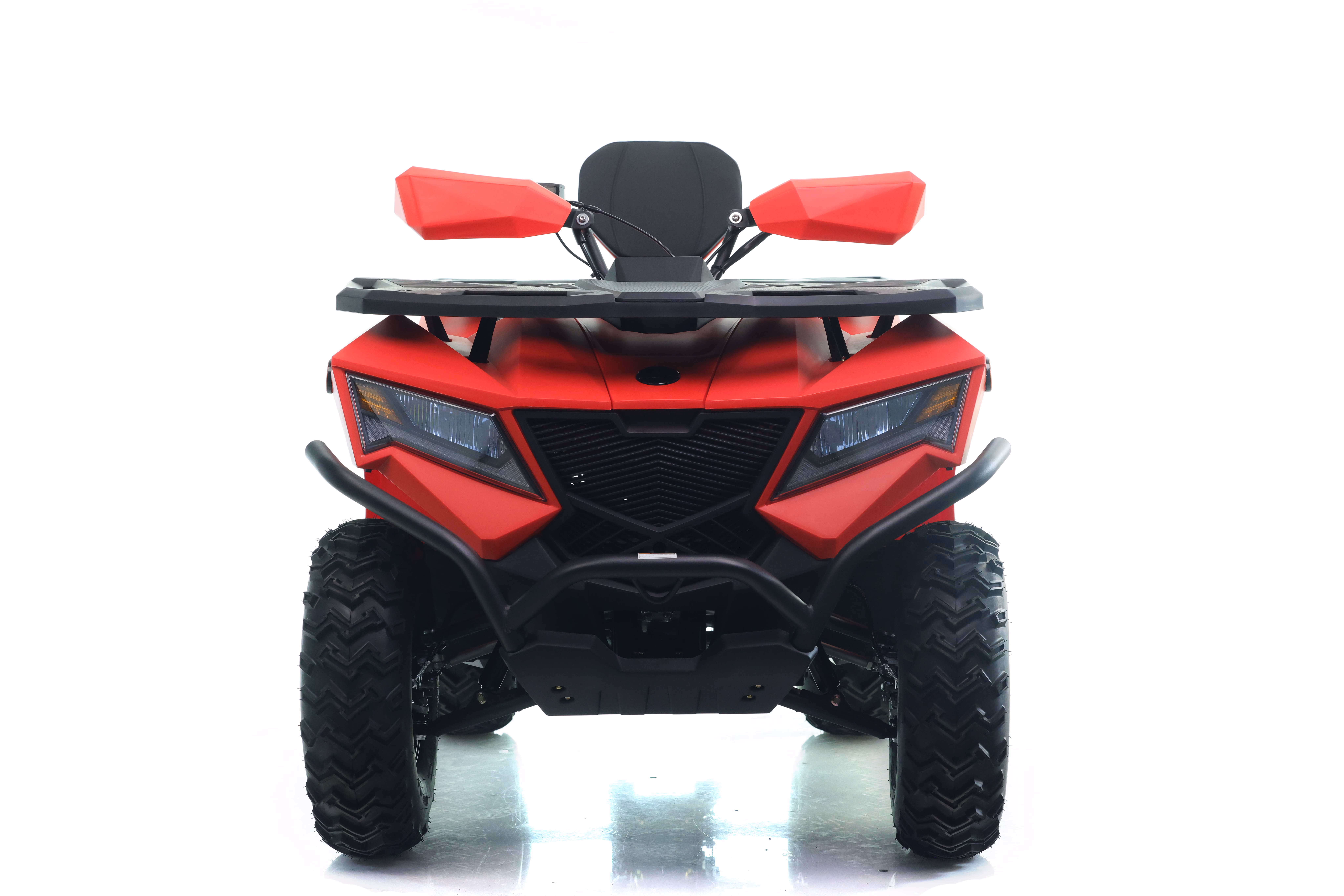

| Head light: | LED high and low beam lights, LED daytime running lights and turning lights |

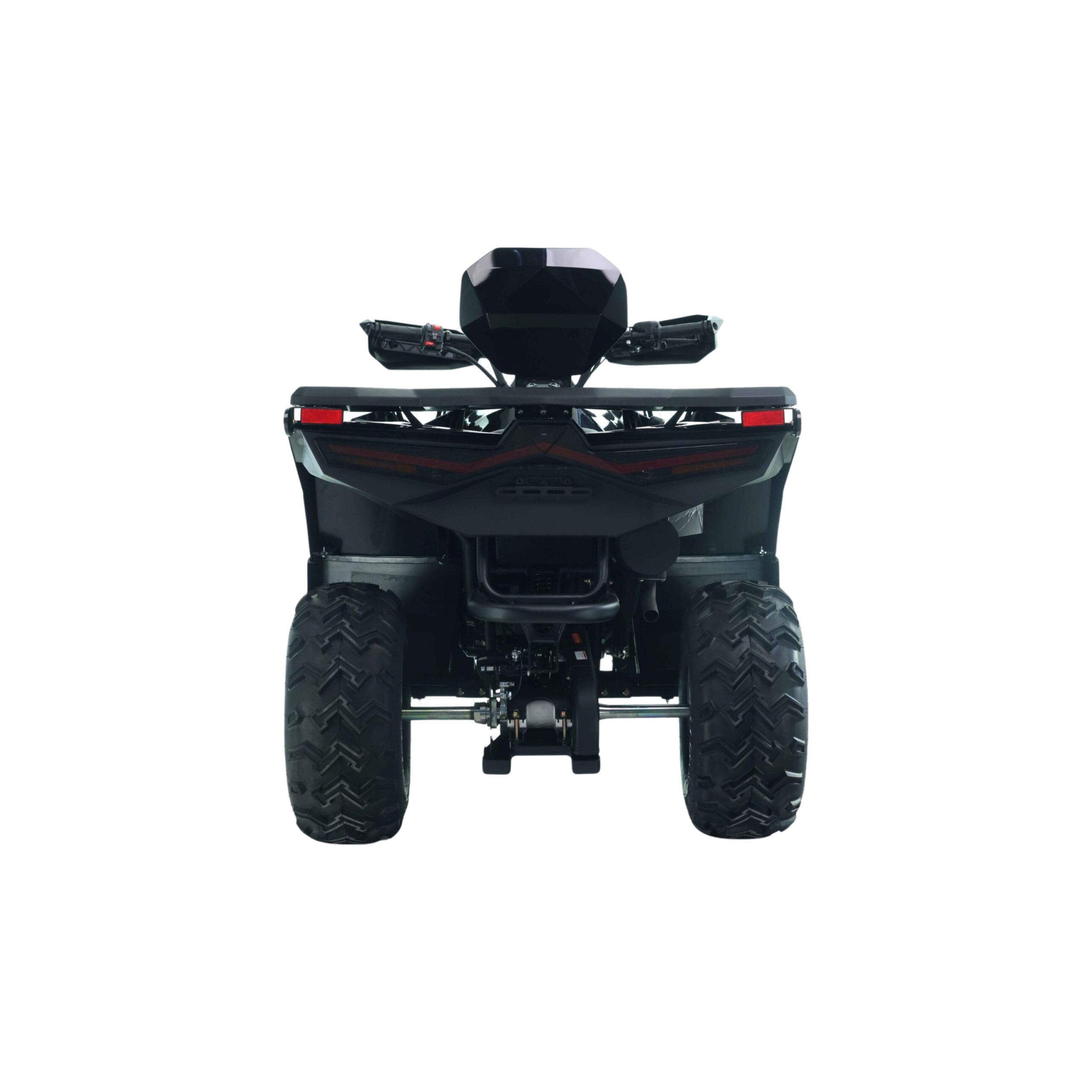

| Rear light: | LED drive light, brake light, turning light, License plate light |
| Dimension : | |
| Product Built Size: | 2050×1100×1225mm |
| Number of riders: | 2 persons |
| Wheel Base | 1200mm |
| Ground Clearance : | 170mm |

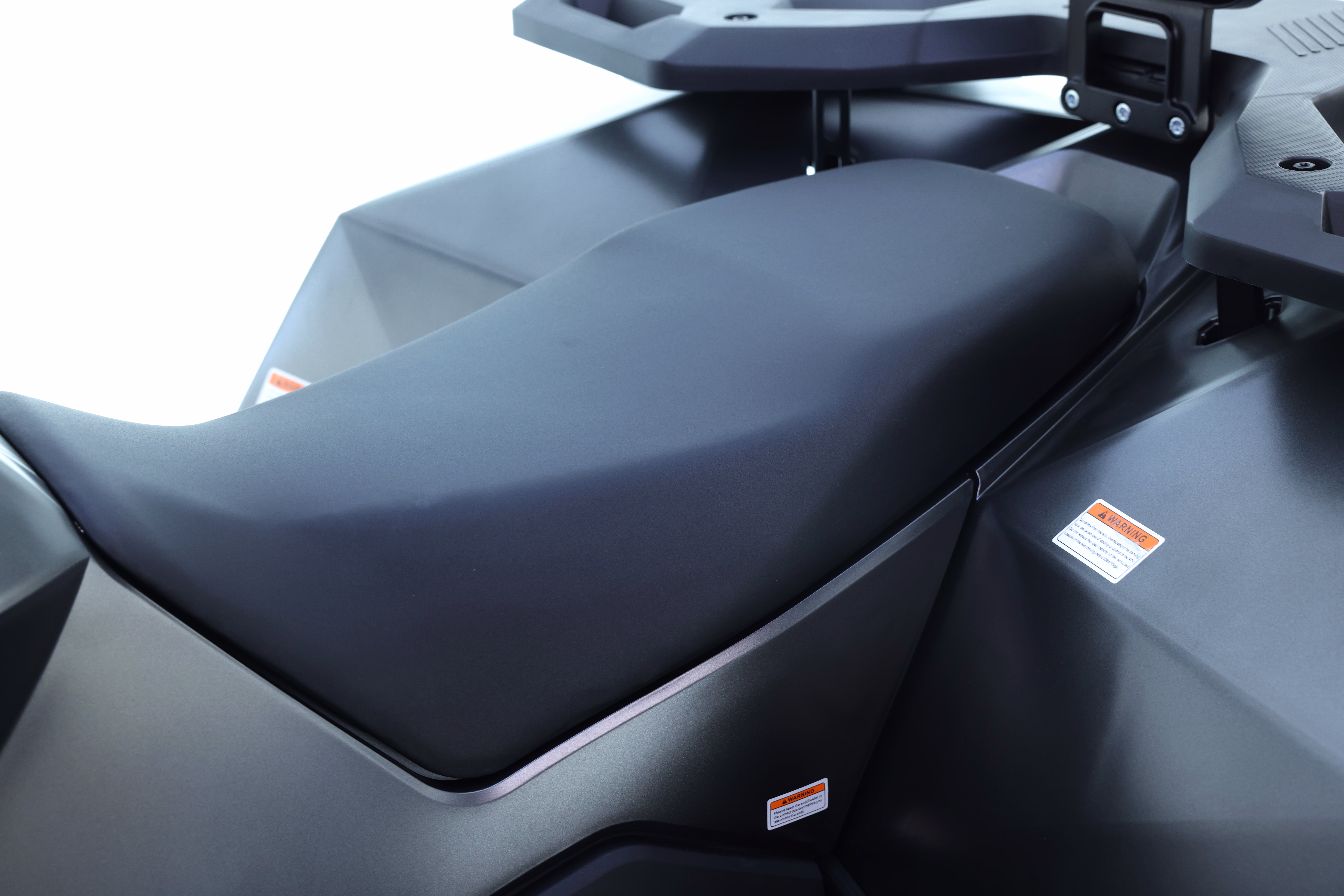

| Seat Height: | 840mm |
| Footrest Height: | 310mm |
| Max Load: | 150kg |
| N.W.: | 205kg |
| Product Packing Size: | 1800×1150×860mm |
