16+
4‑Stroke, SOHC, Oil-Cooled
Limited Warranty
Top Speed
(CVT) Transmission
Vehicle specification
| NAME | XWOLF 700 | XWOLF 700 |
| （DUAL-SEAT） | （DUAL-SEAT） | |
| REGULATIONS | T3 | EPA |
| Engine type | single cylinder， SOCH, 4-stroke, Liquid Cooled Radiator System | |
| Displacement | 686cc | |
| Bore x Stroke | 102mm × 84mm | |
| Maximum power | 35KW/5500rpm | |
| Maximum torque | 66N·m/4500rpm | |
| Compression ratio | 9.7:1 | |
| Fuel delivery | EFI | |

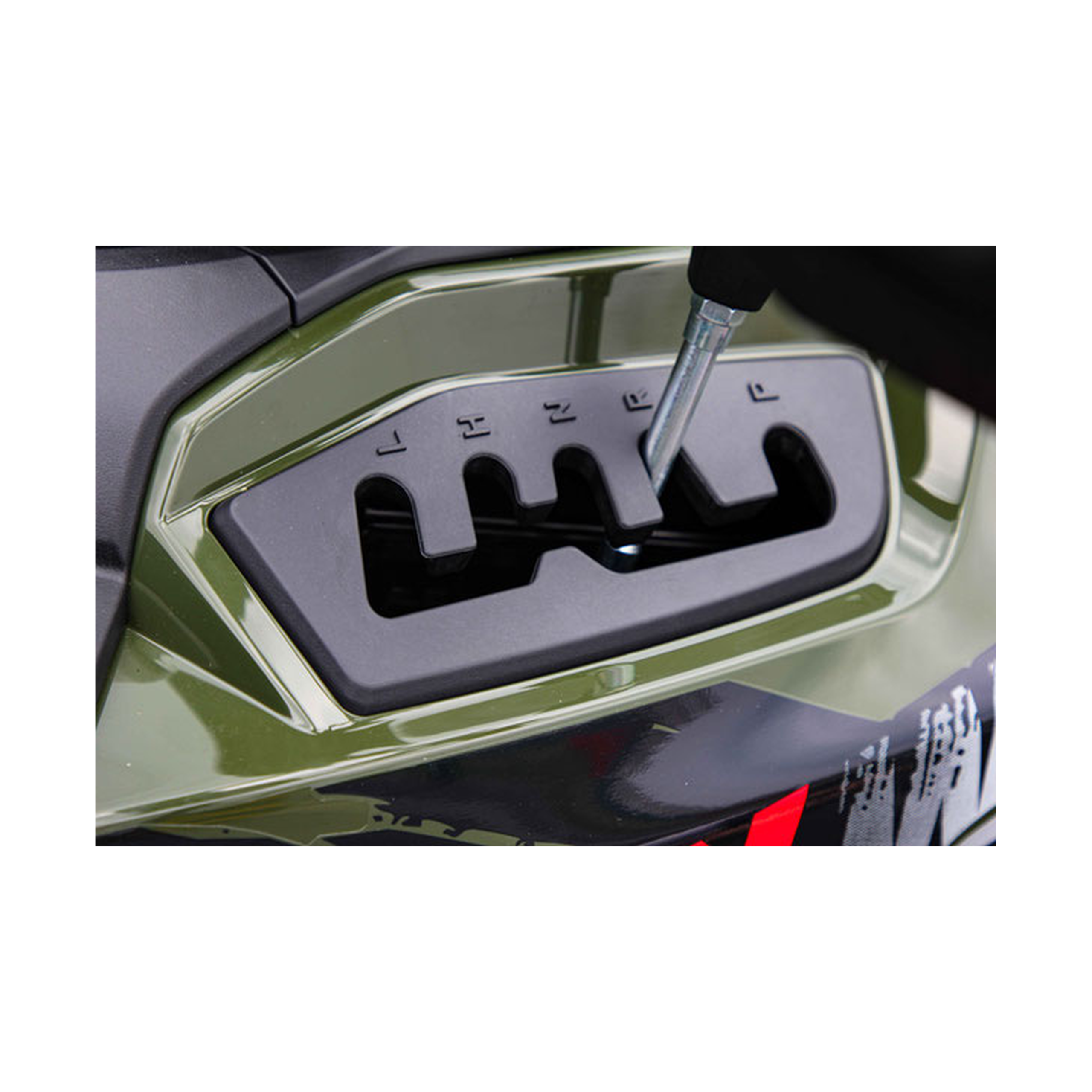

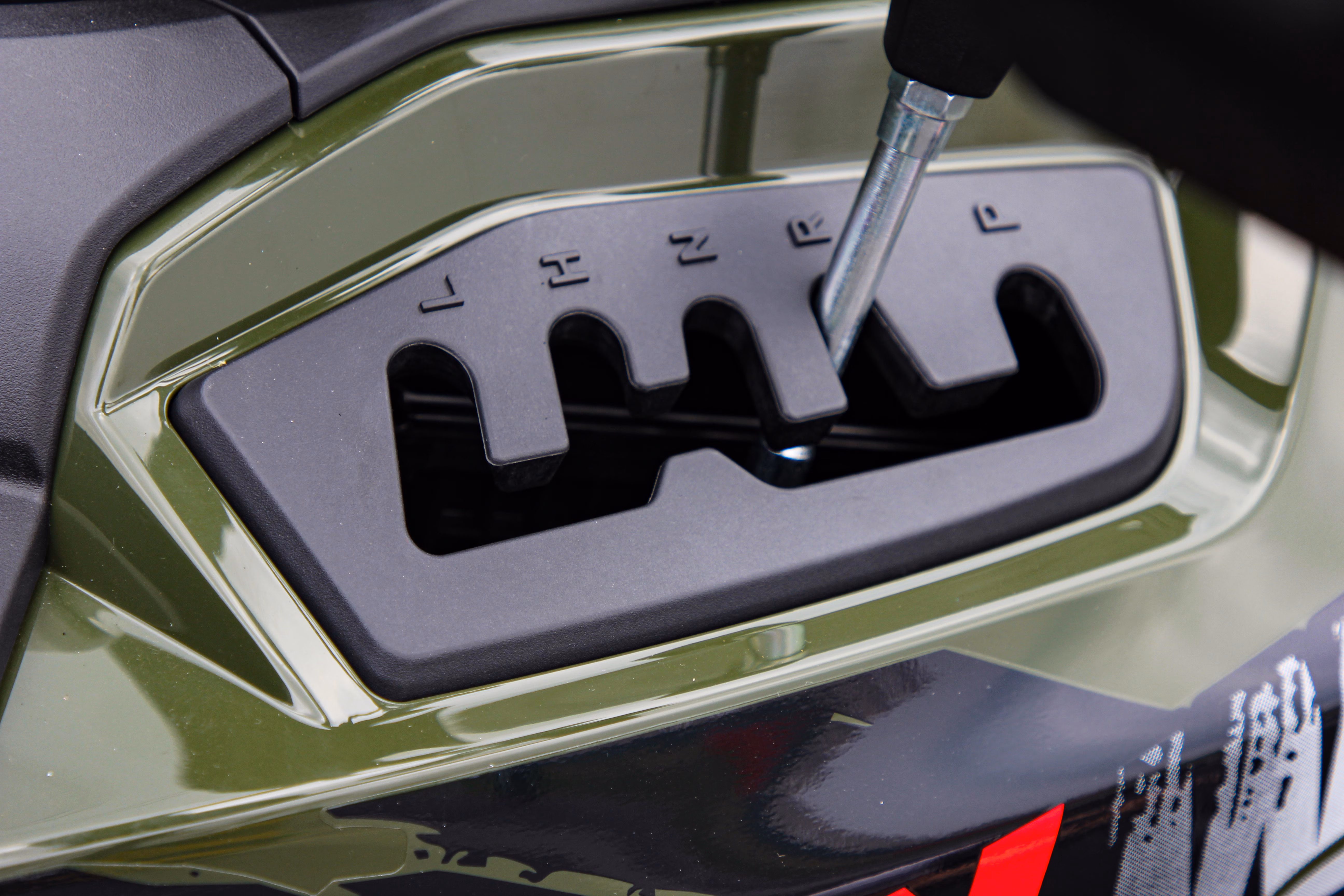

| Transmission | CVT, P/R/N/H/L engine parking | |
| Front differential | ● | |
| Electric power steering(EPS) | ○ | ○ |
| L×W×H | 2040mmx1180mmx1250mm | 2040mmx1180mmx1250mm |
| Wheel base | 1300mm | 1300mm |
| Ground clearance(mm) | 280 | |
| Net weigh | 375kg | 375kg |
| Max. Load capacity | Front 110 Ibs | Front 110 Ibs |
| Rear 198 Ibs | Rear 198 Ibs | |
| Fuel tank capacity | 25L | |
| Maximum speed | 100km/h | |
| Front suspension | Dual A-arms 190mm | |
| Front shock absorption | Oil and gas mixed front shock absorption | |

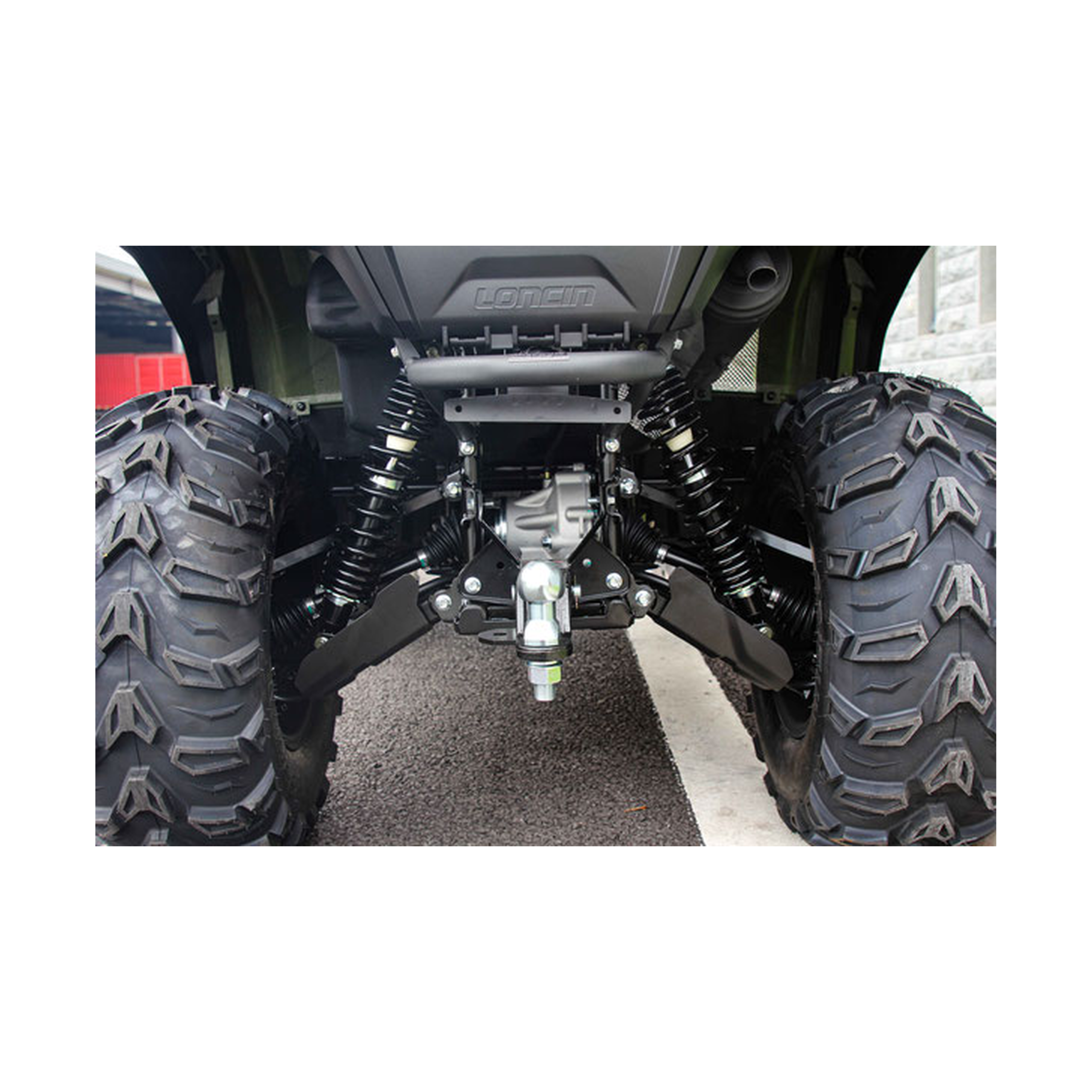

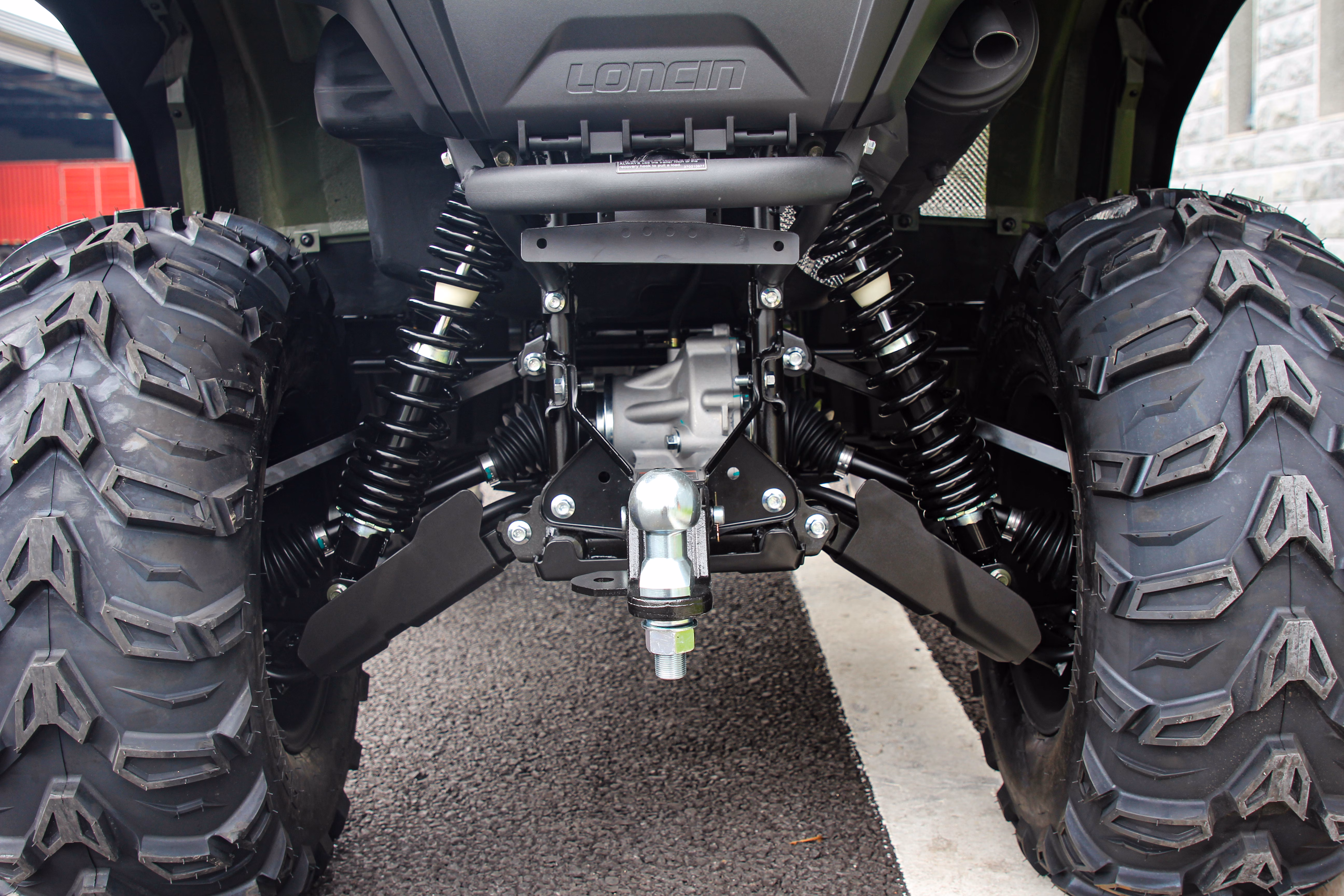

| Rear suspension | Dual A-arms 230mm | |
| Rear shock absorption | Oil and gas mixed rear shock absorption | |
| Rocker guard | ● | ● |
| Front brake | Disc(ø210mm) | |
| Rear brake | Disc(ø210mm) | |

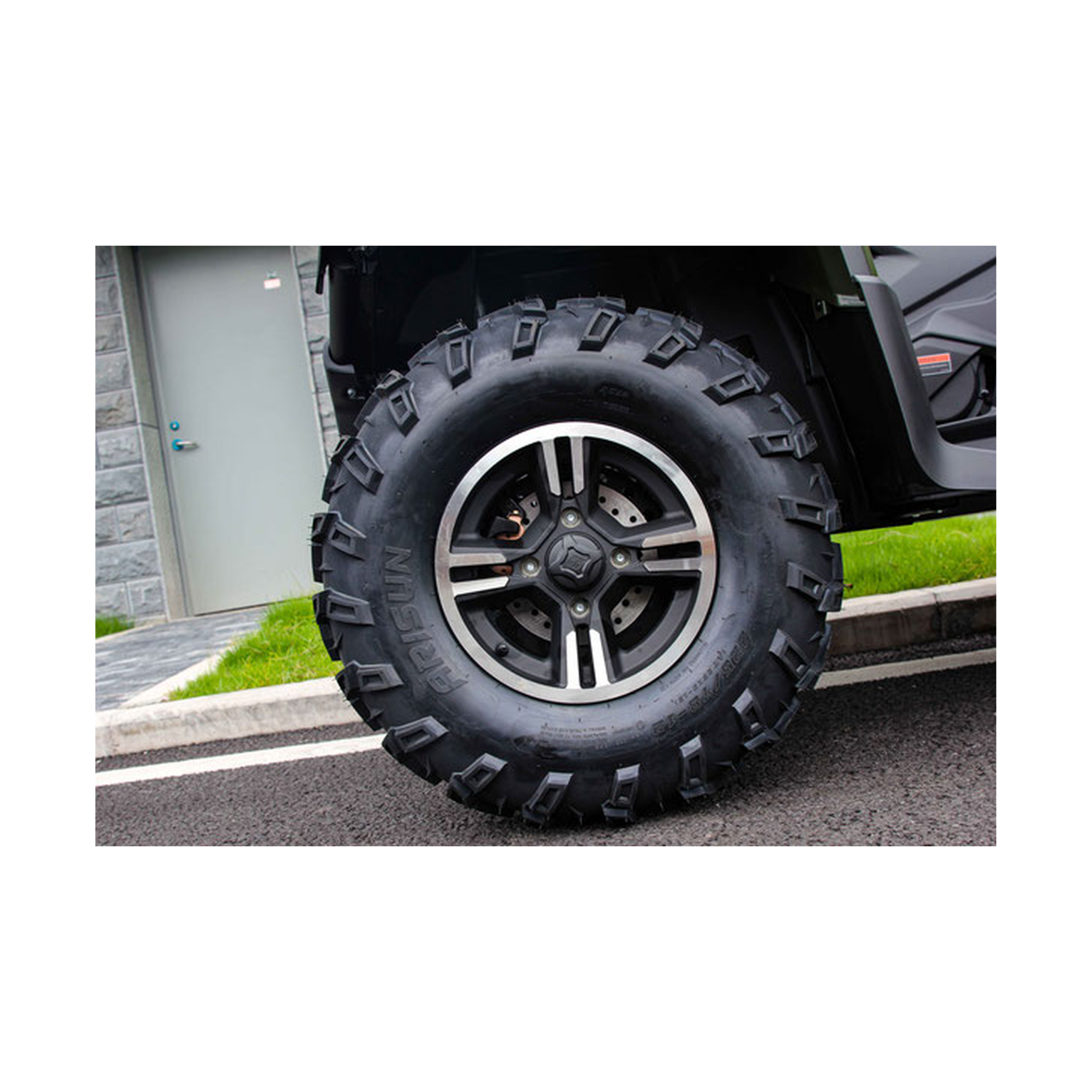

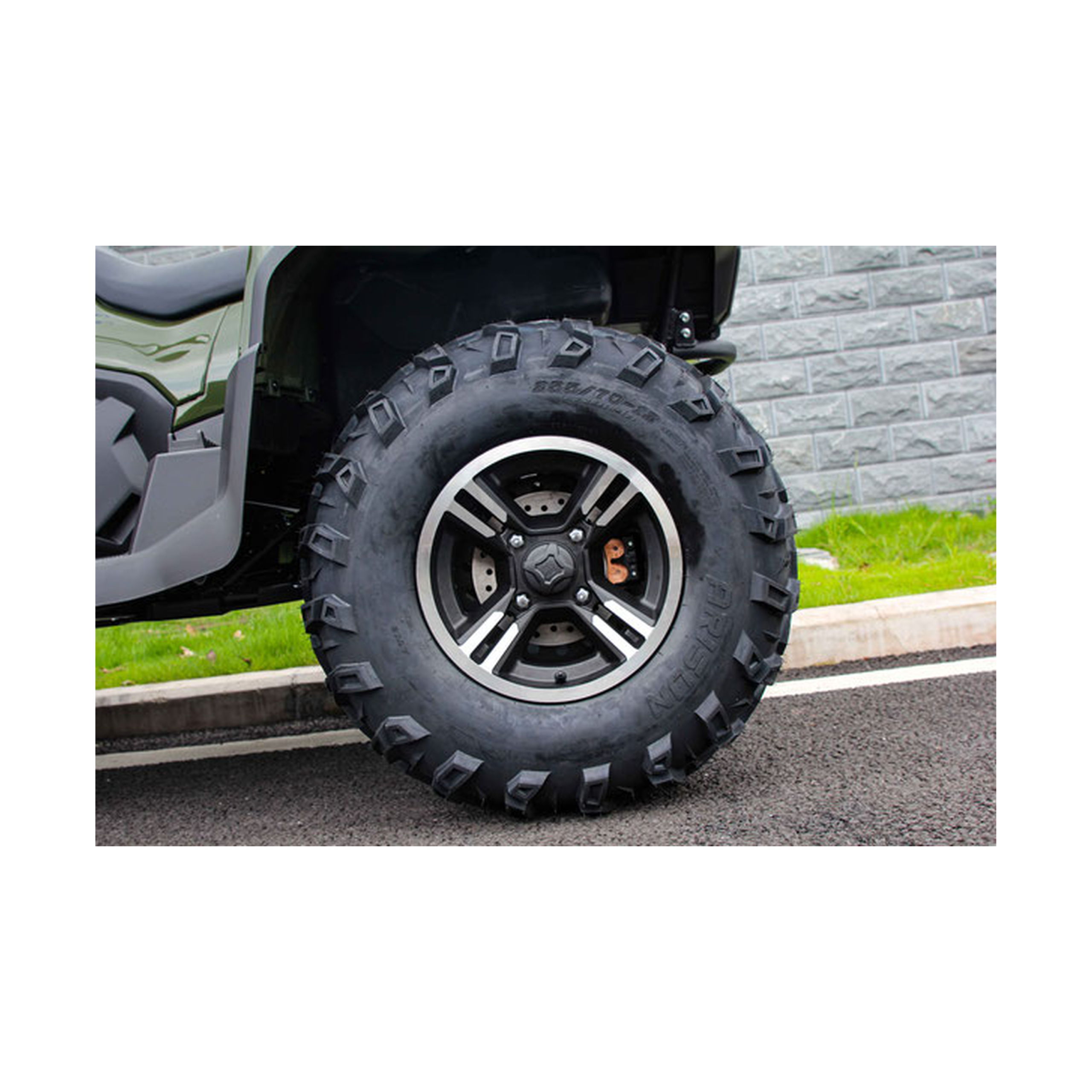

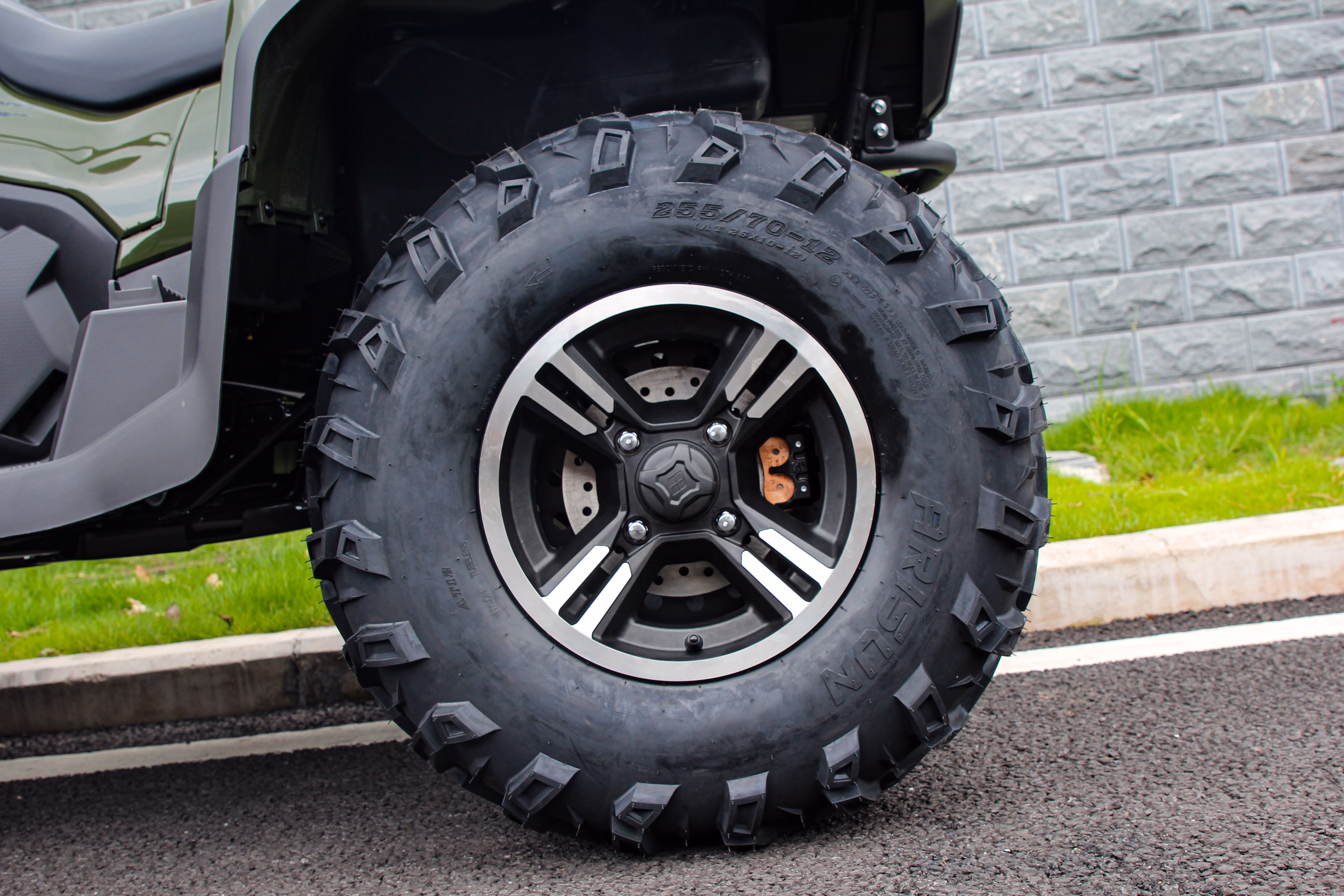

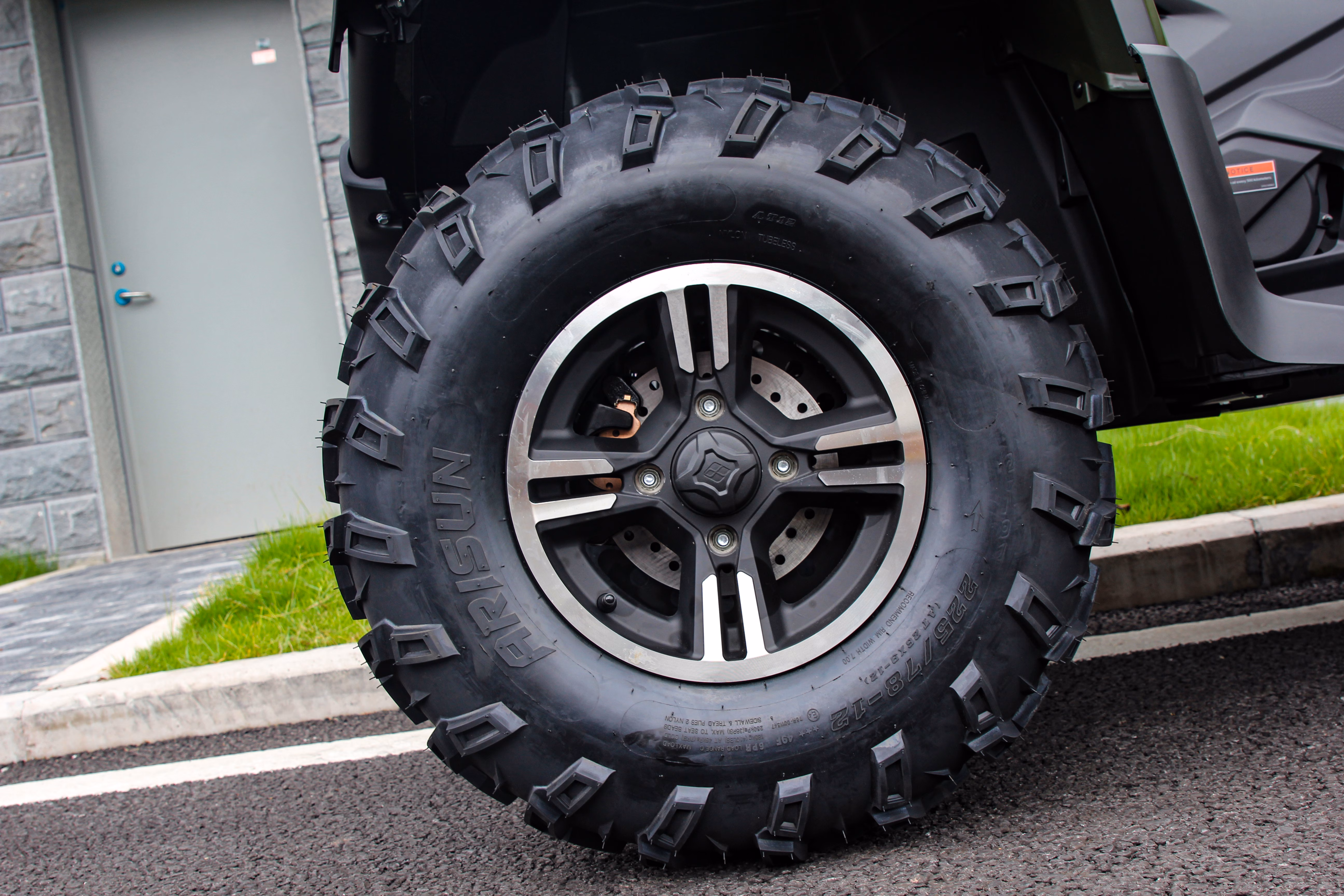

| Front wheel | 25×8-12 | |
| Rear wheel | 25×10-12 | |
| Hub | Alloy wheel | |

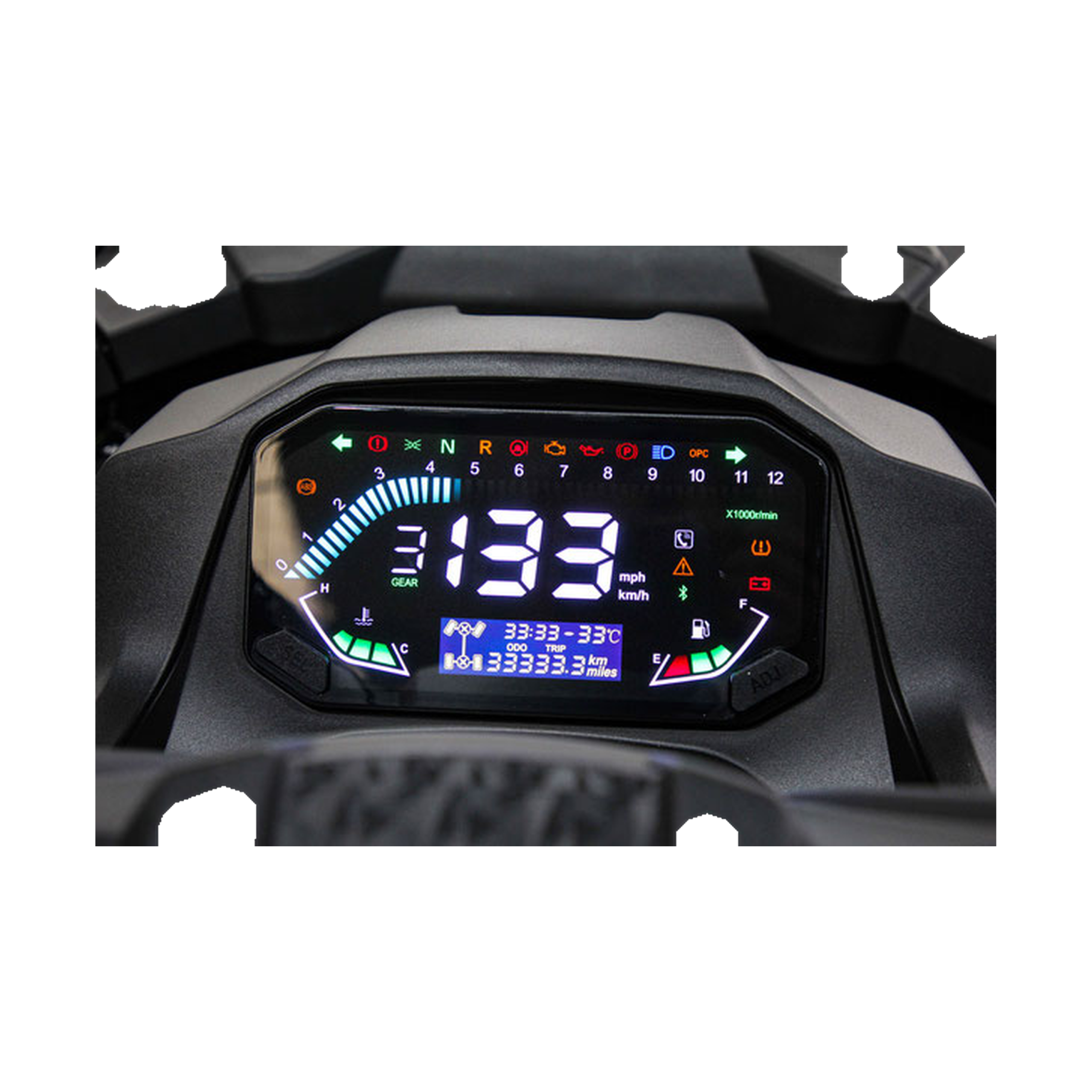

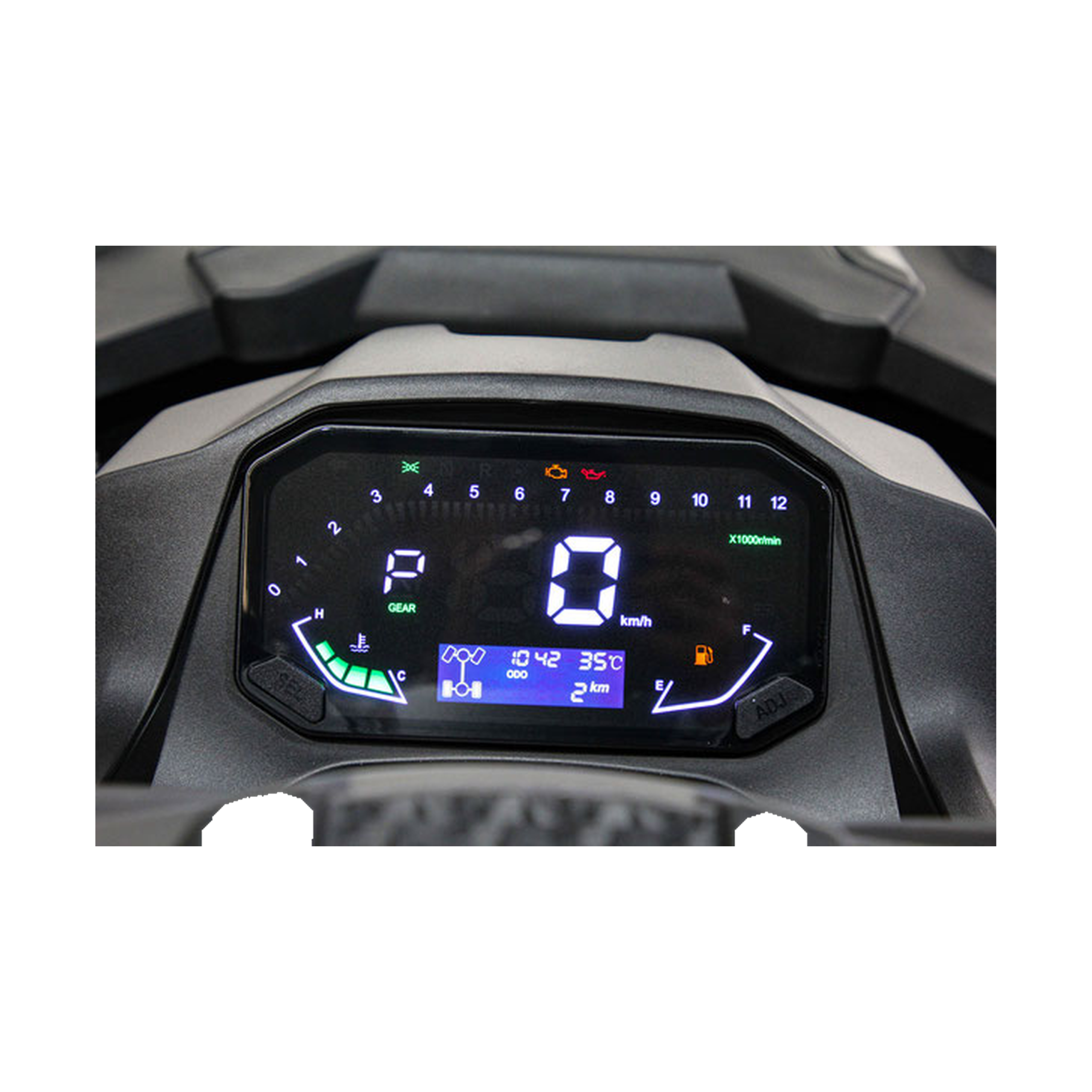

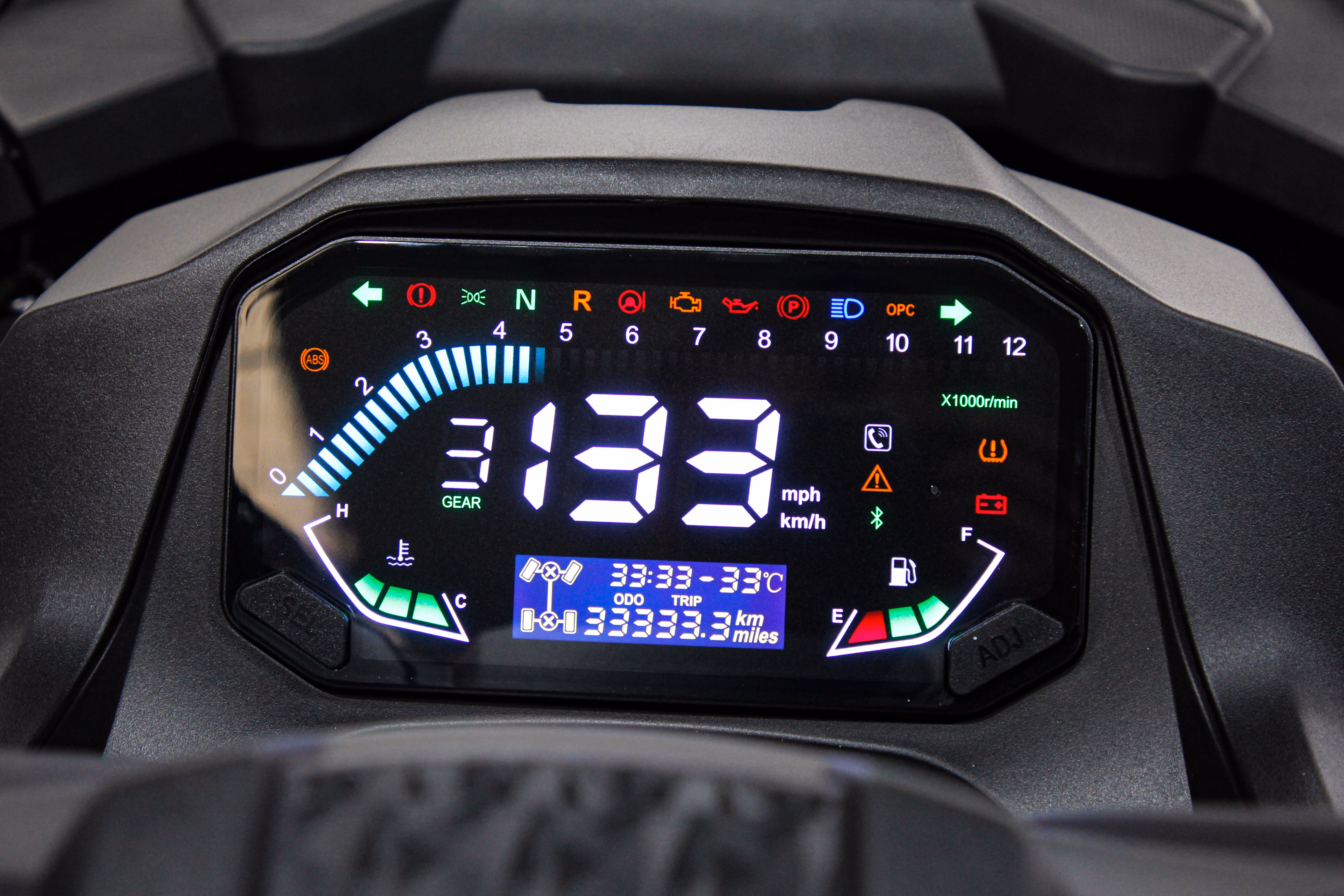

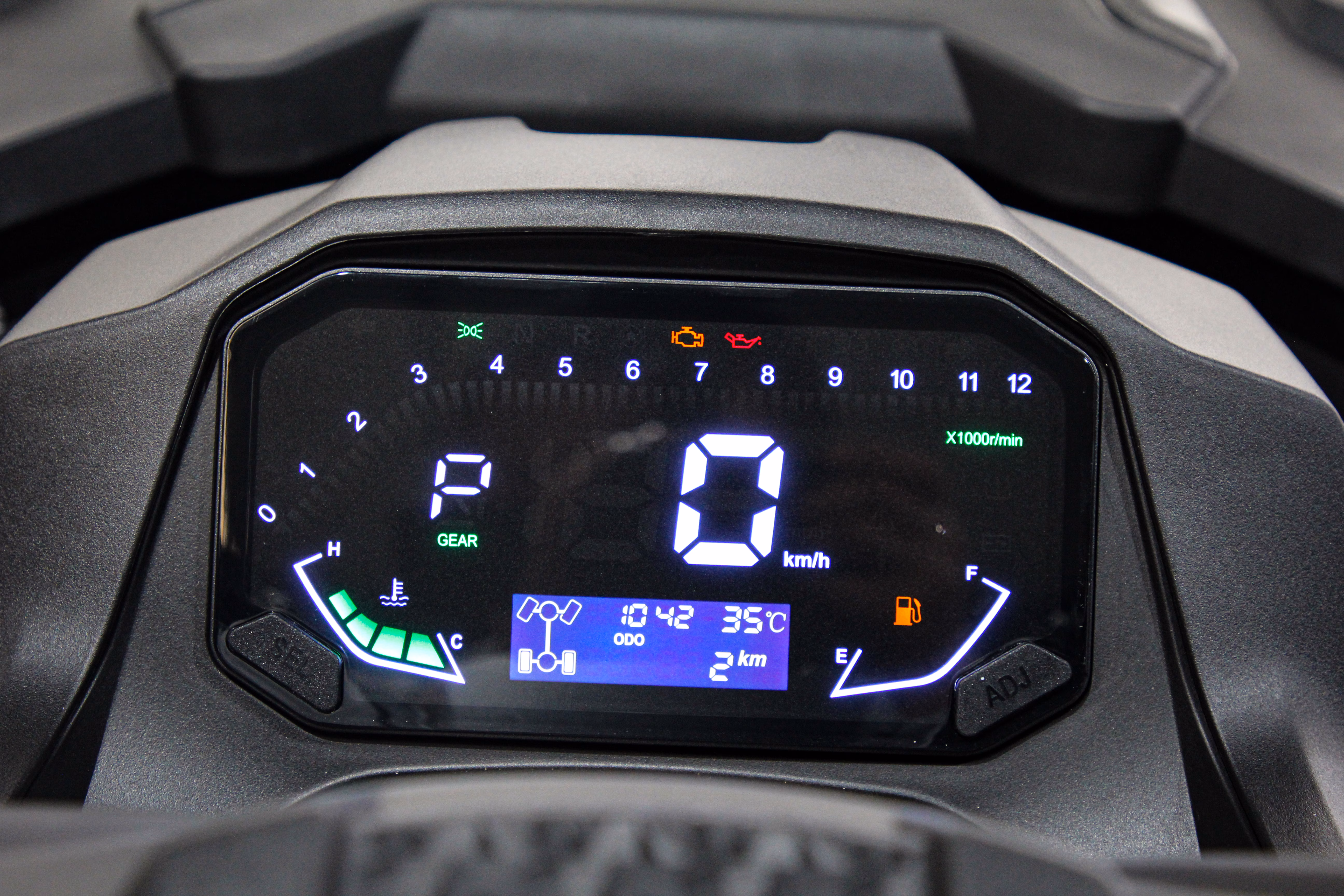

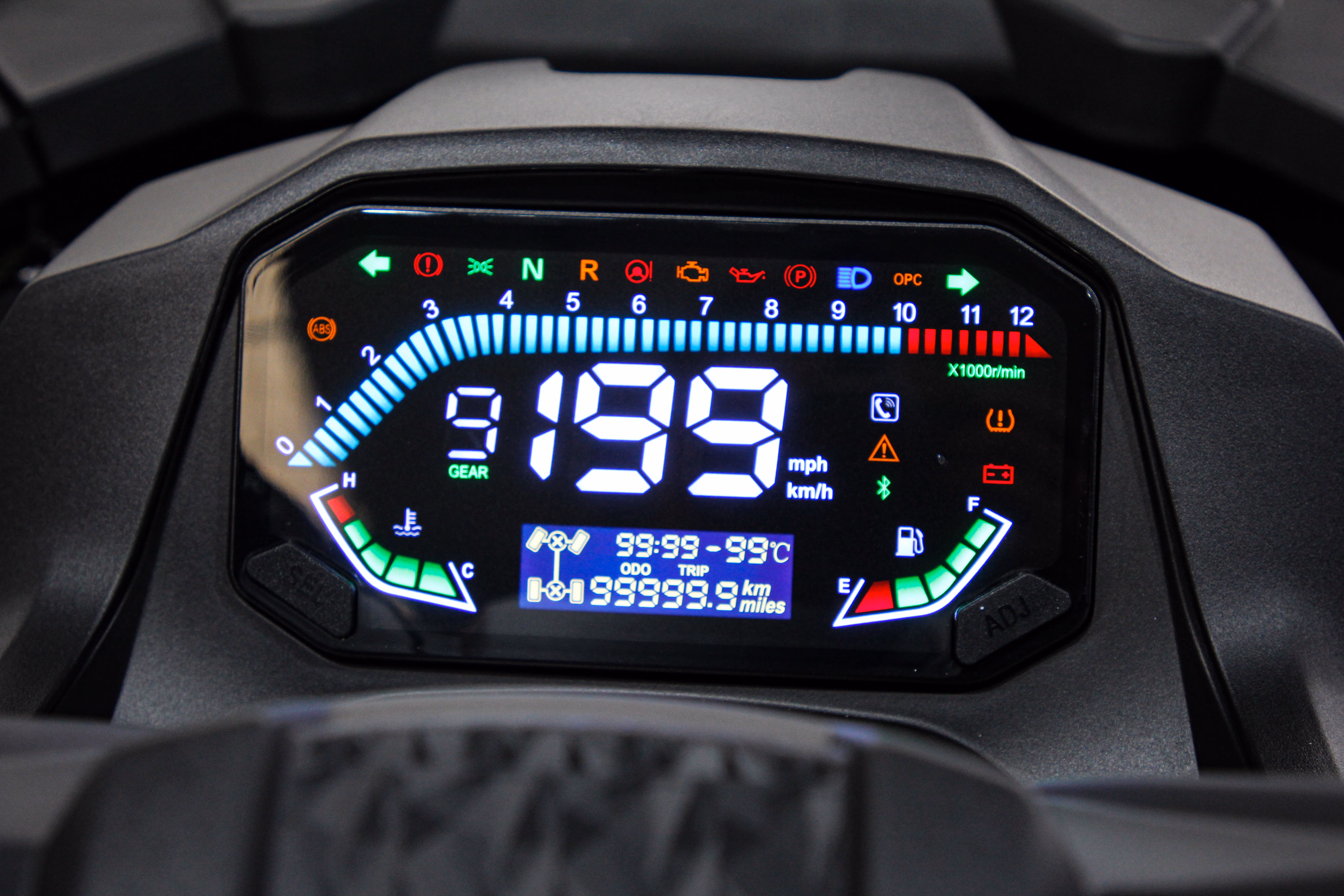

| Meter | Full LCD multi-functional digital meter with color display | |
| Battery | Gel battery 32Ah | |

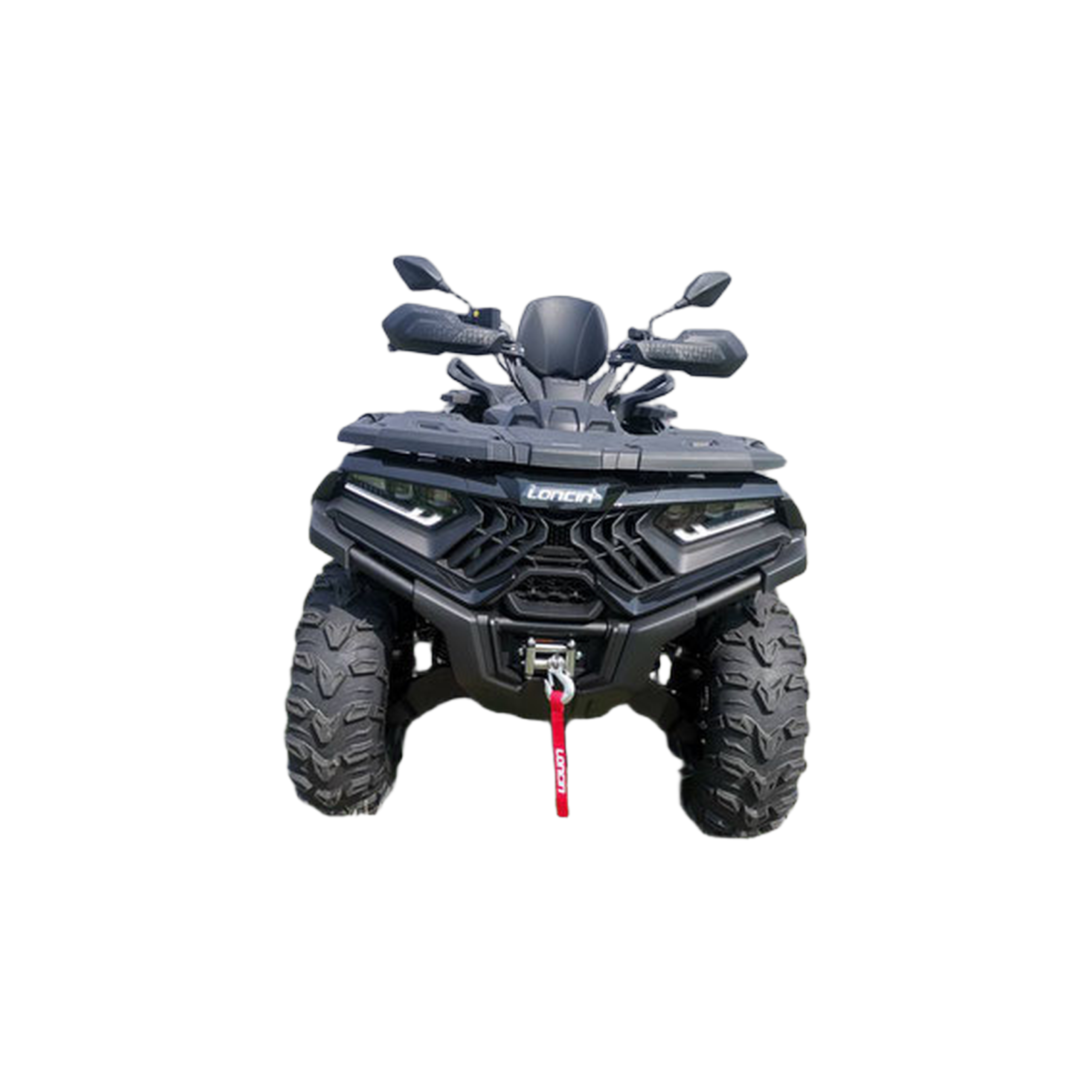

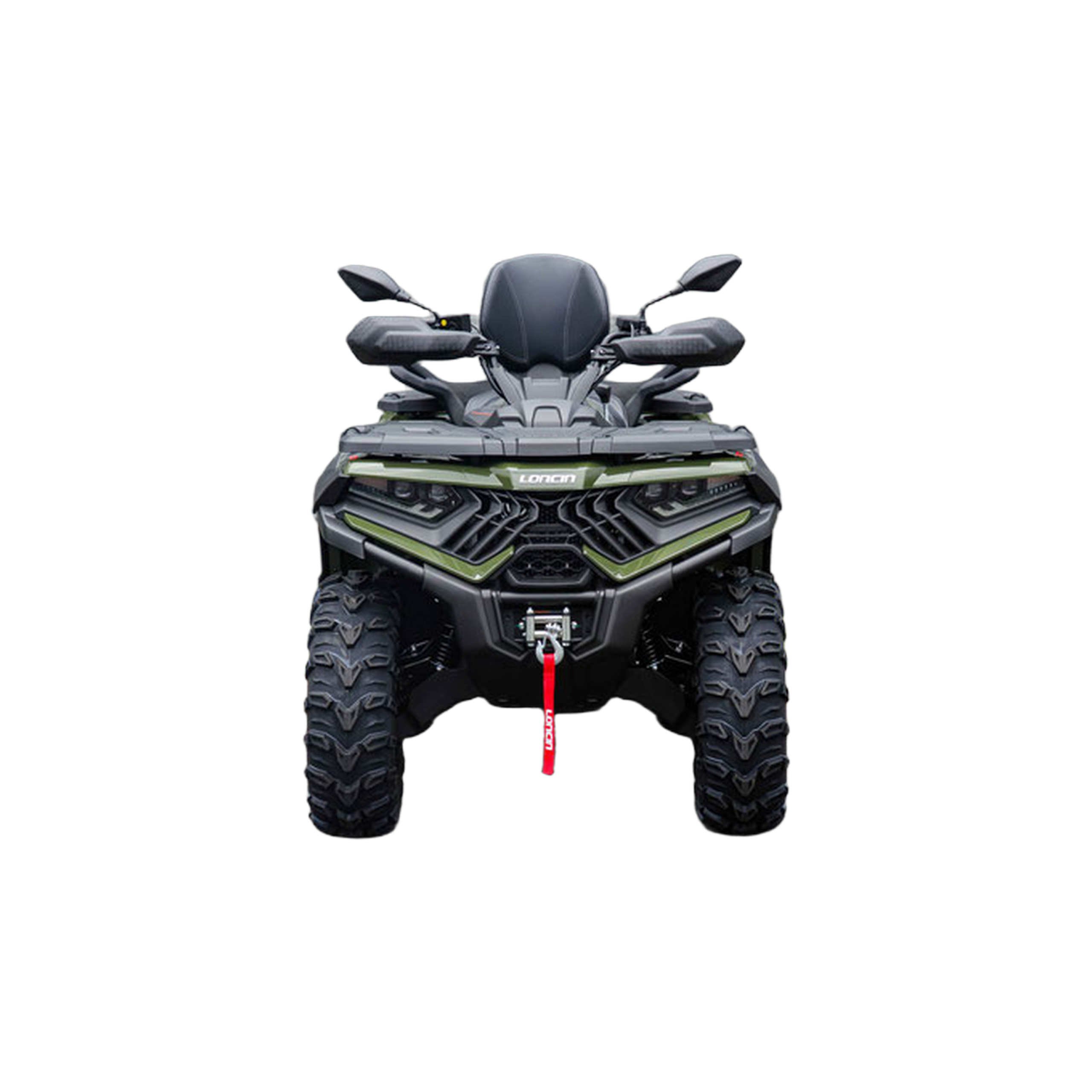

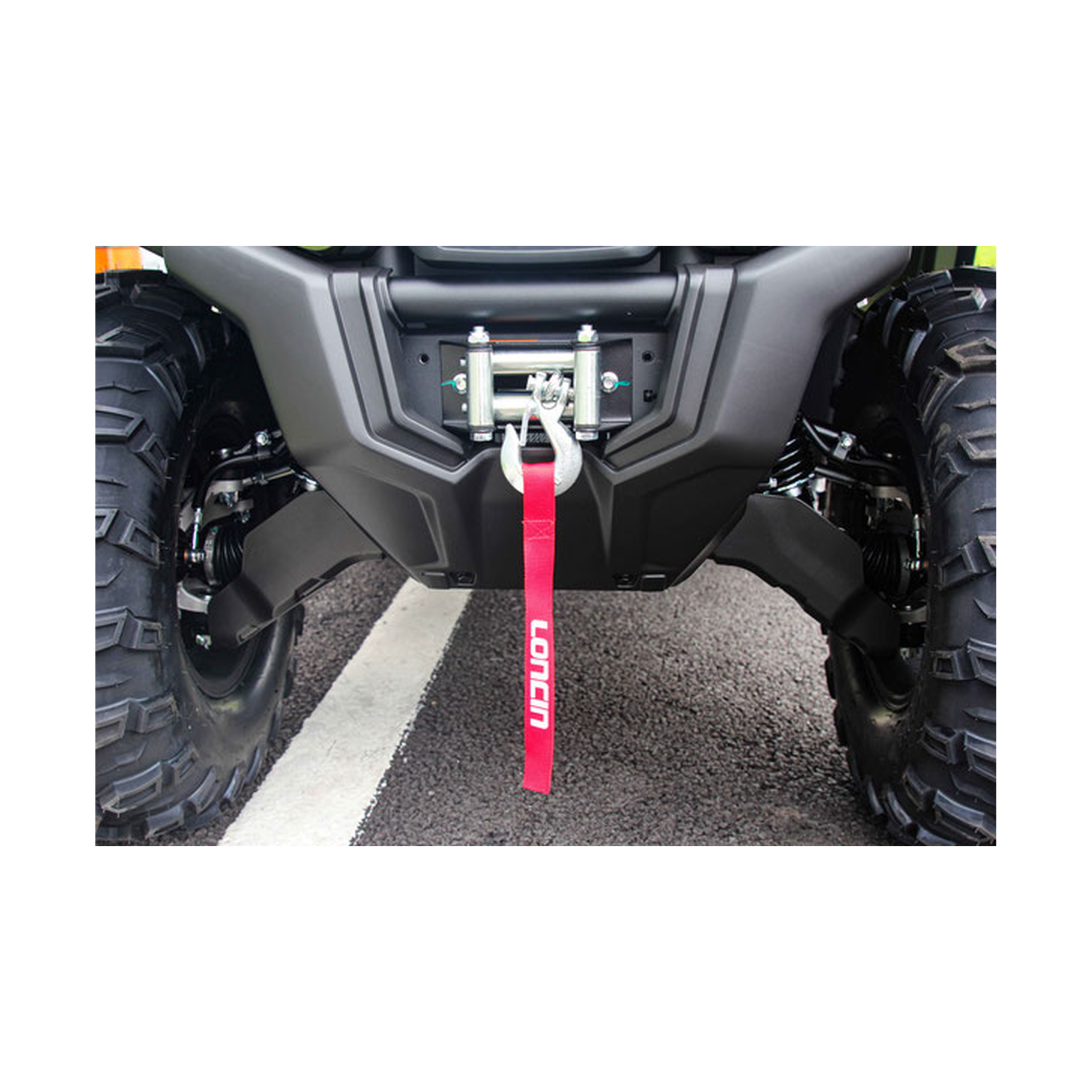

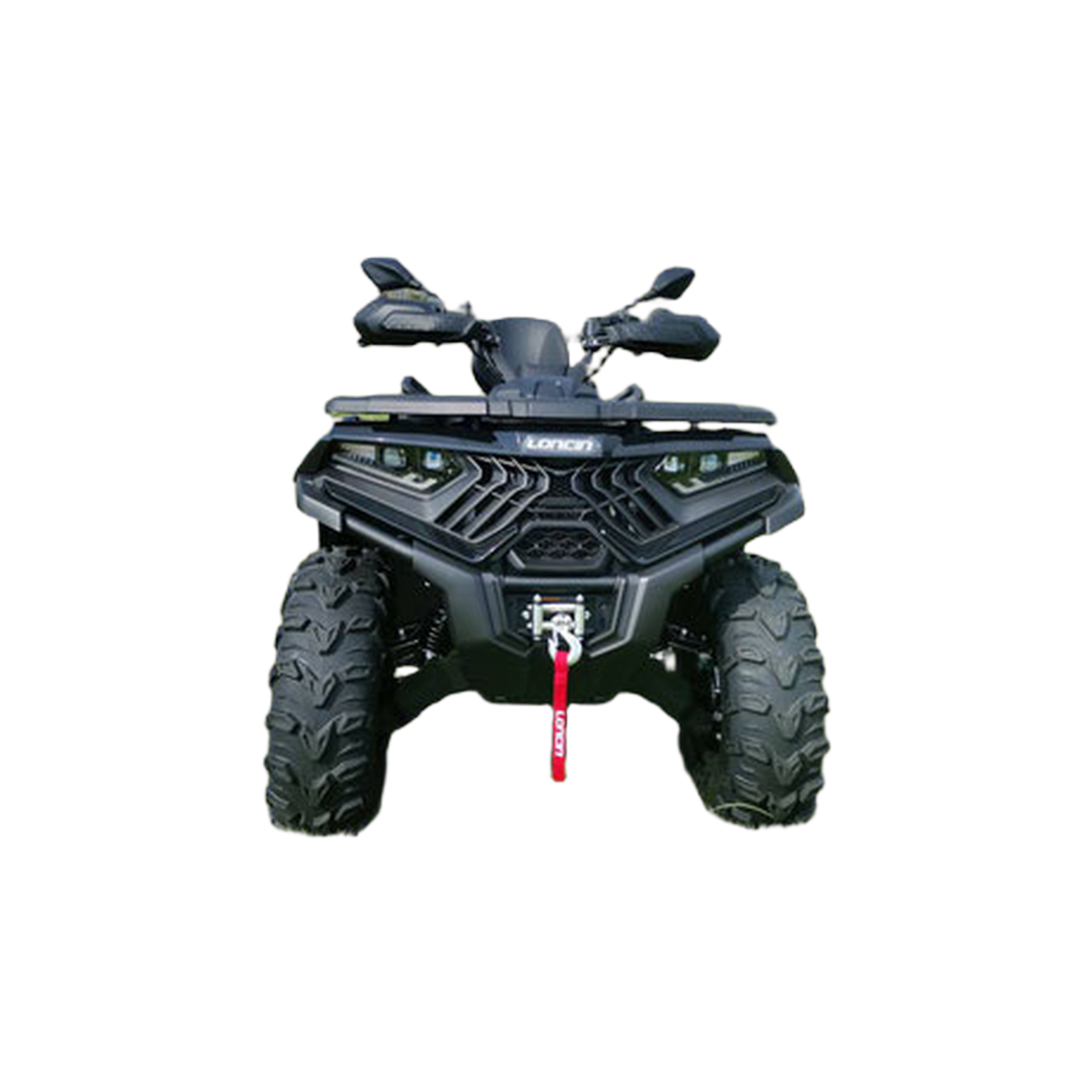

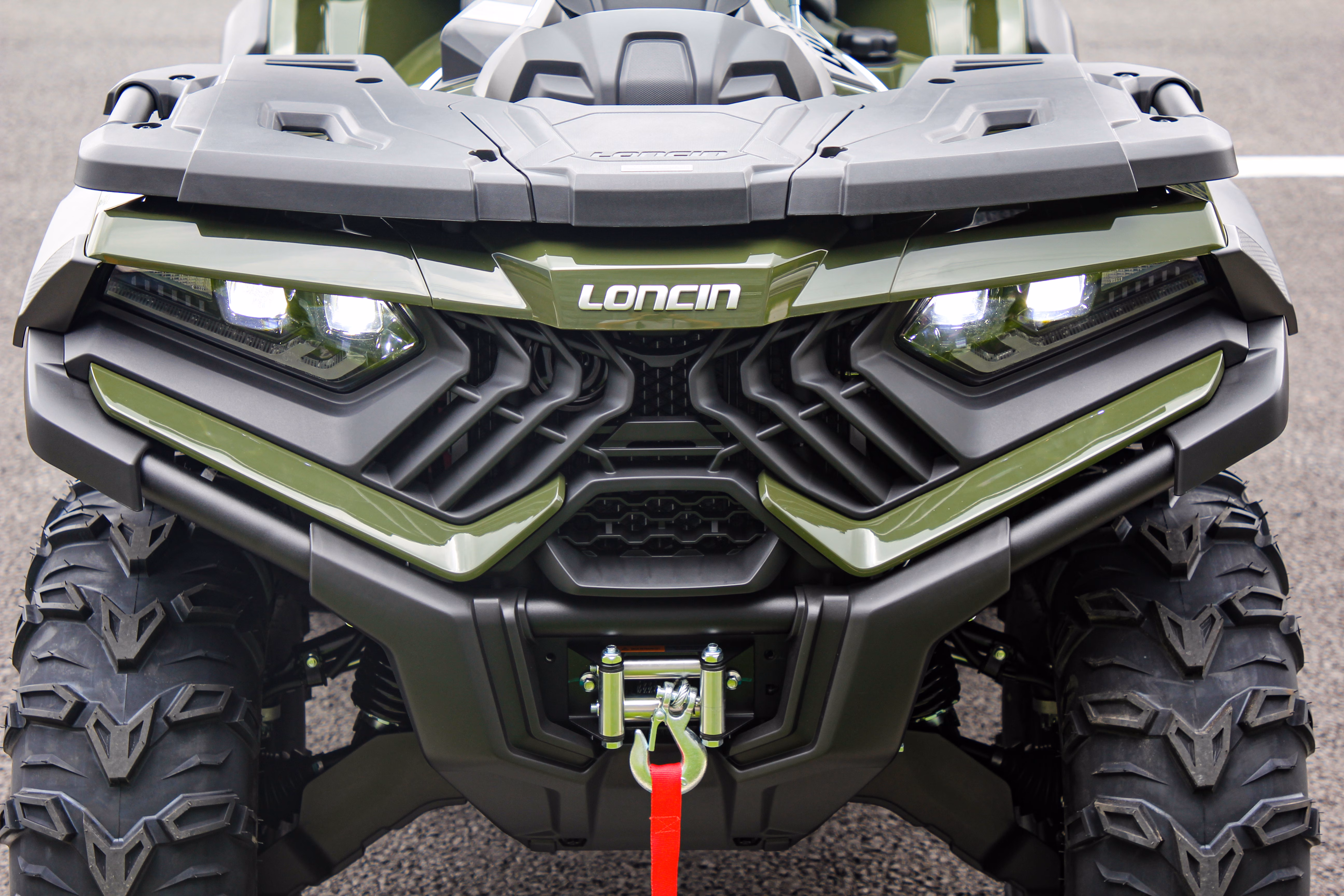

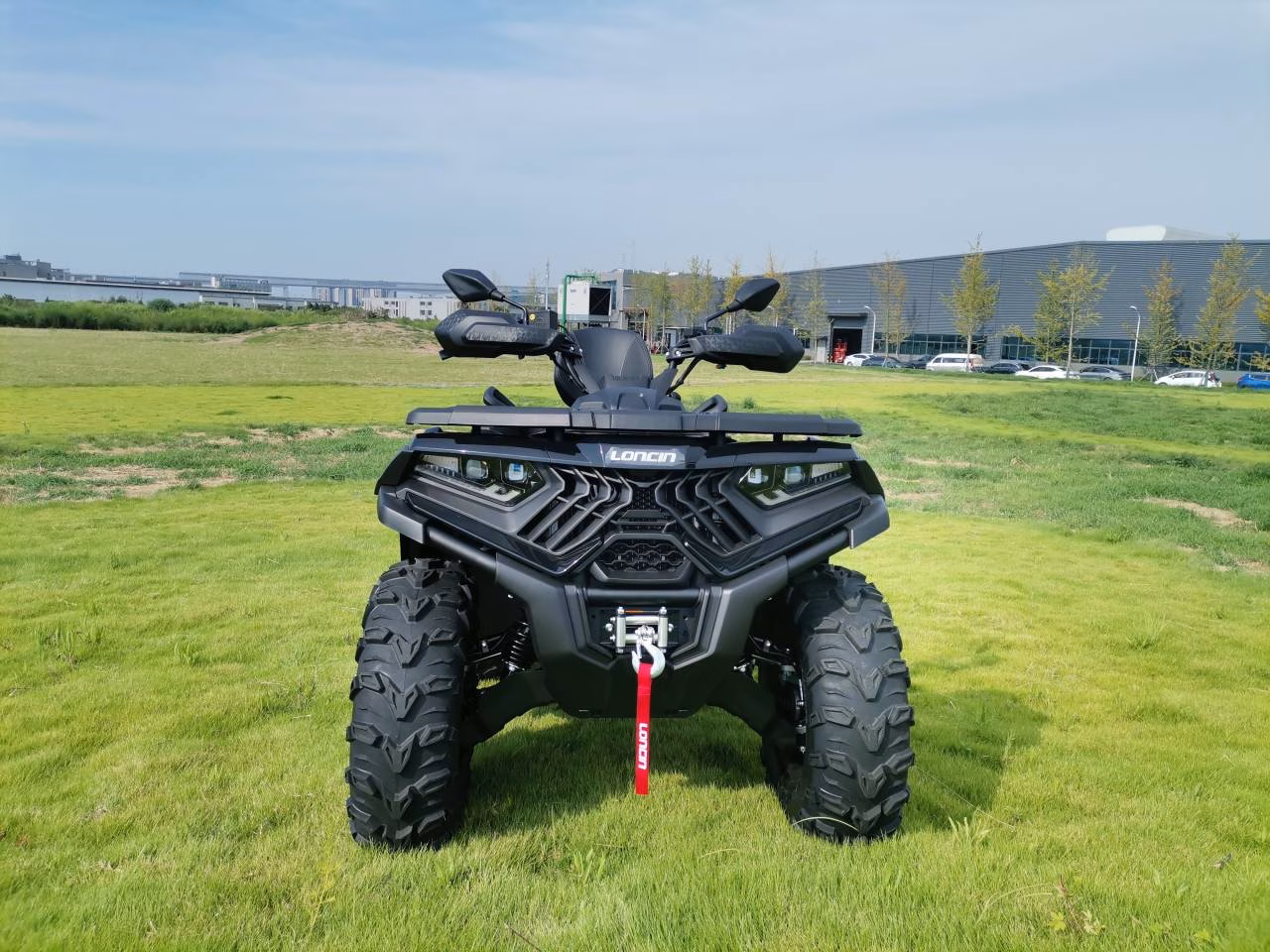

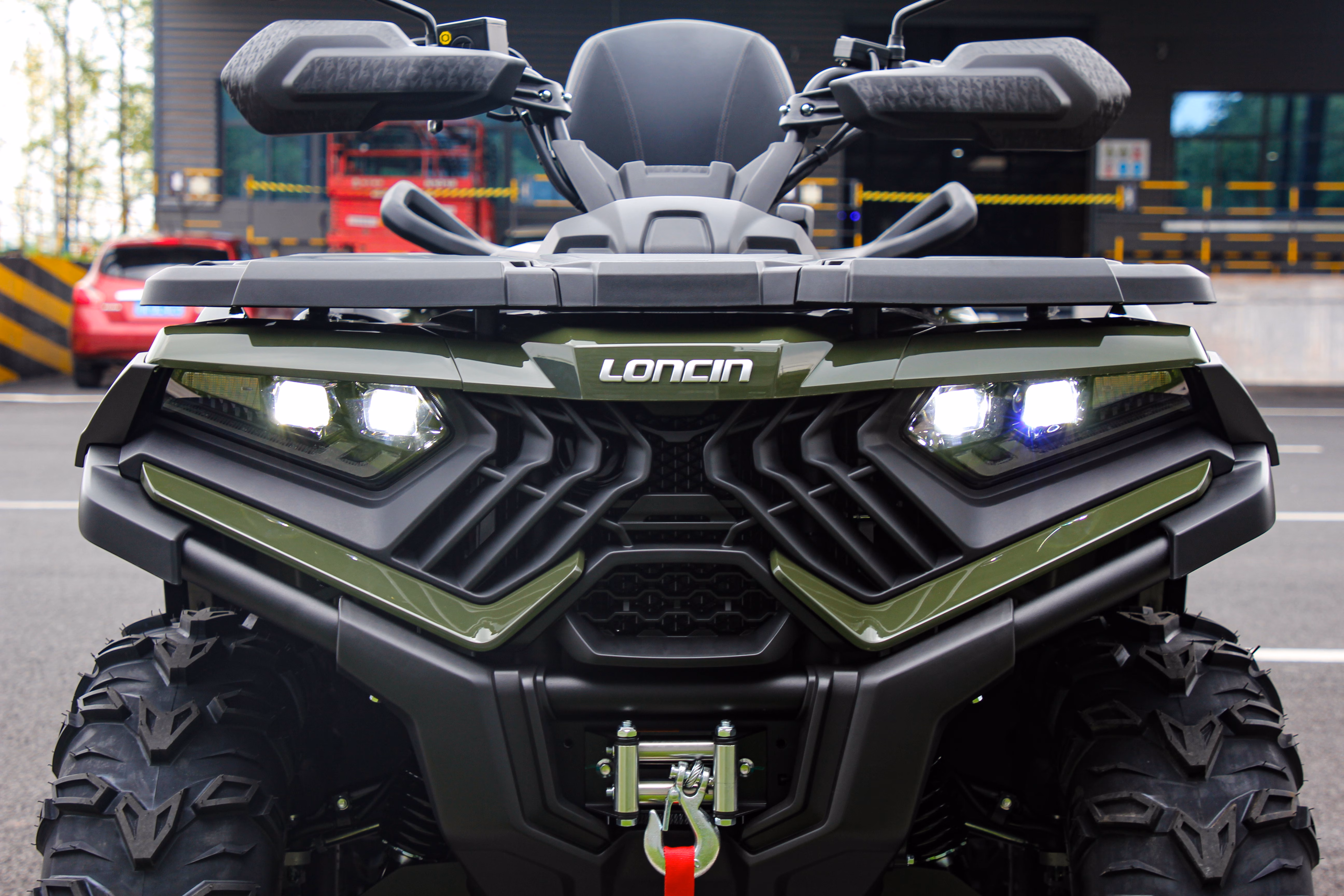

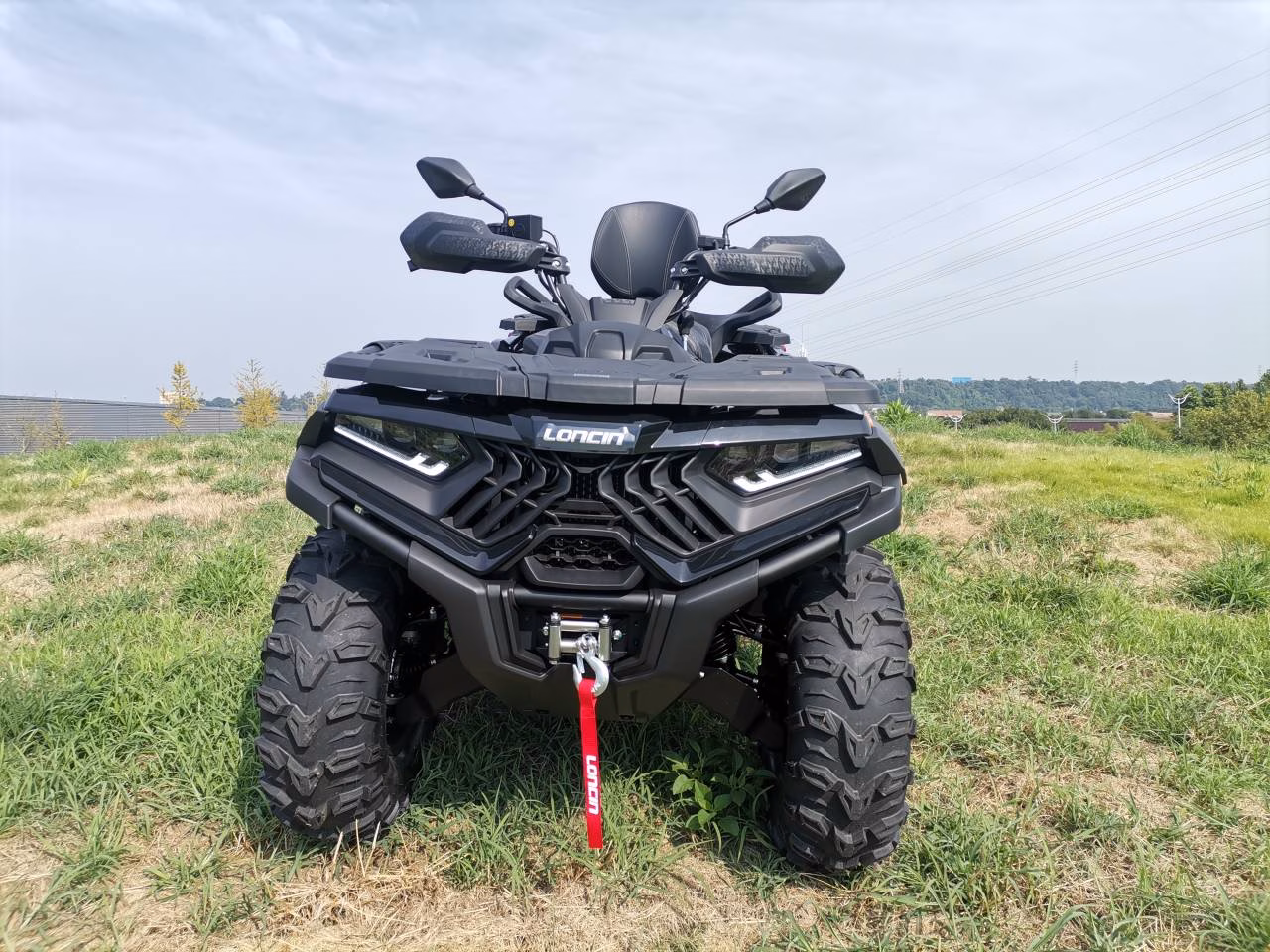

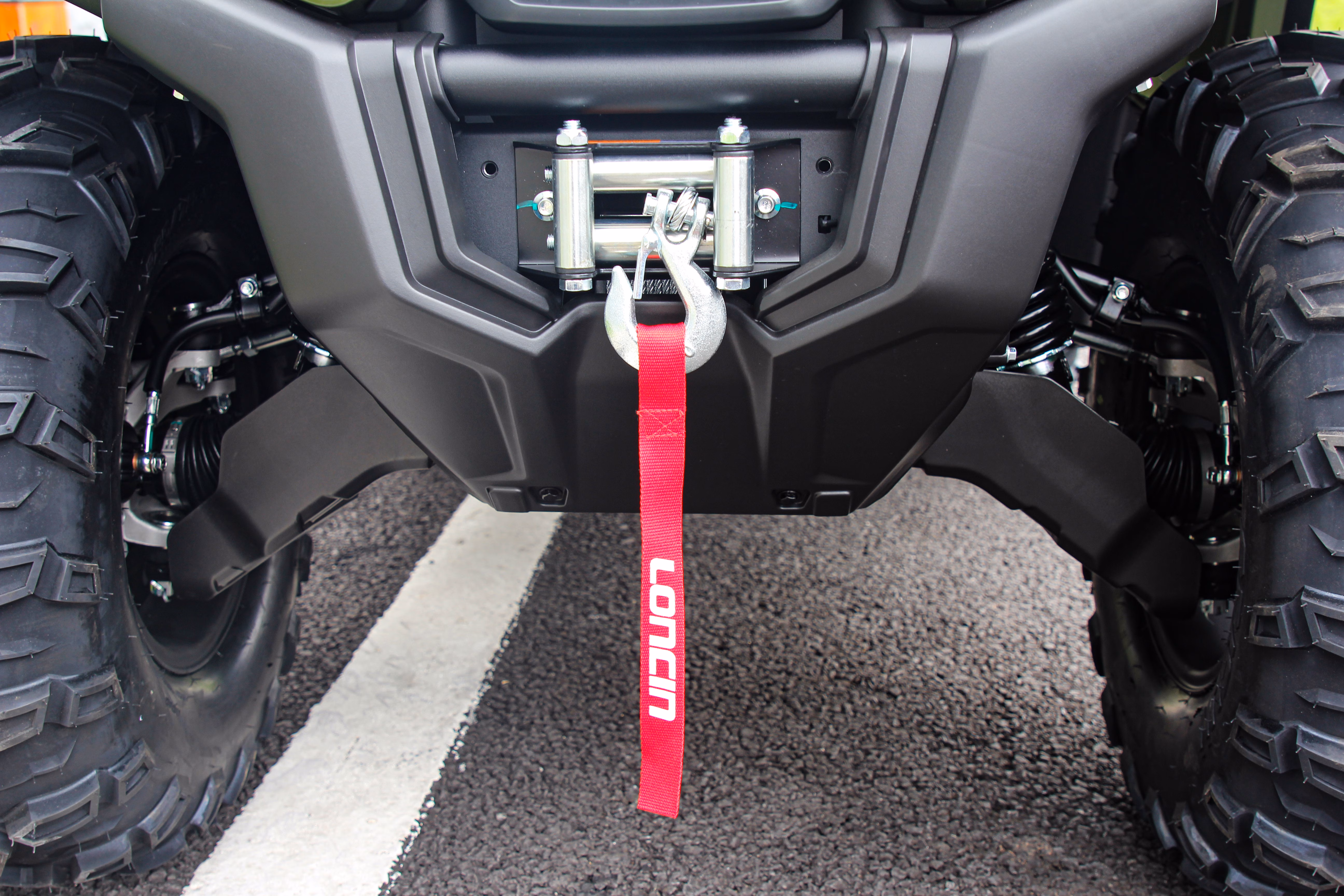

| Winch | 3000 lbs | |

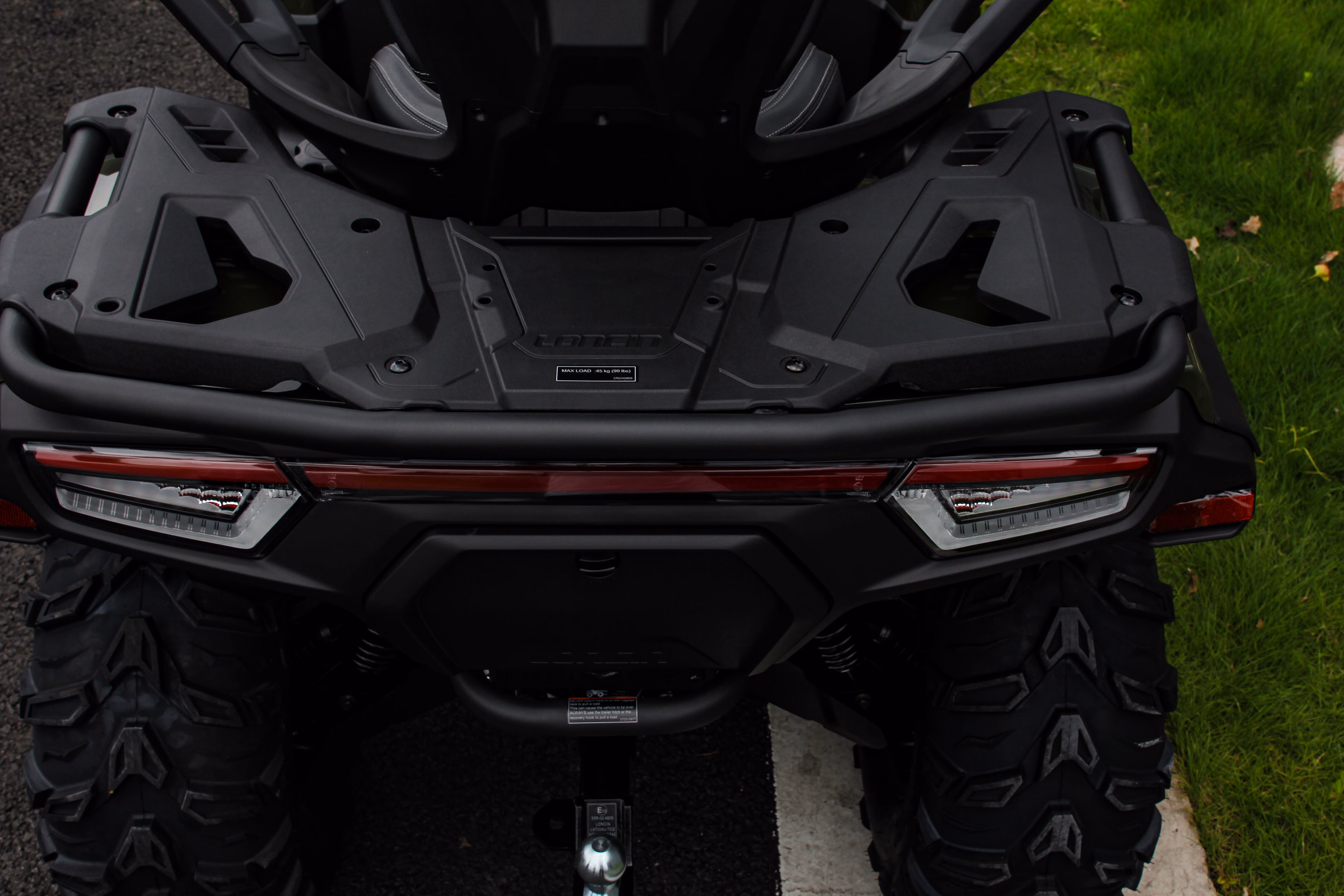

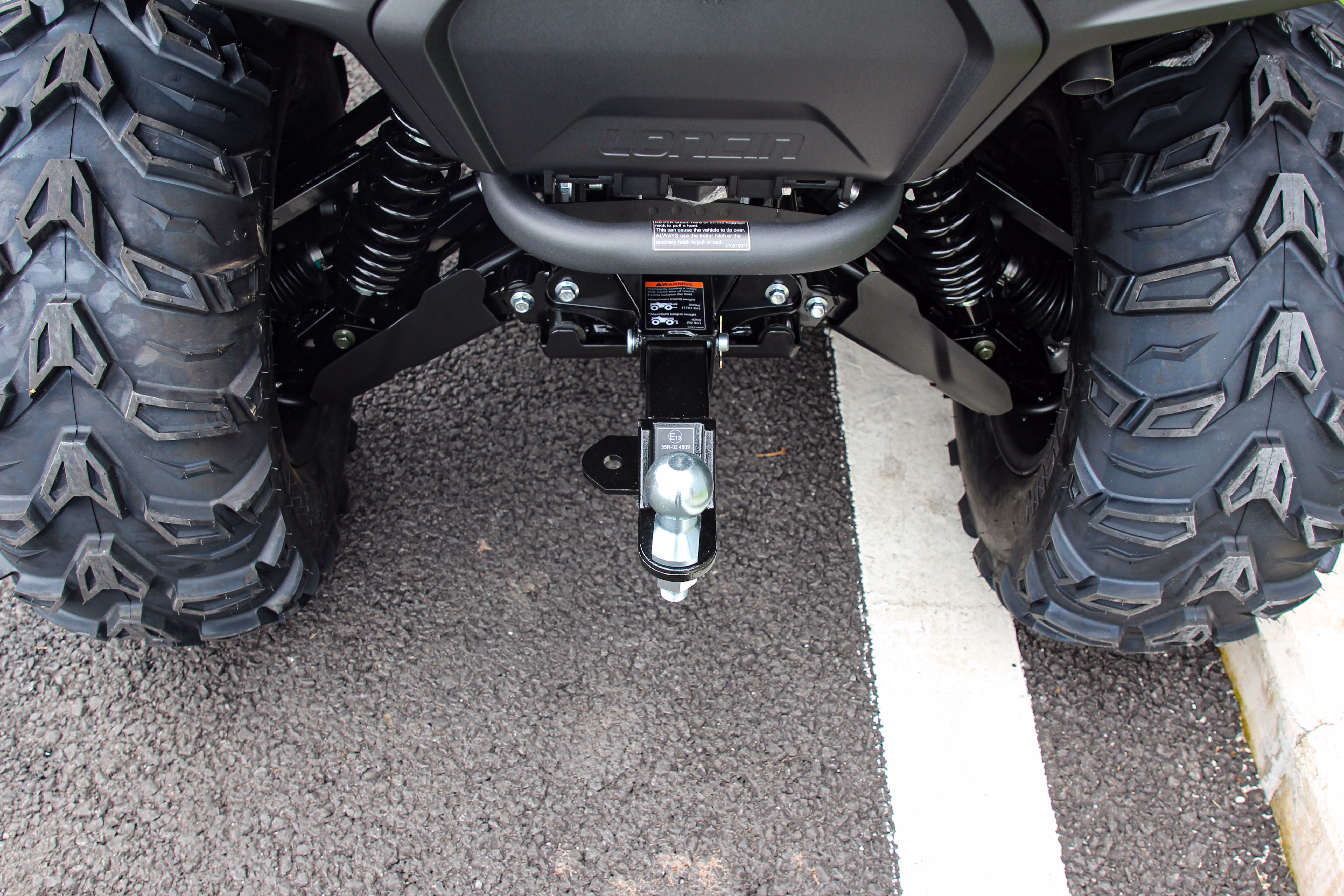

| Trailer ball | ● | |

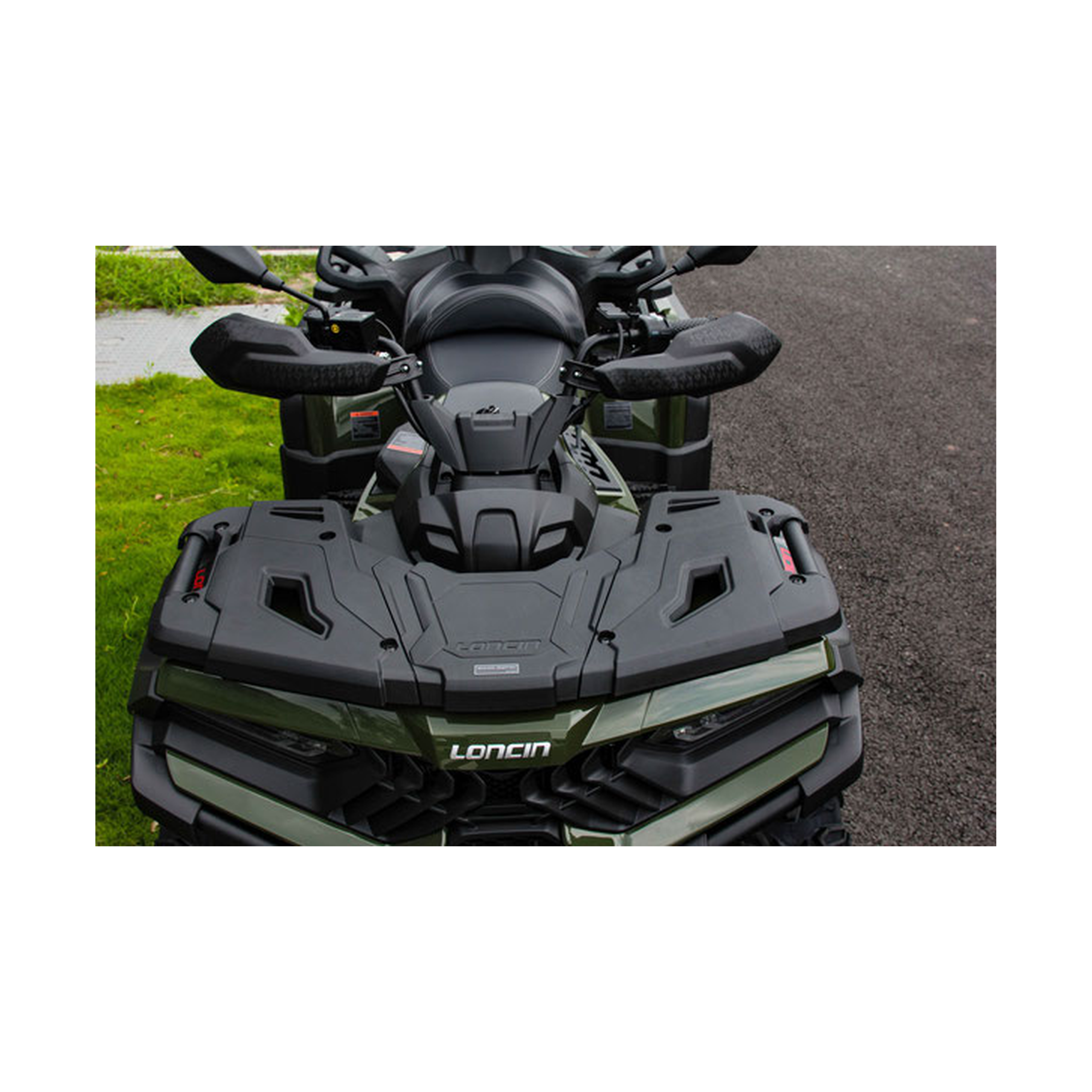

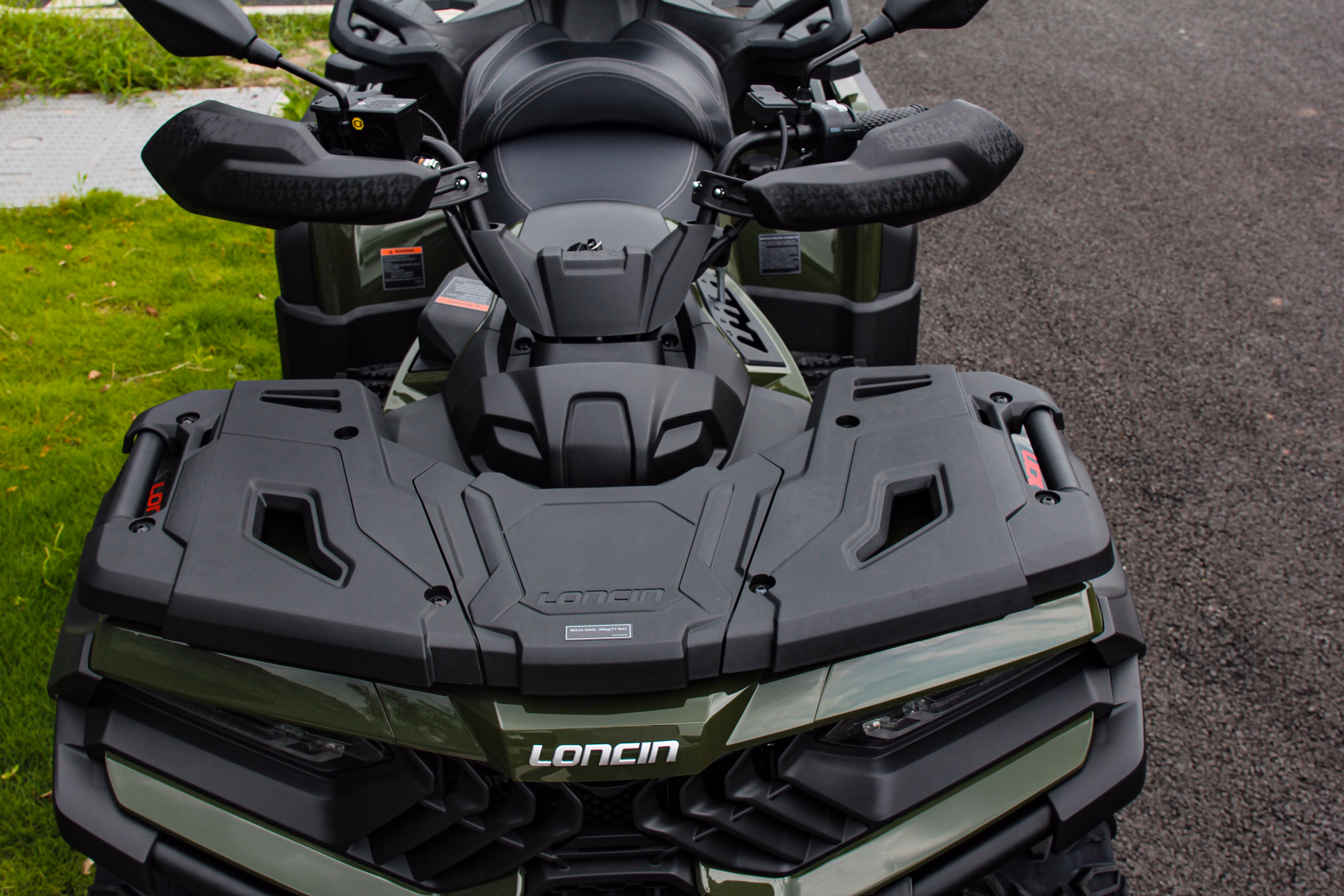

| Front and rear racks(with covers) | ● | |

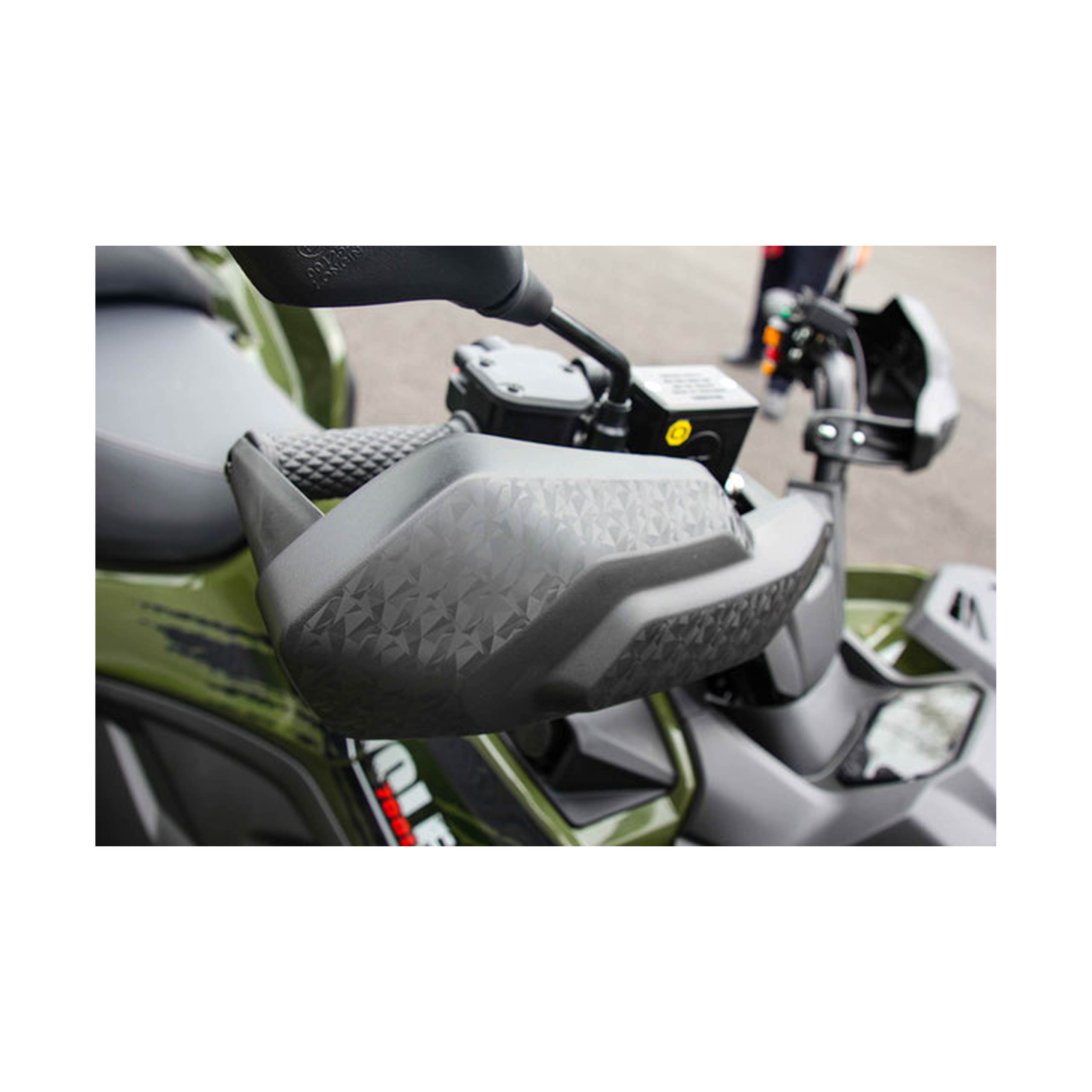

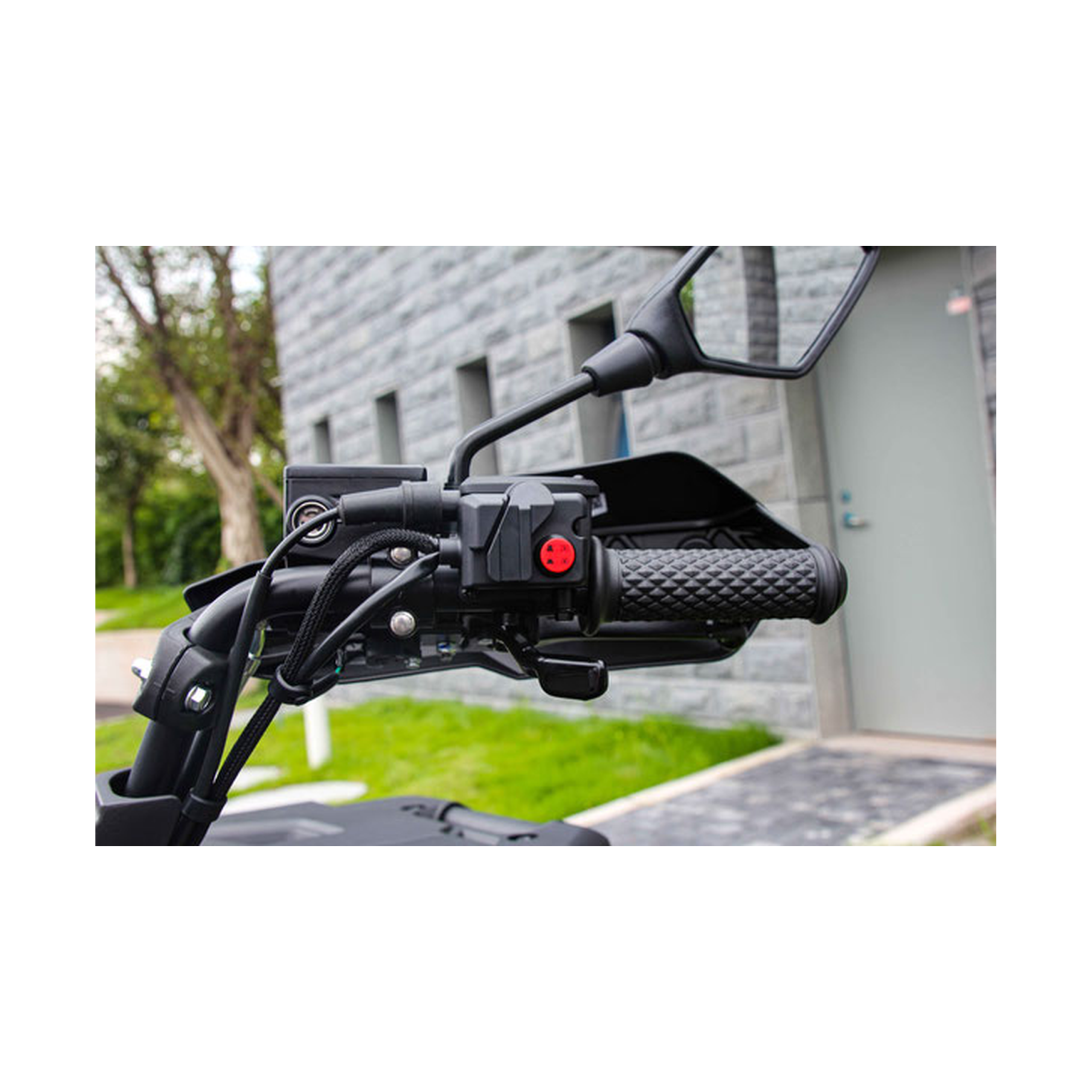

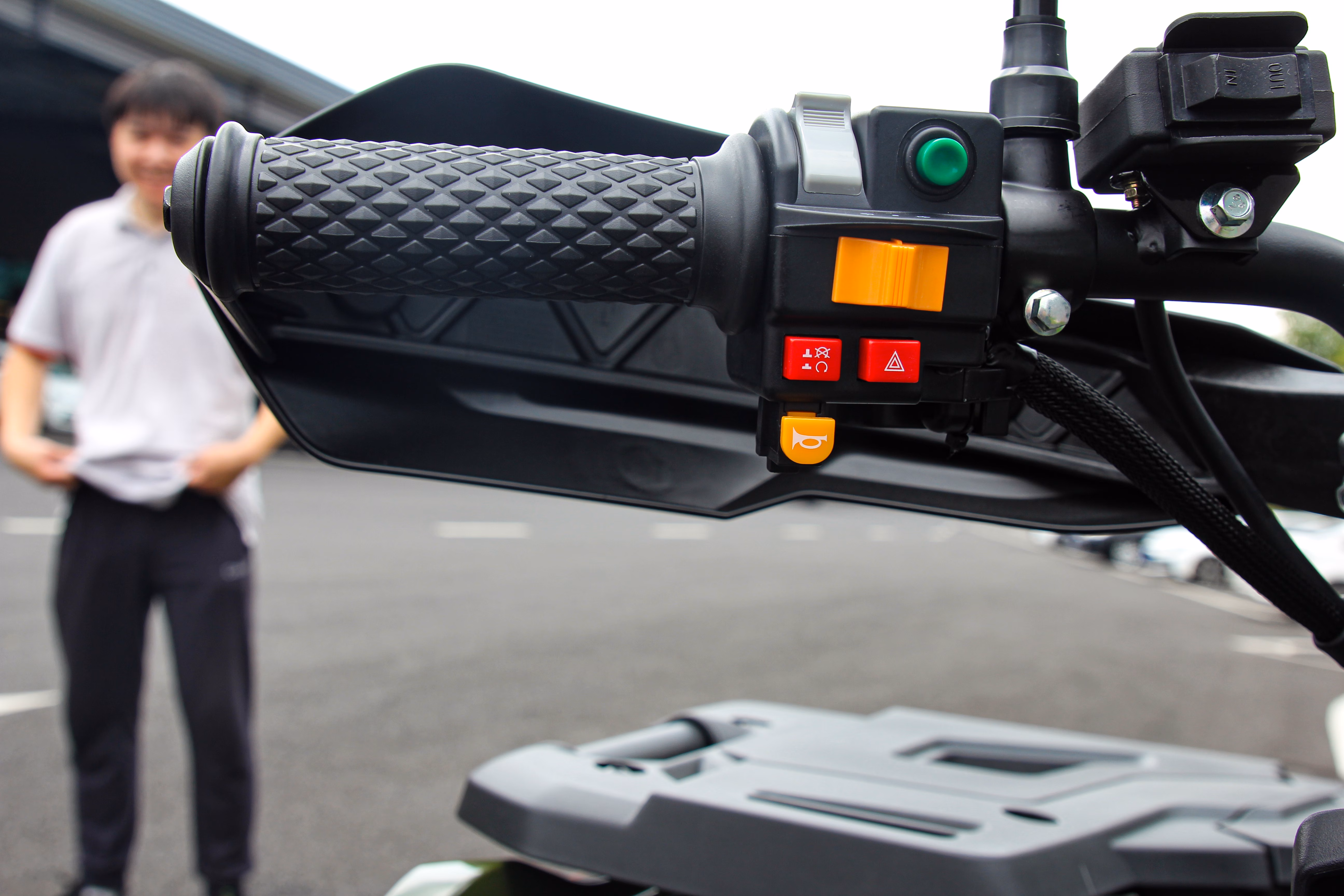

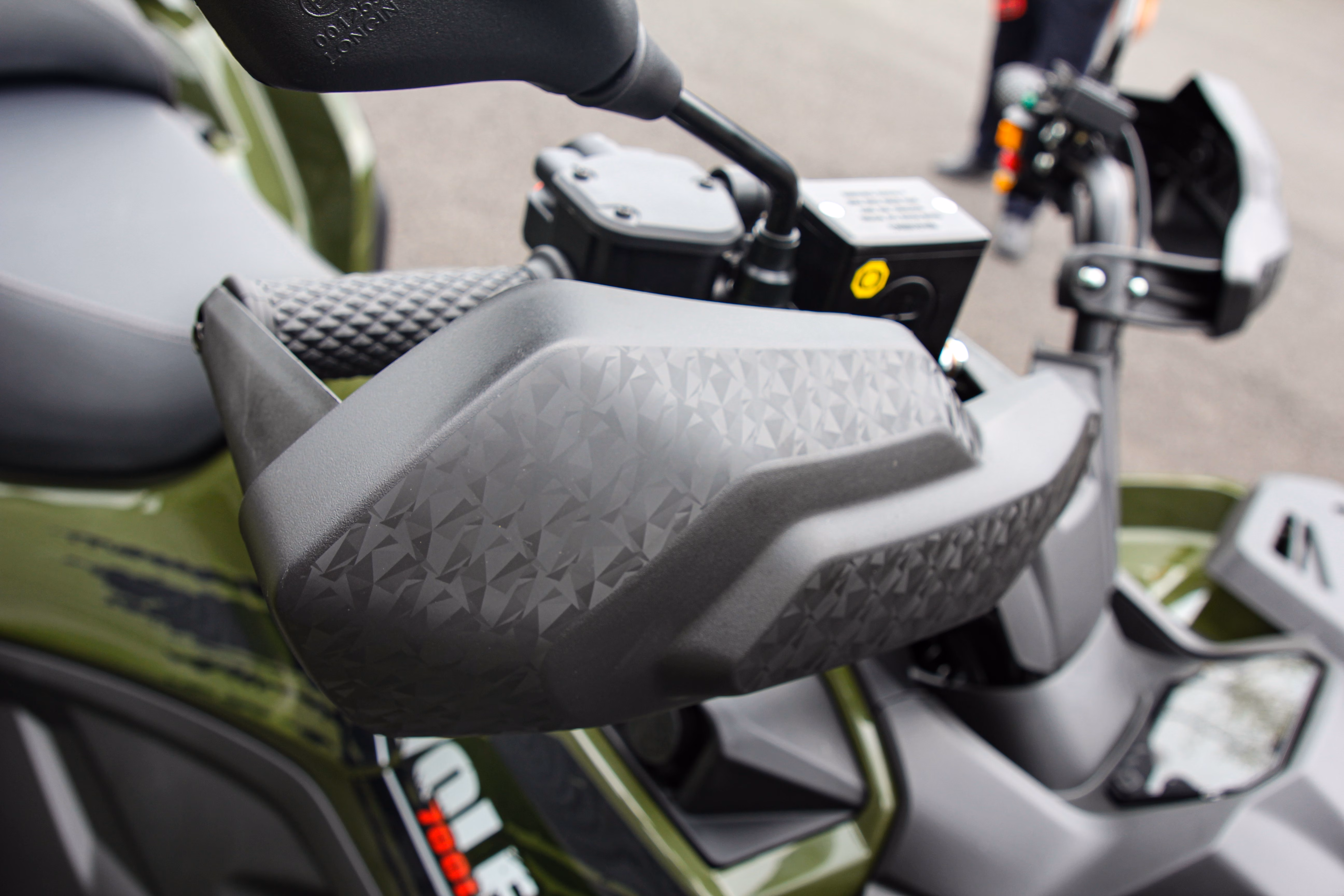

| Handlebar guard | ● | |
| External bumper | ○ | |

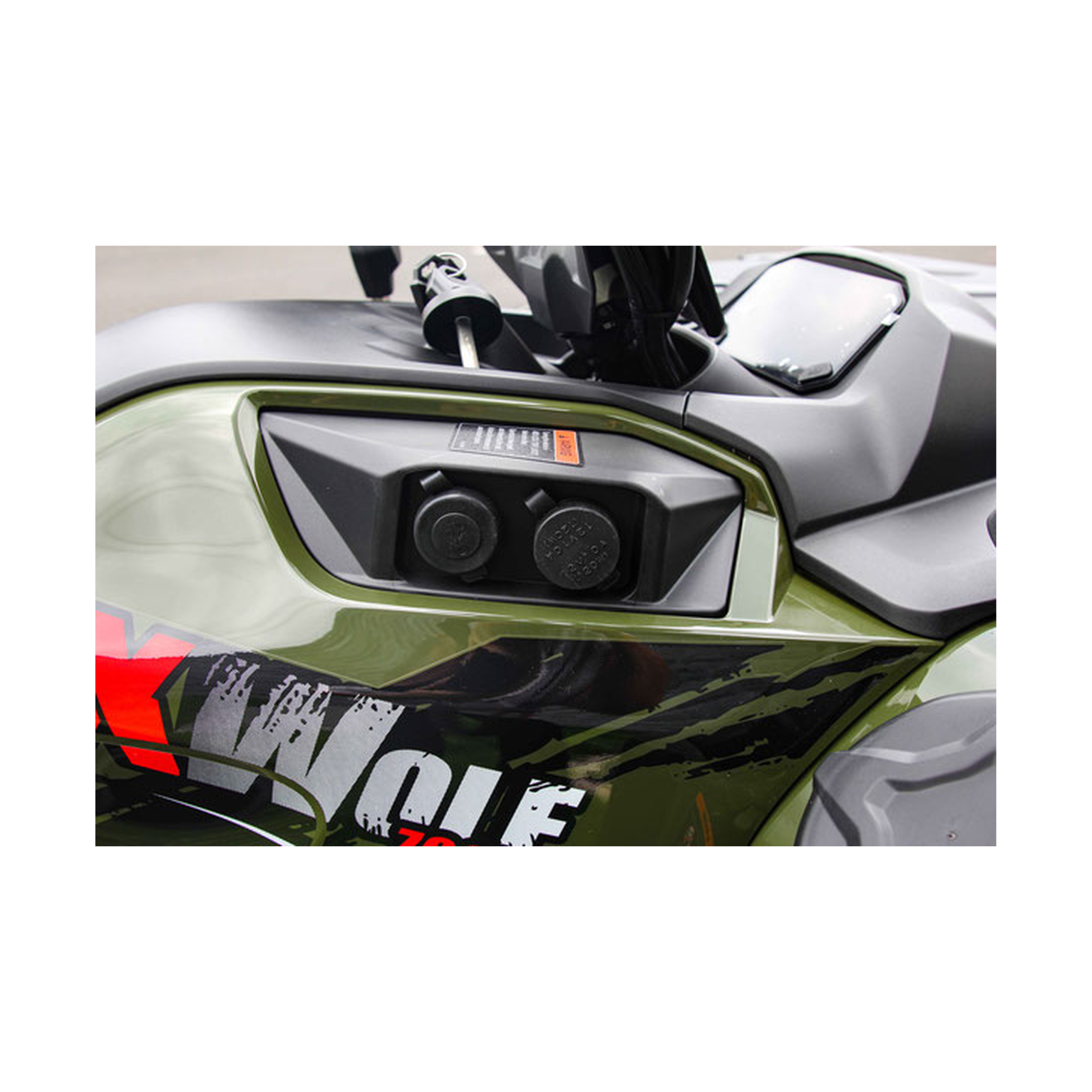

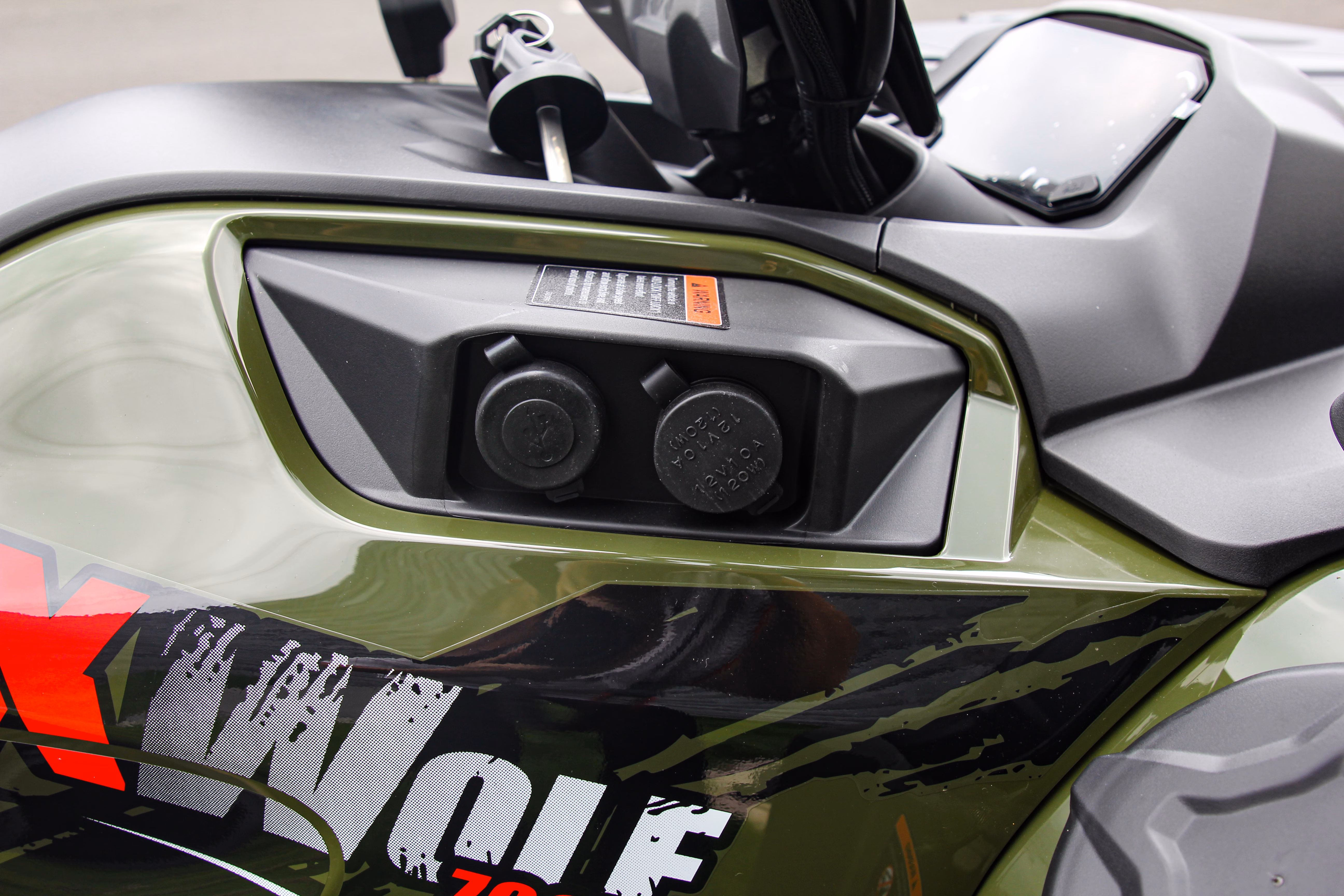

| DC interface & USB | ● | |
