12+
4‑Stroke, Air‑Cooled, Single‑Cylinder
Limited Warranty
Top Speed
(CVT) Transmission
| NO. | SPEC | ITEMS | DETAIL |
| 1. | ATV SPEC | L×W×H | 61”X 39”X 42” |
| 2. | WHEELBASE | 40.5”±0.7” | |
| 3. | FRONT WHEELBASE | 34” | |
| 4. | REAR WHEELBASE | 30” | |
| 5. | MINIMUM GROUND CLEARANCE | 4”± 0.5” | |
| 6. | SEAT HEIGHT | 29”± 0.5” | |
| 7. | RIDE HEIGHT | 8.6” | |
| 8. | HANDLE HEIGHT | 39.7” | |
| 9. | PACKING SIZE | 34”X 39”X 26” | |
| 10. | FR. SUSPENSION TRAVEL | 2” | |
| 11. | RR. SUSPENSION TRAVEL | 2.3” | |
| 12. | MINIMUM TURNING CIRCLE DIAMETER | 149.6” | |
| 13. | TURNING ANGLE | <45° | |
| 14. | SIDESLIP | <5m/km | |
| 15. | MAX LOADING | 150LBS | |
| 16. | NET WEIGHT | 260LBS | |
| 17. | G. W. | 285LBS | |

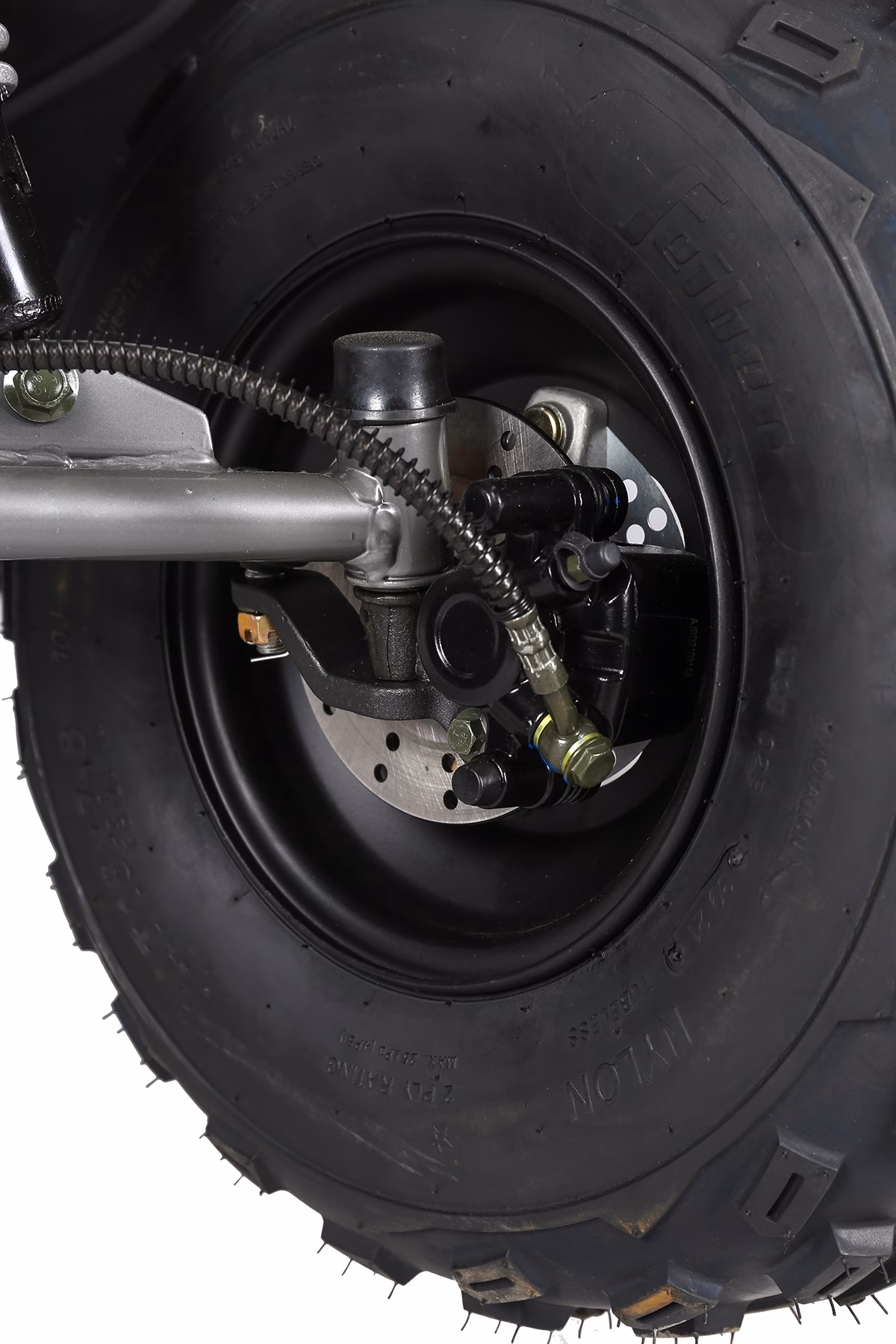

| 18. | F&R BRAKE | FR. & RE. DISC BRAKE | |
| 19. | F&R BRAKE OPERATION TYPE | FR. & RE. HAND BREAK | |
| 20. | FR./RR. RIM | 8INCH | |
| 21. | FR./RR. TYRE | 18*7-8/18*9-8 | |
| 22. | FR./RR. TYRE CAPACITY | 9 PSI | |
| 23. | FR./RR. TYRE | FR./RR. TYRE | |
| 24. | ENGINE SPEC | ENGINE TYPE | 125CC, AIR COOLER. 4 STROKES
AUTOMATIC WITH REVERSE |
| 25. | MODEL NO. | ZS154FMI | |
| 26. | MANUFACTORY | ZONGSHEN | |
| 27. | BRORE×STROKE | 2.1”× 2.1” | |
| 28. | ENGINE CAPACITY | 123.67ML | |
| 29. | COMPRESSION RATIO | 9.0:1 | |
| 30. | MAX.POWER | 〔6.3（1±10%）〕/〔7500（1±5%）〕 | |
| 31. | MAX.TORQUE | 〔8.8（1±10%）〕/〔5500（1±5%）〕 | |
| 32. | BATTERY | 12V/5AH | |
| 33. | SPEC | TANK CAPACITY | 6.5L |

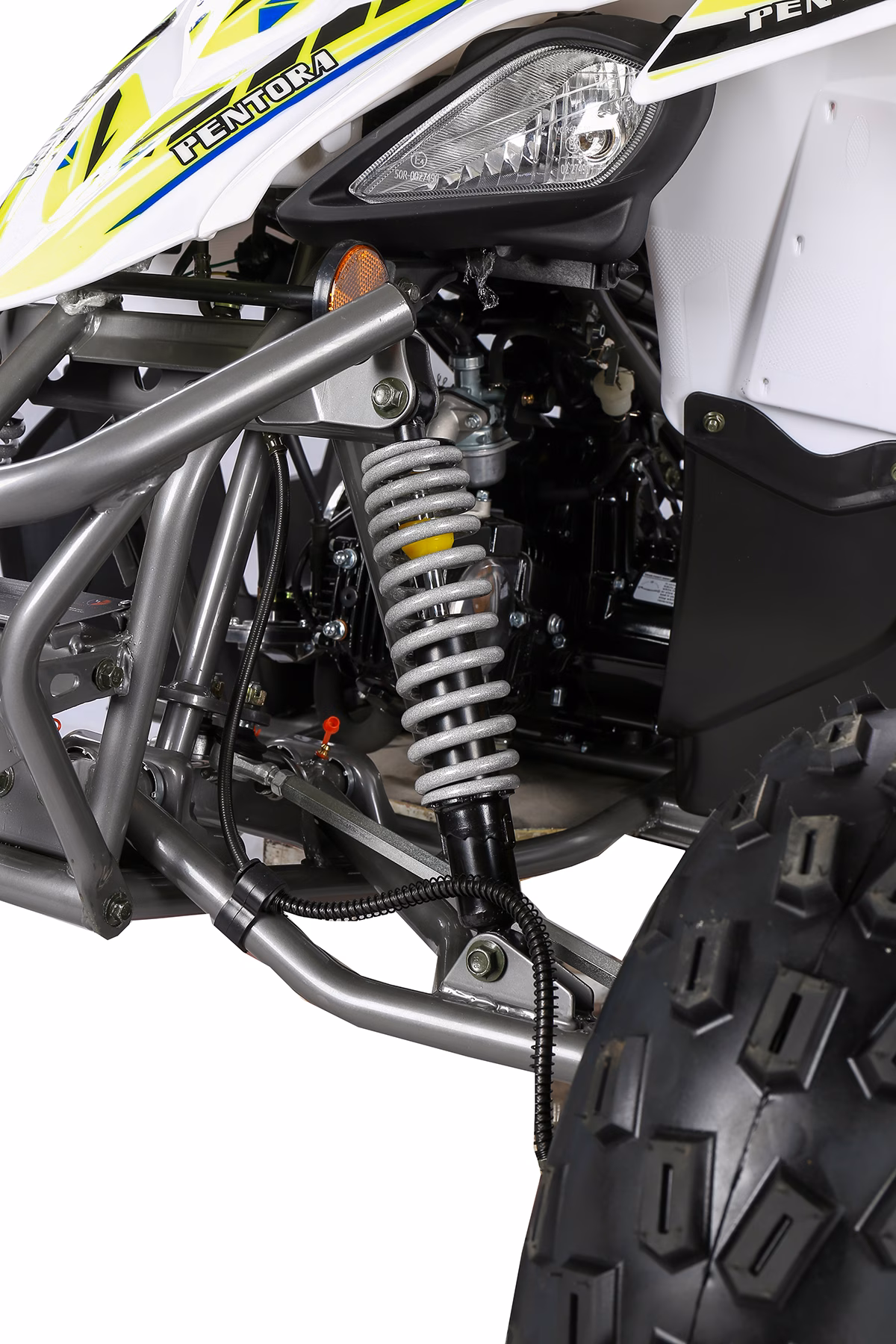

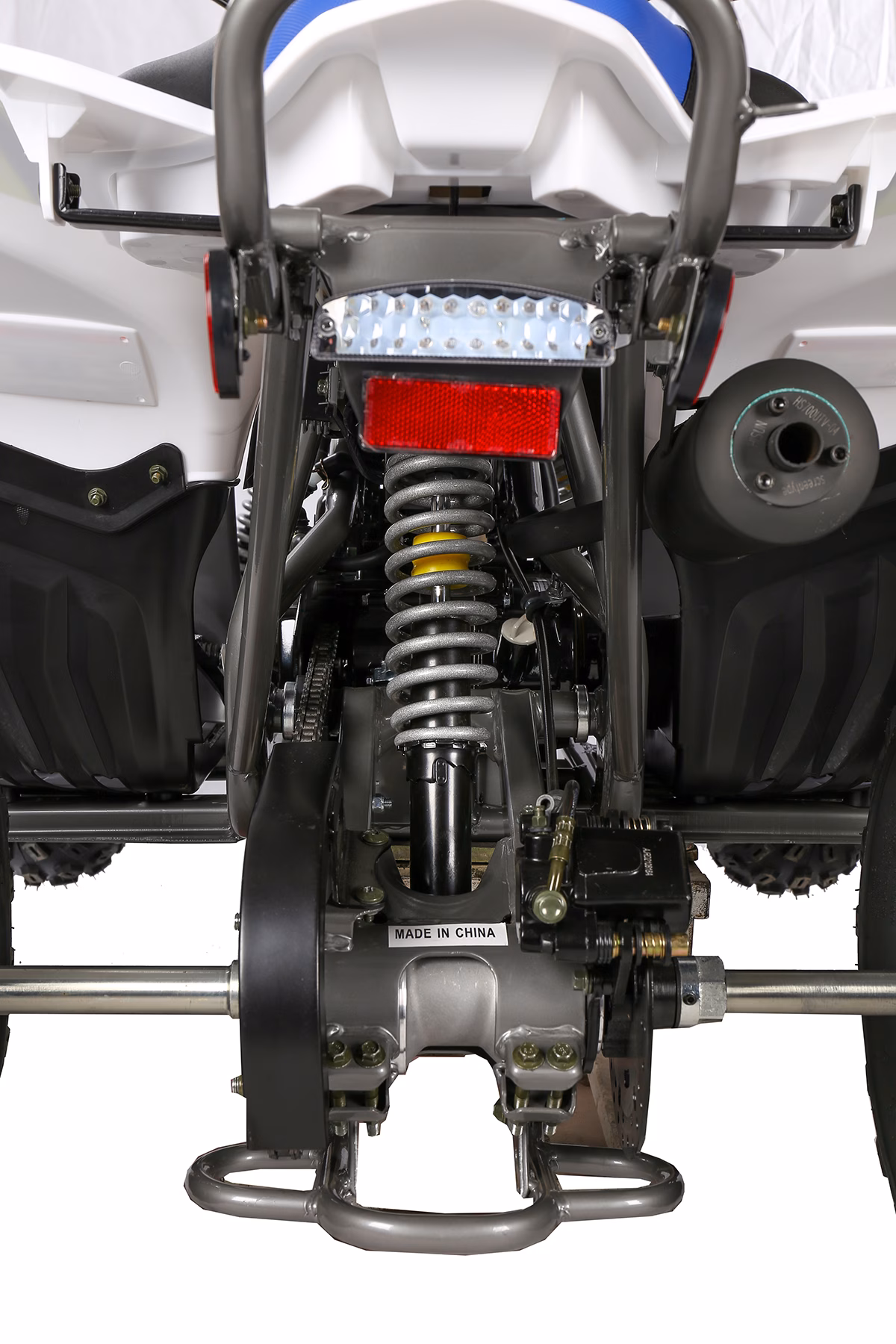

| 34. | FR./RR. SUSPENSION | OIL DAMPER | |
| 35. | FR./RR. SUSPENSION LENGTH | 11”/13.5” |
Apollo ATVS
