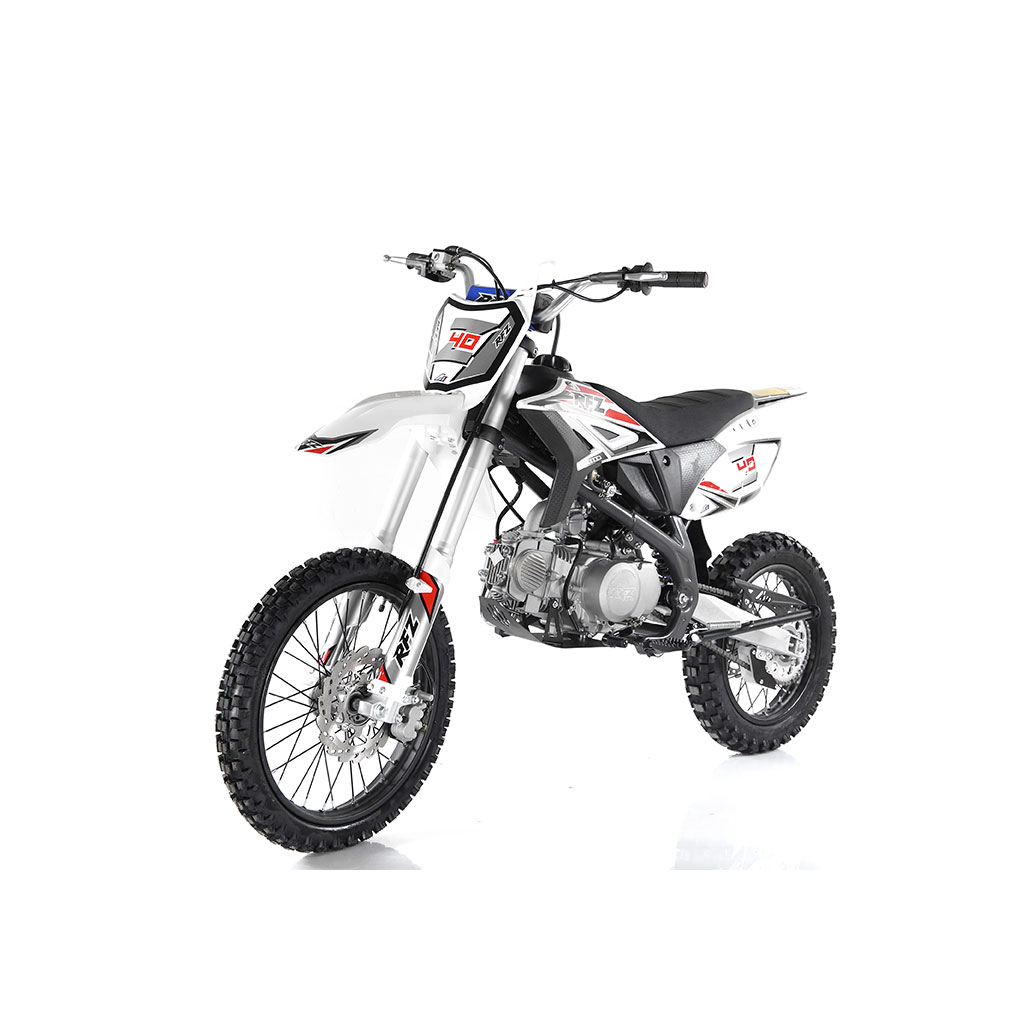

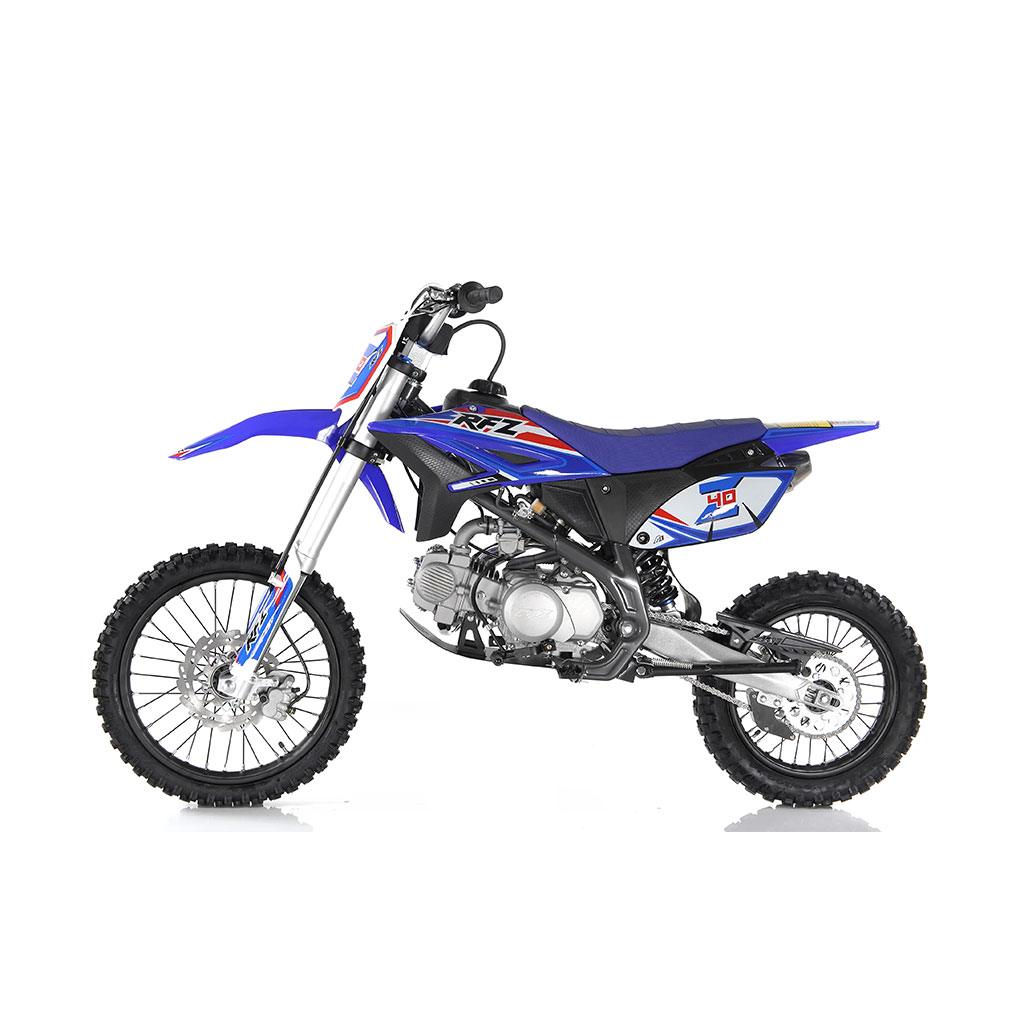

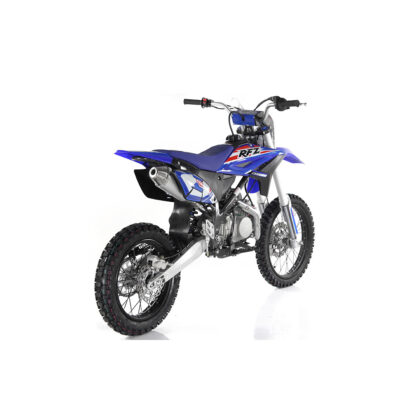

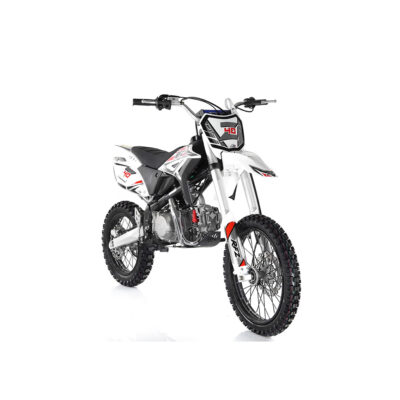

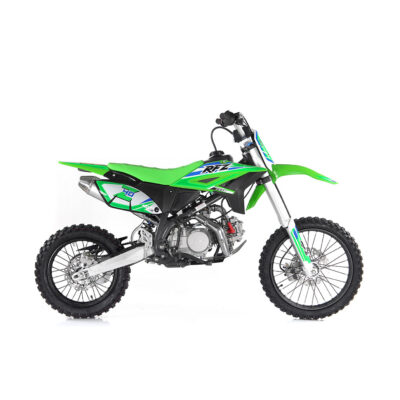

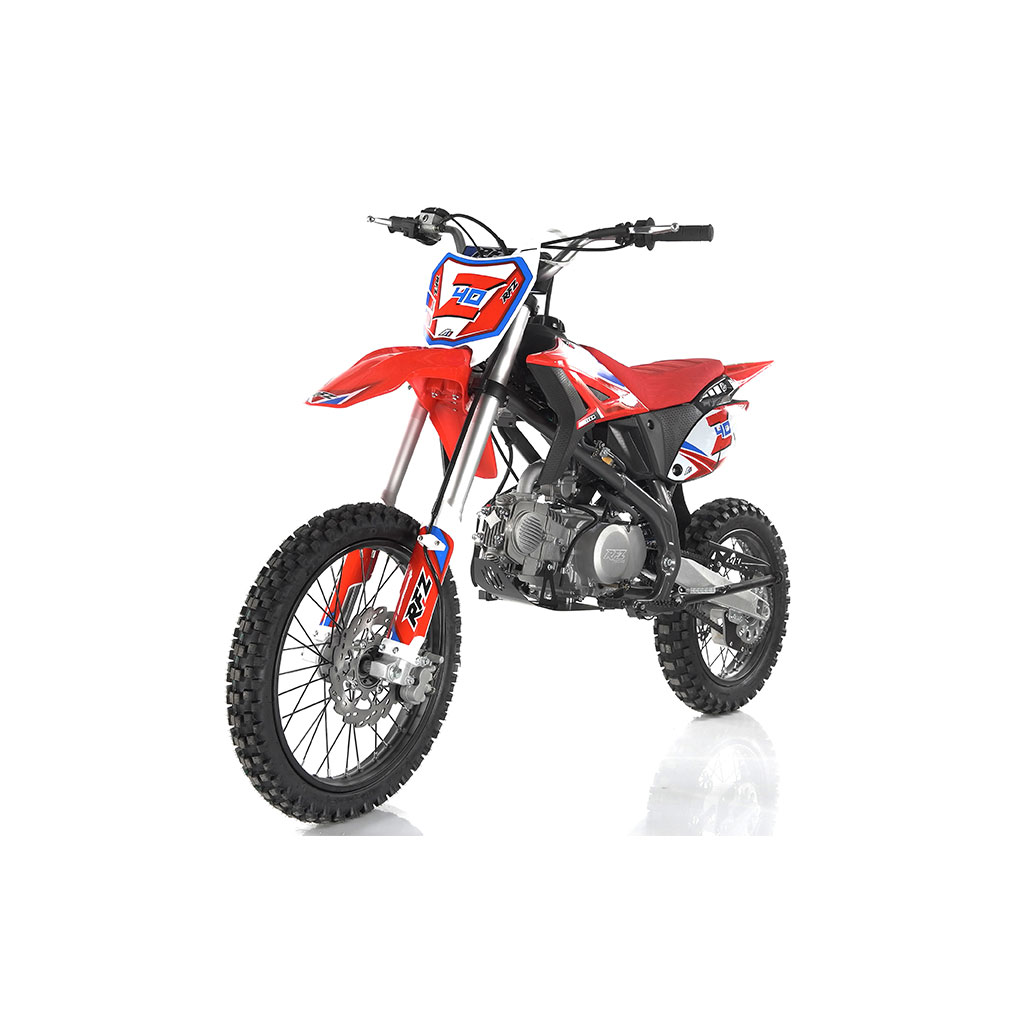

Z40 140cc

Z40 140cc

Description

Z40
carburetor NIBBI PE22
engine Brand YX
engine 140cc Air cooled, 4-stroke, single-cylinder
Engine Gear 4-speed Manual  (N-1-2-3-4)
Transmission Chain Drive
Shift Gear Hand
Engine Bore X Stroke 56×57mm
compression ratio  9.8：1
max power 11HP/8000r/min
Max torque 10.2N.m/7500r/min
Ignition CDI
Engine Oil total capacity 0.24 Gallon
Fuel Tank Capacity 1.03 Gallon
Start way Kick Start
Front wheel 70/100-17
Rear wheel 90/100-14
Drive train Chain drive
Front and rear absorber brand SYD
Front absorber 30.3 inches Non-Adjustable
Rear absorber 13.8 inches Adjustable
Front Hand Brake Hydraulic Disc
Rear Foot Brake Hydraulic Disc
Frame Double beam Heavy Duty Steel frame
N.W: 168 LBS
G.W 196 LBS
Products size(L*W*H) 70*30.7*46 inches
seat high 32.5 inches
wheel base 49.2 inches
Ground Clearance 14.5 inches
box size(L*W*H) 57.5*15*29.5inches
