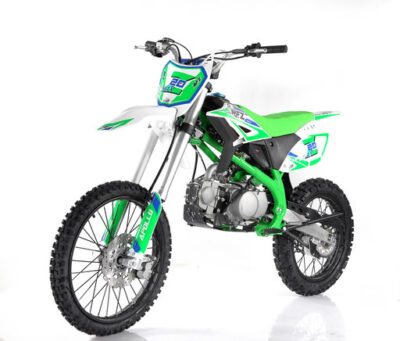

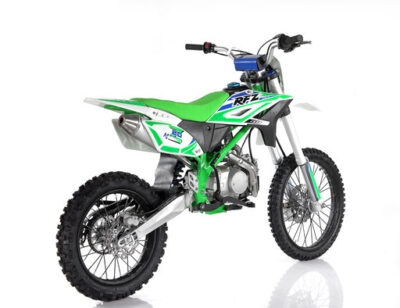

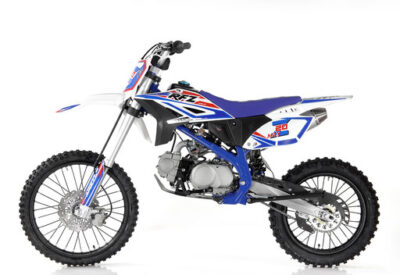

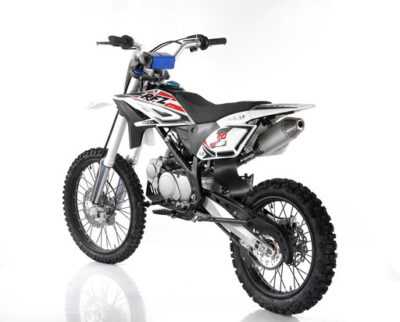

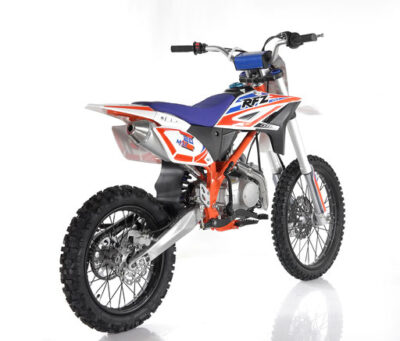

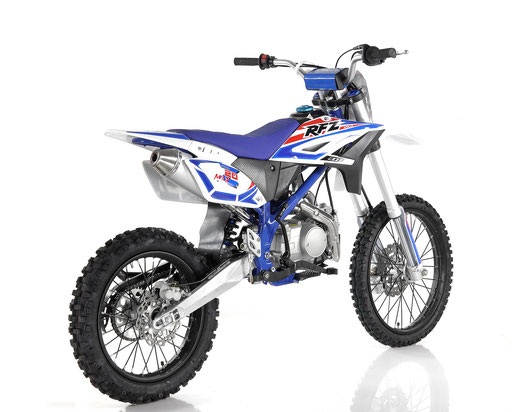

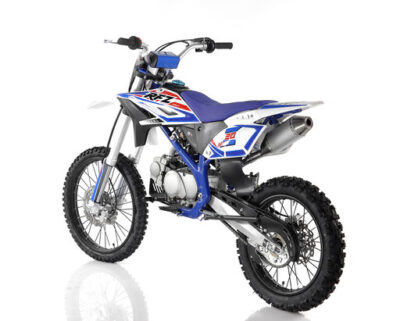

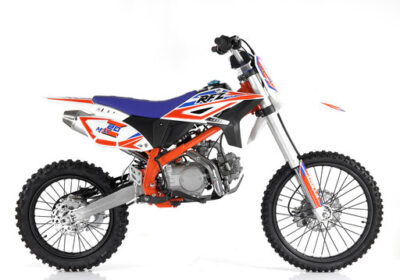

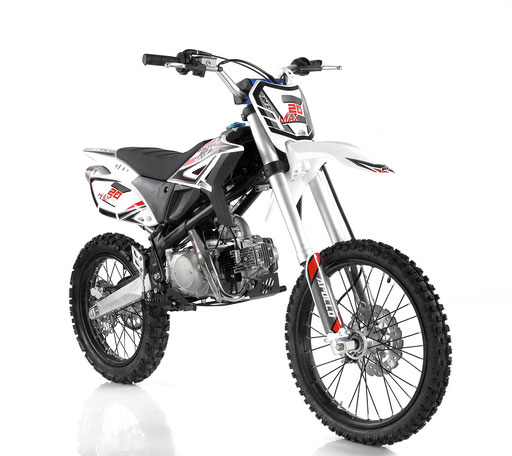

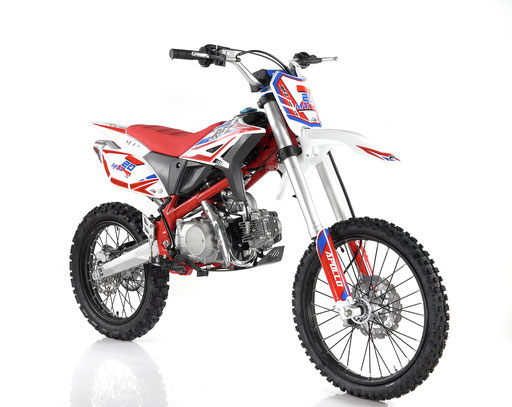

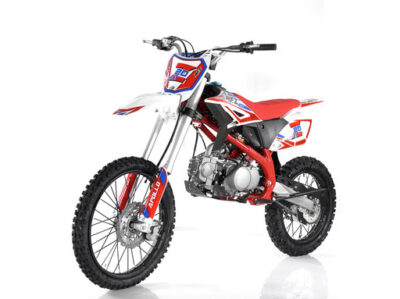

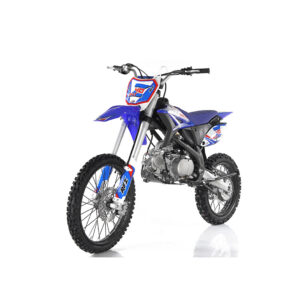

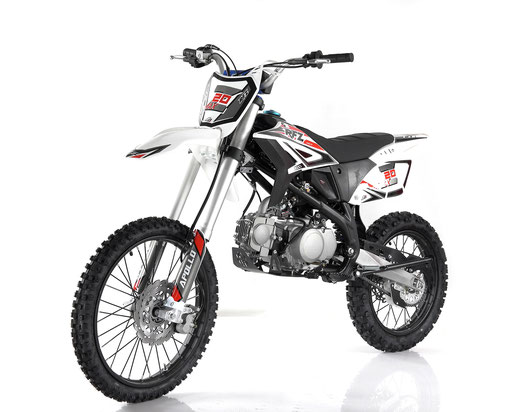

Z20 MAX 125cc

Z20 MAX 125cc

Description

Z20 MAX
carburetor PZ26
engine Brand YX
engine 125cc Air cooled, 4-stroke, single-cylinder
Engine Gear 4-speed Manual  (N-1-2-3-4)
Transmission Chain Drive
Shift Gear Hand
Engine Bore X Stroke 54×54mm
compression ratio 8.8:1
max power 7.8HP/7500r/min
Max torque 8.6N.m/5000r/min
Ignition CDI
Engine Oil total capacity 0.24 Gallon
Fuel Tank Capacity 1.03 Gallon
Start way Kick Start
Front wheel 70/100-19
Rear wheel 90/100-16
Drive train Chain drive
Front and rear absorber brand SYD
Front absorber 31.9 inches Non-Adjustable
Rear absorber 13.8 inches Adjustable
Front Hand Brake Hydraulic Disc
Rear Foot Brake Hydraulic Disc
Frame Double beam Heavy Duty Steel frame
N.W: 192 LBS
G.W 221 LBS
Products size(L*W*H) 74*30.7*48 inches
seat high 34.5 inches
wheel base 49.2 inches
Ground Clearance

Max Weight Capacity  165LBS

14.5 inches
