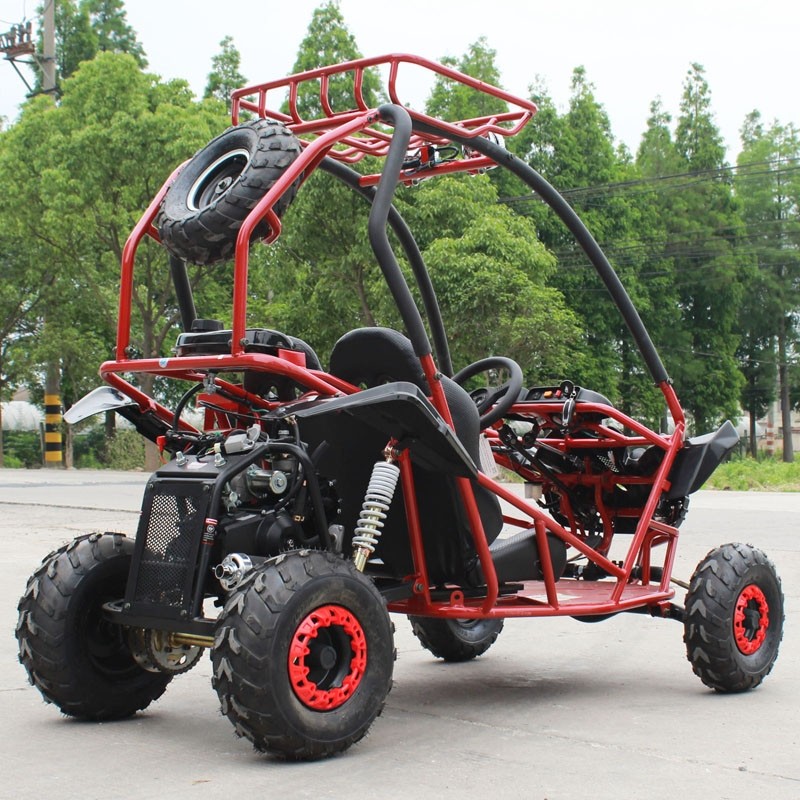

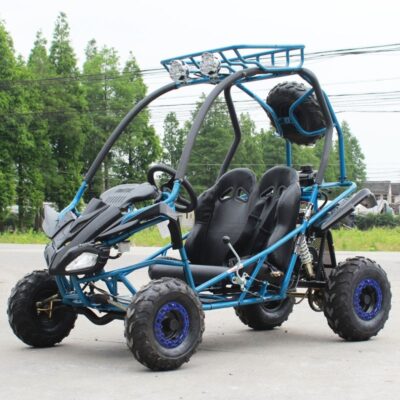

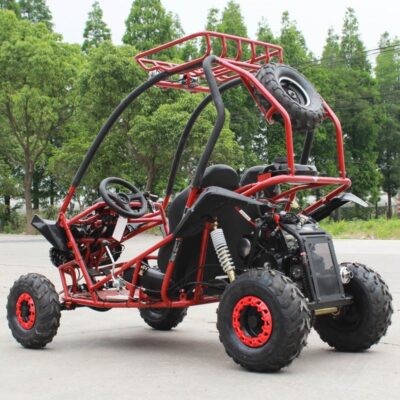

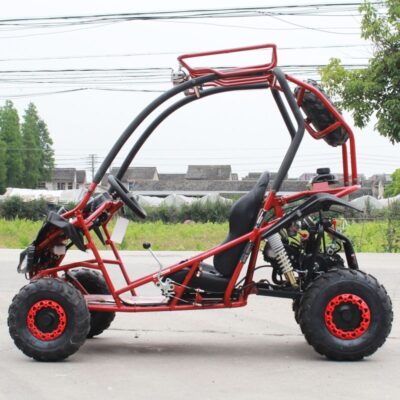

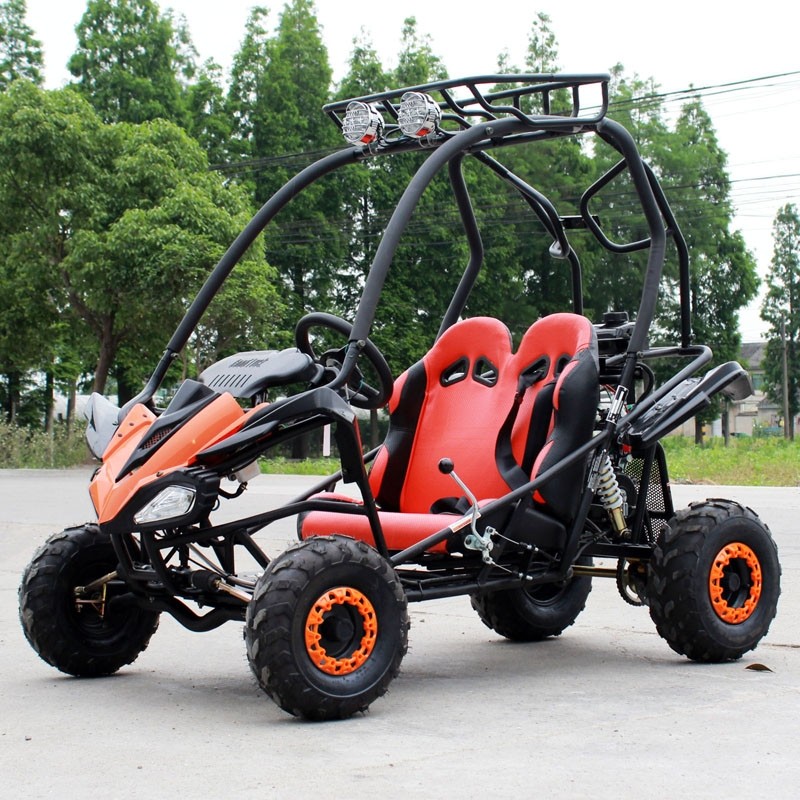

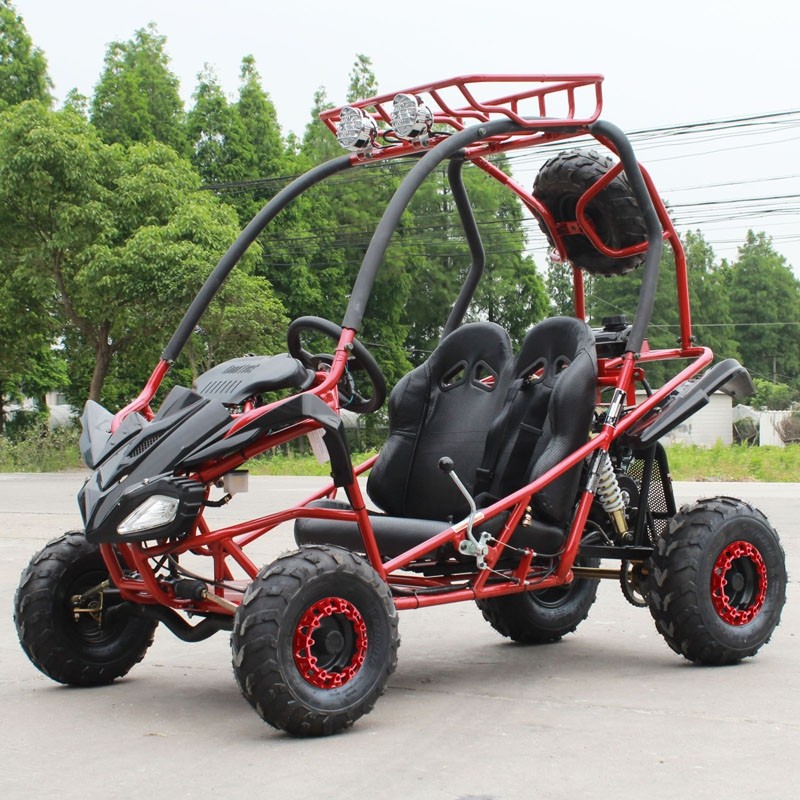

MINI JAGUAR (125CC)

MINI JAGUAR (125CC)

Description

SPECIFICATIONS

1) Engine type: single-cylinder, horizontal type, 4-storke, air-cooled

2) Displacement(ml): 110 (106.7CC/125CC)

3) Max Power(kw/r/min): 5.3kw/8500±500r/min

4) Max Torque(N. m/r/min): 6.9N·m/6500±500r/min

5) Ignition system:  CDI

6) Gear : automatic transmission3+N+R  or D+N+R

7) Fule tank capacity(L): 3

8) Economical oil exhaust(L/100km):  3.5

9) Max speed(km/h):  60rate-limiting40km/h

10) Transmission: chain

11) Brake Type: Disc Drive

12) Wheelbase(mm): 1310

13) Seat Height座垫高度(mm)380

14)棚架高度(MM): 1320

15) Ground clearance(mm): 110

16) Tires (front / rear):    145/70-6  /  16*8-7

17) N. W.(kg):    123          G. W.(kg):    142

18) Product dimension(mm):  1770*1040*1140

19) Carton dimension: 1700*770*620

20) Qty/40HQ:   84units
