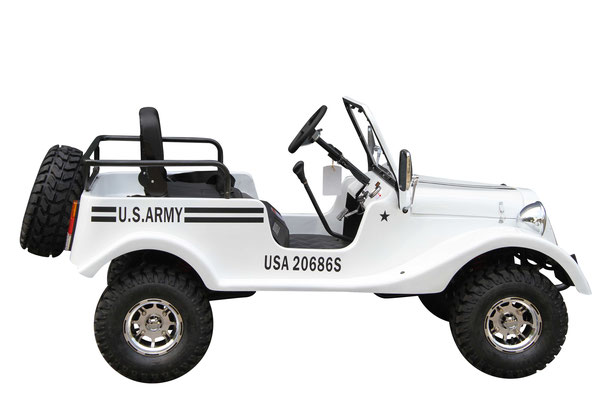

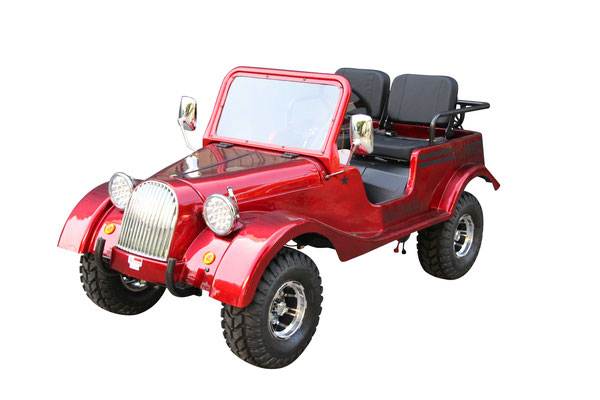

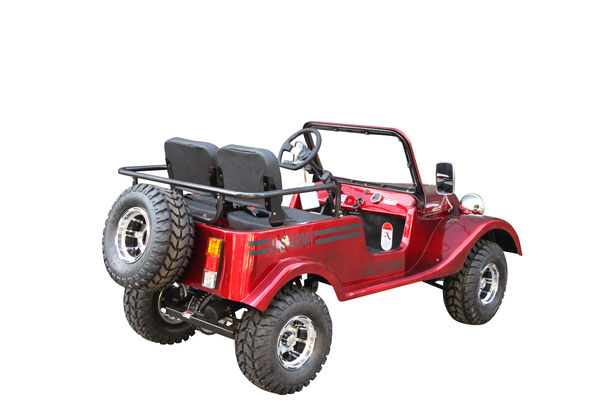

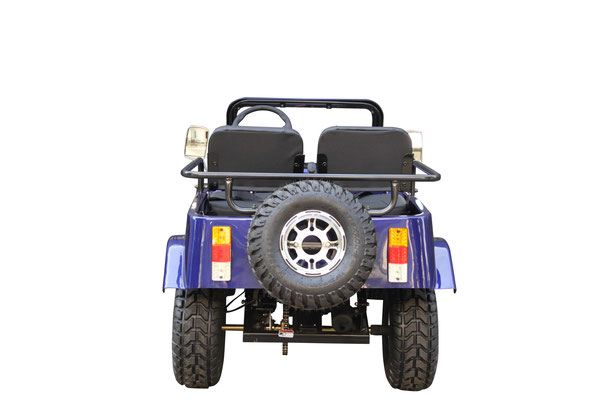

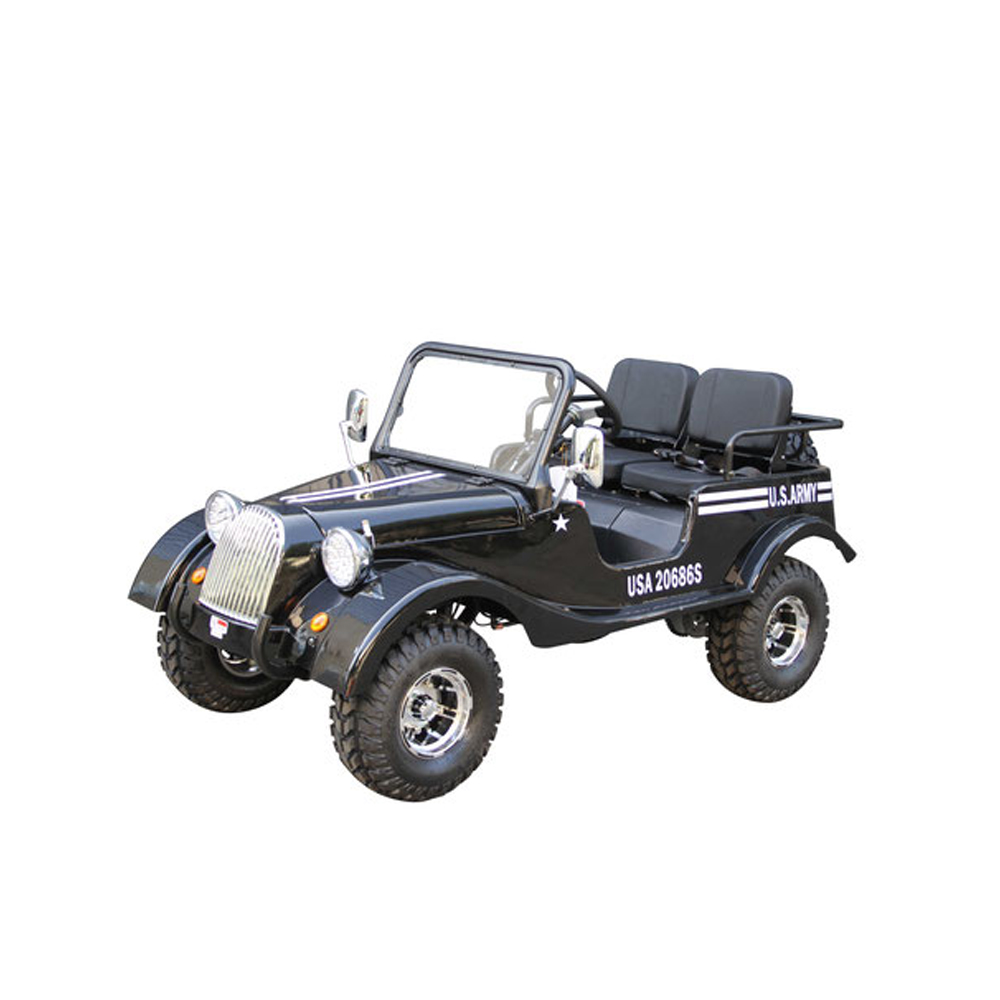

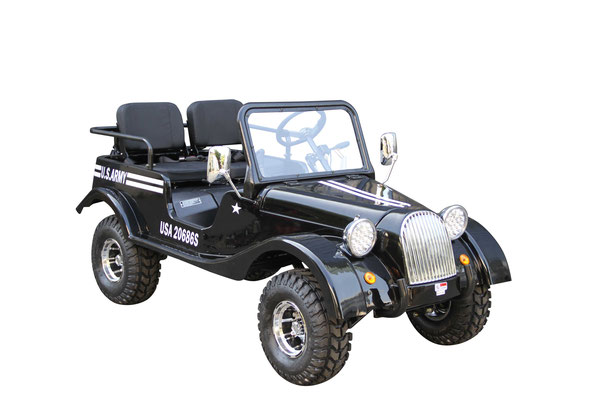

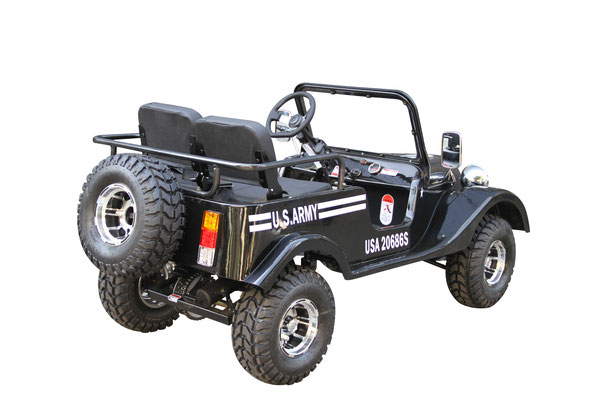

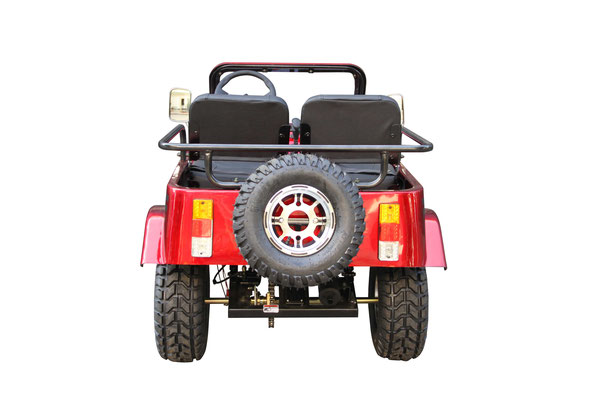

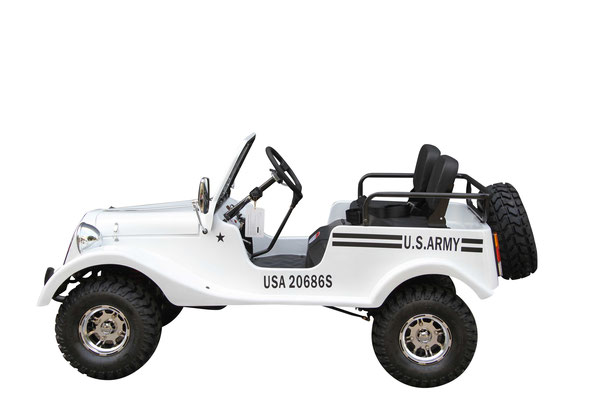

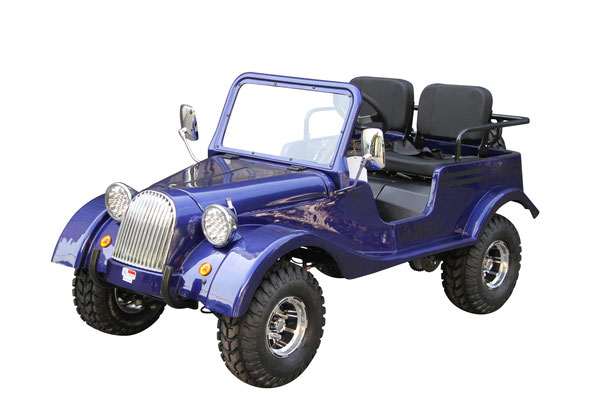

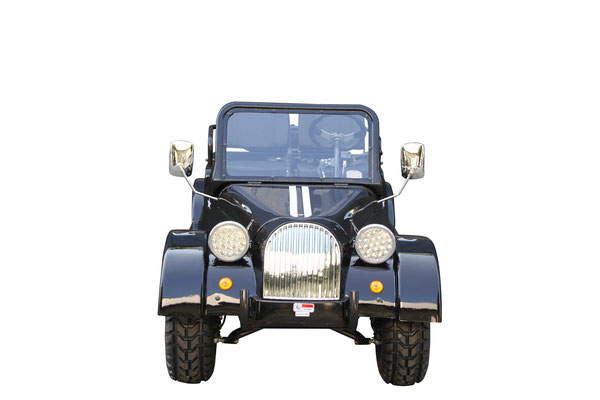

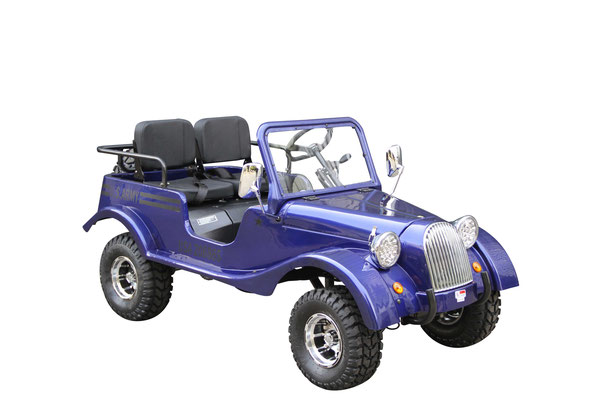

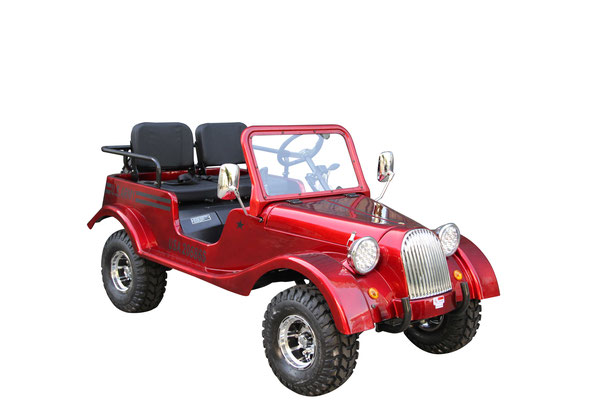

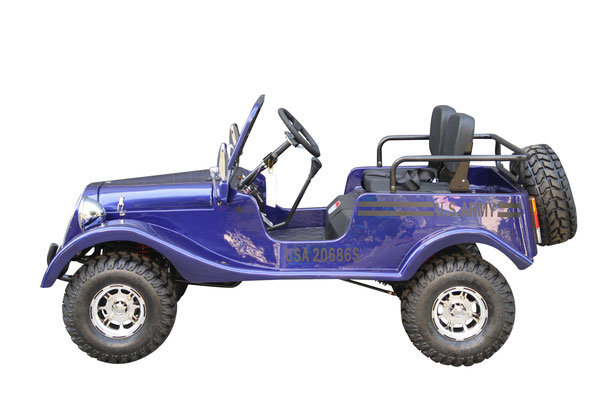

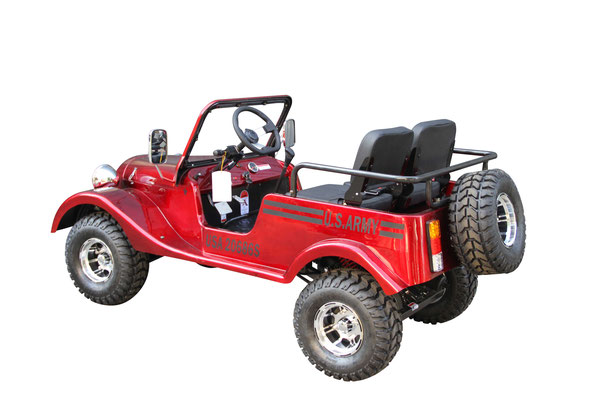

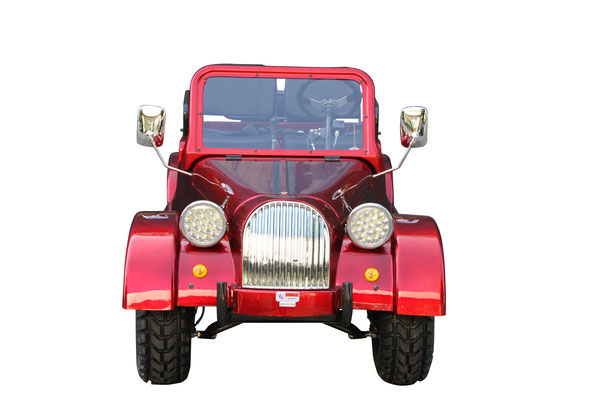

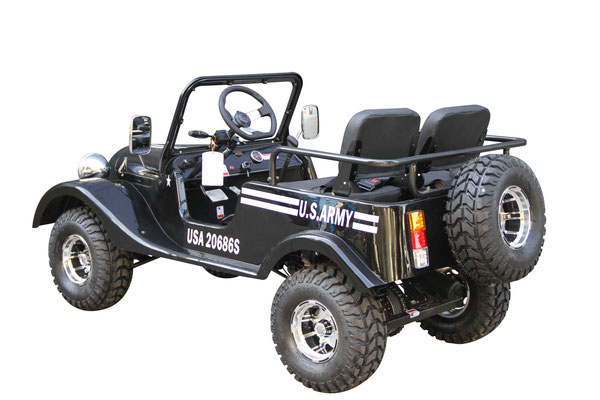

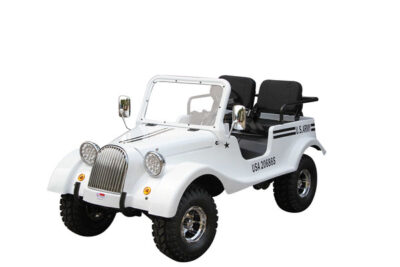

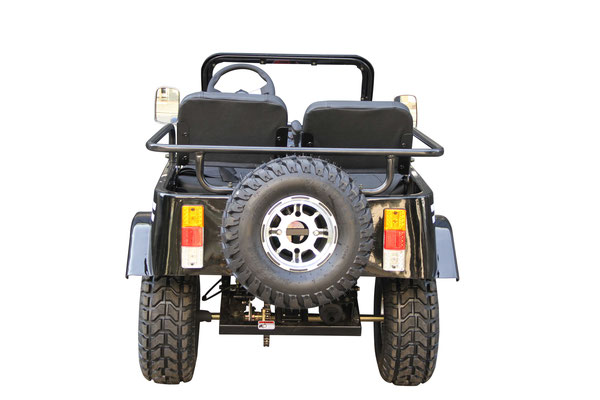

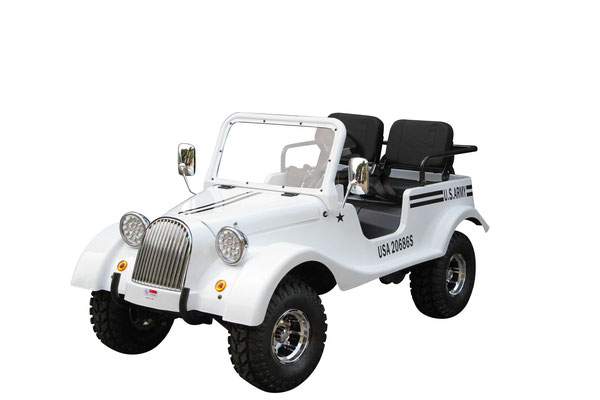

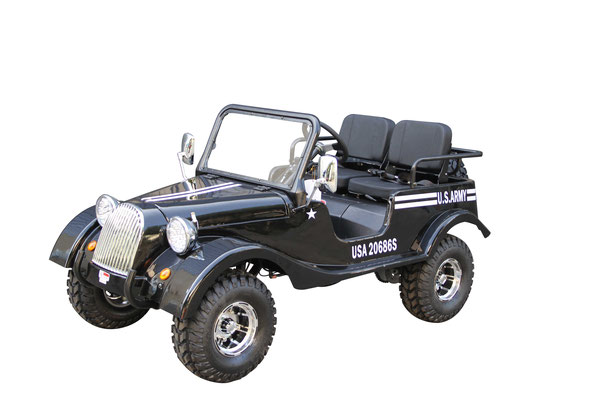

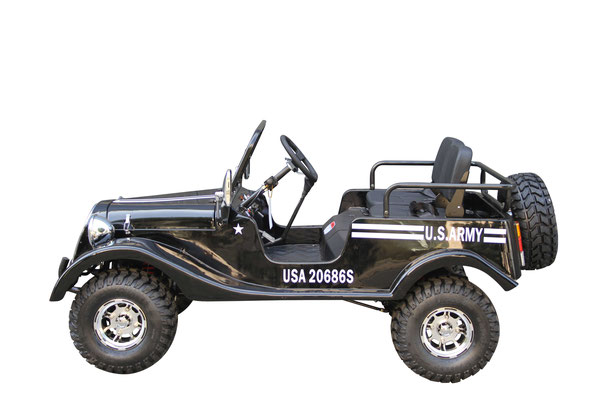

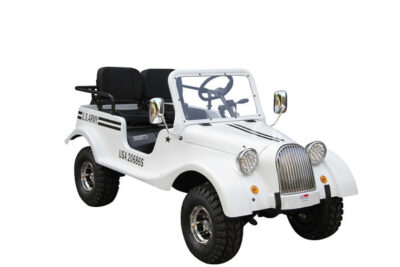

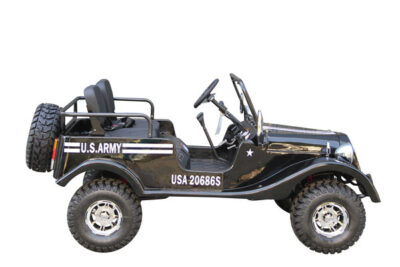

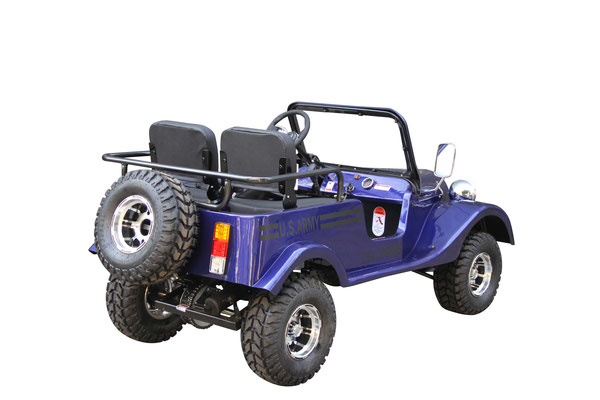

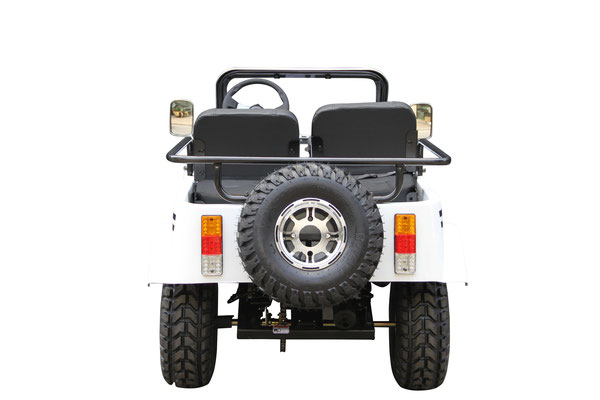

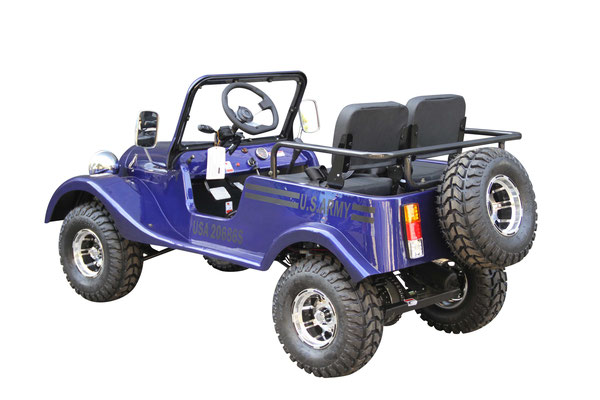

GR5 – 125cc – Apollo ATVs

Description

Specifications

Model Name: GR-5

Engine	125cc
Transmission	3-speed with reverse
Drive type	Chain
Belt and or chain size	Chain: 530H 153L
Starter System	Electric
Fuel system	Gasoline, 1.06gal, carbureted
Brake (Front/Rear)	Disc/Disc
Tire size(Front/Rear)	18×7-8
Wheel size and type(Front/Rear)	8, Steel
Oil capacity and type (in liters)	0.8L, Air cooled motorcycle oil with clutch additive
Gear oil type and capacity (in liters)	N/A
Battery	12V9A
Light	Standard Lights
Suspension(Front/Rear)	dual A-arms front. swingarm rear
Dimensions (in inch)	Assembled(LxWxH): 78.74×35.43×29.13, Seat Height: 23.62, Wheelbase:51.18
Weight(net/gross/capacity)	330.7/363.8 lbs.
weight capacity	264.6 lbs.
Ground Clearance (in inch)	9.84
Assembly Require	Front and rear wheels, windshield, steering column, seat, spare tire holder, gas can holder, seat bars, seat belts, battery
Any special features	Include: windshield, spare tire
EPA/carb approved	EPA Approve
