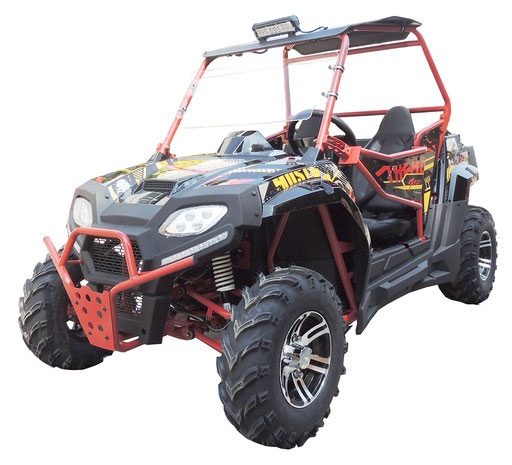

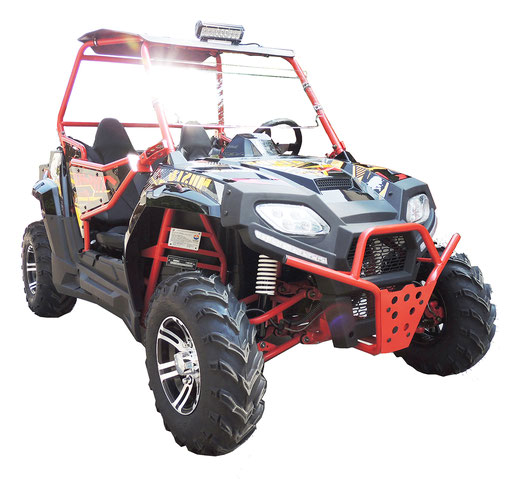

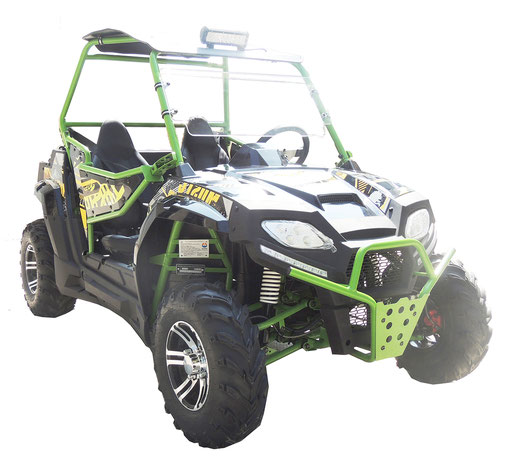

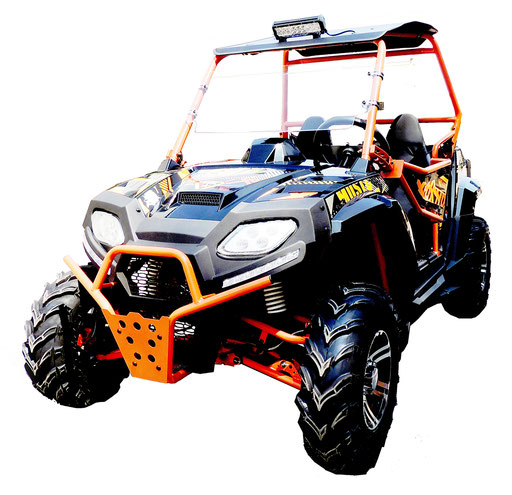

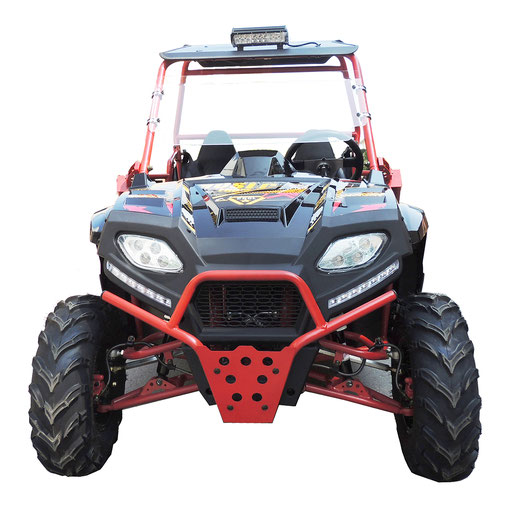

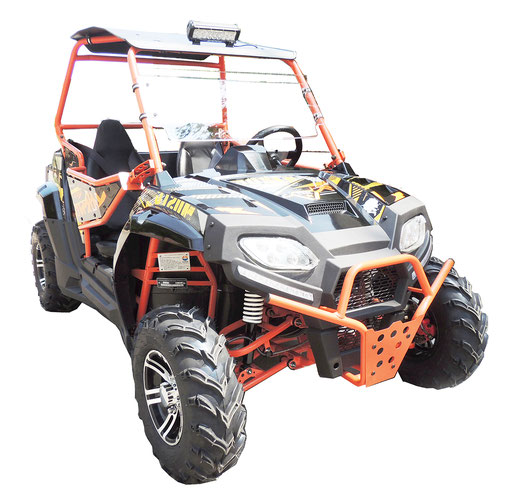

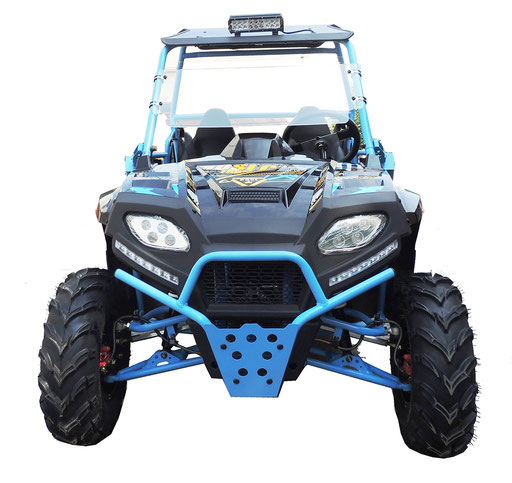

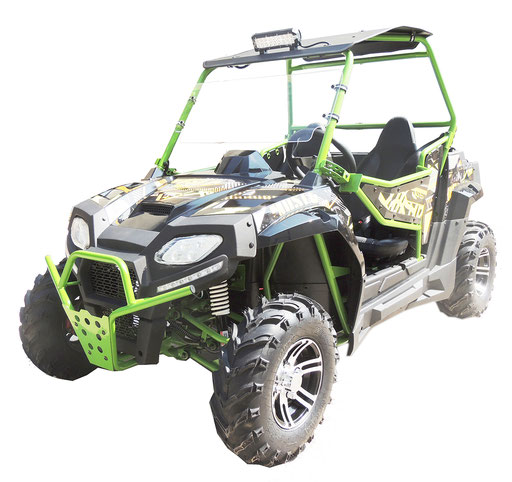

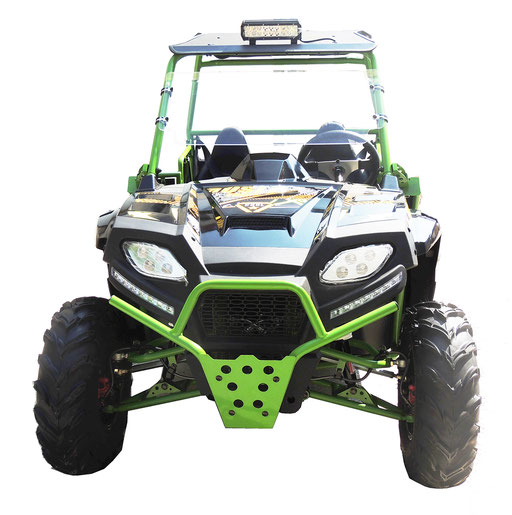

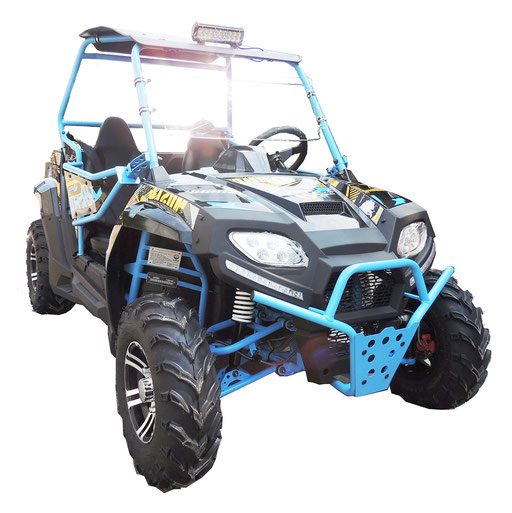

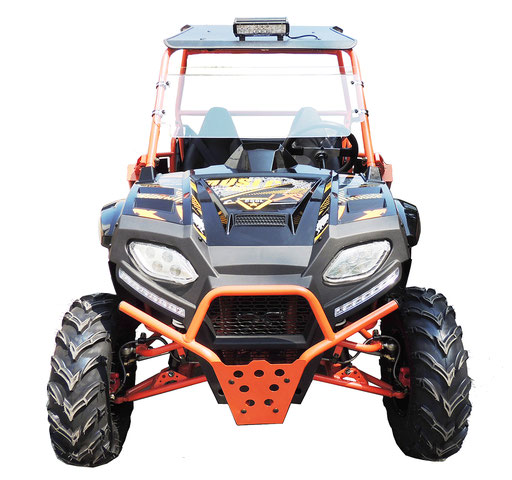

BLADE FX250

BLADE FX250

Description

NGINE FX250
Certification
Engine type 4-stroke,Single-Cylinder, Air/Oil-cooled
Displacement 232cc
Horse Power 10.5kw(7500r/min)   14.5HP
Valve Configuration OHV
Compression ratio 10.3:1
FUEL SYSTEM
Fuel Delivery System Fuel Pump Carburetor
Choke System Automatic
Fuel capacity 9.5L (2.1 Gallon)
DRIVETRAIN
Driveline Type 2X4
Final Drive Chain-drive
Transmission Constantly Variable Transmission
Gear Selection Forward & Reverse Single Speed
ELECTRICAL SYSTEM
Forward Lights Headlights-High & Low Beam LED LIGHT
Rear Lights Brake Lights & Left/Right Signal lights
Starting system Electric start
Ignition system C.D.I
SUSPENSION / BRAKES
Suspension Front Adjustable Double A-arm optional
Suspension Rear Dual Shock Swing arm
Brakes Front Front Dual Hydraulic Disk
Brakes Rear Rear Single Axle Hydraulic Disk
Steering Rock and pinion steering
TIRES
Front Tread 1020mm ( 40.2 in)
Rear Tread 1040mm ( 38.0in)
Front & Rear tire size 22×8-10 / 22×10-10
MISC
Loading information 8 units/20″; 26units/40HQ
Top speed 55km/h
Dry weight 245kg ( 540 lbs.)
Gross weight 280kgs(617lbs)
Wheelbase 1860mm (71.0in)
Vehicle dimension (L×W×H) 2450x1220x1760mm (96.4x48x69.2in)
Packing size 2290x1300x815mm (90.1×51.1x32in)
Ground clearance 152mm (6in)
Safety Driver & Passenger Seat belts/ Driver and Passenger safety net restraints.
