Rear SuspensionFang power 4-Link® bar Rear Suspension
Front Brakes220MM Front Dual Hydraulic Disk
Rear Brakes220MM Rear Dual Hydraulic Disk
Front Tires12
Rear Tires12
Dimensions3360x1450x1750mm
Seat Height
Wheelbase78in
Ground Clearance11.8in
Fuel Capacity9.5L (2.1 Gallon)
Weight1102
Top Speed46.6 MPH
Max Load
Age16+
Warranty3 Months

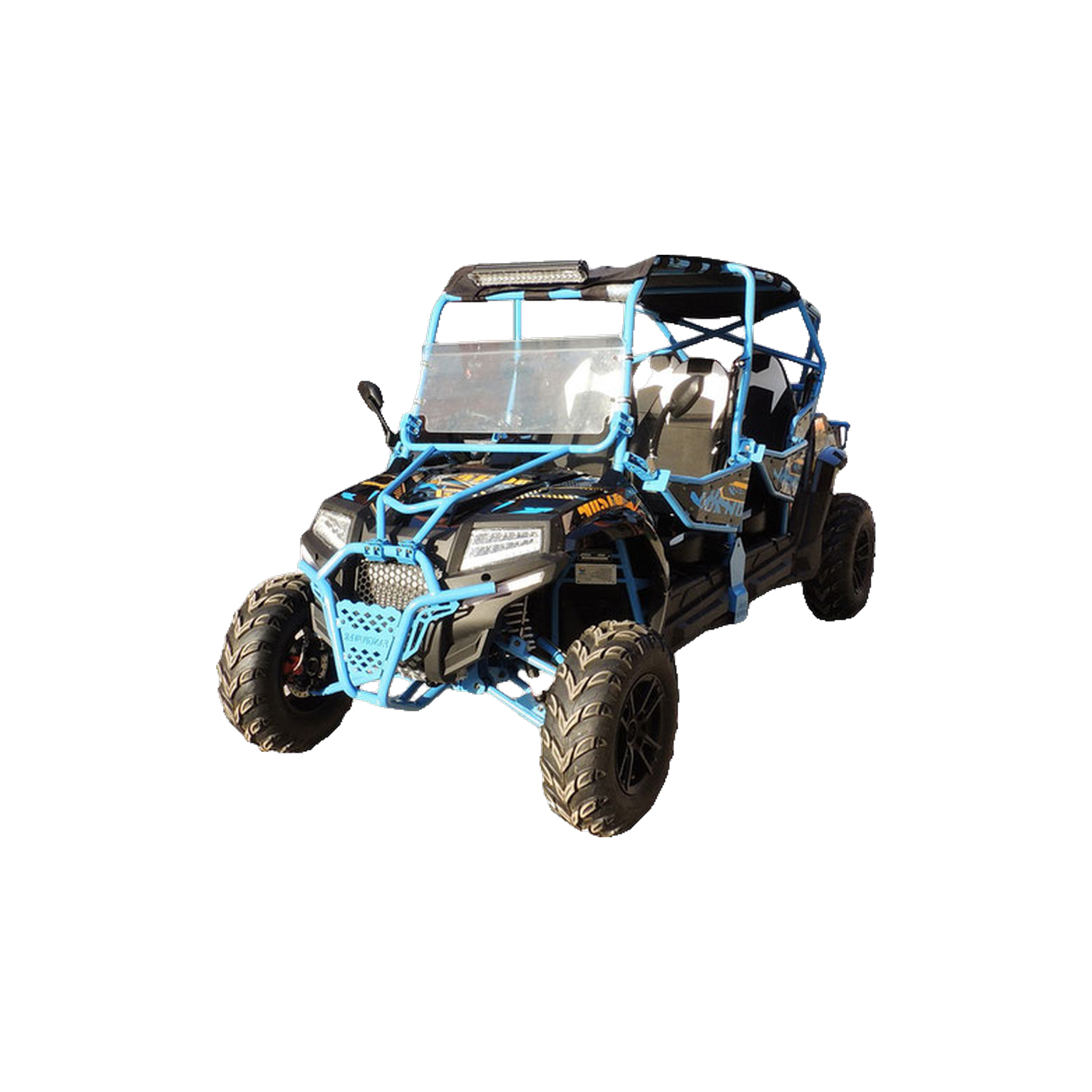

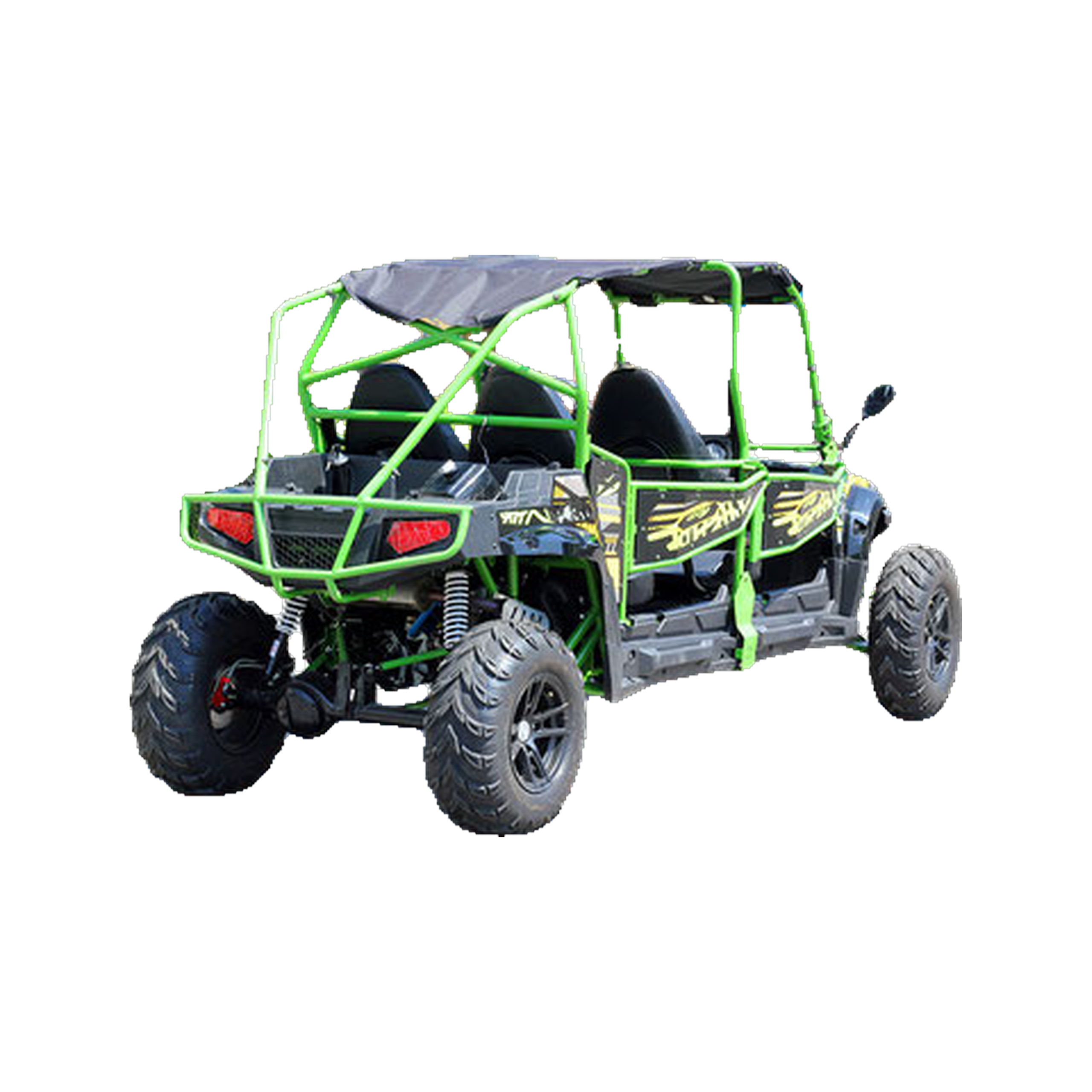

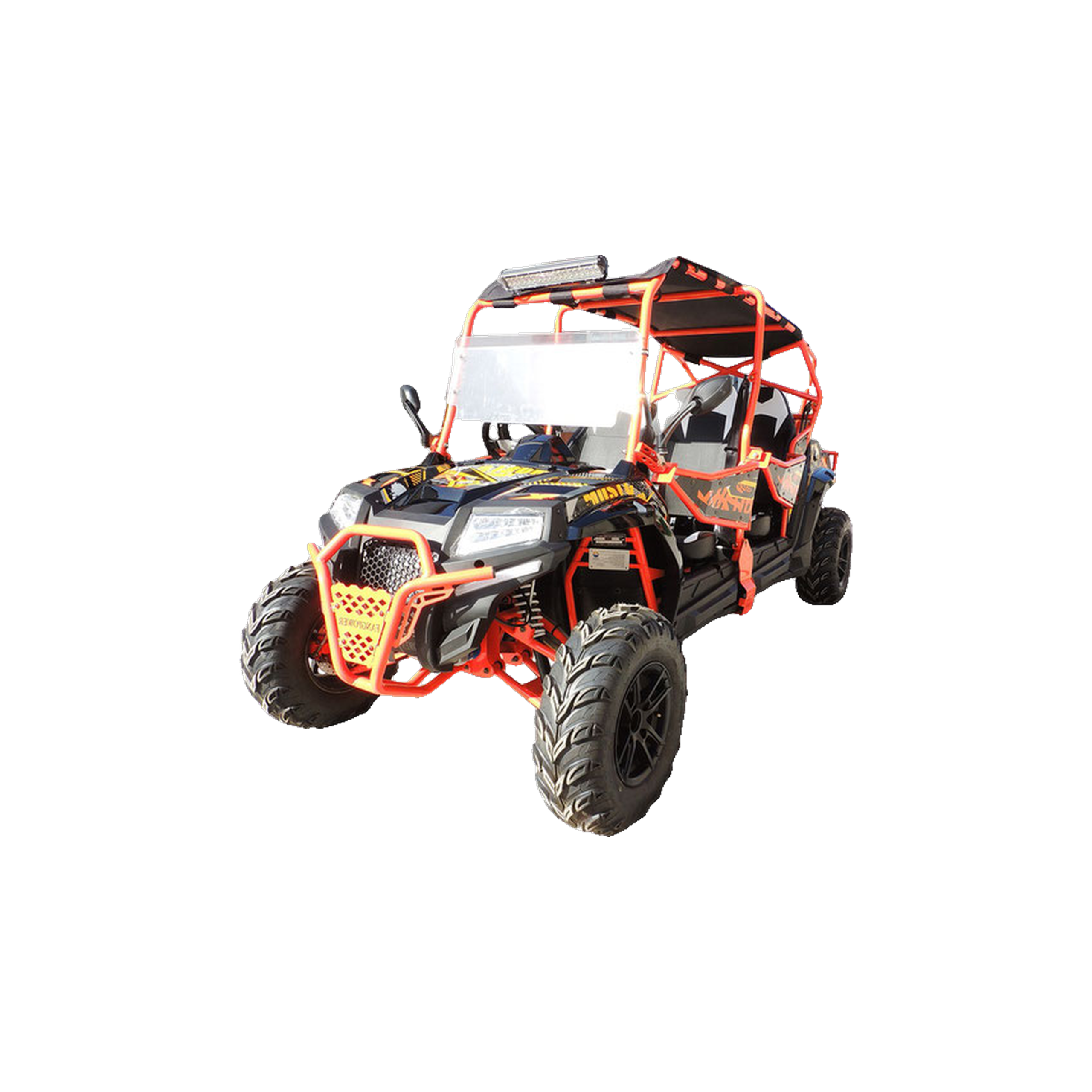

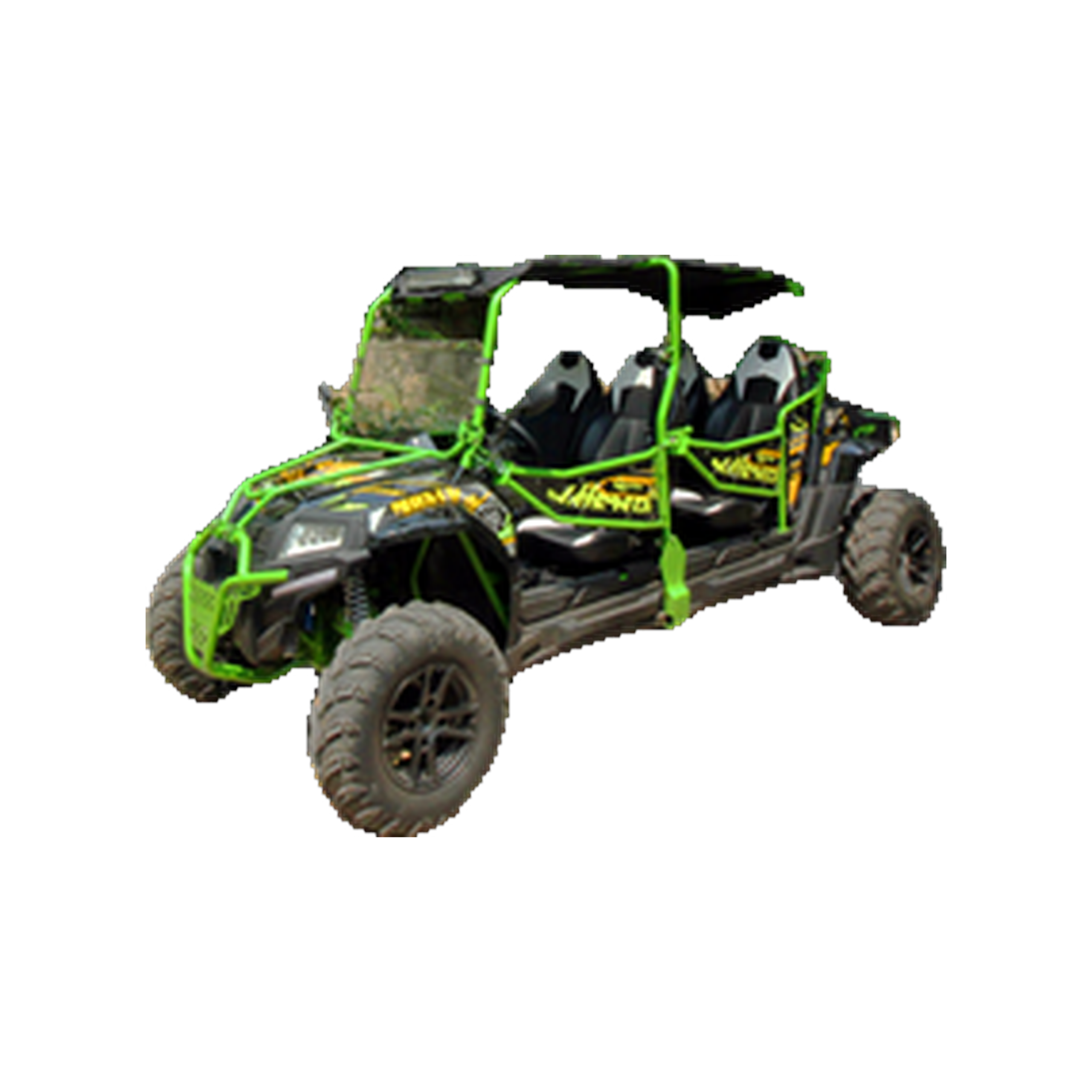

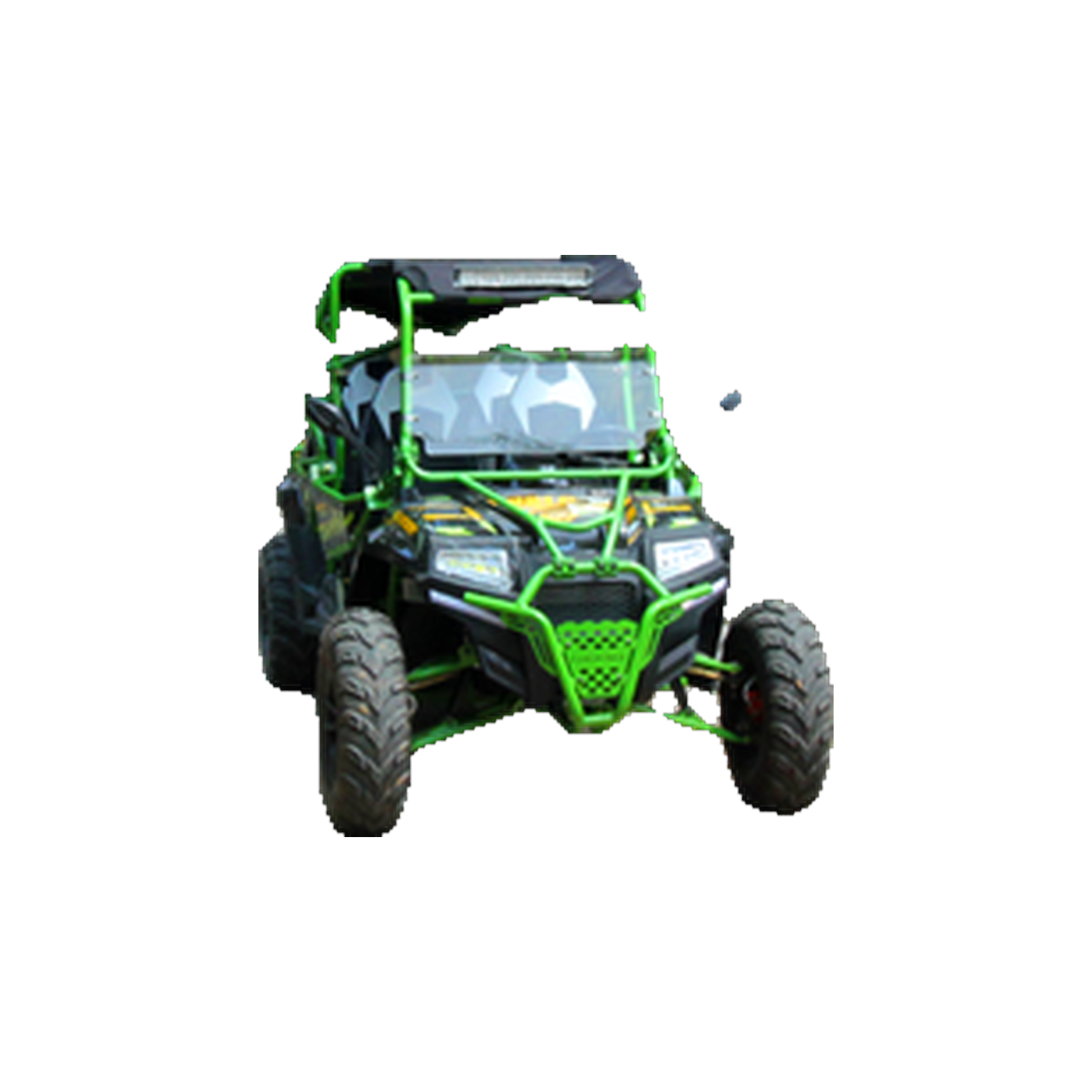

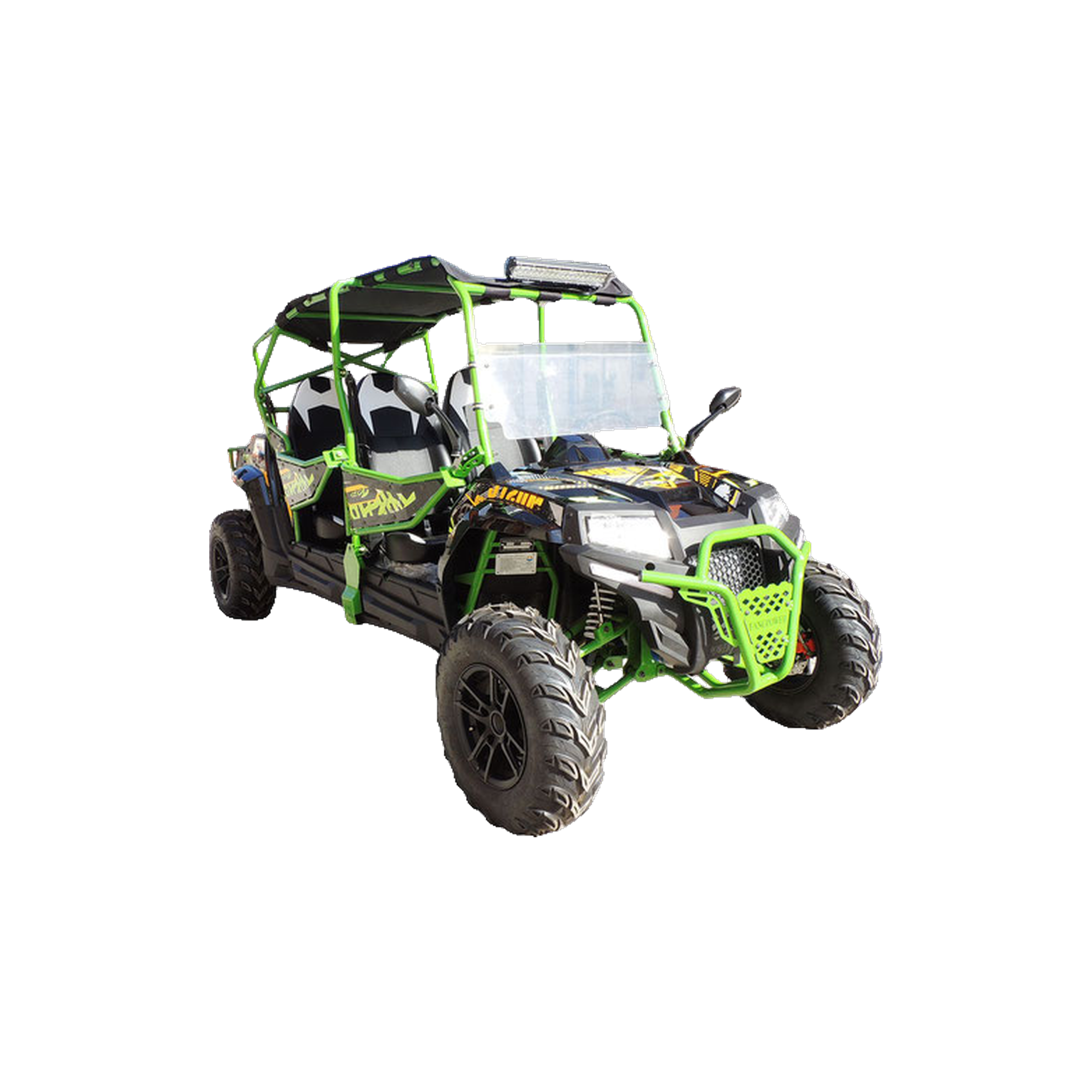

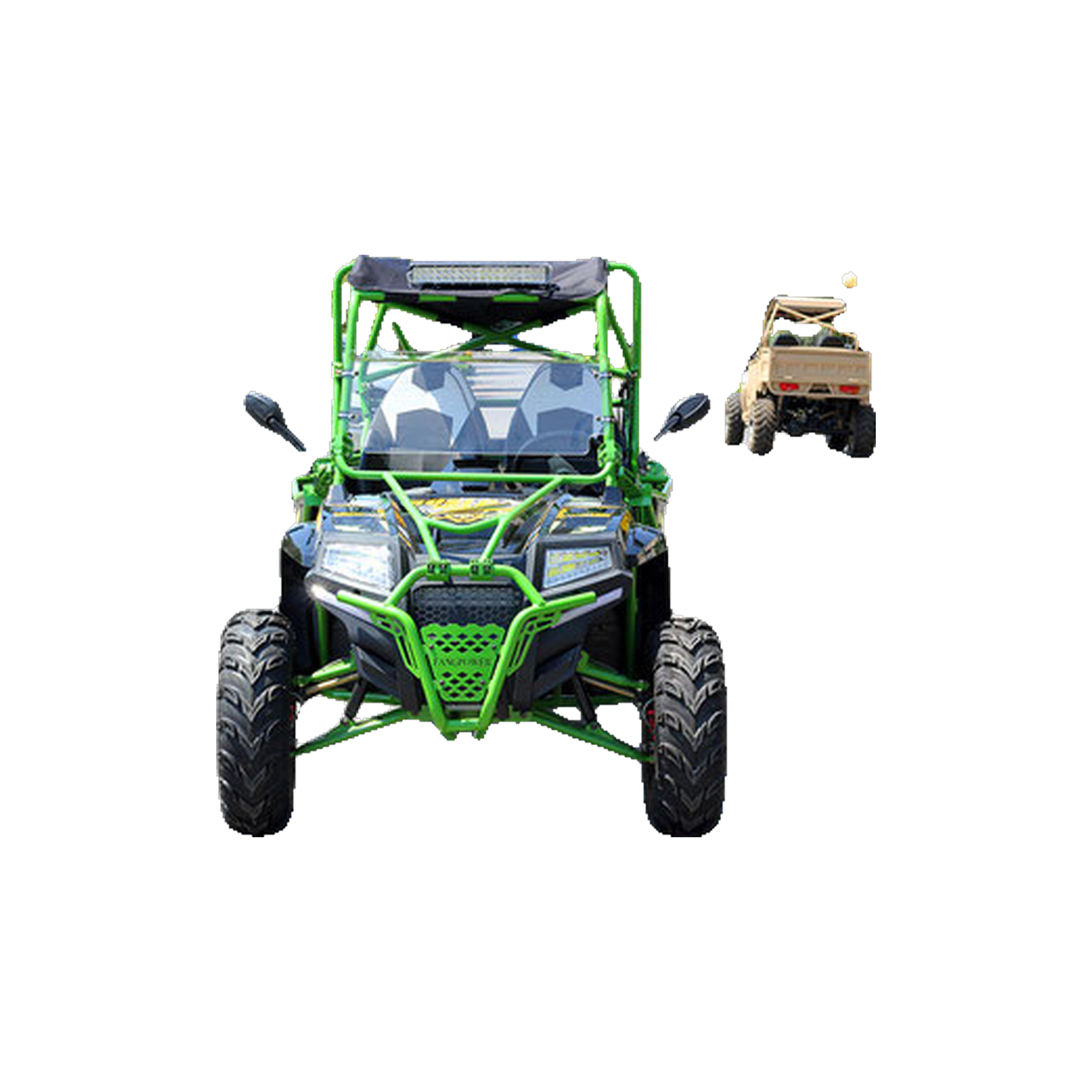

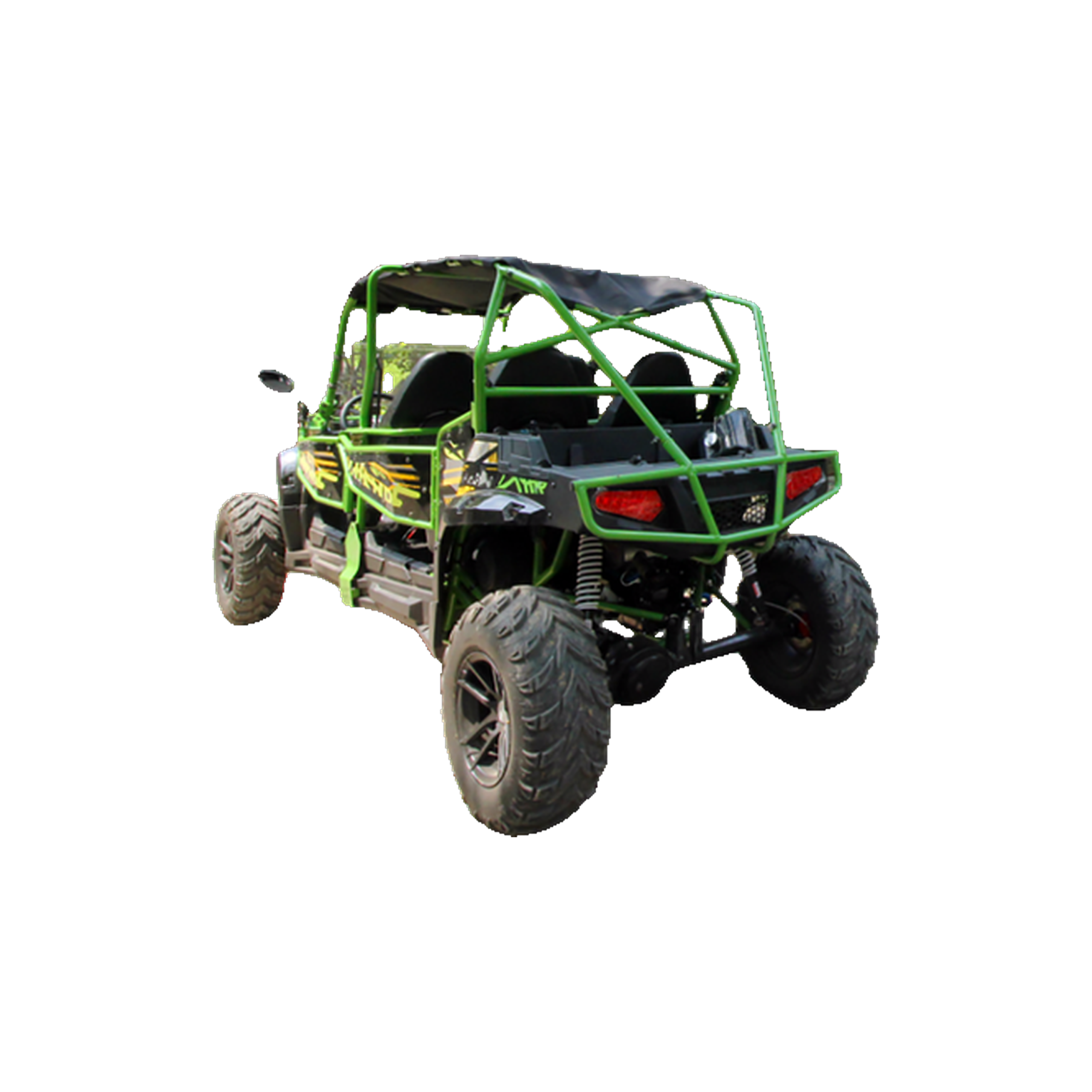

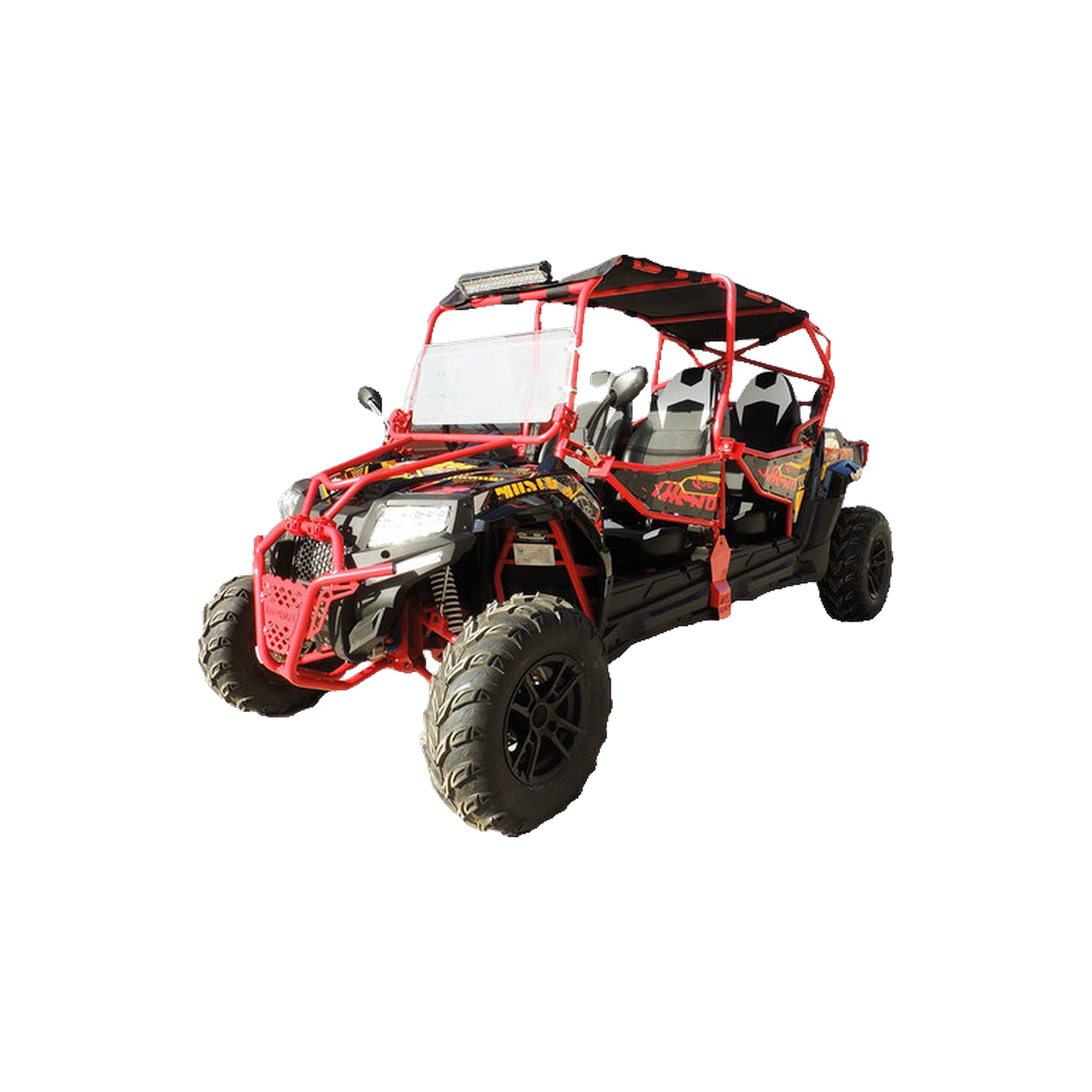

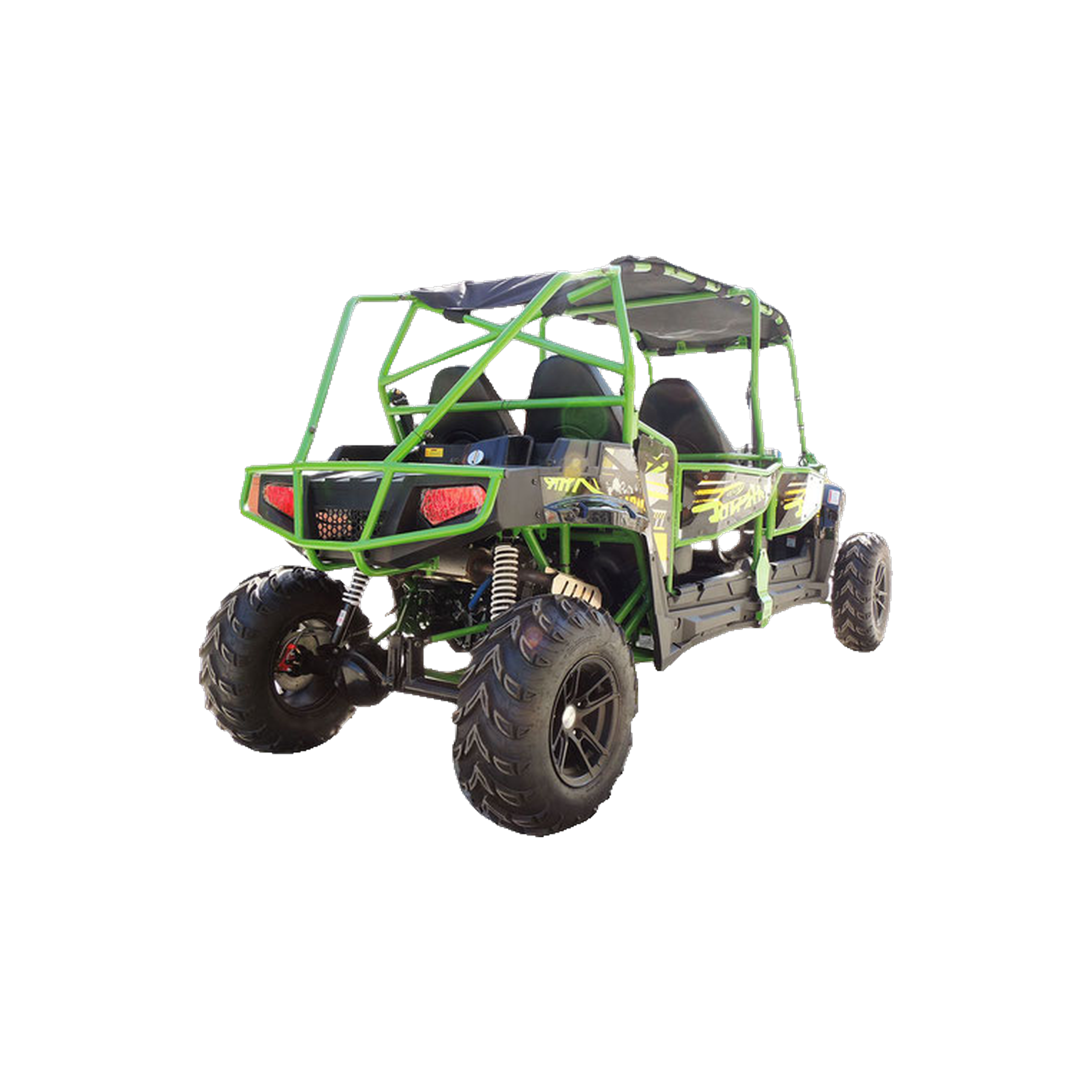

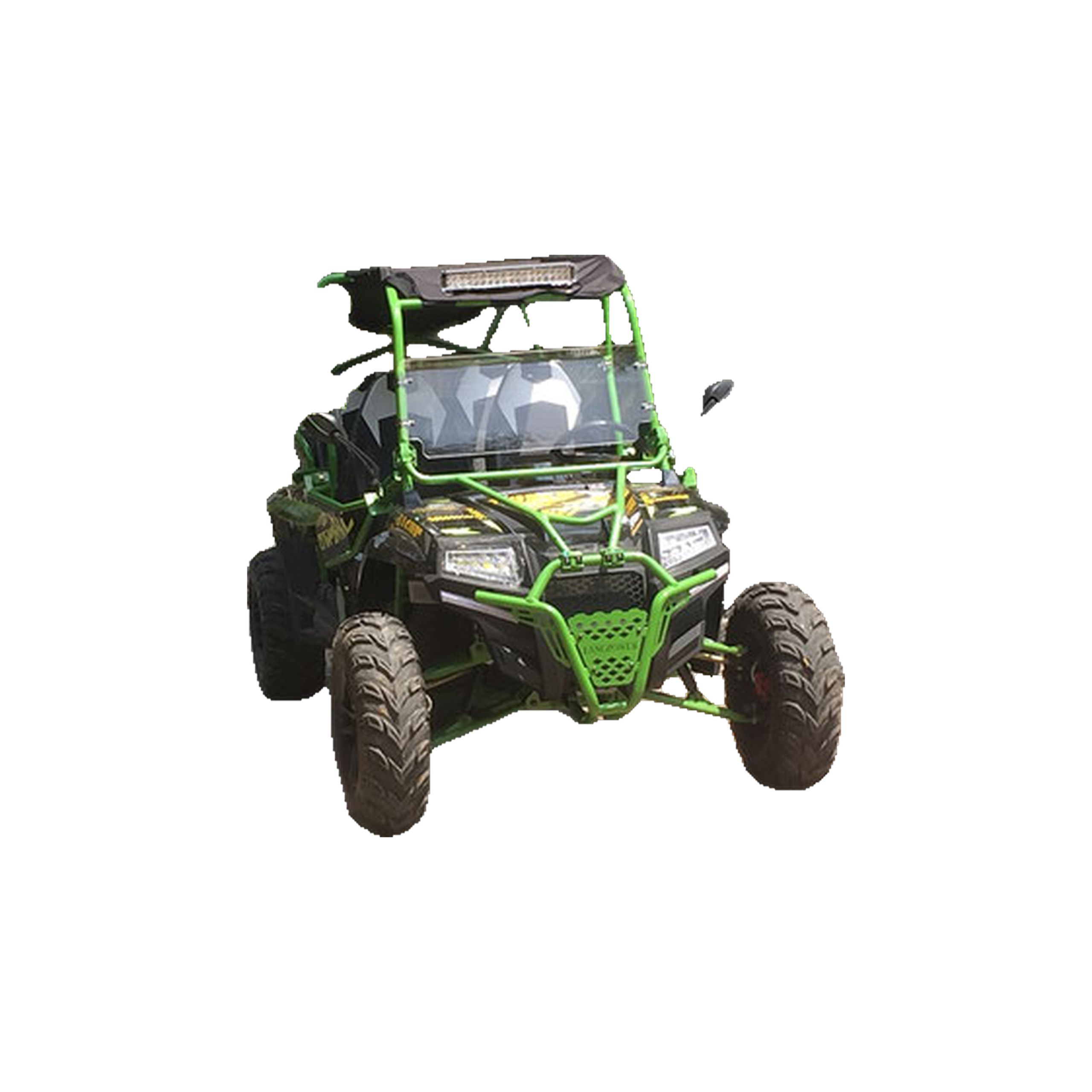

MODEL “PREDATOR 400 XL-4 SEATS”
COLOR
Red/Blue/ Orange/Green
PRODUCTS STATE
12″ AL rim, 25″ Tire, soft roof , Steel door windshield , Full bumper Roof light bar 12AH Battery Speed meter Fuel meter Adjustable front suspension Pinion and rack steering
Final Drive
Shaft-drive
Engine type
4-stroke,Single-Cylinder, Water-cooled
Horse Power
18KW ( 6500rpm) 25HP
Valve Configuration
SOHC
Compression ratio
10.0:1
FUEL SYSTEM
Fuel Delivery System
Fuel Pump Carburetor
Choke System
Fuel capacity
9.5L (2.1 Gallon)
DRIVETRAIN
Driveline Type
4X2
Transmission
Constantly Variable Transmission
Gear Selection
Forward & Reverse Single Speed
ELECTRICAL SYSTEM
Forward Lights
Headlights-High & Low Beam
Rear Lights
Brake Lights & Left/Right Signal lights
Starting system
Electric start
Ignition system
D.C.D.I
SUSPENSION / BRAKES
Suspension Front
Double A-arm Suspension
Suspension Rear
Fang power 4-Link® bar Rear Suspension
Brakes Front
220MM Front Dual Hydraulic Disk
Brakes Rear
220MM Rear Dual Hydraulic Disk
TIRES
Front Tread
1250mm ( 49.2 in)
Rear Tread
1150mm ( 45.2in)
Front & Rear tire size
25×8-12 / 25×10-12
MISC
Top speed
75km/h
Dry weight
500KGS
Gross weight
560kgs
Wheelbase
1980mm (78in)
Vehicle dimension(L×W×H)
3360x1450x1750mm
Packing size
2980x1400x815mm
Ground clearance
300mm(11.8in)
Safety
Driver & Passenger Seat belts/ Driver and Passenger safety net restraints.
