16+
4-stroke, Single-Cylinder, Oil-cooled
Limited Warranty
Top Speed
(CVT) Transmission
| Items | Specification |
| Vehicle dimension (L×W×H) | 2843*1340*1870/ 112*52.8*73.6Inch |
| Dry weight | 357KG/785.4LBS |
| Wheelbase | 1840mm/72.4 Inch |
| Front Tread | 1120mm/44 Inch |
| Rear Tread | 975mm/38.4 Inch |
| Front axle loading | 135KG/297Lbs |
| Rear axle loading | 222KG/488.4Lbs |
| Top speed | 41KM/H or 25miles /H |
| Maxi Climbing angles | 15° |
| Steering radius | 3.6m/141.7 Inch |
| Loading capacity | 23units/40HQ |

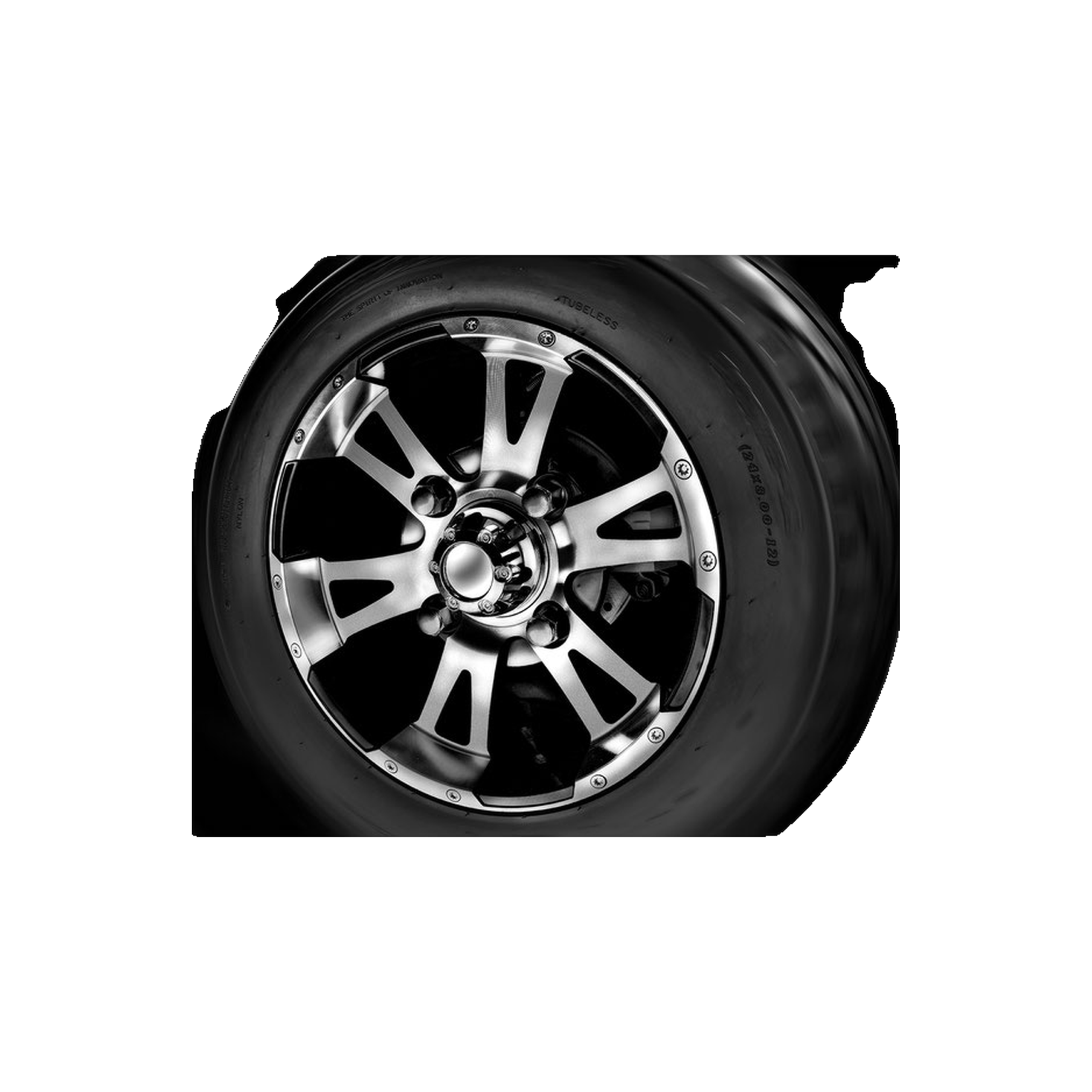

| Front & Rear tire size | 24 x 8-12 Inch
|
| Ground clearance | 155mm/6.1 Inch |
| Steering angel | Inner 29°, Outer 26.6° |
| Fuel capacity | 23L/5.06 Gallon
|
| Suspension Front | Double A-Arm Independent Shock |
| Suspension Rear | Single shock swing arm |
| Front suspension travel | 110mm/4.3 Inch |
| Rear suspension travel | 100mm/3.9 Inch
|
| Brake system | Hydraulic Disk |
| Parking system | Mechanical parking |
| Final Drive | Chain-drive |
| Battery information | 12V 9Ah
|
| Ignition system | C.D.I |
| Engine type | 4-stroke, Single-Cylinder, Oil-cooled |
| Displacement | 169cc |
| Max power | 7.2kw(7500r/min) /9.65HP (7500r/min) |
| Max torque | 11.4N.m/4500 RPM |
