Minimum Age

16+

Scooters

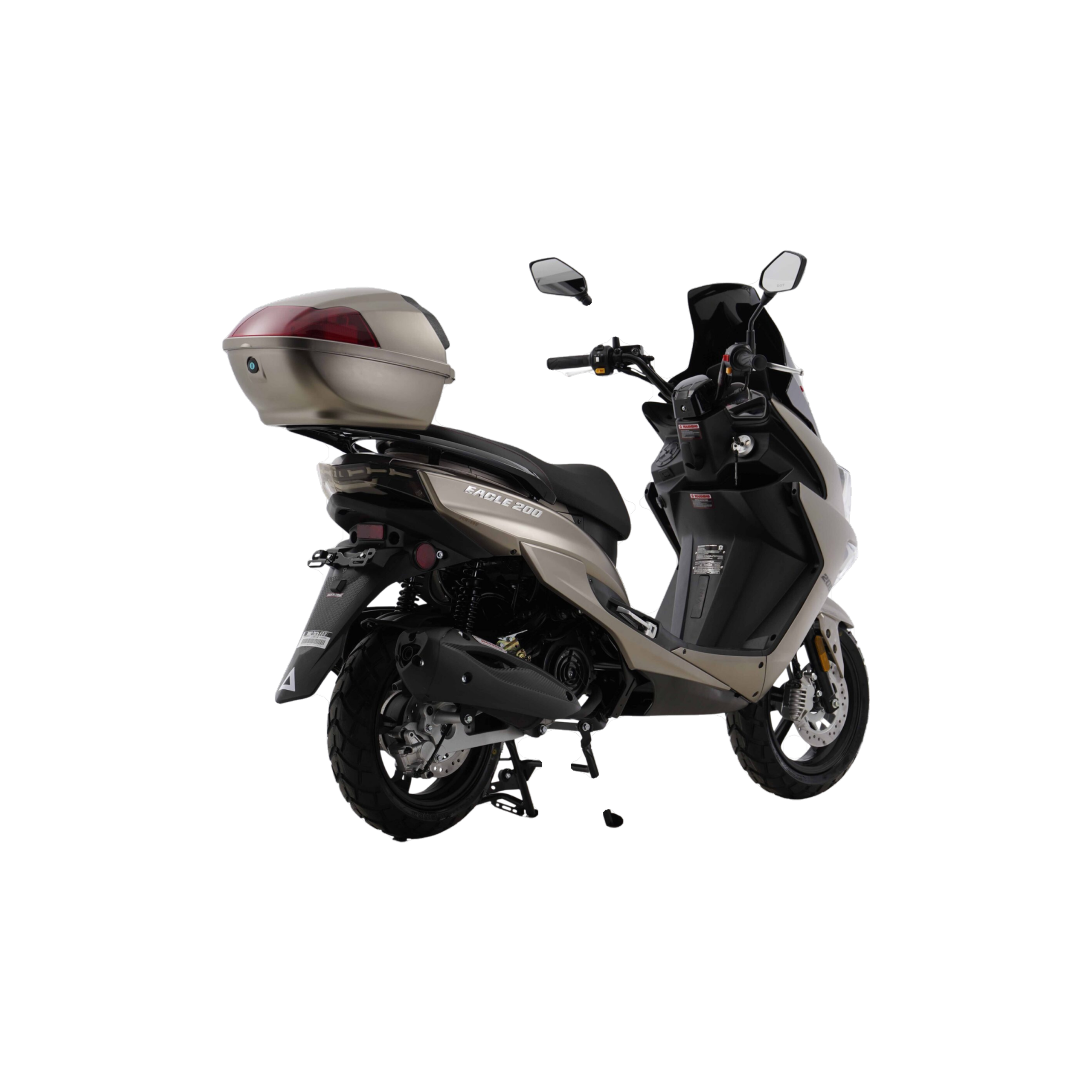

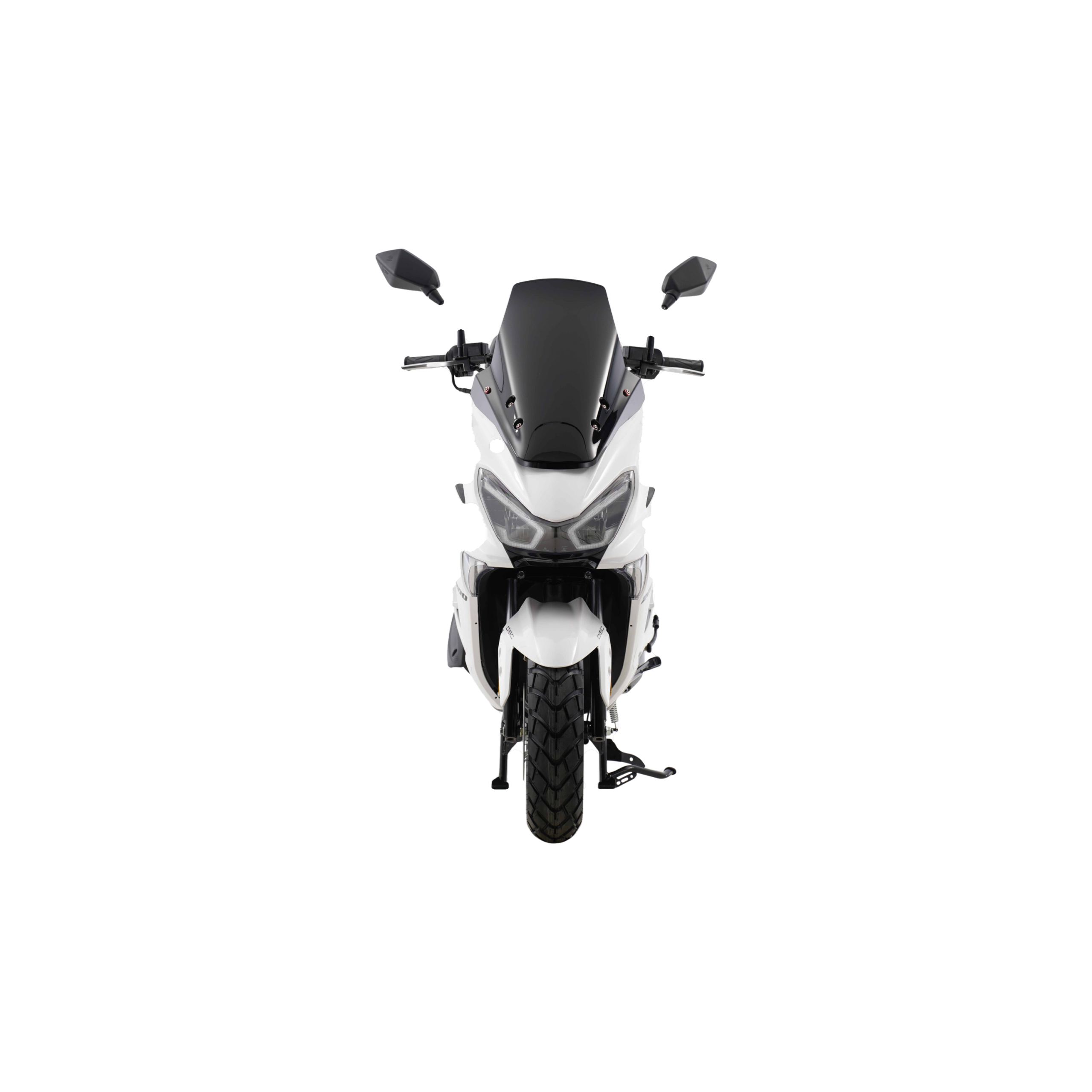

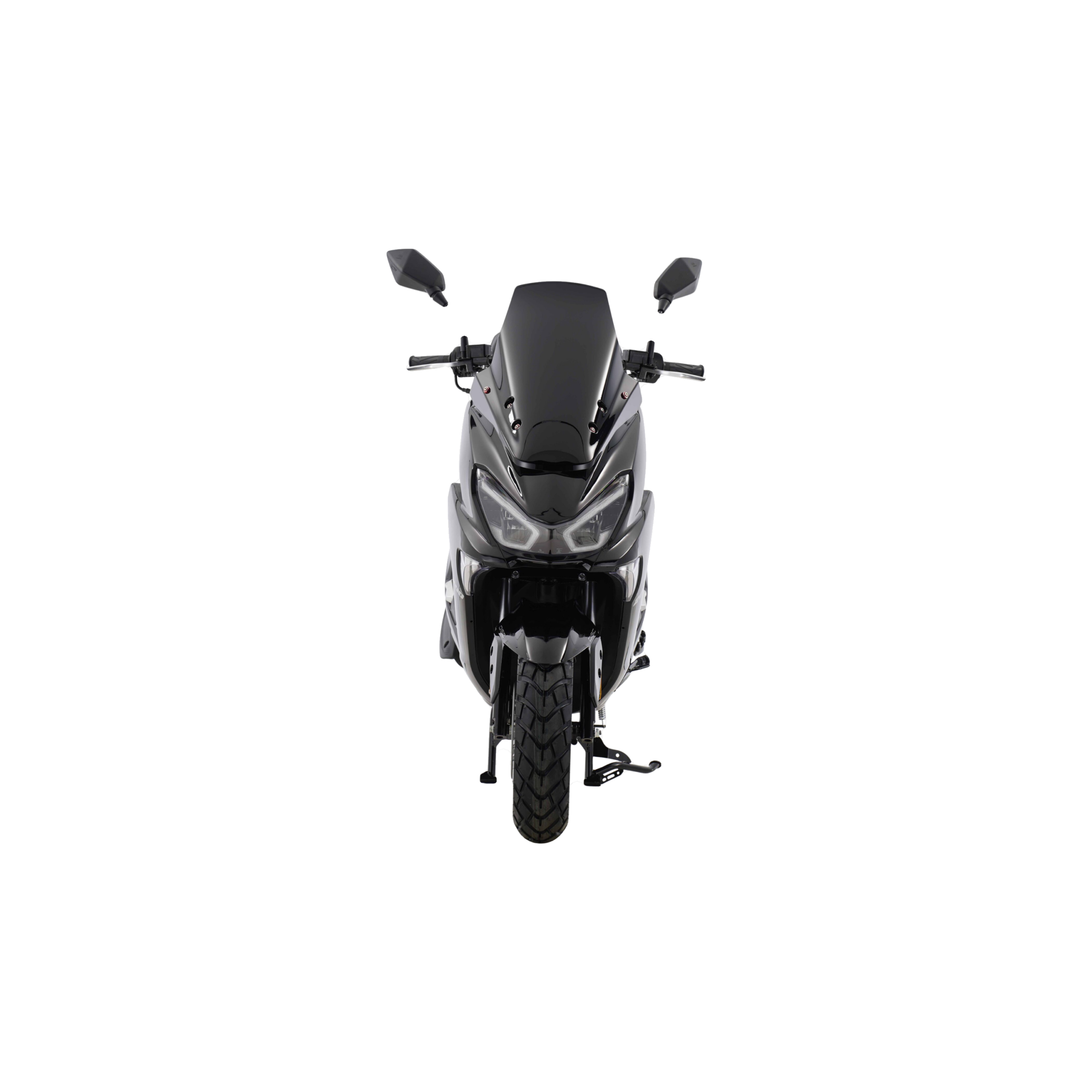

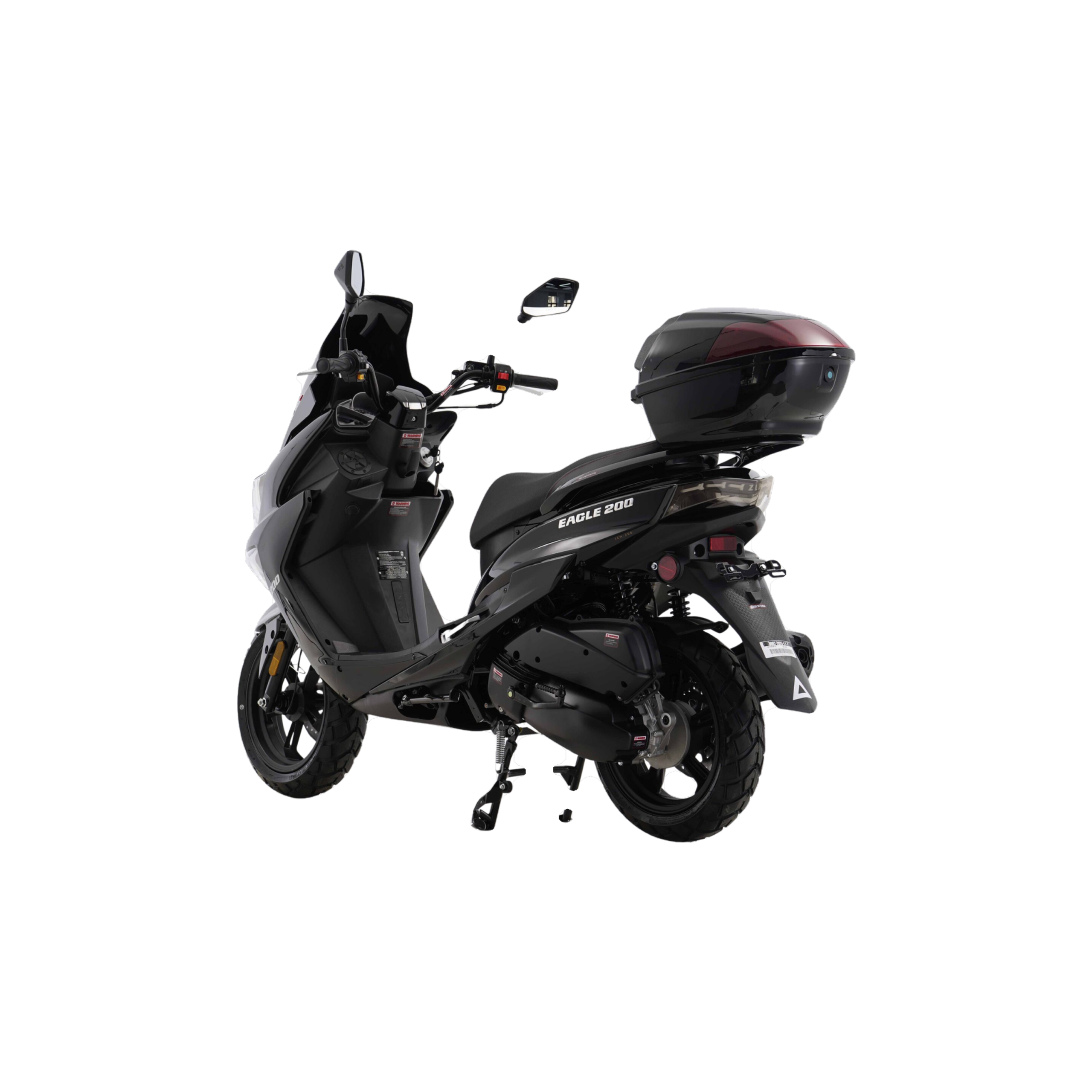

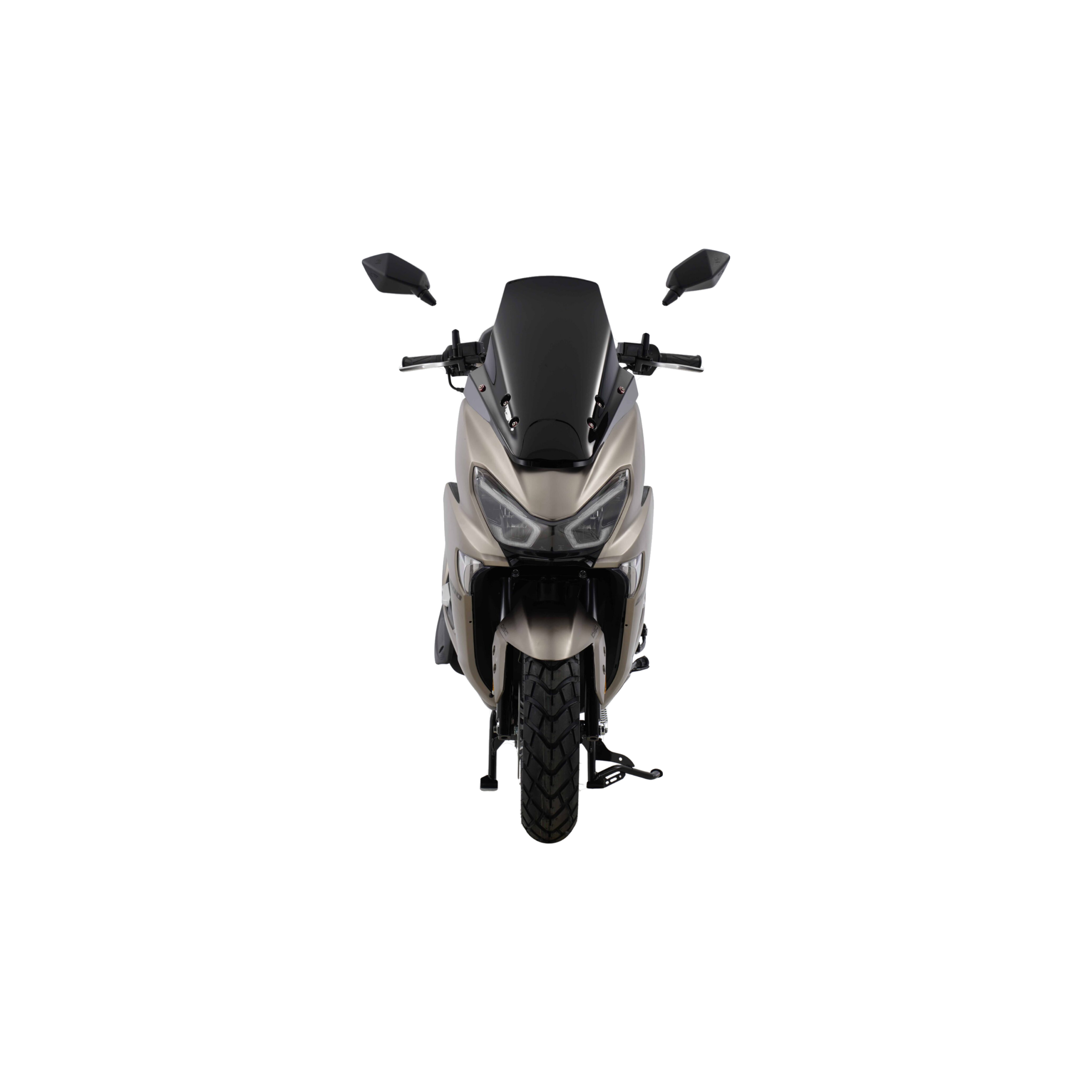

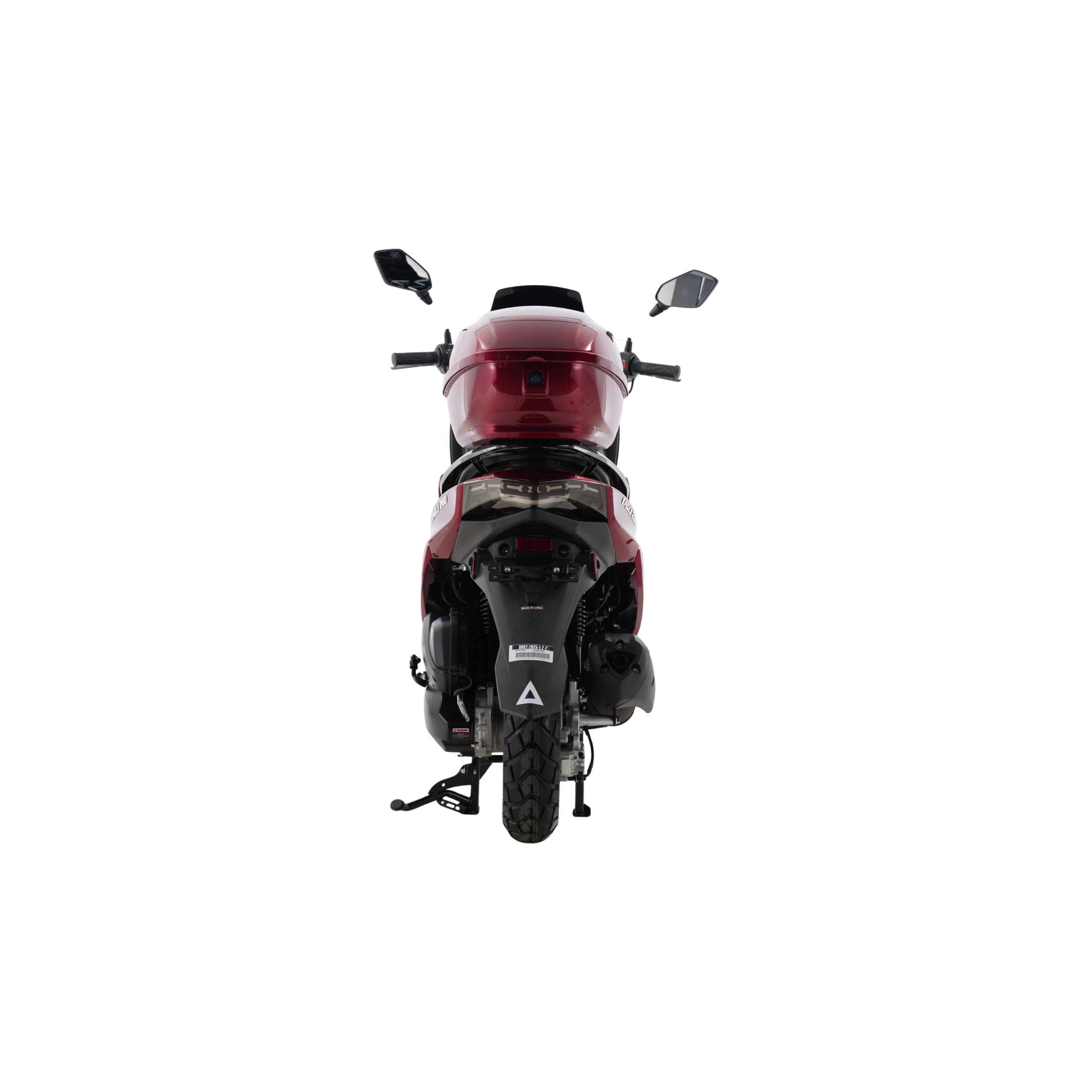

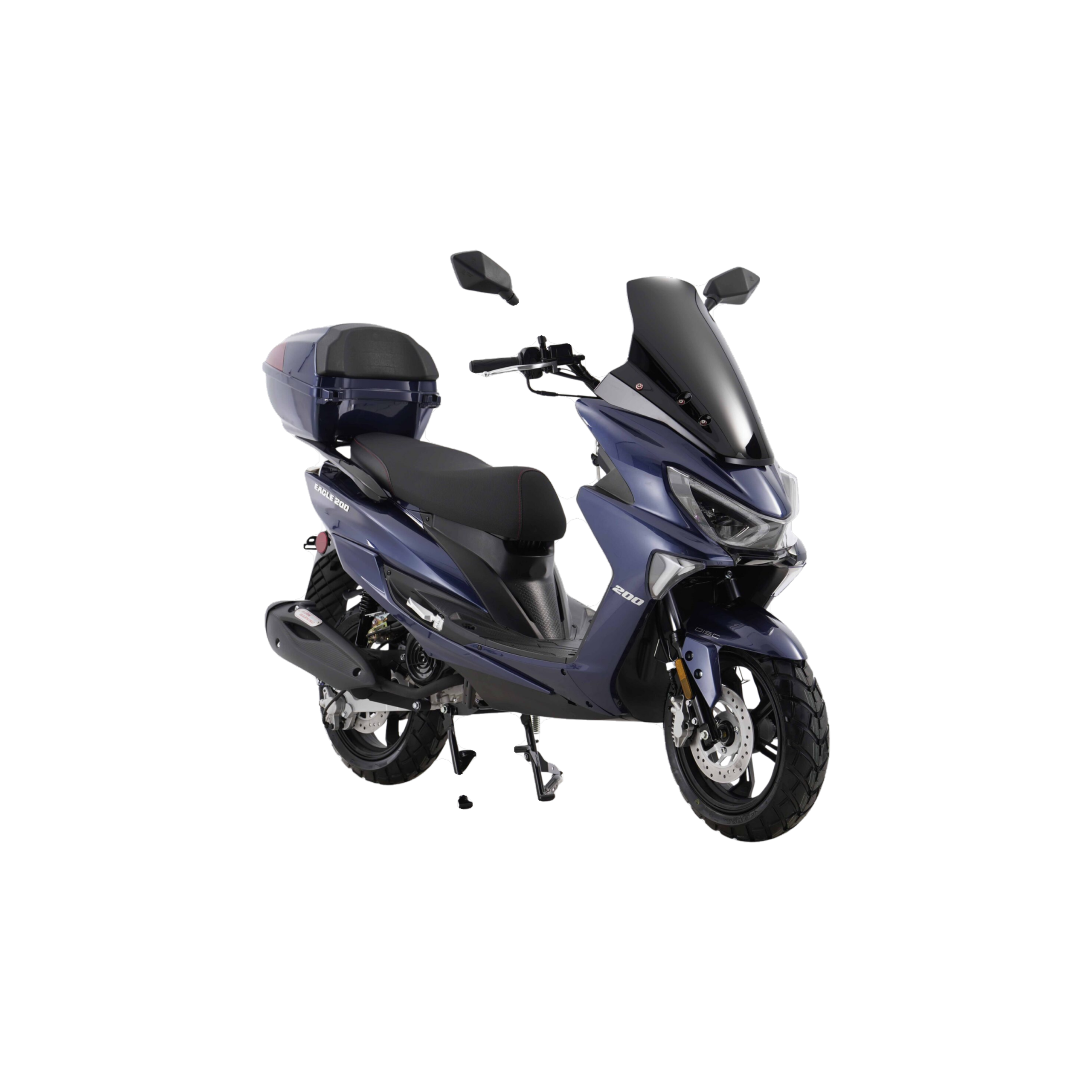

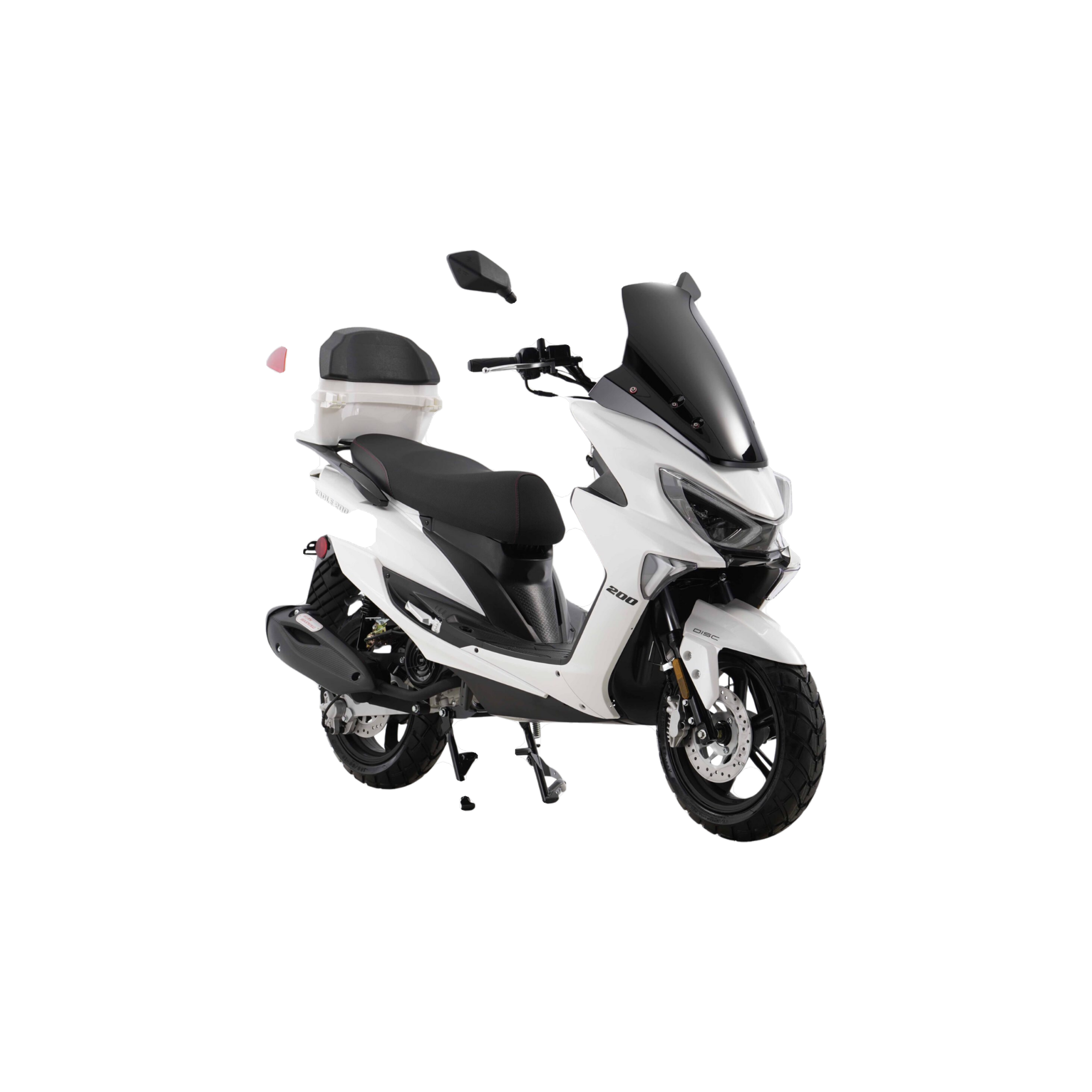

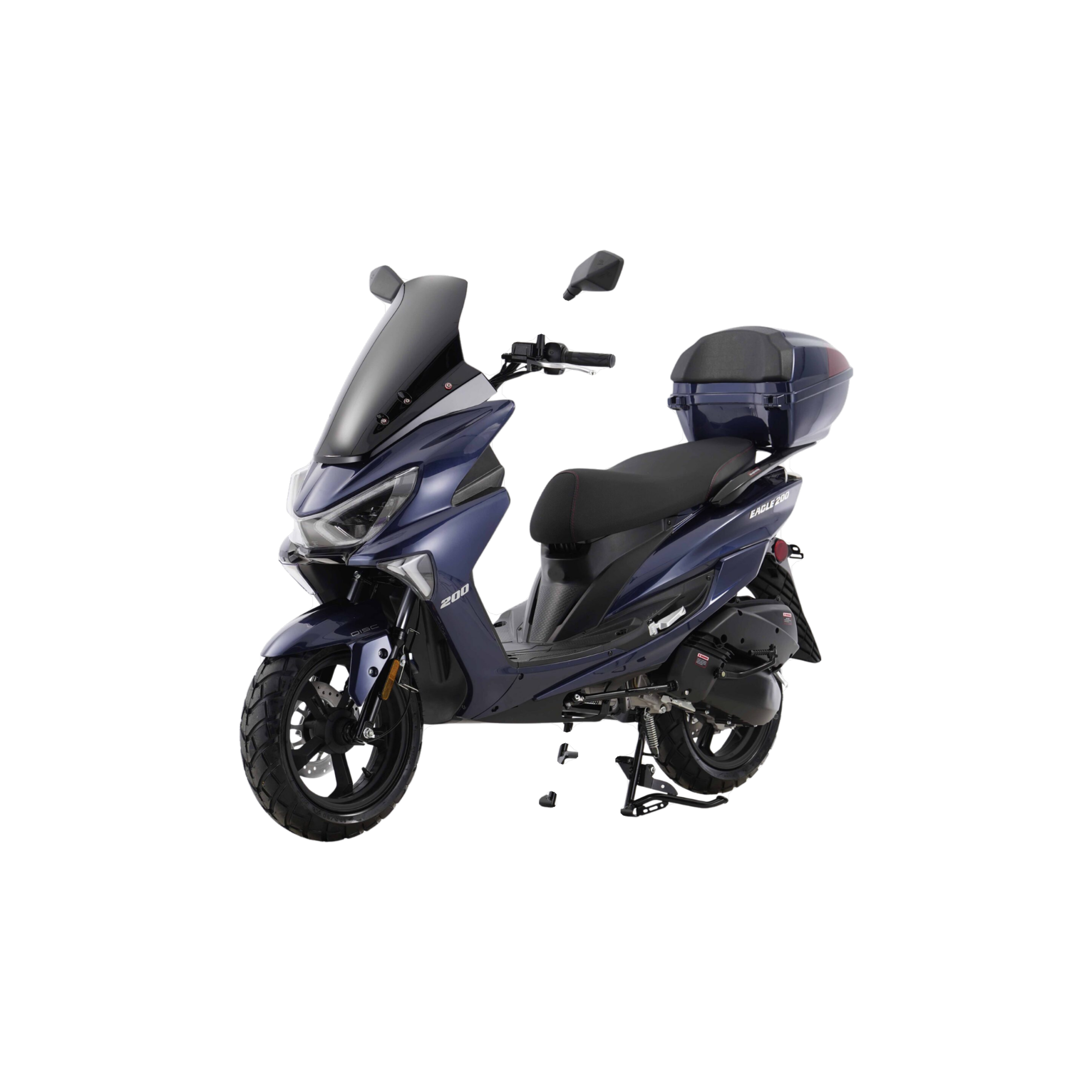

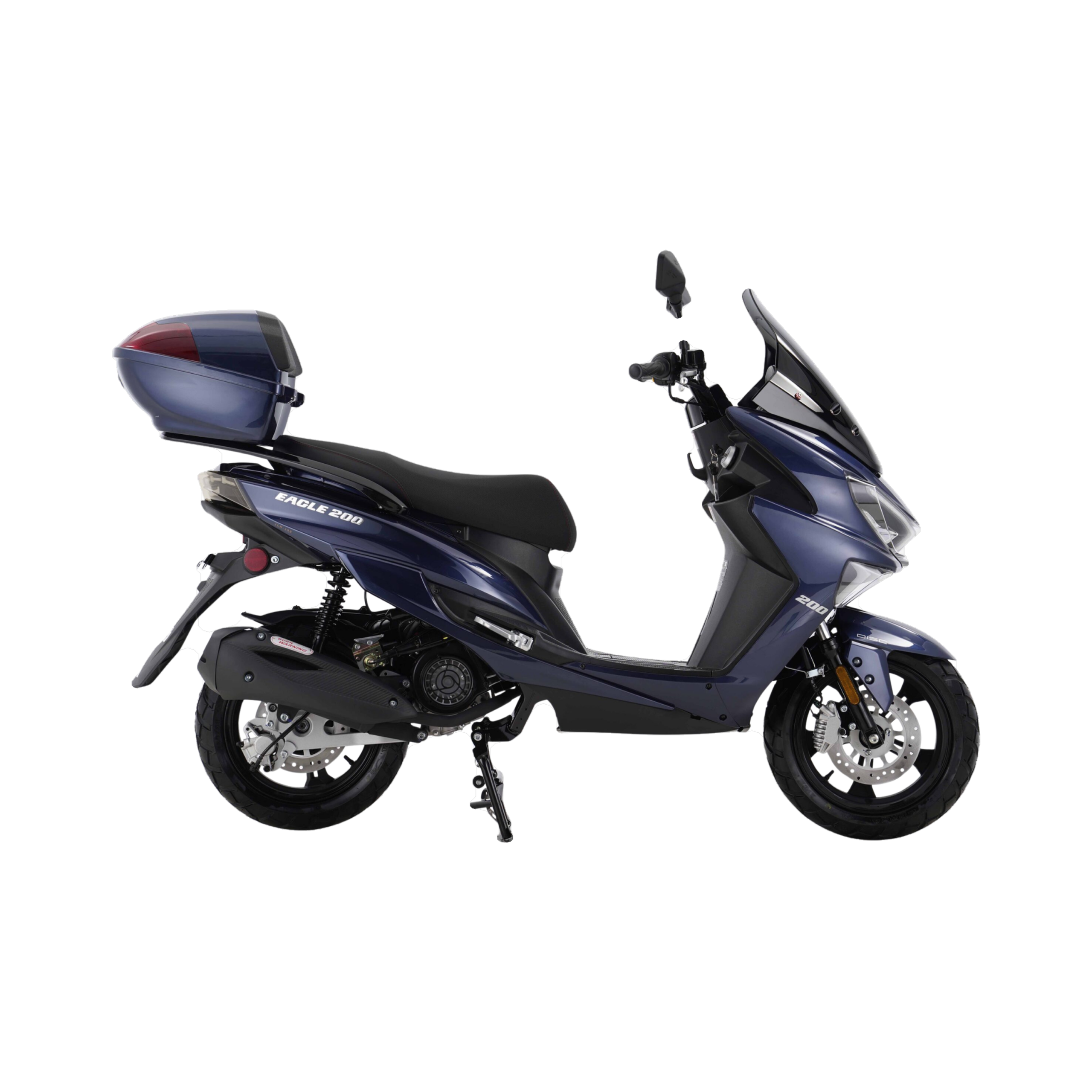

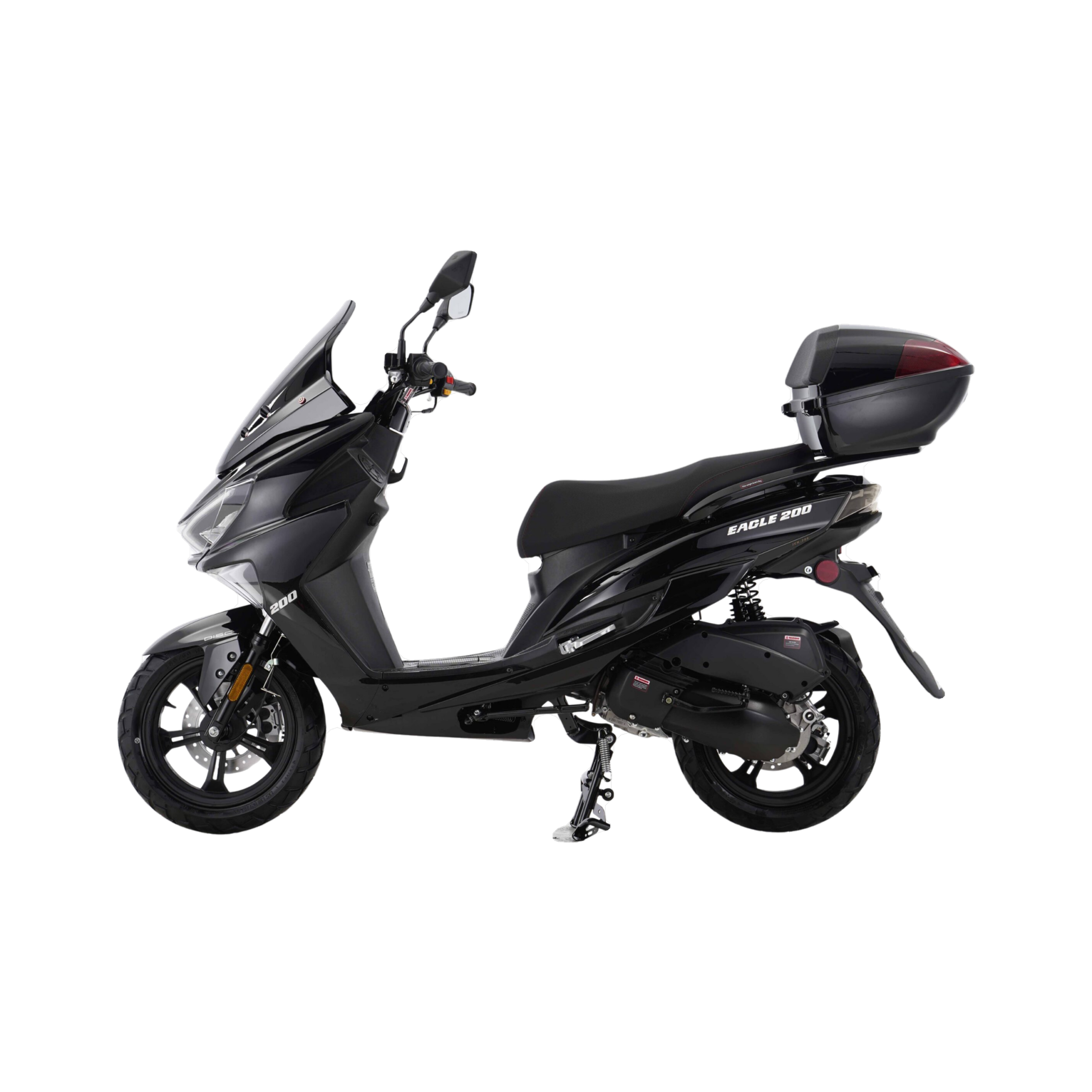

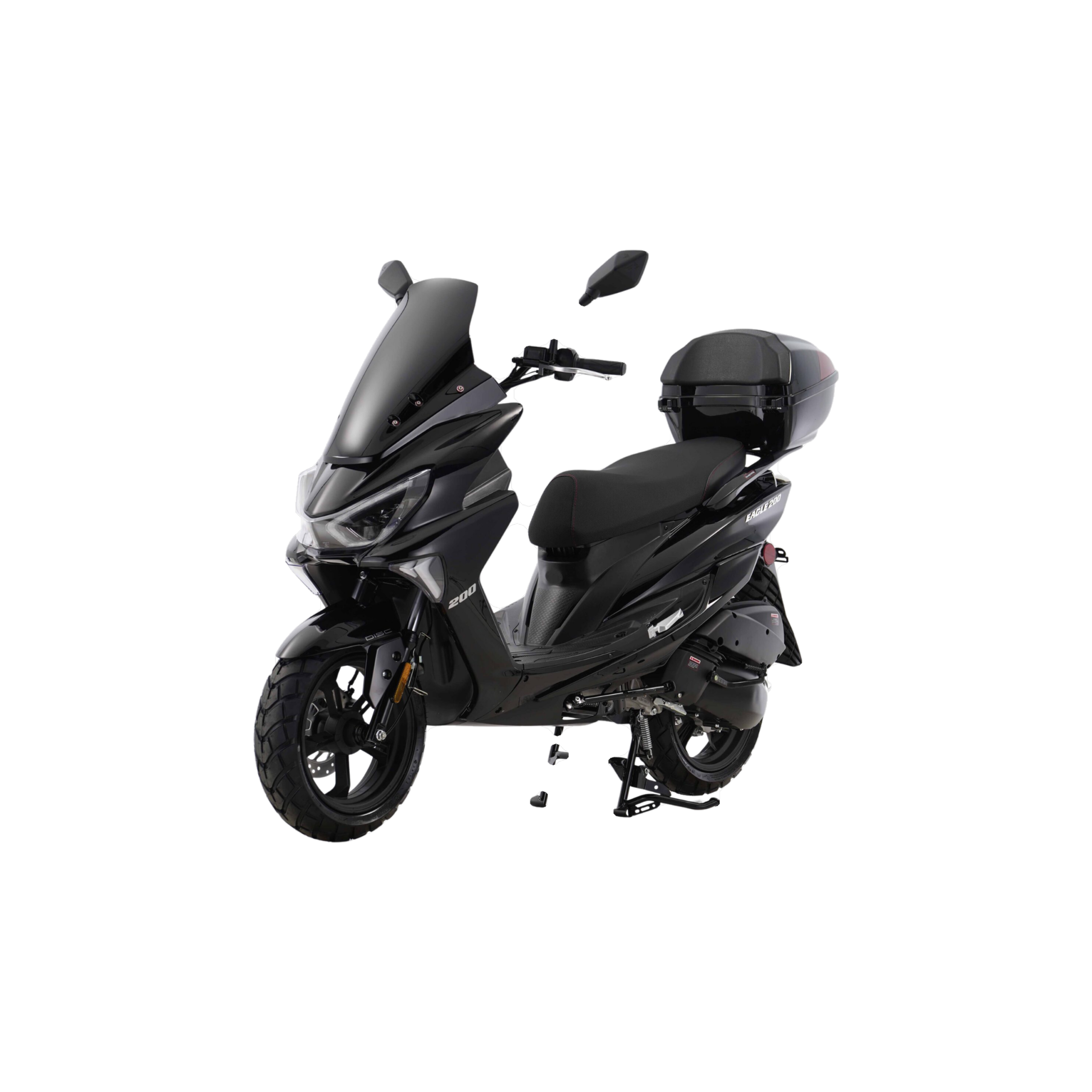

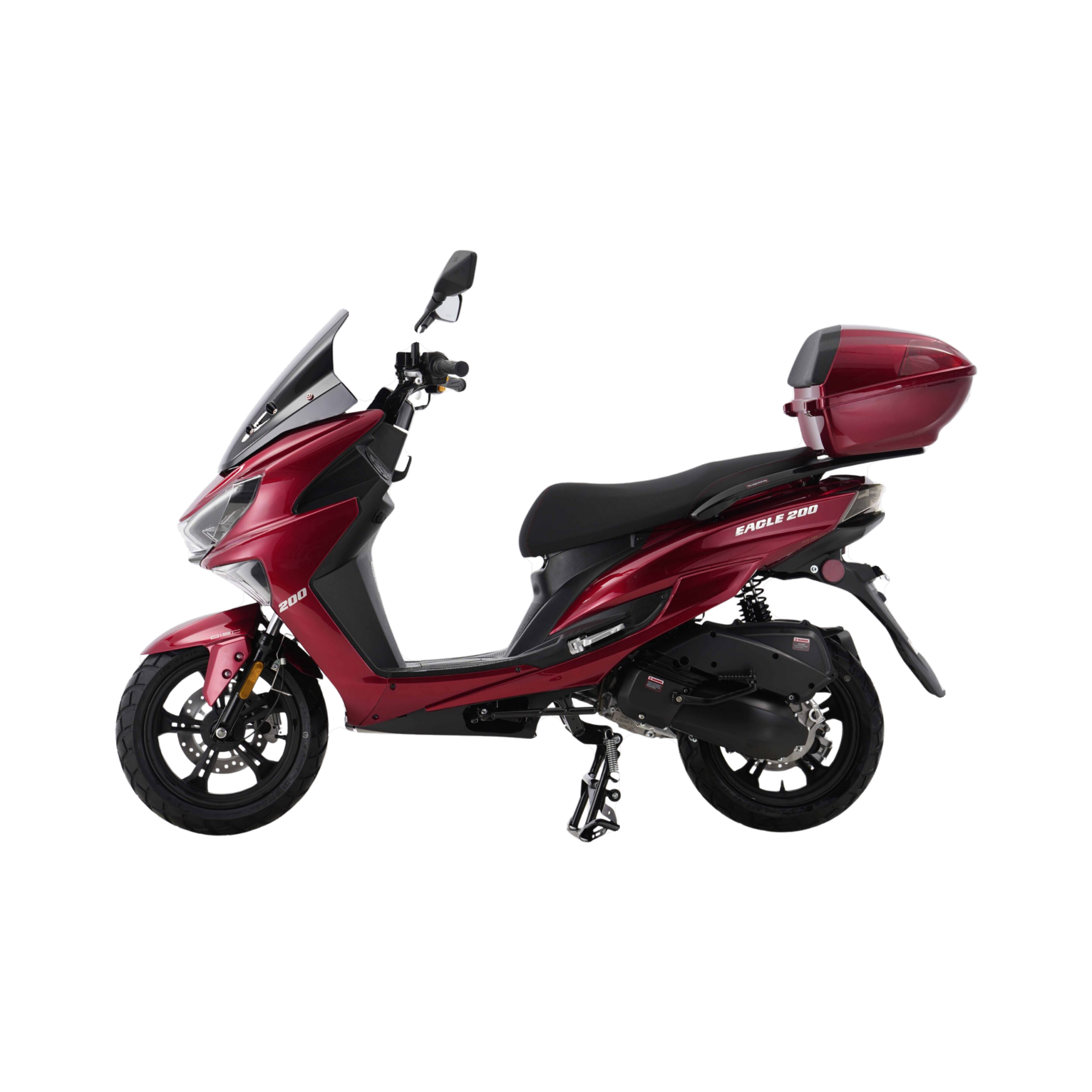

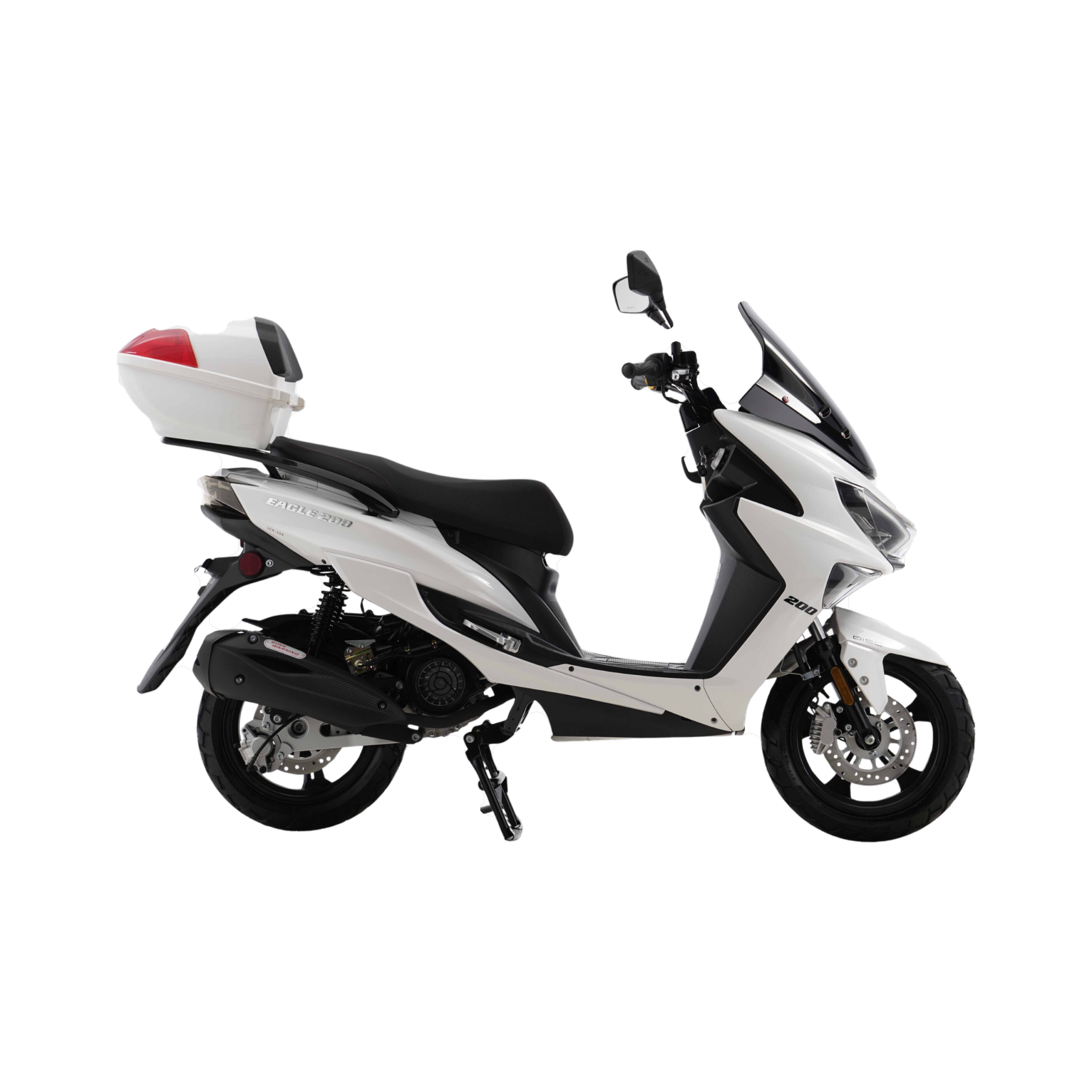

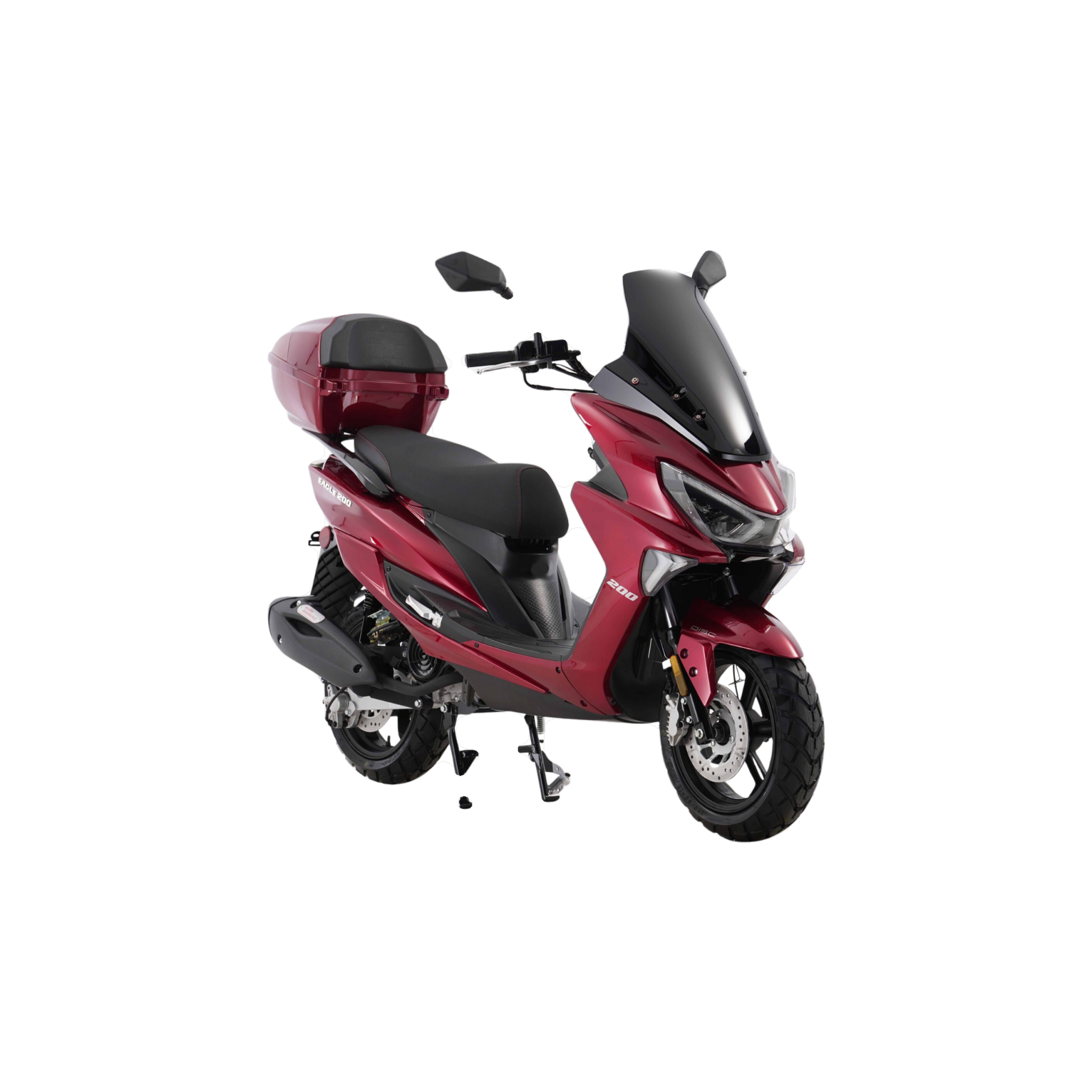

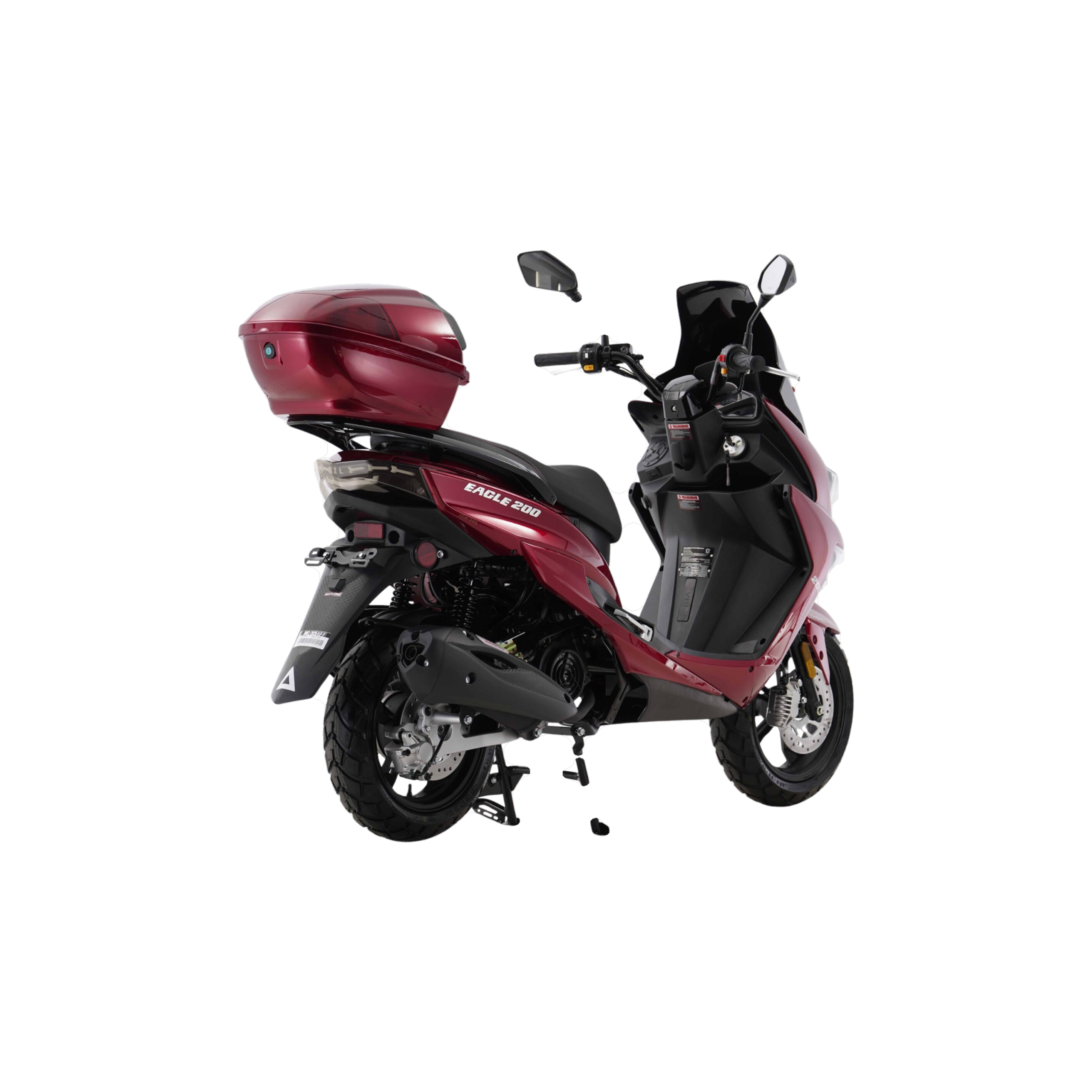

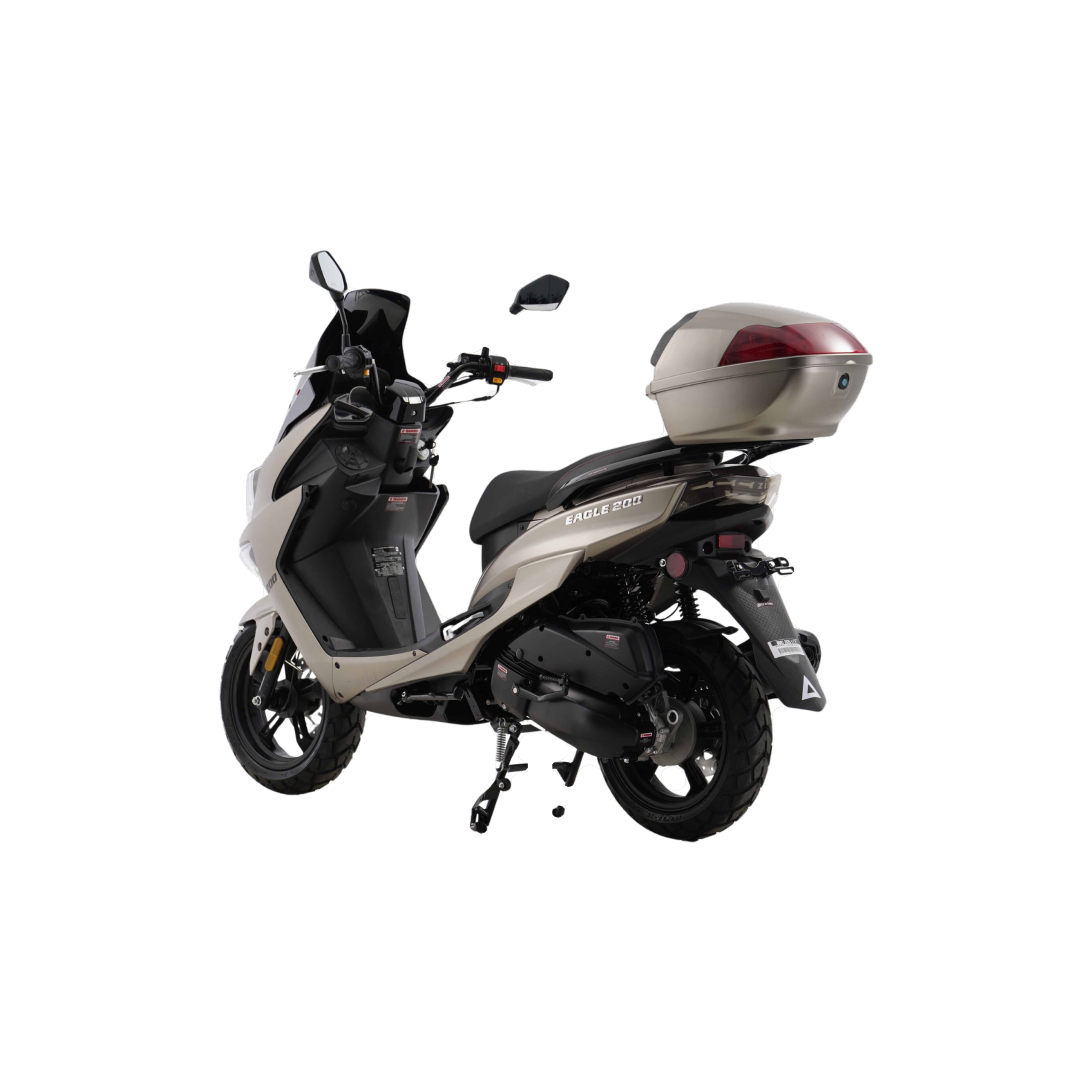

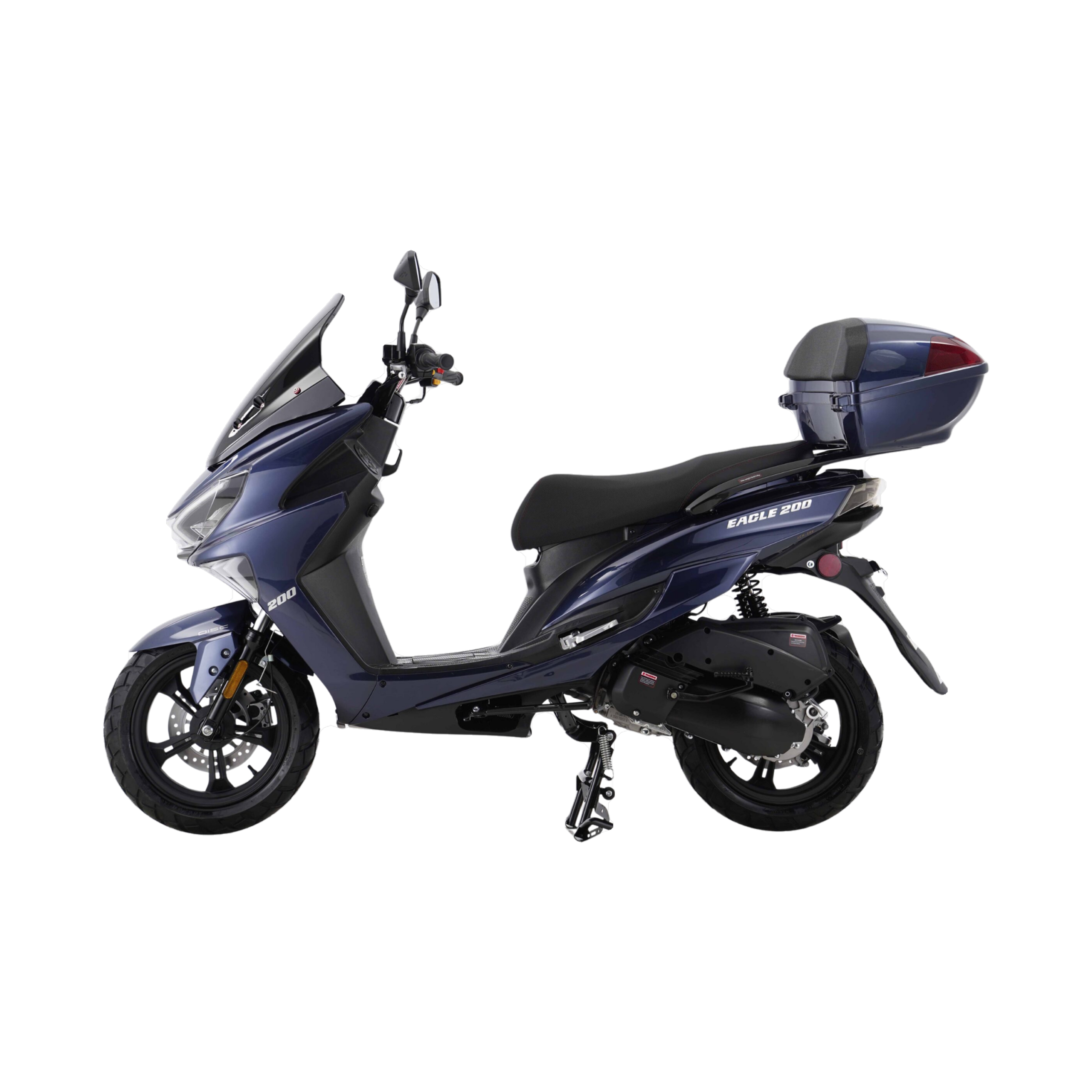

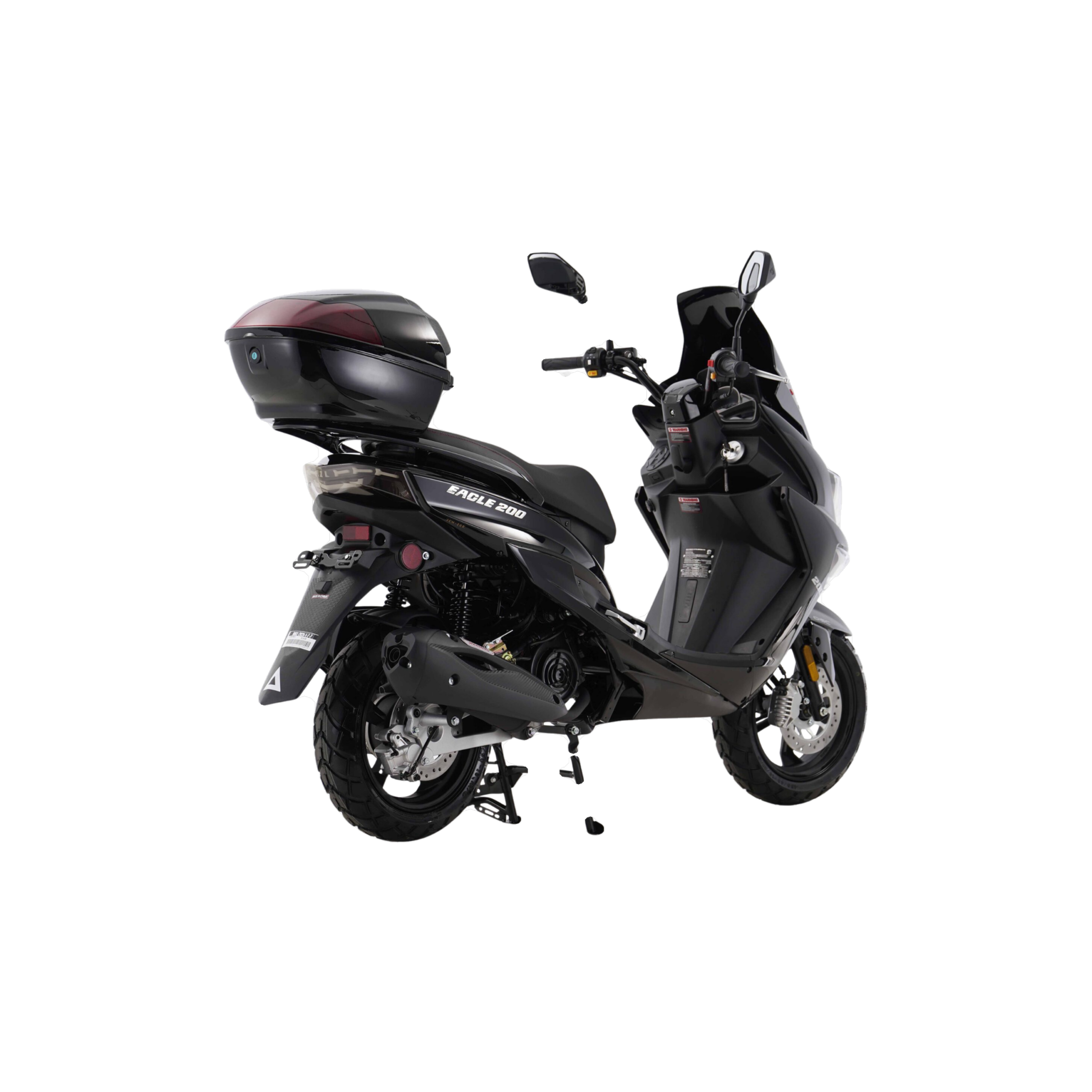

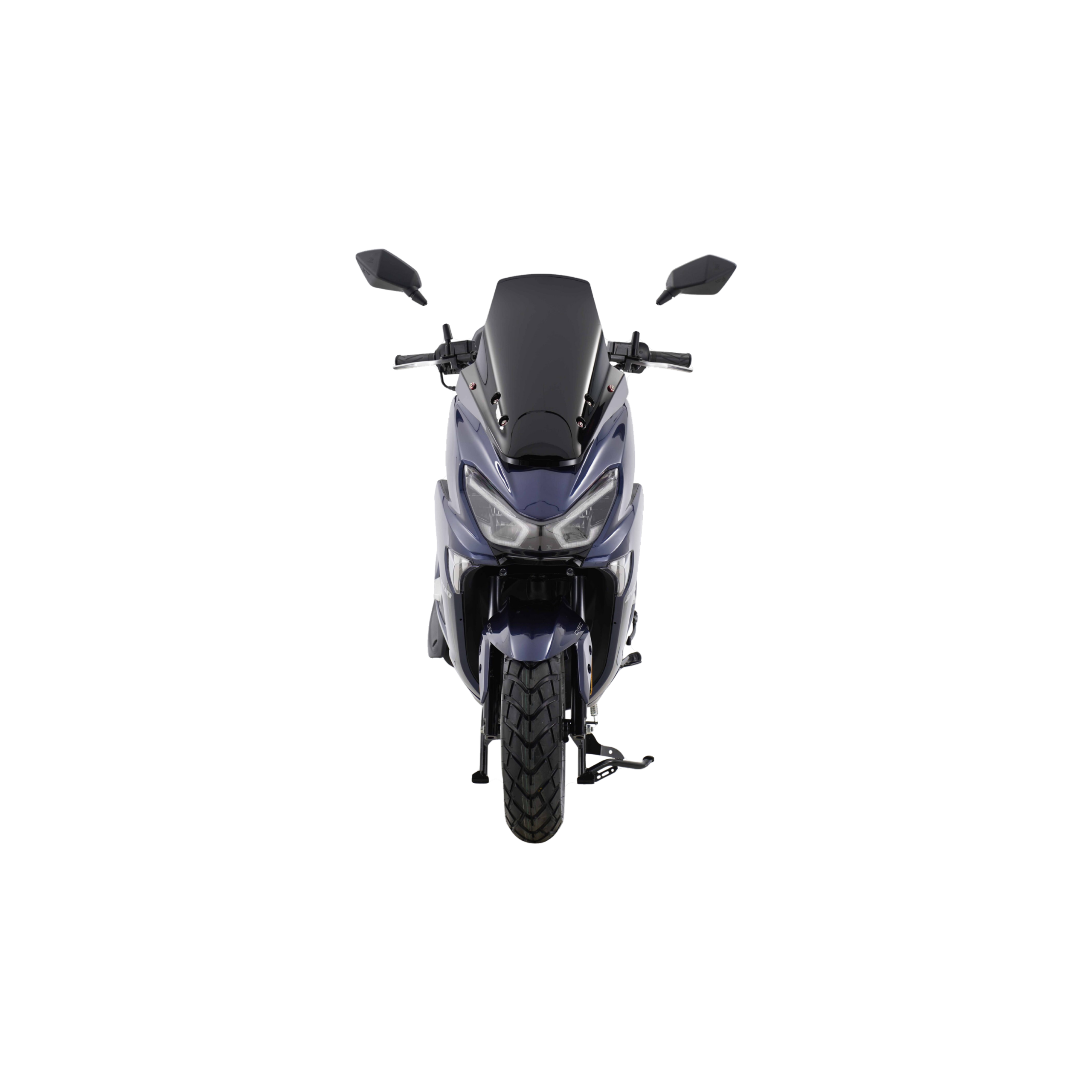

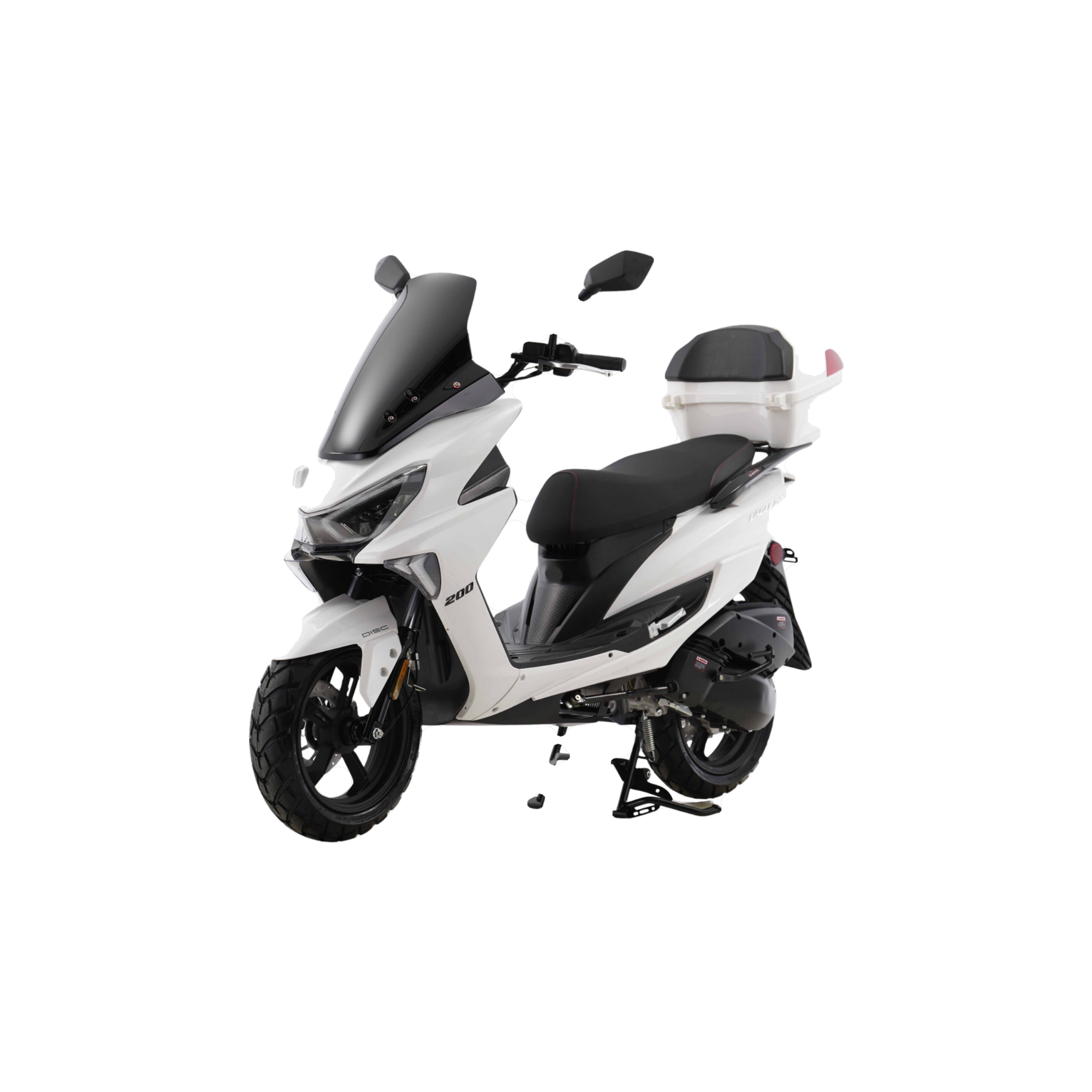

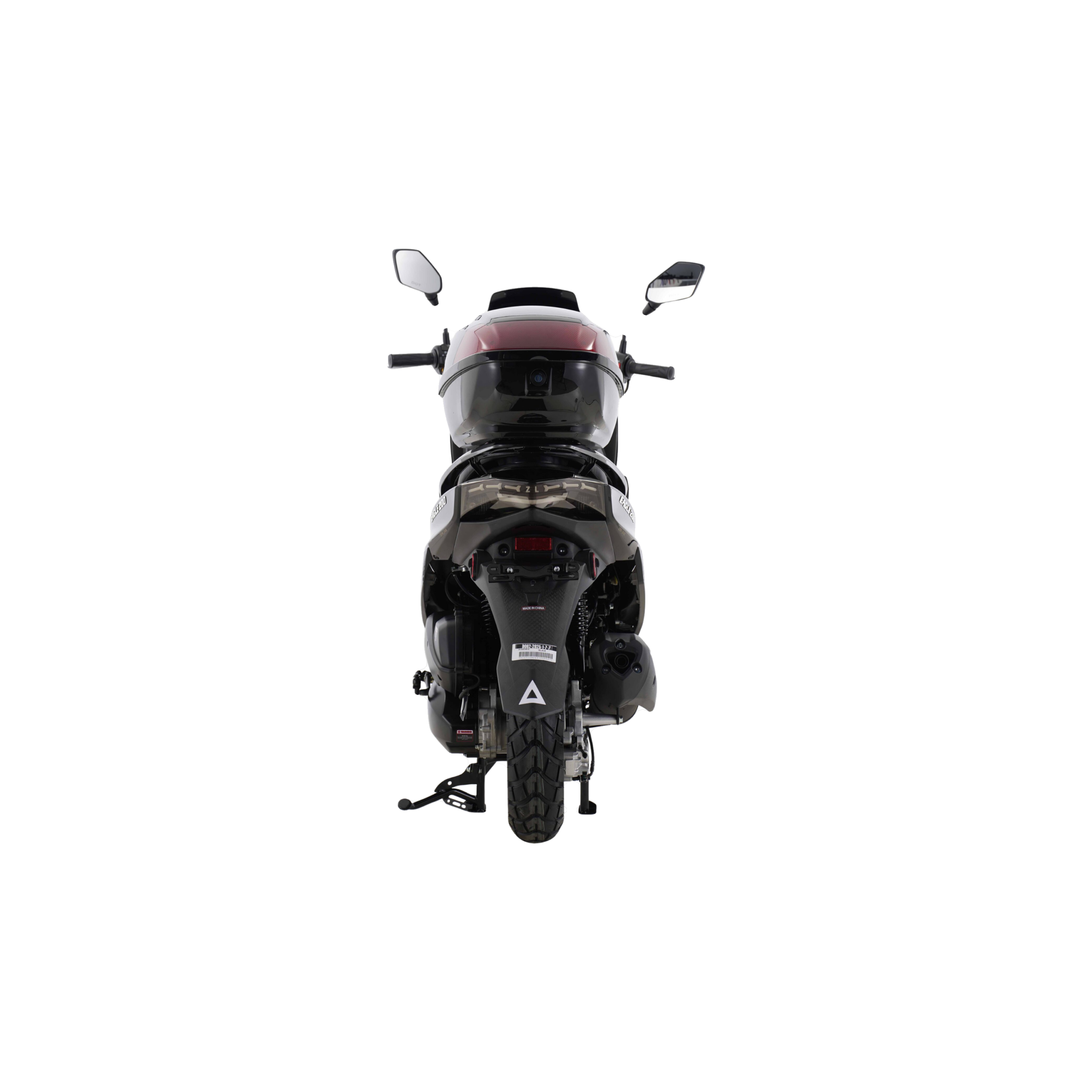

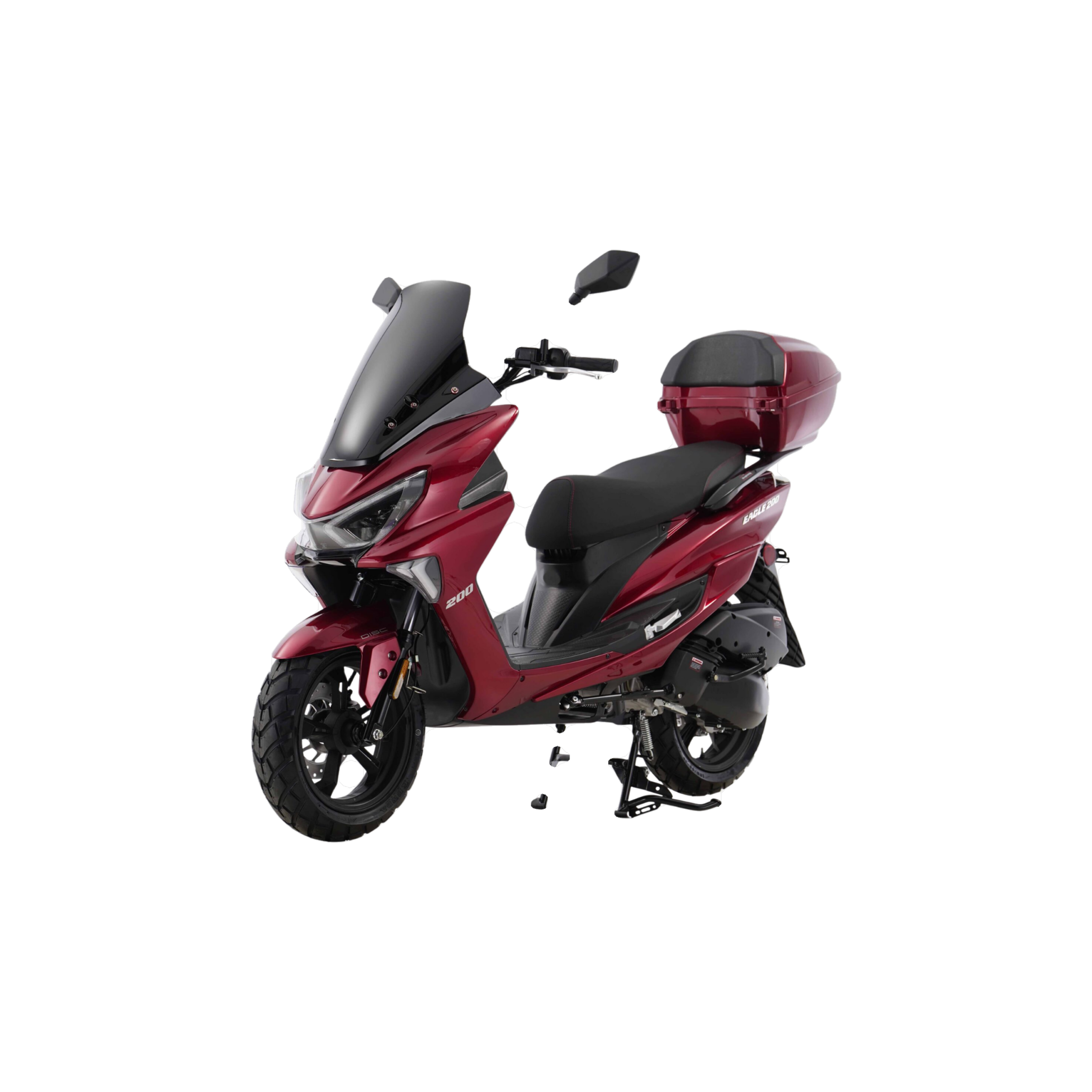

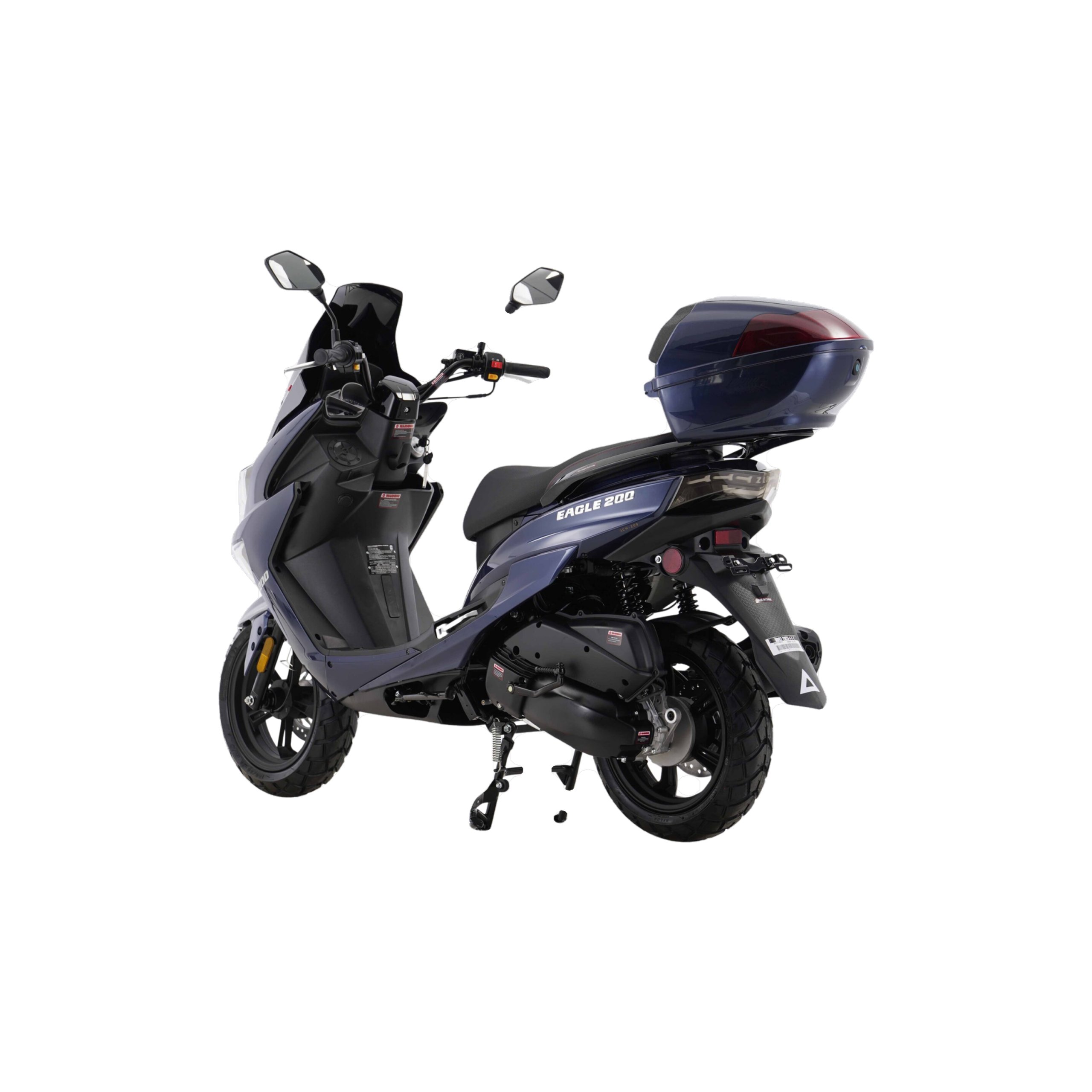

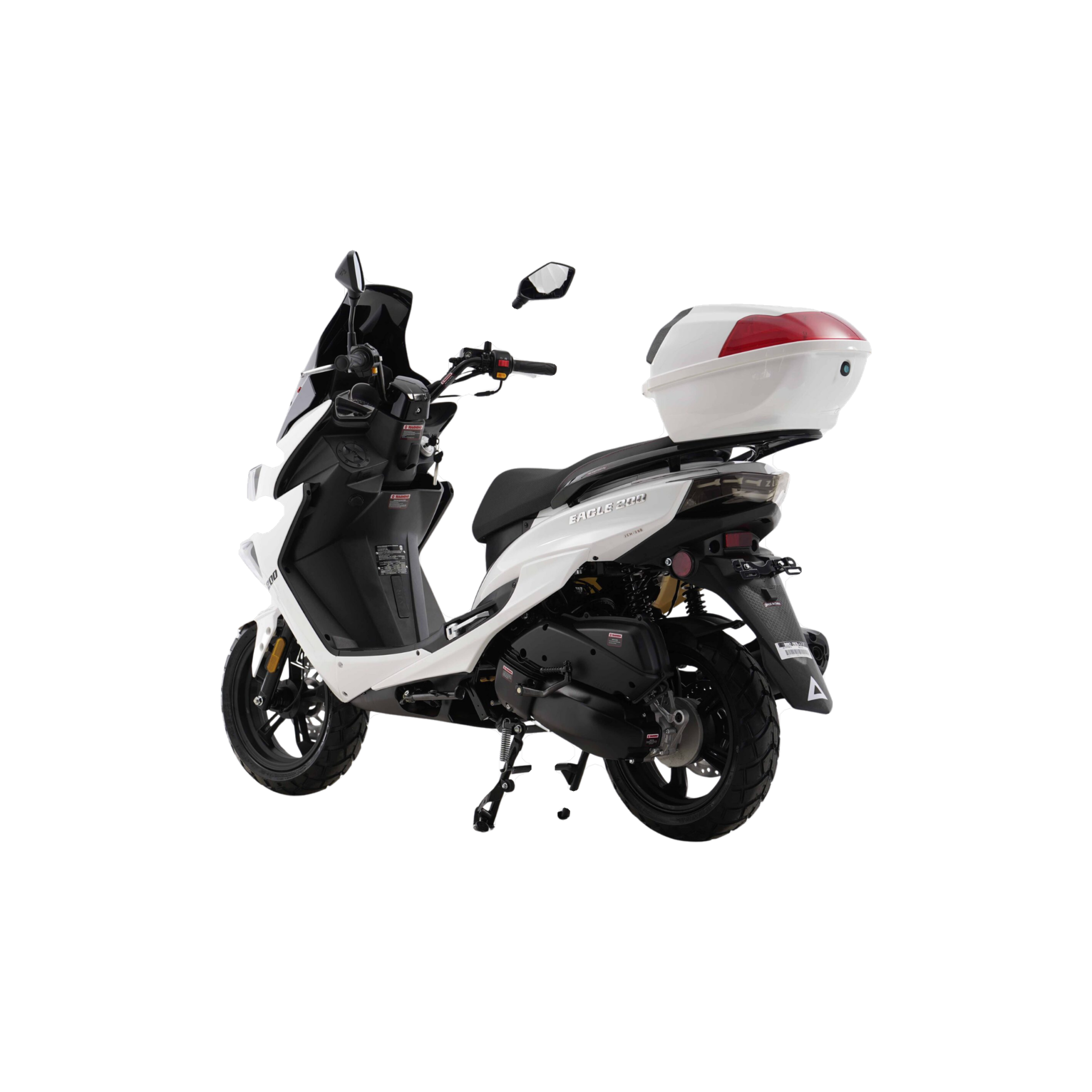

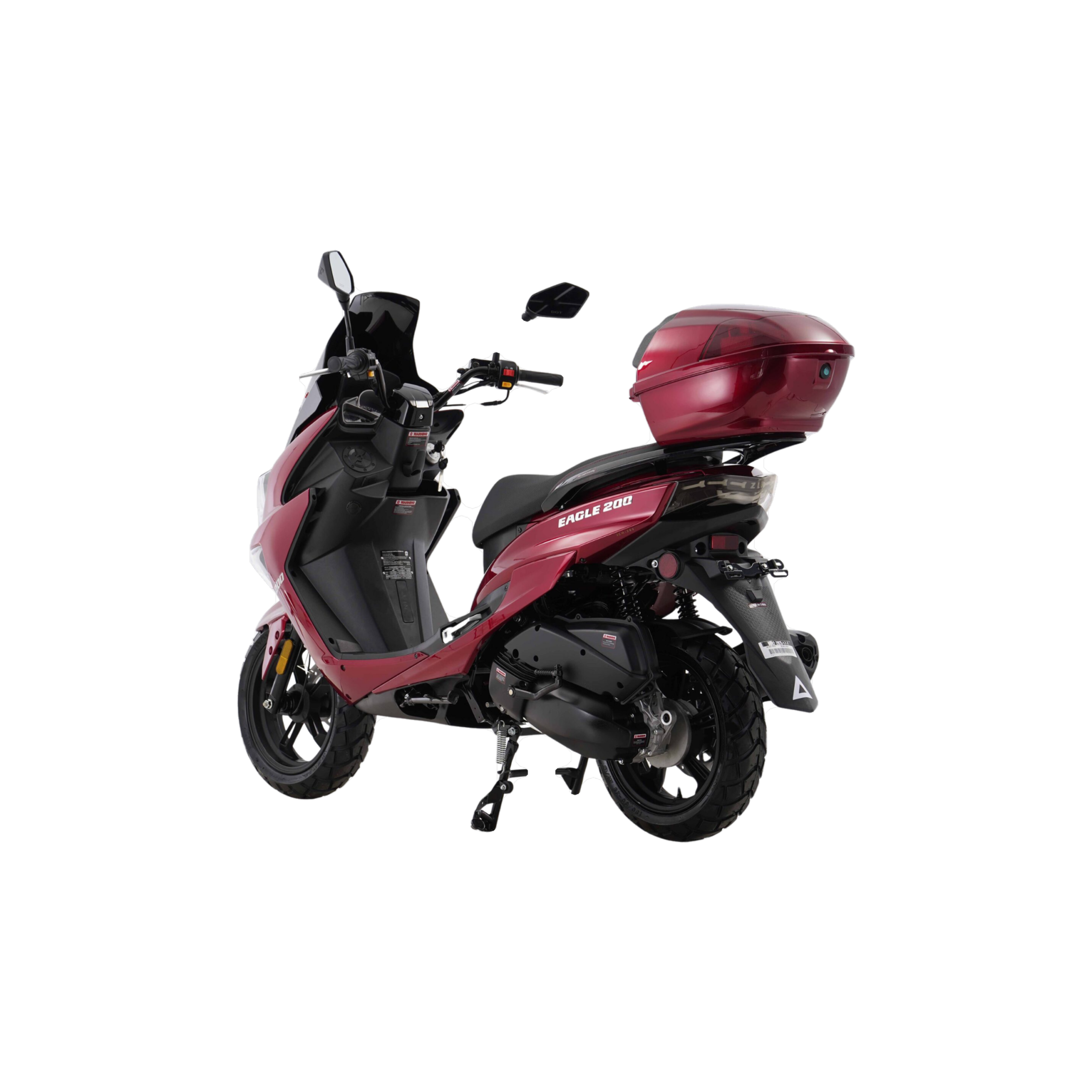

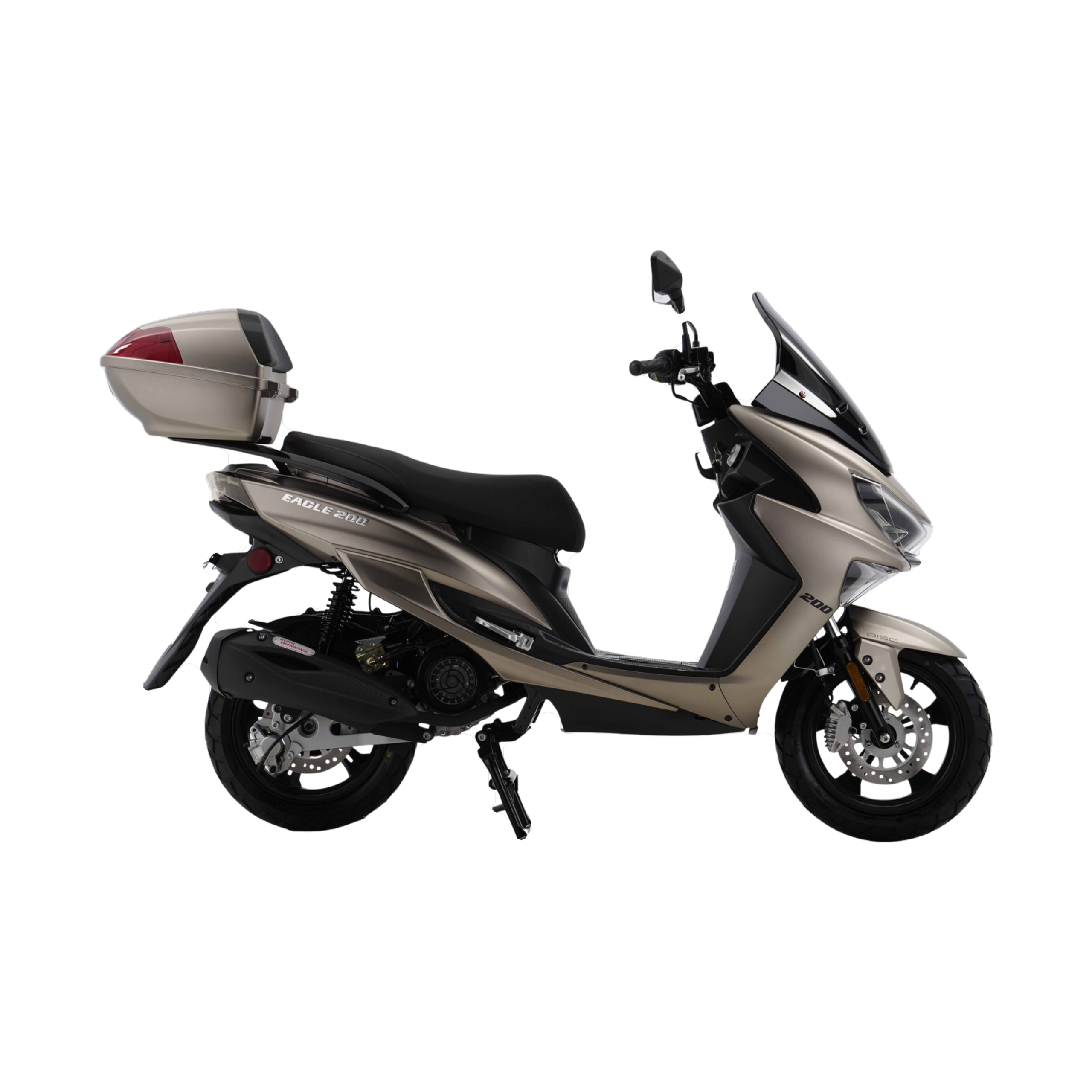

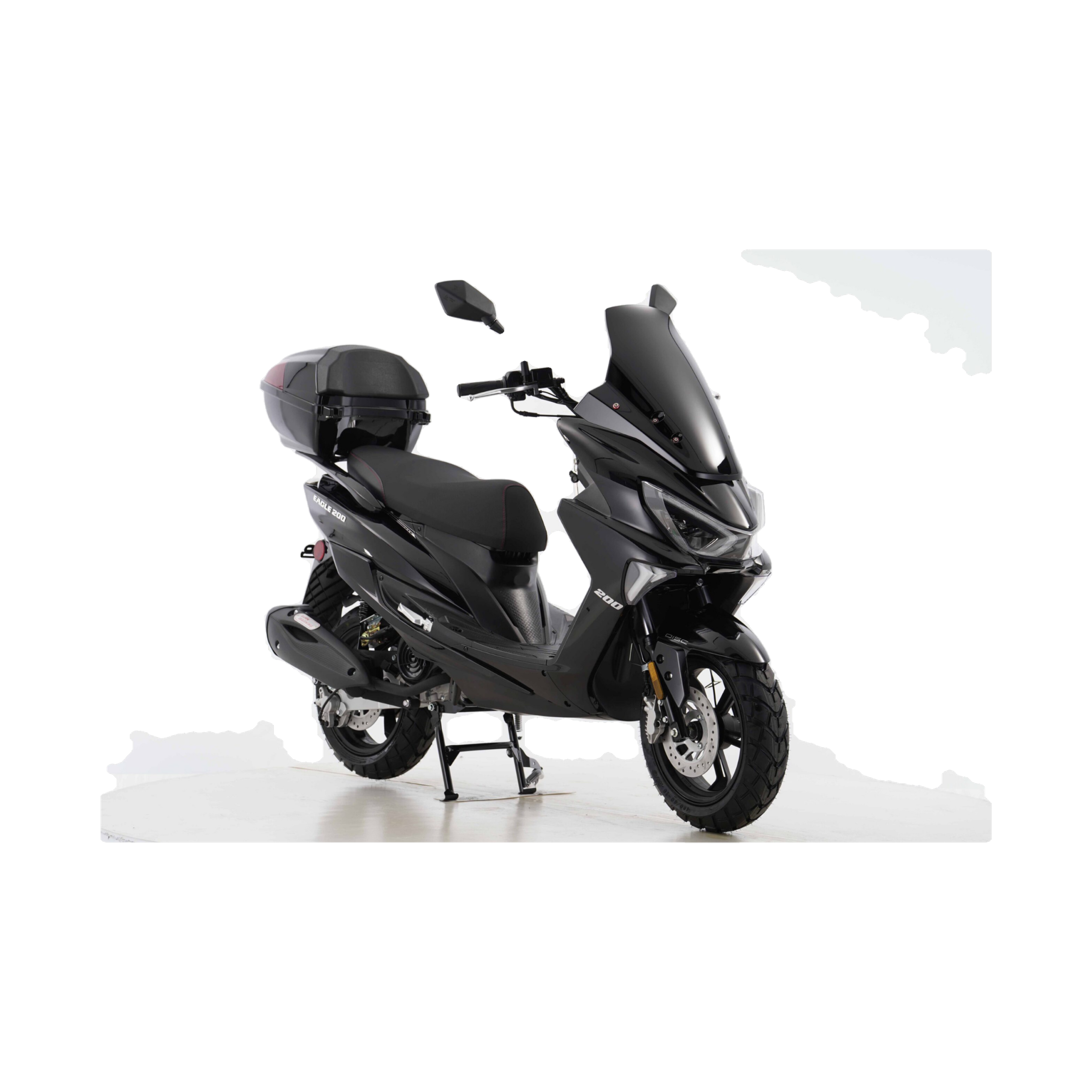

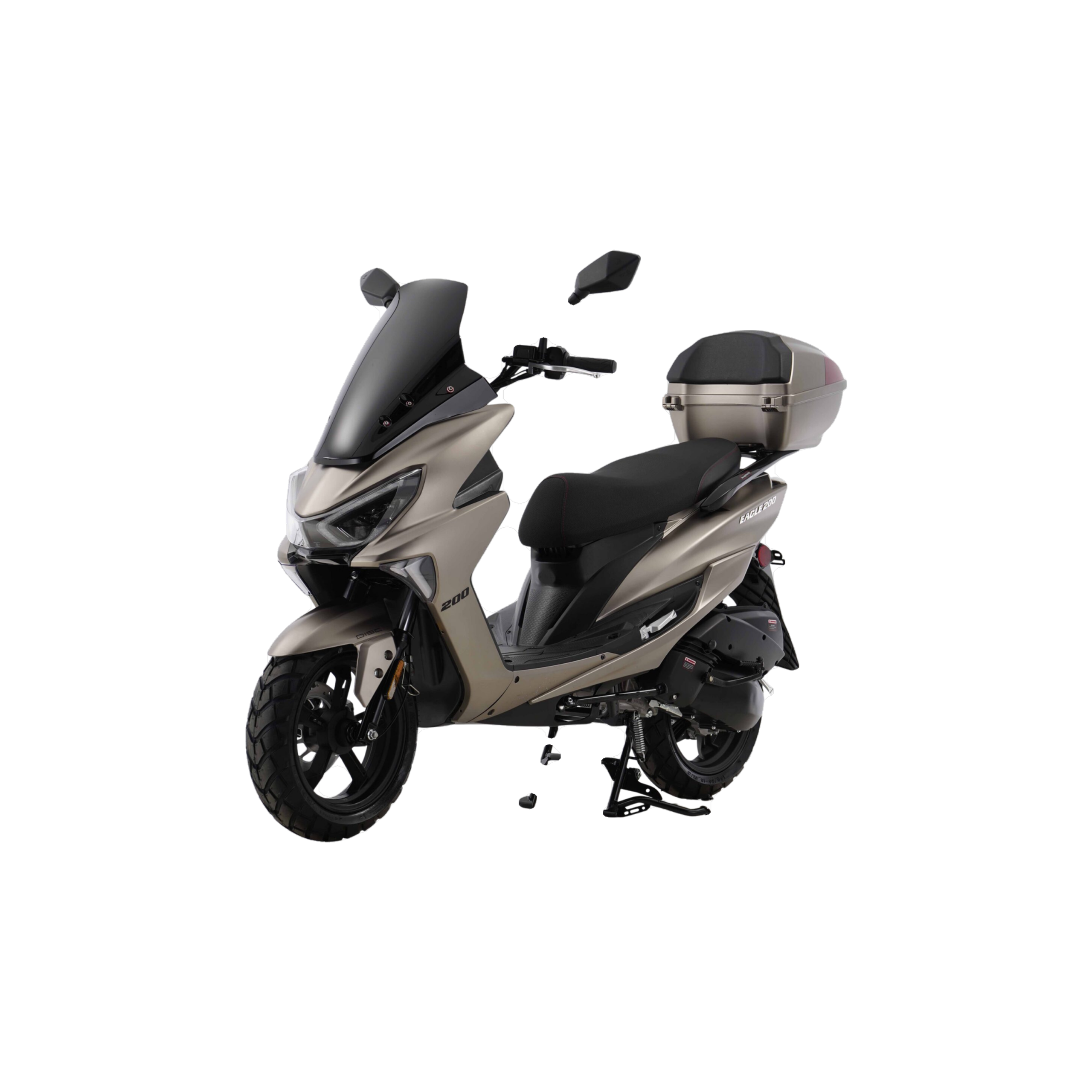

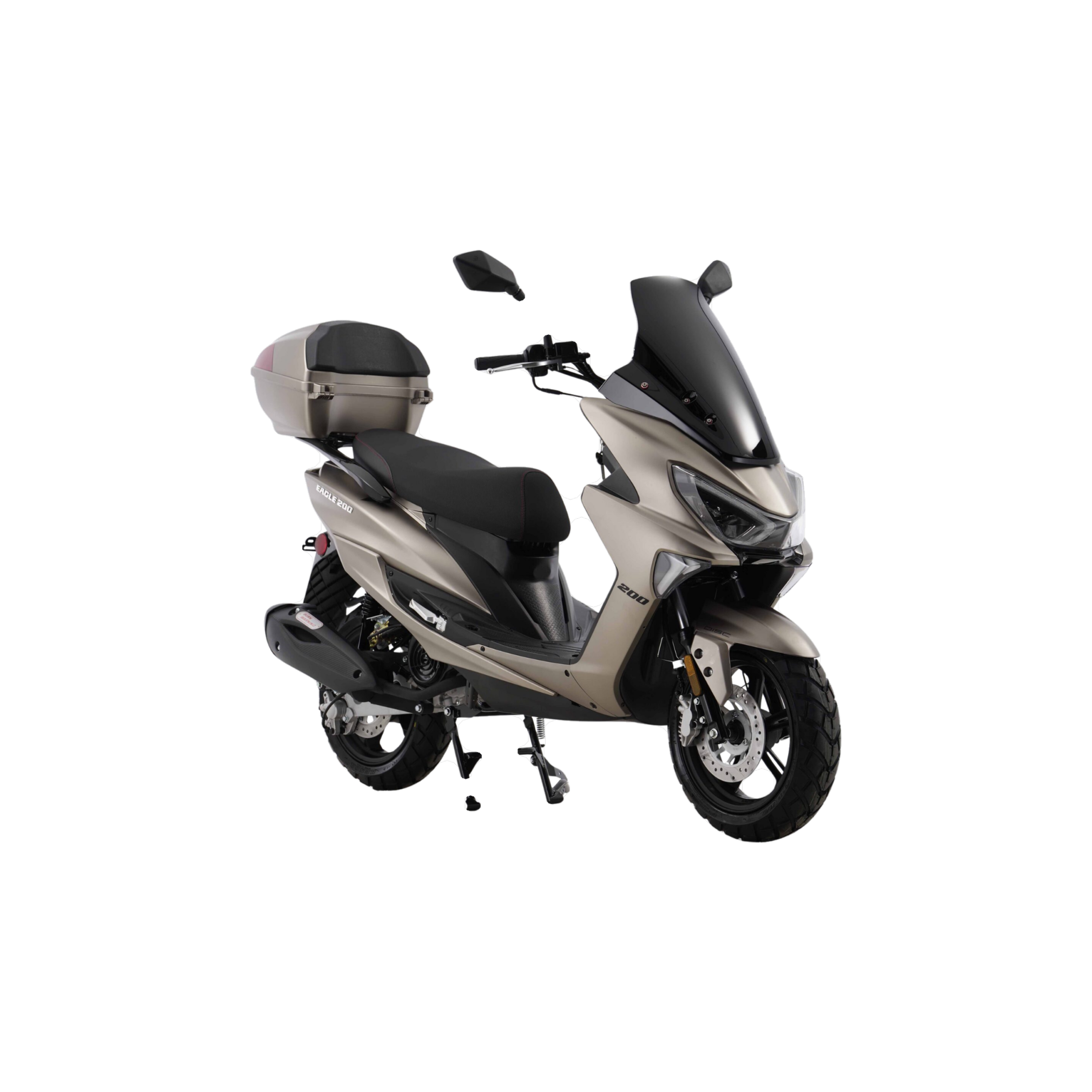

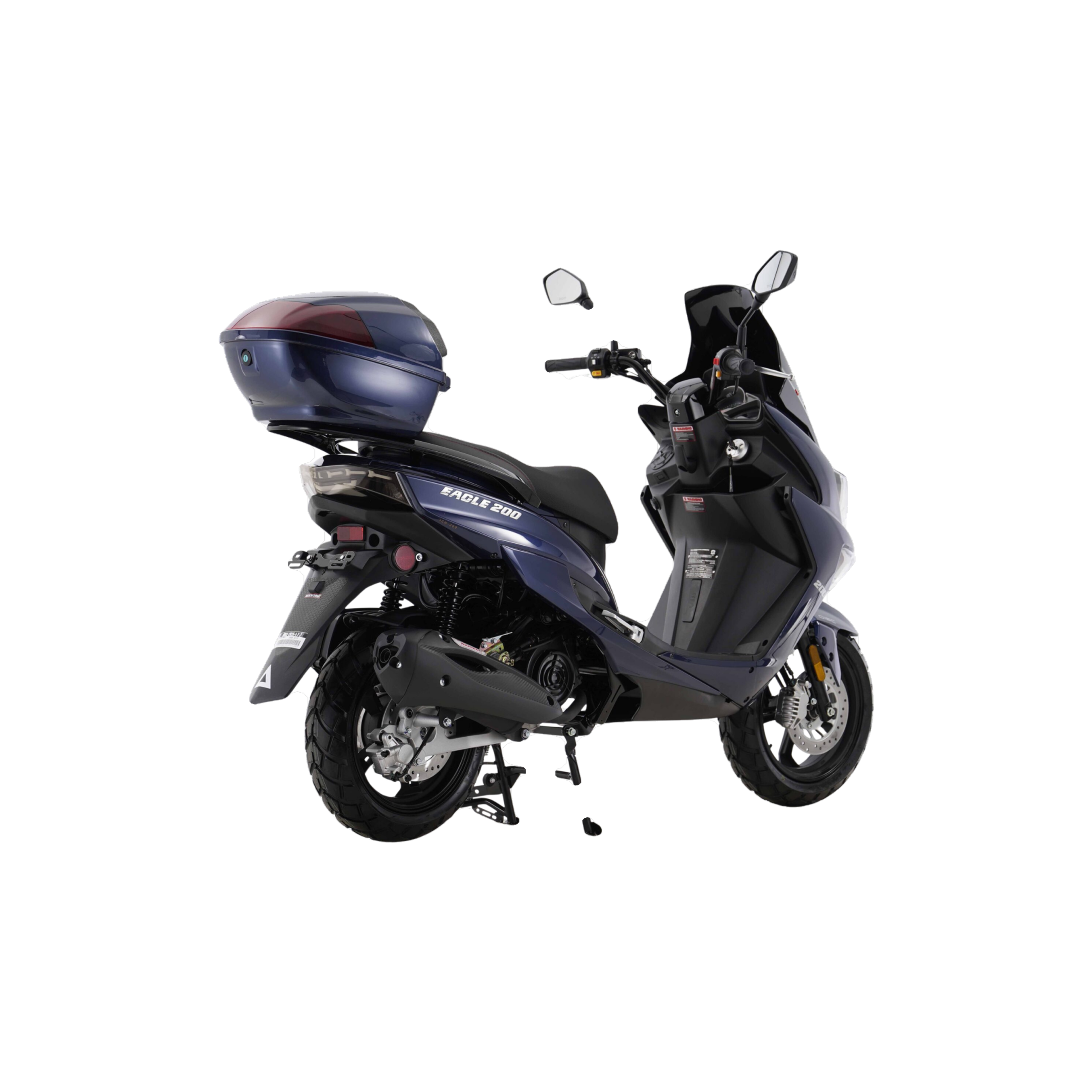

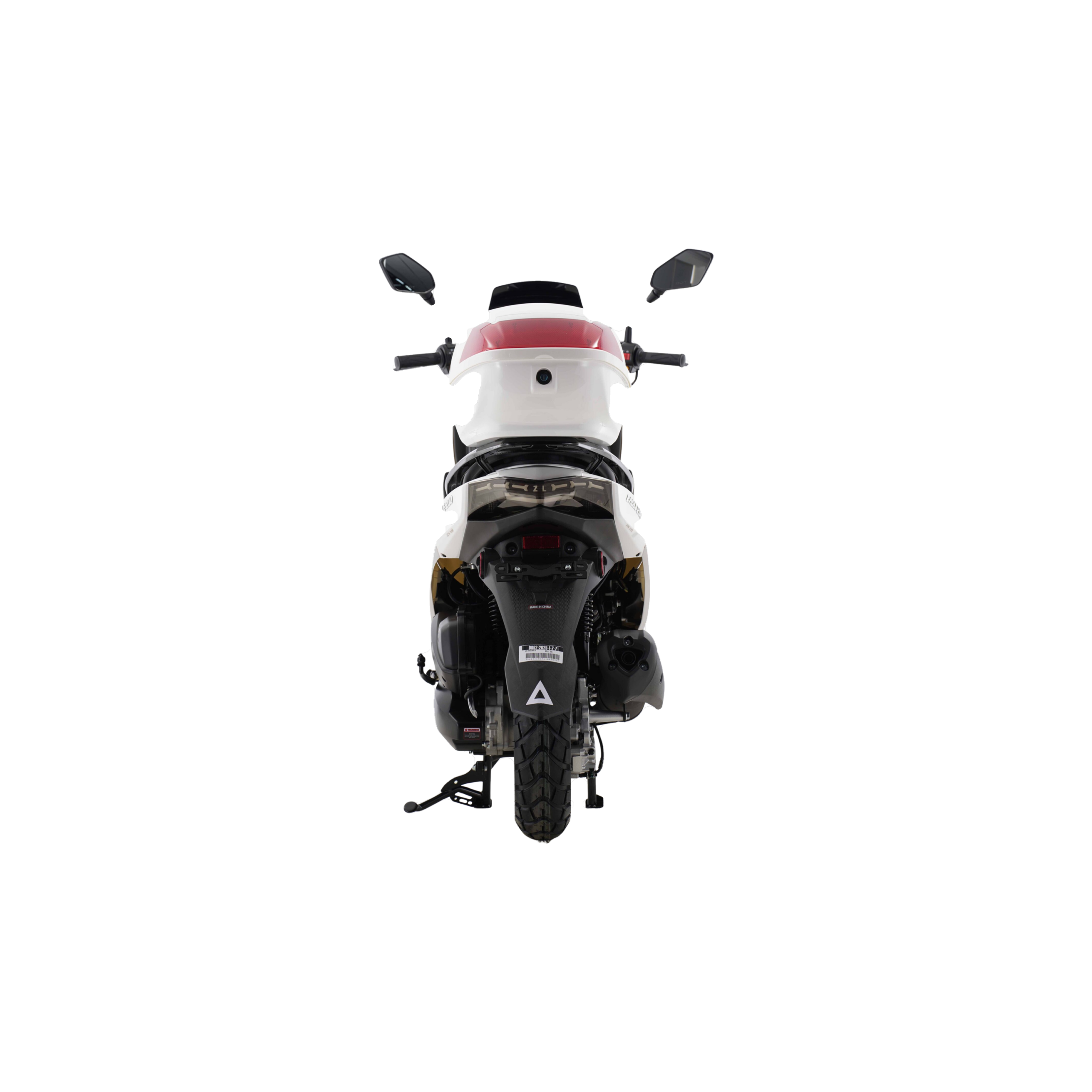

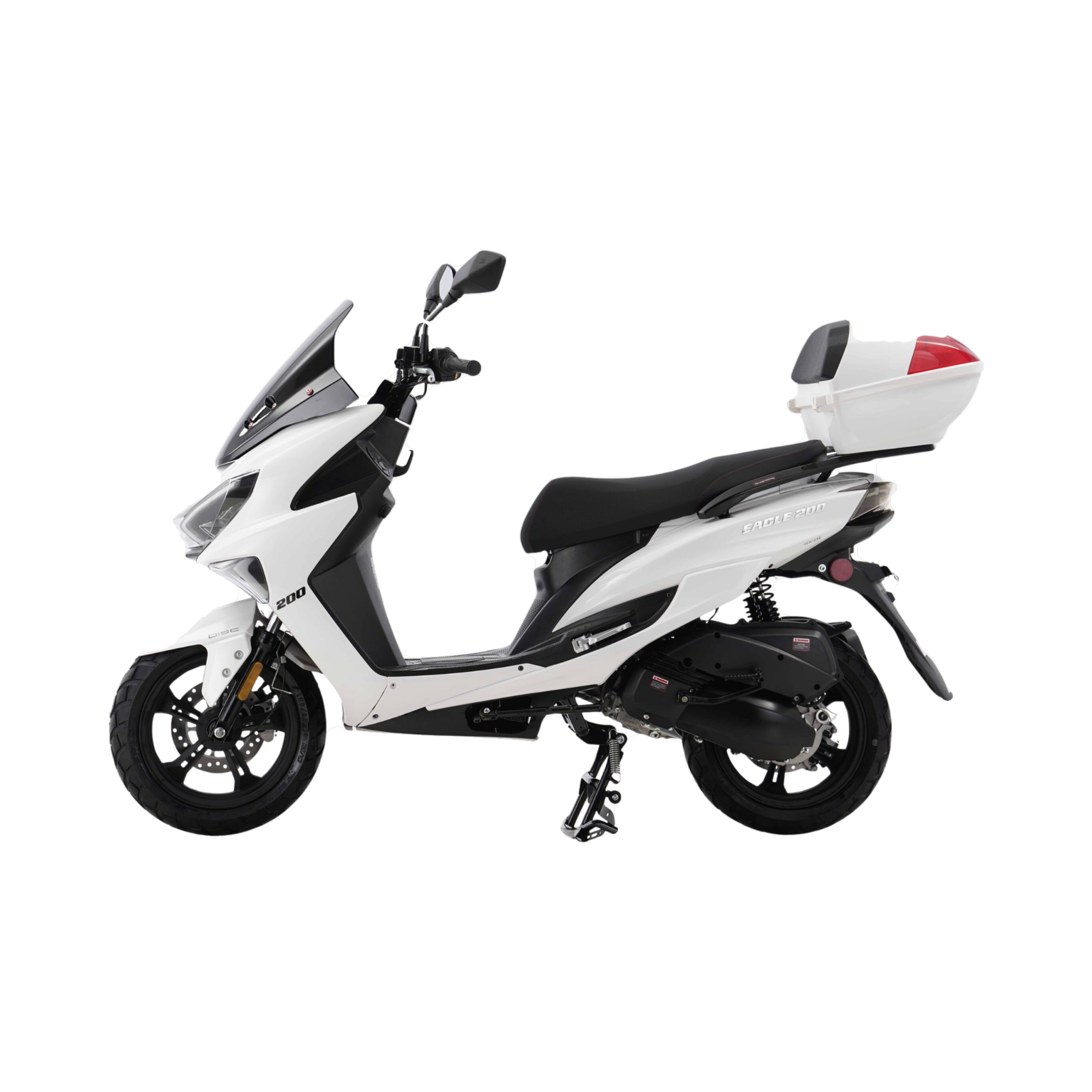

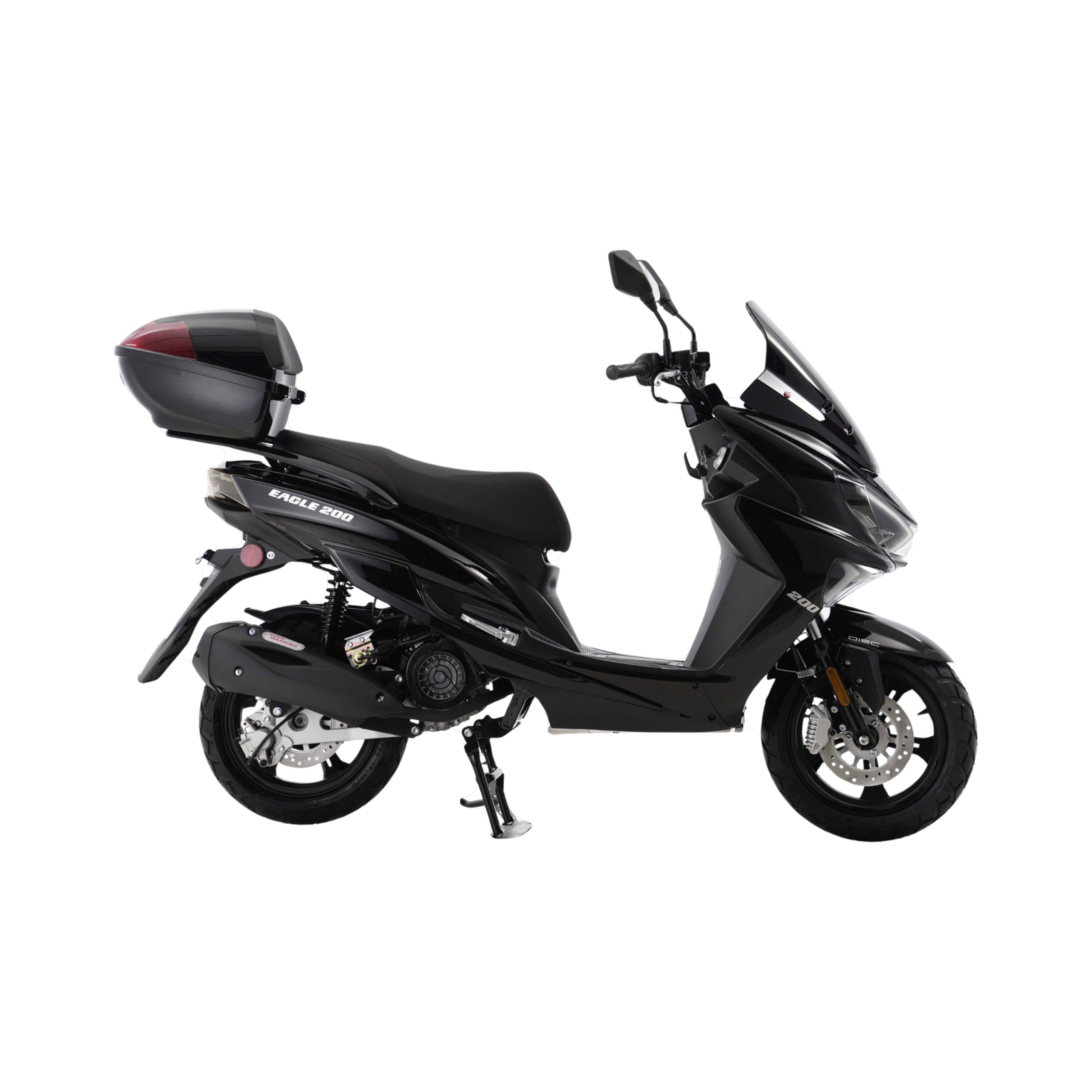

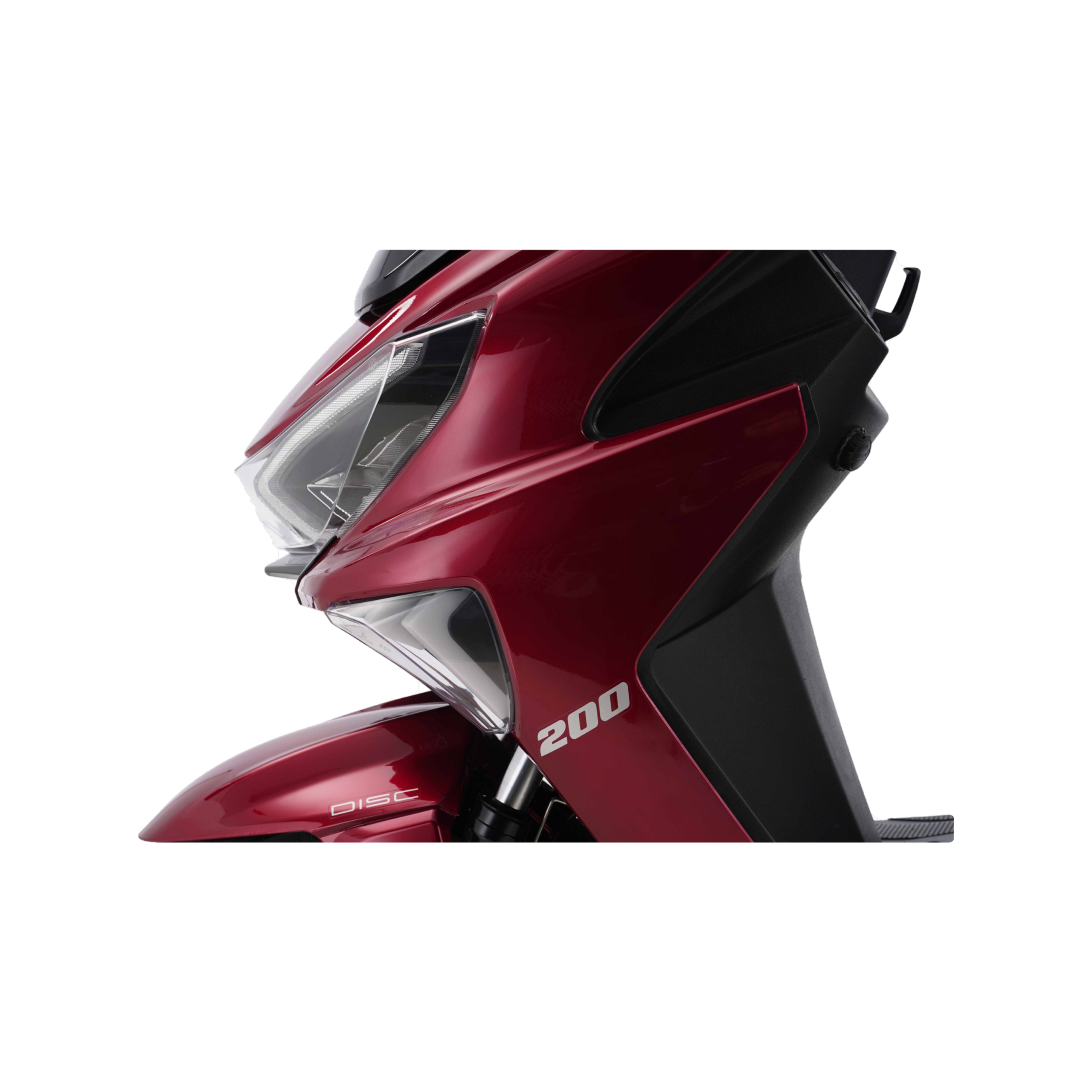

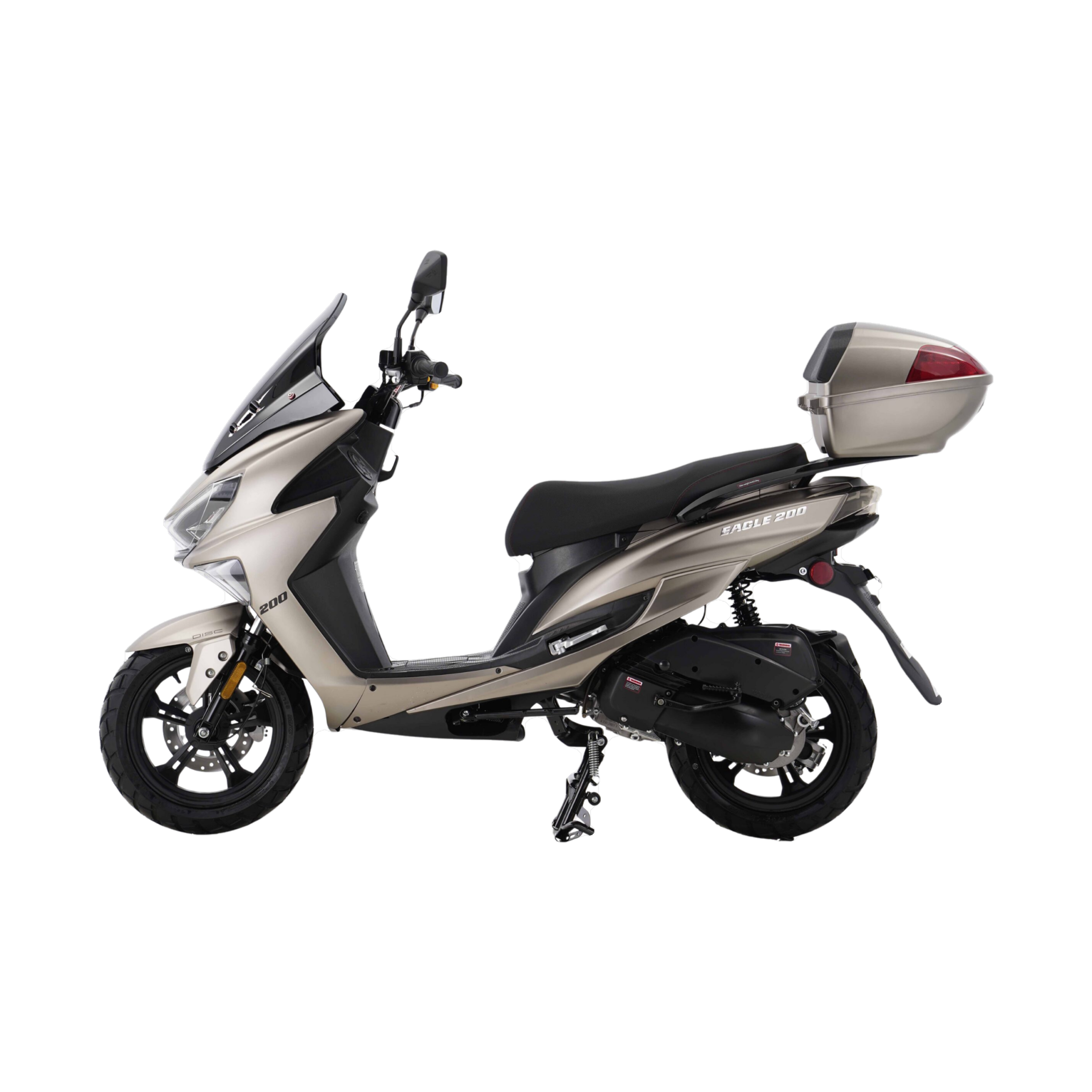

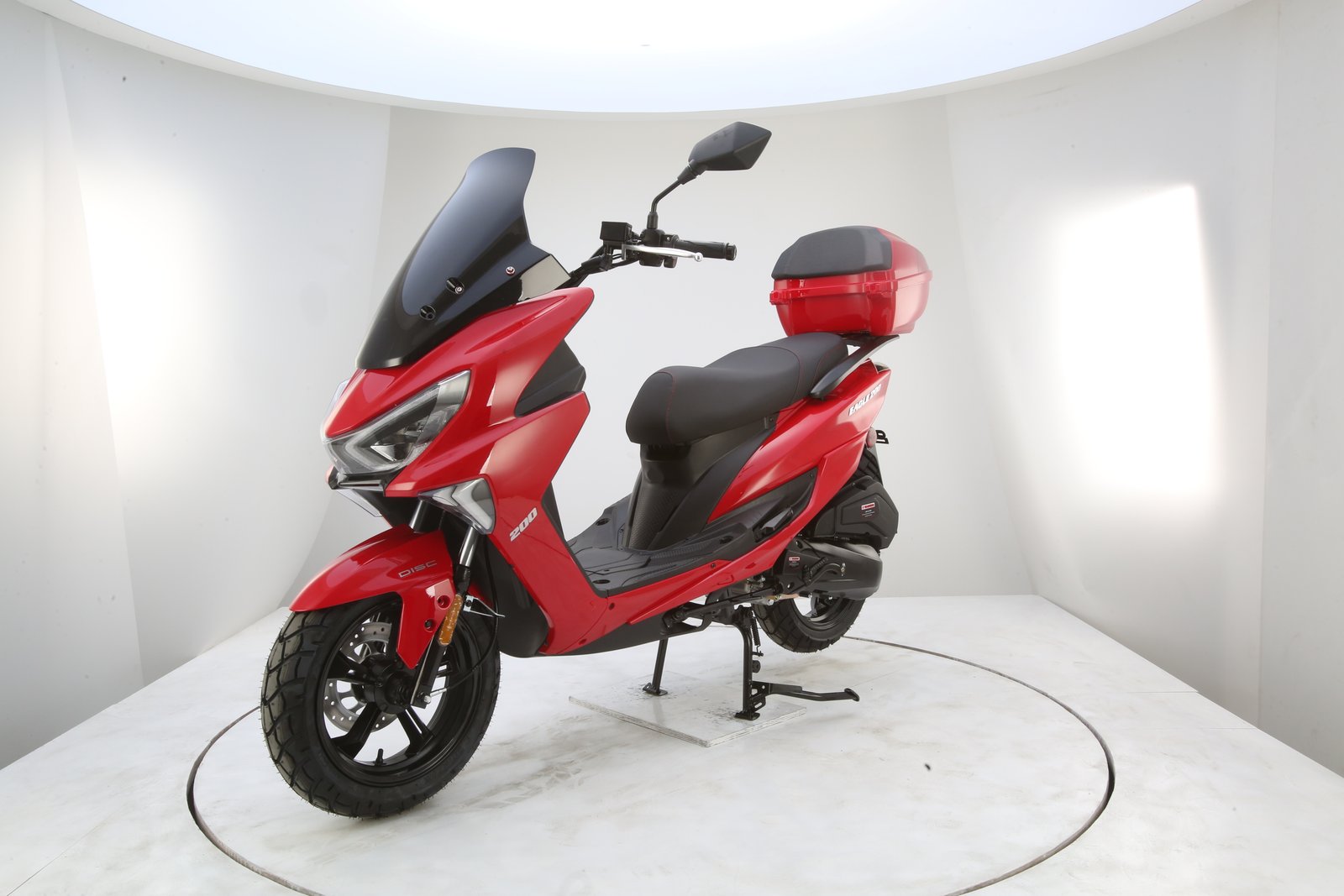

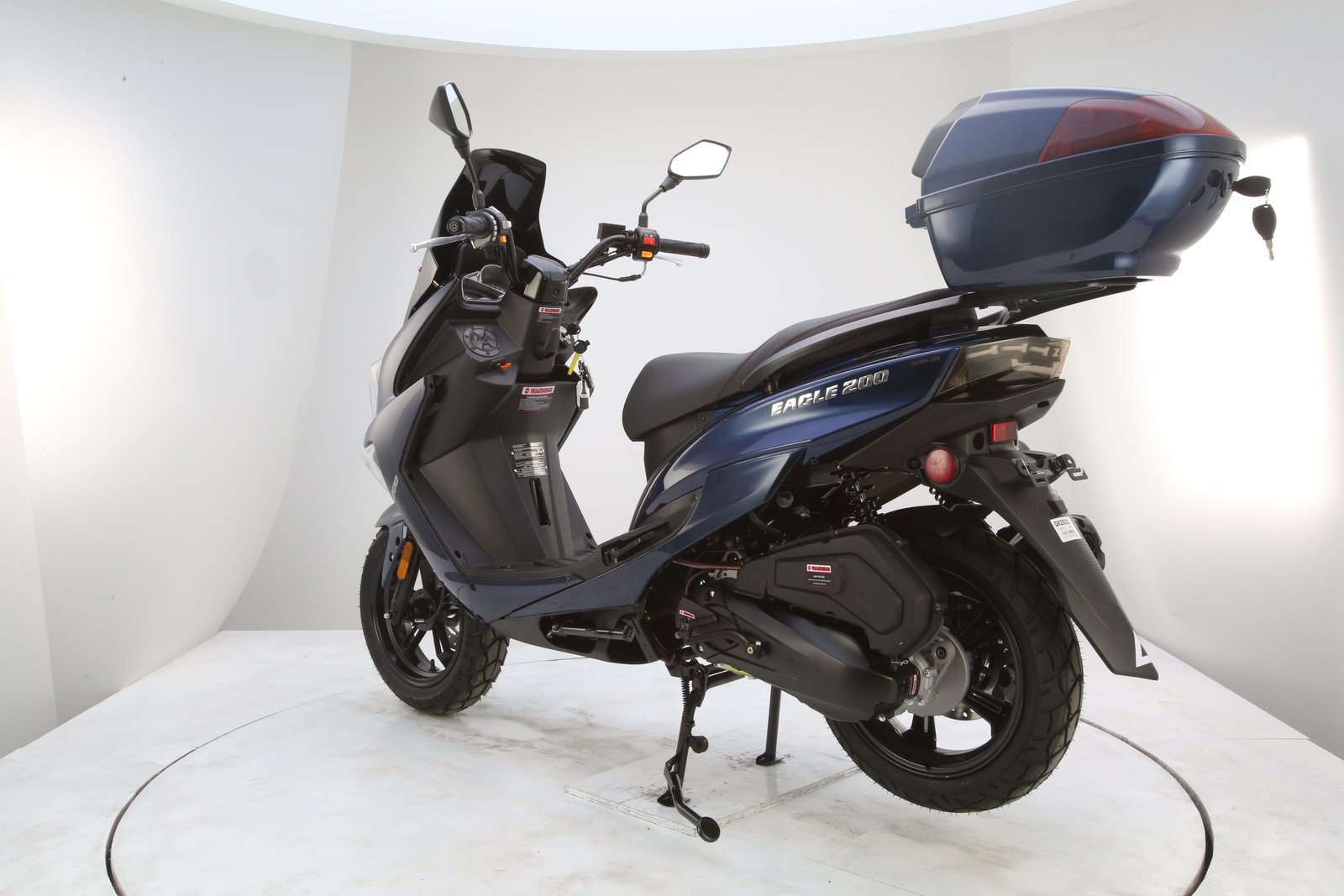

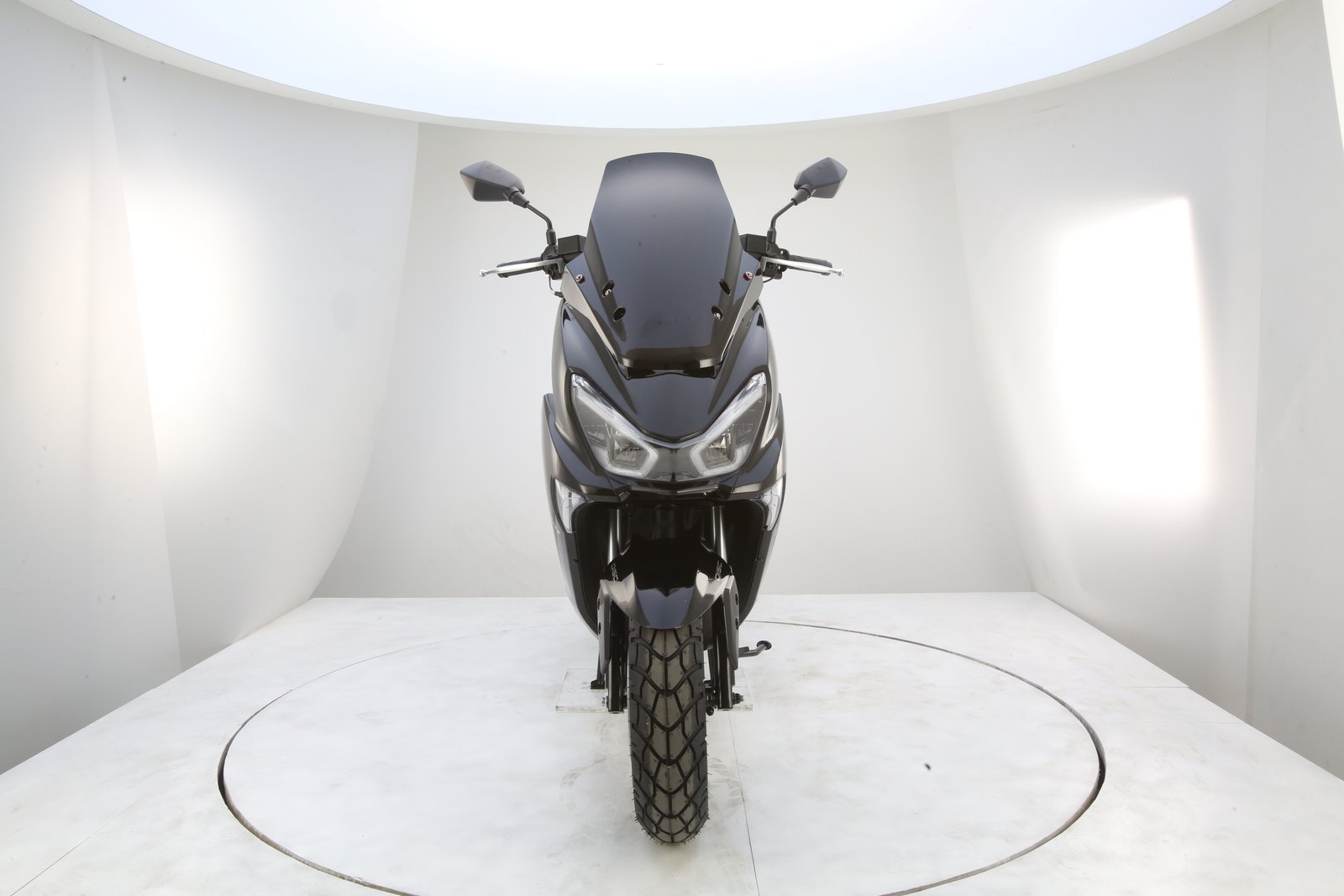

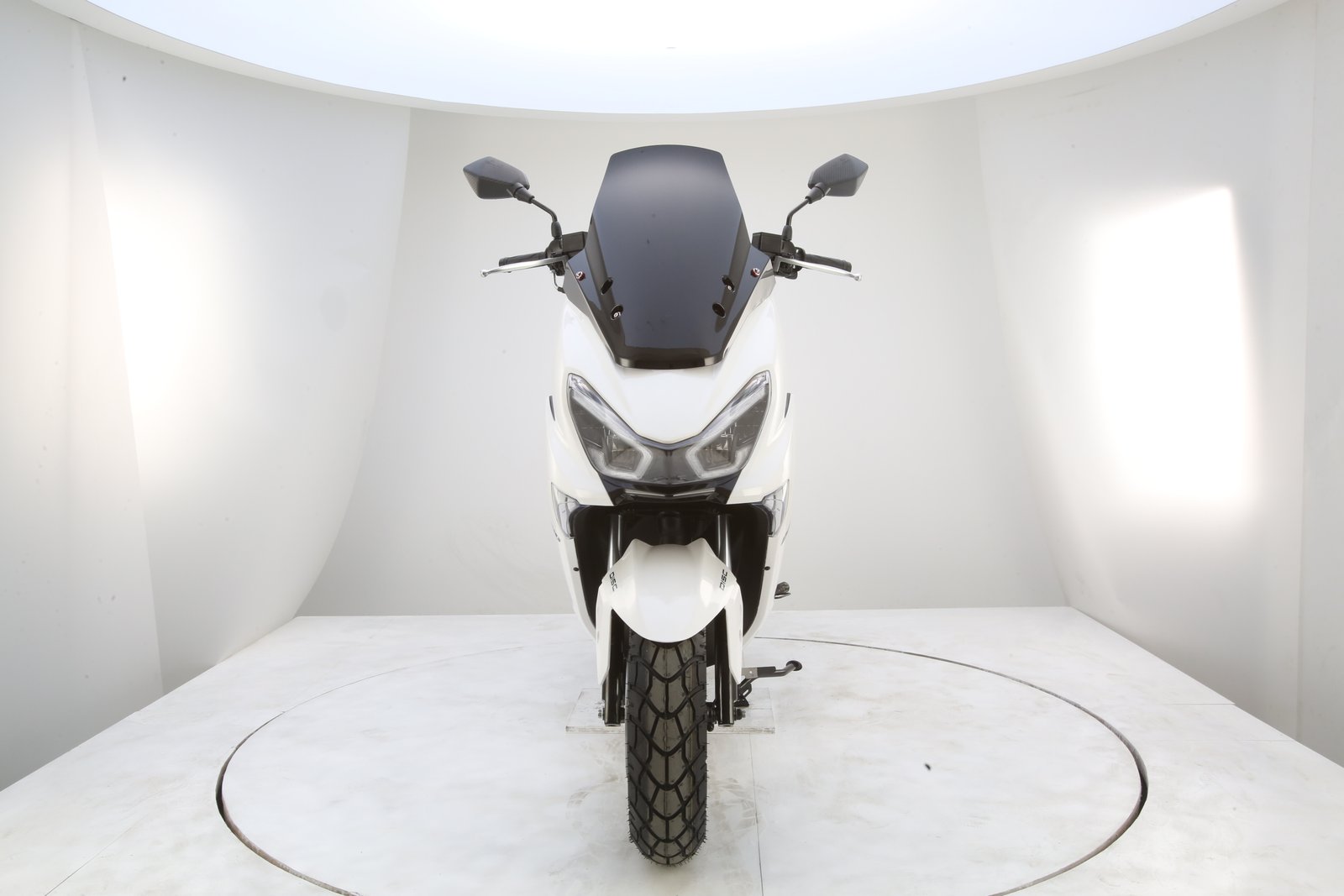

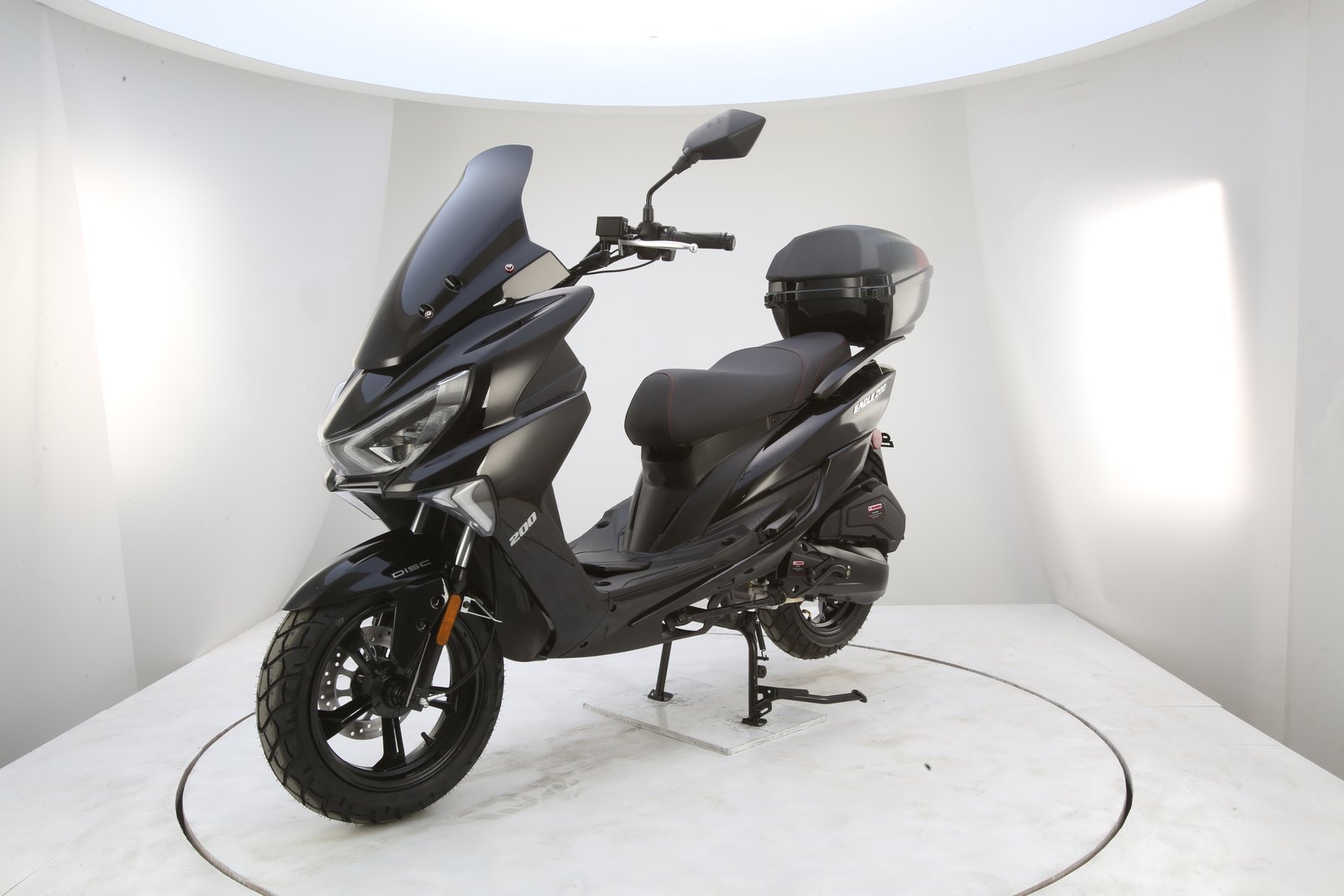

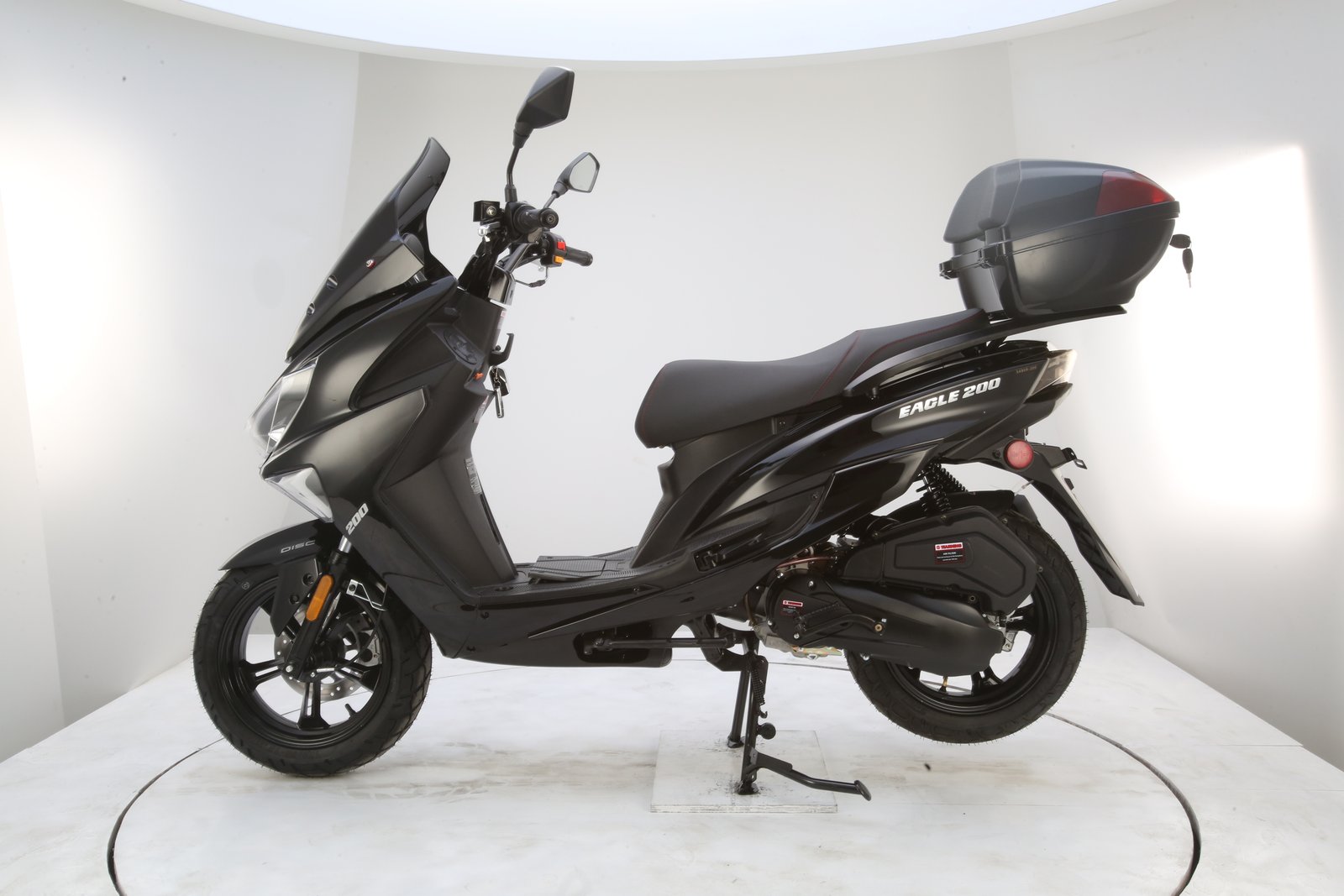

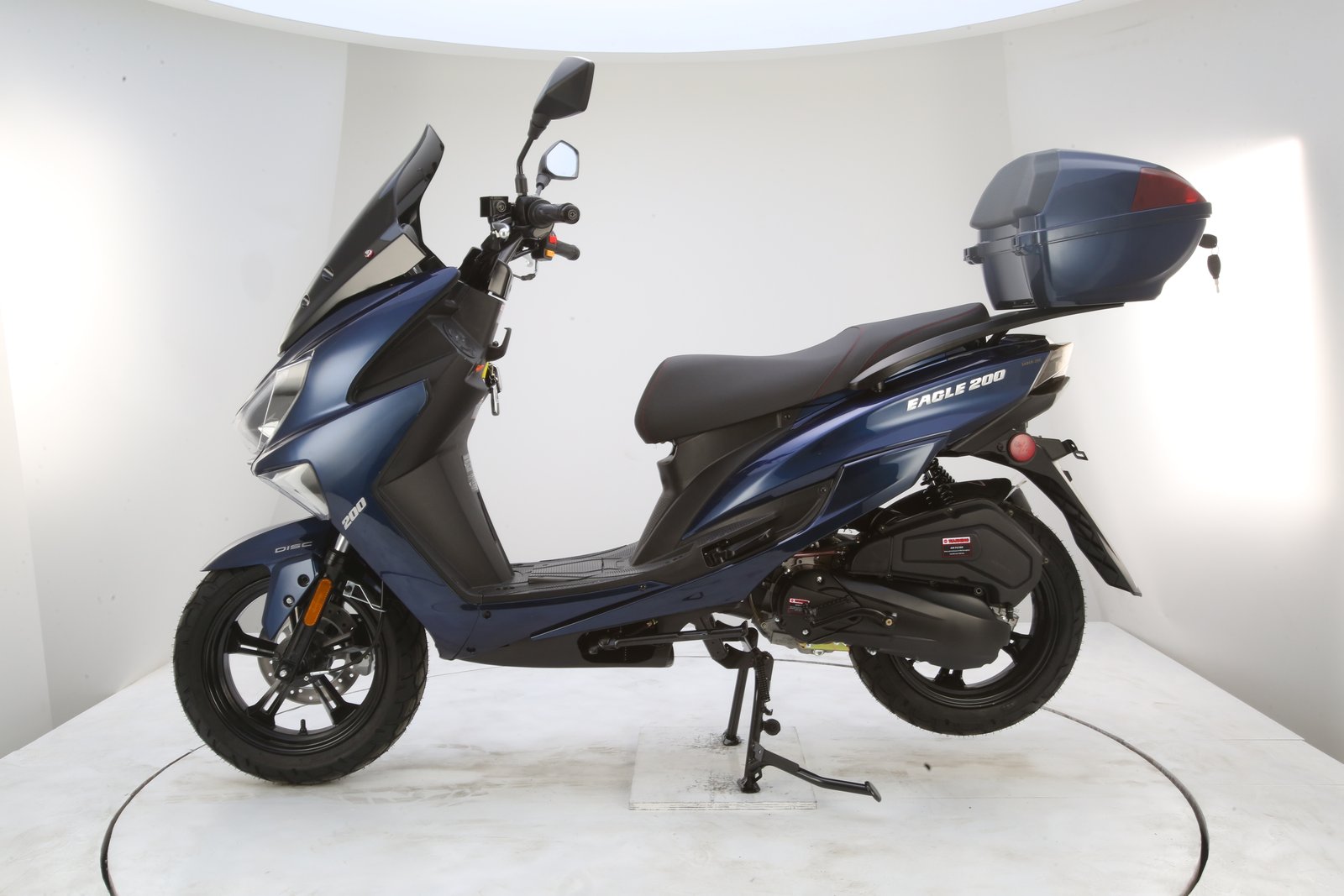

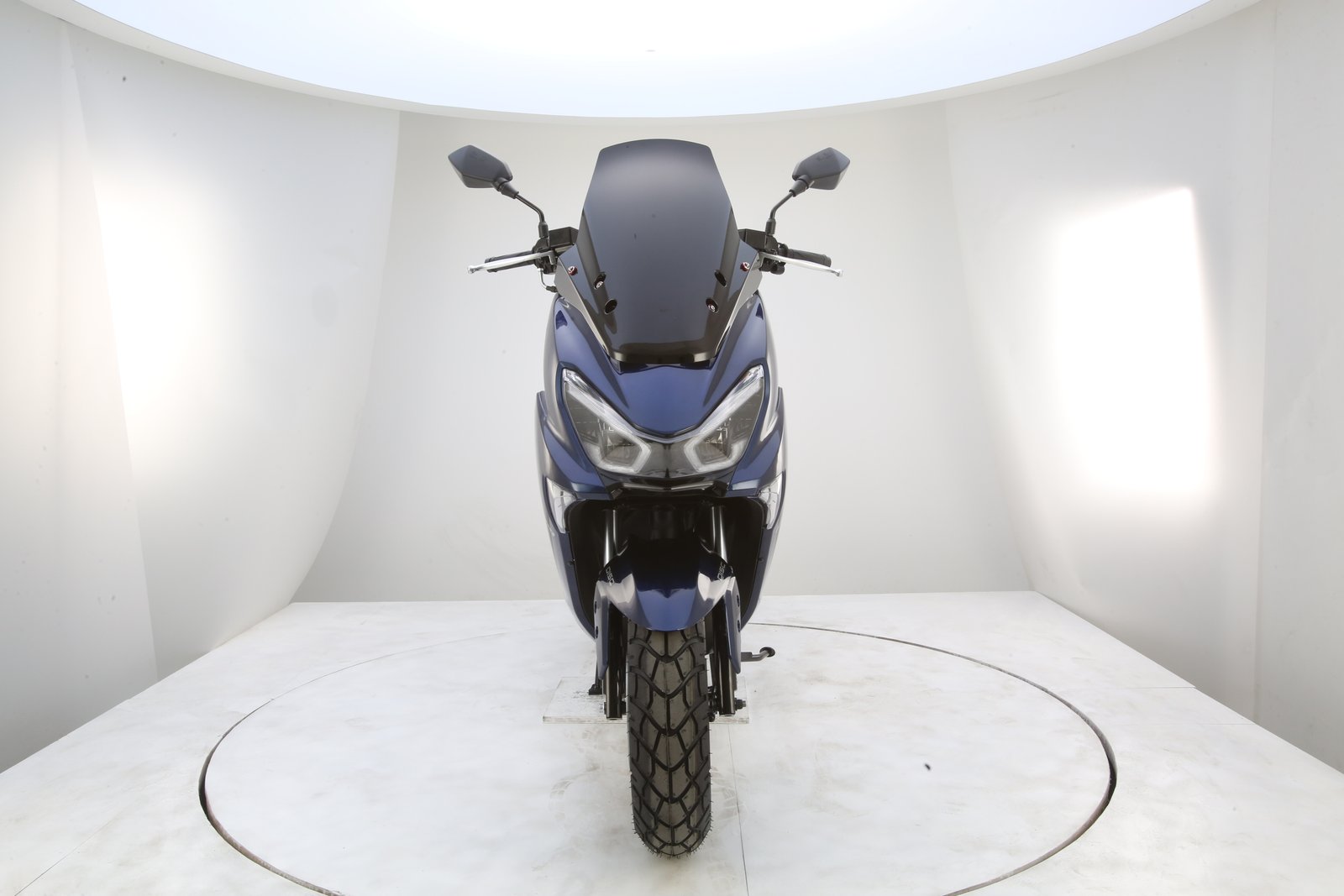

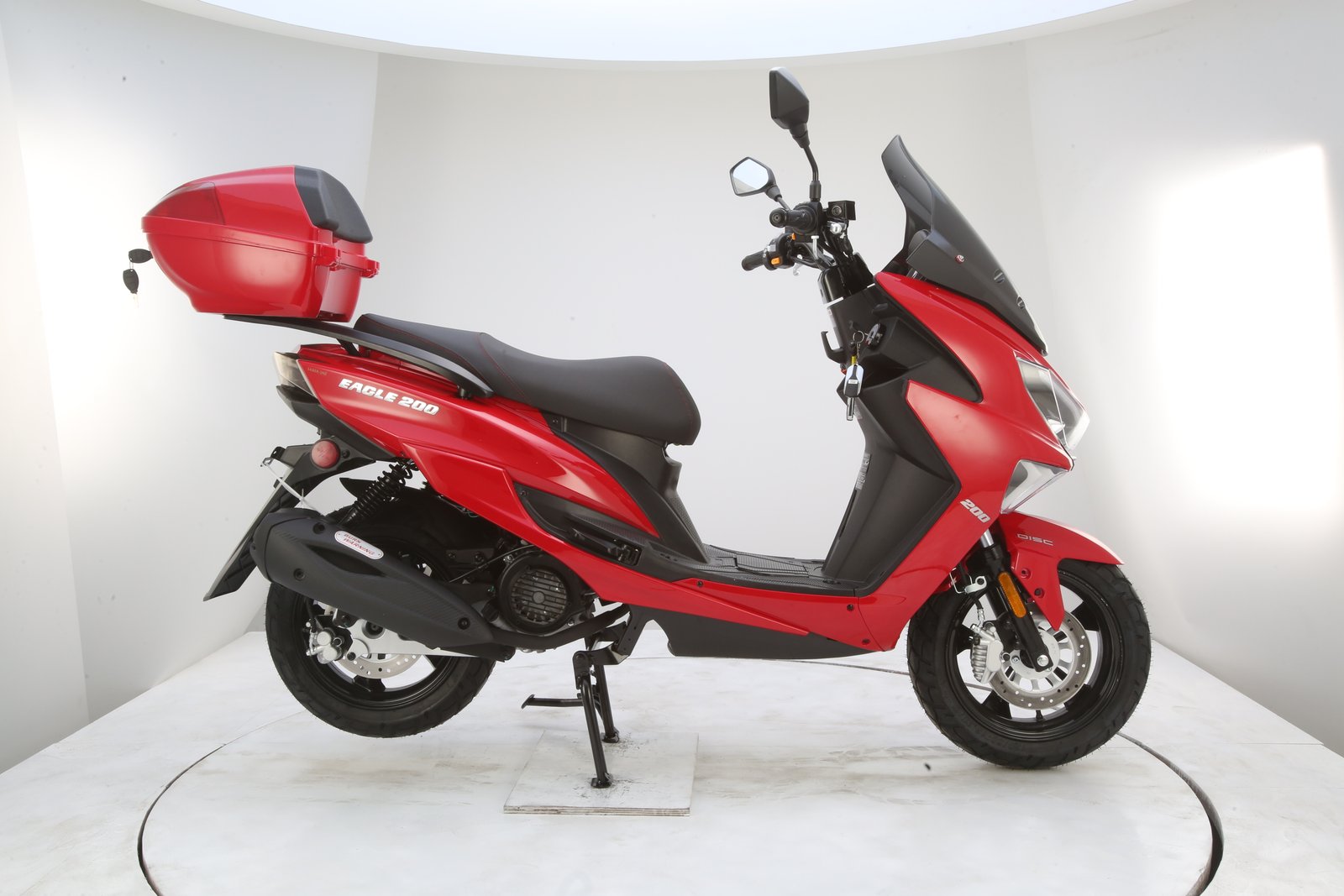

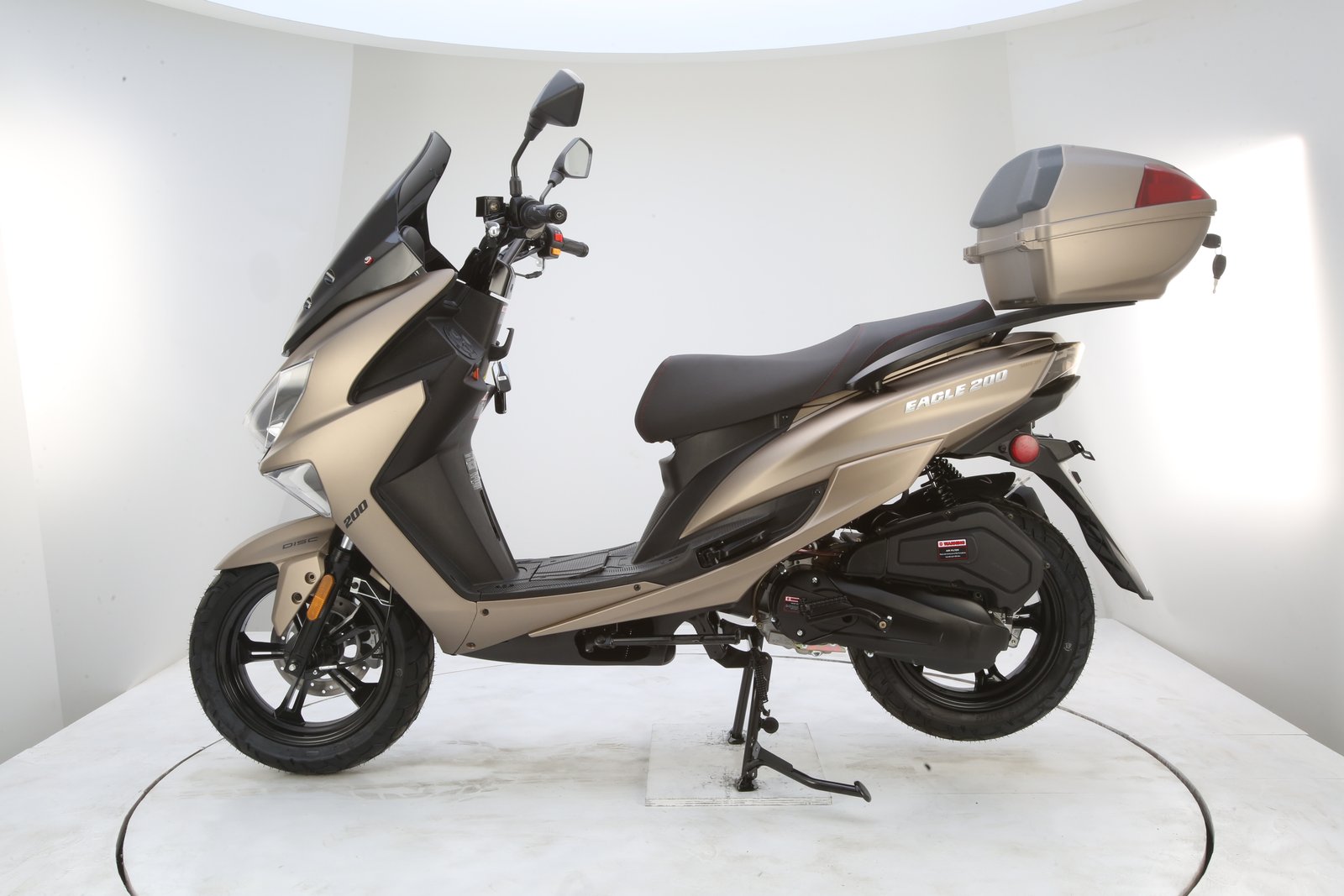

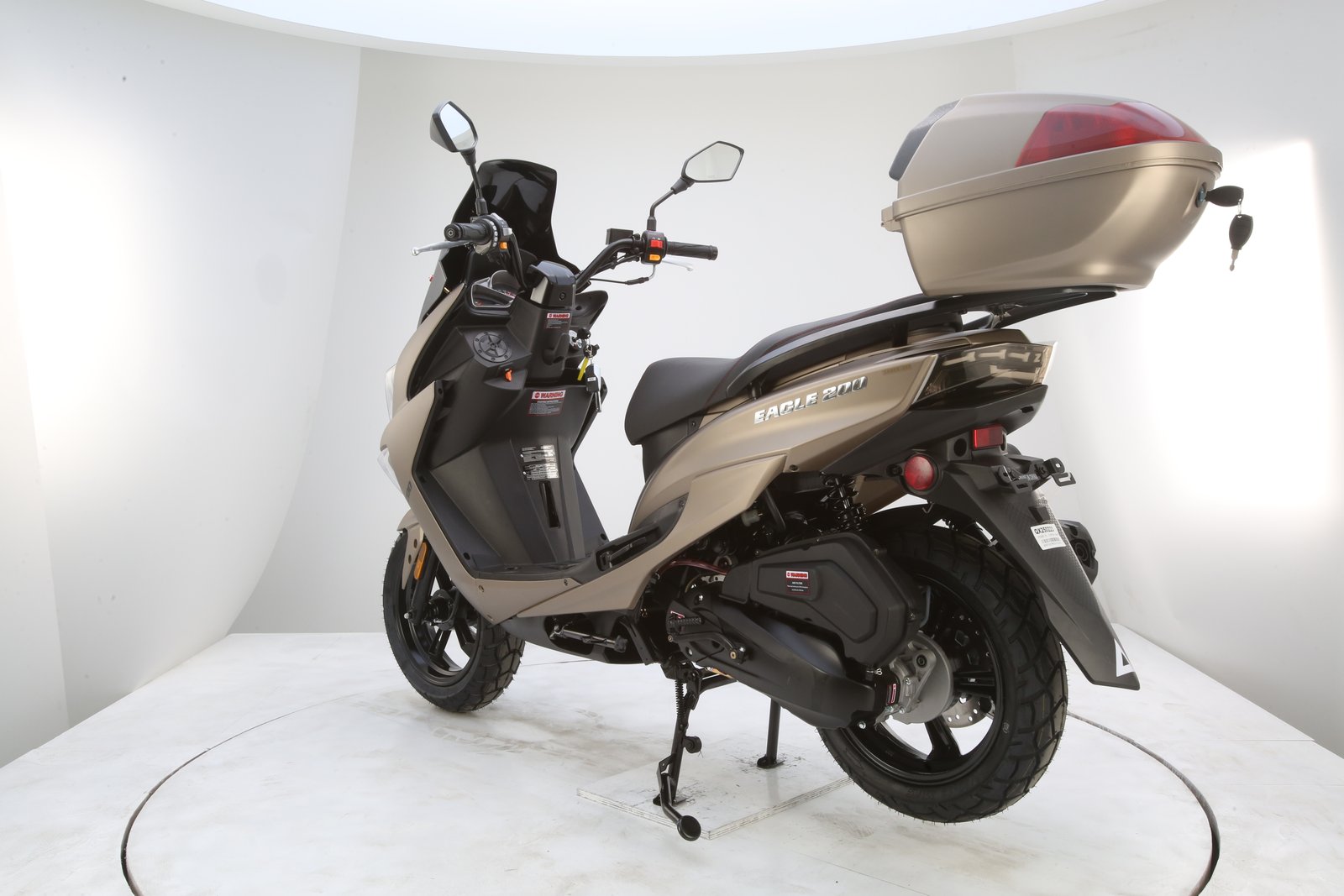

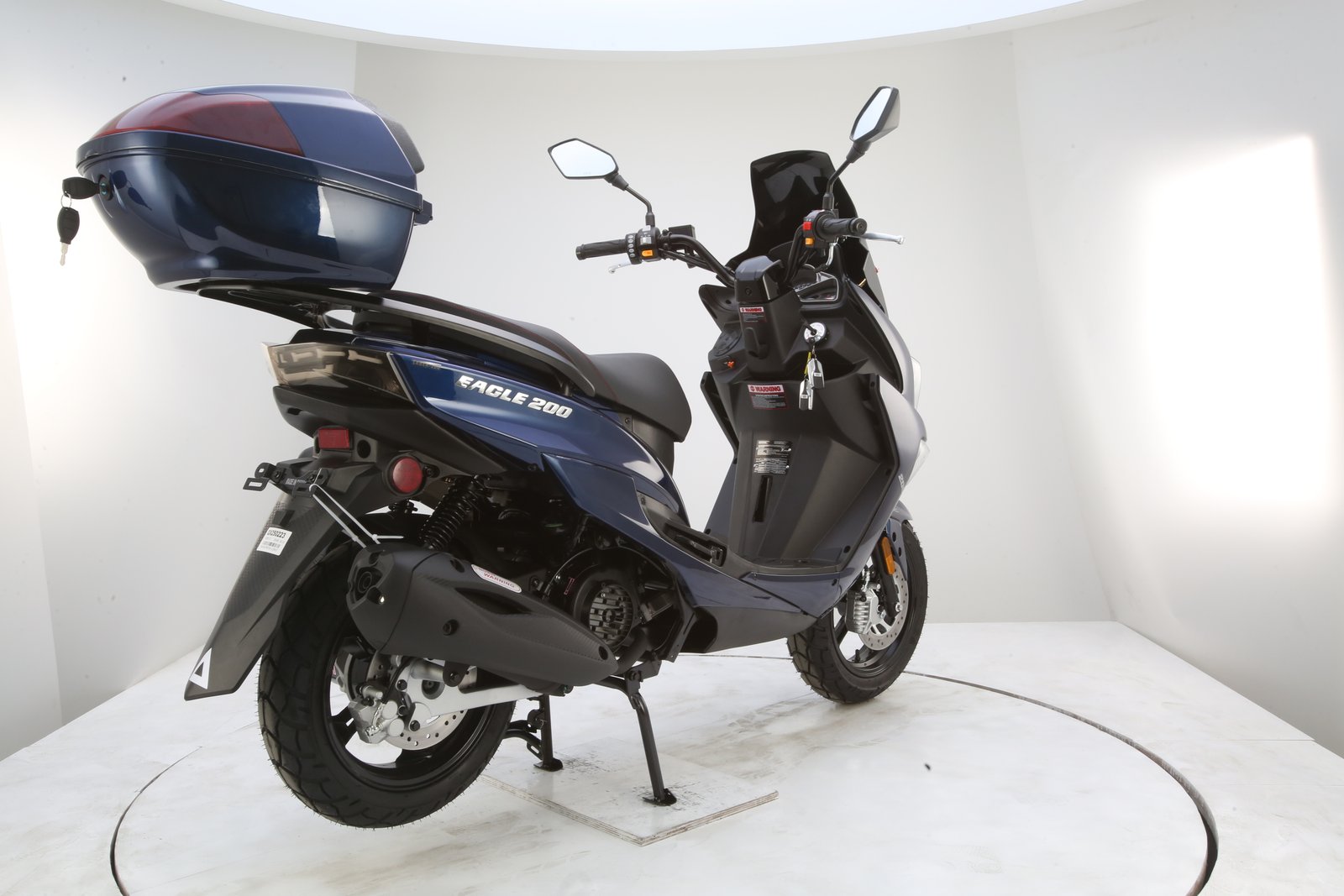

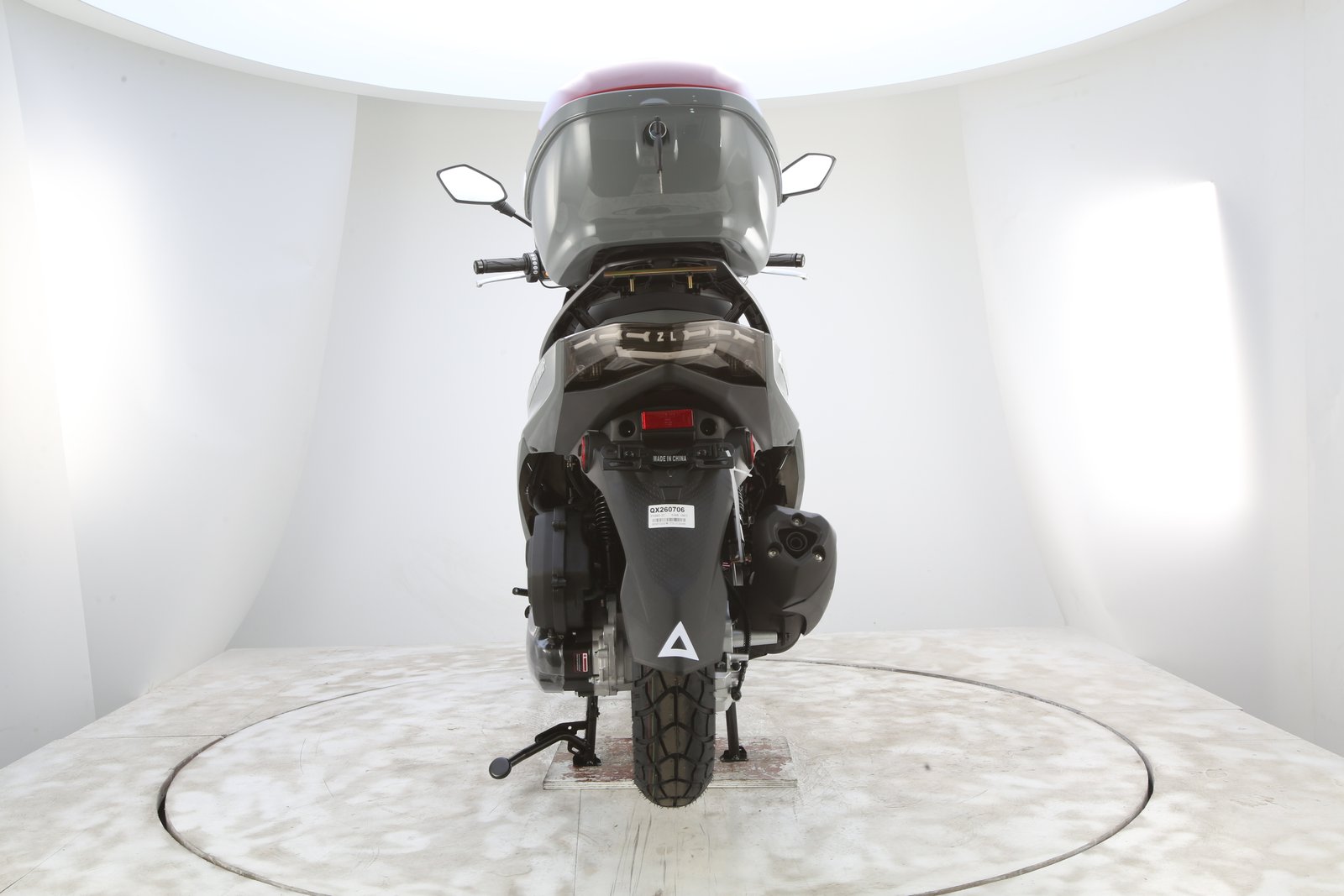

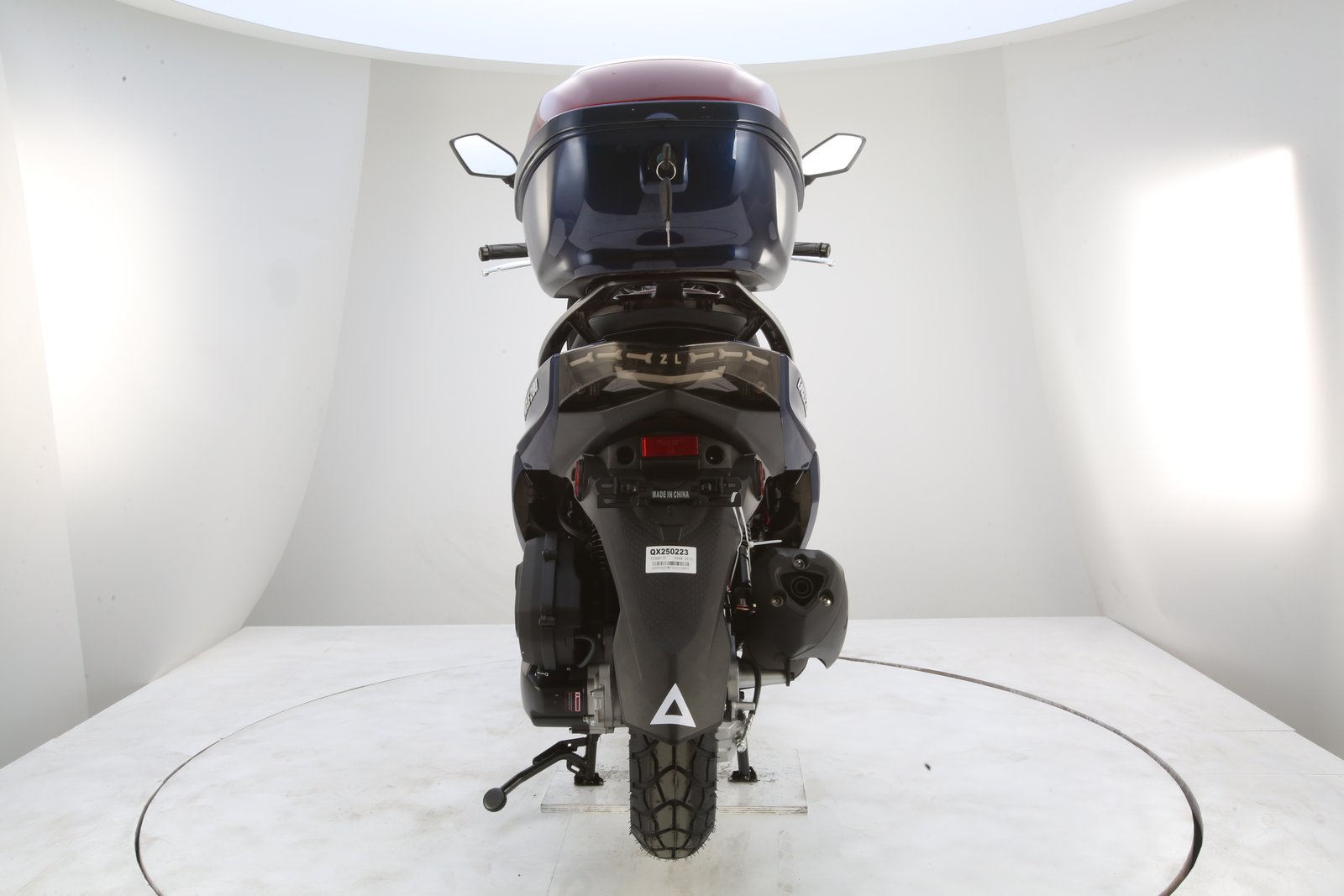

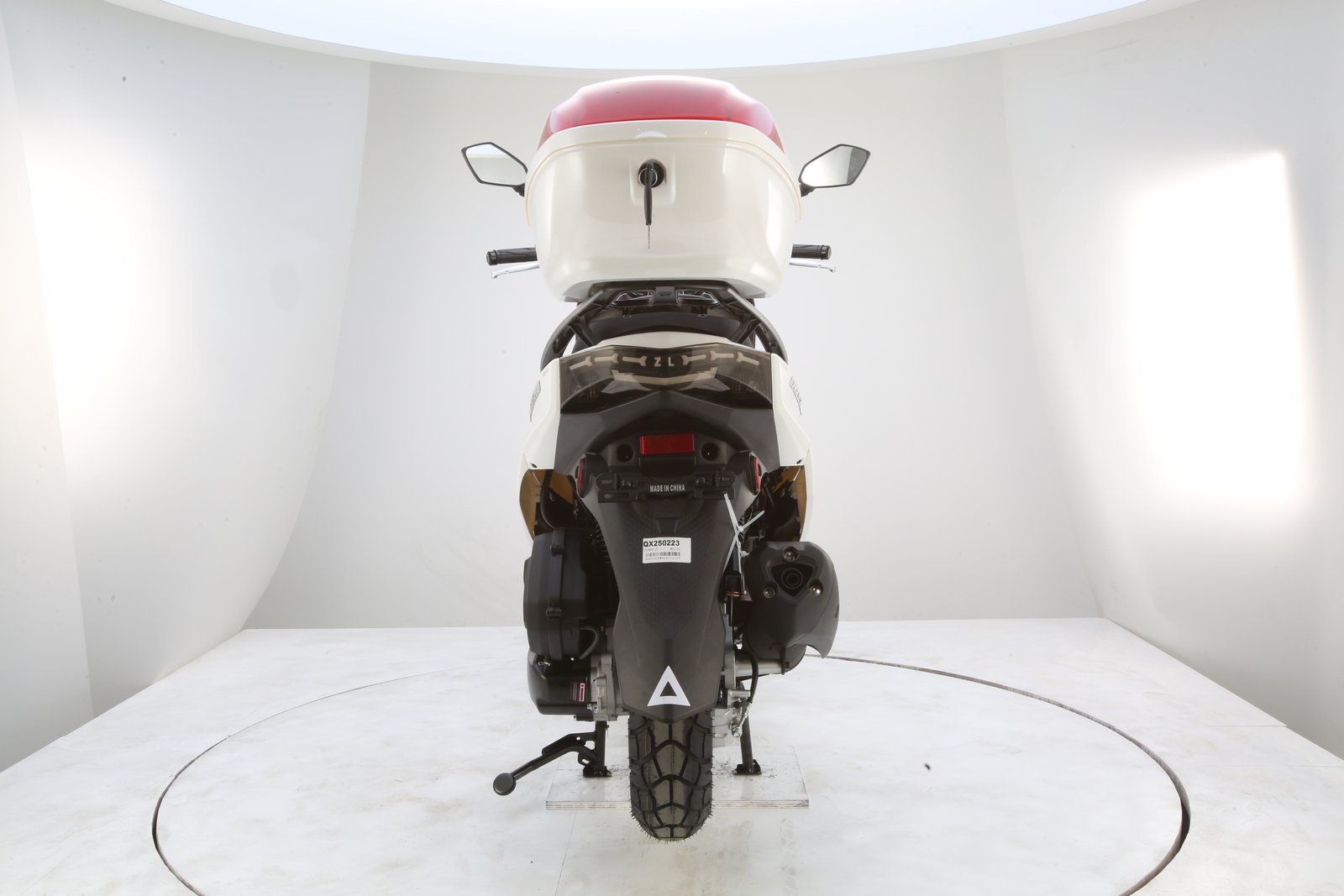

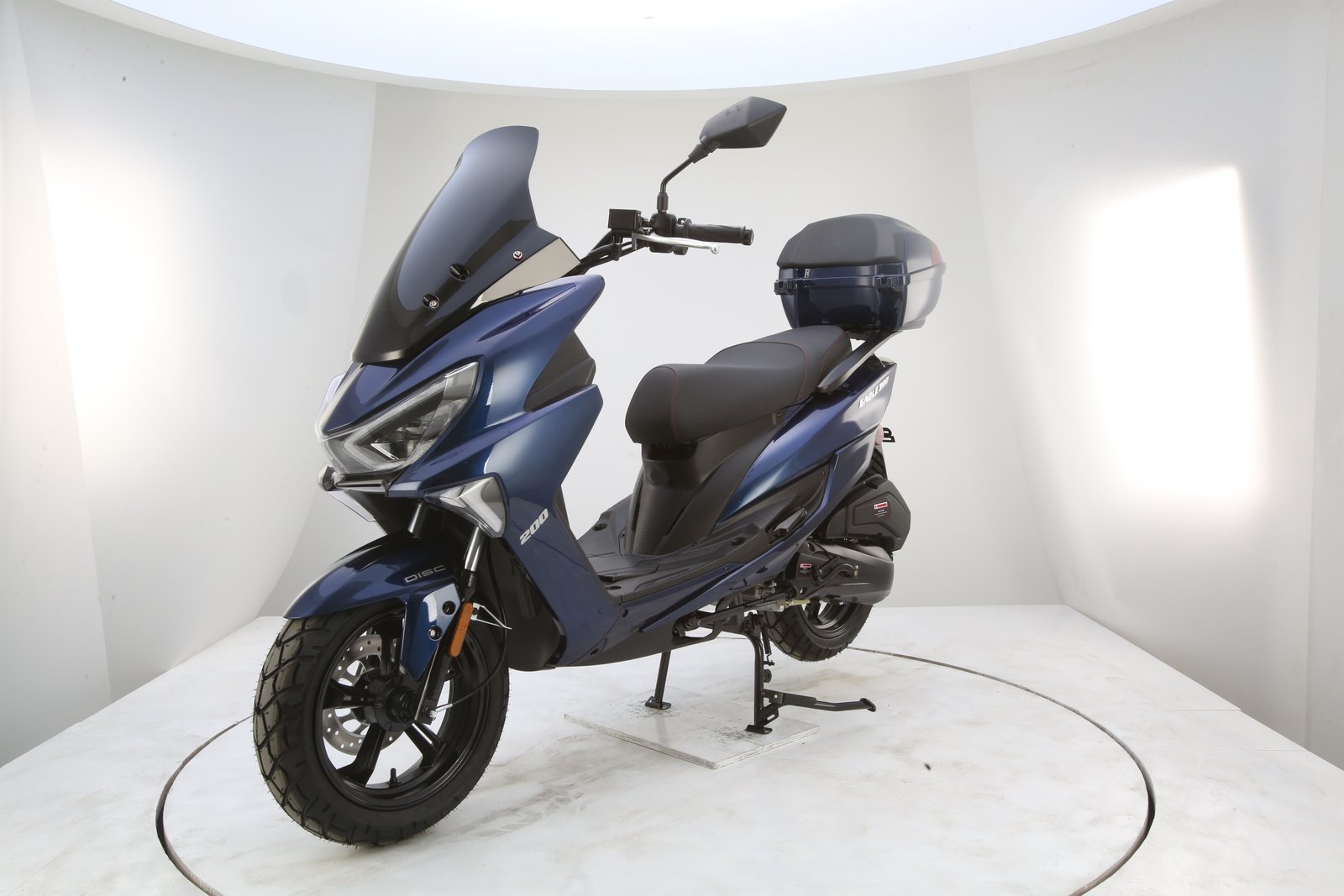

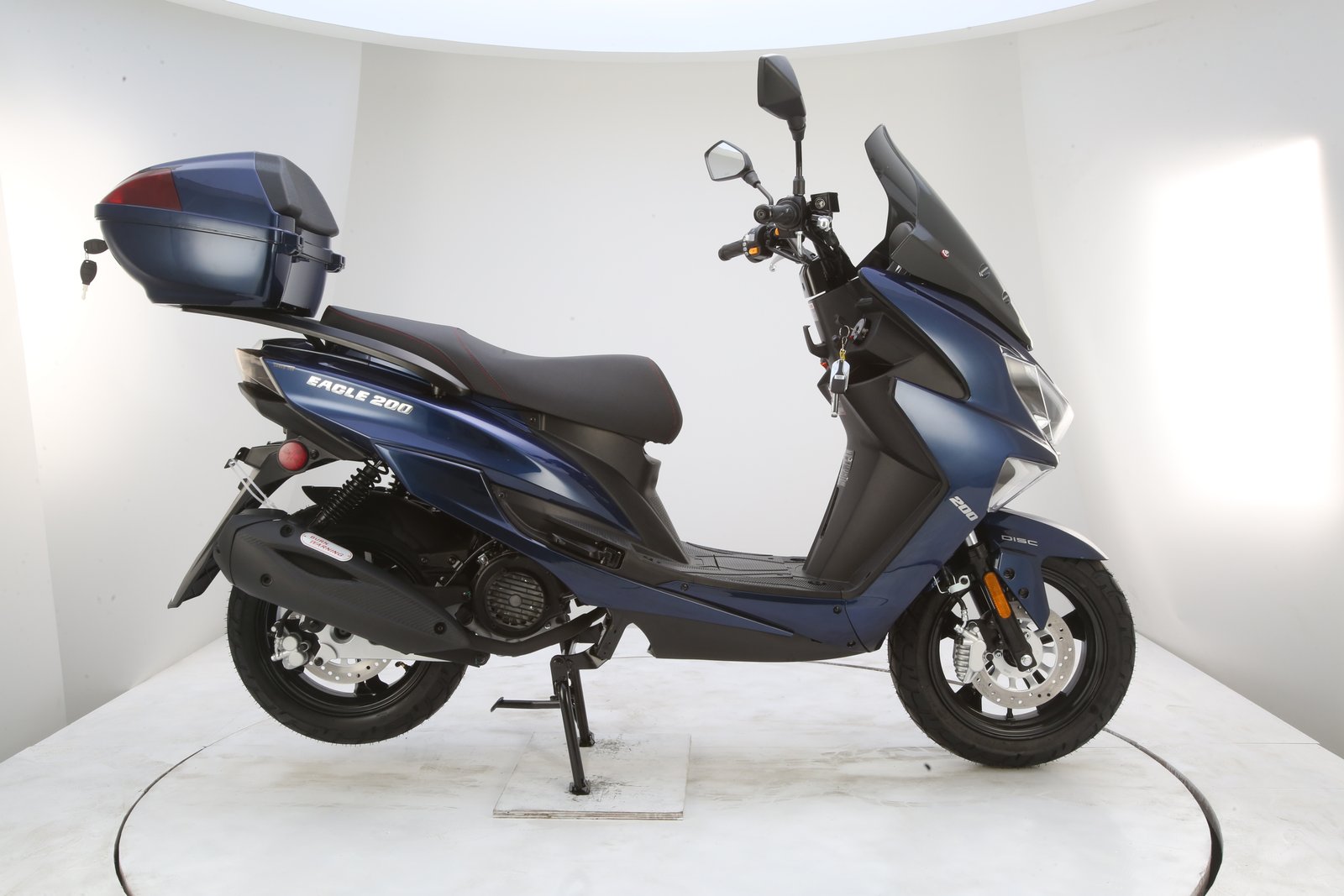

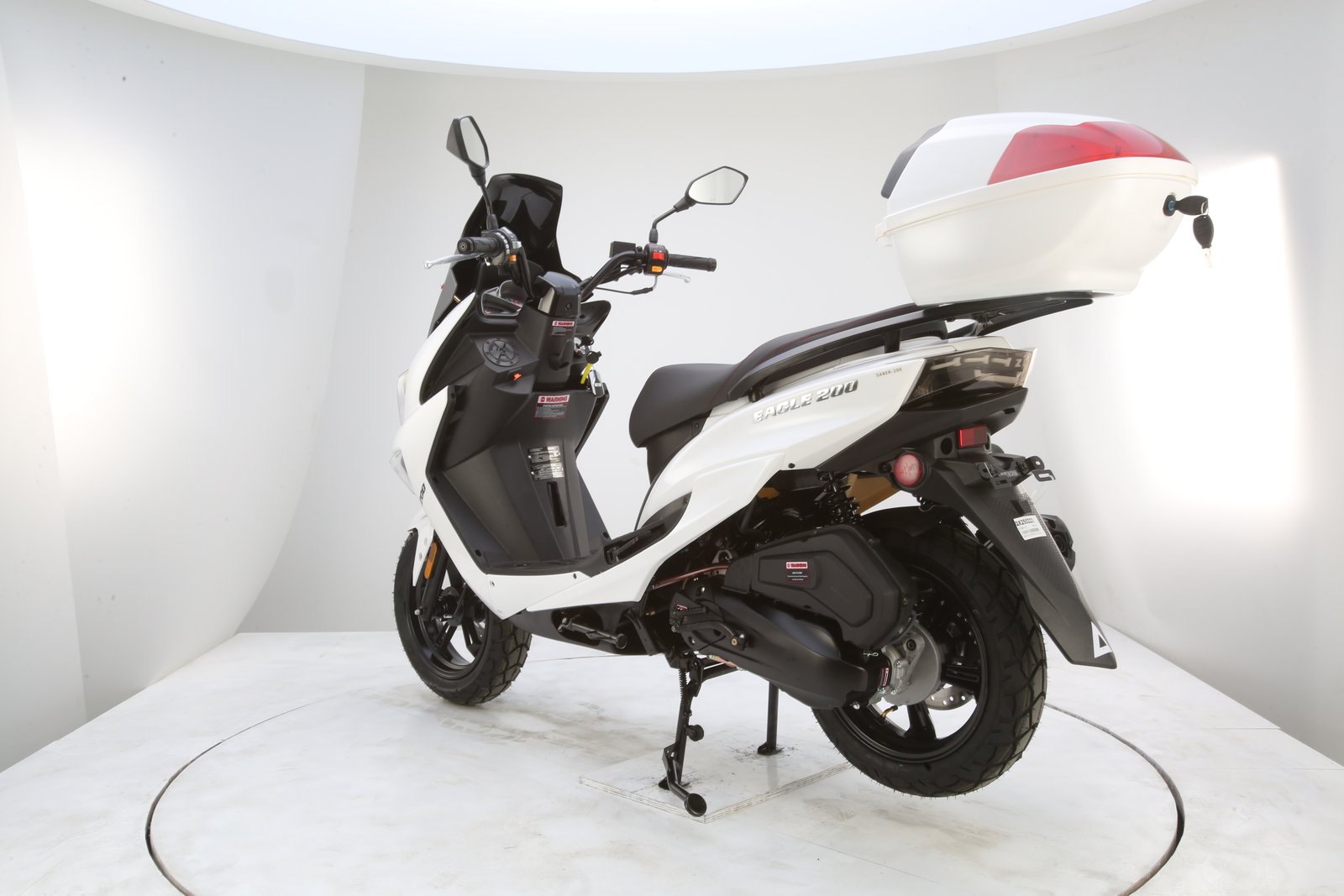

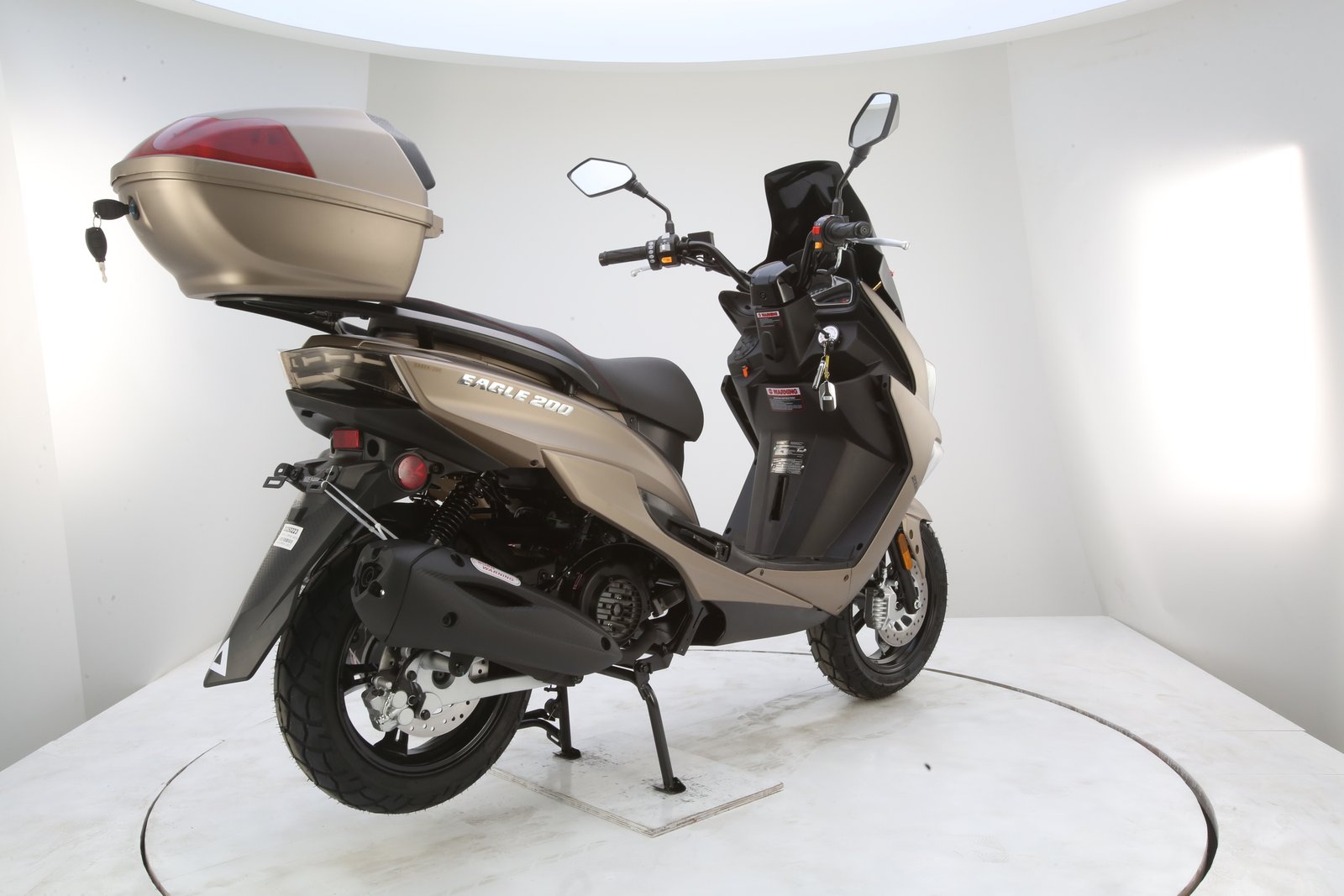

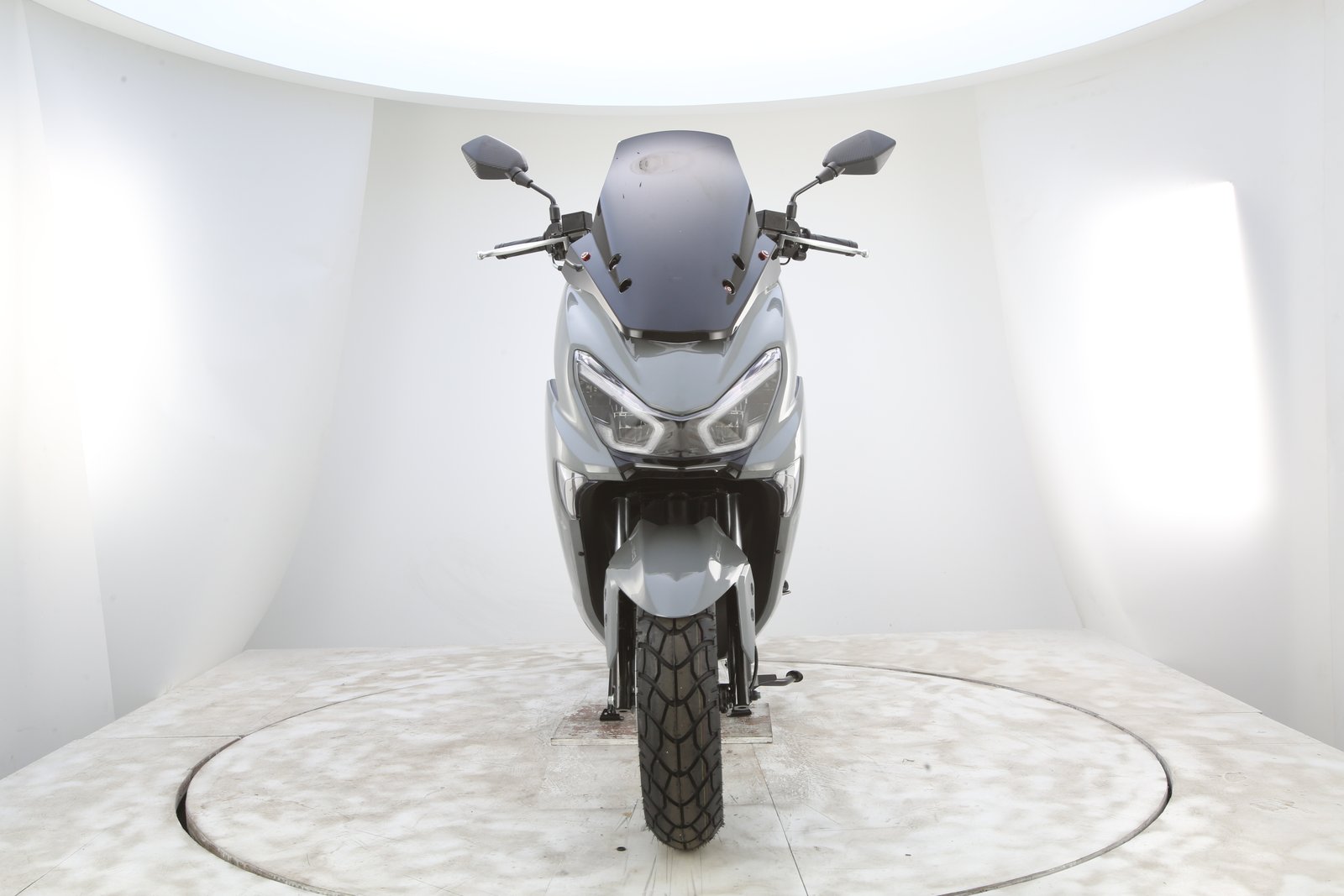

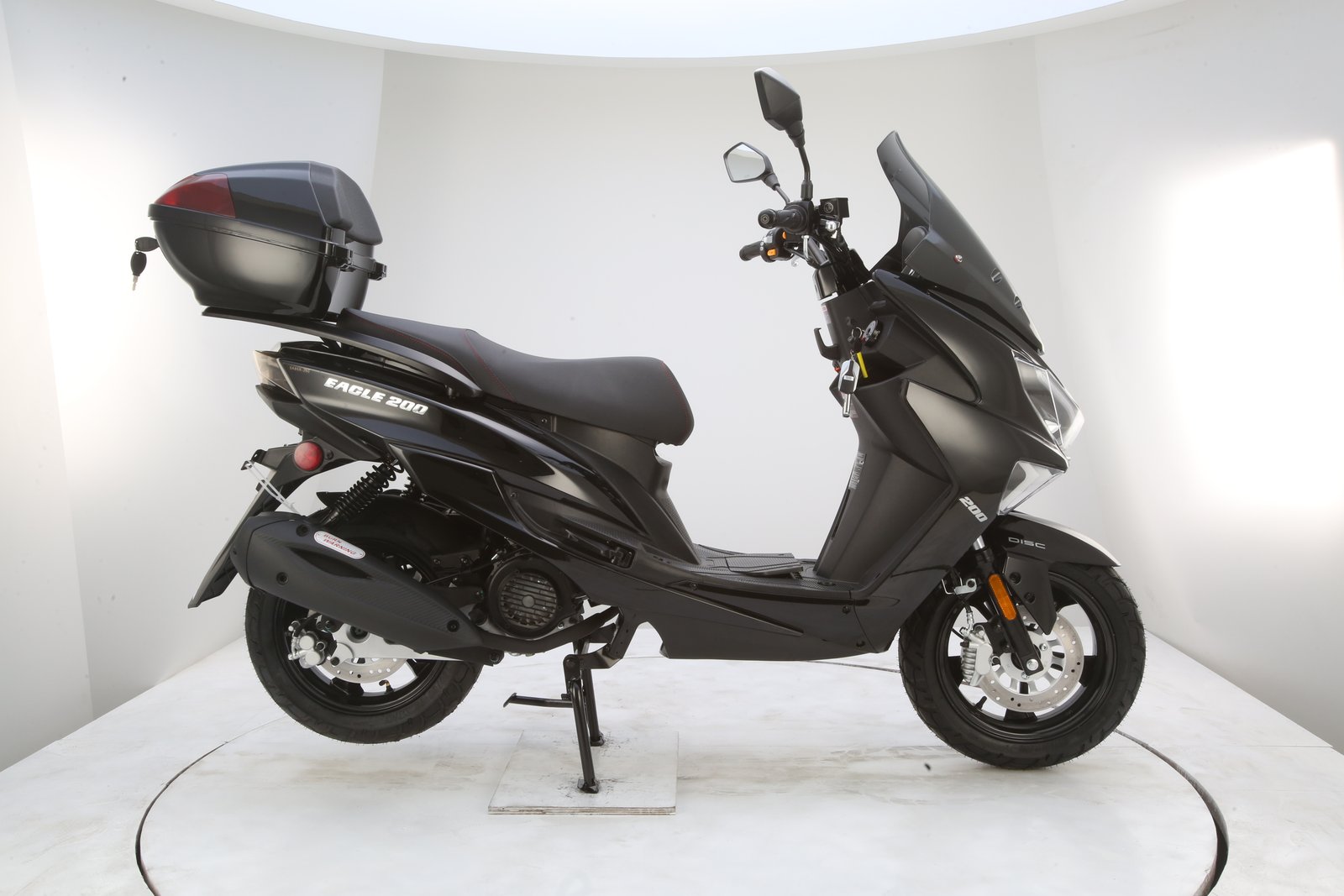

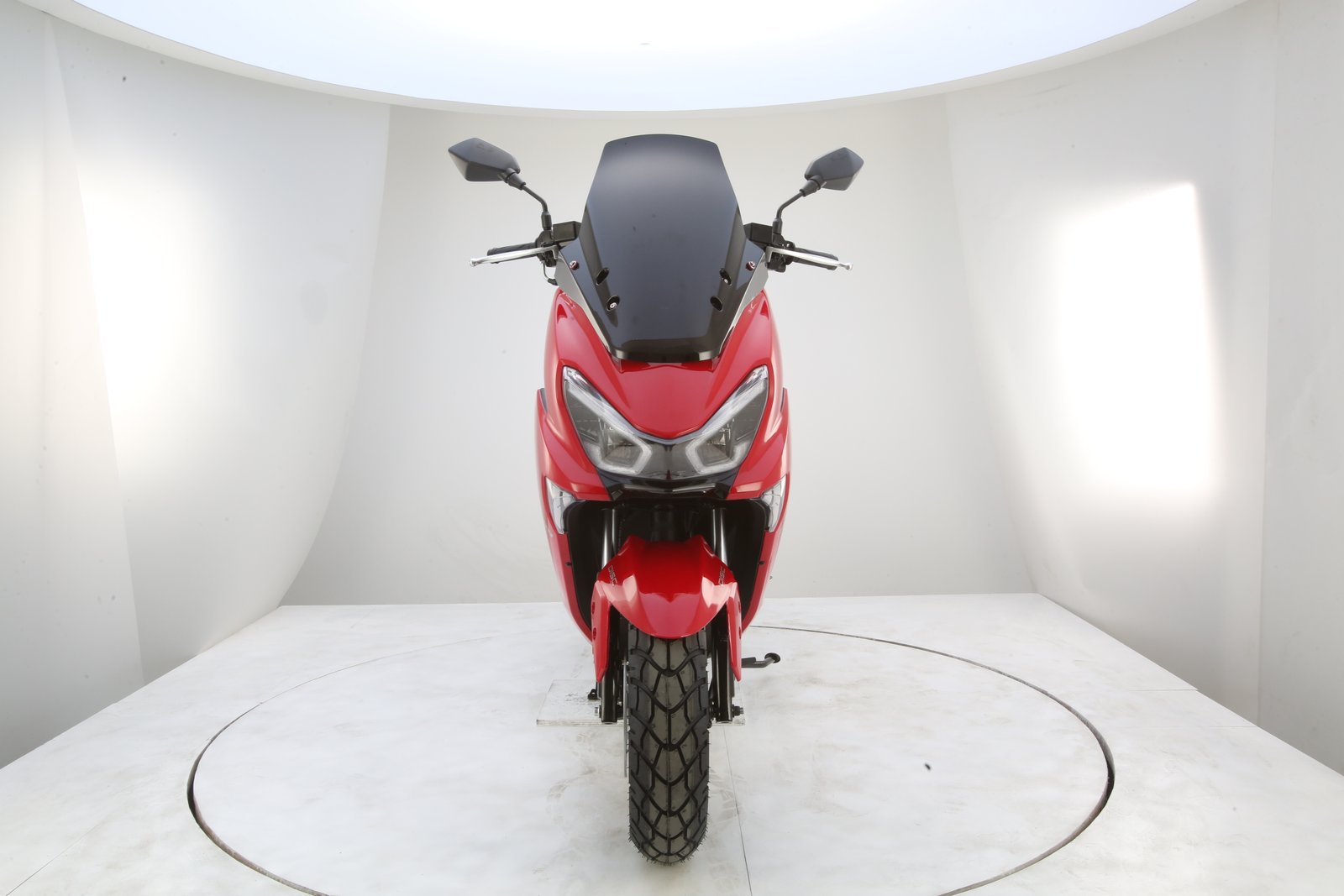

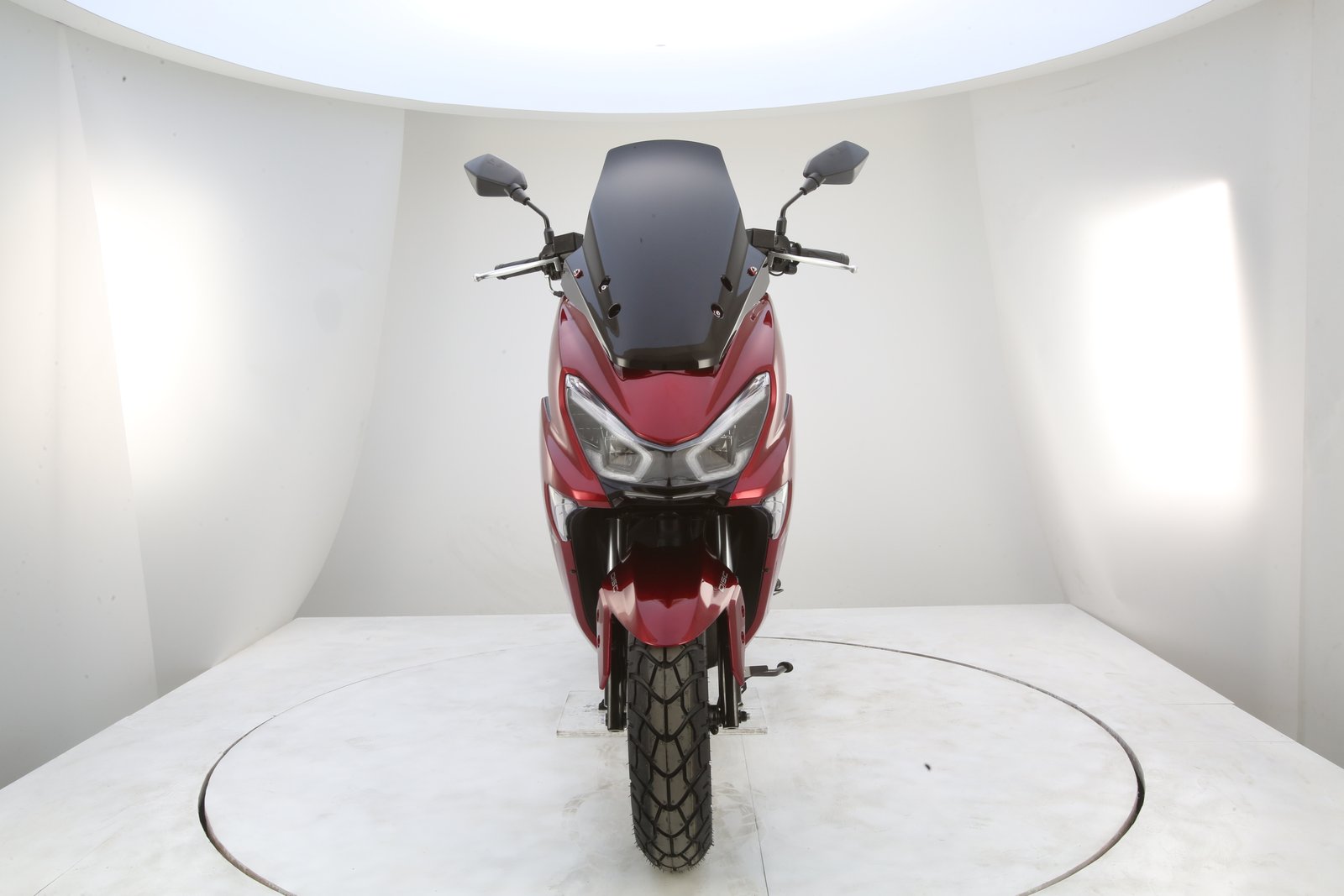

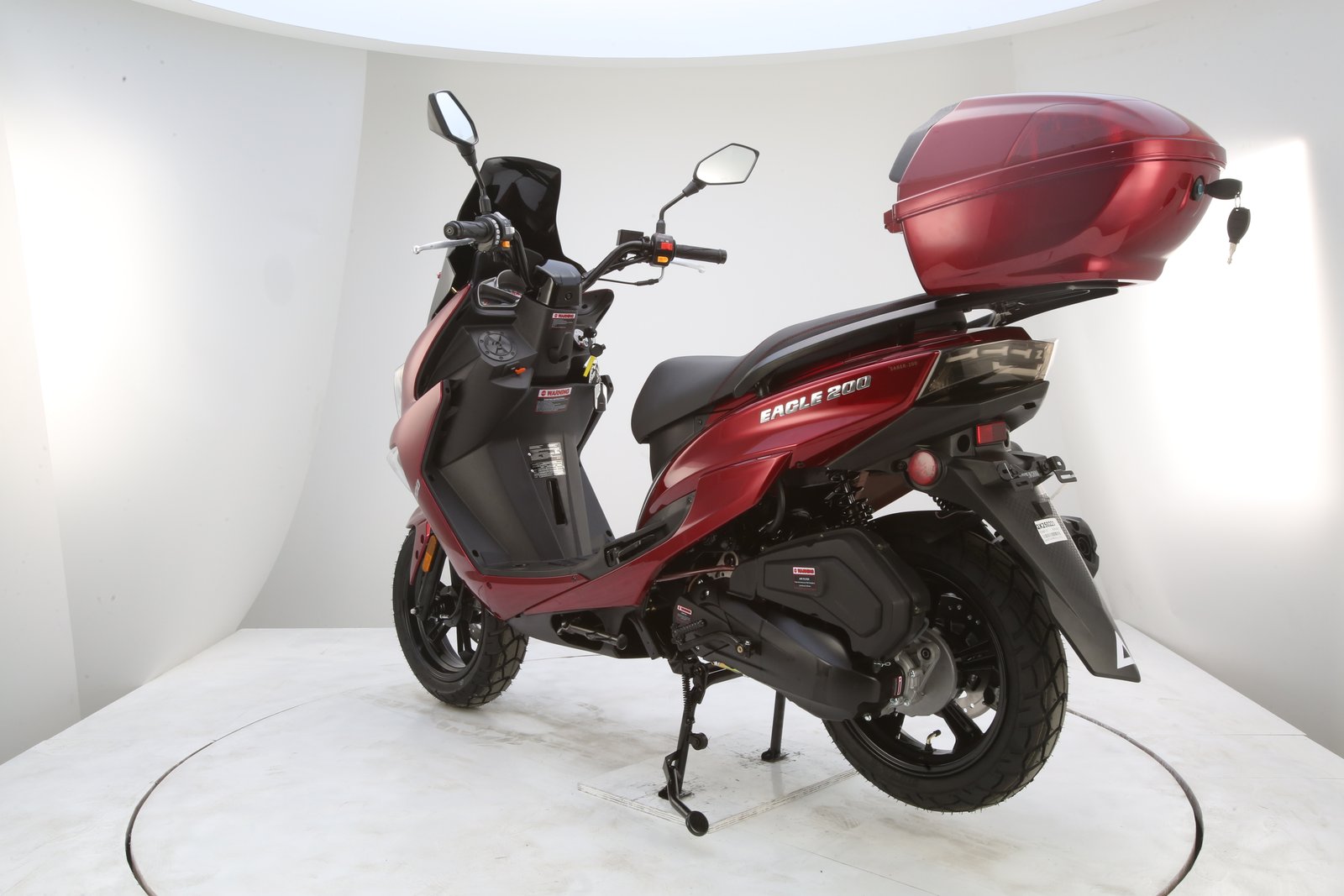

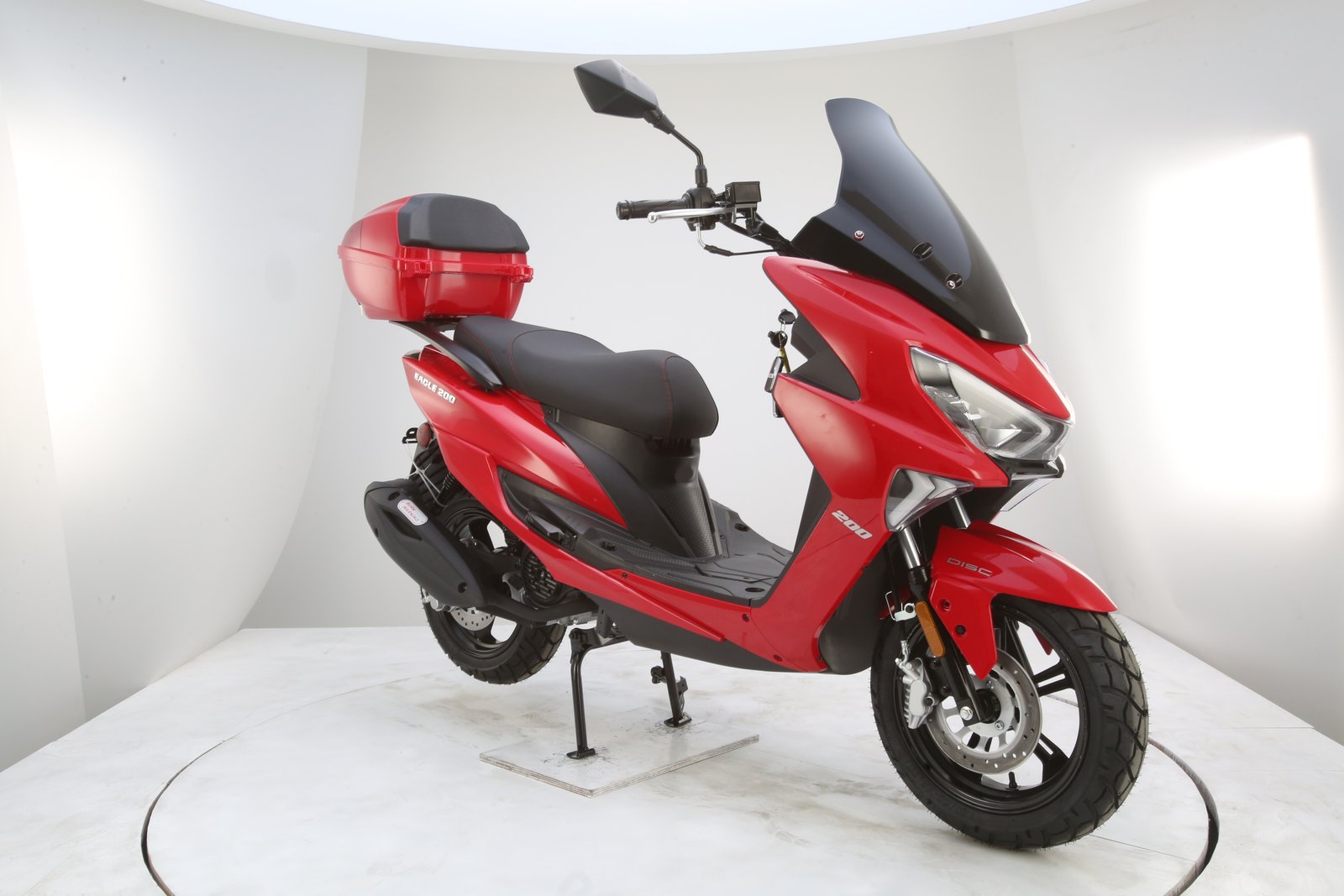

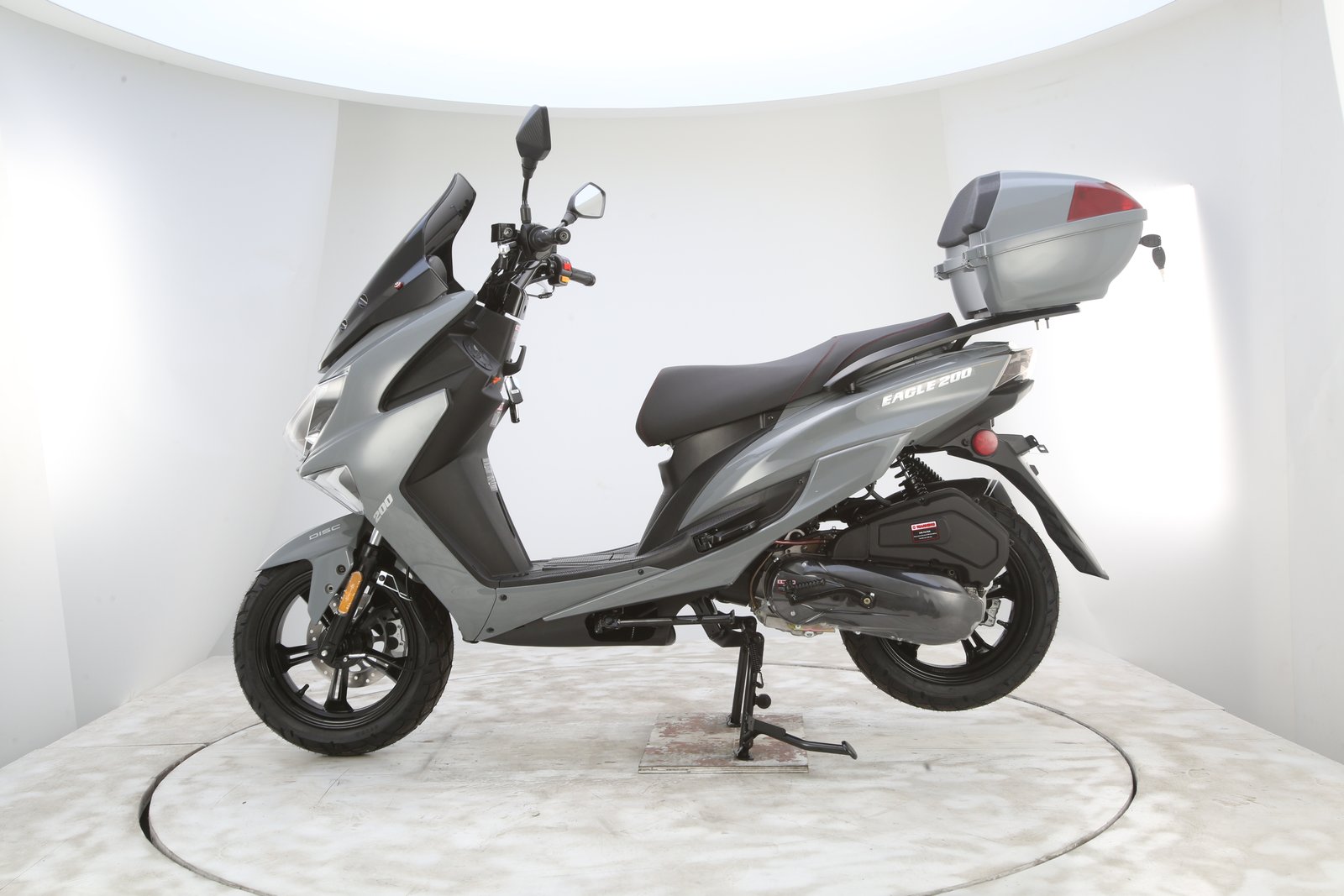

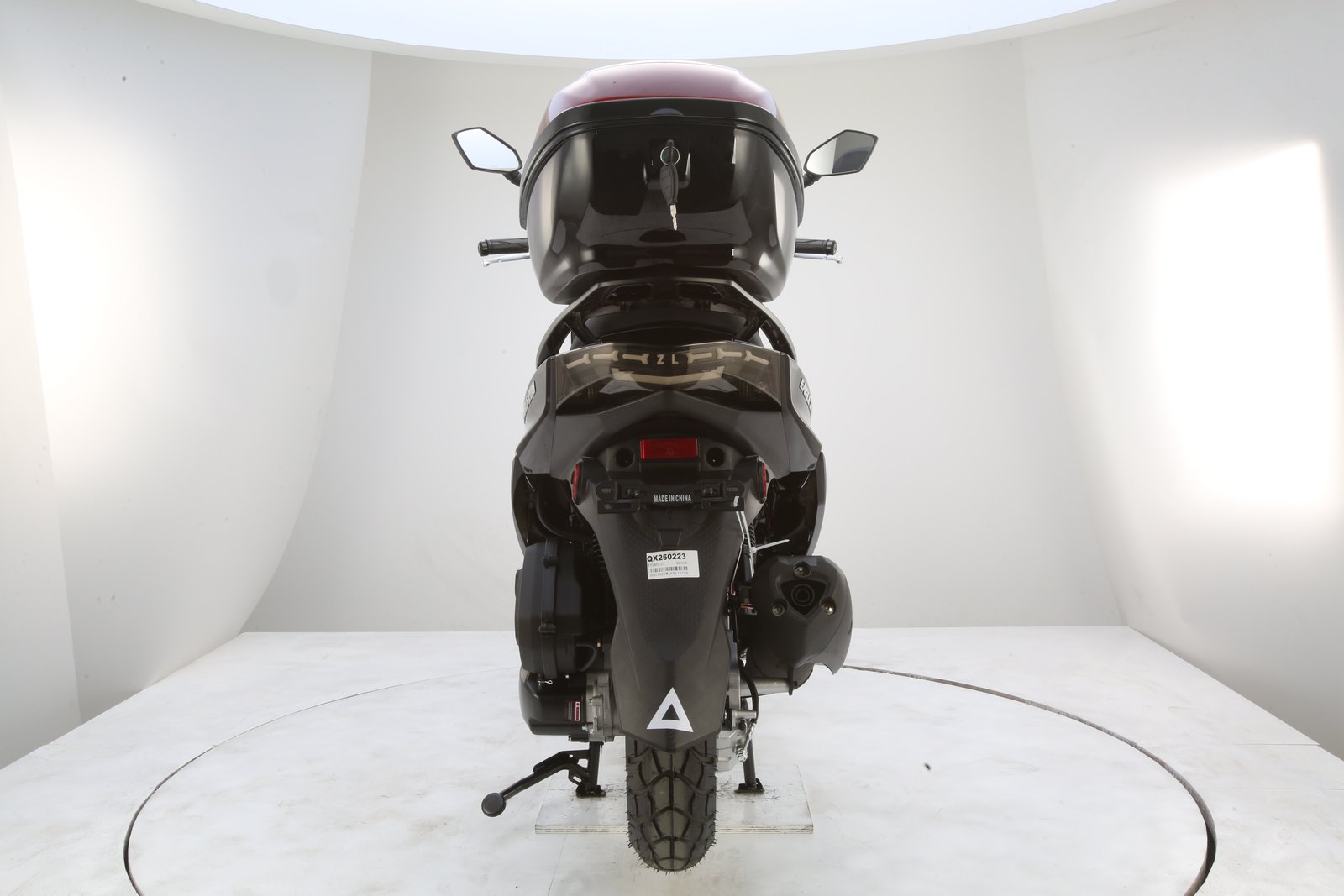

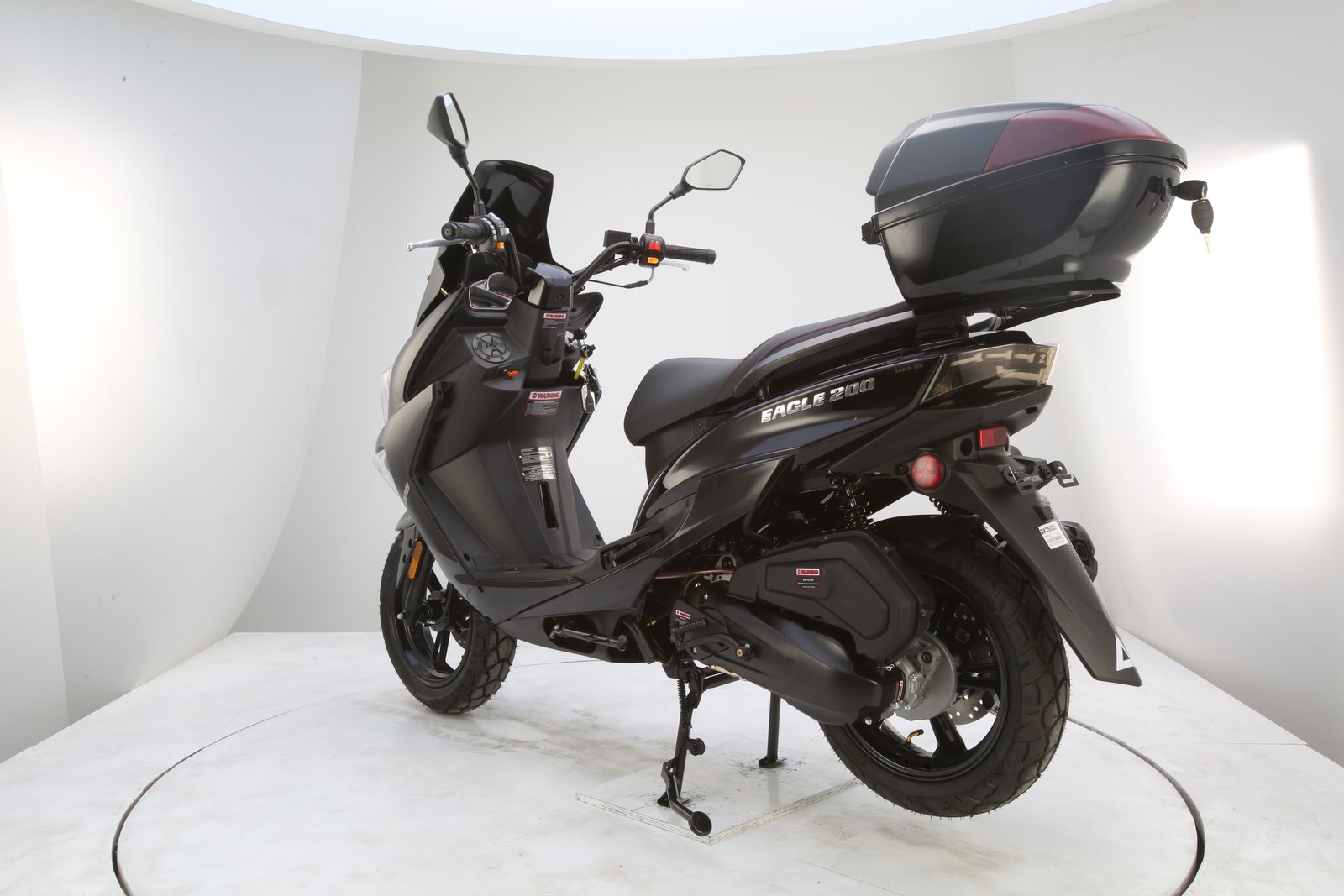

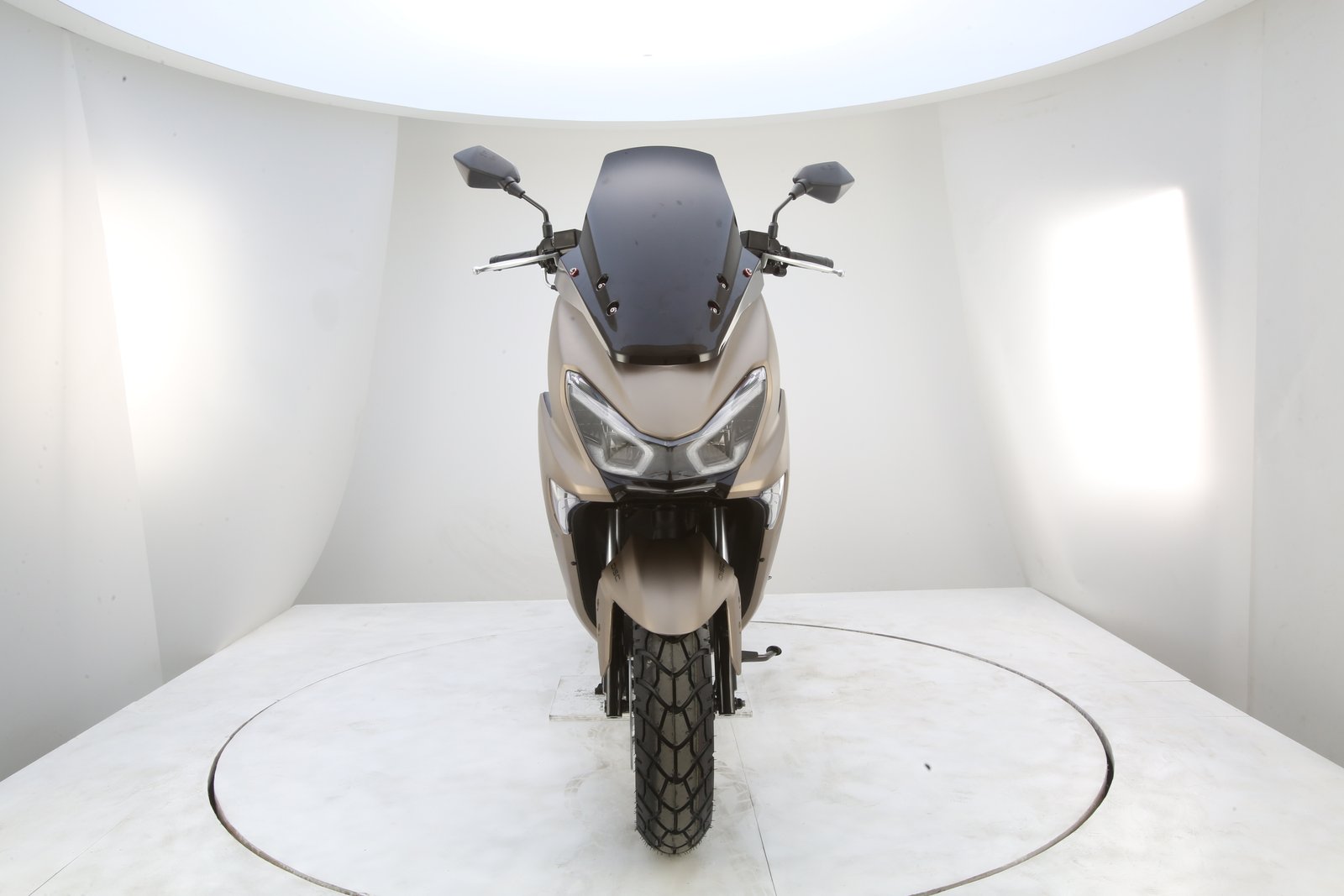

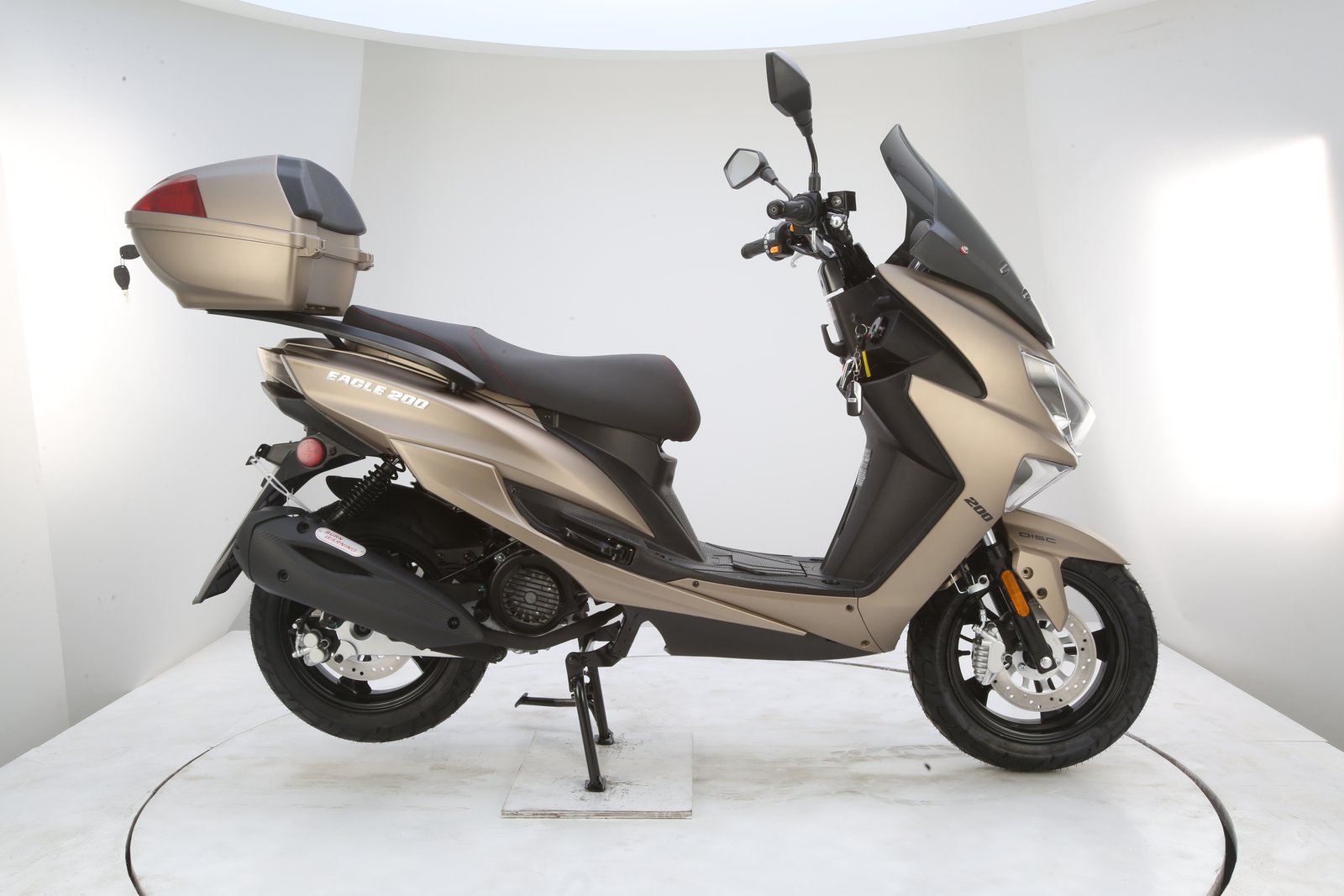

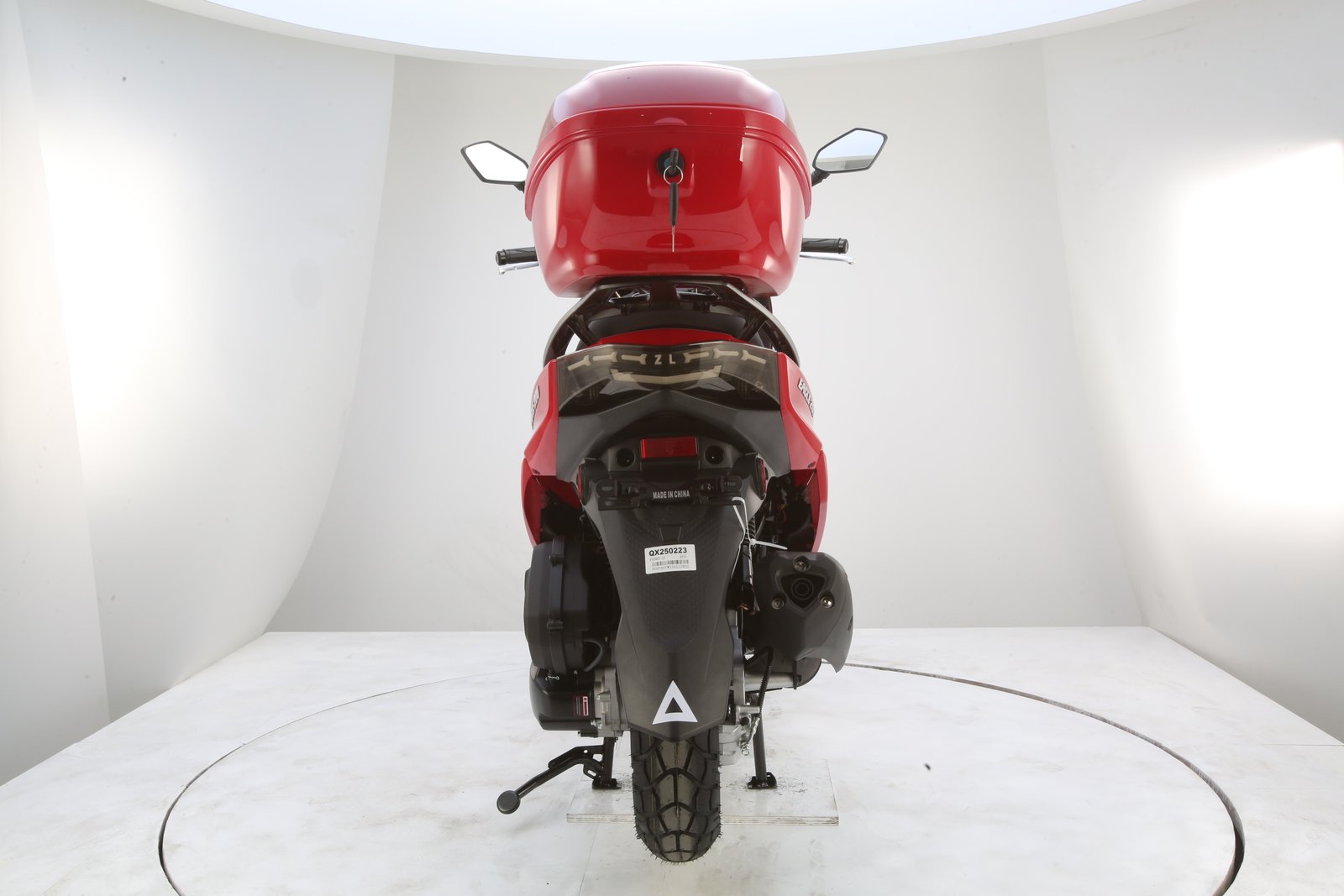

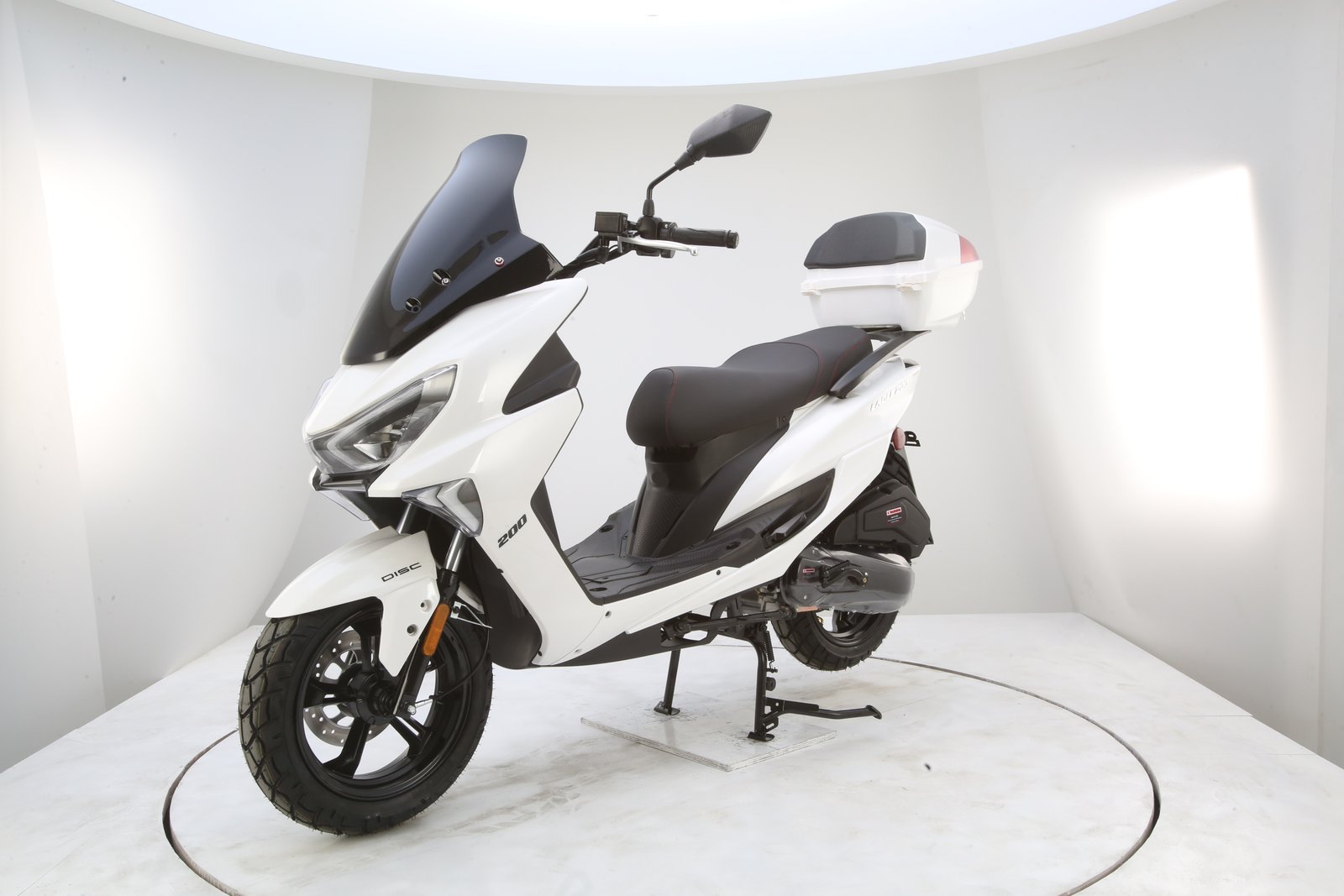

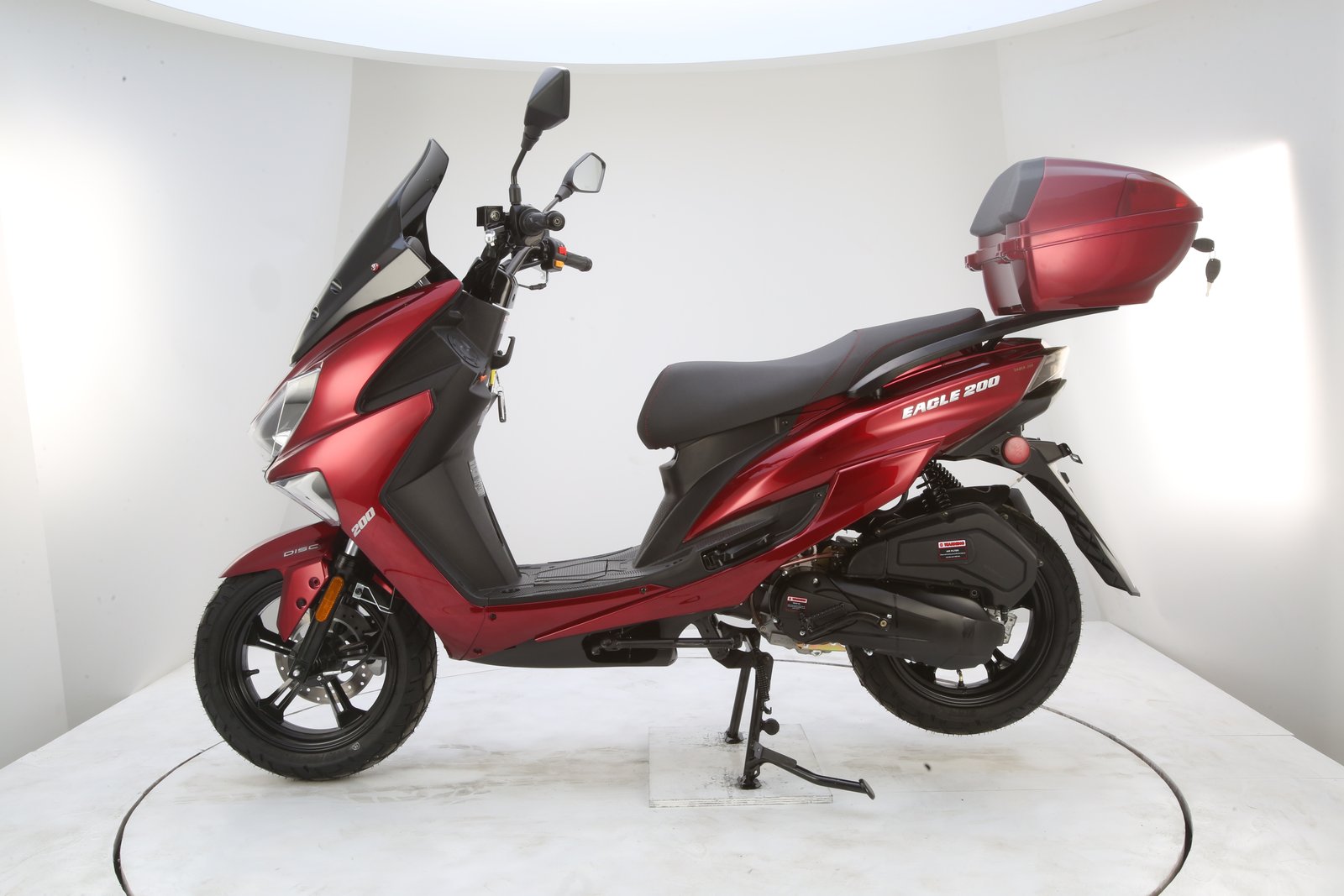

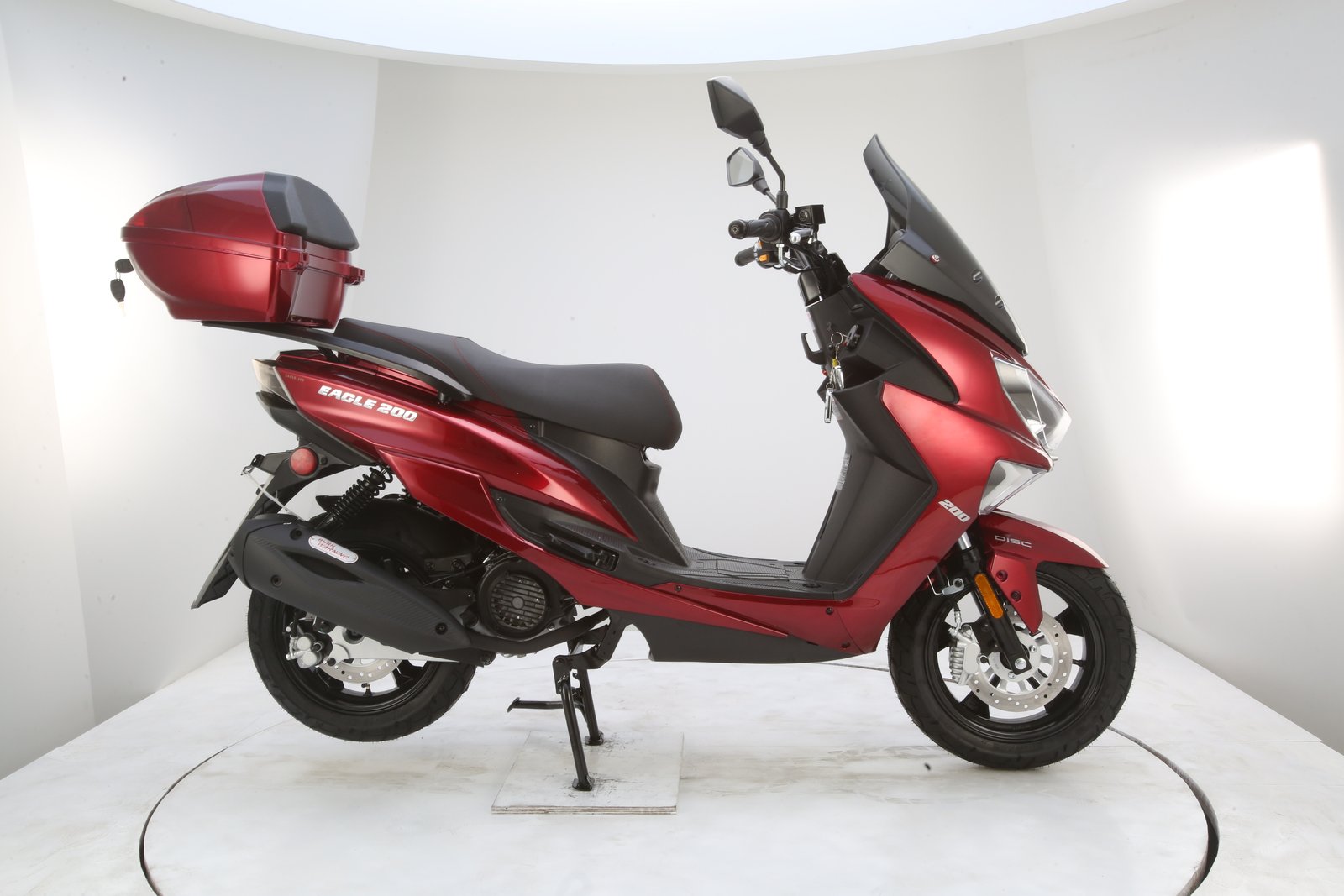

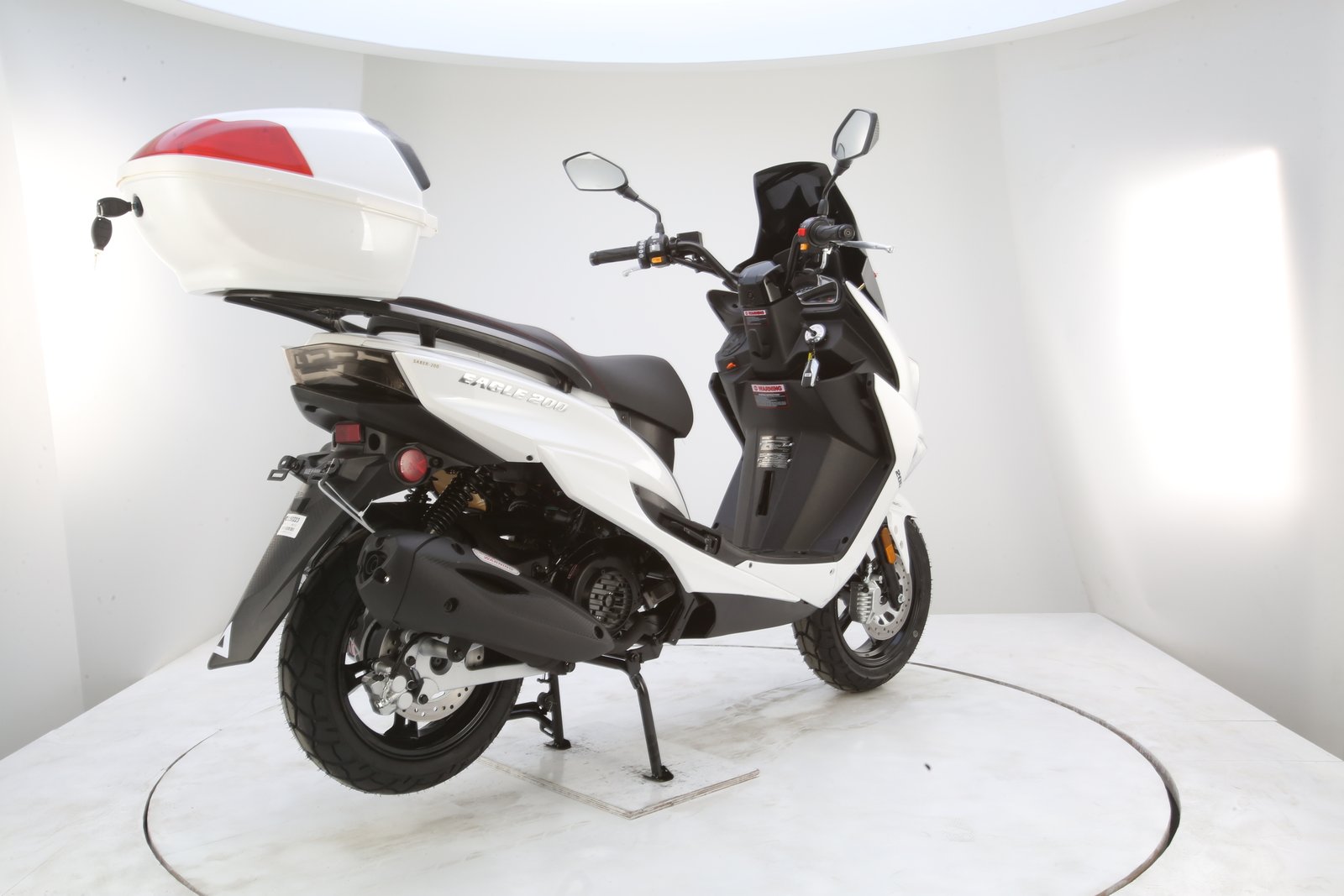

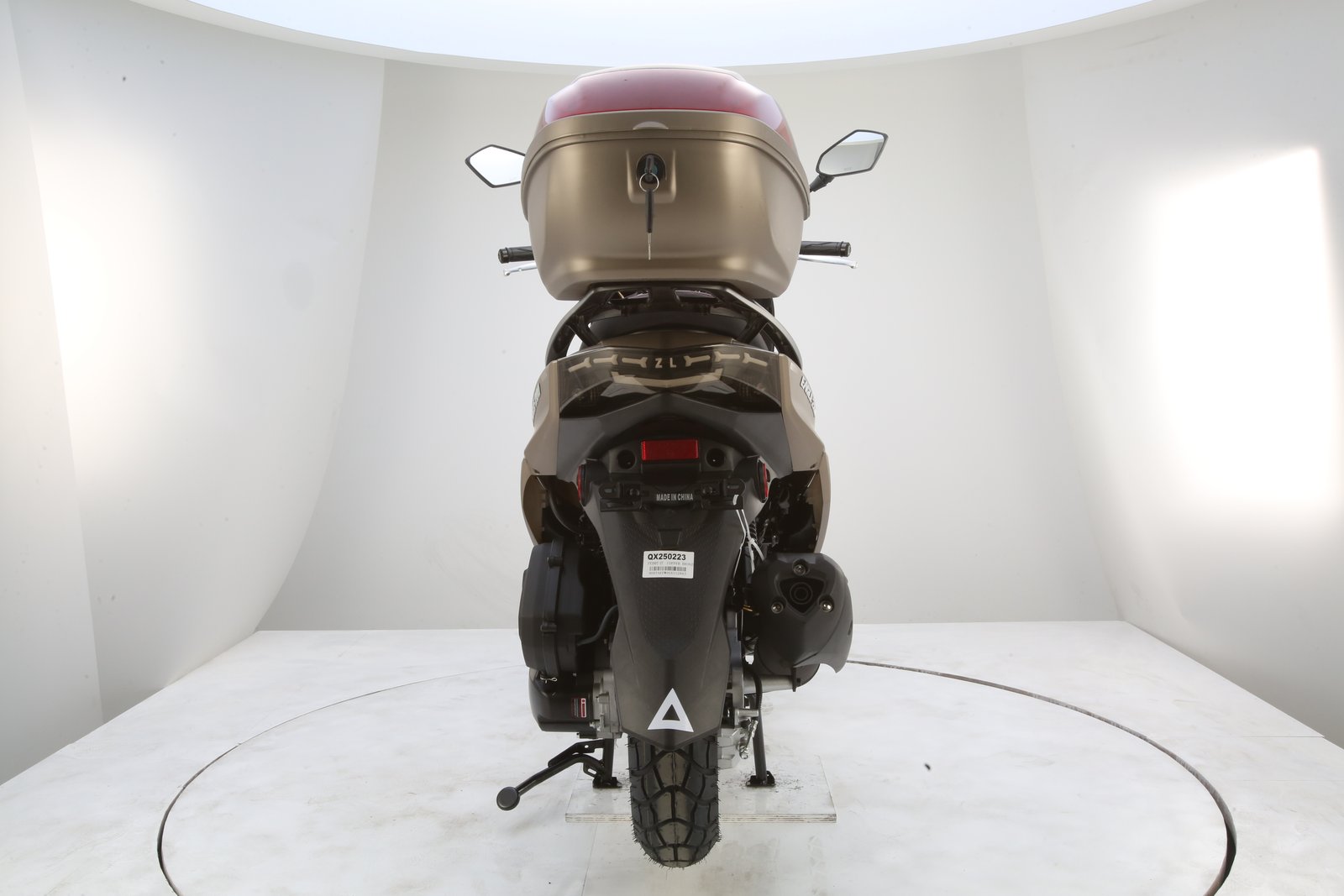

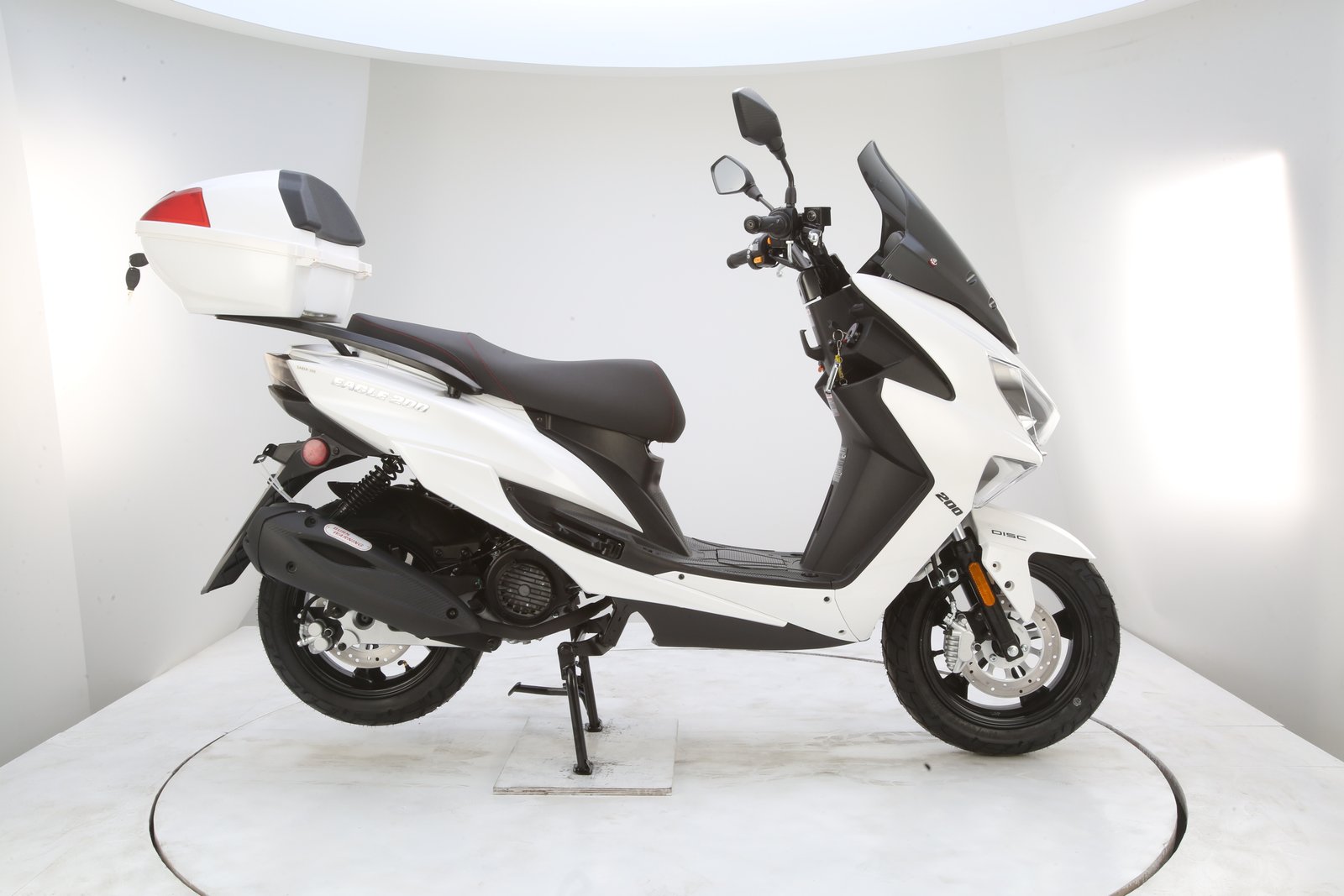

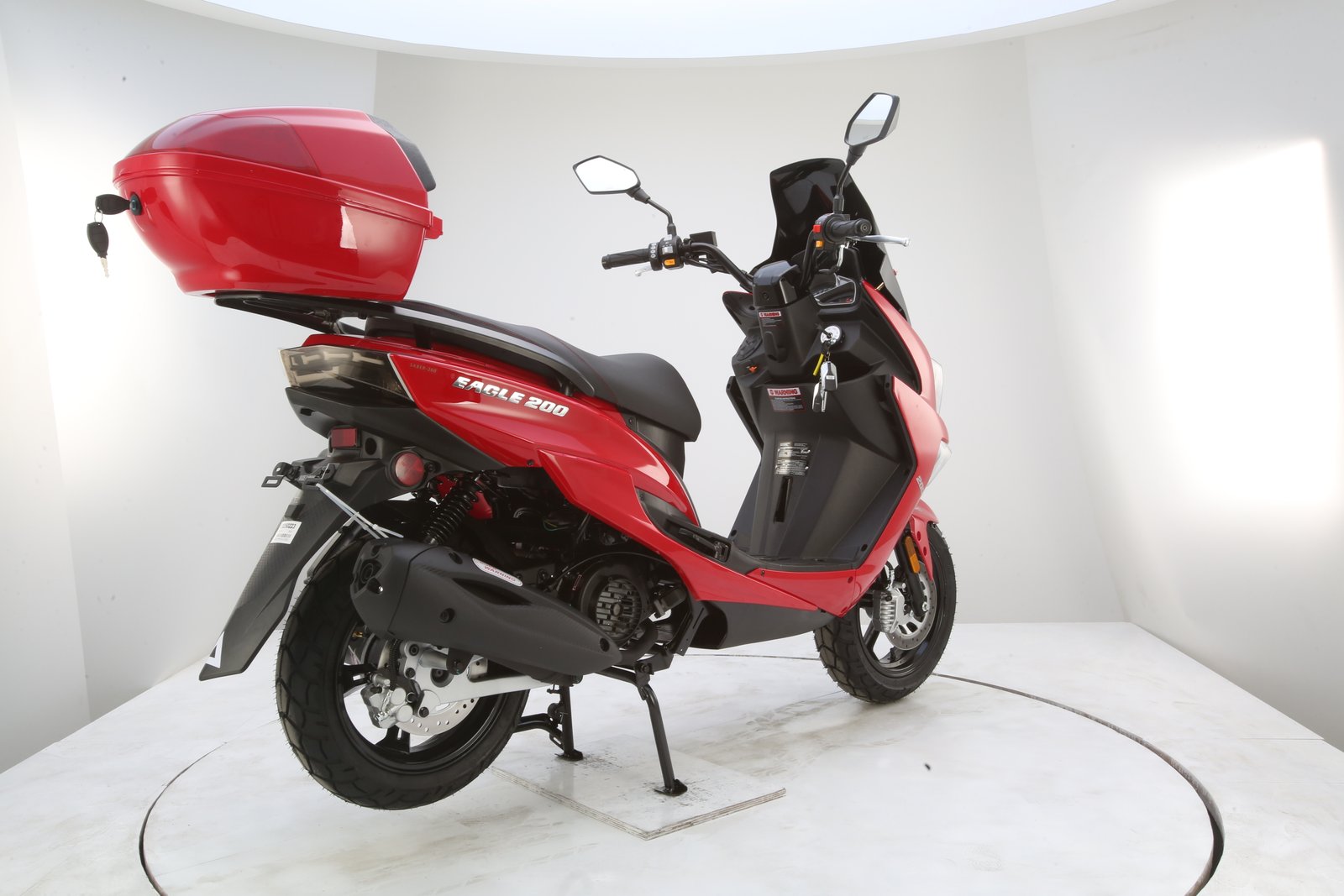

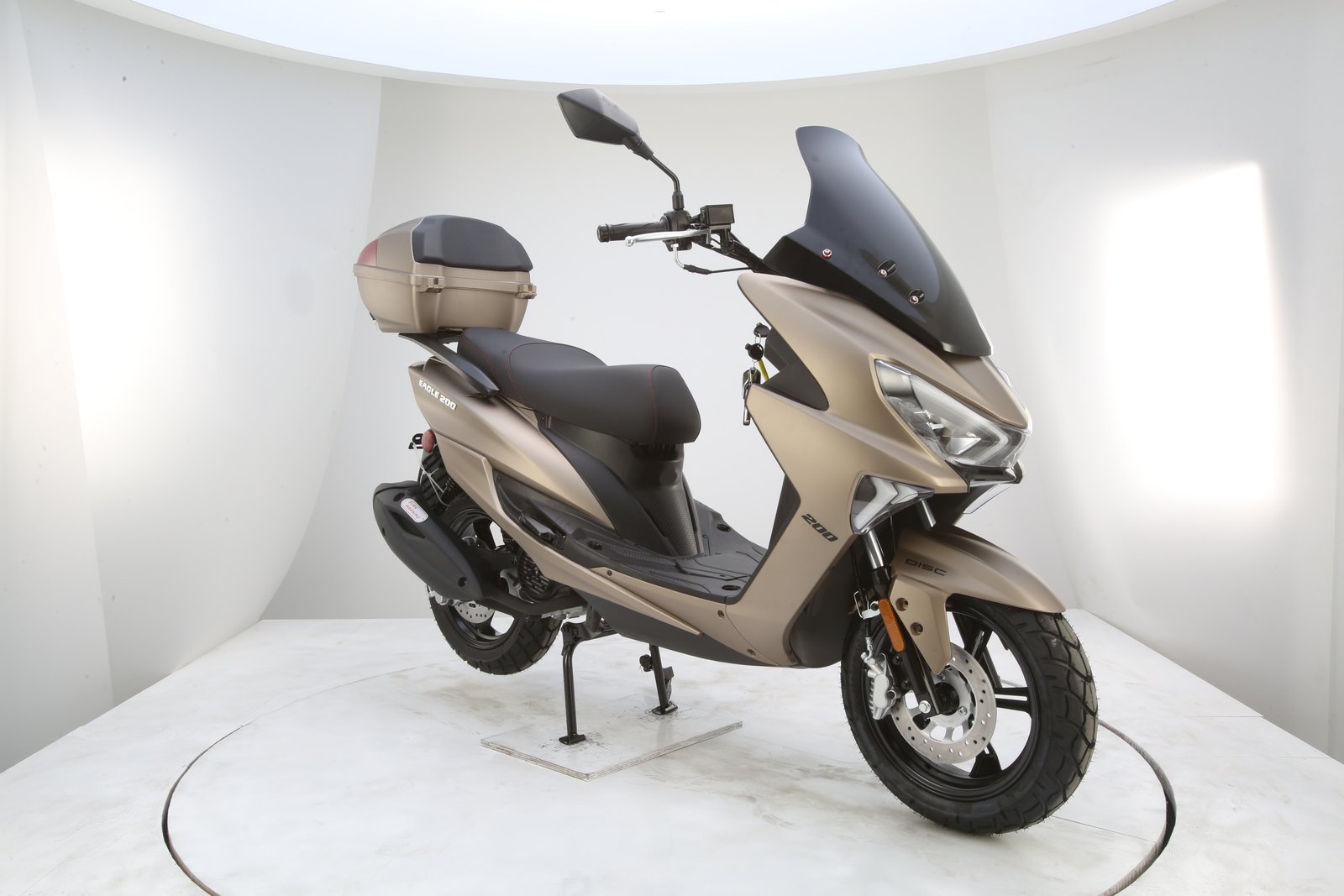

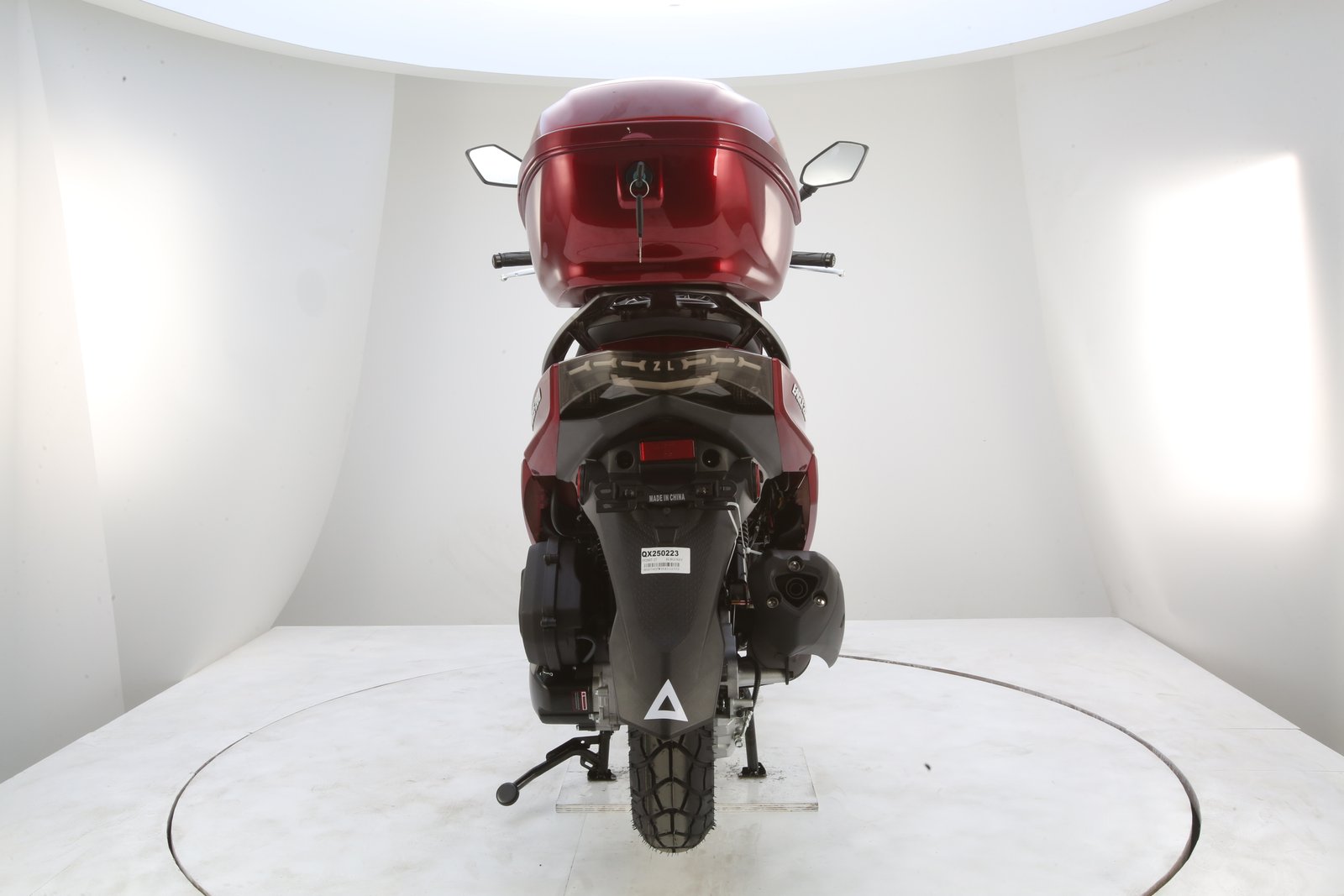

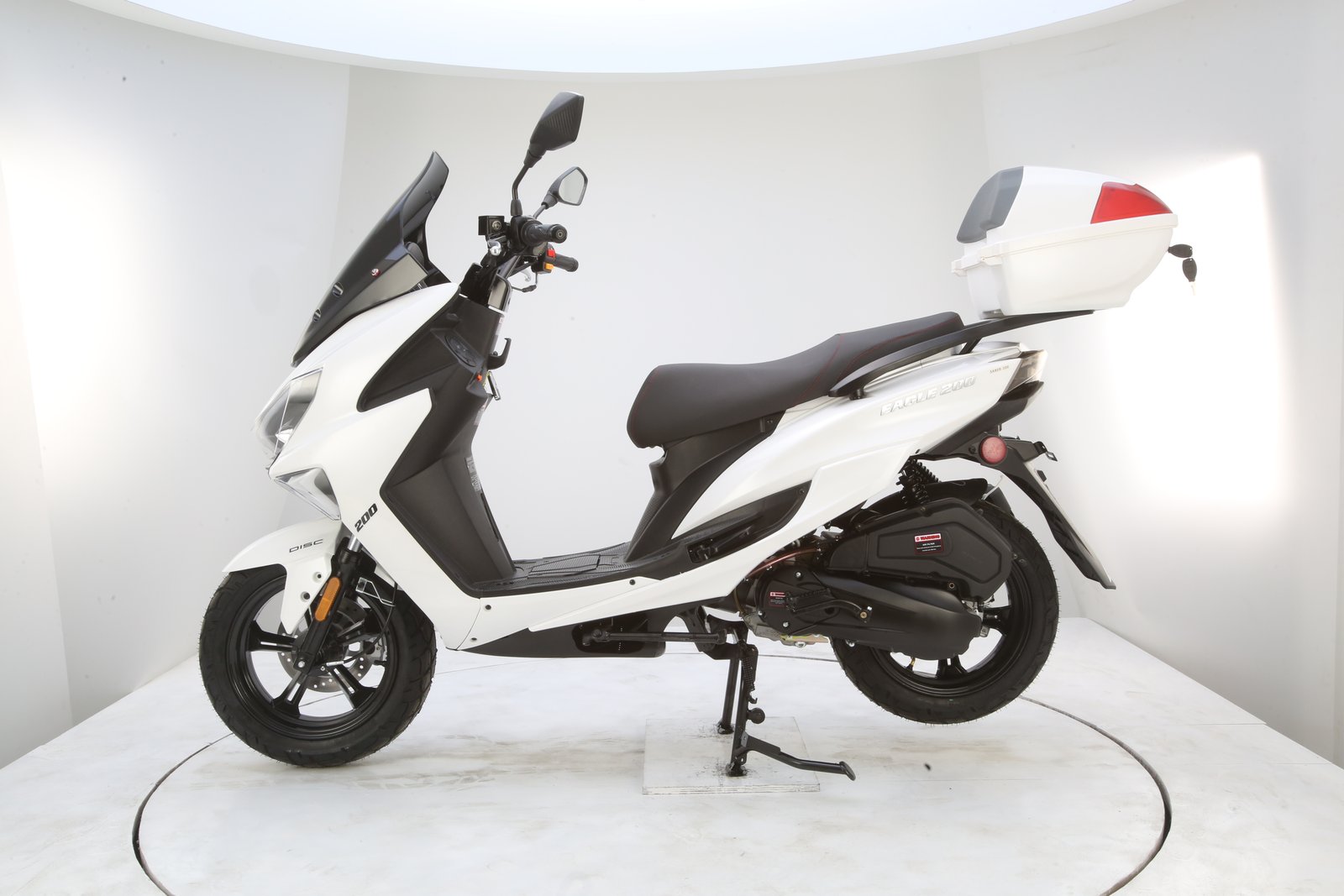

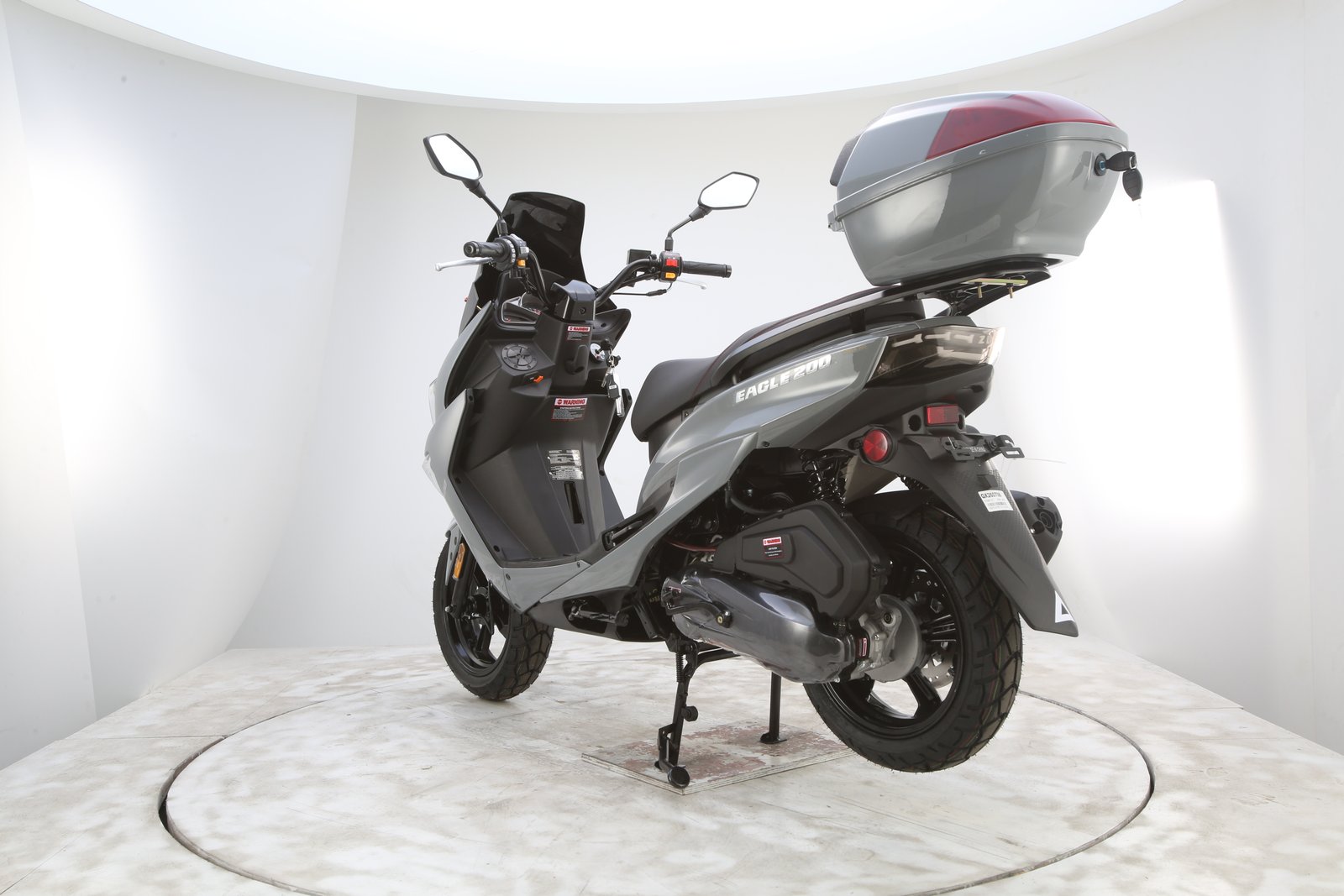

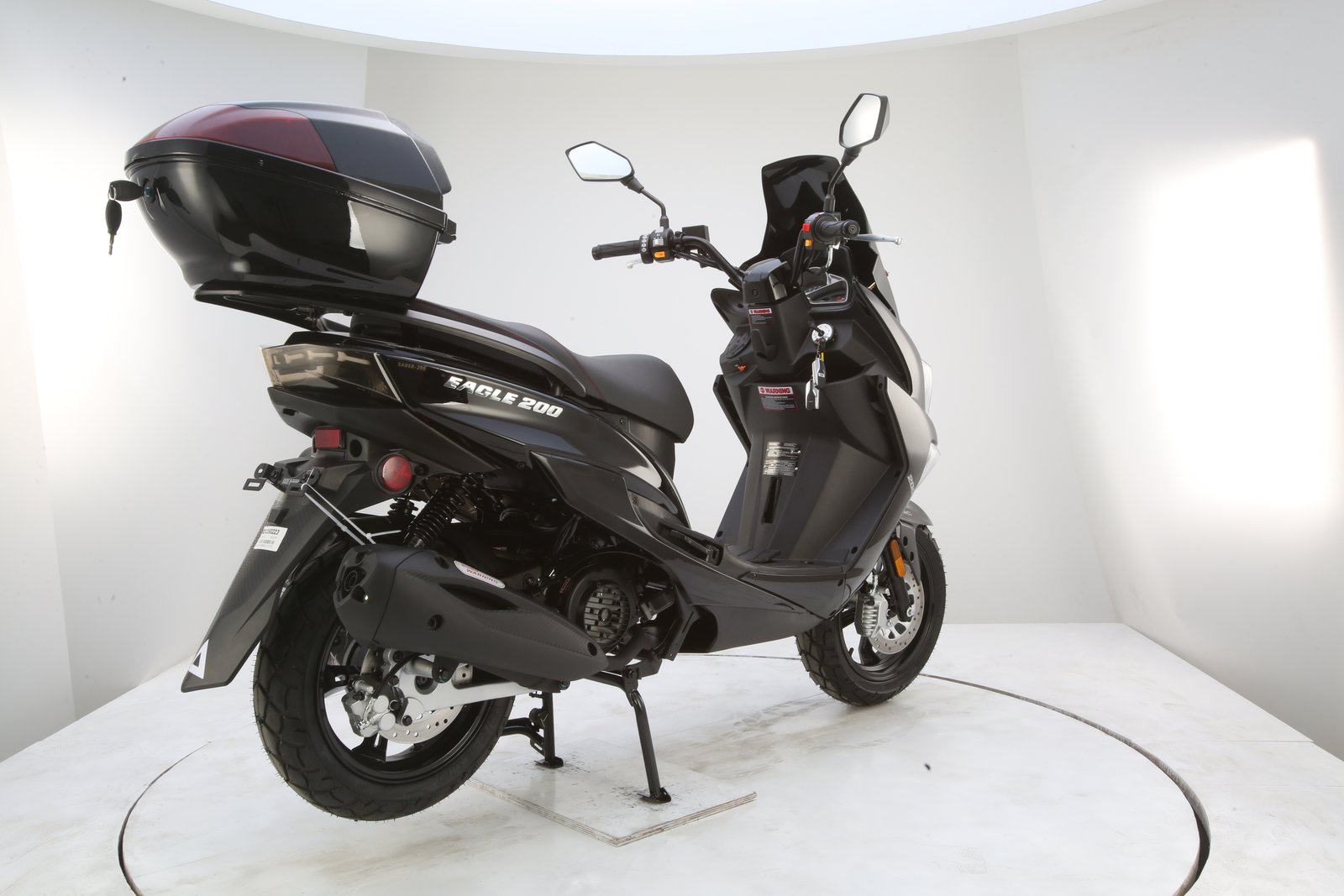

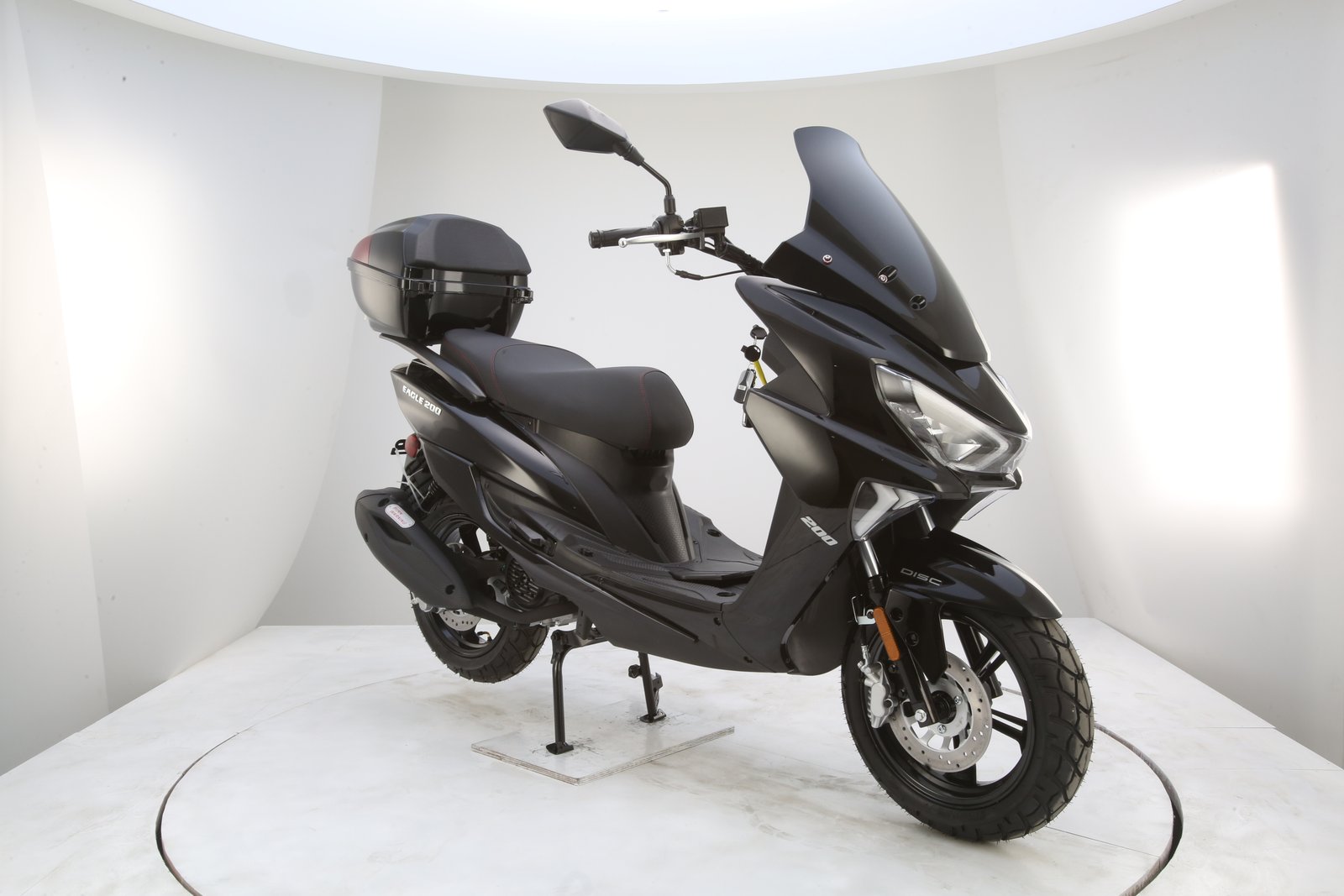

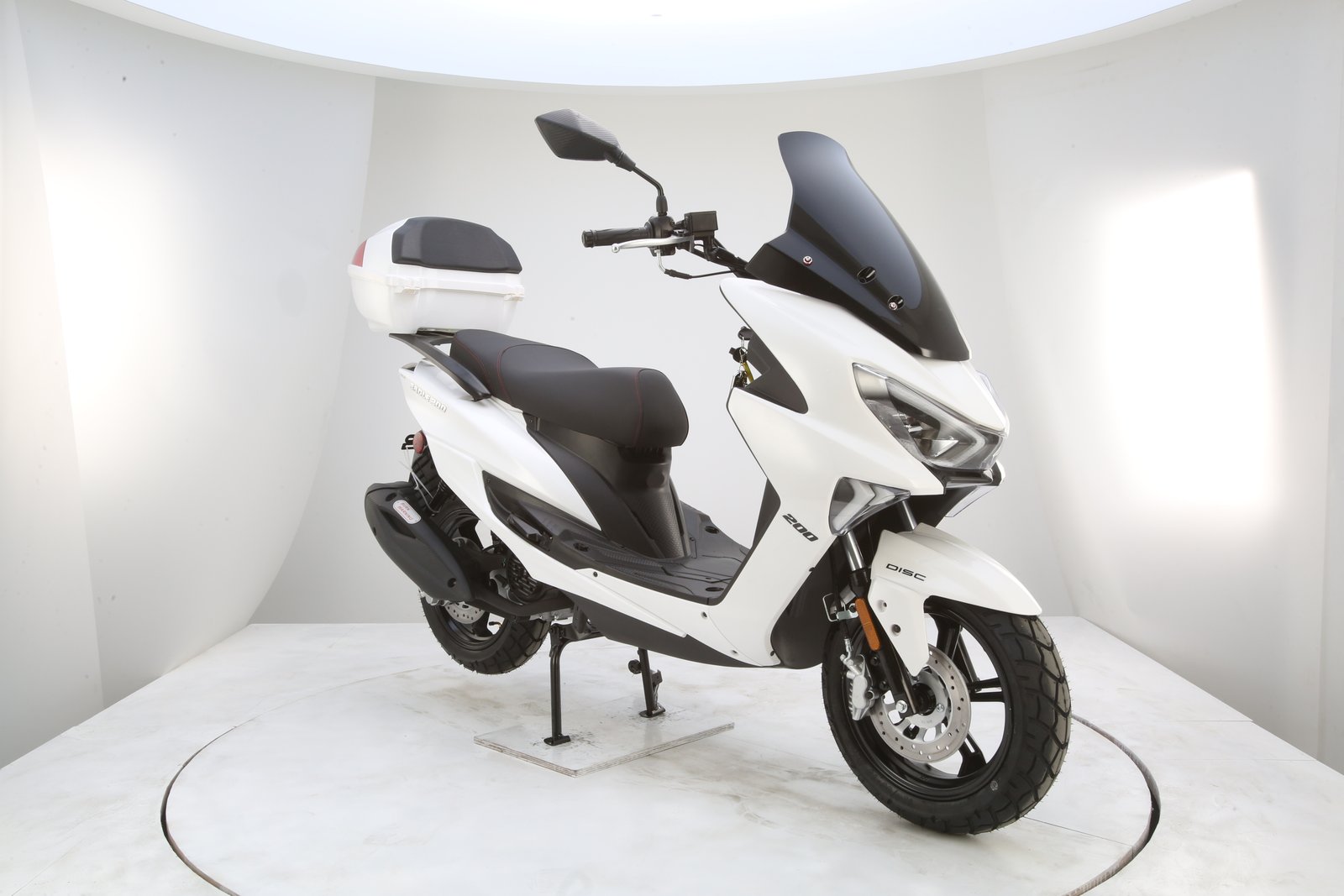

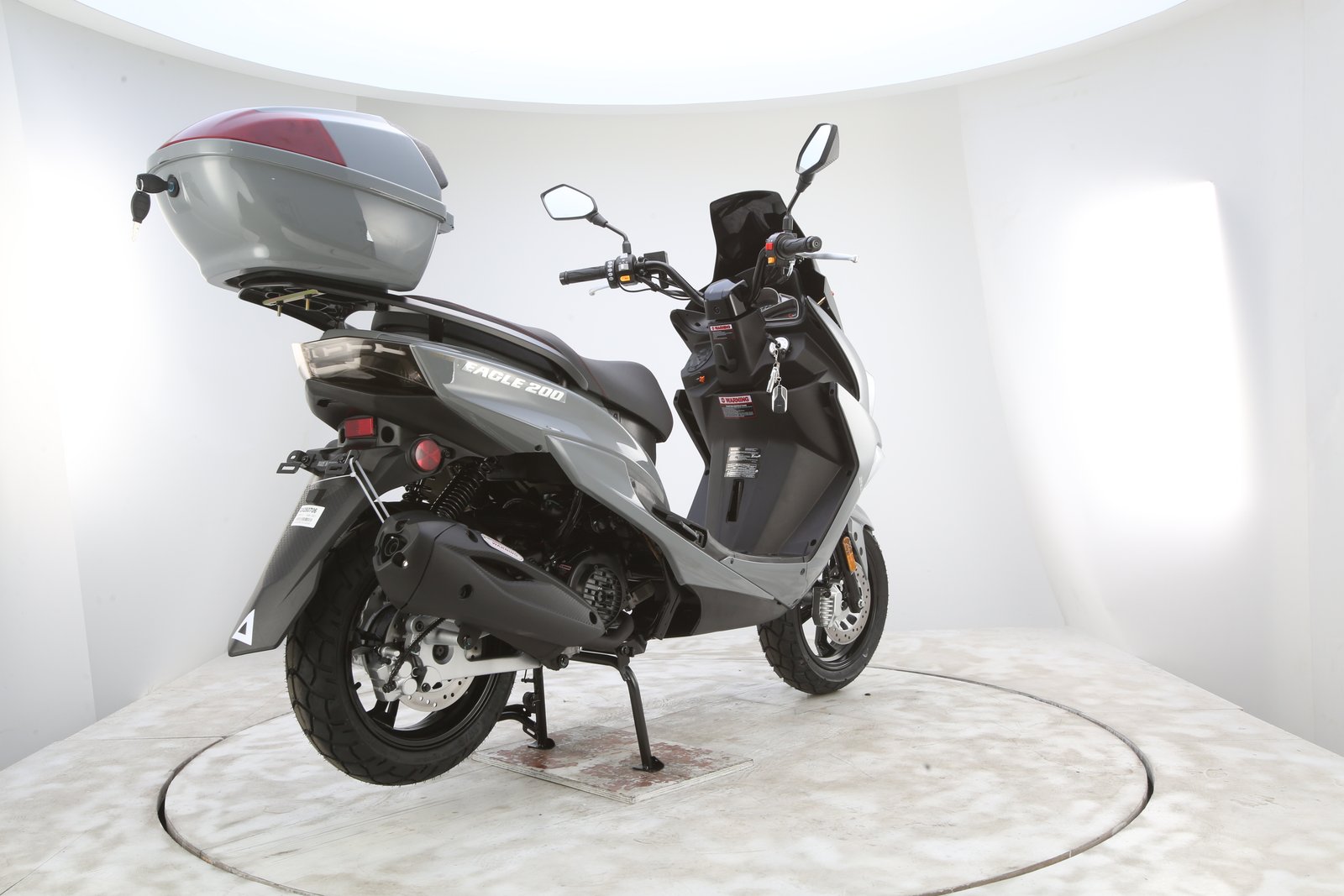

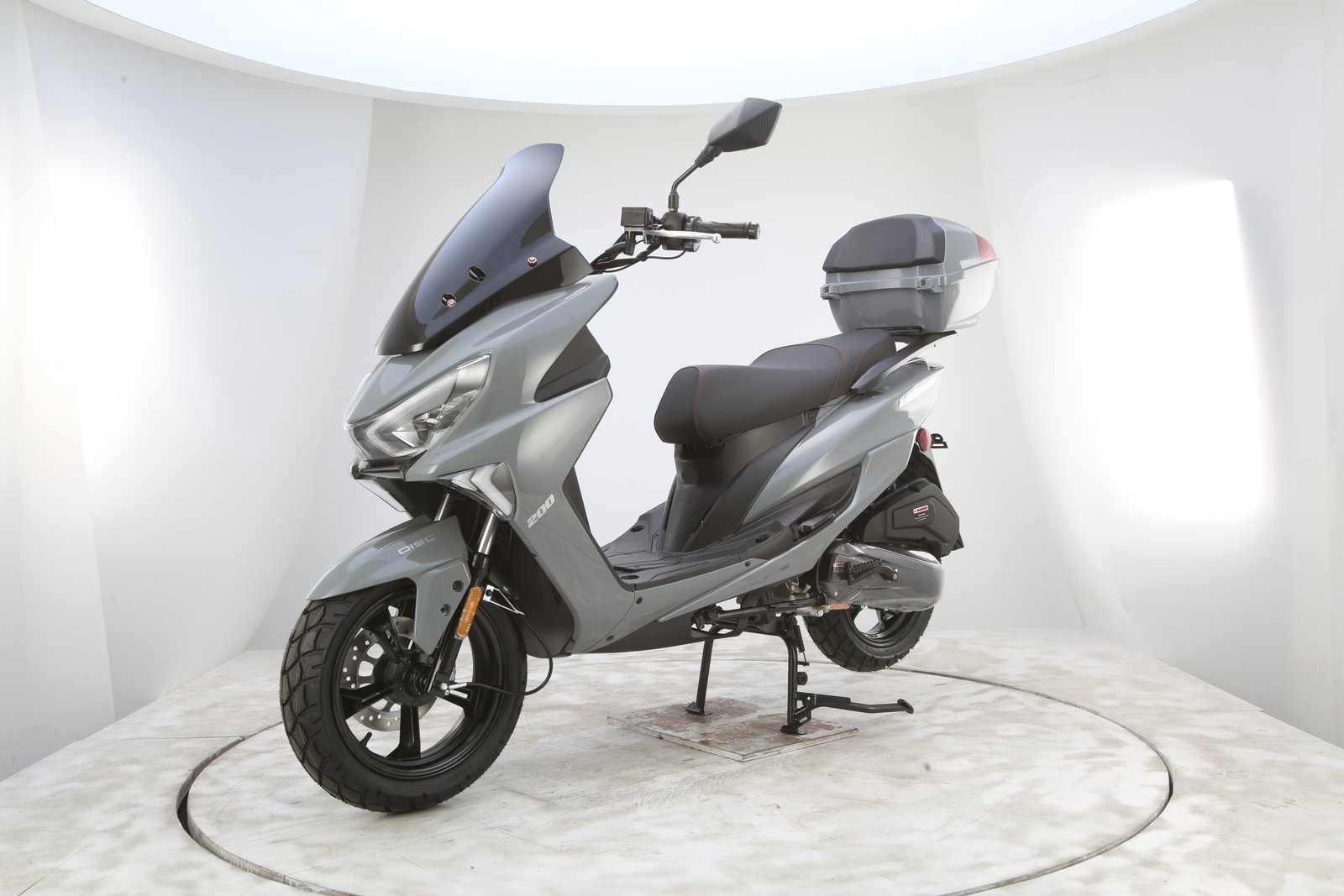

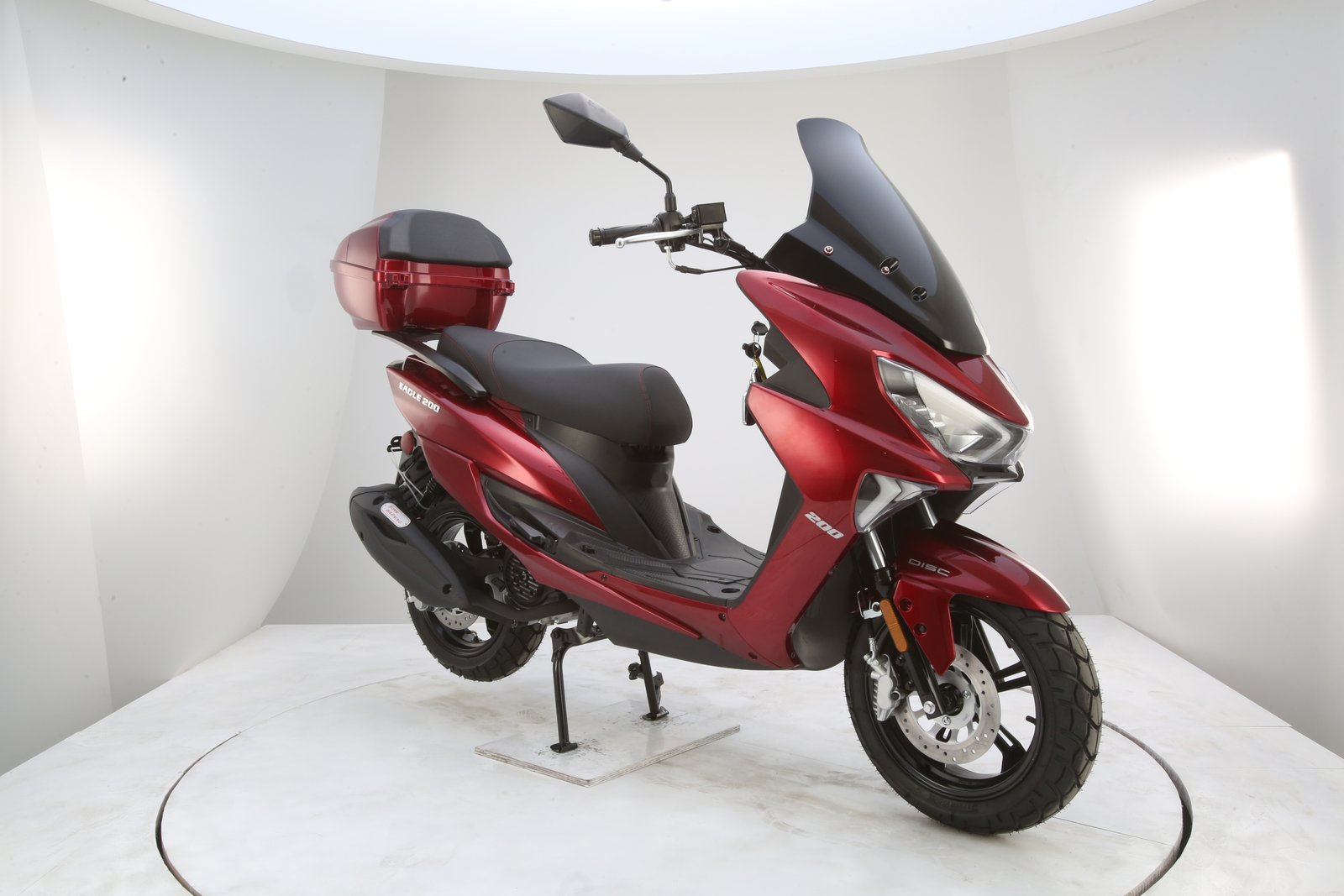

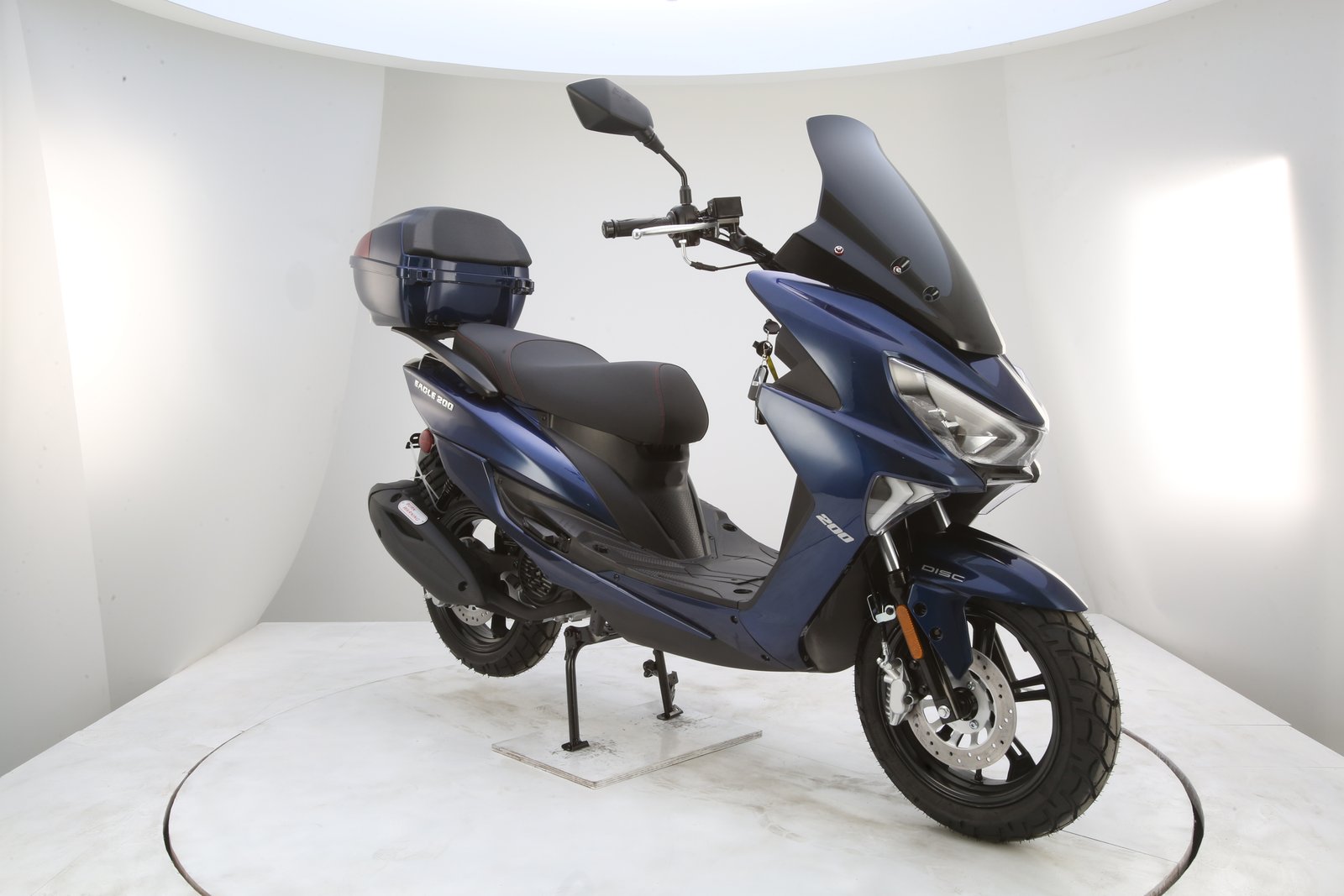

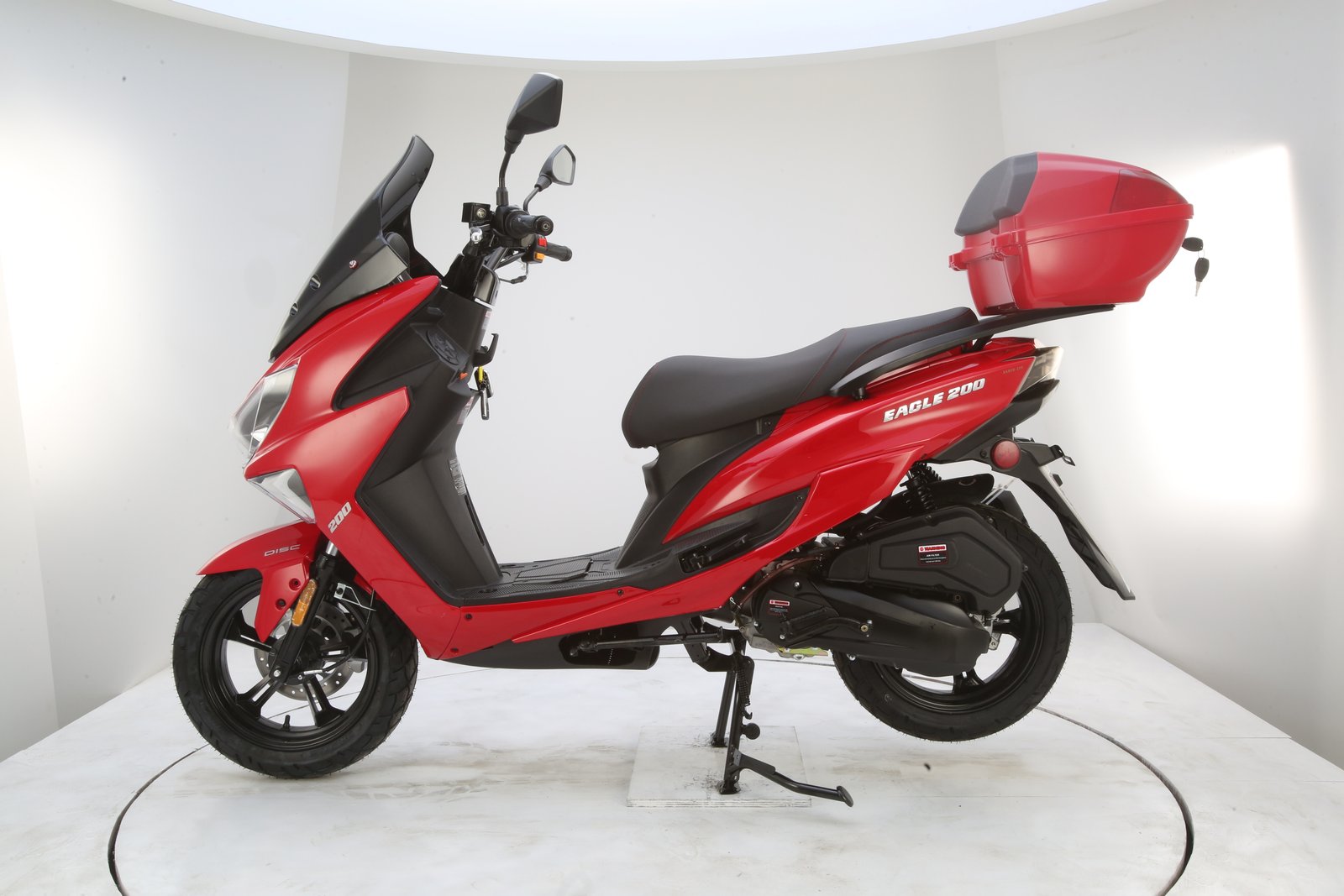

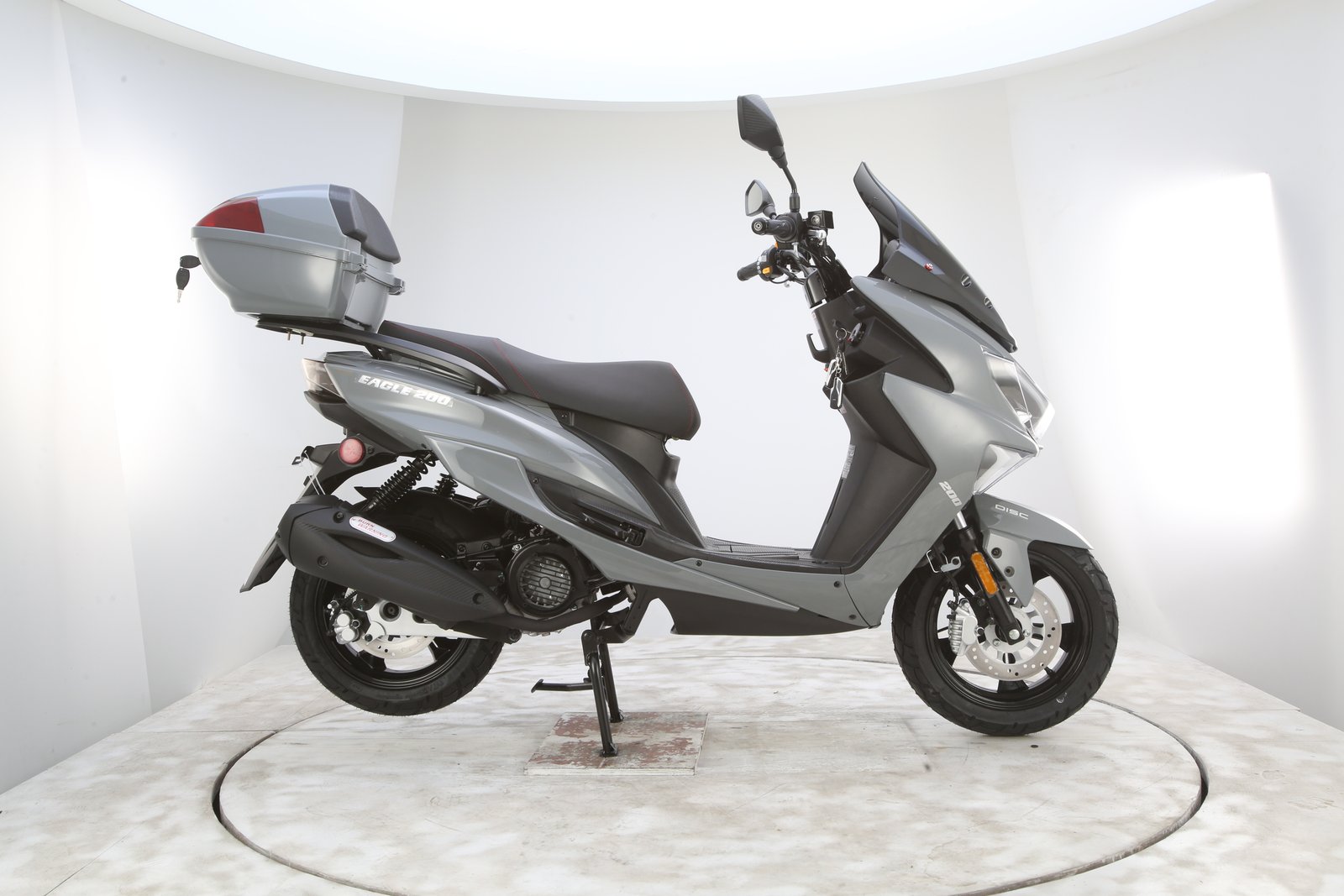

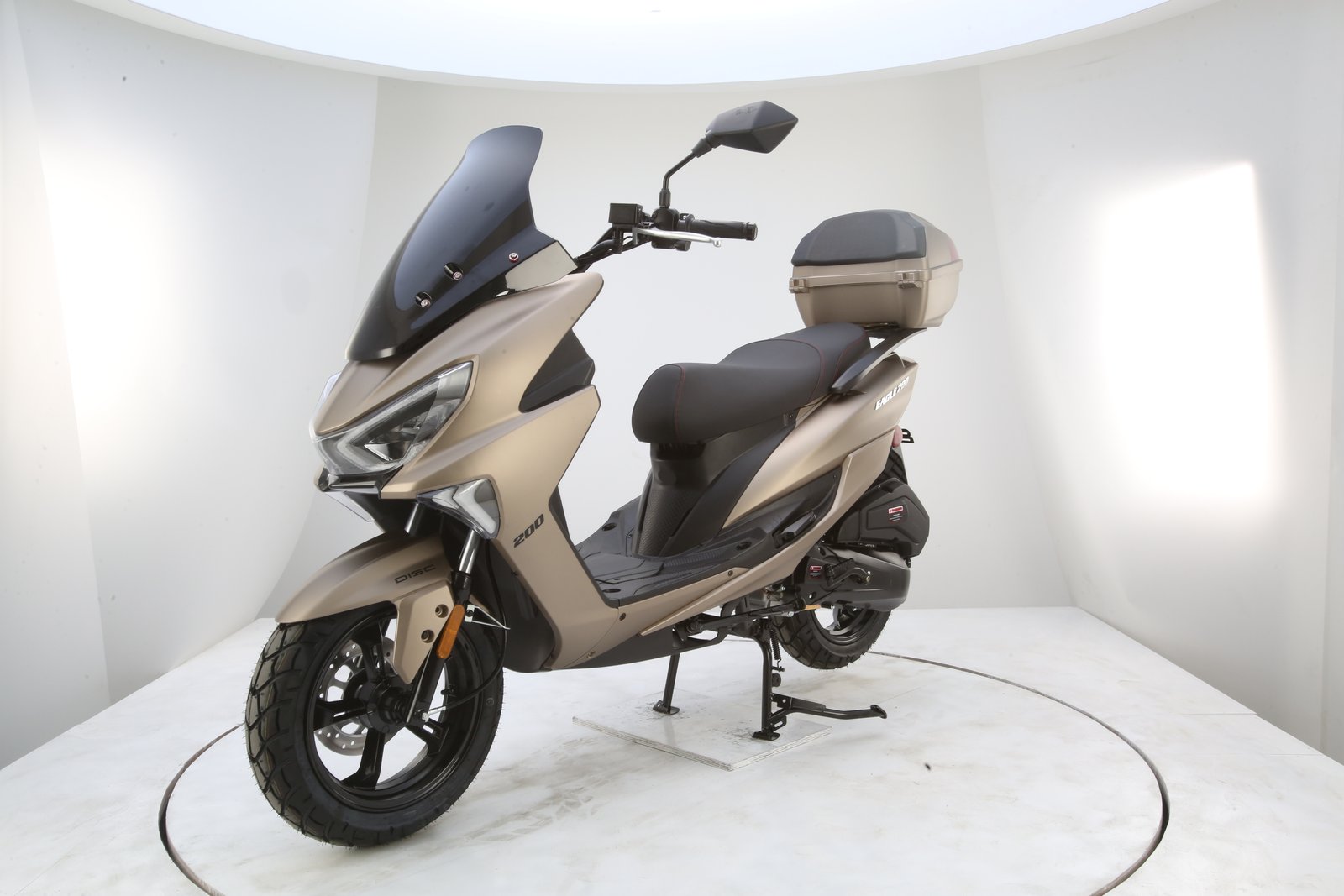

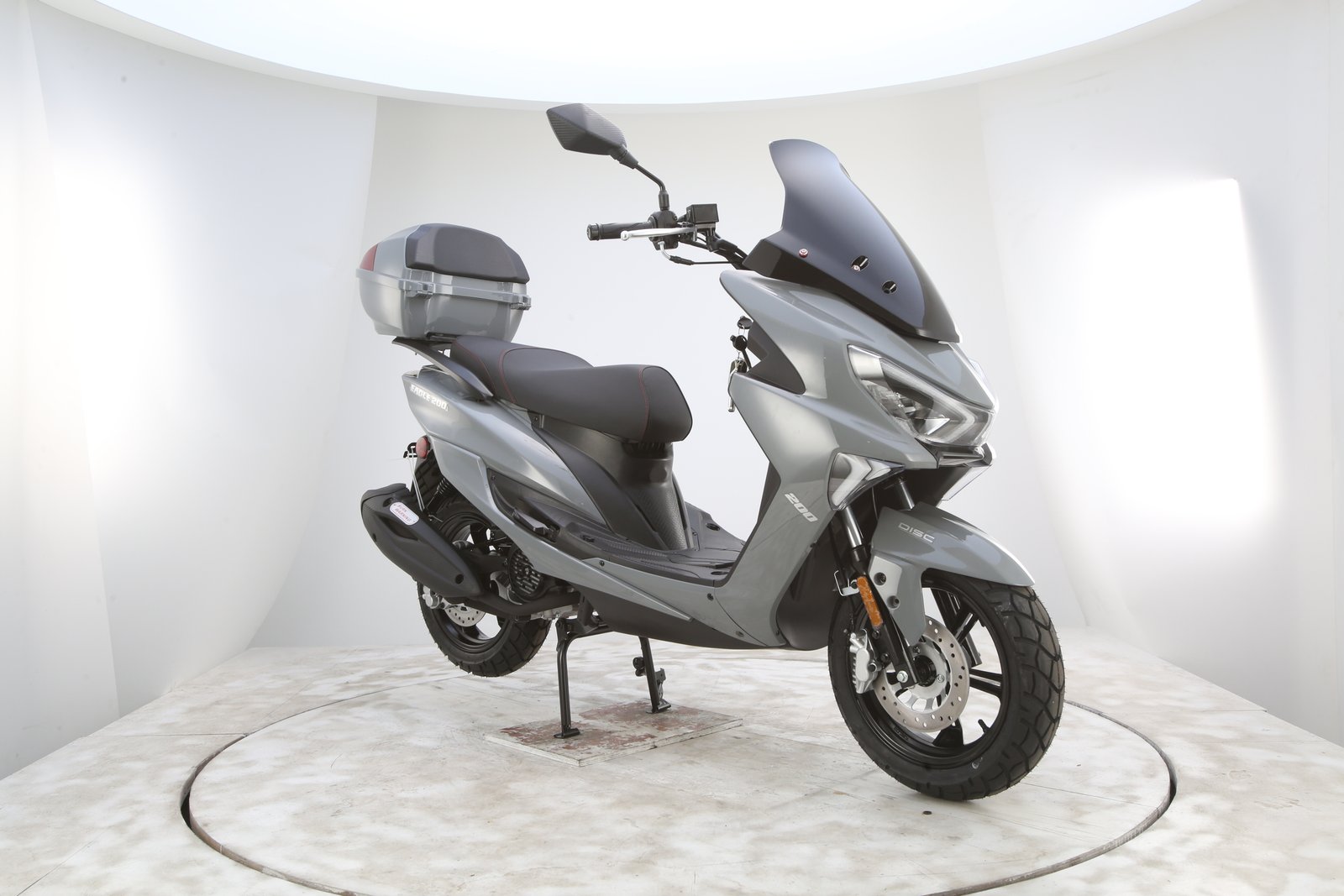

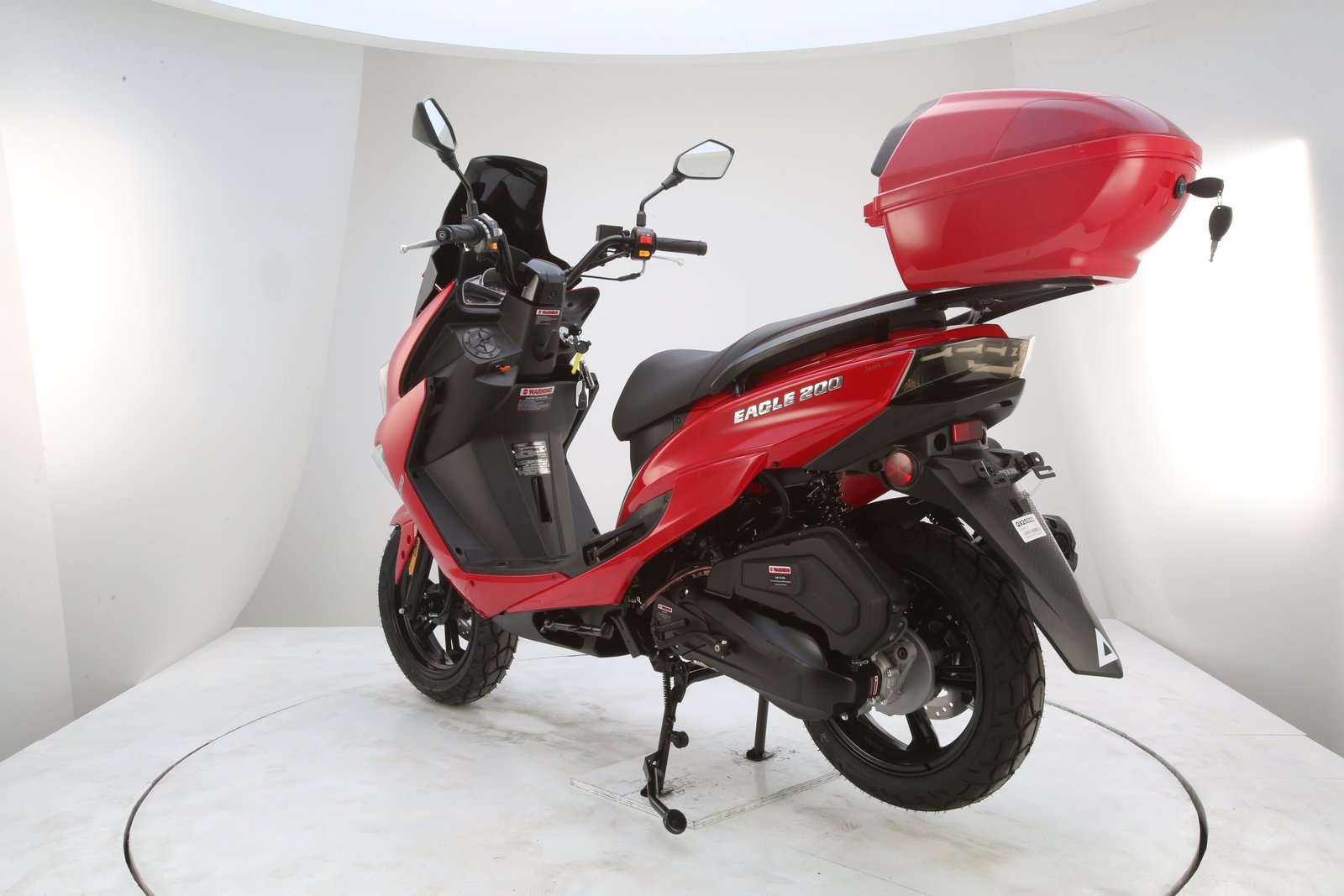

EAGLE 200

168.9

4‑Stroke, Air‑Cooled, Single‑Cylinder

3 Months

Limited Warranty

59MPH

Top Speed

CVT

(CVT) Transmission

168.94‑Stroke, Air‑Cooled, Single‑Cylinder
59 MPHTop Speed
CVTTransmission
3 MonthsWarranty
Make an Enquiry

SPECIFICATIONS

Engine4‑Stroke, Air‑Cooled, Single‑Cylinder
Displacement168.9
Fuel SystemCarb
CoolingAir
TransmissionCVT
Final Drive
Start SystemElectric & Kick
Battery12V 6Ah
Front SuspensionTelescopic
Rear SuspensionMono-Shock absorber

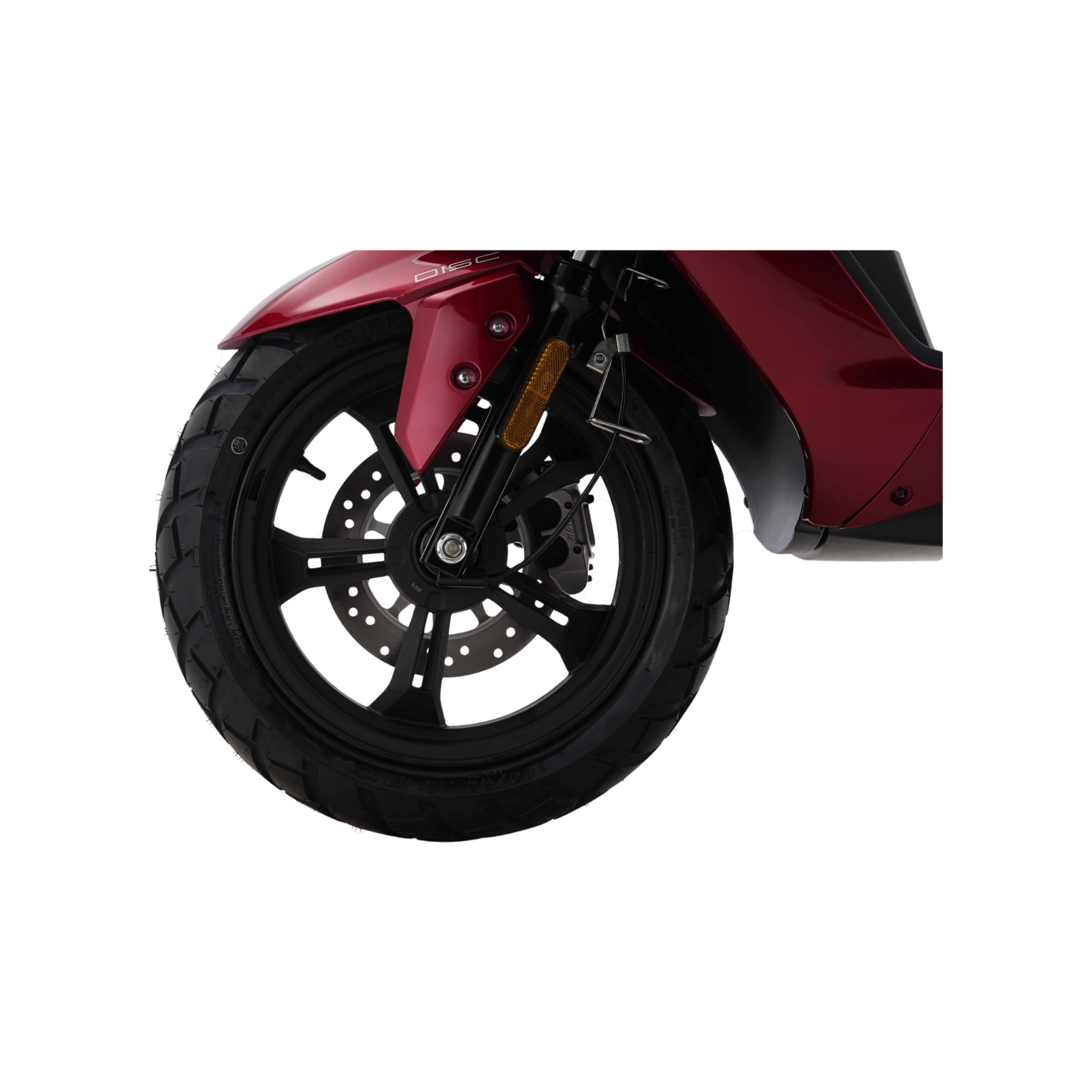

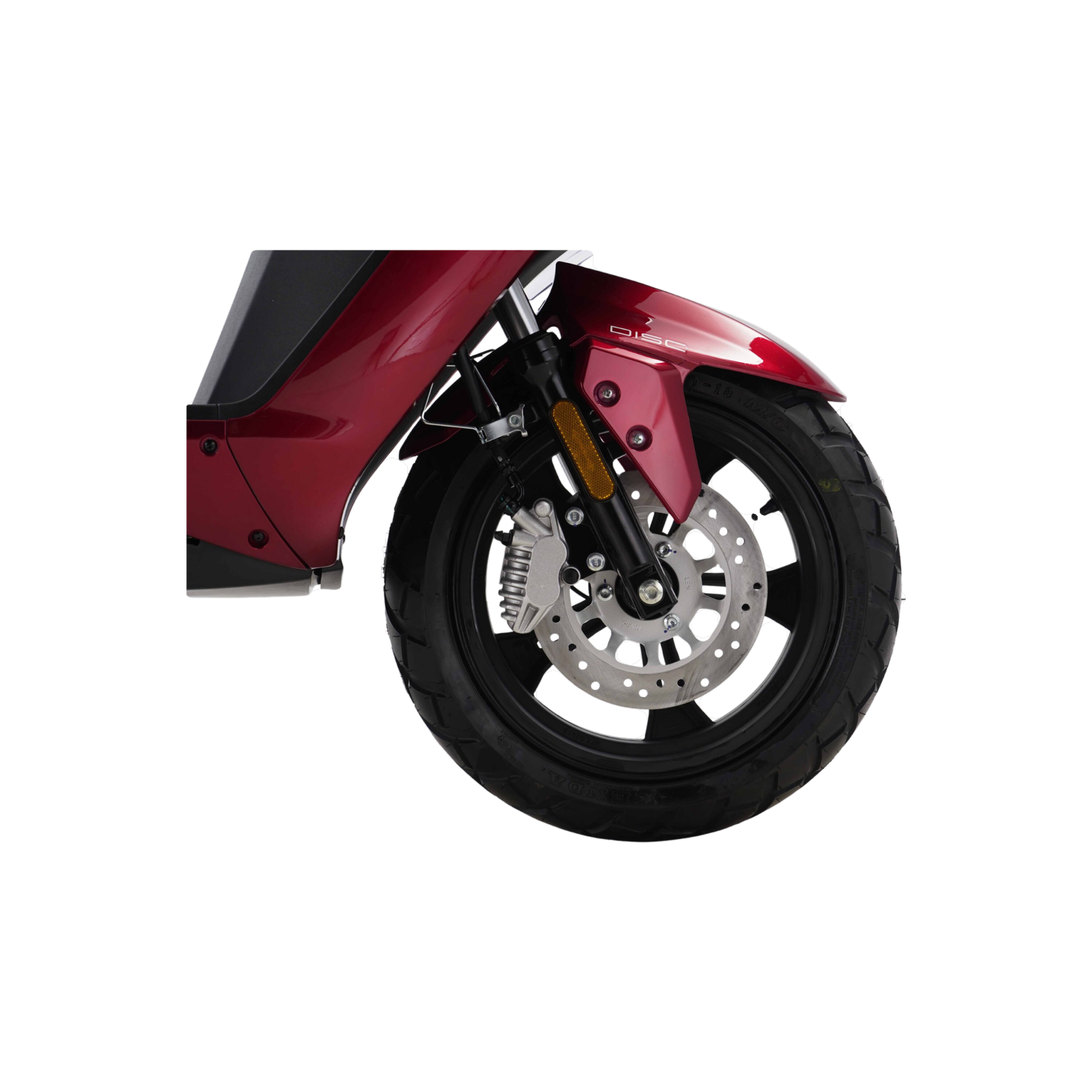

Front BrakesDisc
Rear BrakesDisc
Front Tires13"
Rear Tires13"
Frame
Dimensions1980*730*1140
Seat Height760 mm
Wheelbase1375 mm
Ground Clearance110 mm
Fuel Capacity7.5 L
Weight235 lbs
Top Speed59 MPH
Max Load330 lbs
Age16+
Warranty3 Months
SPECIFICATIONS:
Engine and transmission Displacement（cc） 168.9
Engine type 1P61QMK-A
Engine mode 1-cylinder/4-stroke/2-valve
Bore x stroke(mm) ø61*57.8
Max.power 7.4kW/7000 r/min
Max.torque 11N·m/6000 r/min
Compression ratio 9.5:1
Fuel system Carburetor
Valve train SOHC
Ignition C.D.I.
Starter Electric & Kick
Lubrication system Pressure splash lubrication
Cooling system Forced-air-cooled
Gear shifting type Automatic CVT
Transmission type
final drive		 V-Belt
Clutch type Automatic
Physical measures Dry weight（kg） 105
Seat height（mm） 760
Overall length (mm) 1980
Overall width (mm) 730
Overall height (mm) 1140
Ground clearance (mm) 110
Wheelbase (mm) 1375
Chassis and dimensions Frame type Flat scooter
Front suspension Telescopic forks
Front suspension travel (mm) 90
Rear suspension Mono-shock-absorber
Rear suspension travel (mm) 95
Fr. tyre 130/60-13
Rr. tyre 130/60-13
Fr. Brakes Disc
Fr. brakes diameter (mm) 230
Rr. brakes Disc
Rear brakes diameter (mm) 220
Other specifications Top speed（km/h） 95
Max.loadage (kg) 150
Fuel capacity(L) 7.5
Battery 12V6Ah(YTX7A-BS)
