4‑Stroke, Air‑Cooled, Single‑Cylinder
Limited Warranty
Top Speed
(CVT) Transmission

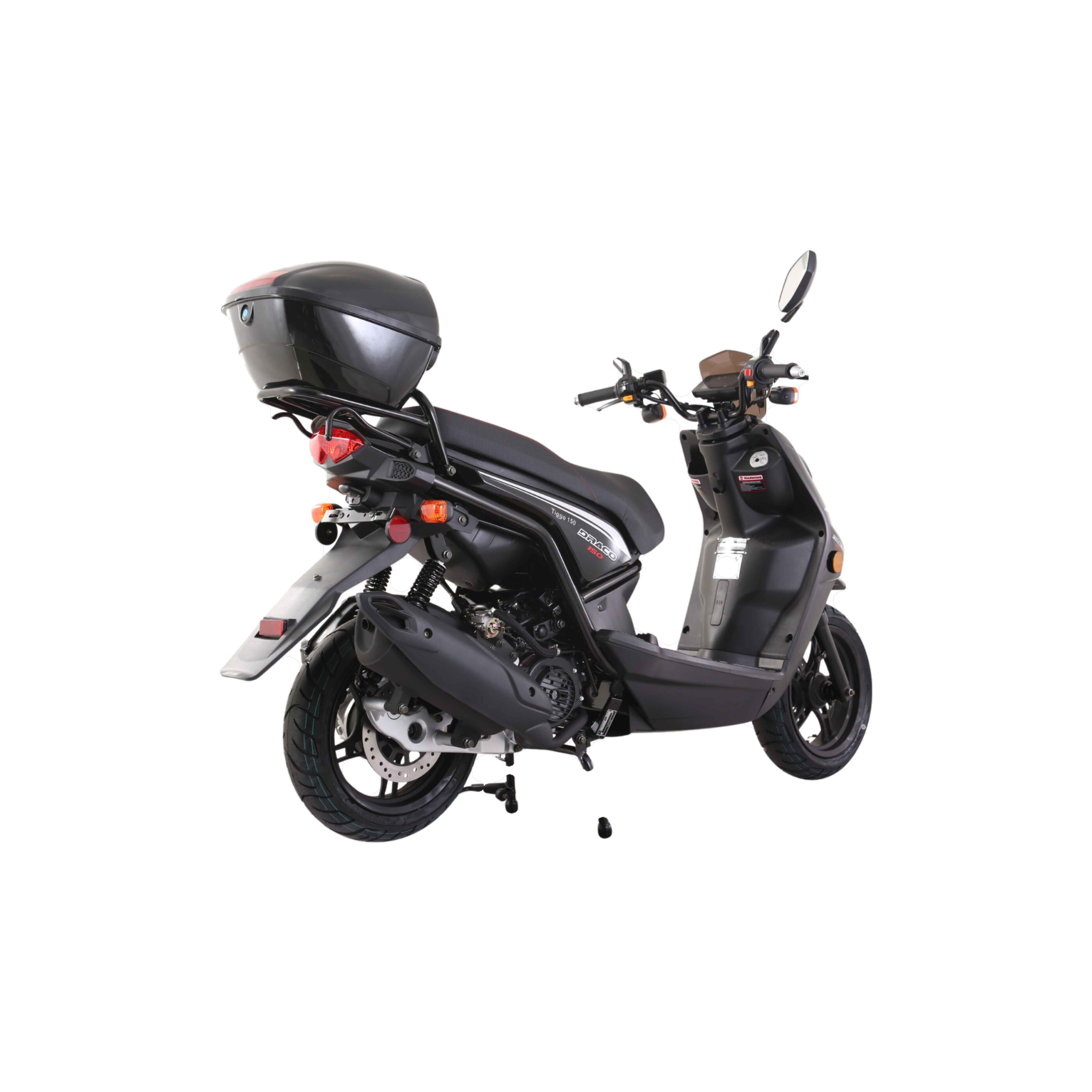

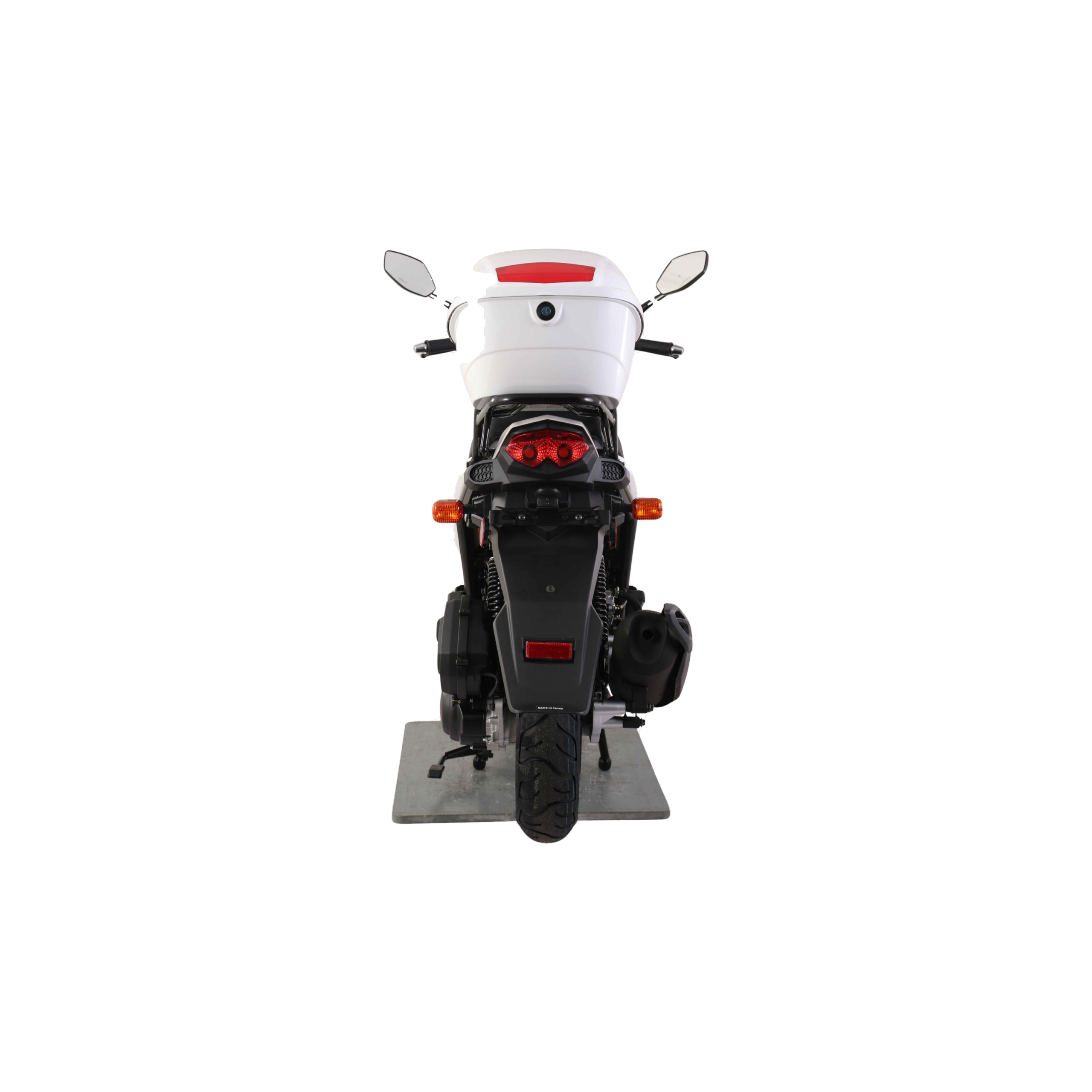

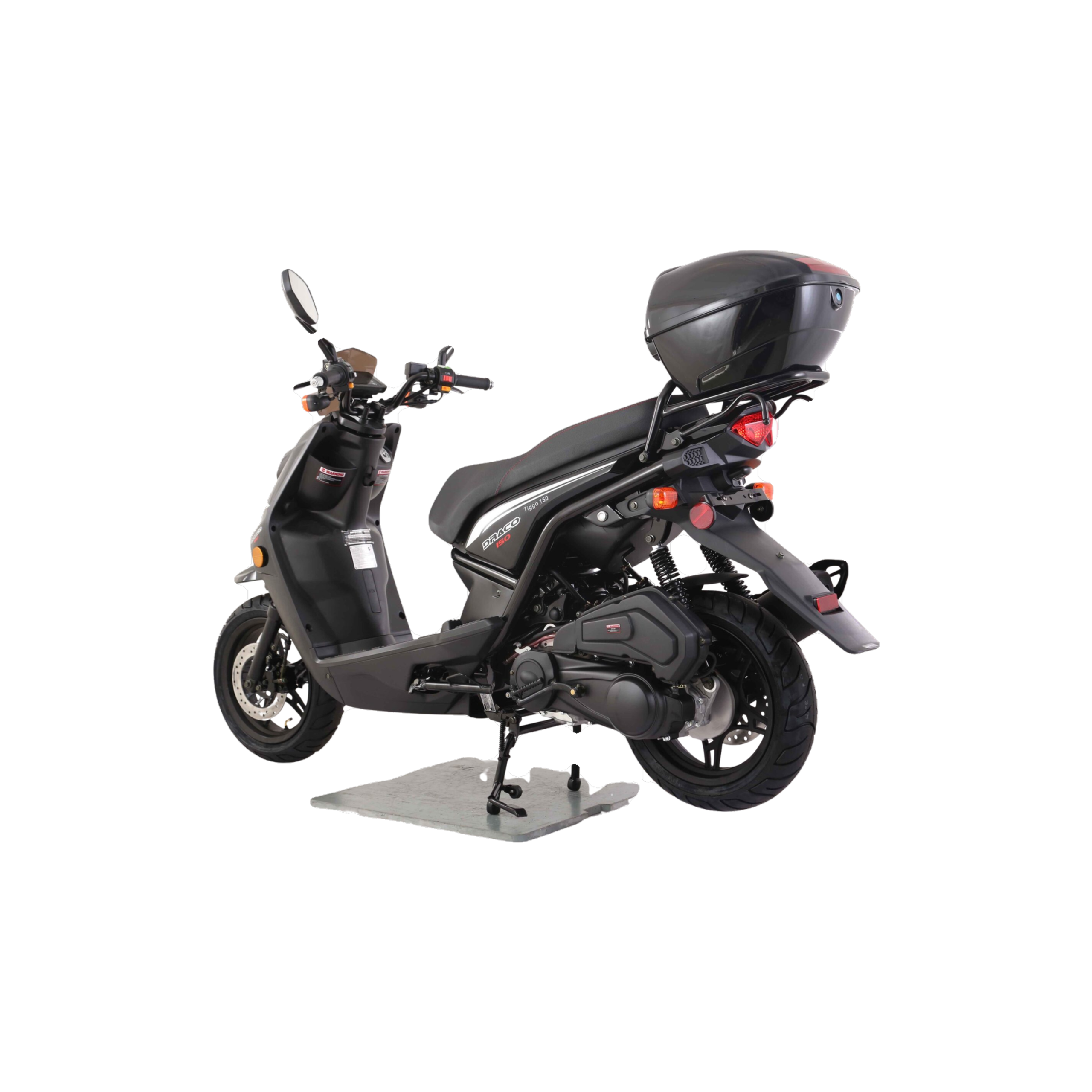

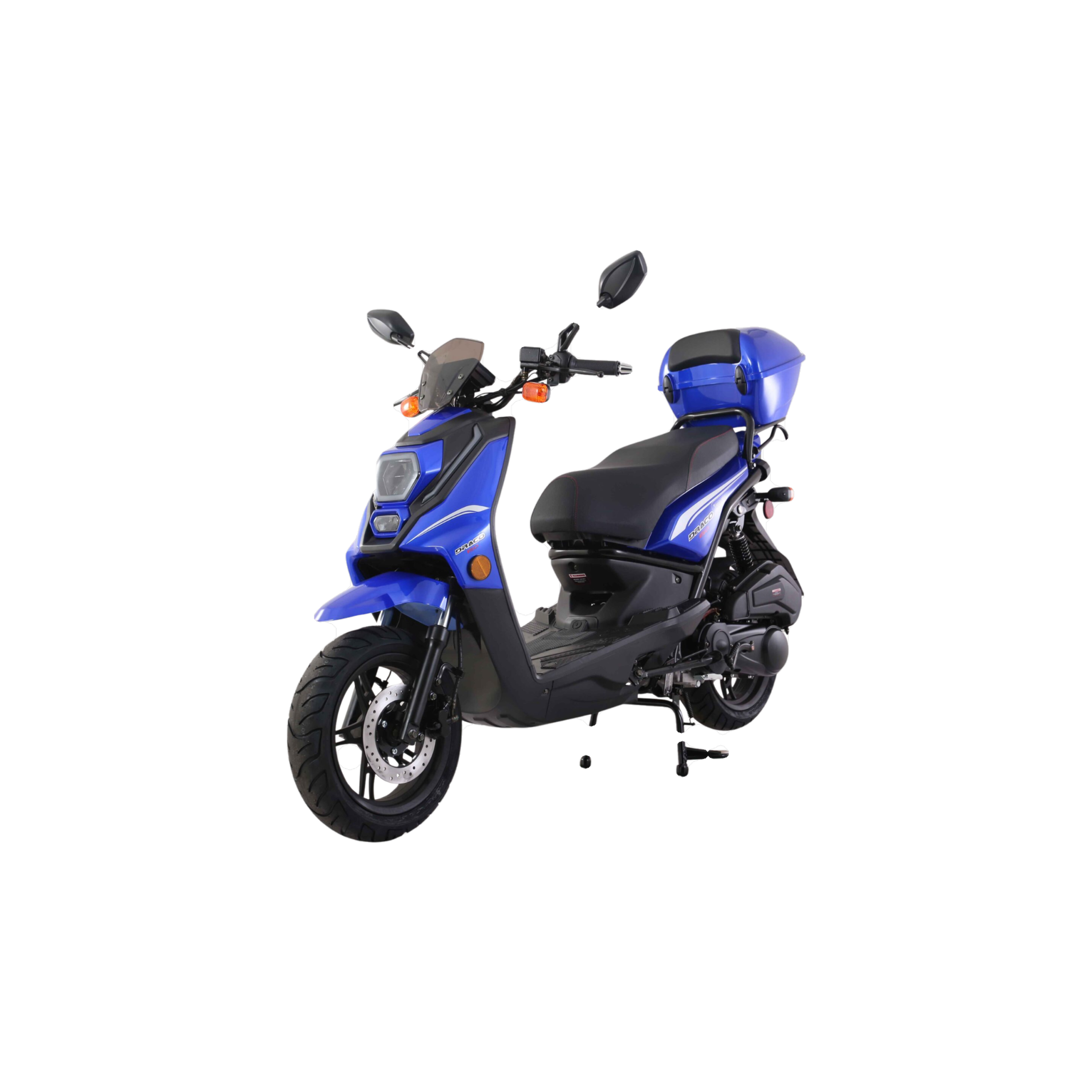

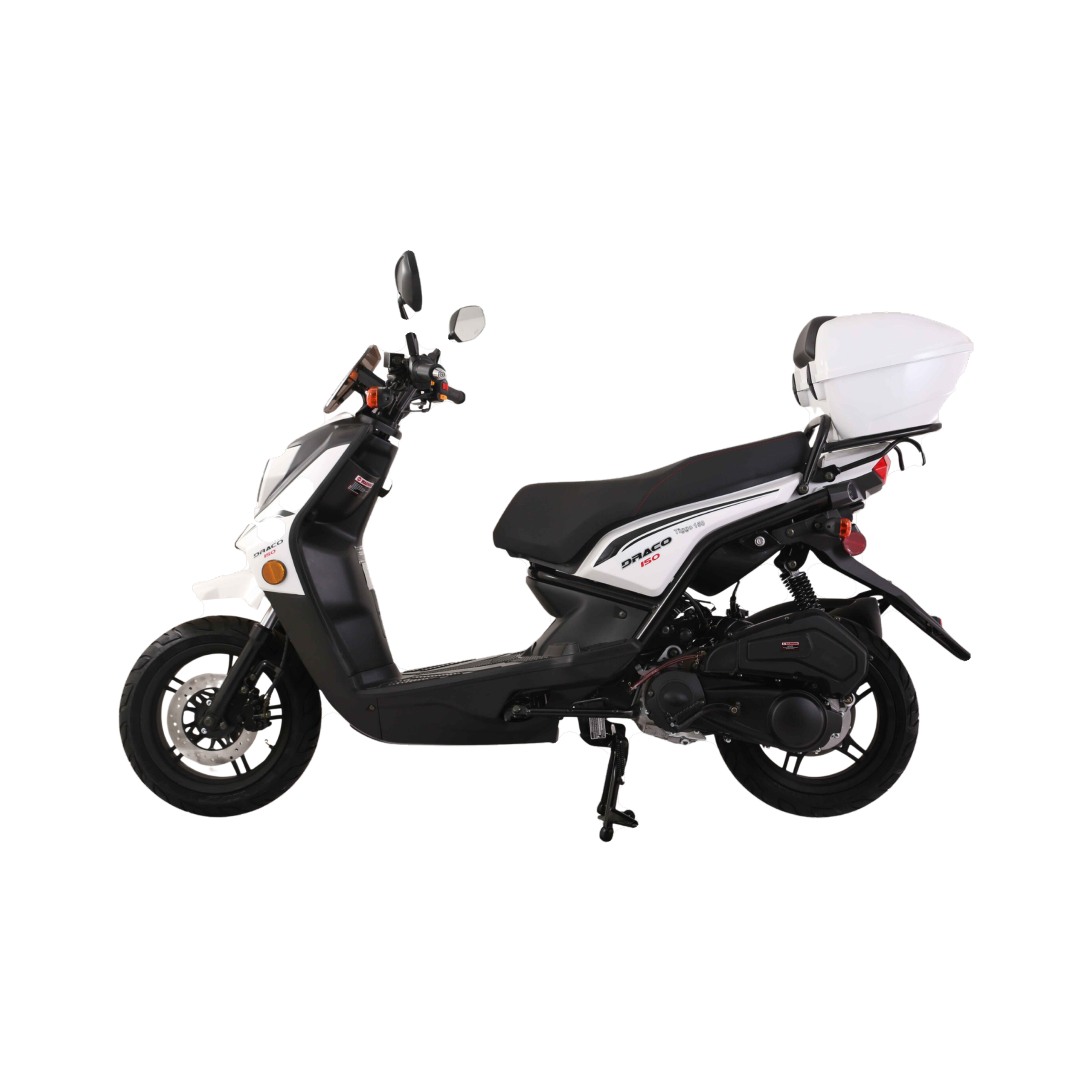

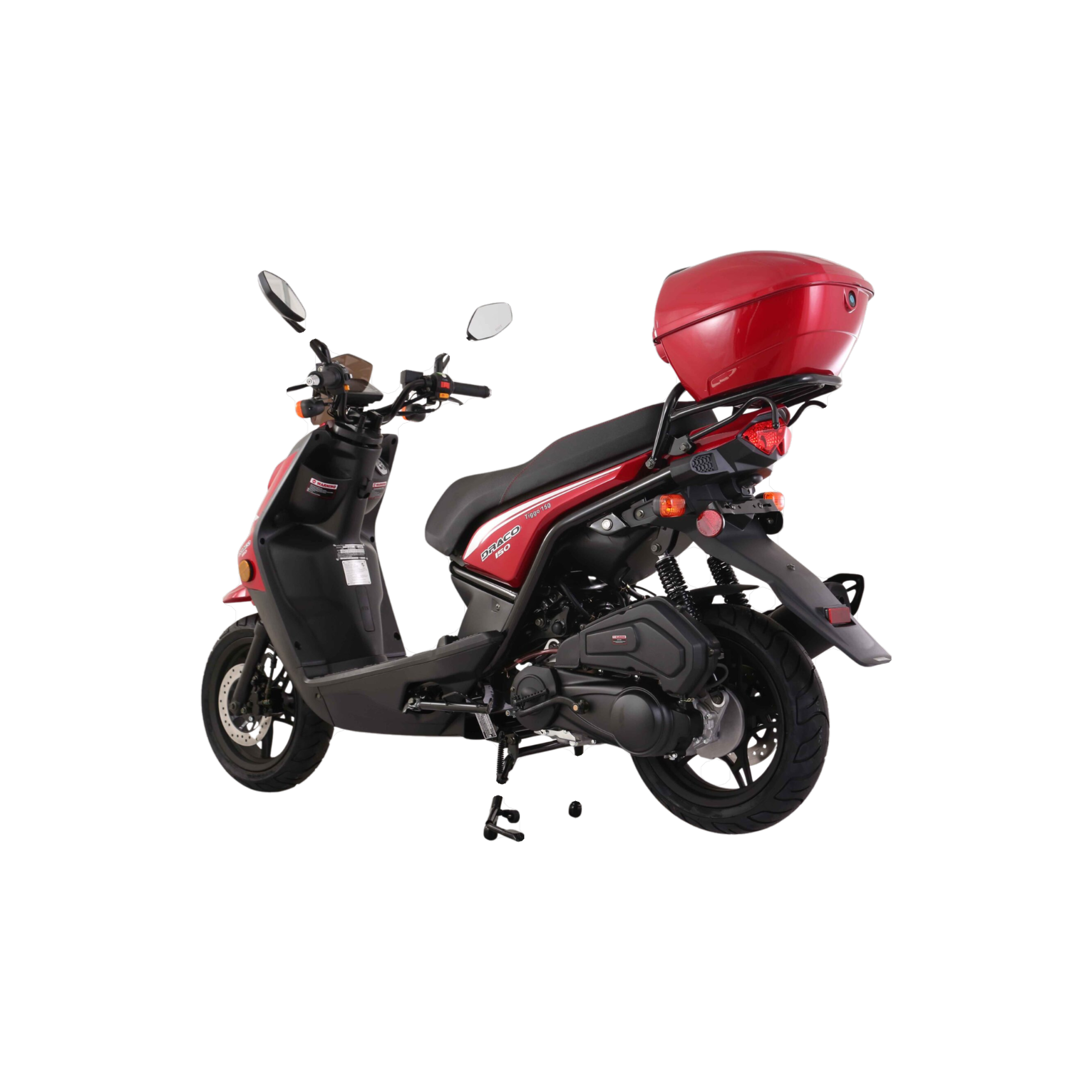

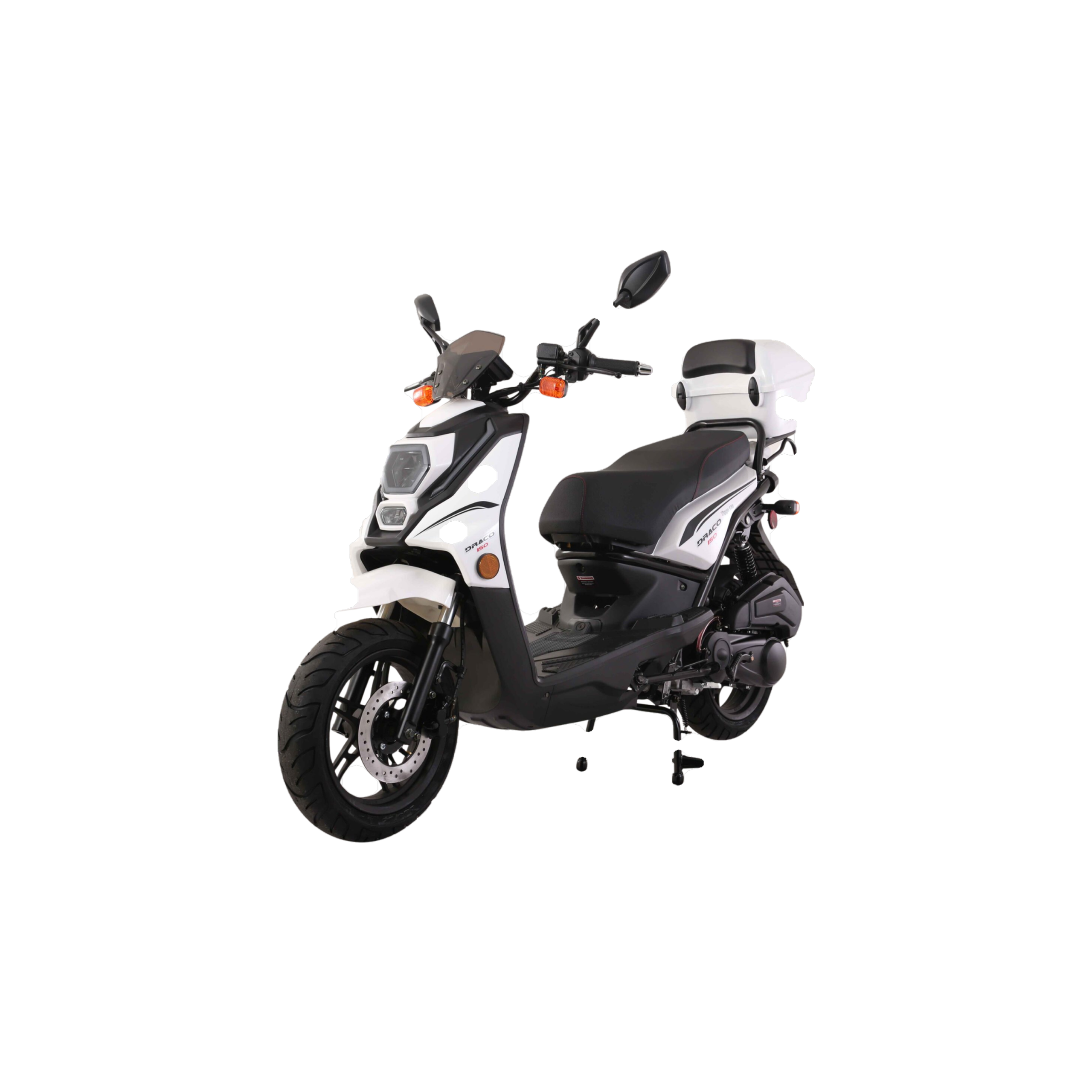

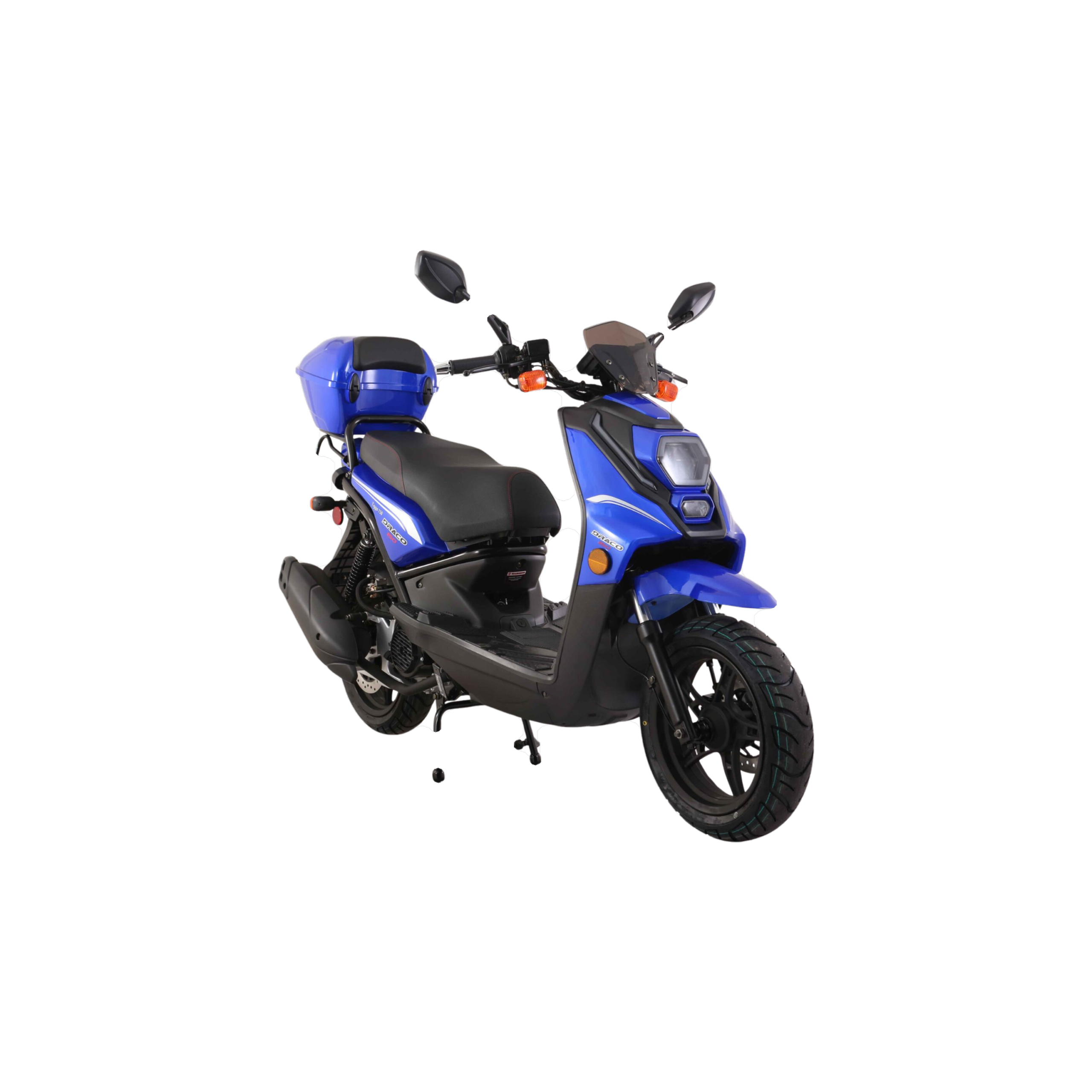

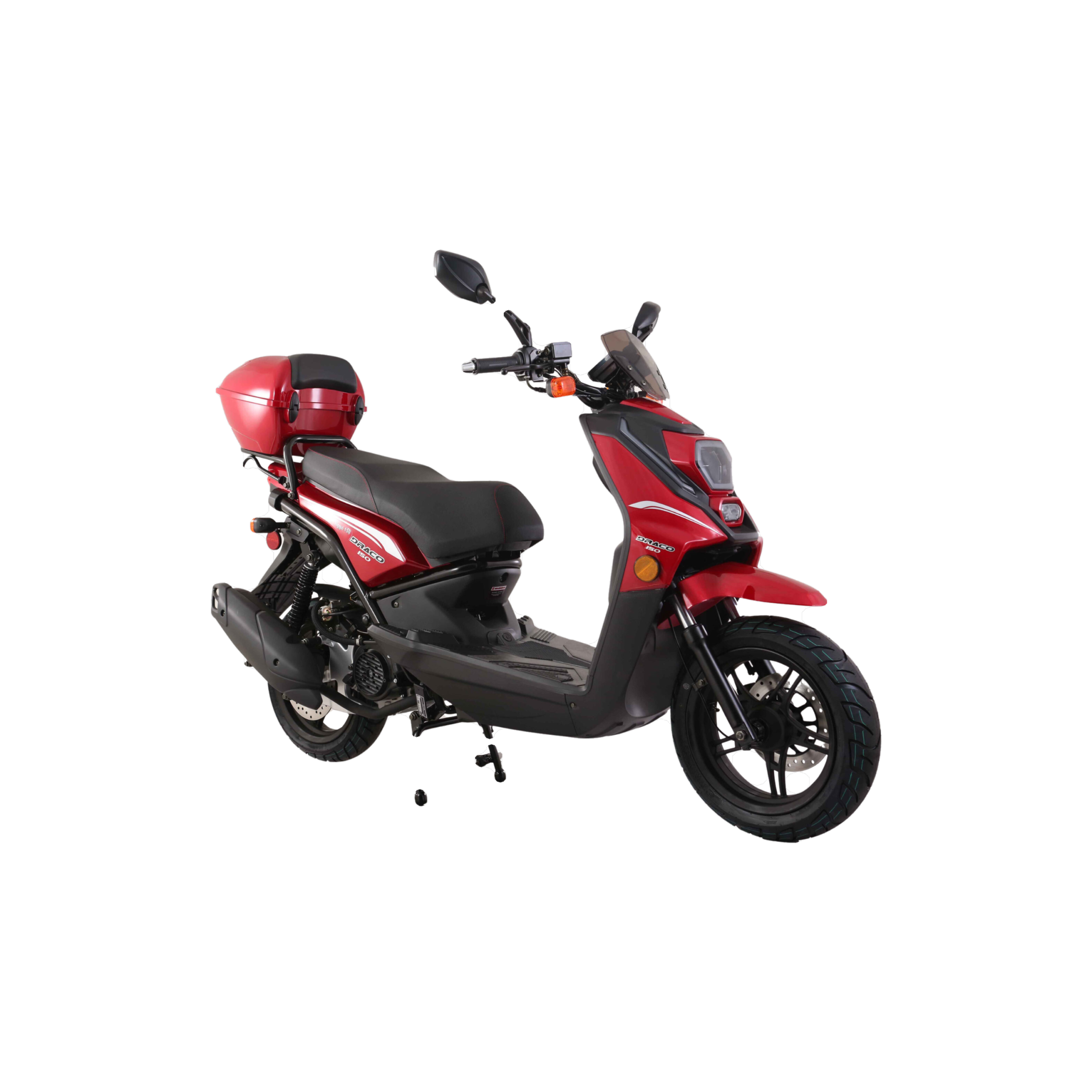

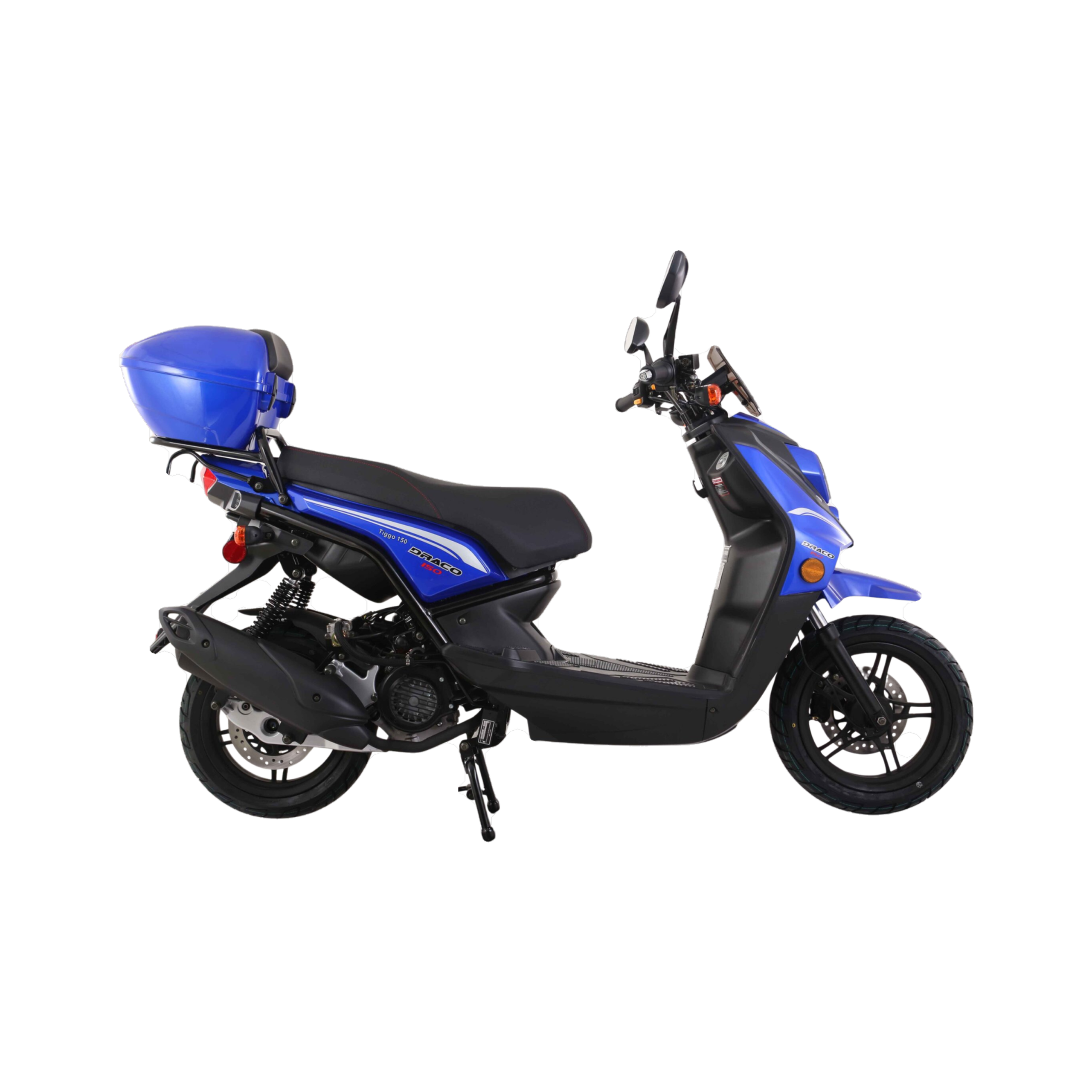

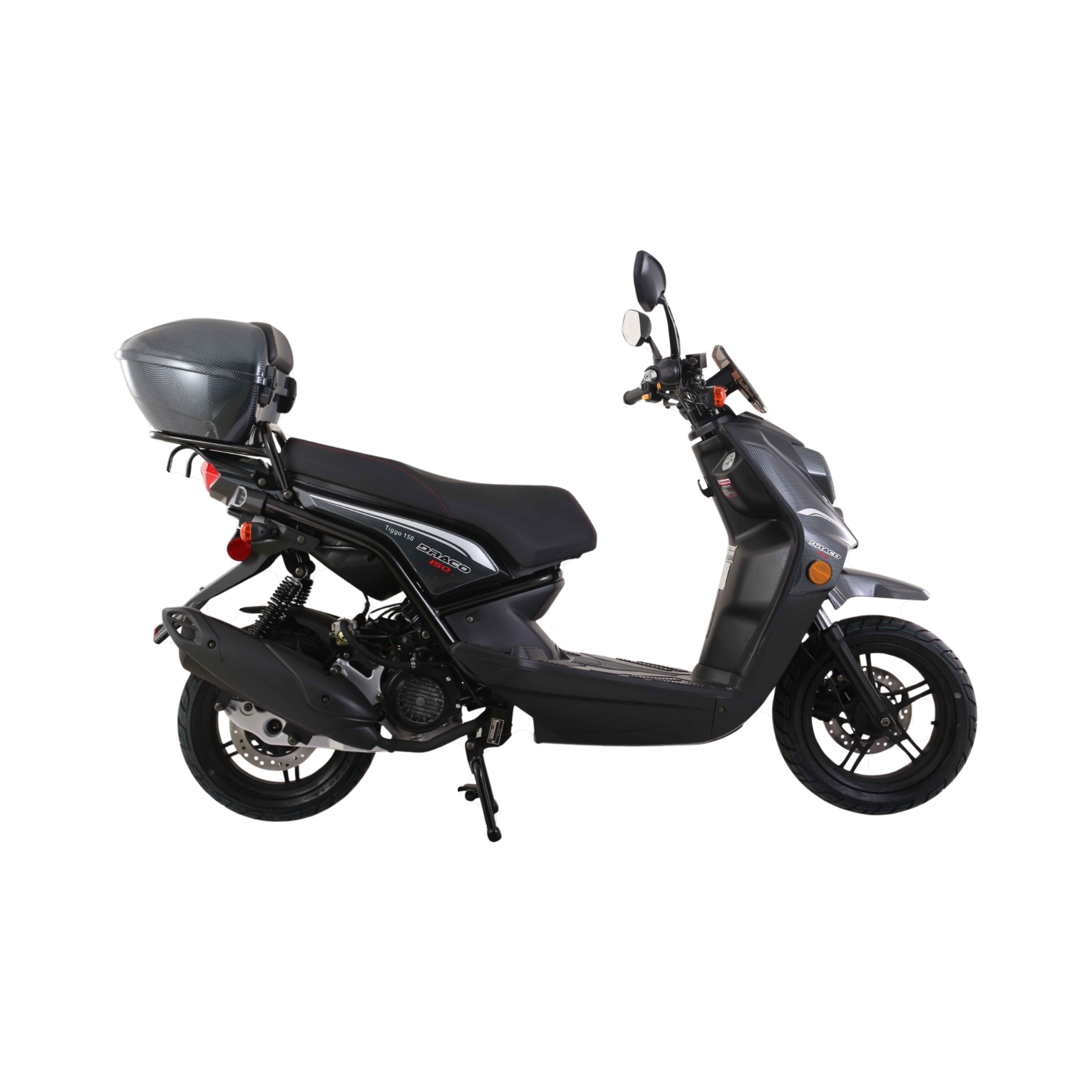

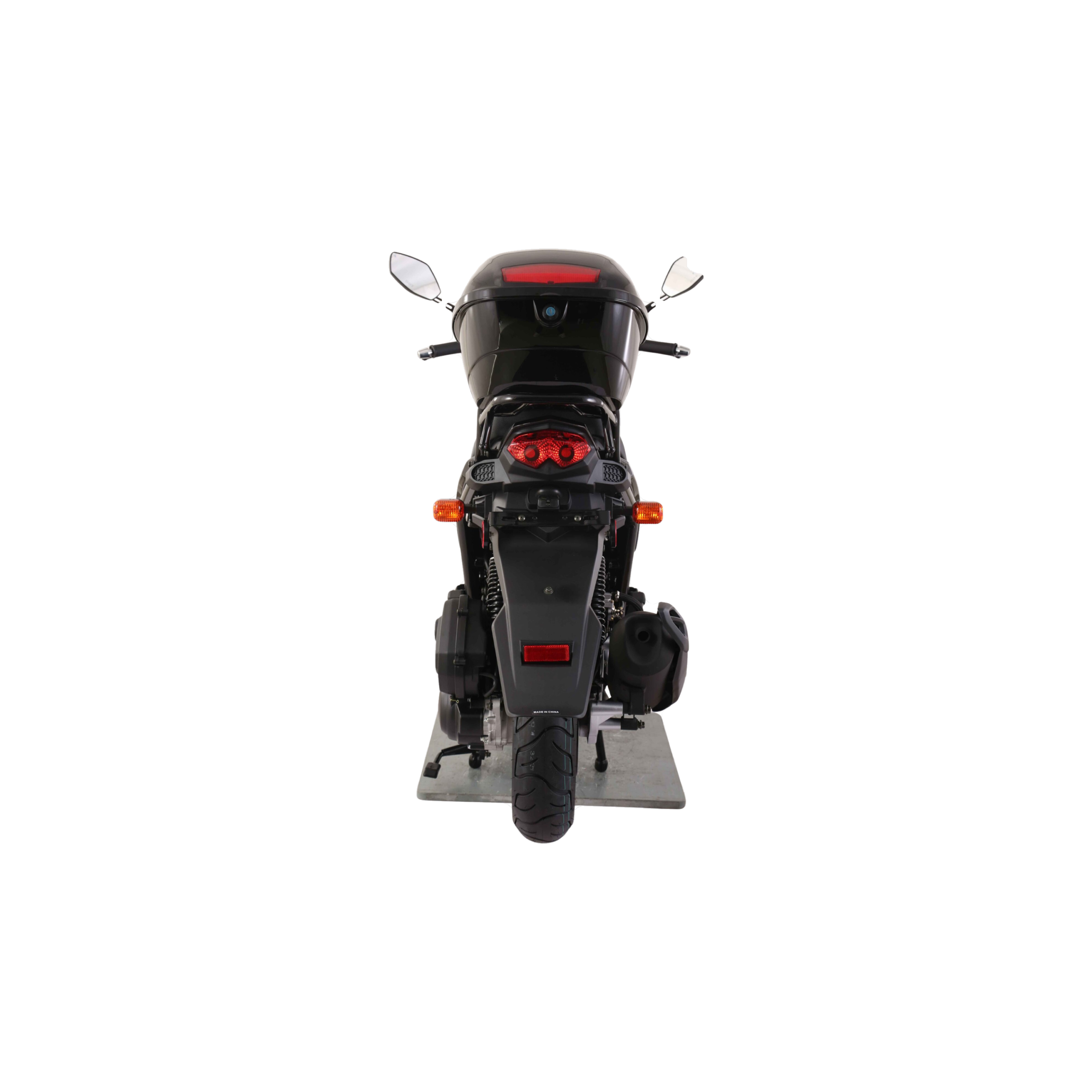

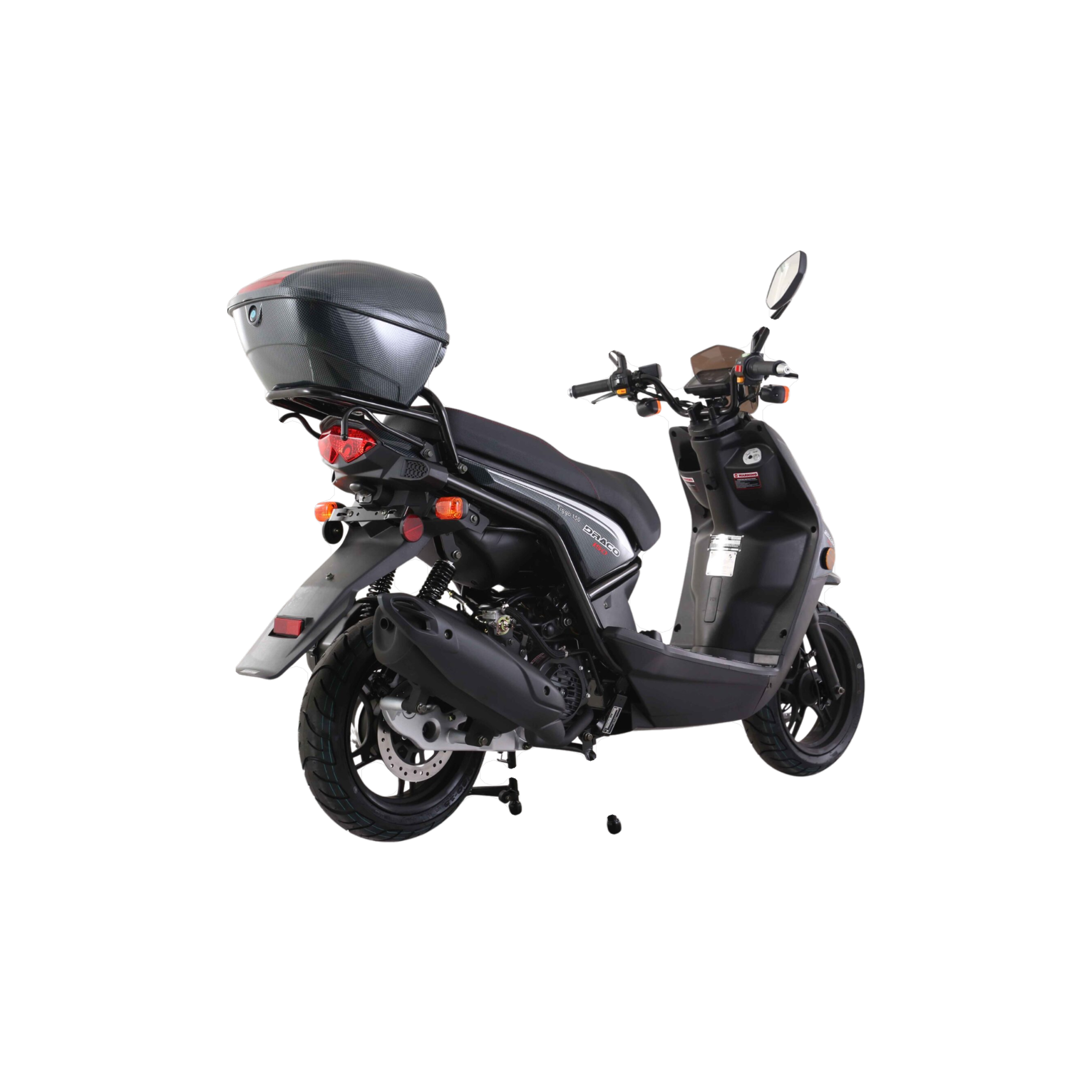

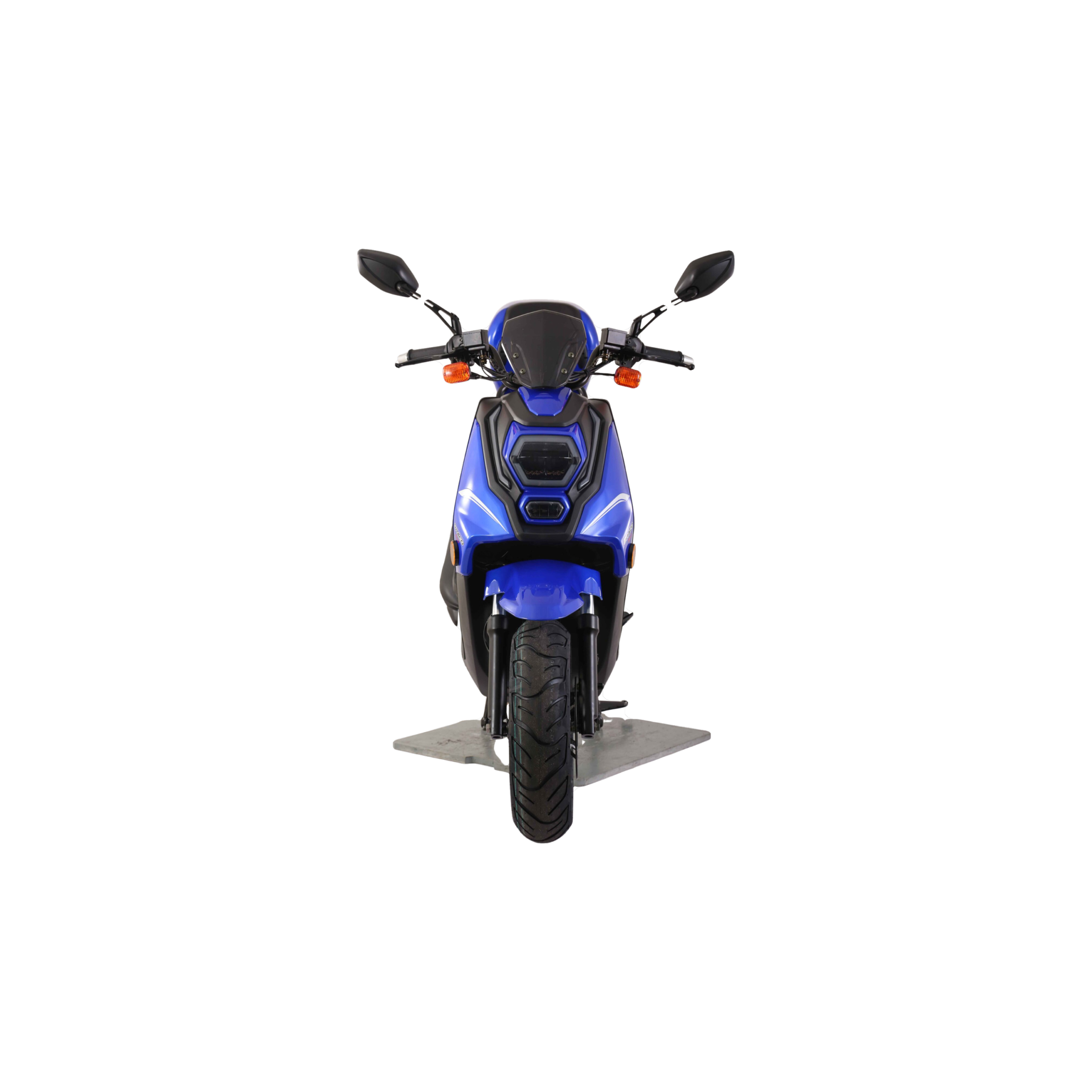

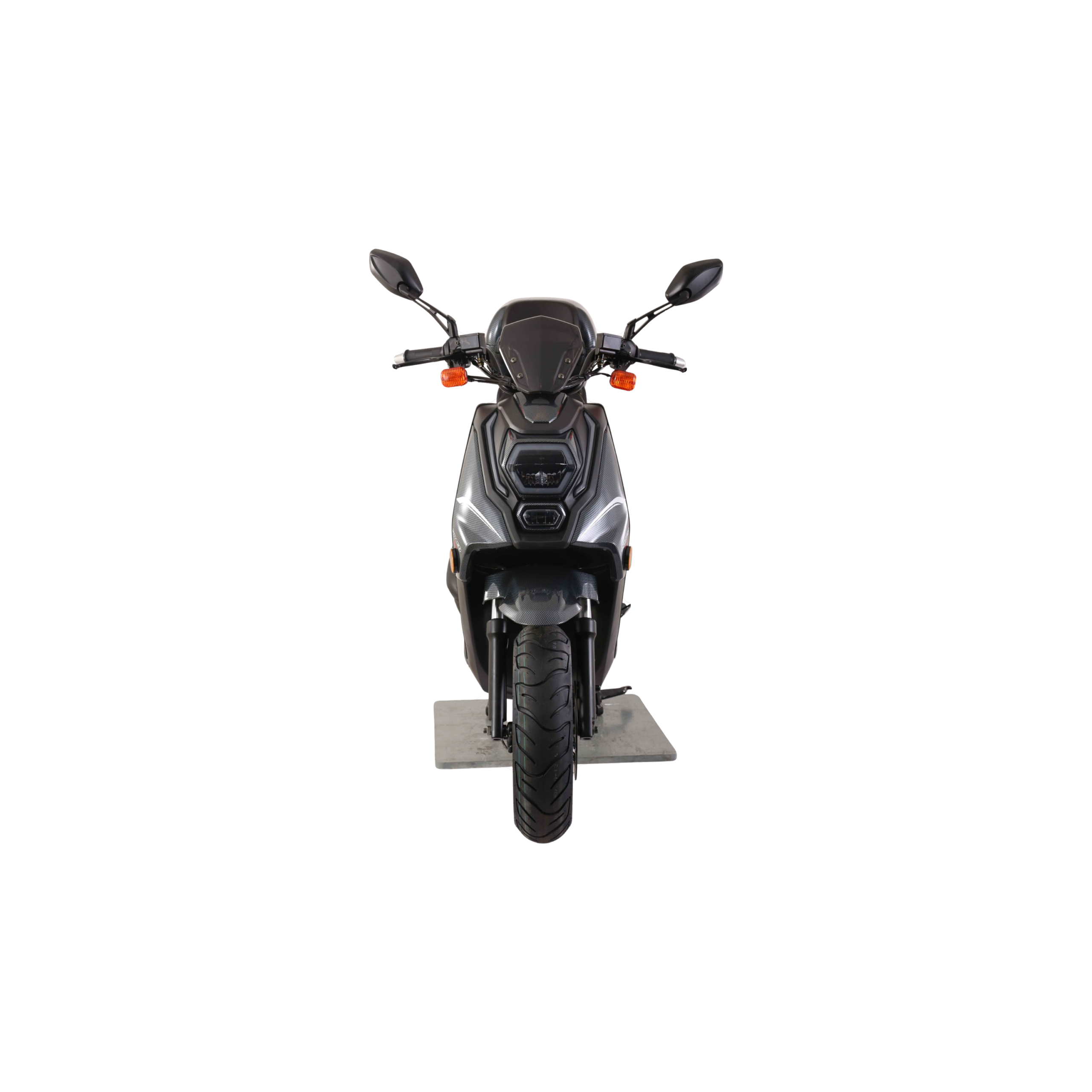

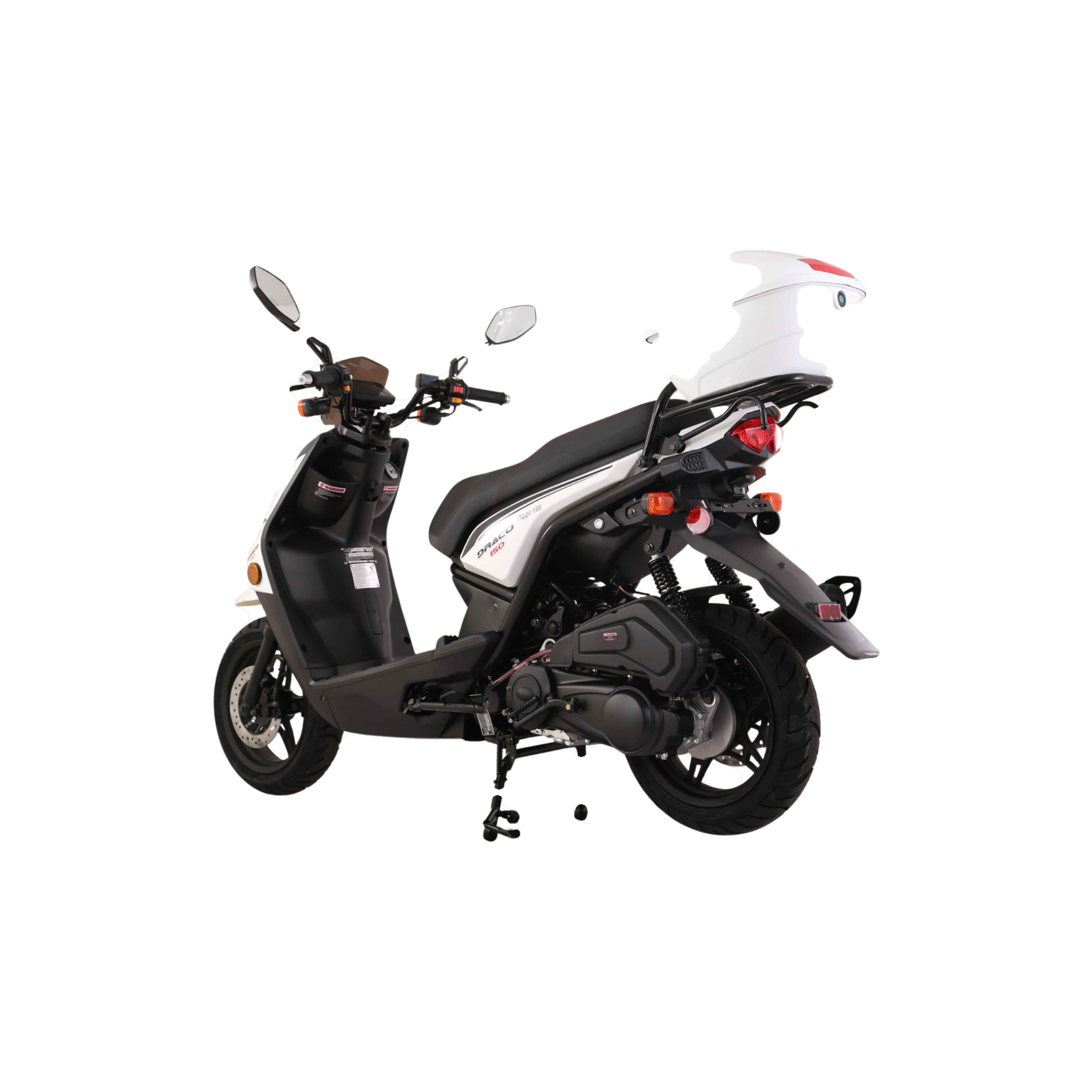

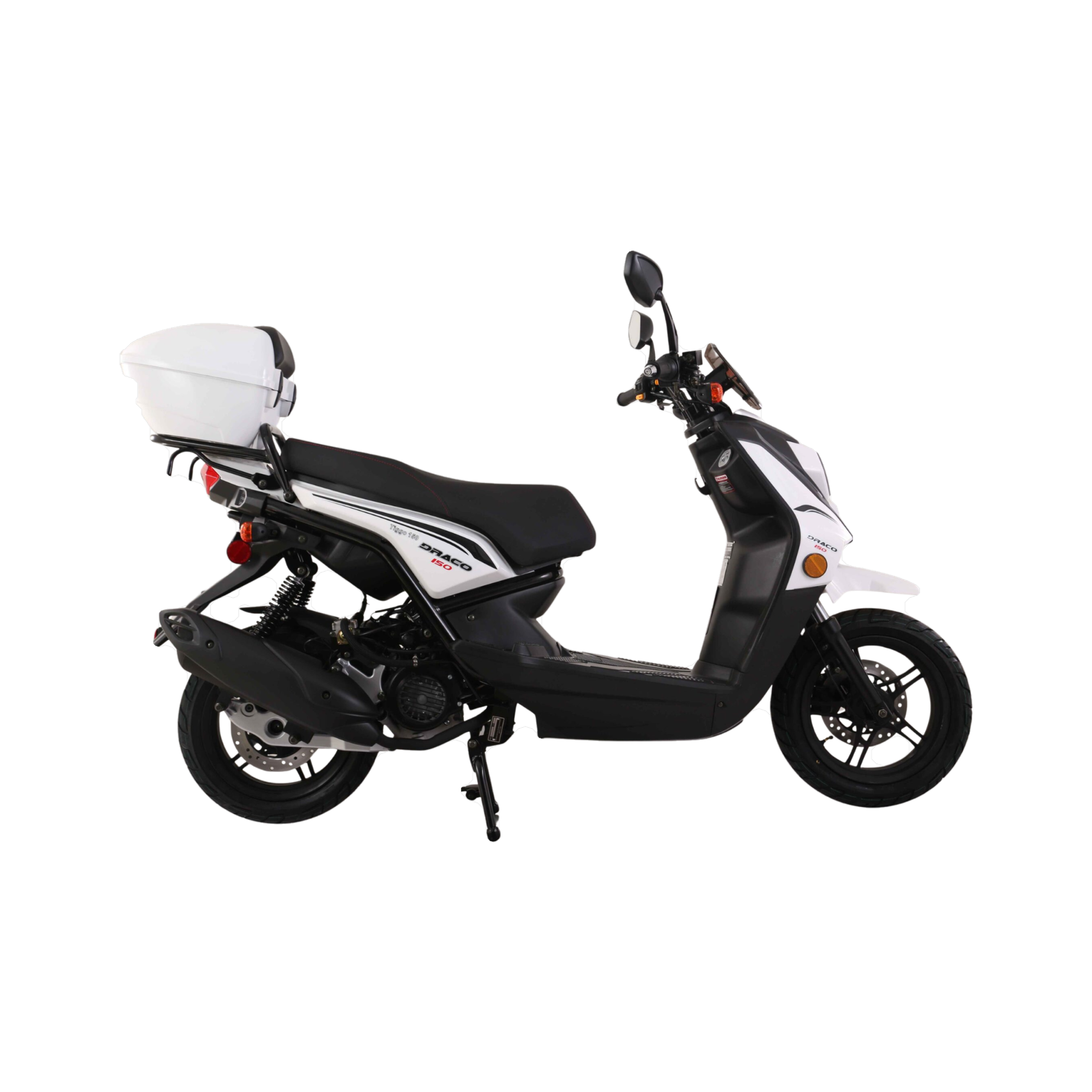

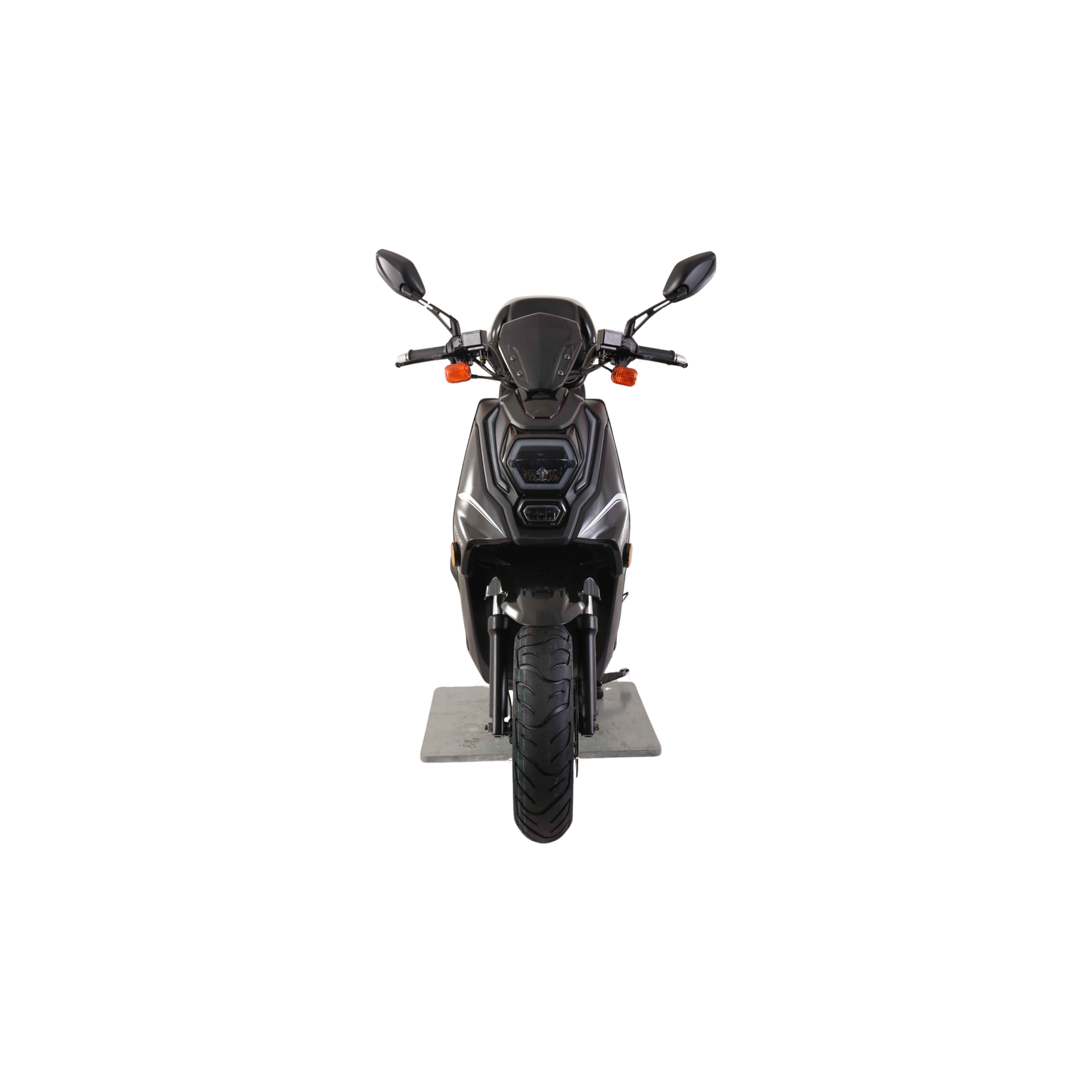

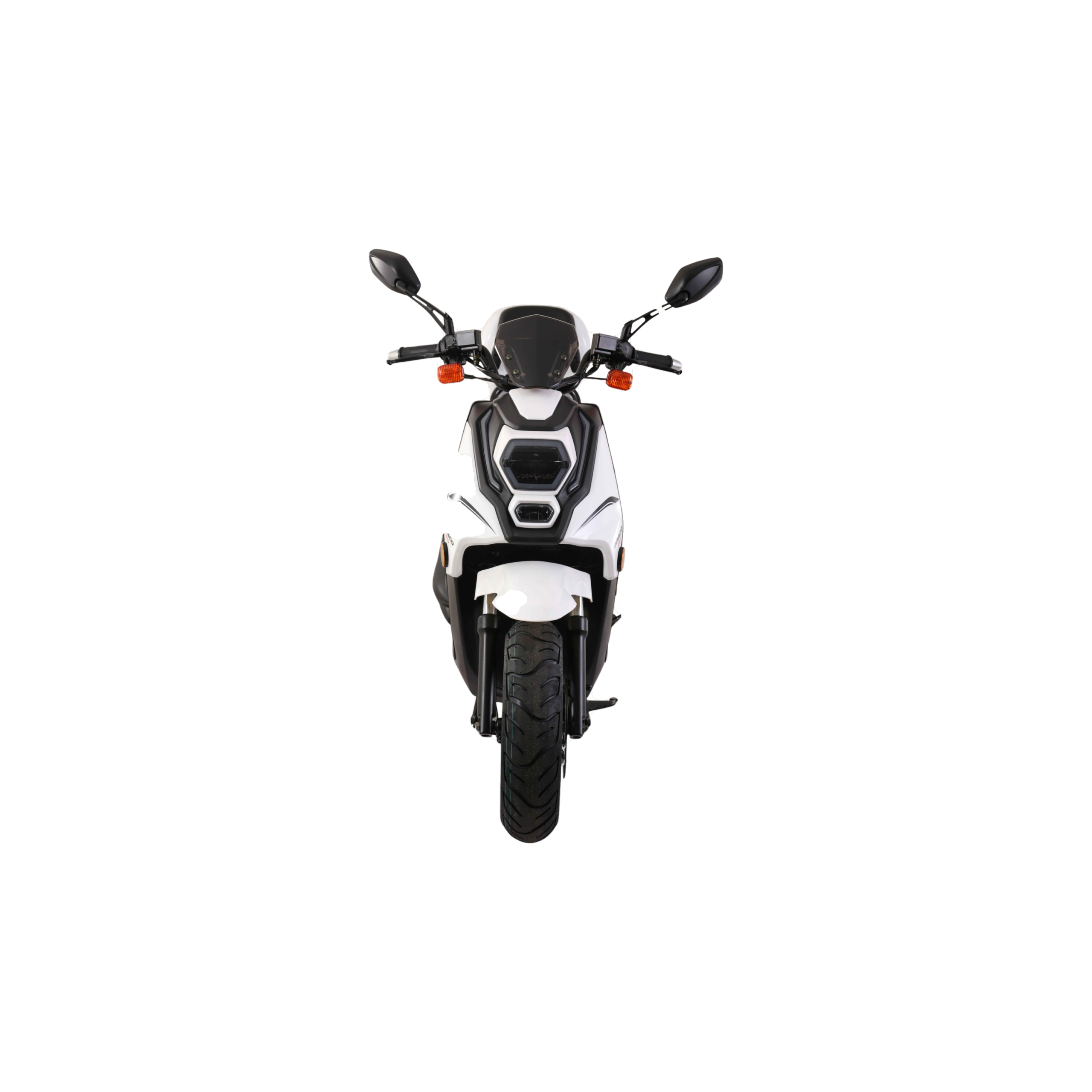

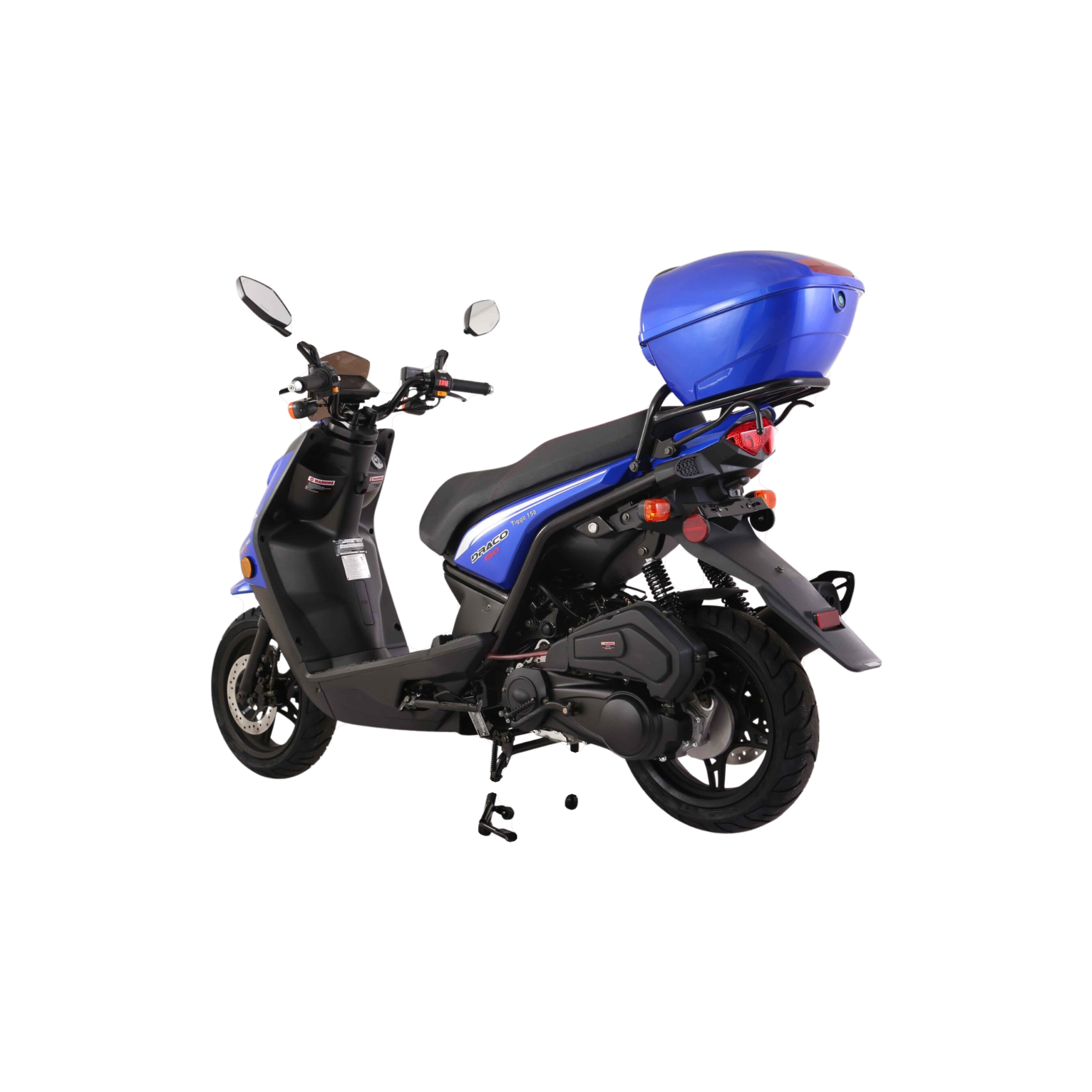

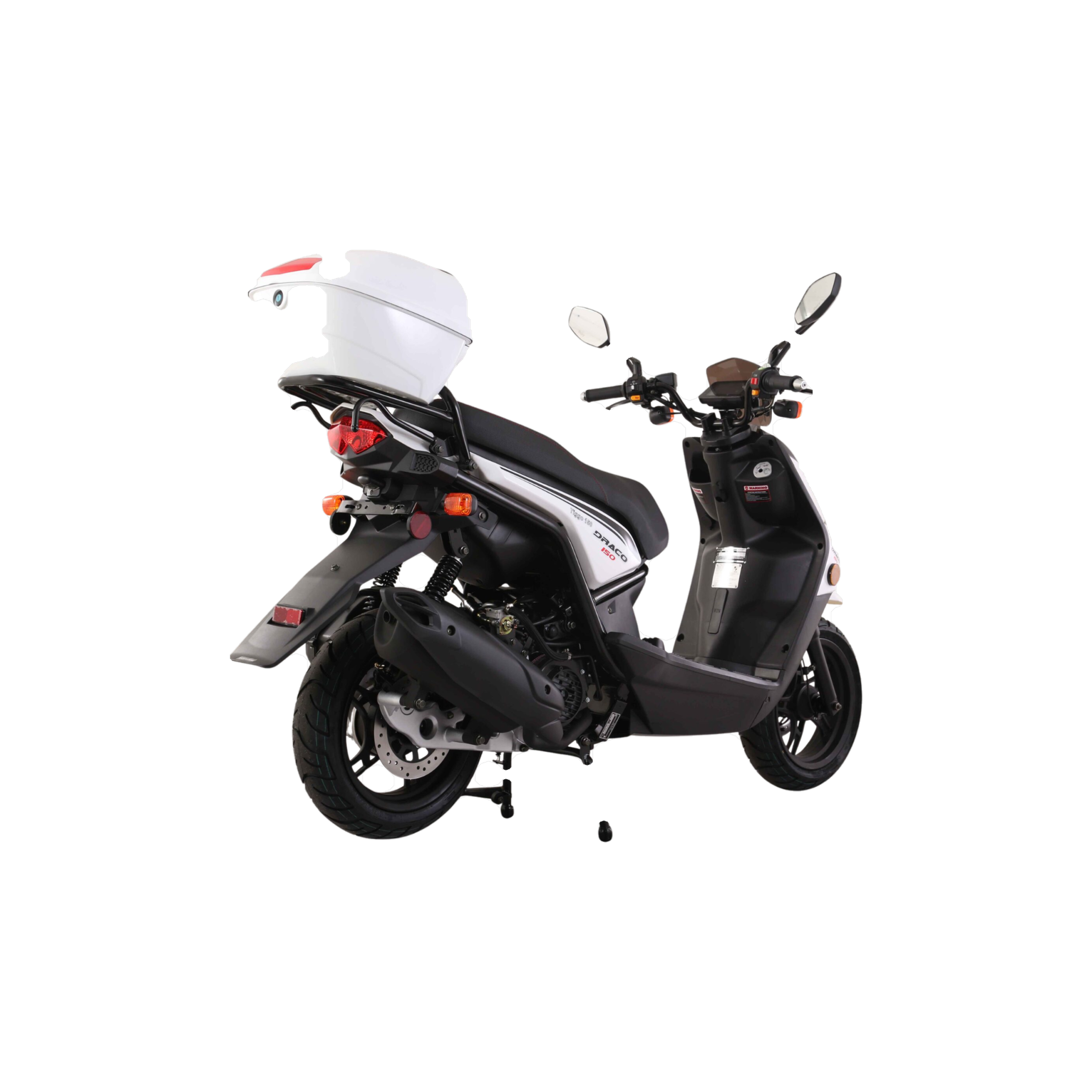

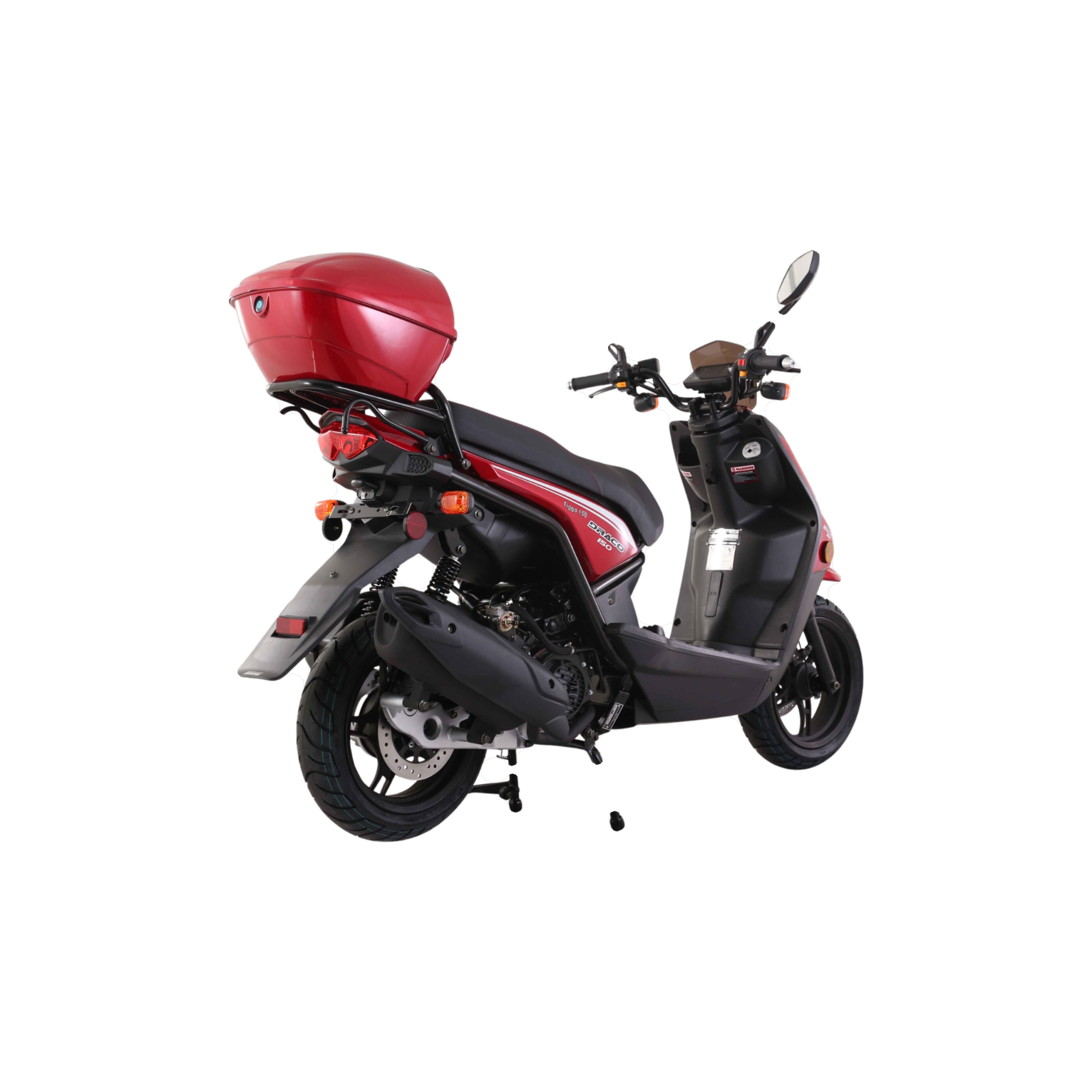

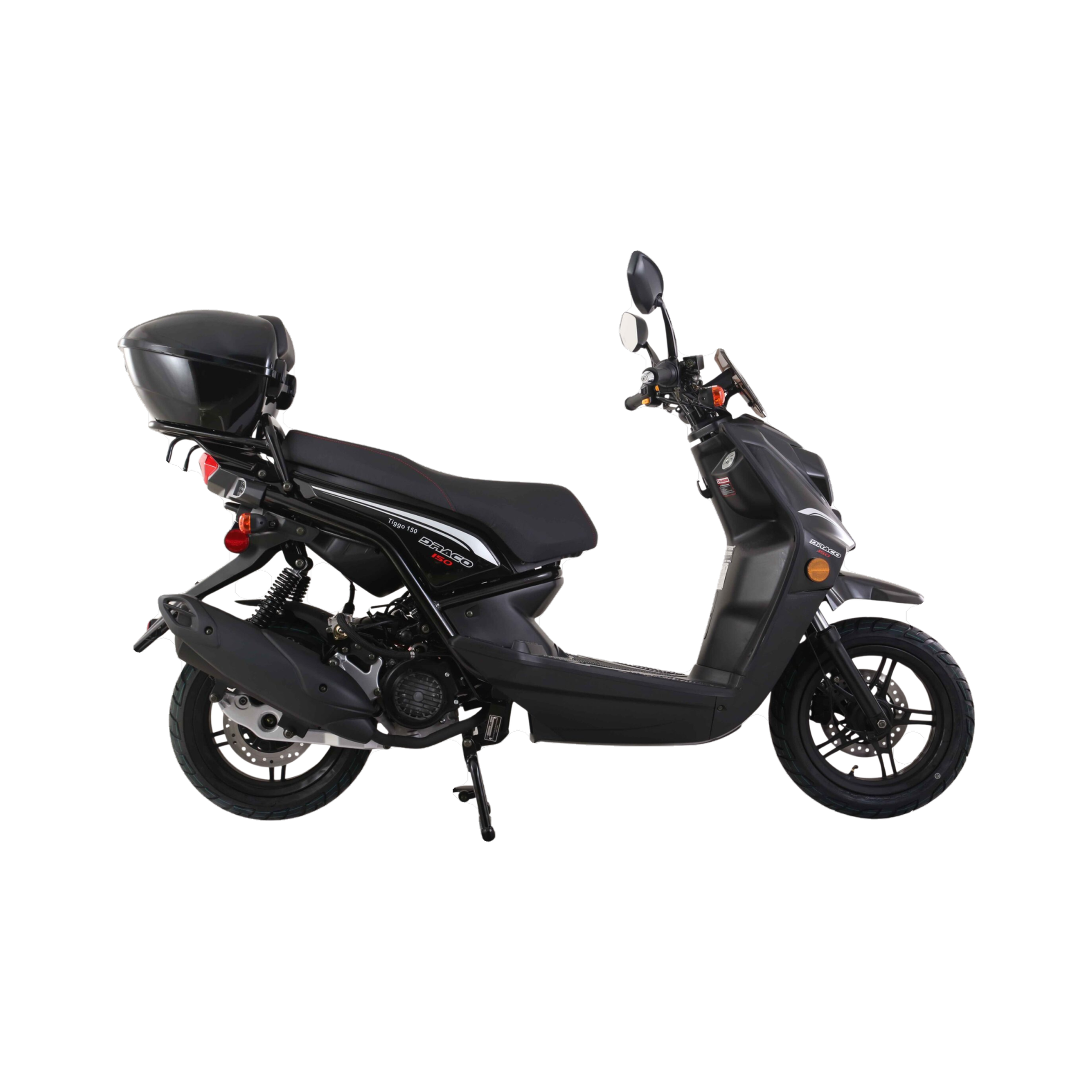

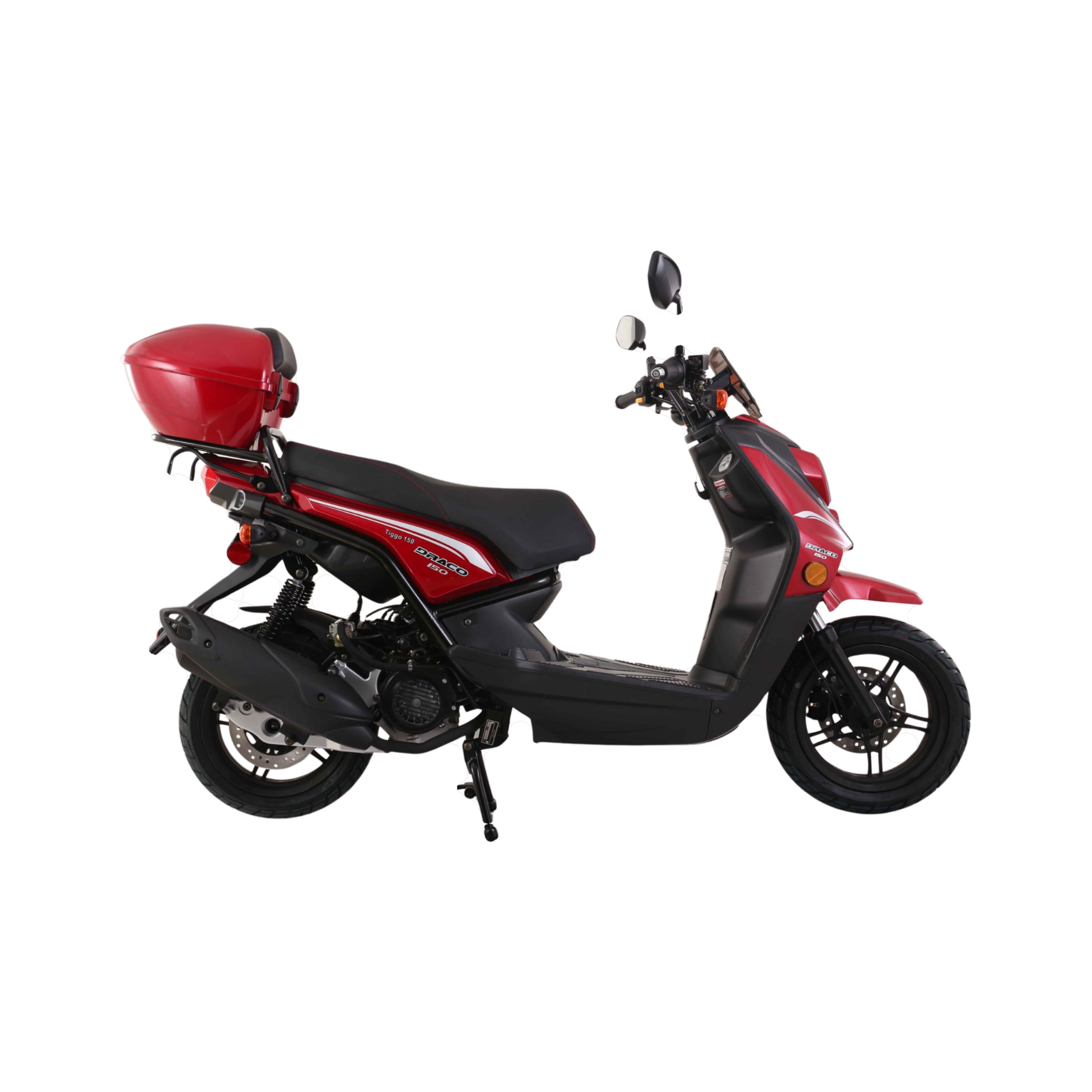

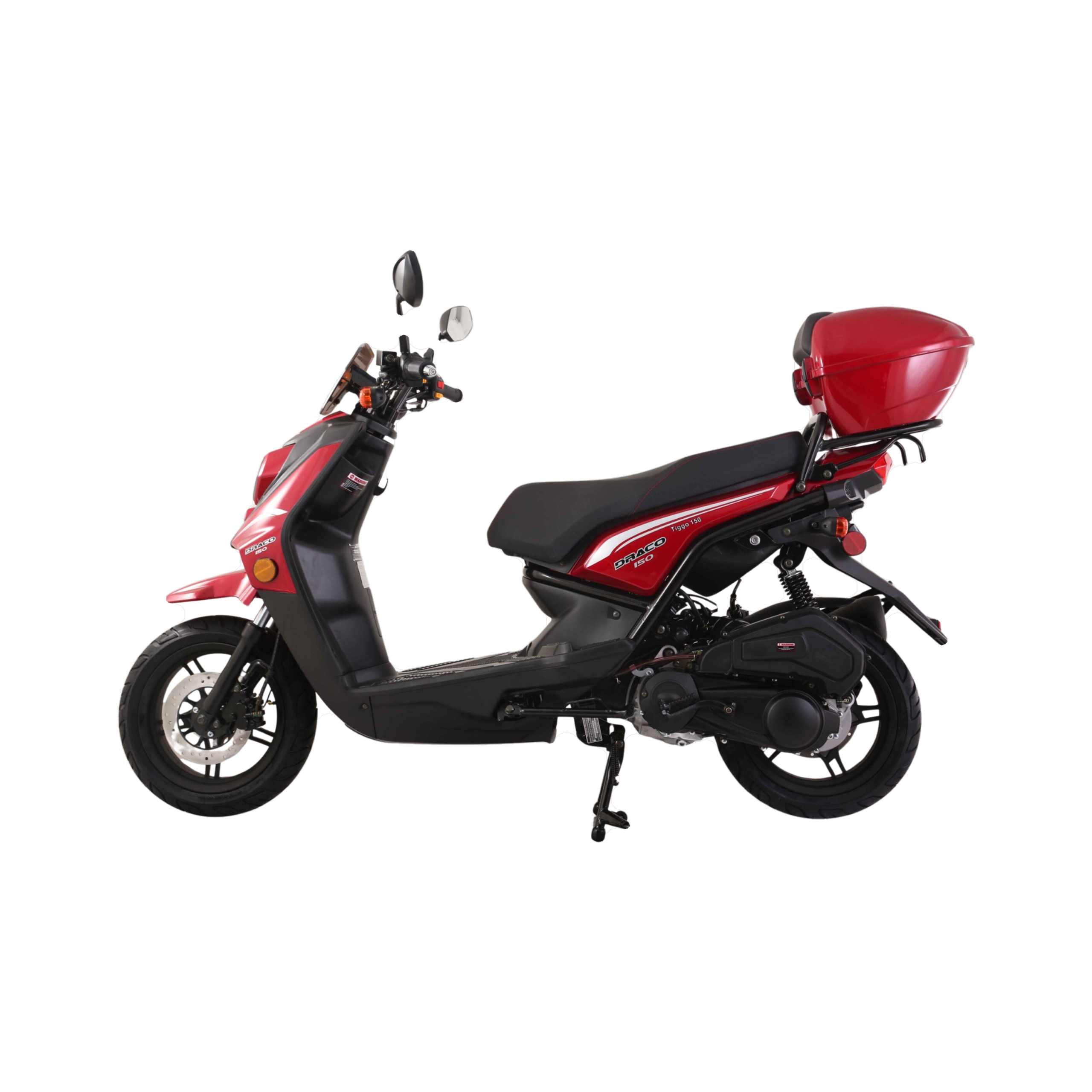

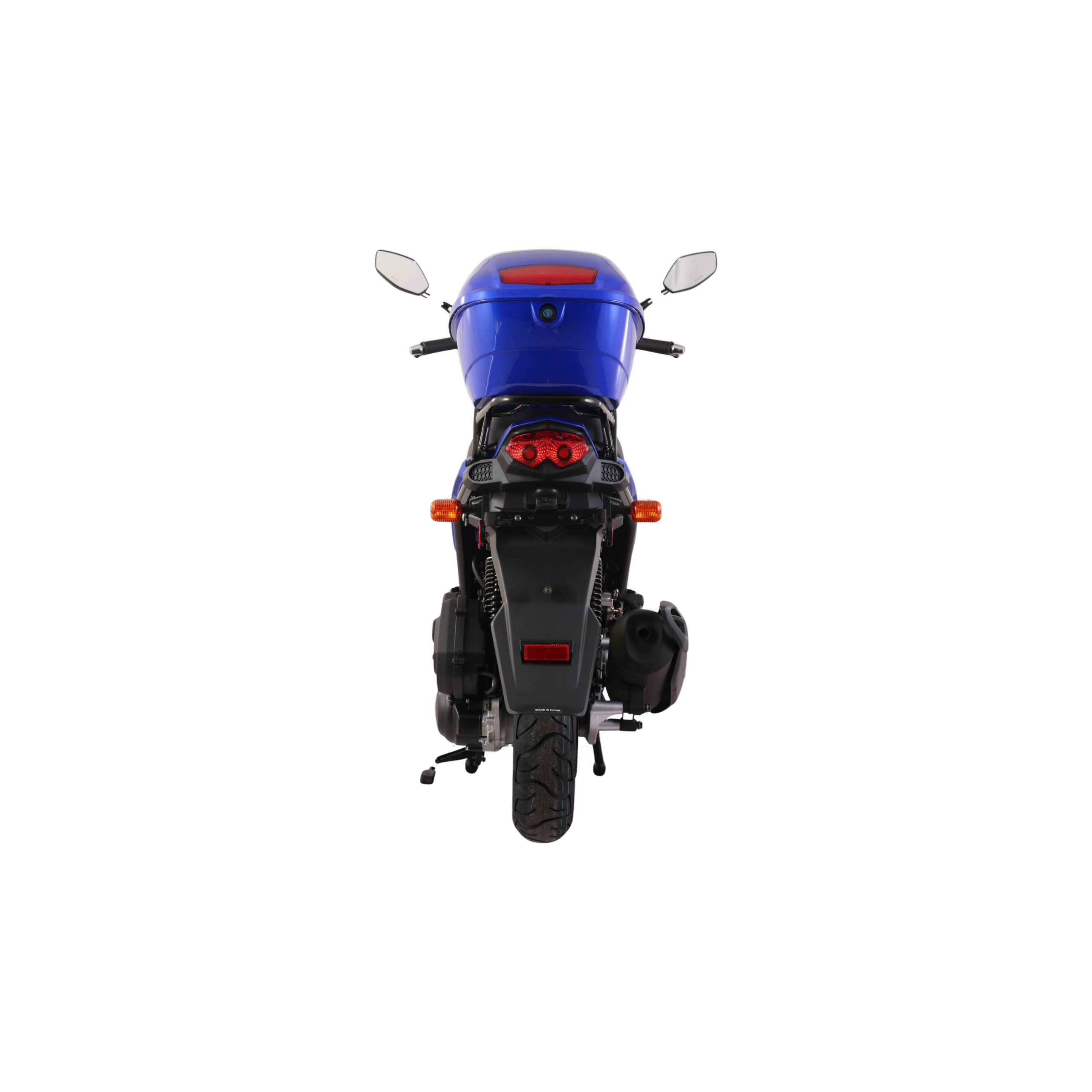

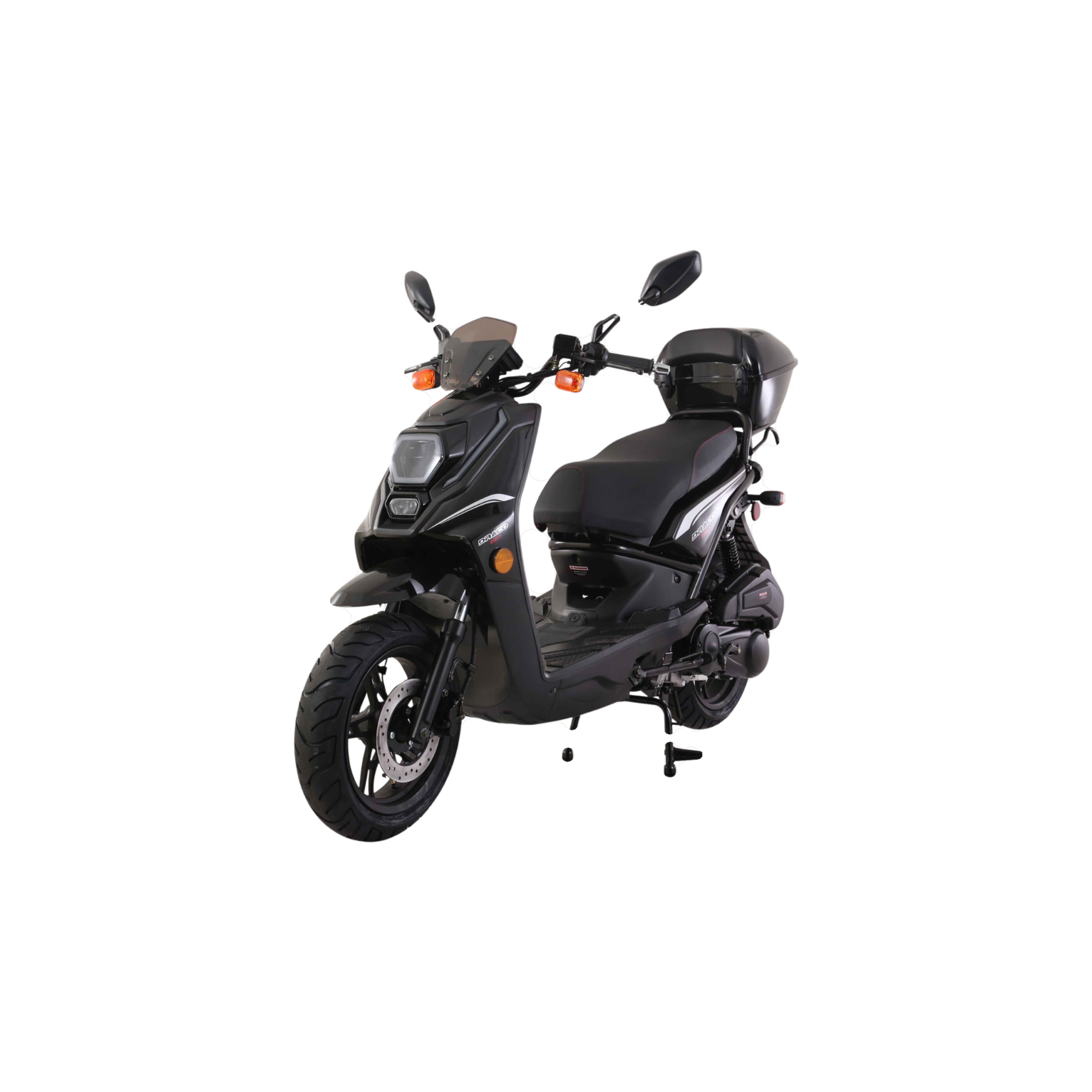

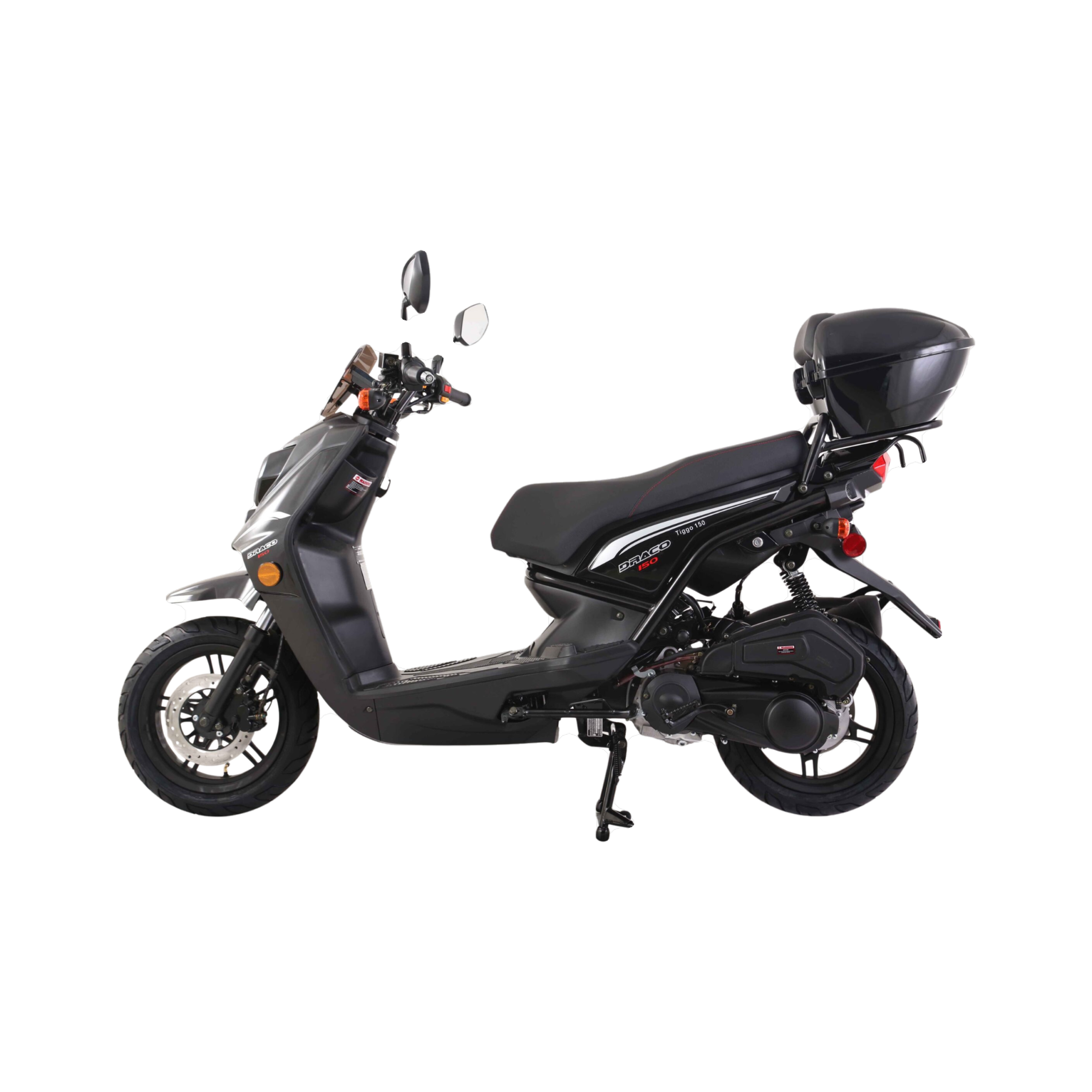

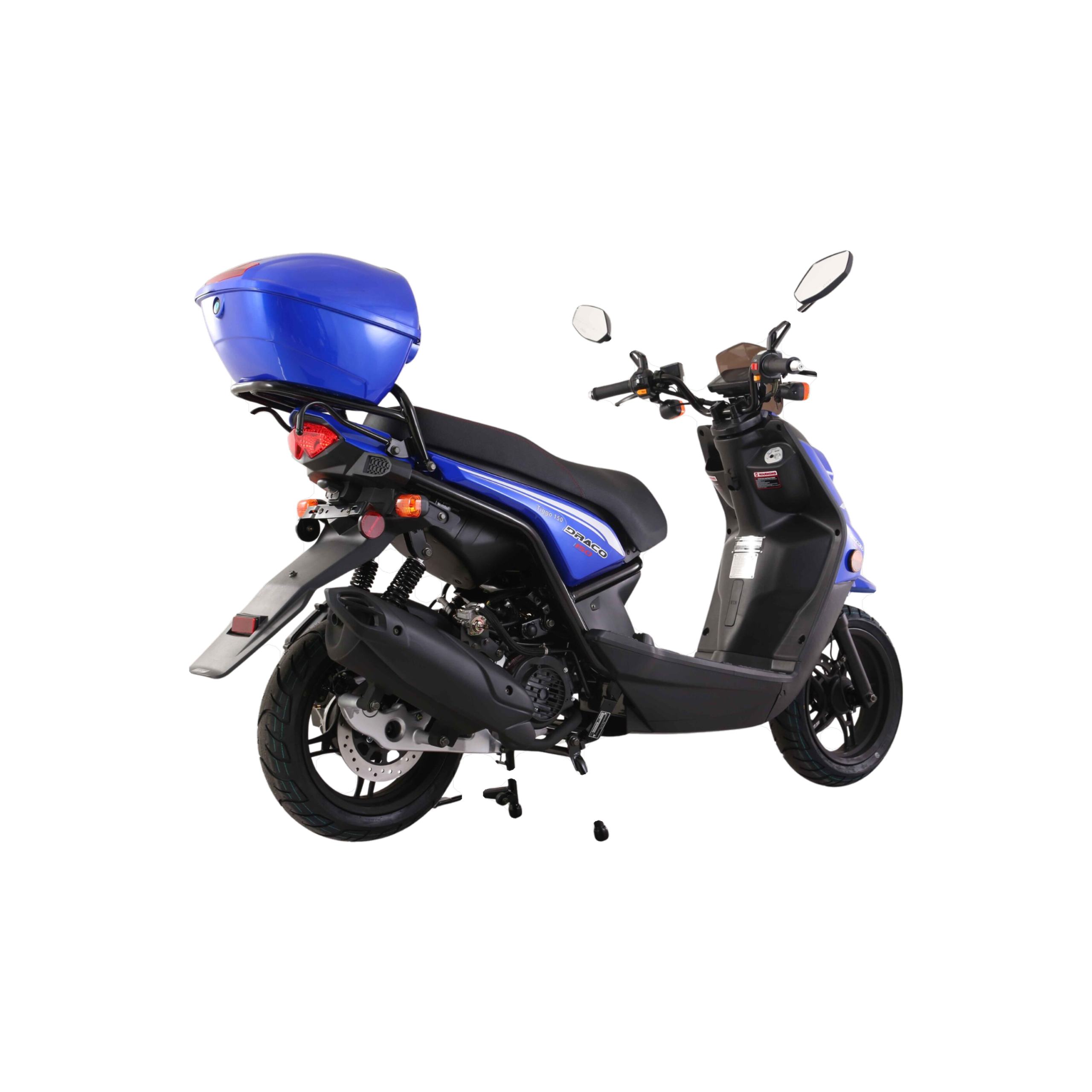

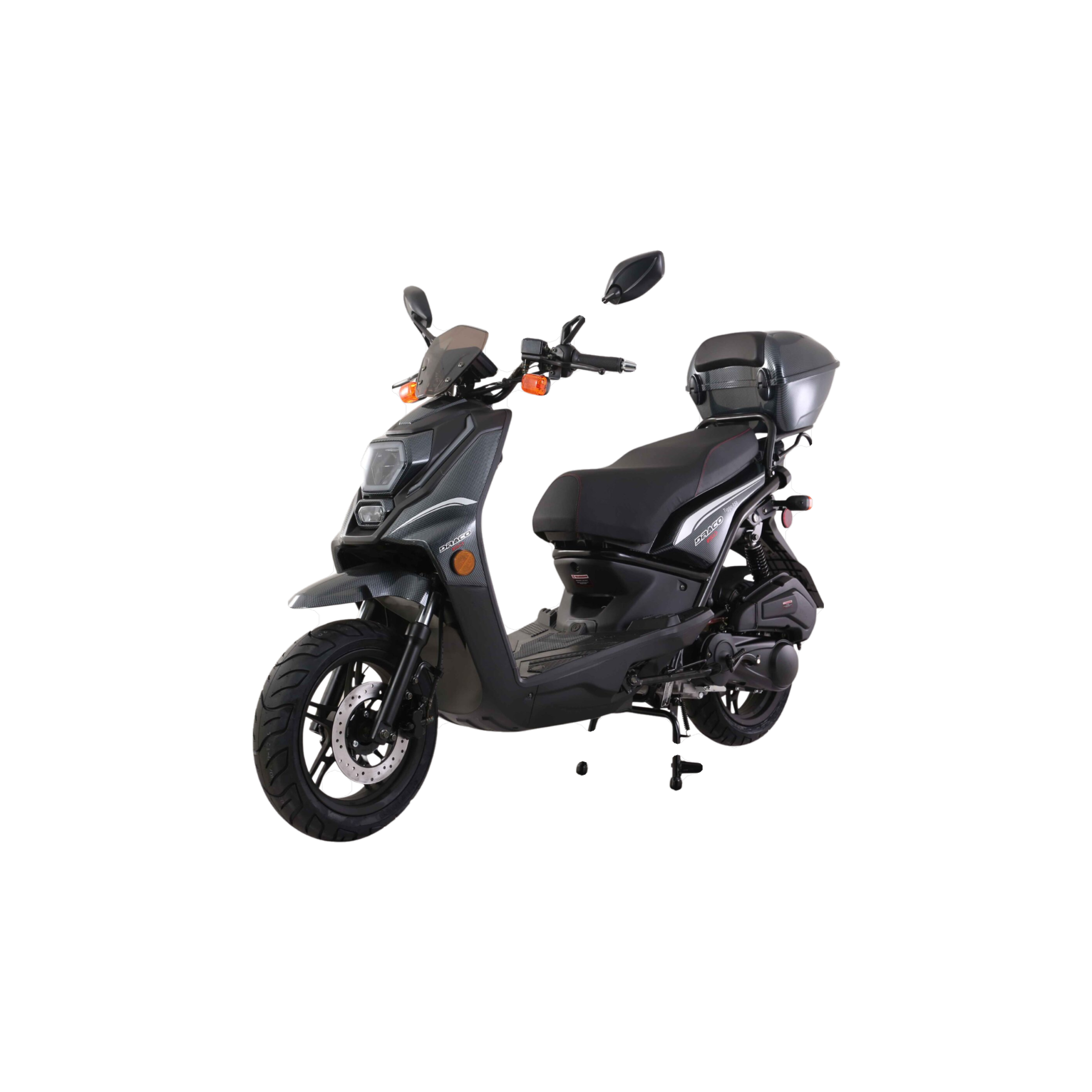

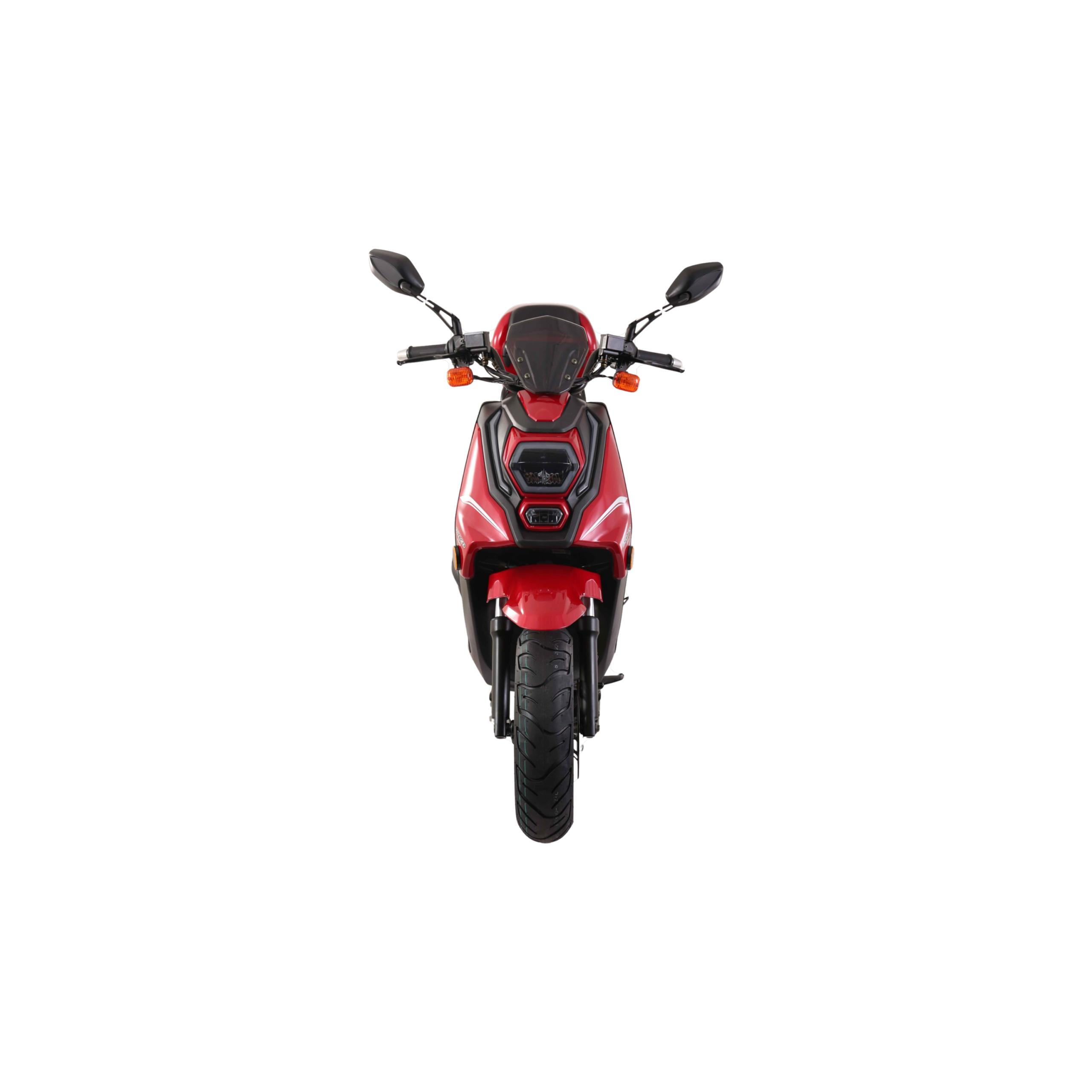

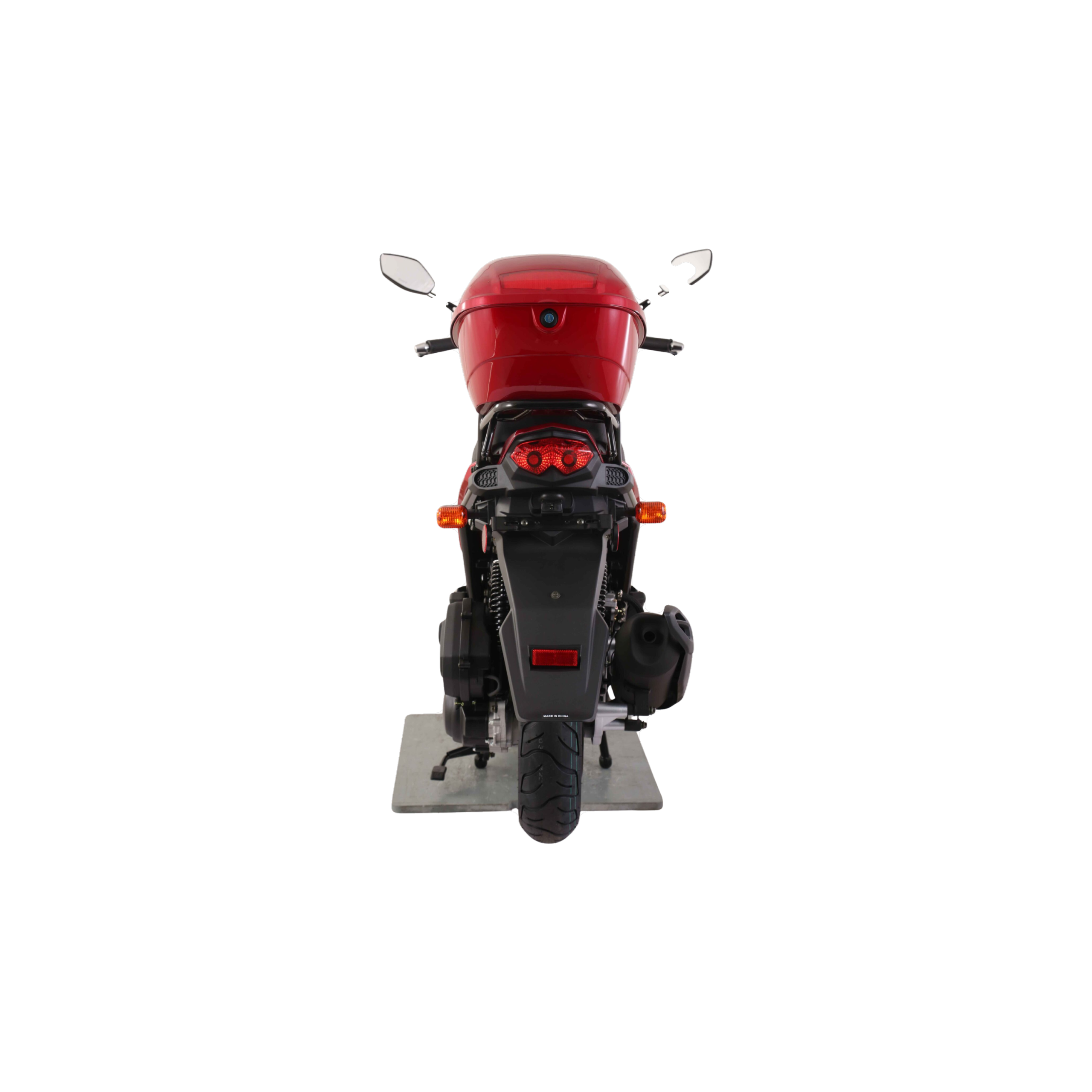

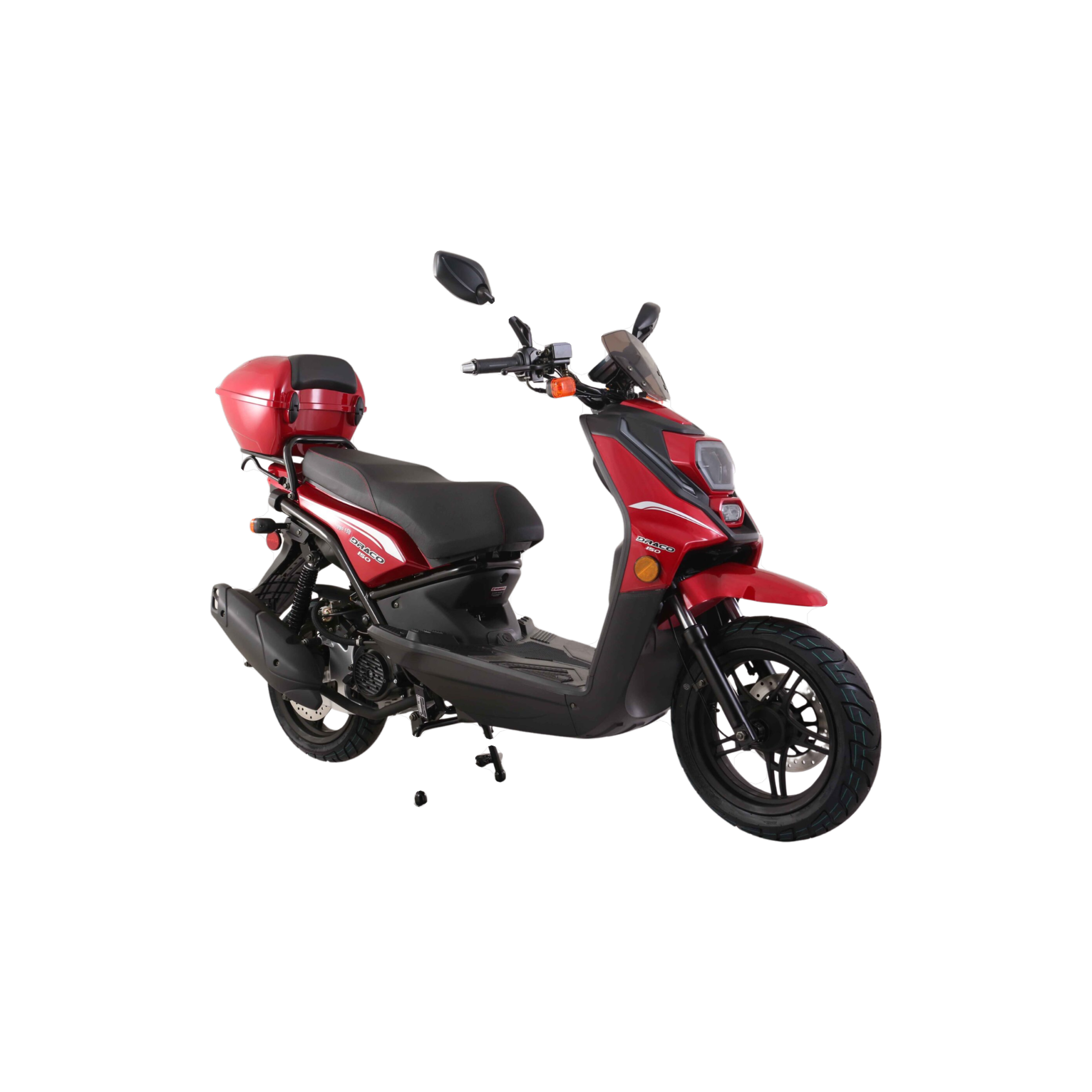

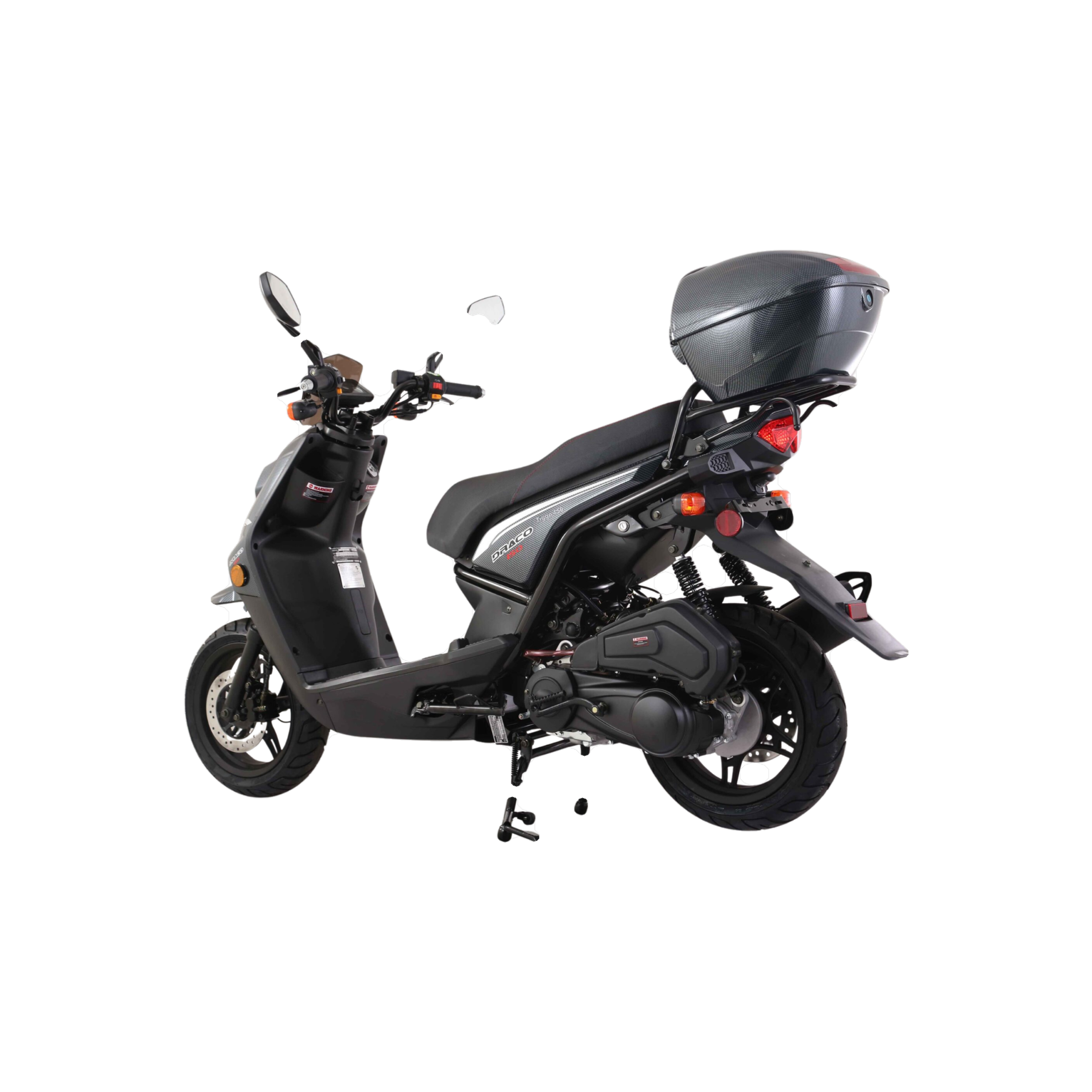

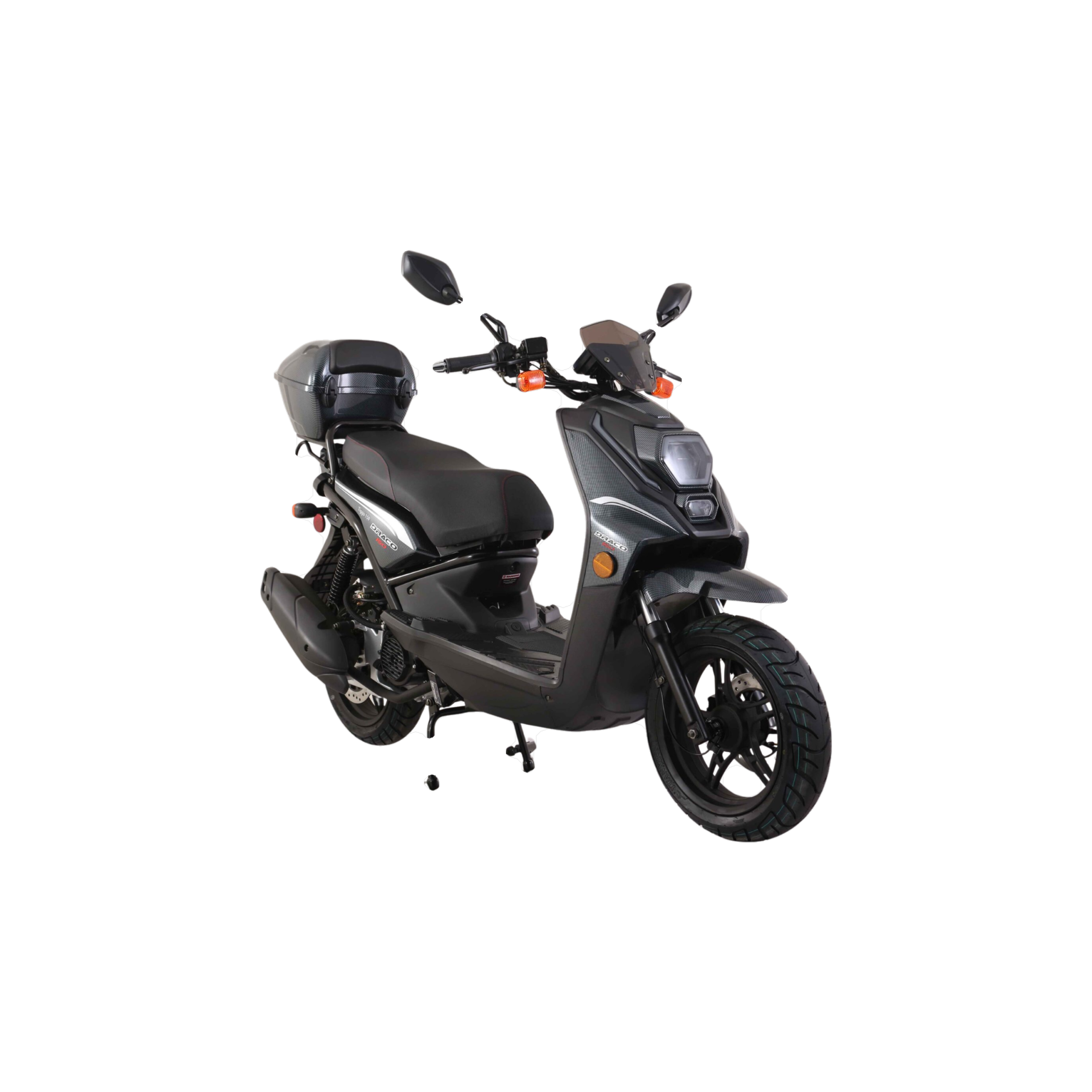

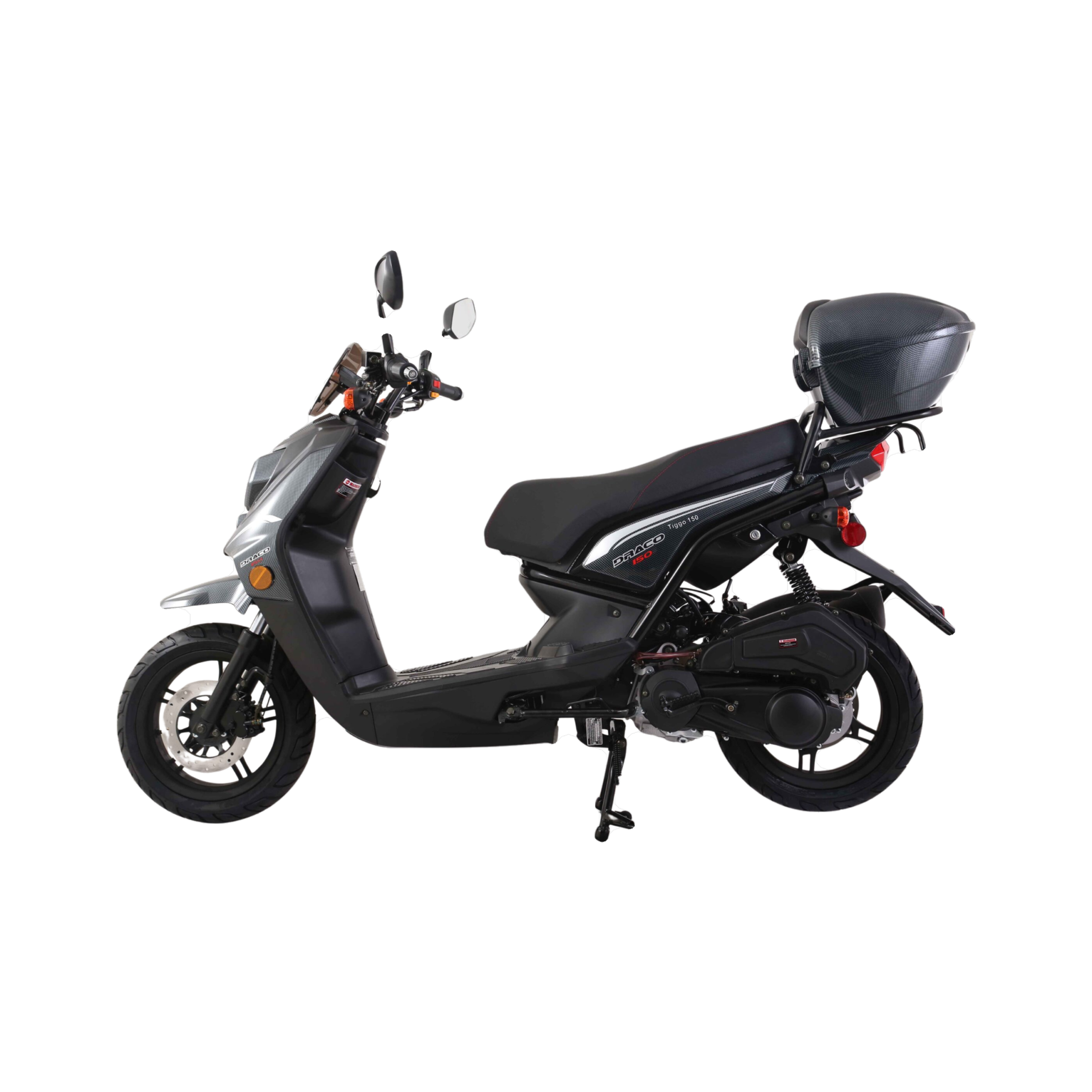

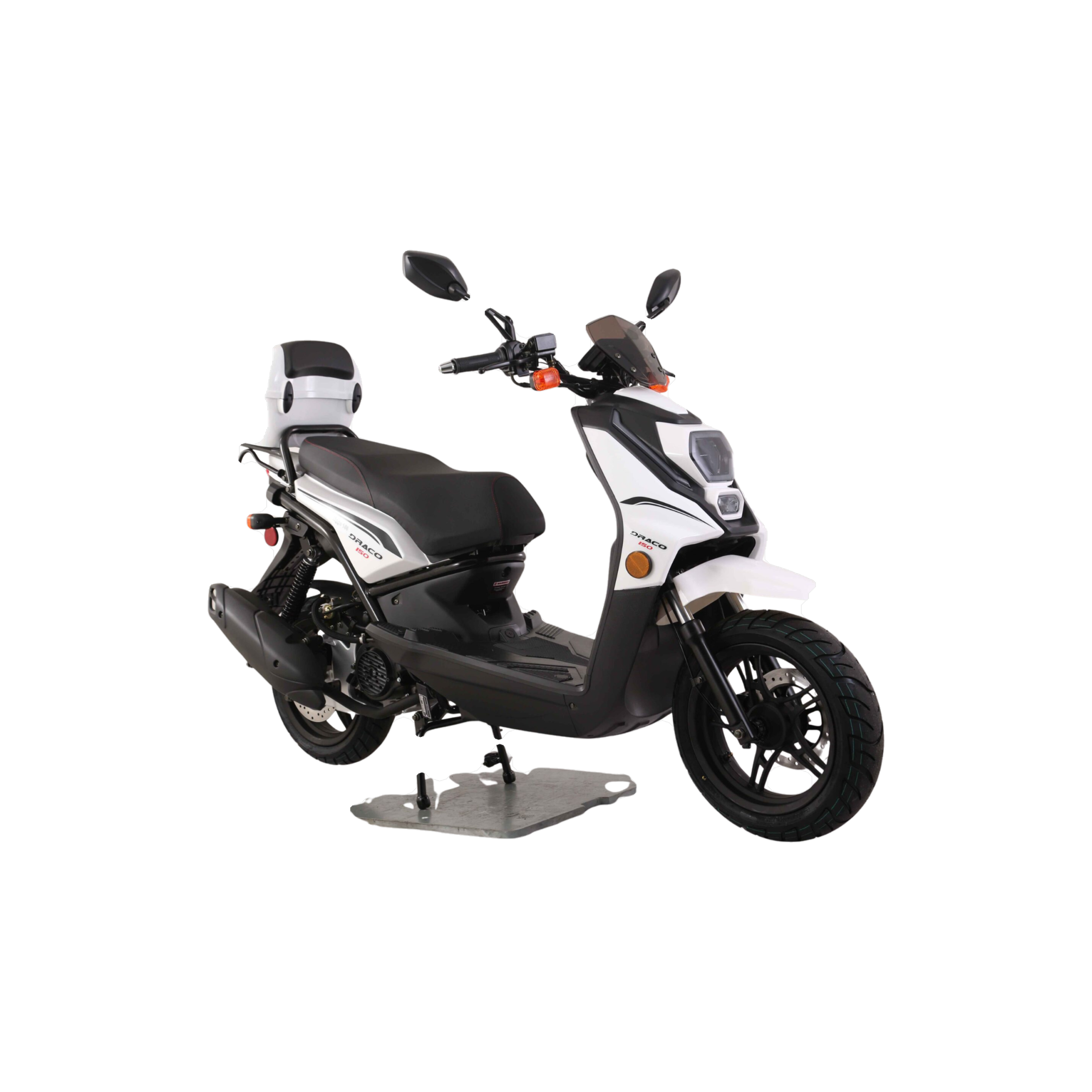

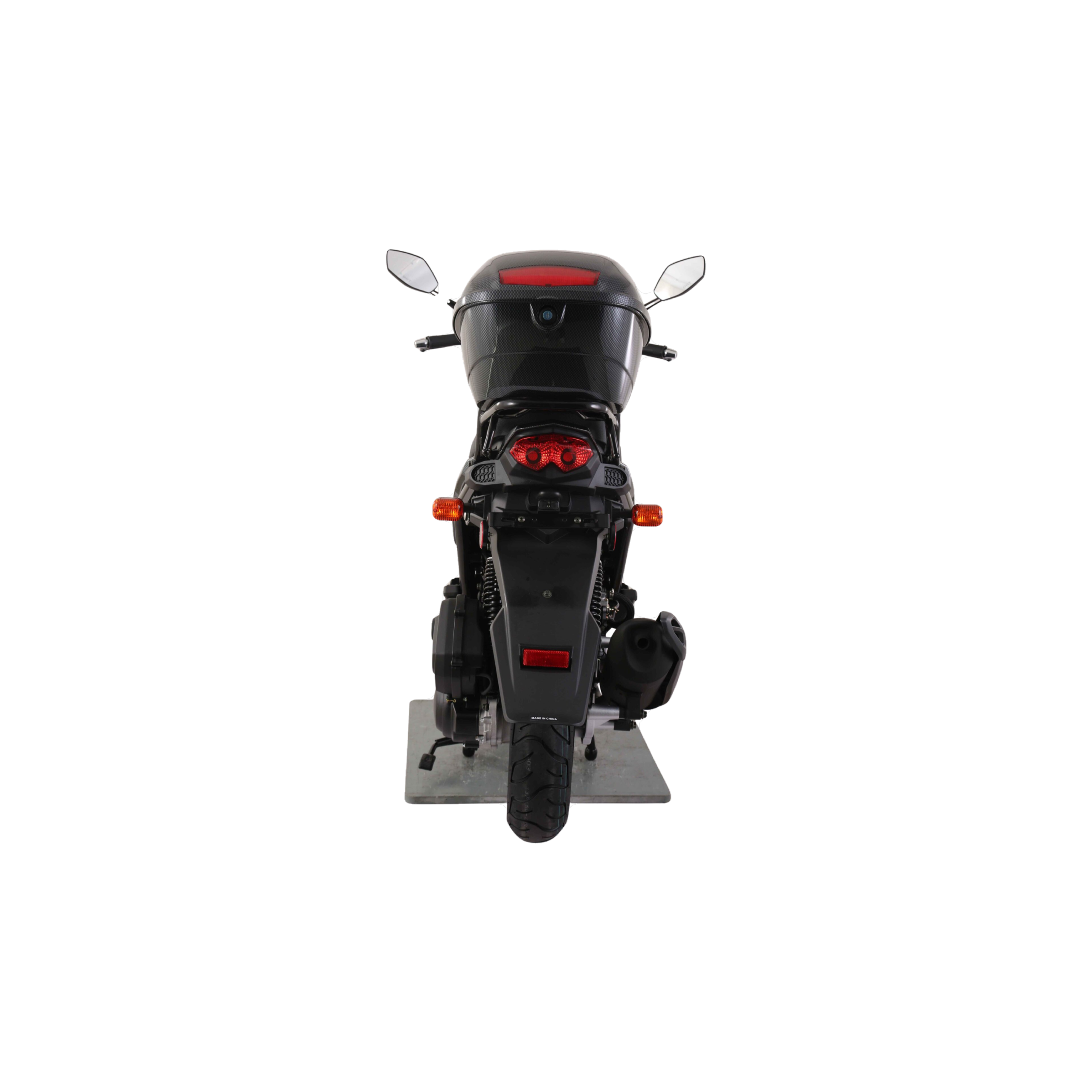

| Specifications | DRACO 150 |
| Engine type | Single cylinder, 4 stroke, air-cooled |
| Engine displacement (cc) | 149.6cc |
| Compression ratio: | 9.2:1 |
| Cylinder Diameter: | 57.4mm |
| Piston stroke: | 57.8mm |
| Max power kw/(r/min) | 7.6kw/7500r/min |
| Max torque N.m/(r/min) | 10.1Nm/6000r/min |
| Rpm: | 1700 |
| Transmission: | CVT |
| Ignition method: | Carburetor |
| Tyres size | 130/60-13 |
| Wheel | Aliminium rims |
| Battery | LIYANG GEL 7A |
| Front brake | Disk |
| Rear brake | Disk |
| Transmission | CVT |
| Dimensions (LxWxH) mm | 1935*705*1125 |
| Wheel base mm | 1335 |
| Fuel tank capacity L | 5.5L |
| Suspension/Front: | Telescopic |
| Suspension/Rear: | Spring hydraulic |
| USB charger | YES |
| Rear box | YES |
