6+
48V 25AH 8C High rate lithium battery
Limited Warranty
Top Speed
(CVT) Transmission

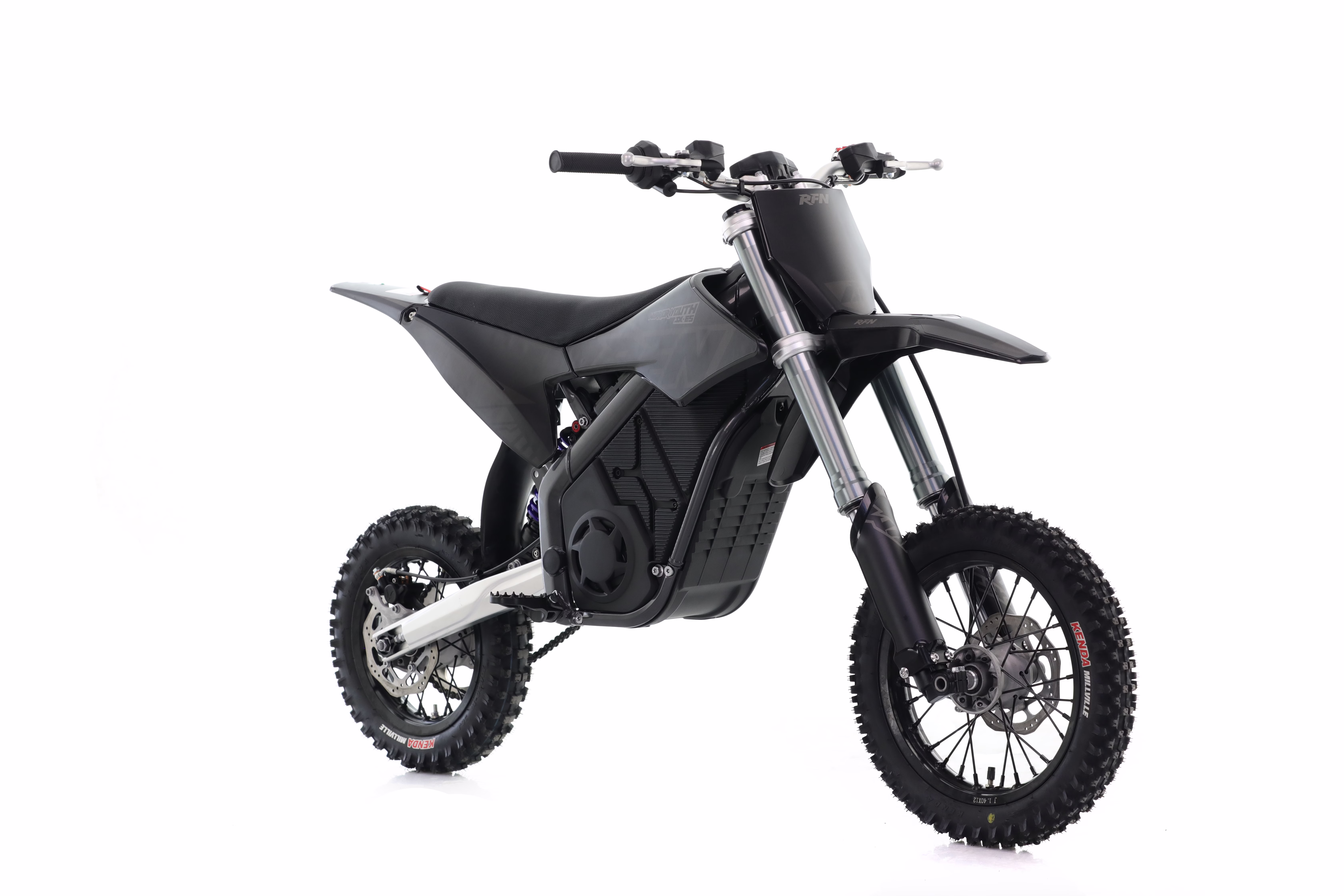

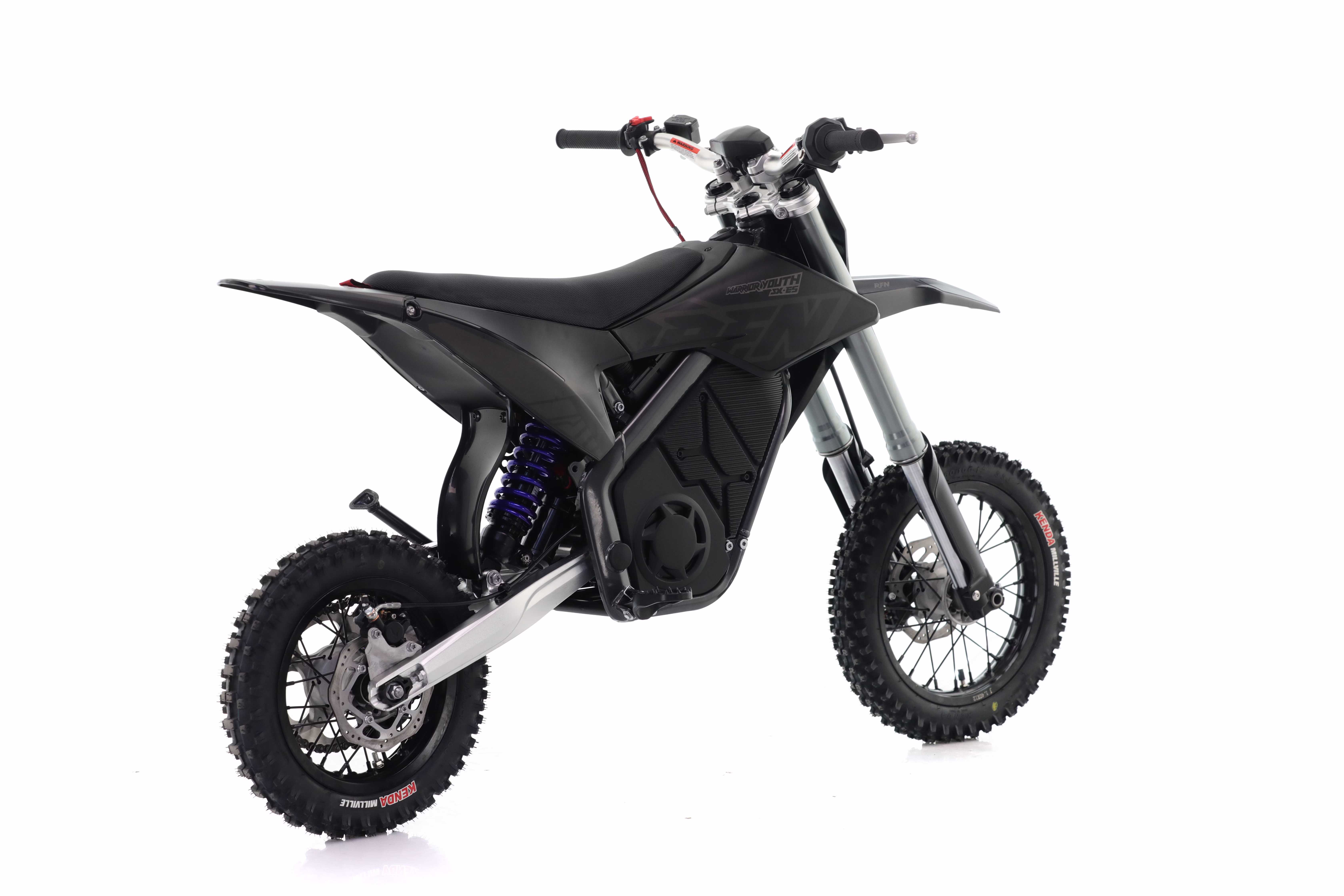

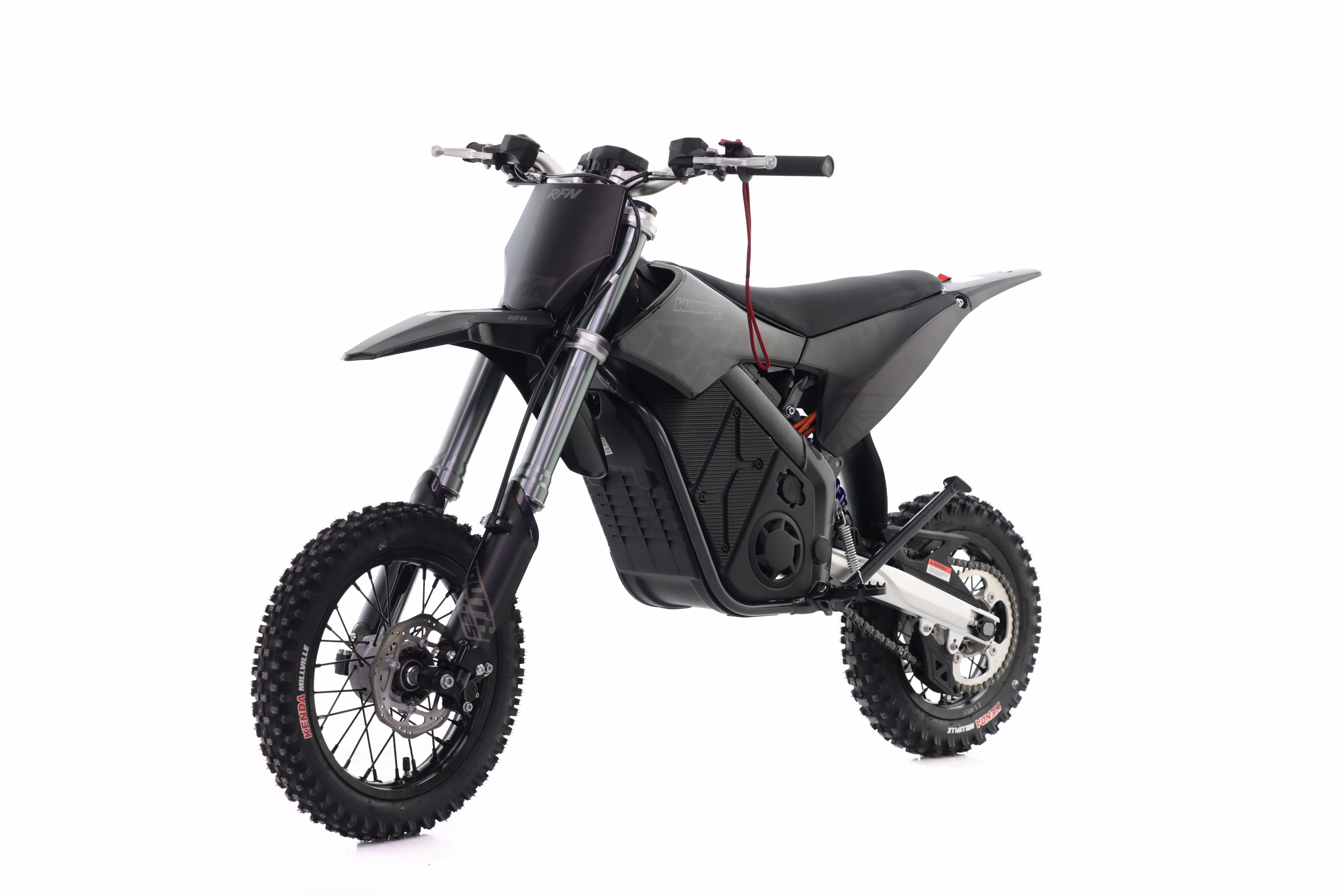

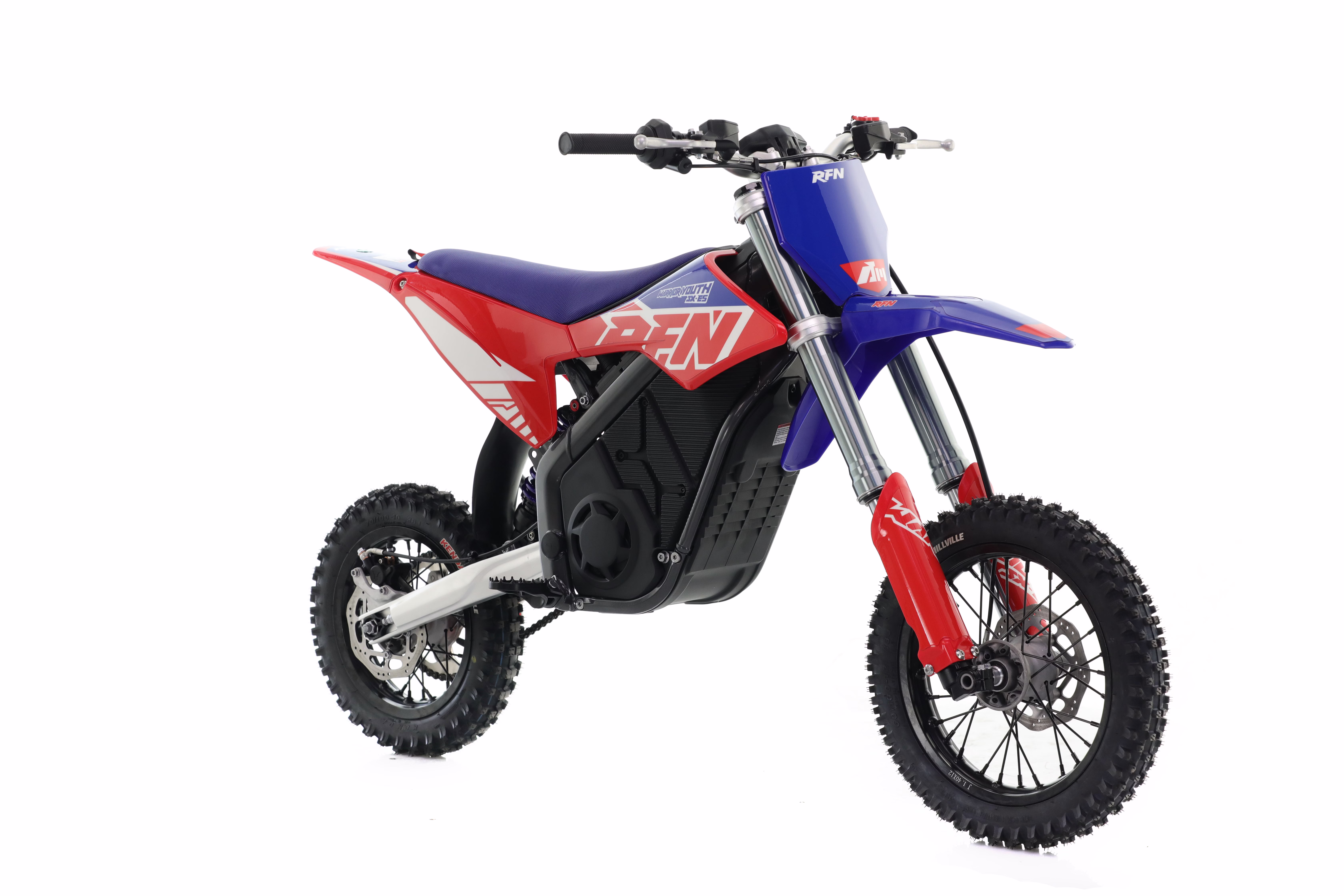

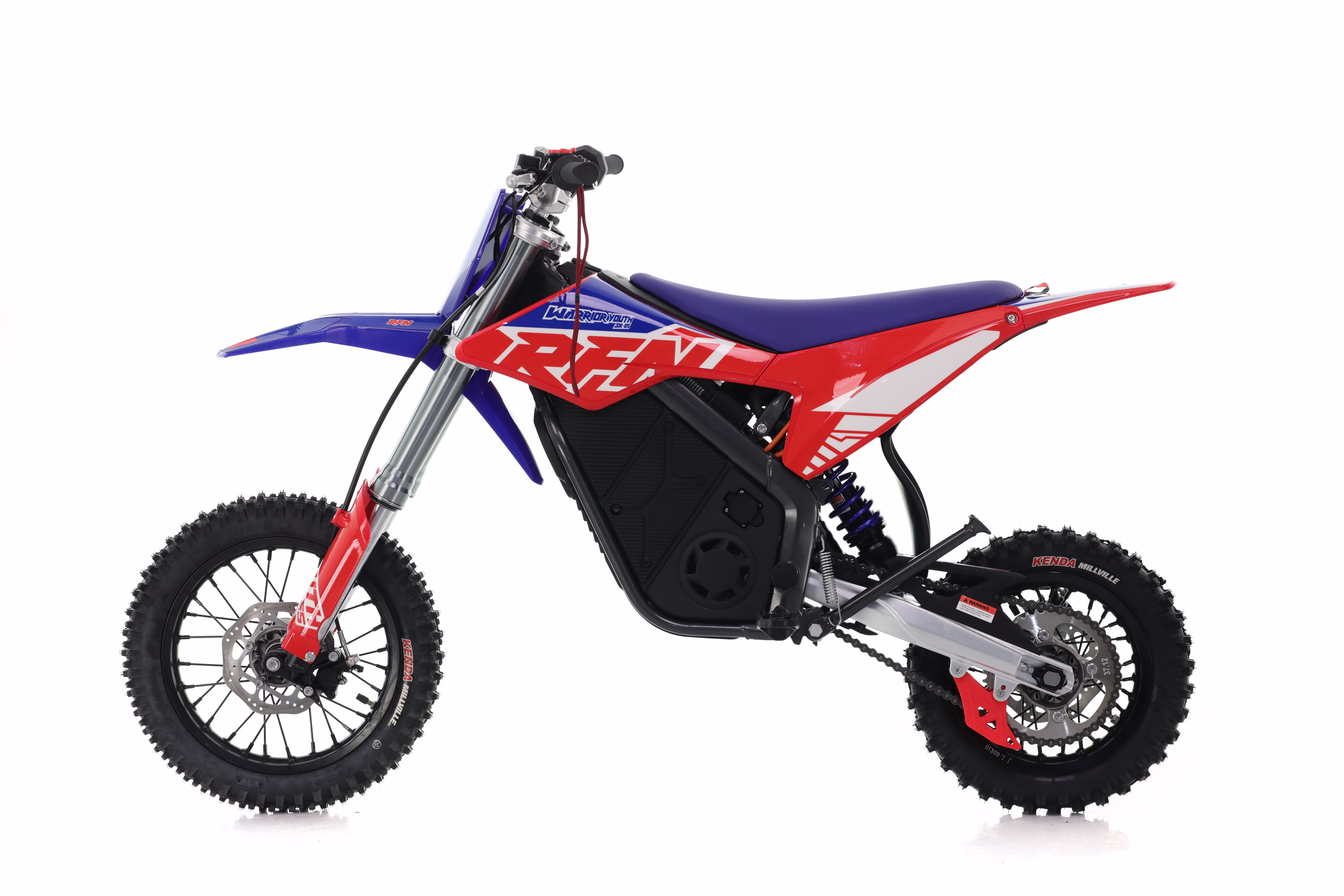

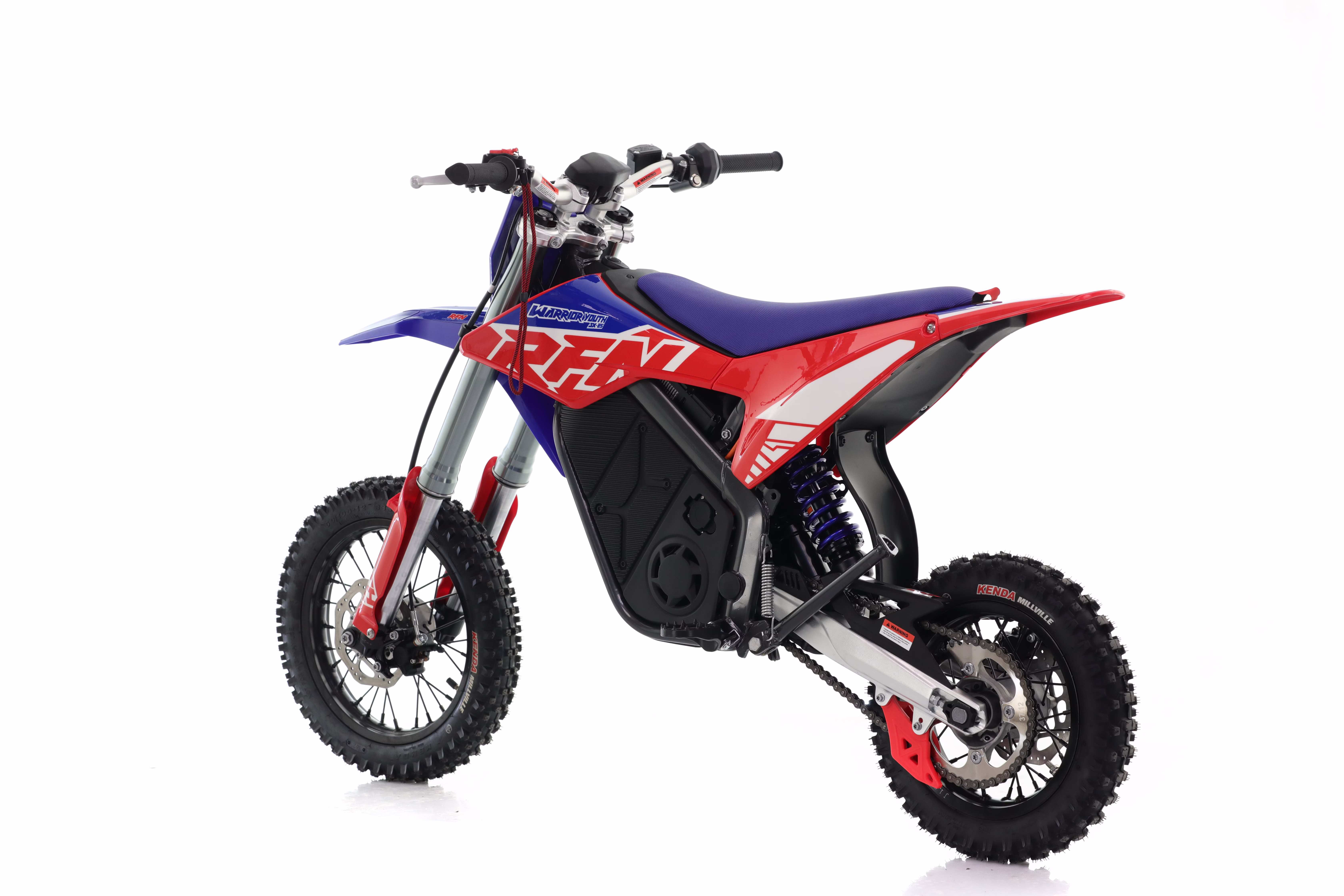

| Model Code | SX-E5 |
| Age of Use | 6-8 years old |
| Height | 120-140cm |
| Battery | 48V 25AH 8C High rate lithium battery |
| Battery weight | 7.8 Kg |
| Motor | 48V 2Kw MAX 5Kw |
| Motor weight | 7.5 Kg |
| Range | 30km(35km/h) |
| Charge | DC:54.6V 4.5A@6H |
| Charge weight | 1 Kg |
| Meter | LED |
| APP | √ |
| Power off switch | √ |
| Peak HP | 6.80 |
| Motor torque | 45N.m |
| Gear ratio | 13:44 |
| Wheel torque | 145N.m |
| Top speed: | 60km/h |
| Seat height | 670-645-620mm |
| Wheelbase | 1040mm |
| Steering angle | 42° |
| Ground clearance | 215mm |
| Wheel diameter | F 60/100-12 R 70/100-10 |
| Front suspension | Φ35-690mm / 200mm |
| Rear suspension | 275mm / 180mm |
| Rear shock spring | 300 Lb |
| Handlebar | Φ28.5-22-19*660mm |
| Brake type | F / R Single piston |
| Brake disc diameter | F 160mm / R 160mm |
| Frame material | BIK500 High-strength Steel |
| Rear fork material | 6061 Forged Aluminum Alloy |
| Weight | 47 kg |
| Product size | 1450*680*900mm |
| Packing size | 1320x325x660mm |
| Packing quantity | 40HQ:248Pcs |
| Packing weight | 63 Kg |
| Max Load | 55 Kg |
