6-8
"48V 15AH 18650 cell 3C rate lithium battery"
Limited Warranty
Top Speed
(CVT) Transmission

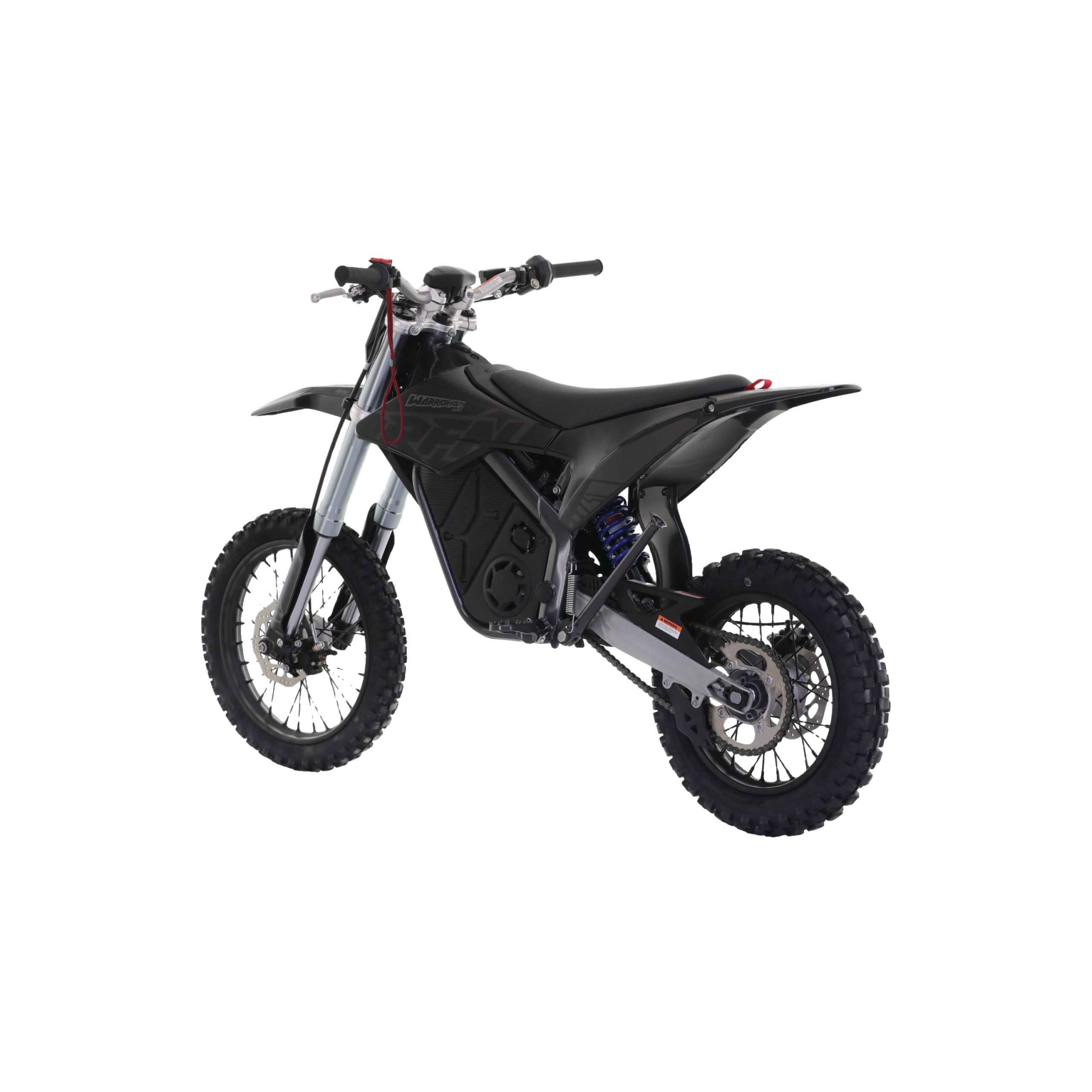

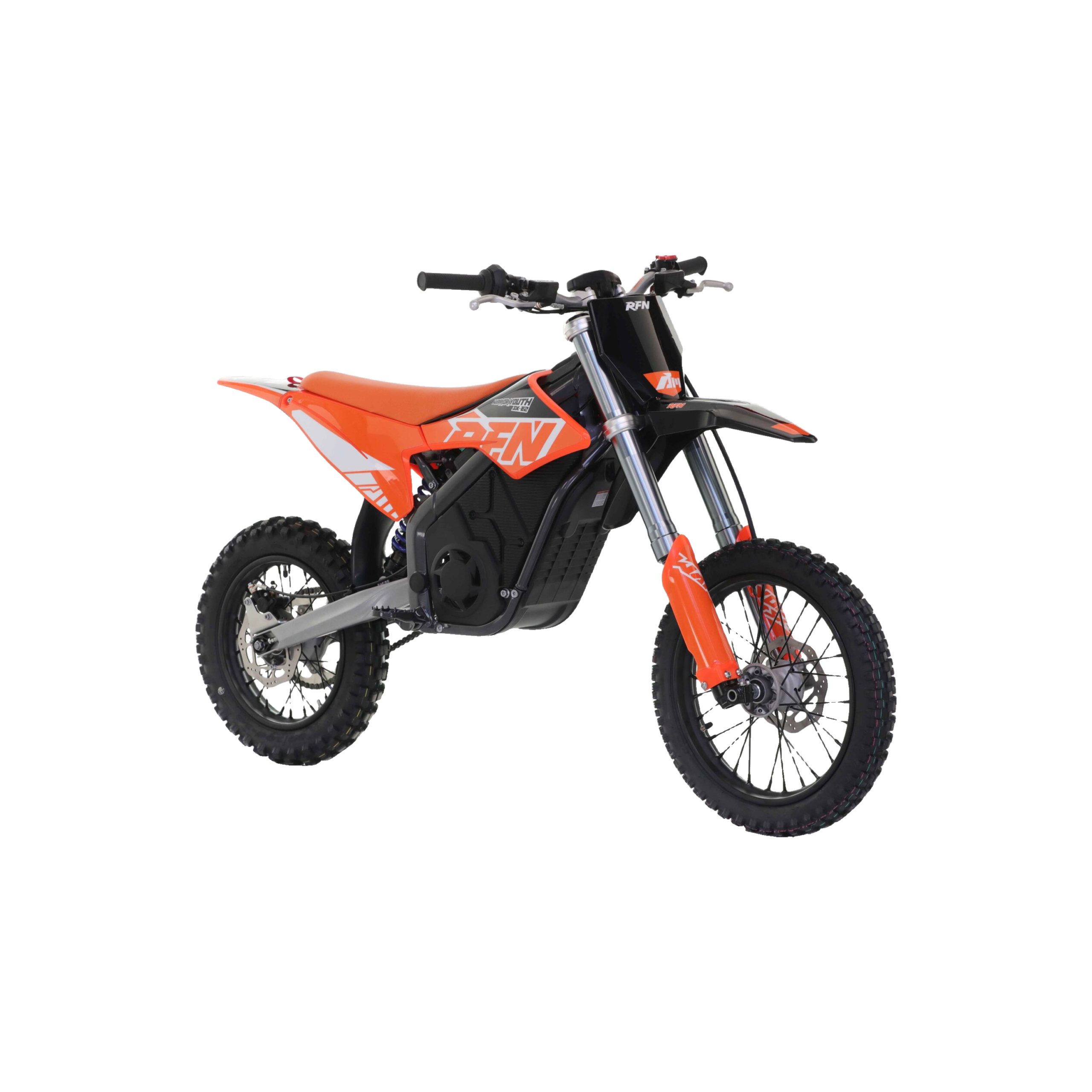

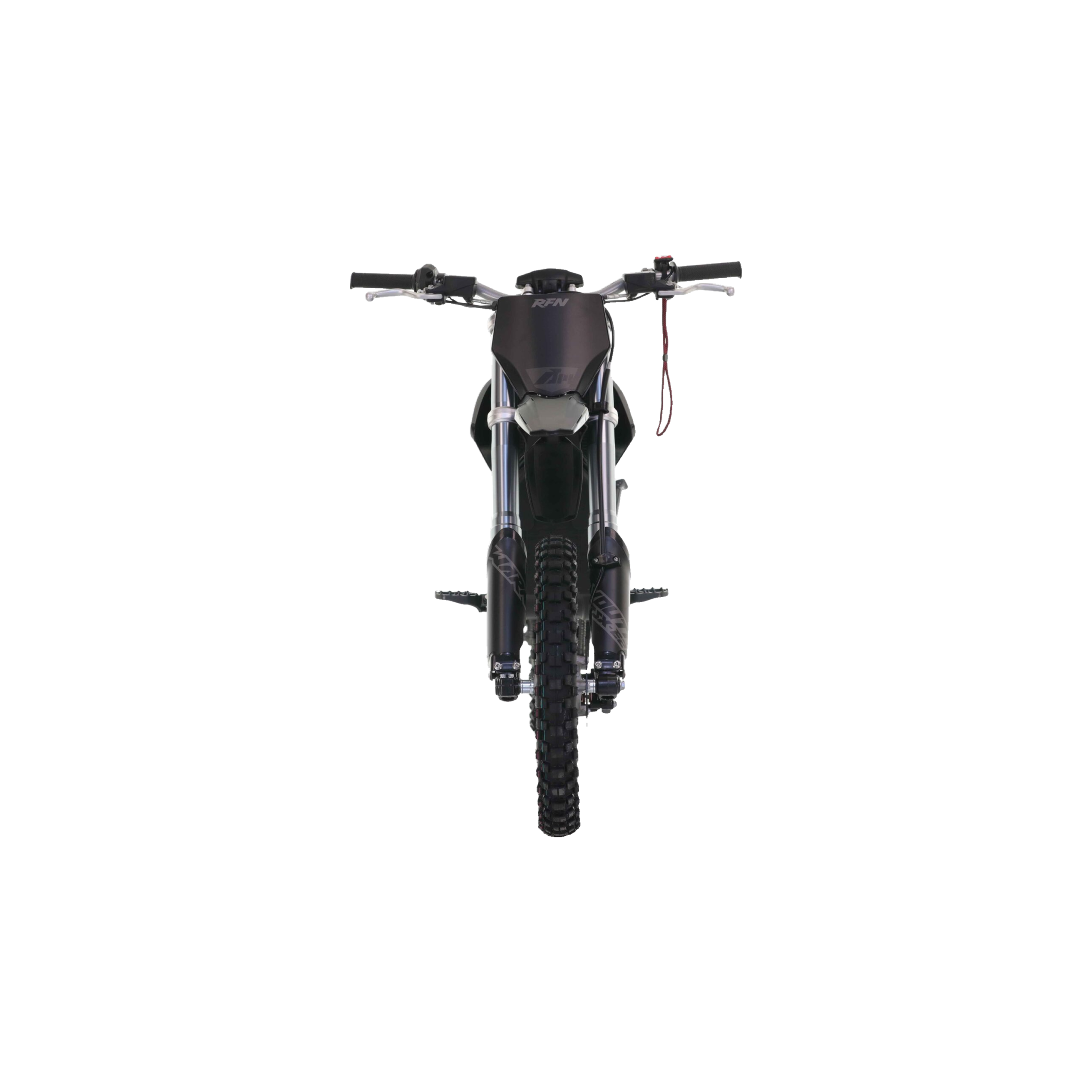

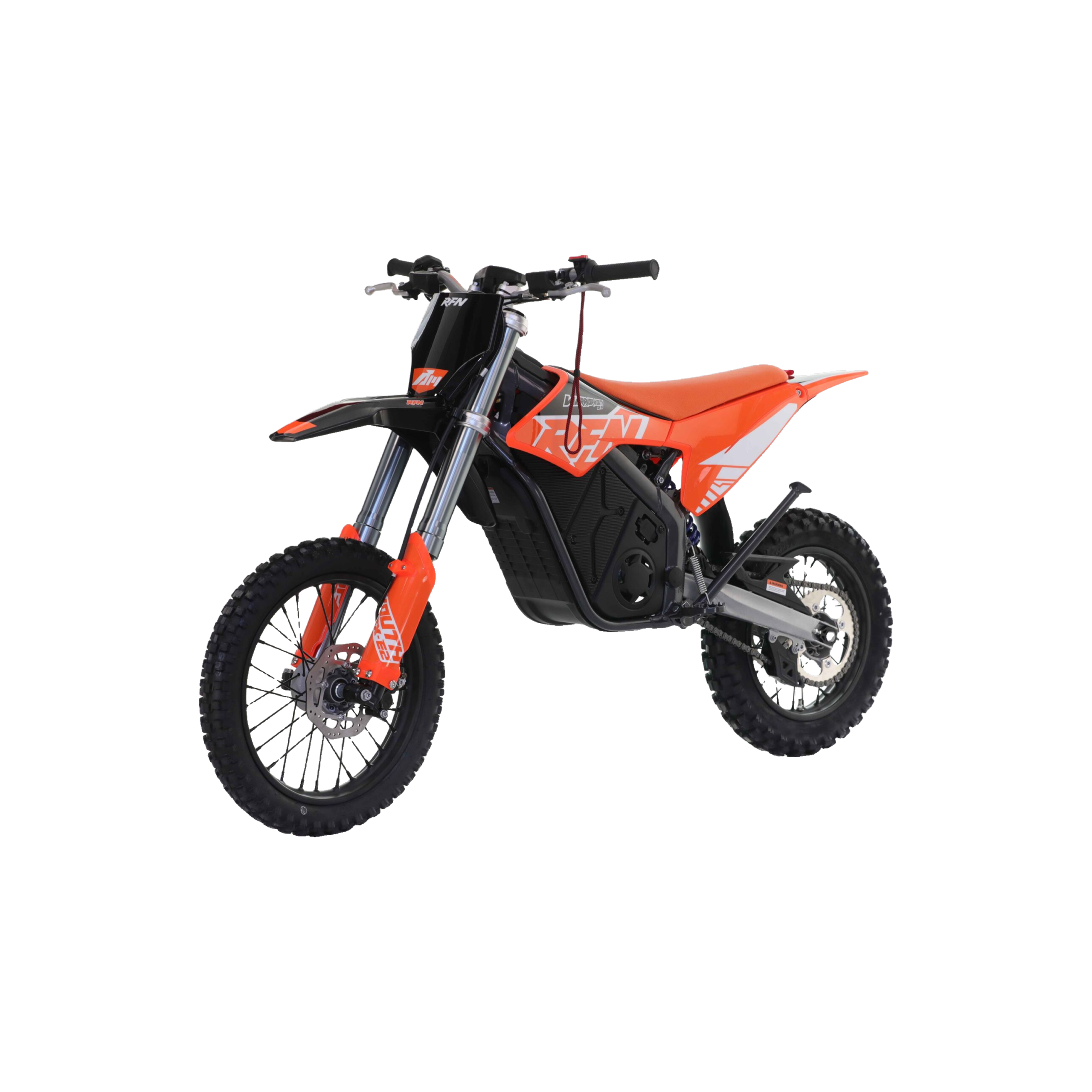

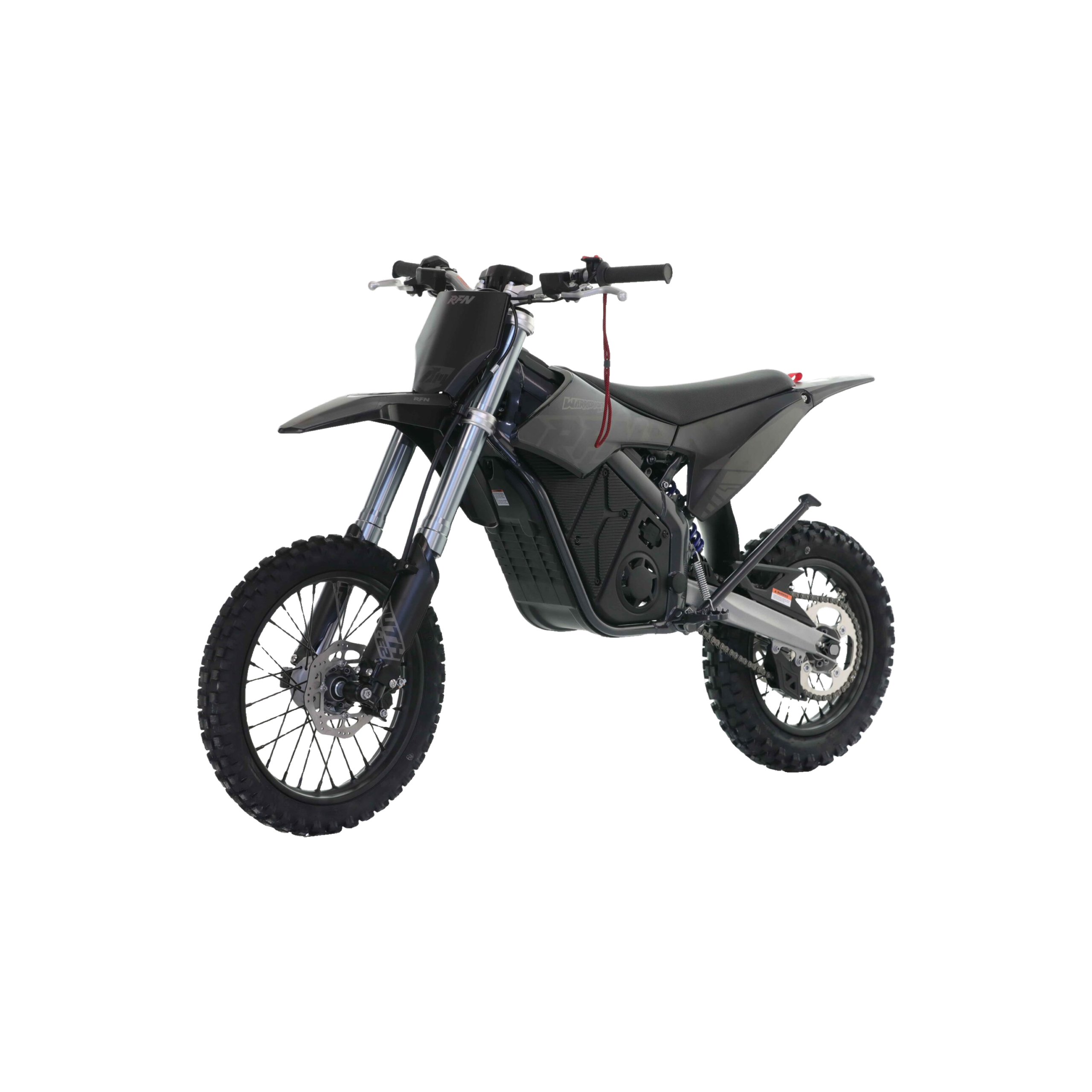

| Model Code | SX-E2 |
| Age of Use | 6-8 years old |
| Height | 120-160cm |
| Battery | 48V 15AH 18650 cell 3C rate lithium battery |
| Battery weight | 5.7Kg |

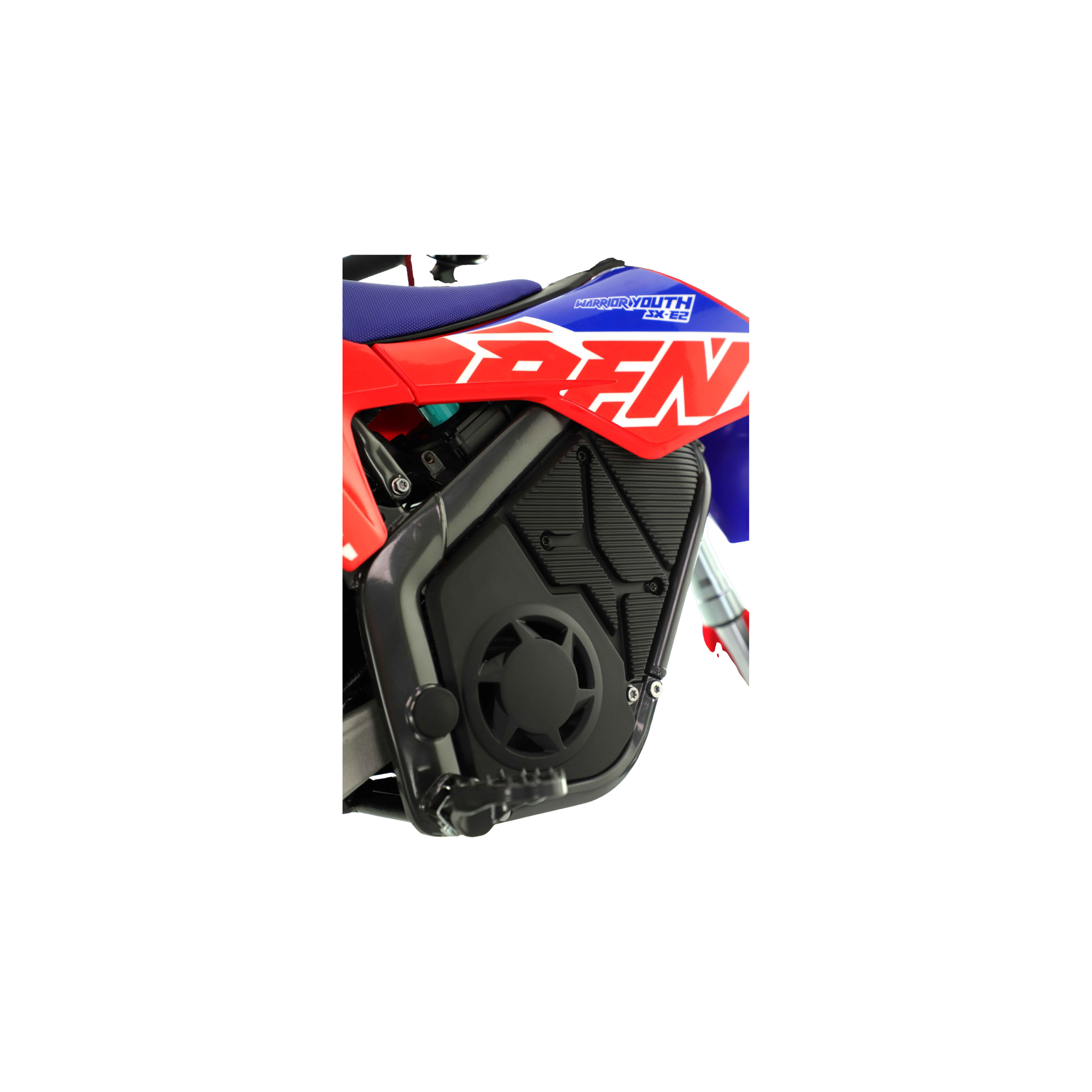

| Motor | 48V 1KW |
| Motor weight | 5Kg |
| Range | 18KM (35km/h) |

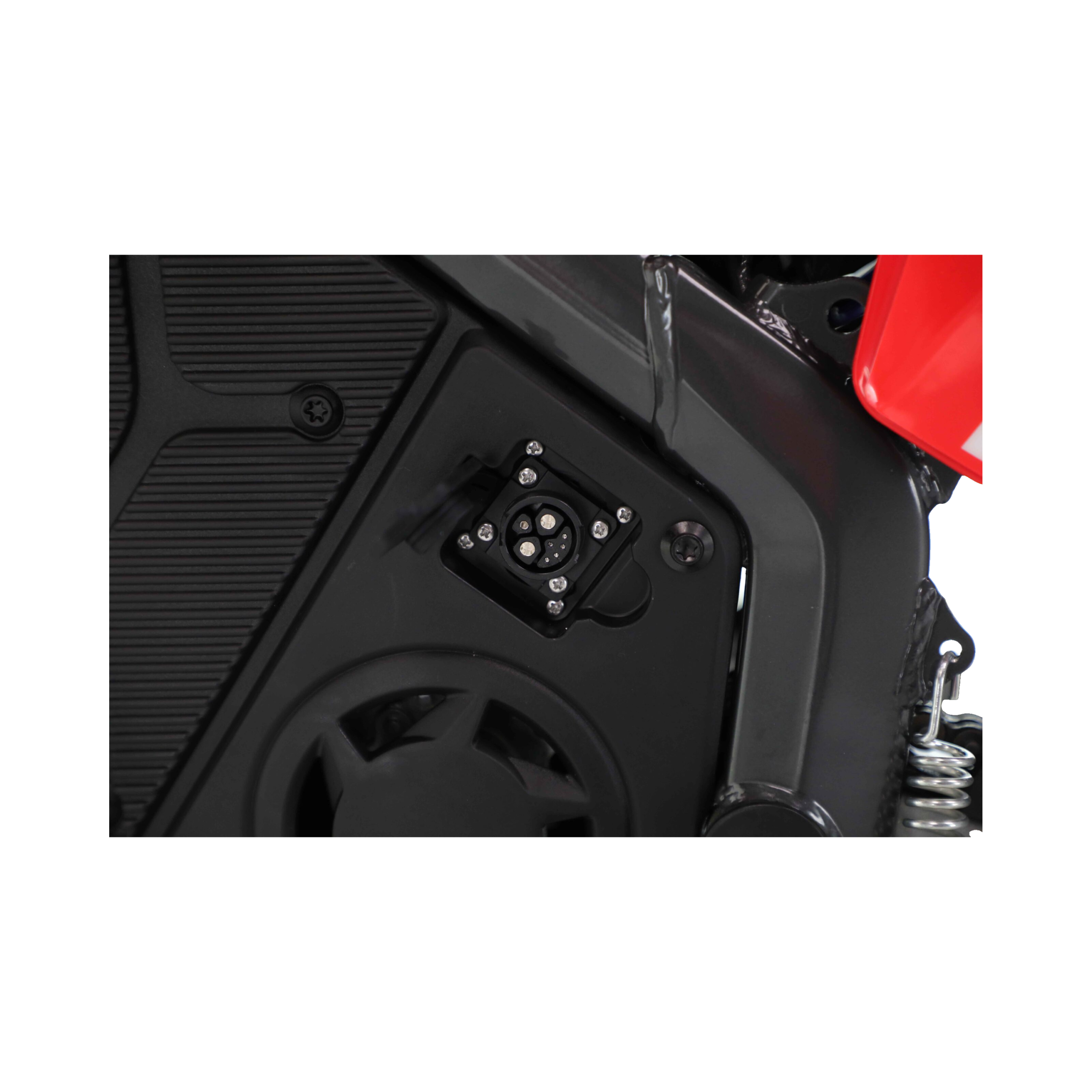

| Charge | DC:54.6V 3A@5.5H |
| Charge weight | 1 Kg |

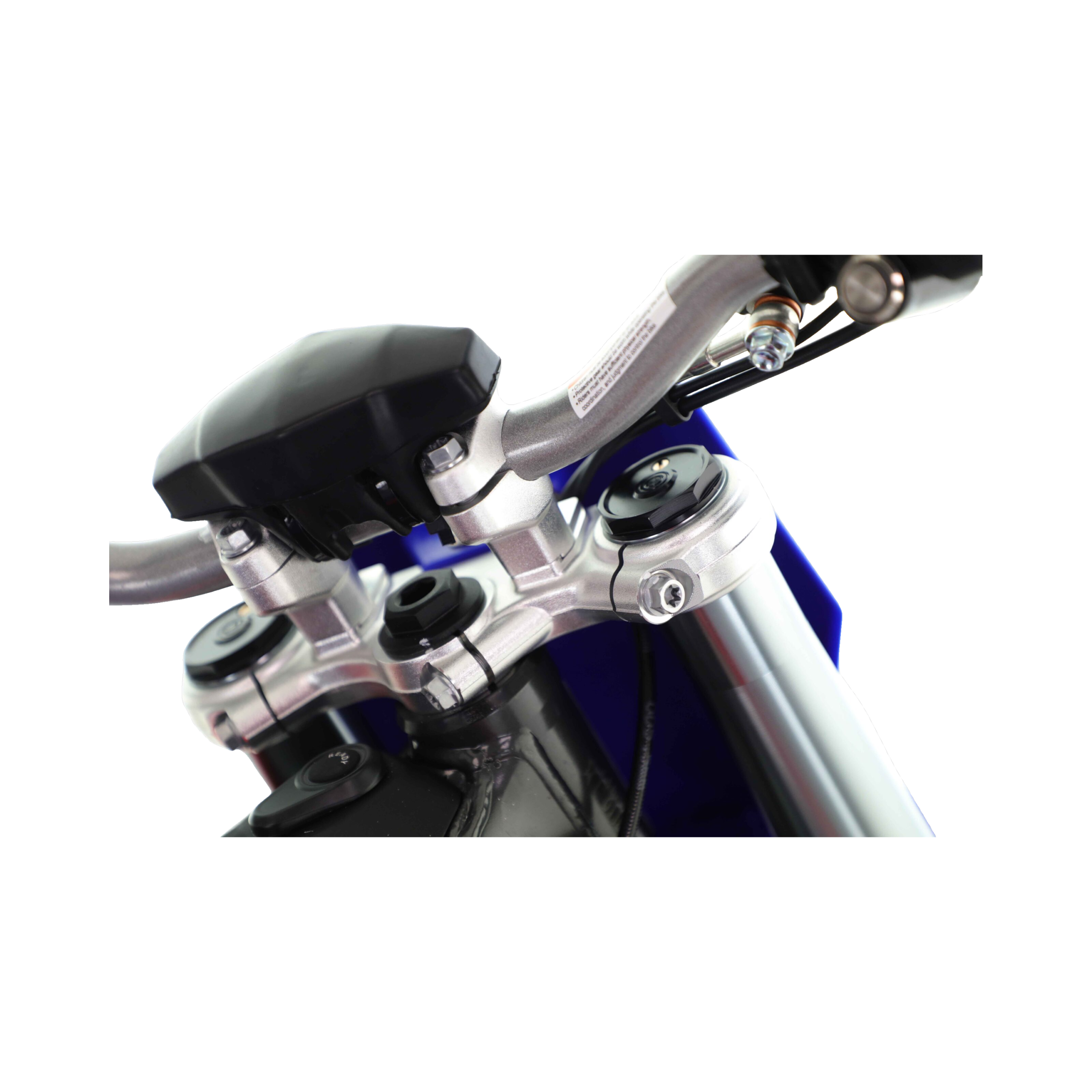

| Meter | LED |
| APP | × |

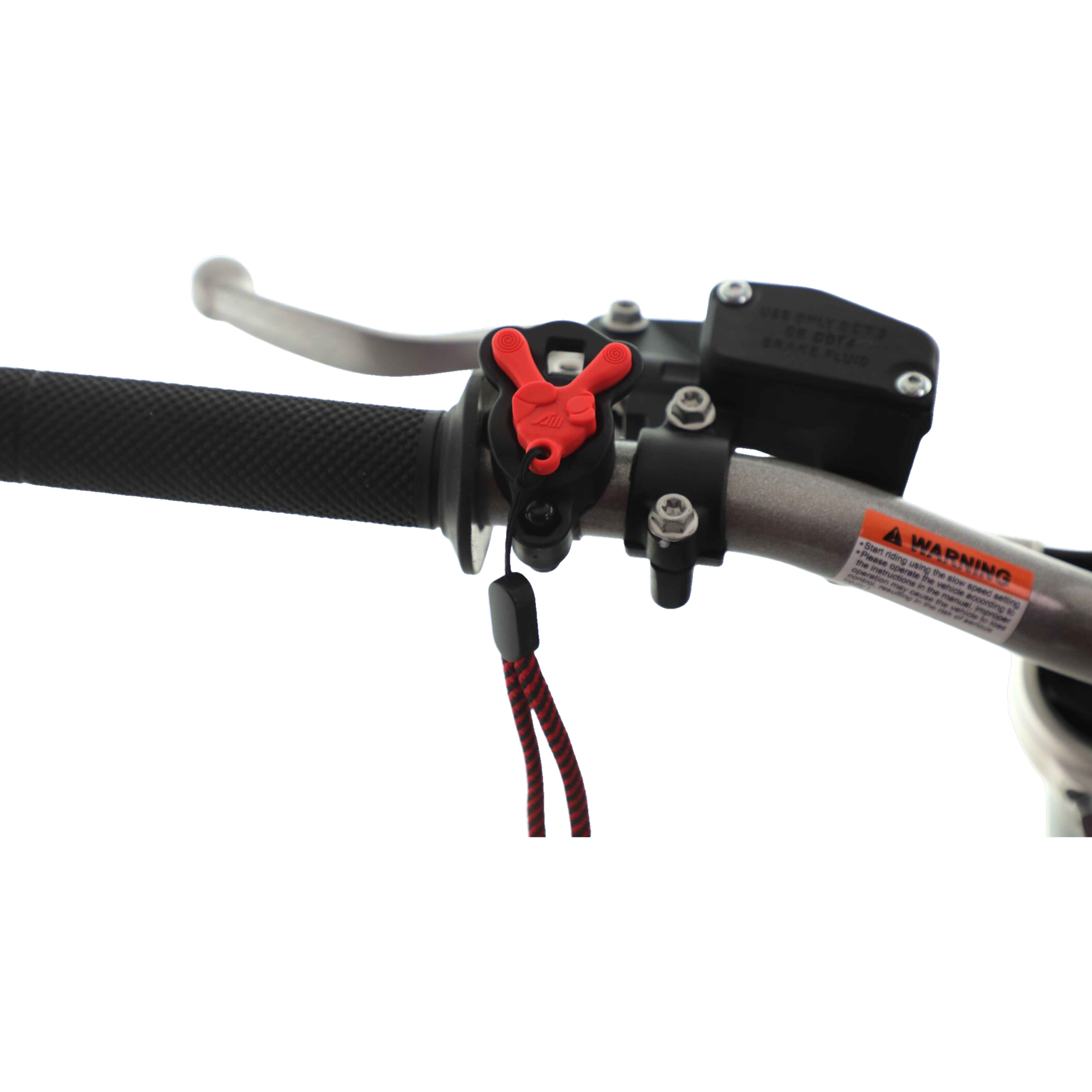

| Power off switch | √ |
| Peak HP | 2.72 |
| Motor torque | 22N.m |

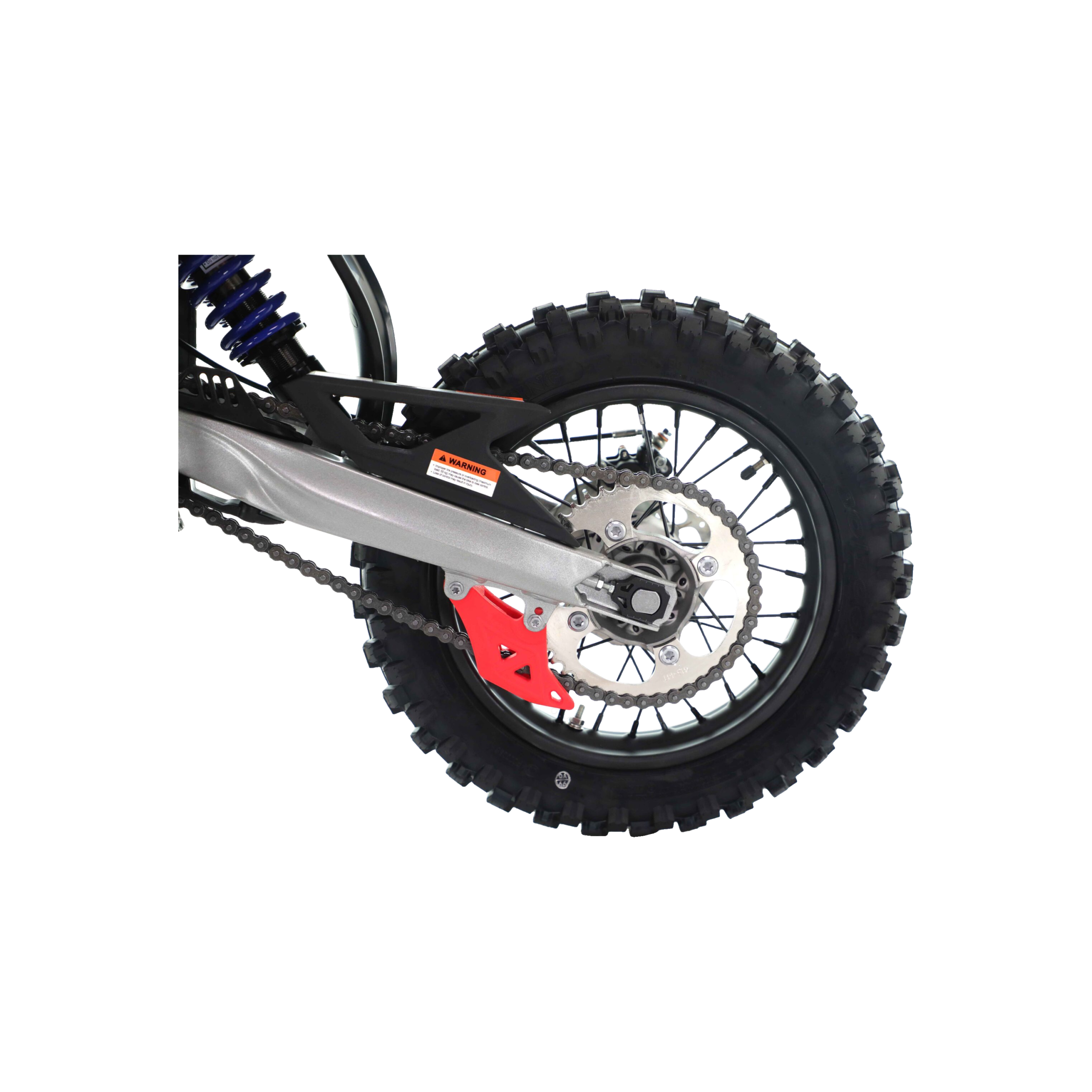

| Gear ratio | 13:44 |
| Wheel torque | 80N.m |
| Top speed: | 45km/h |
| Seat height | 700-675-650 |
| Wheelbase | 1040mm |
| Steering angle | 42° |
| Ground clearance | 250mm |

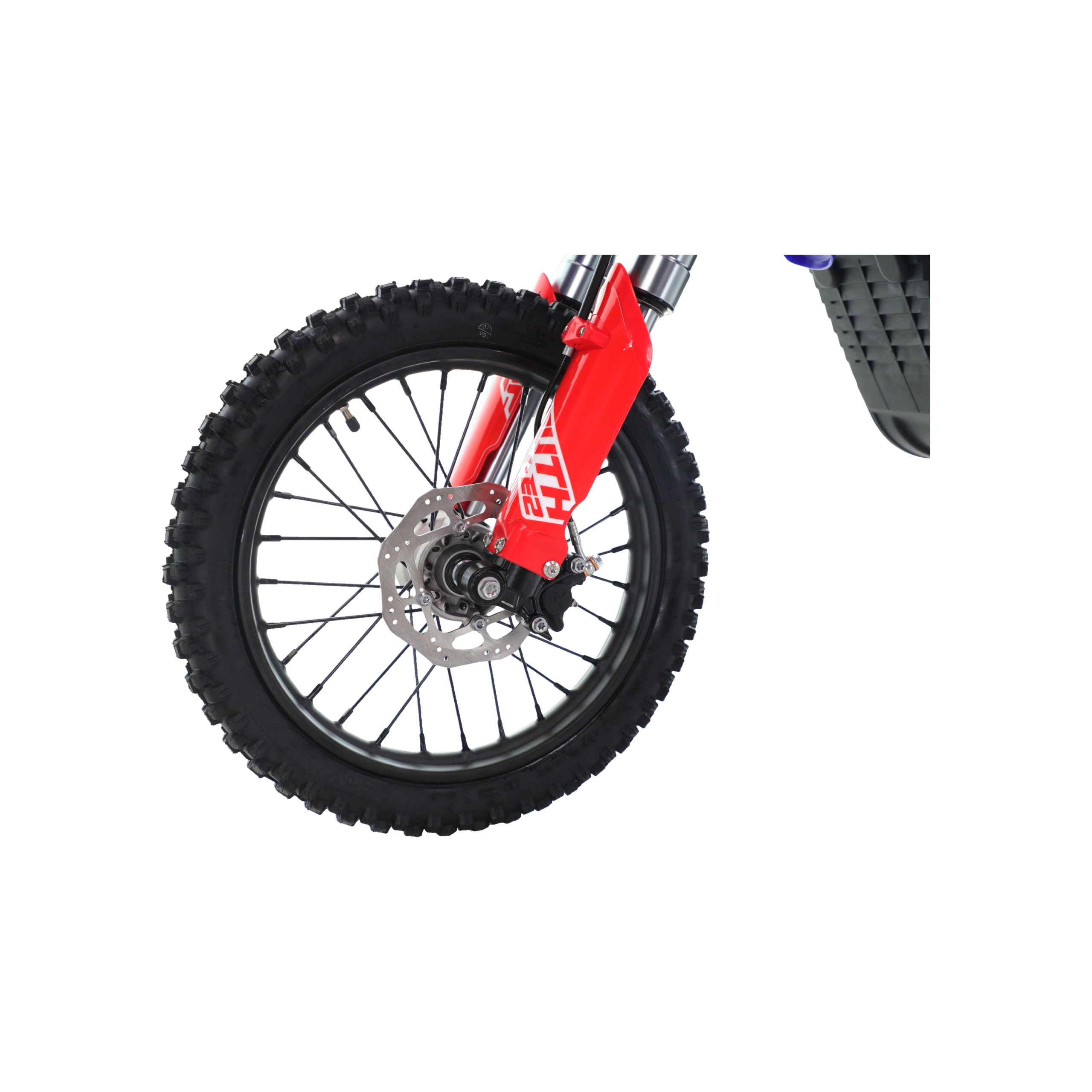

| Wheel diameter | 14/12 |
| Front suspension | Φ35-690mm / 200mm |

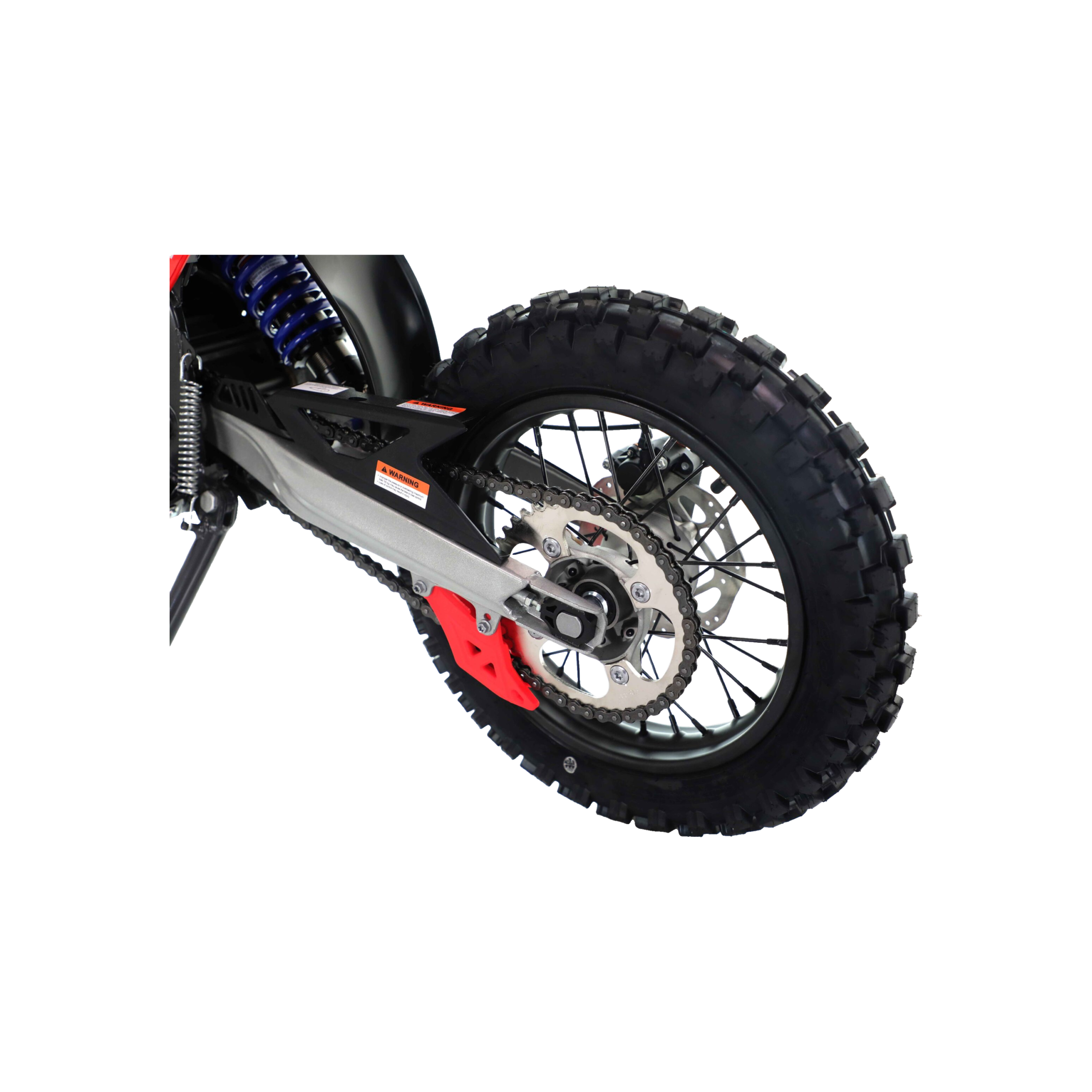

| Rear suspension | 275mm / 180mm |

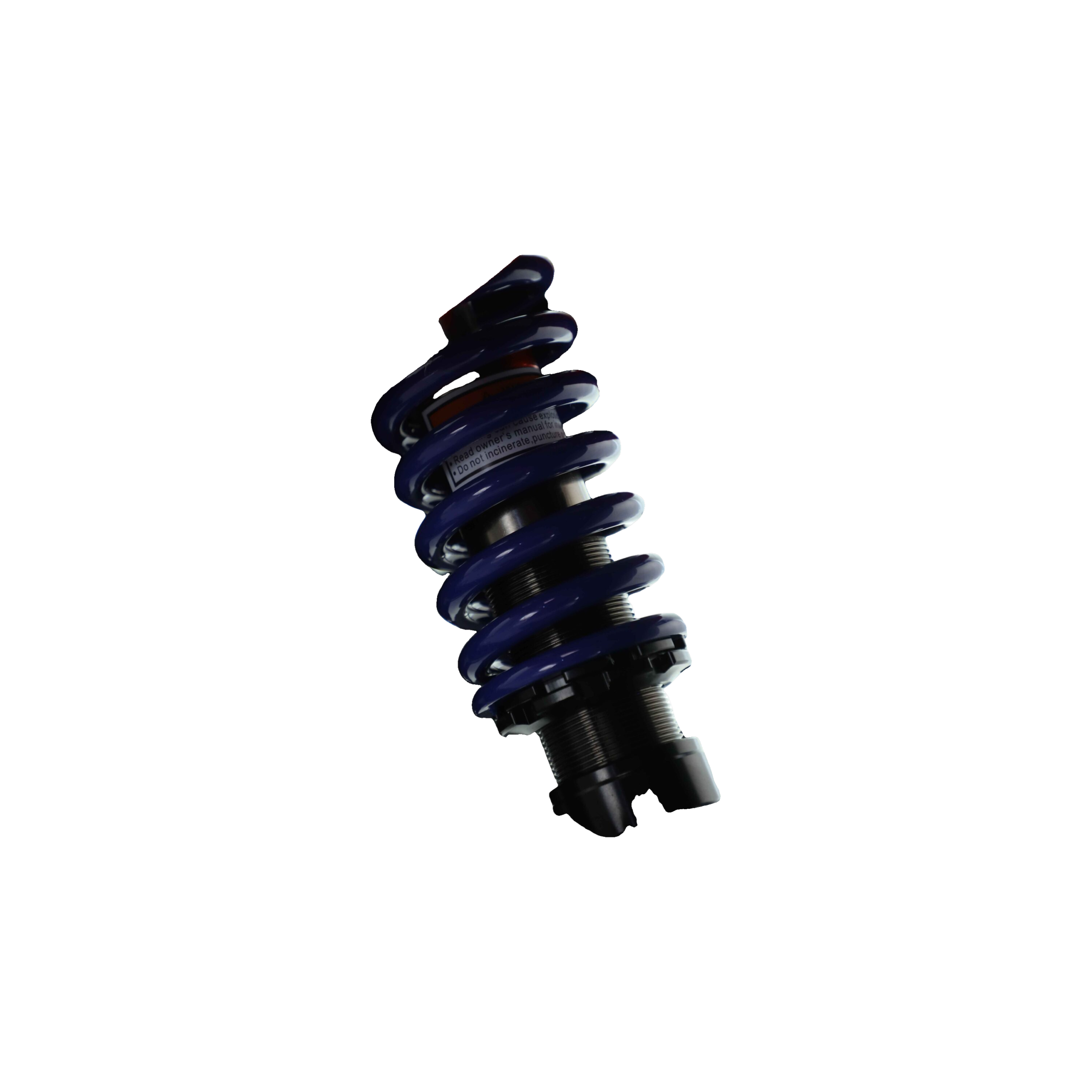

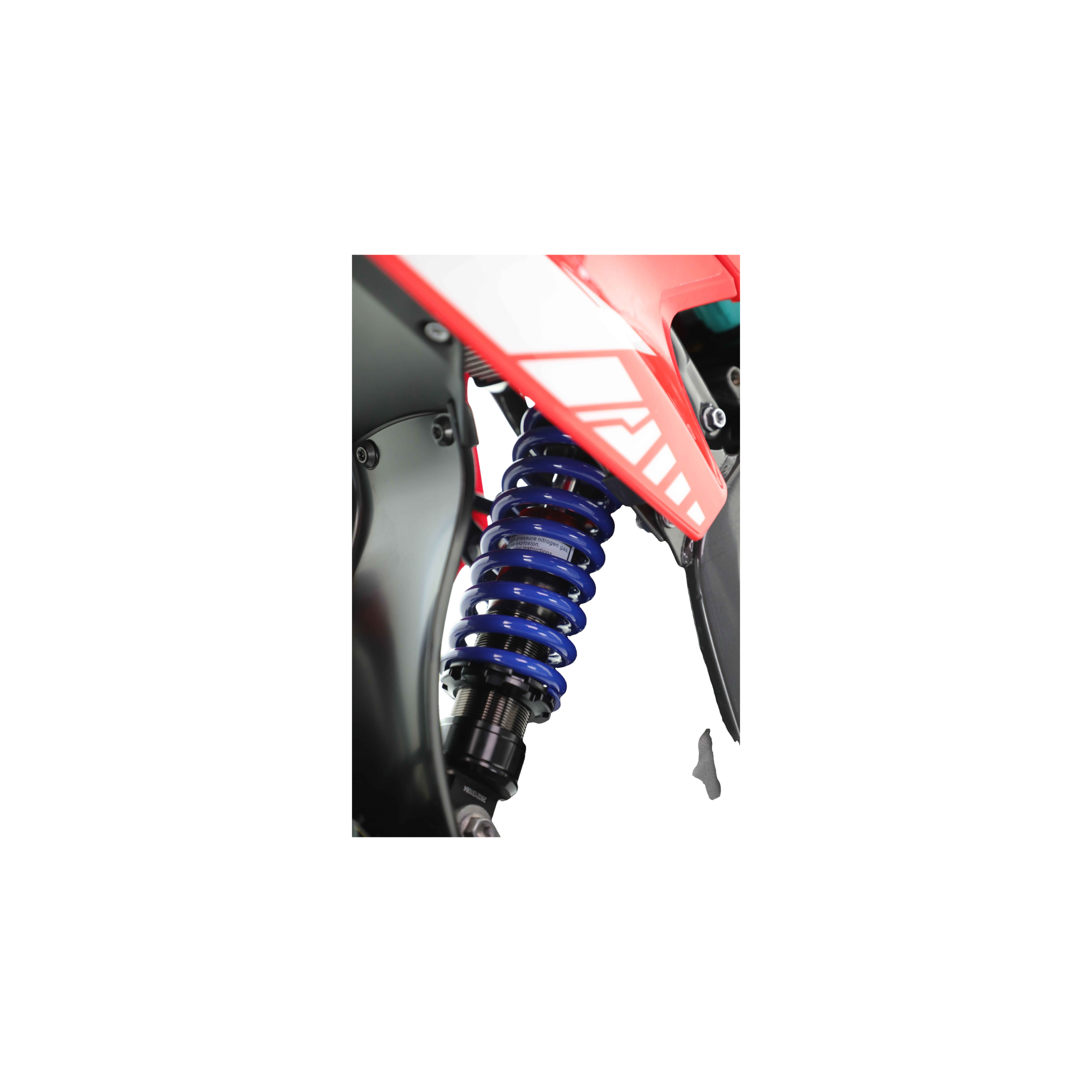

| Rear shock spring | 280 Lb |

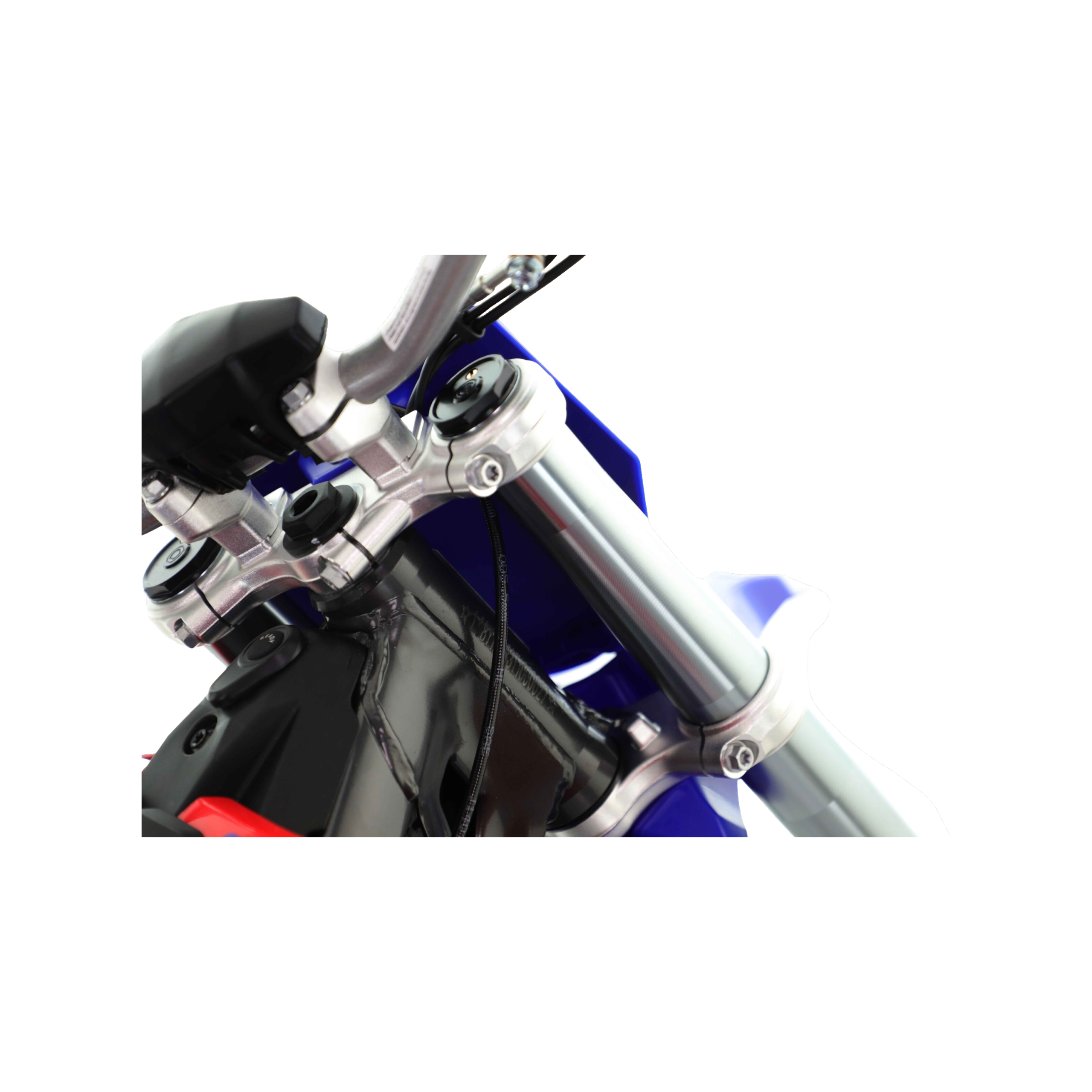

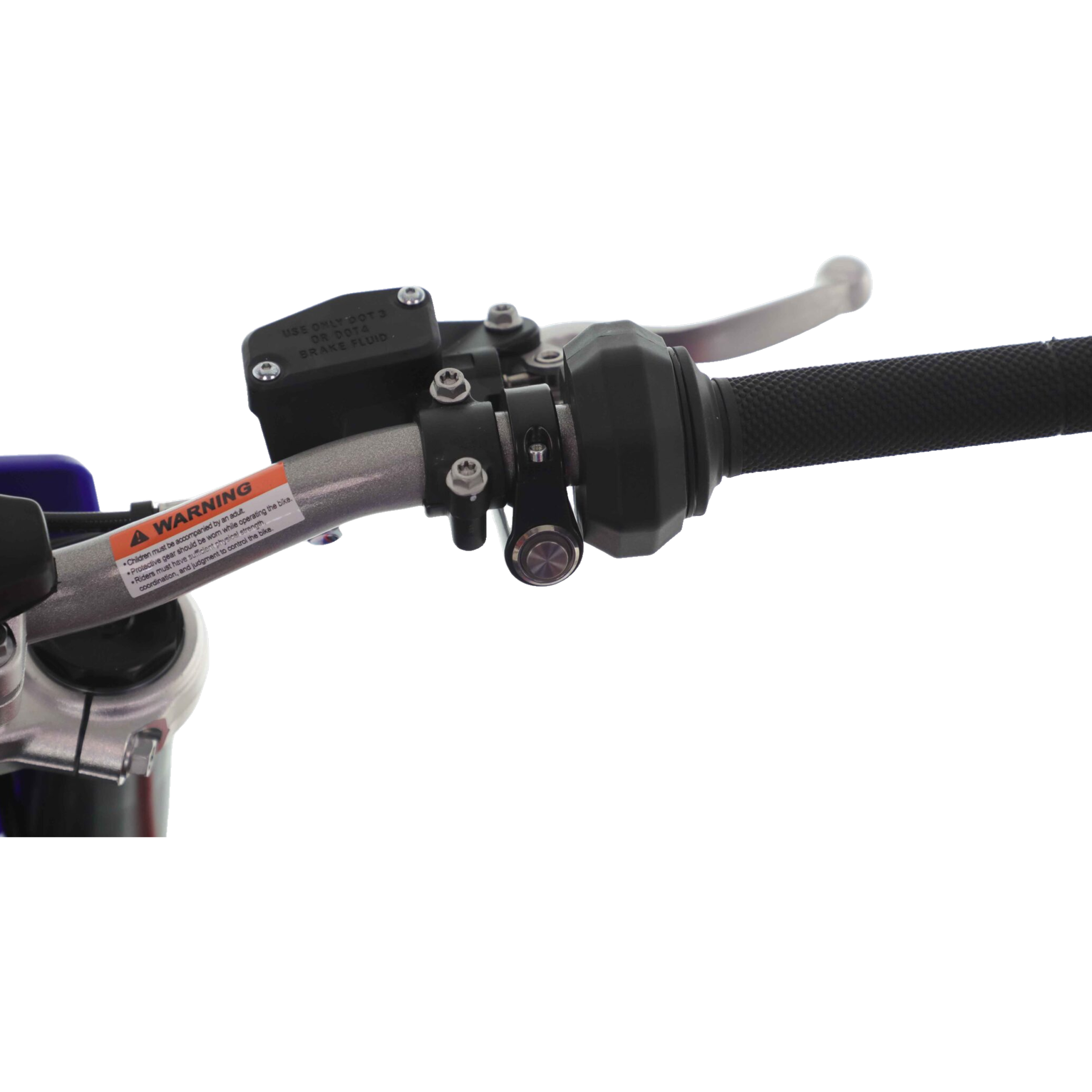

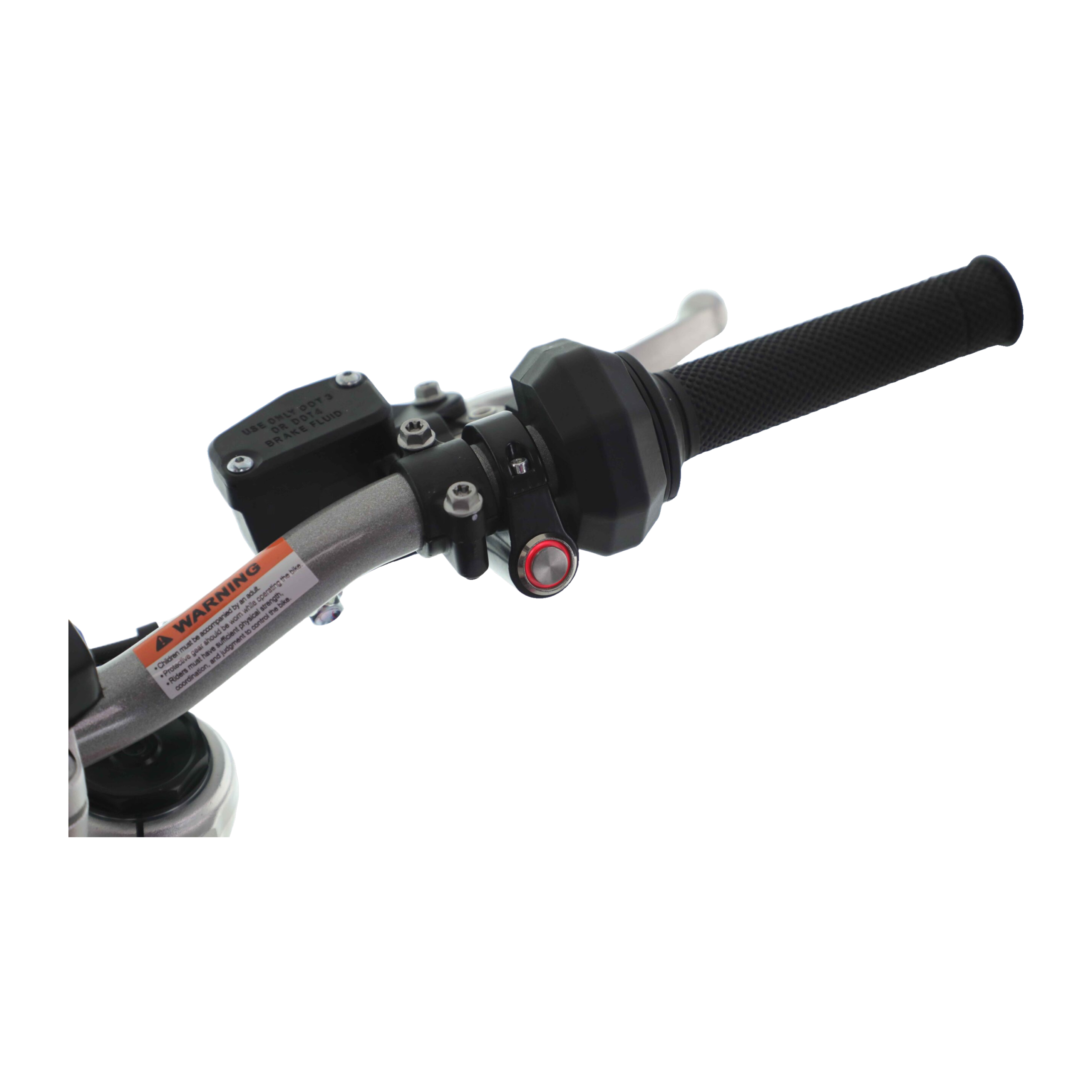

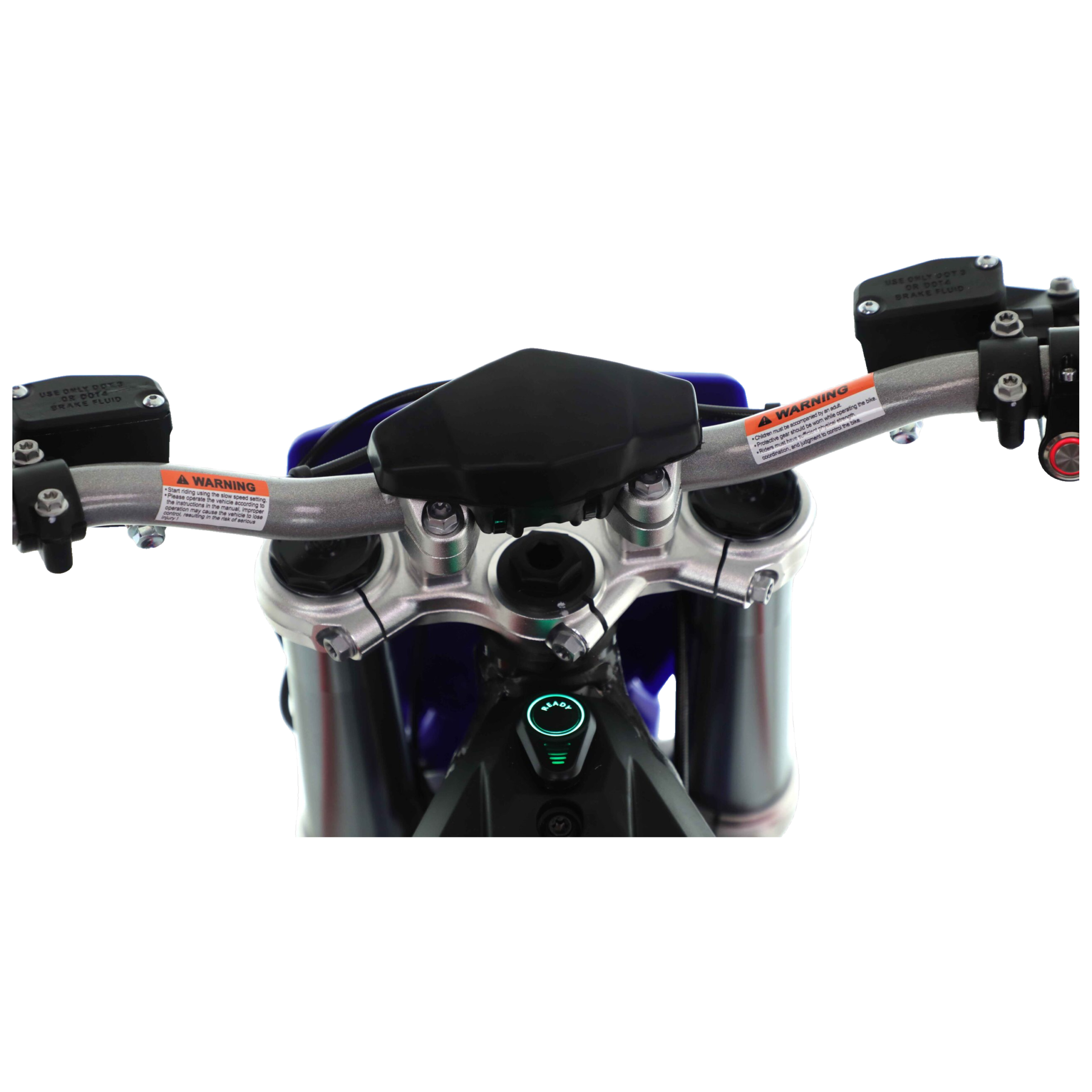

| Handlebar | Φ28.5-22-19*660mm |

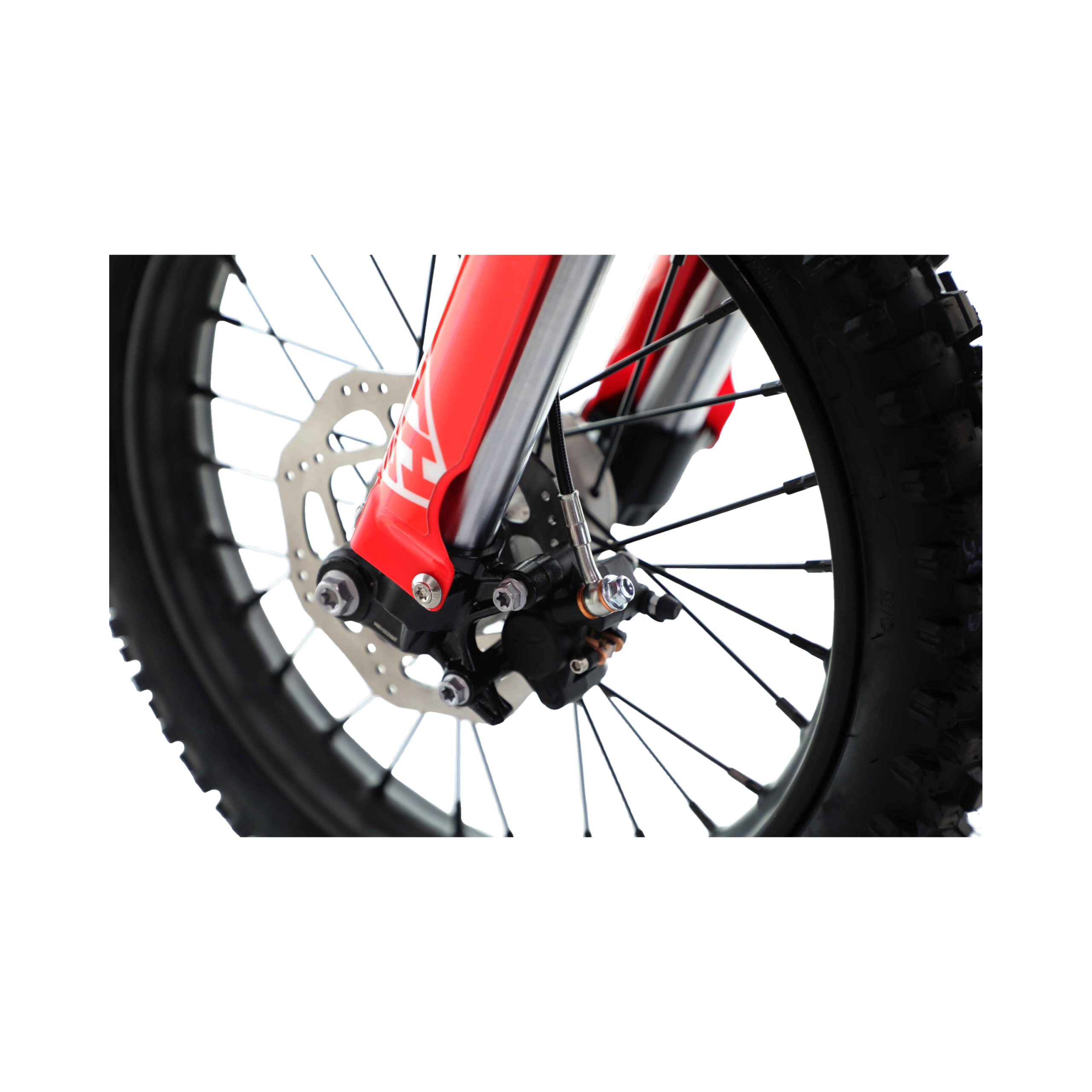

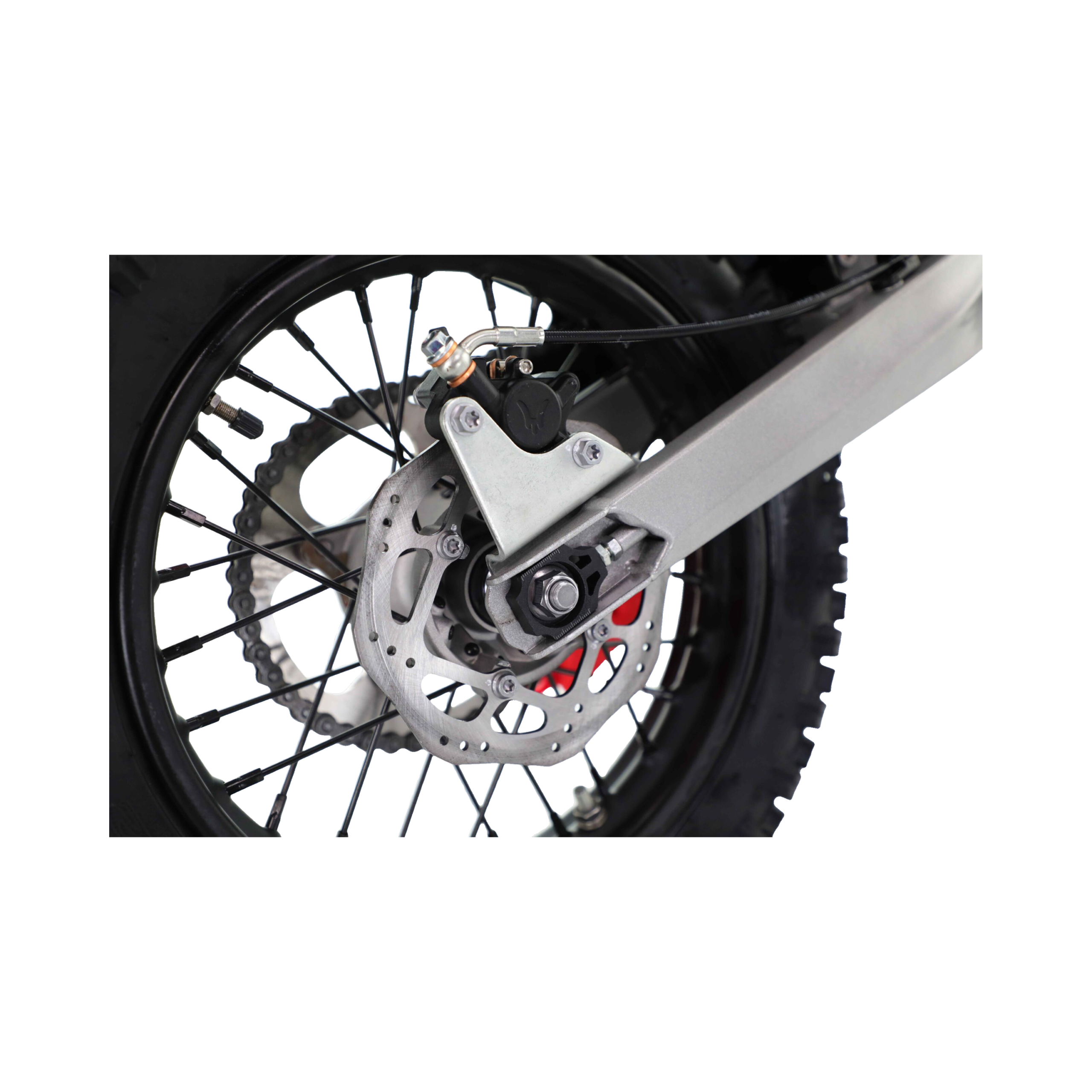

| Brake type | F / R Single piston |
| Brake disc diameter | F 160mm / R 160mm |
| Frame material | BIK500 High-strength Steel |
| Rear fork material | BIK500 High-strength Steel |
| Weight | 48kg |
| Product size | 1470*680*900mm |
| Packing size | 1105*325*660mm |
| Packing quantity | 40HQ 296 Pcs |
| Packing weight | 54 Kg |
| Max Load | 55 Kg |
