Recommended Age

6+

Dirt Bikes

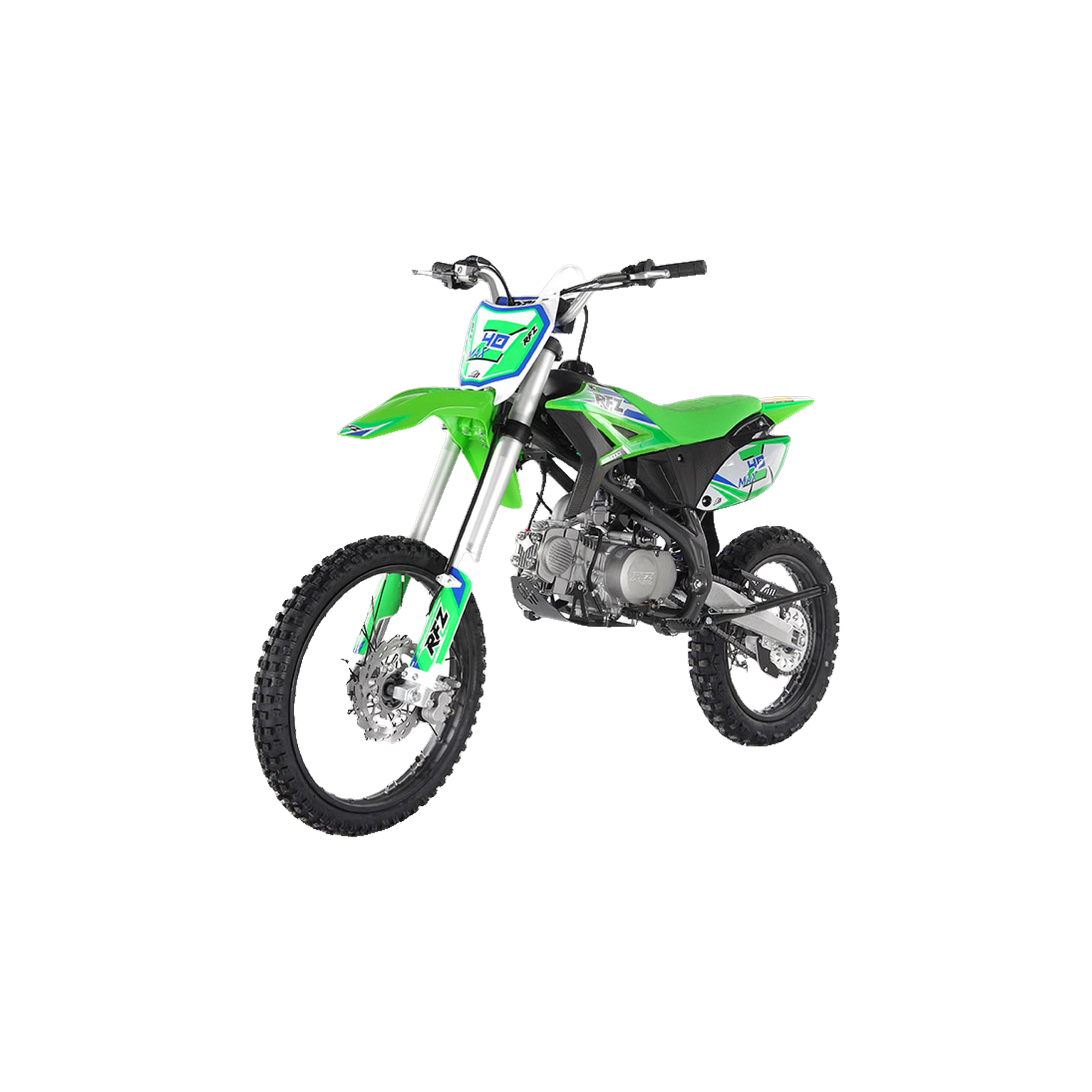

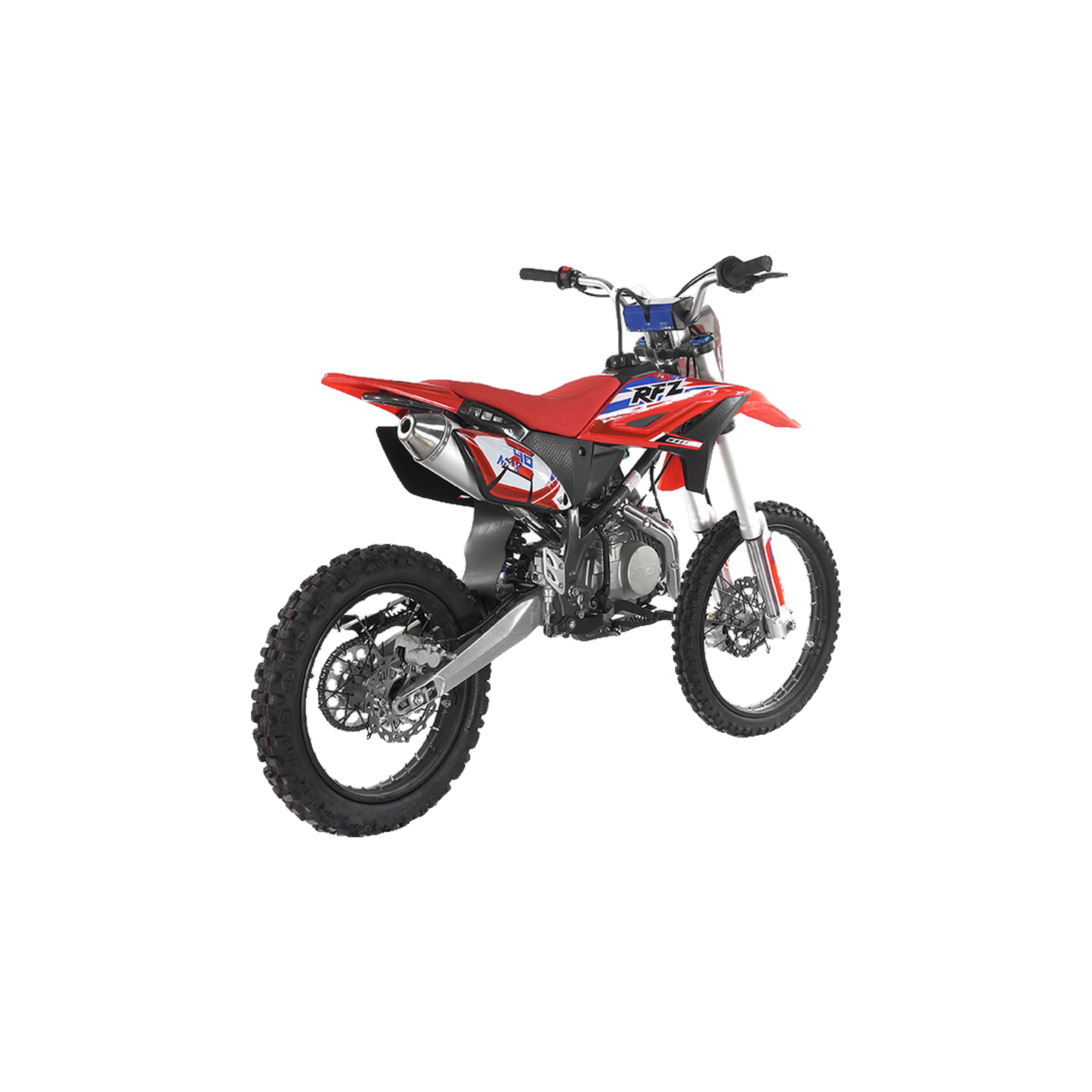

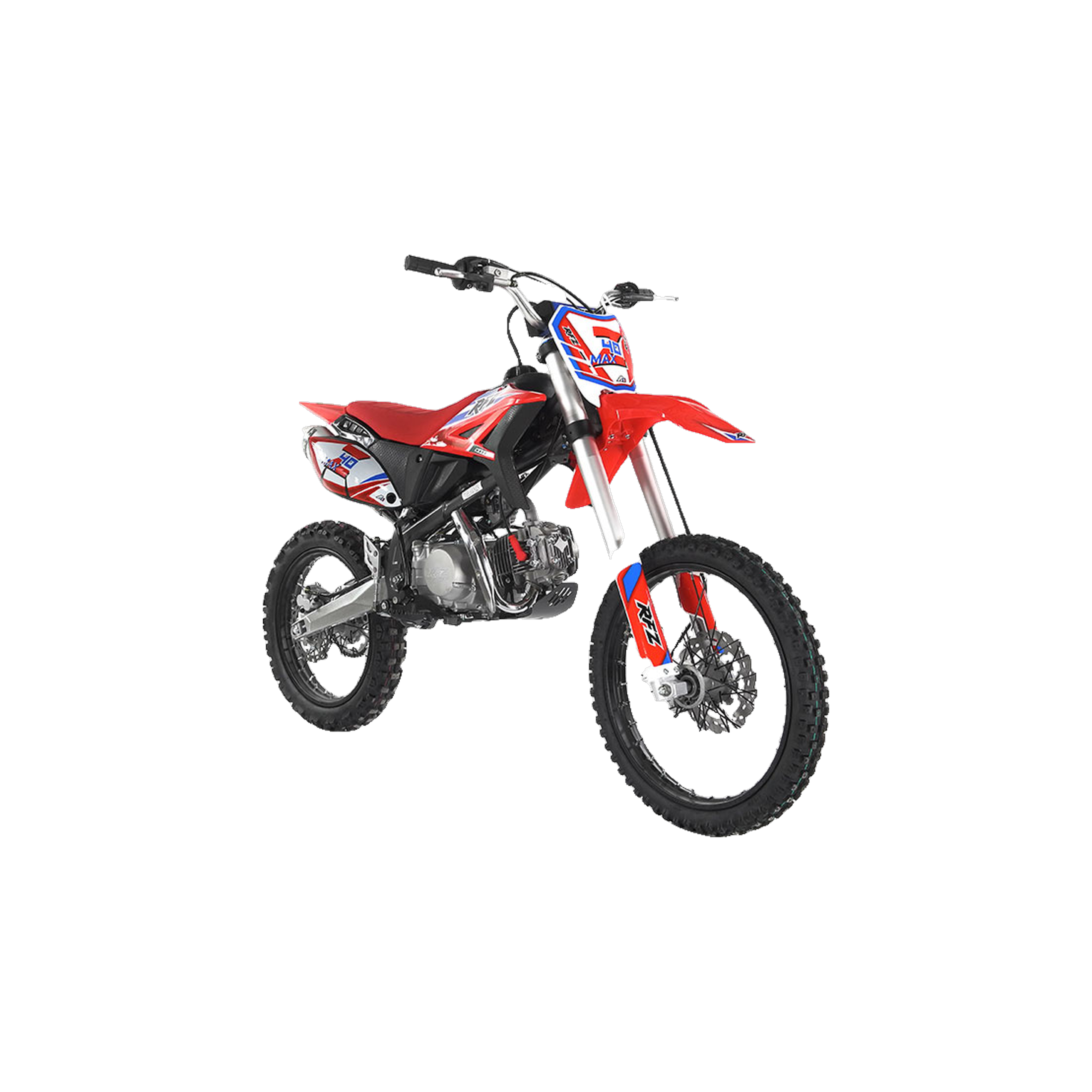

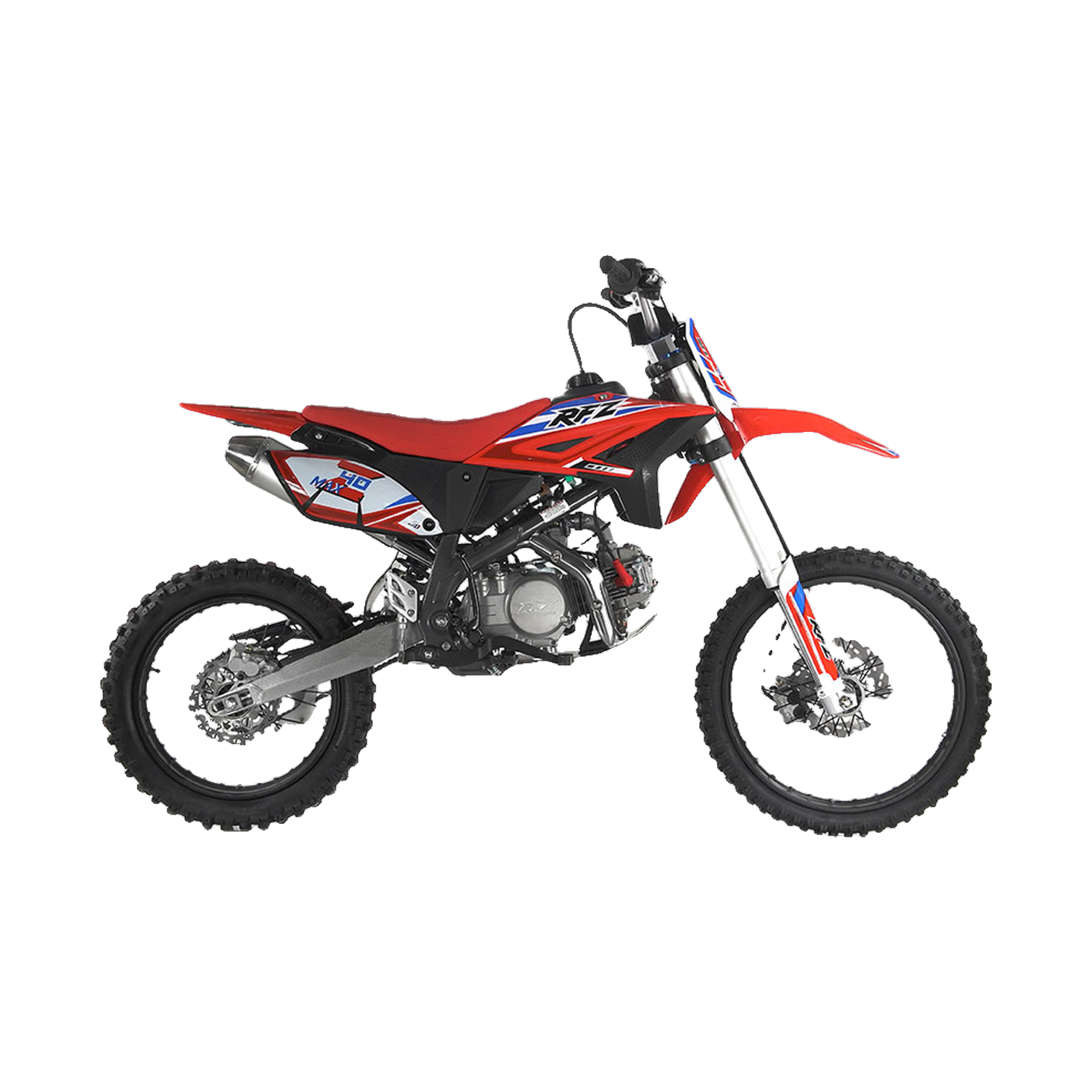

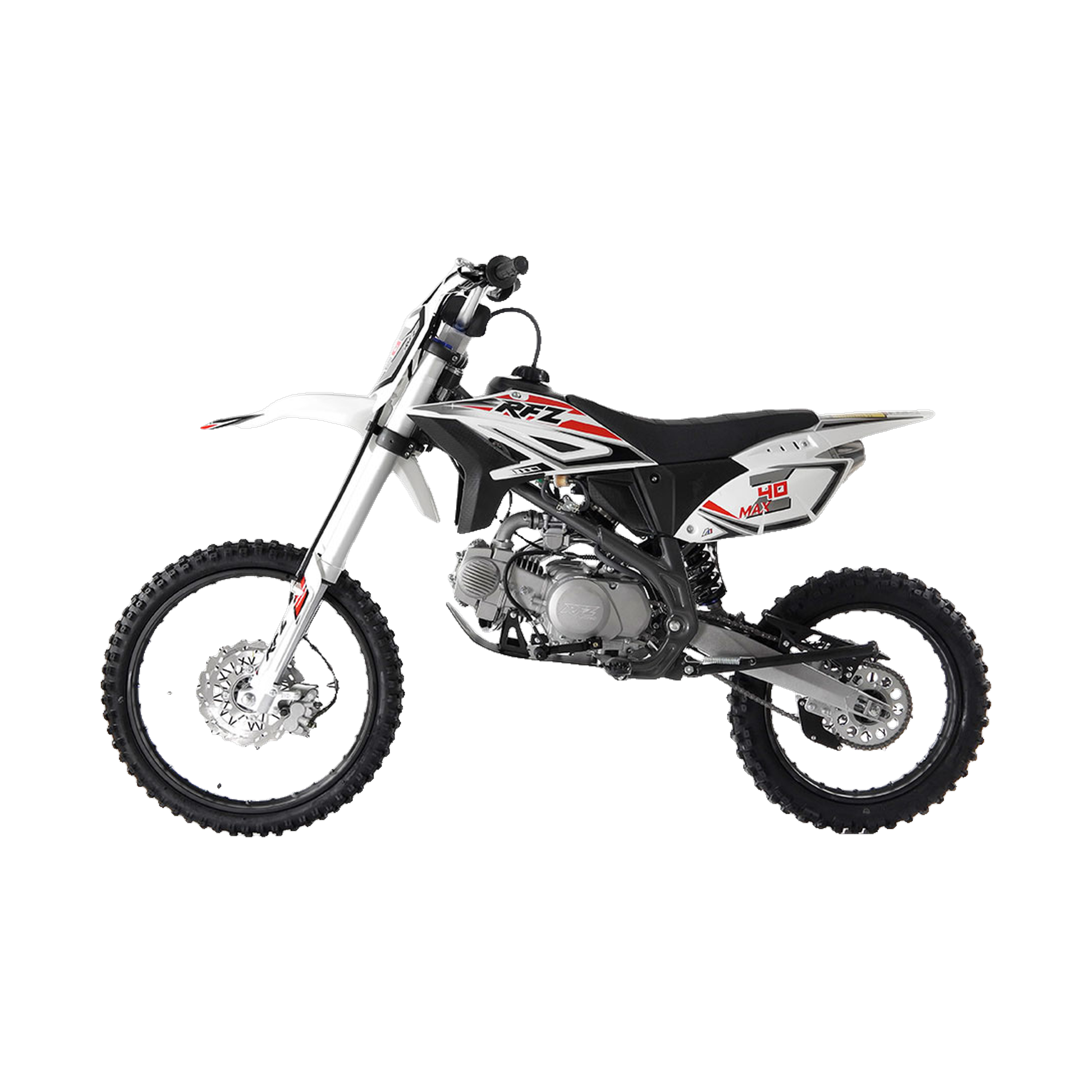

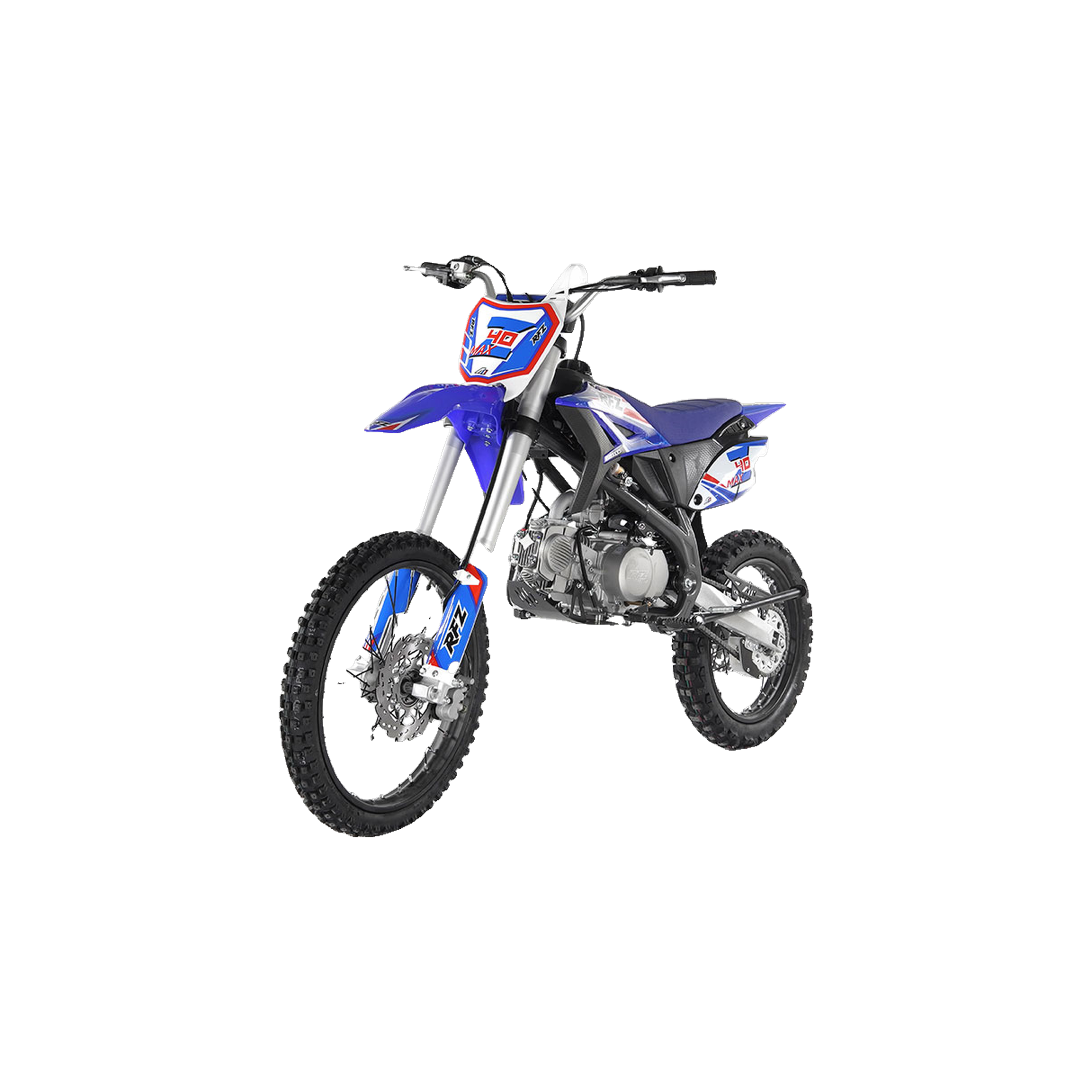

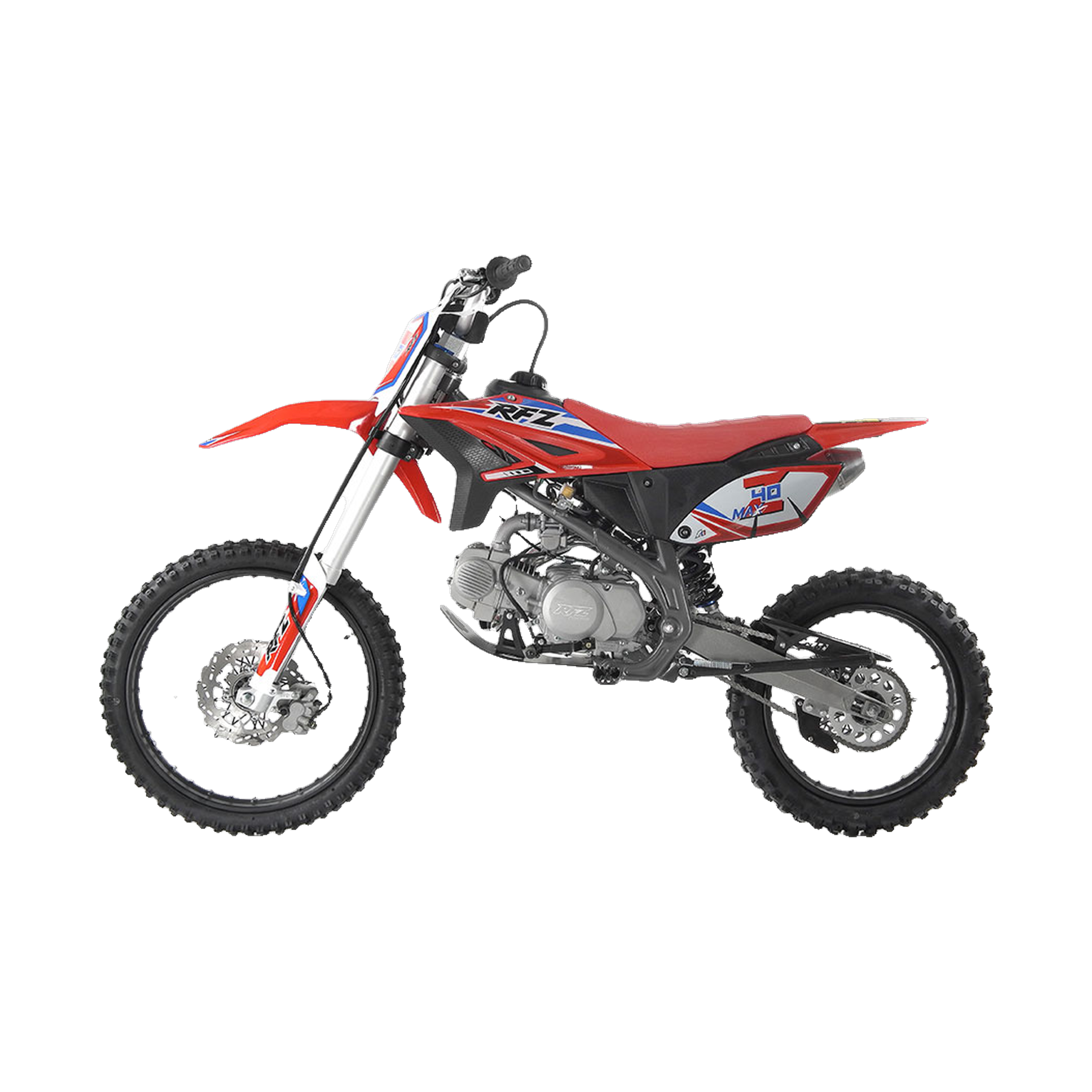

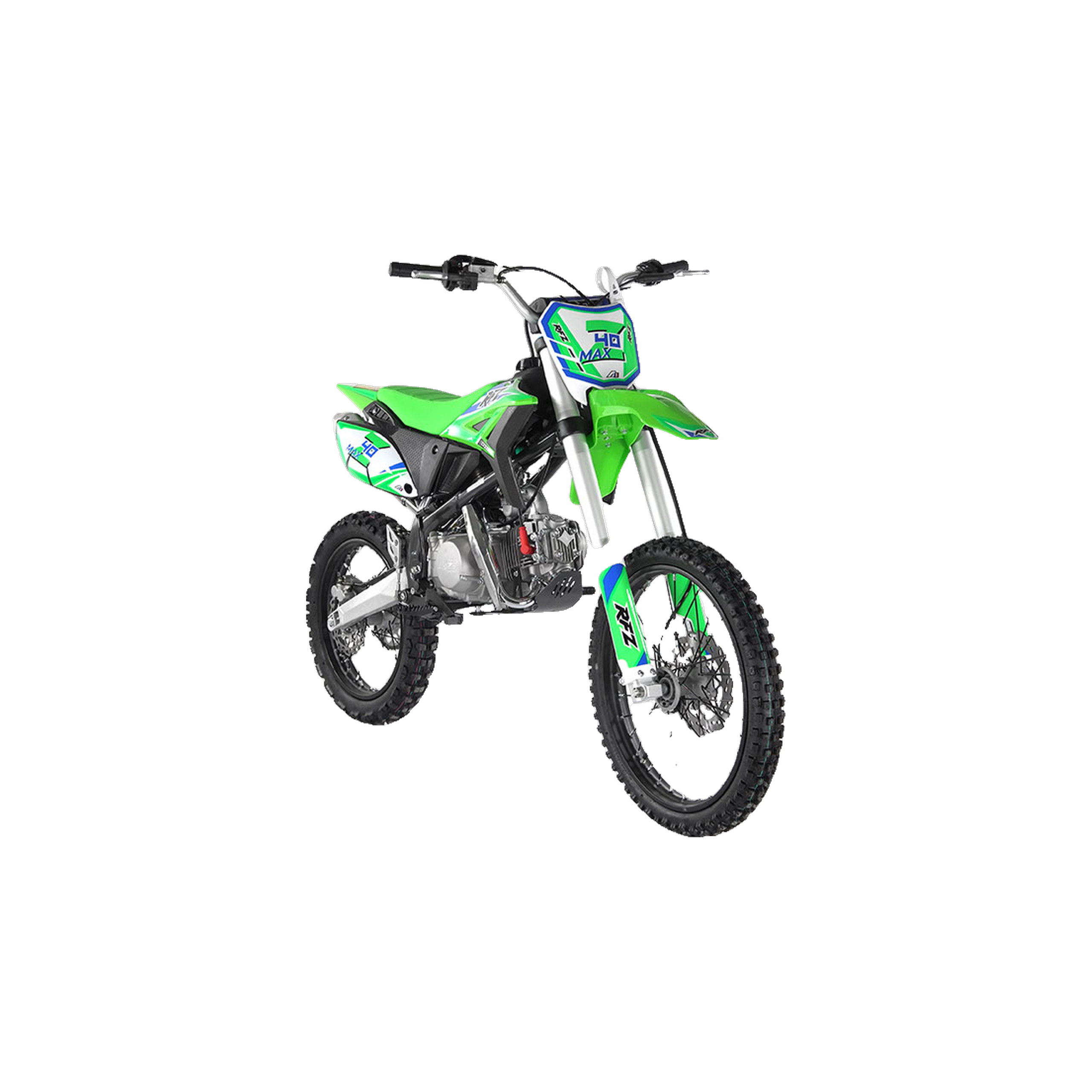

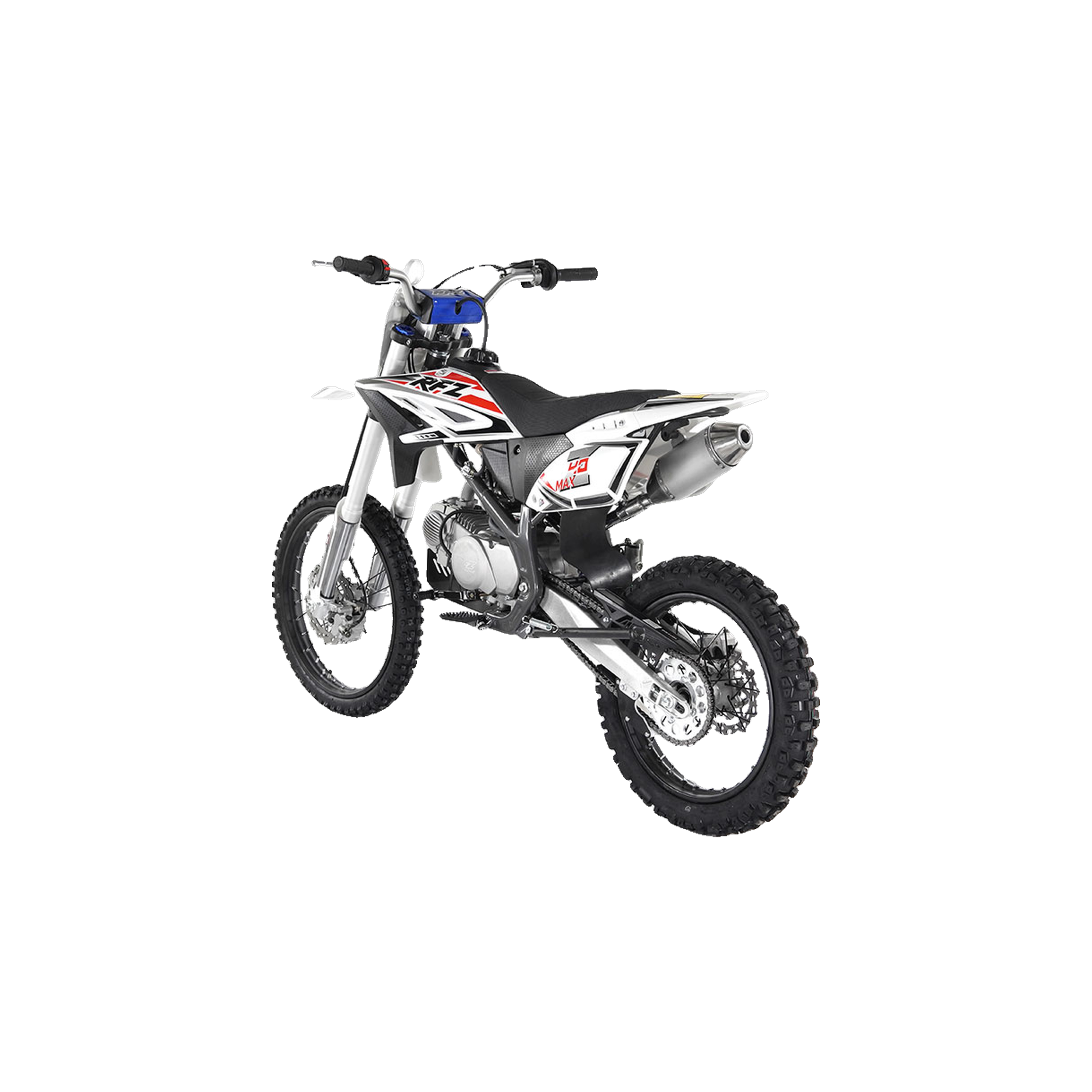

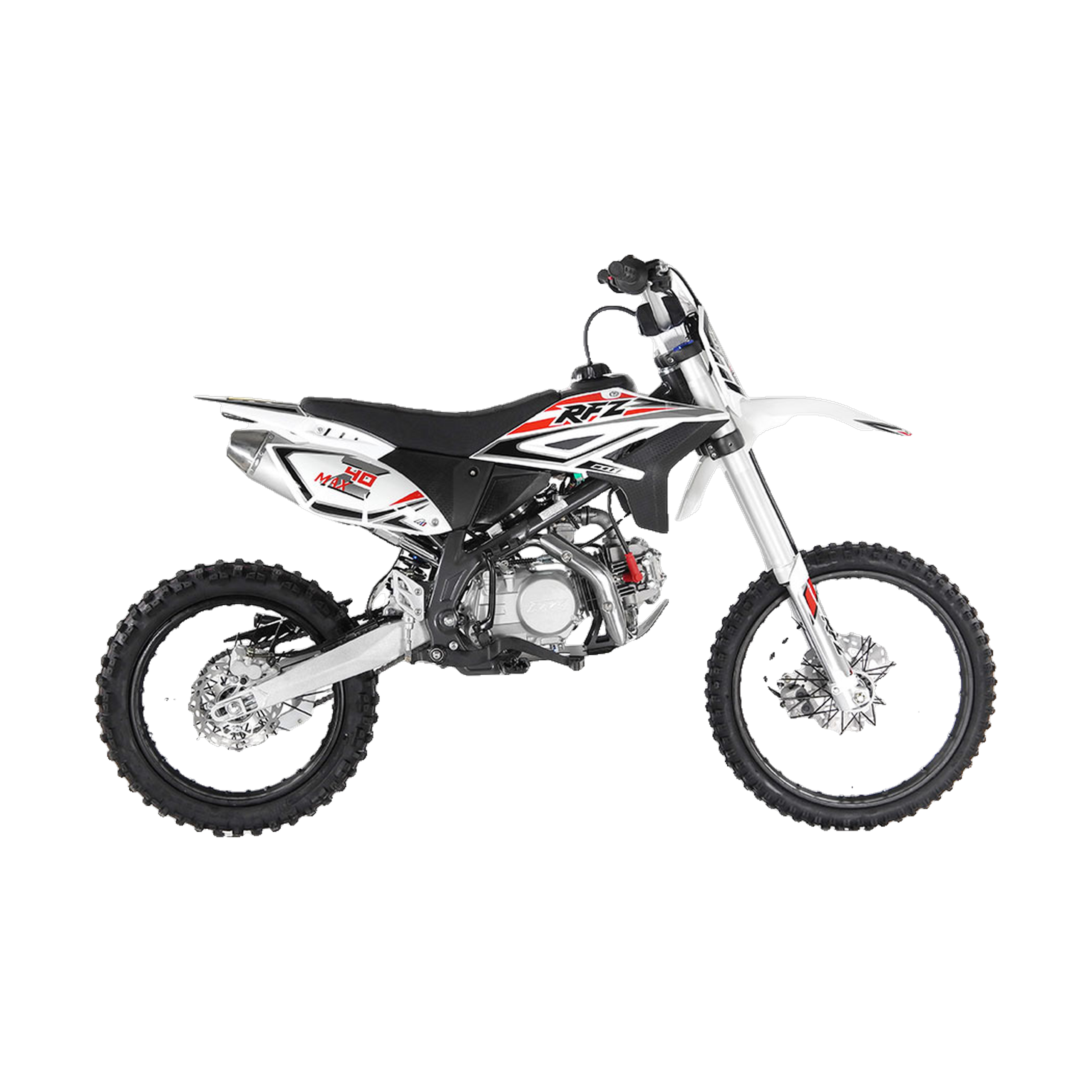

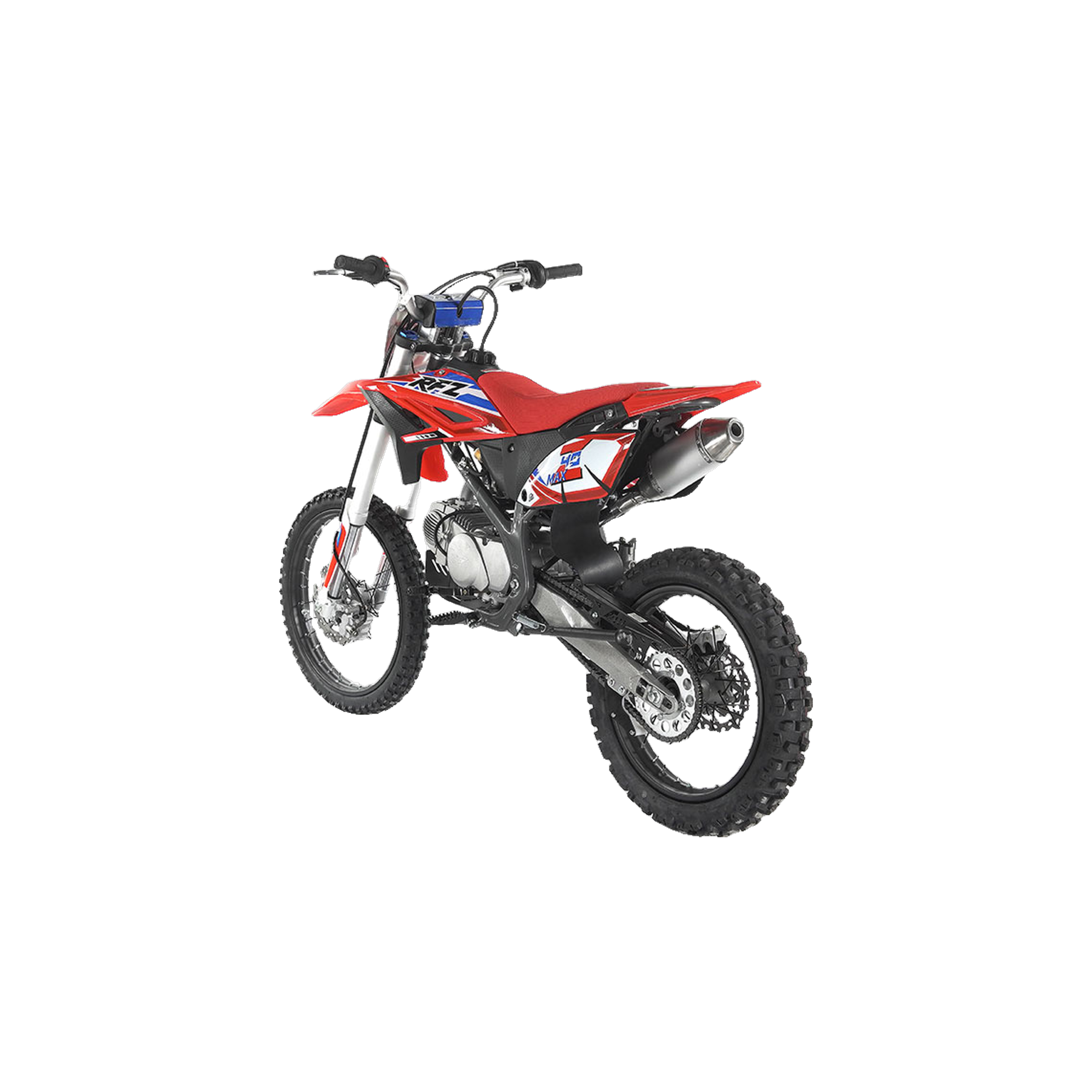

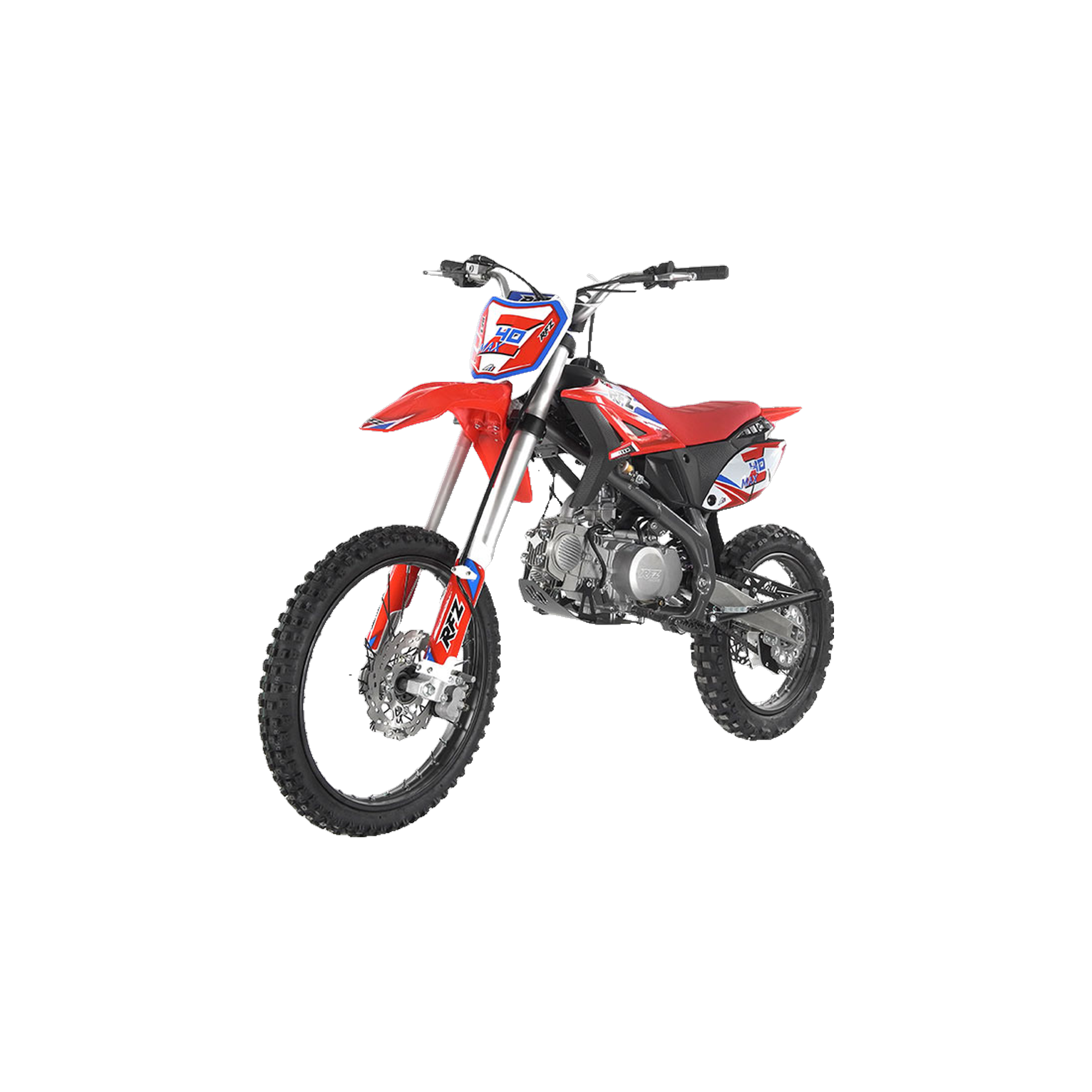

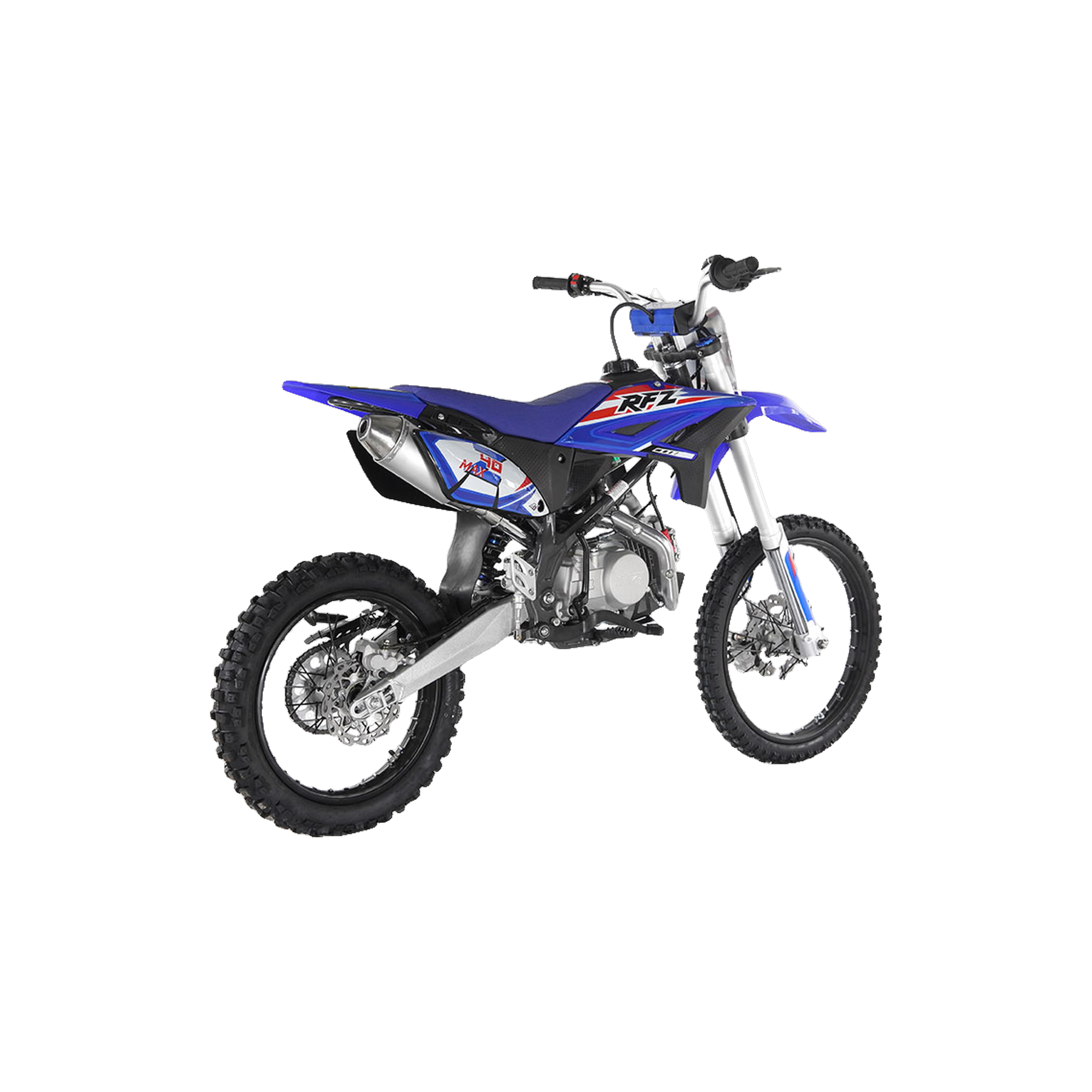

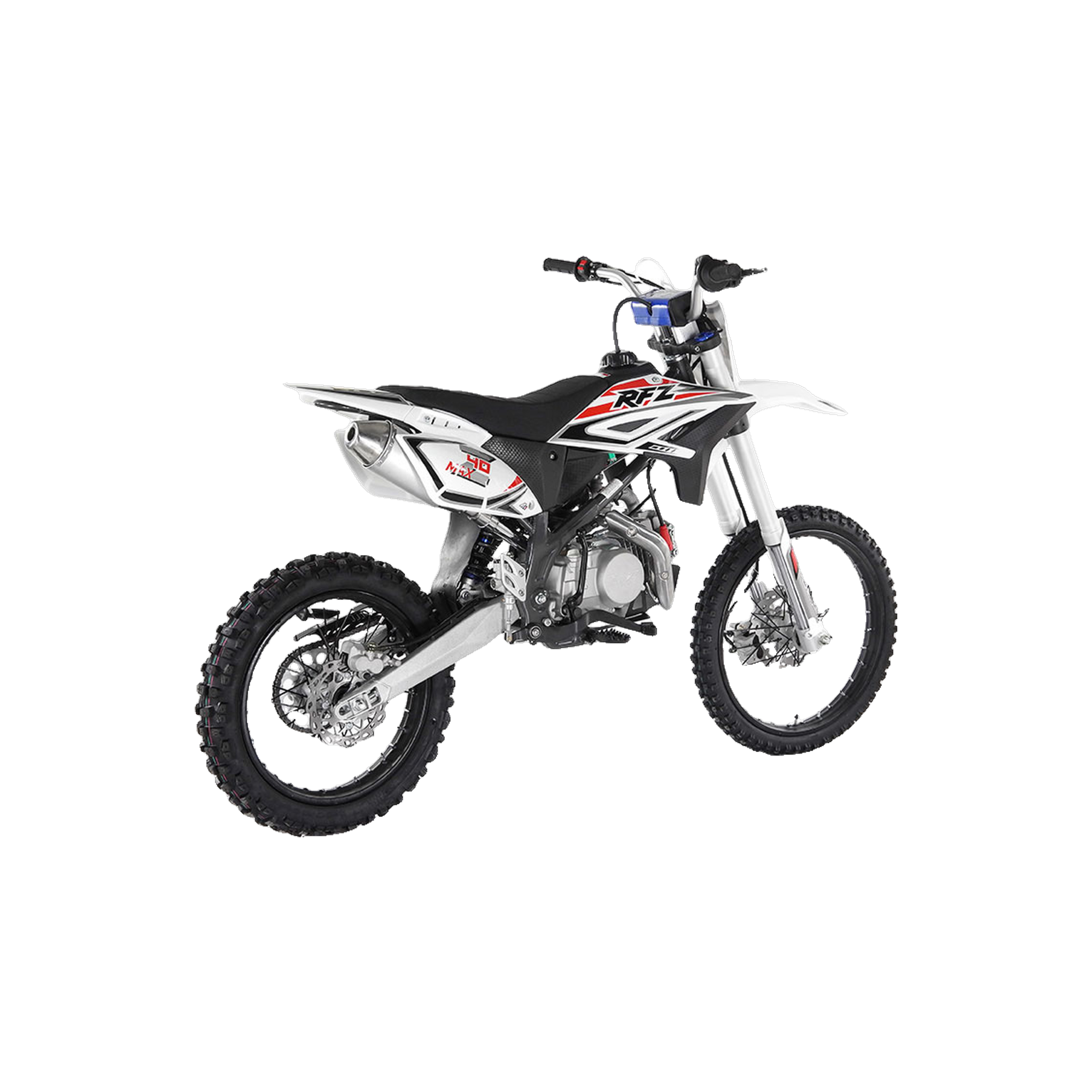

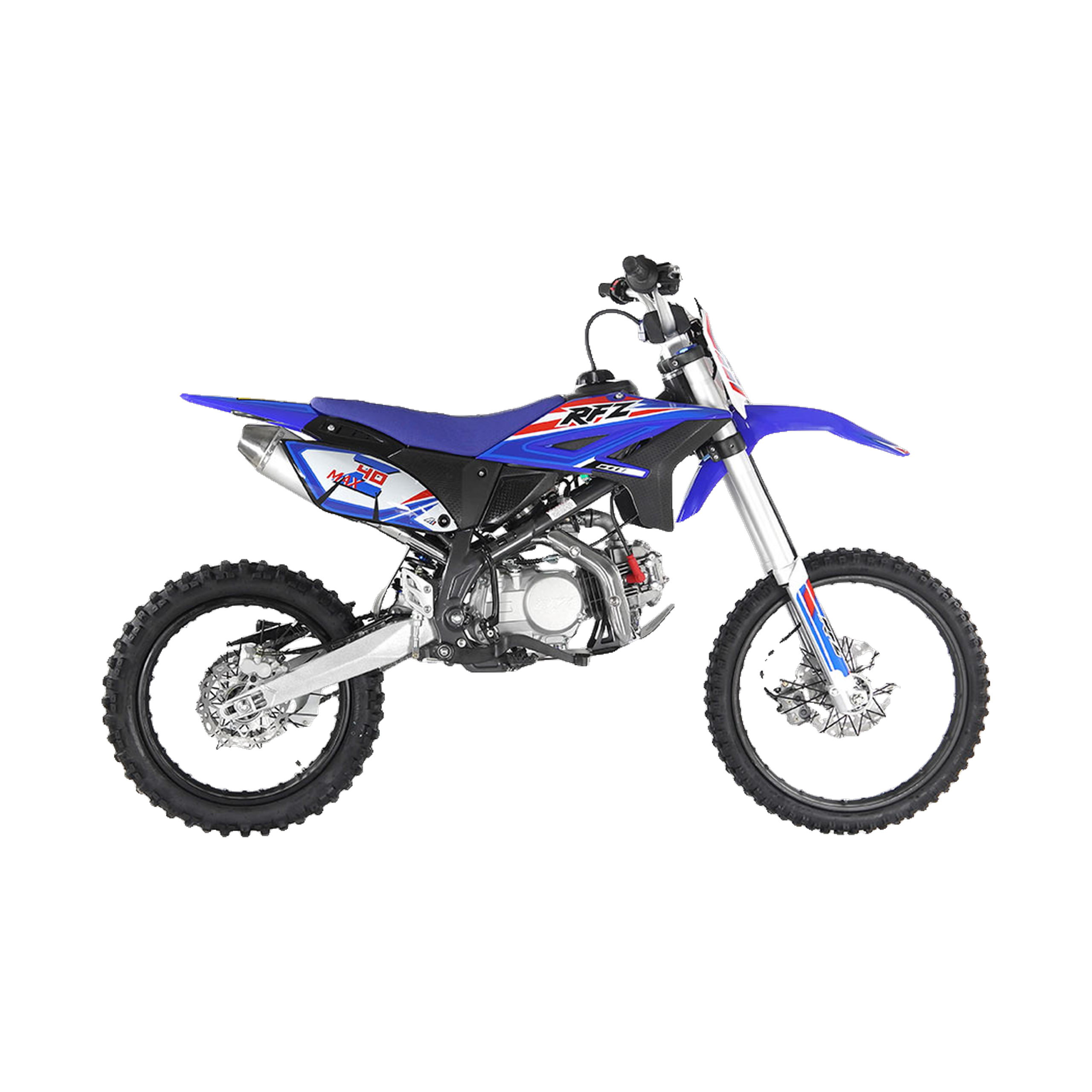

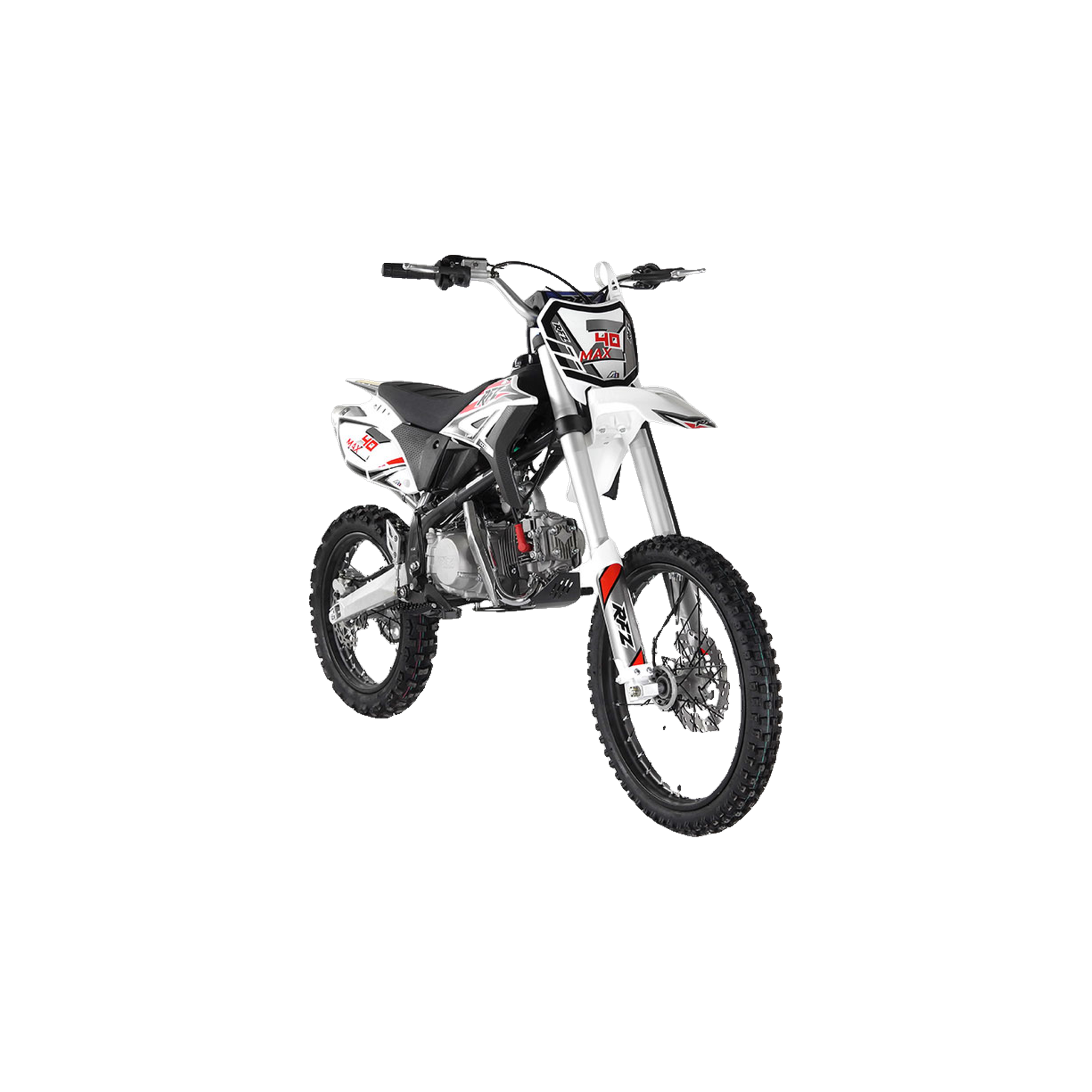

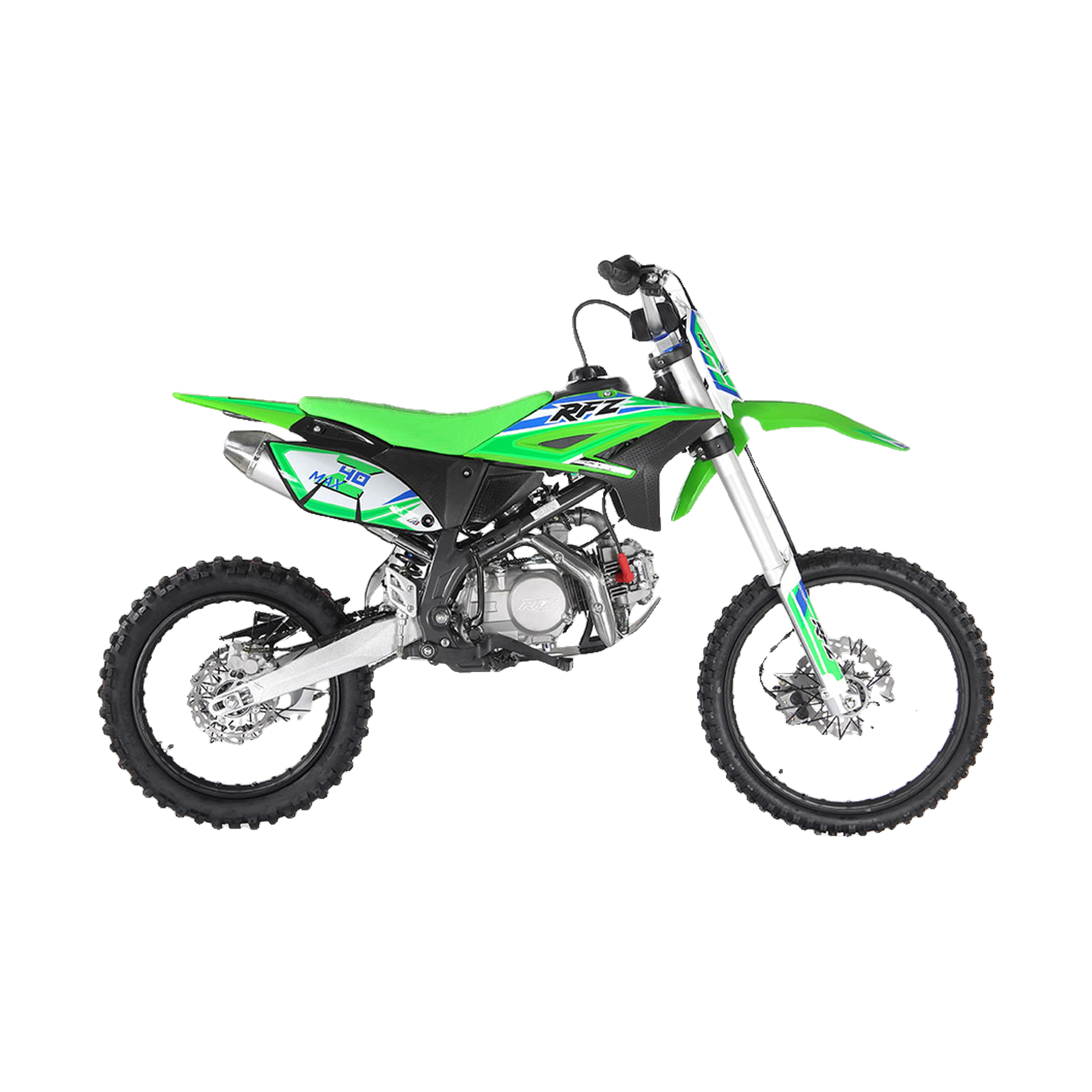

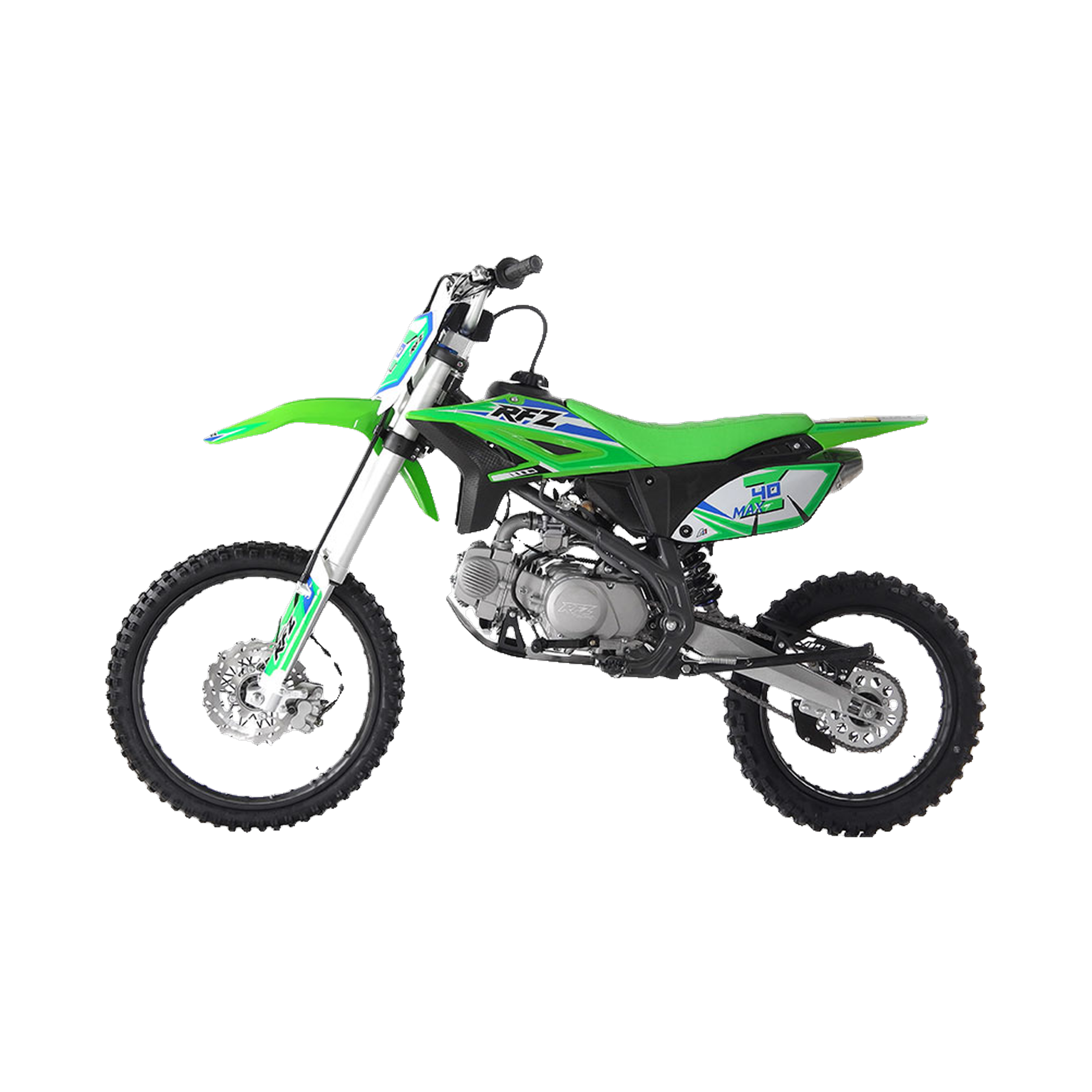

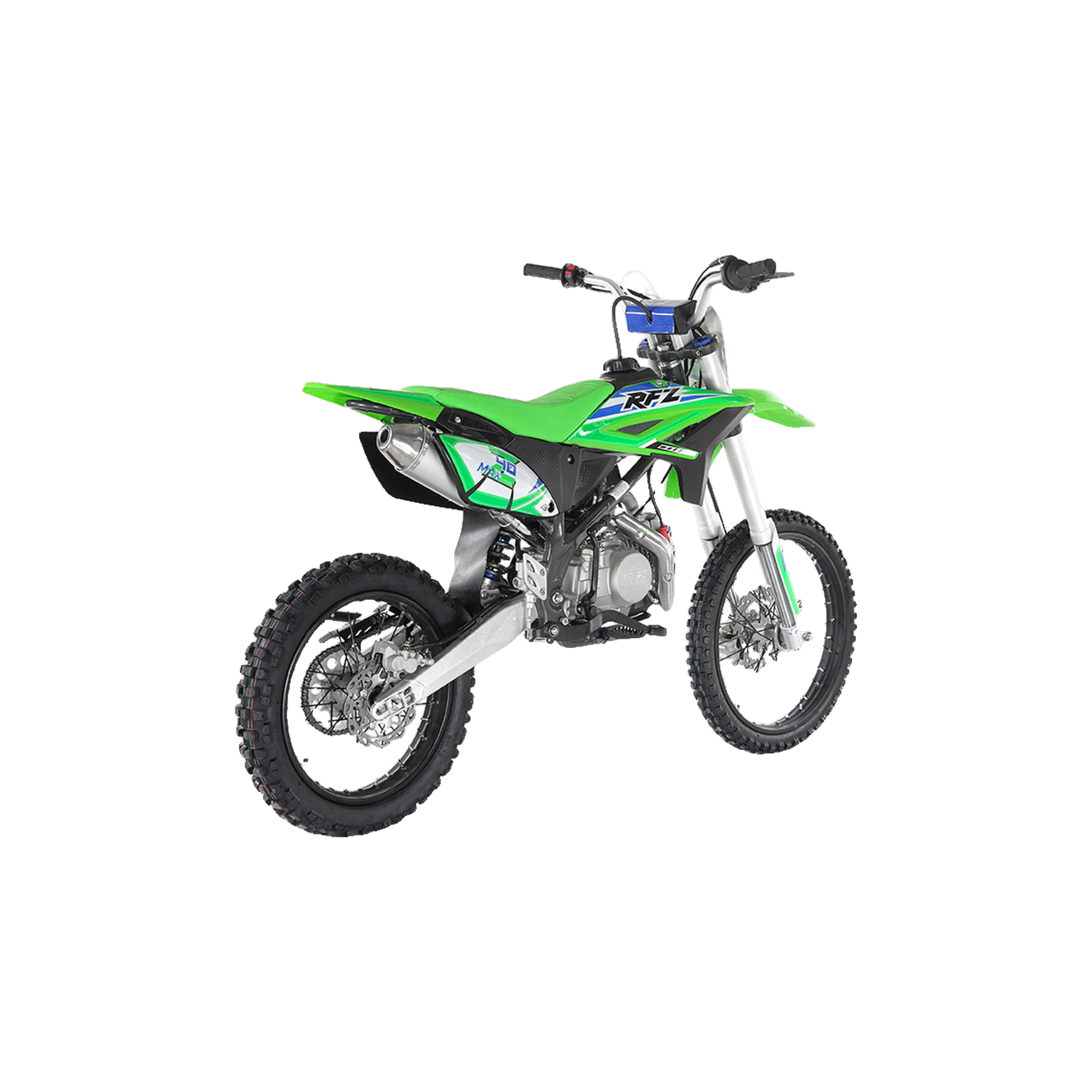

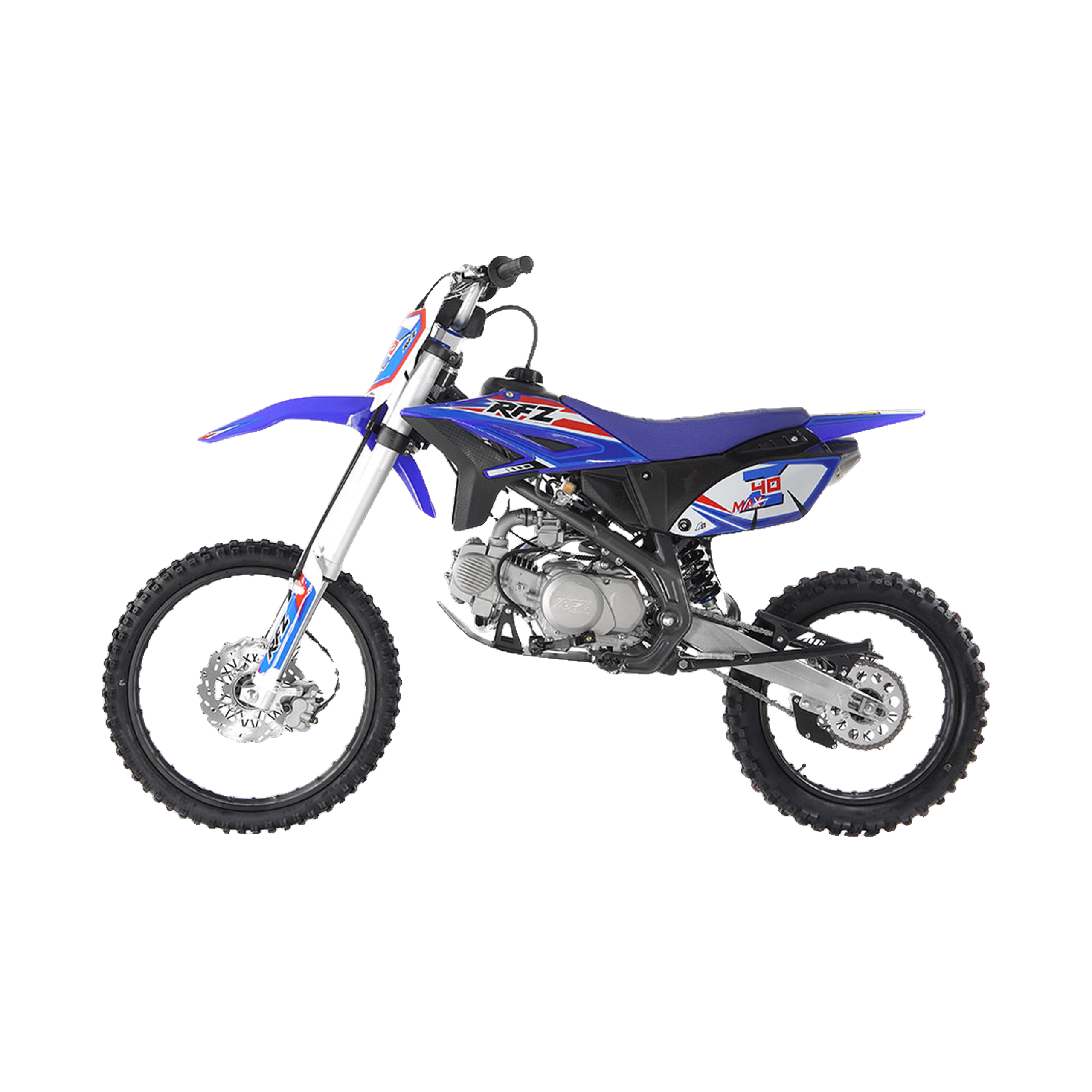

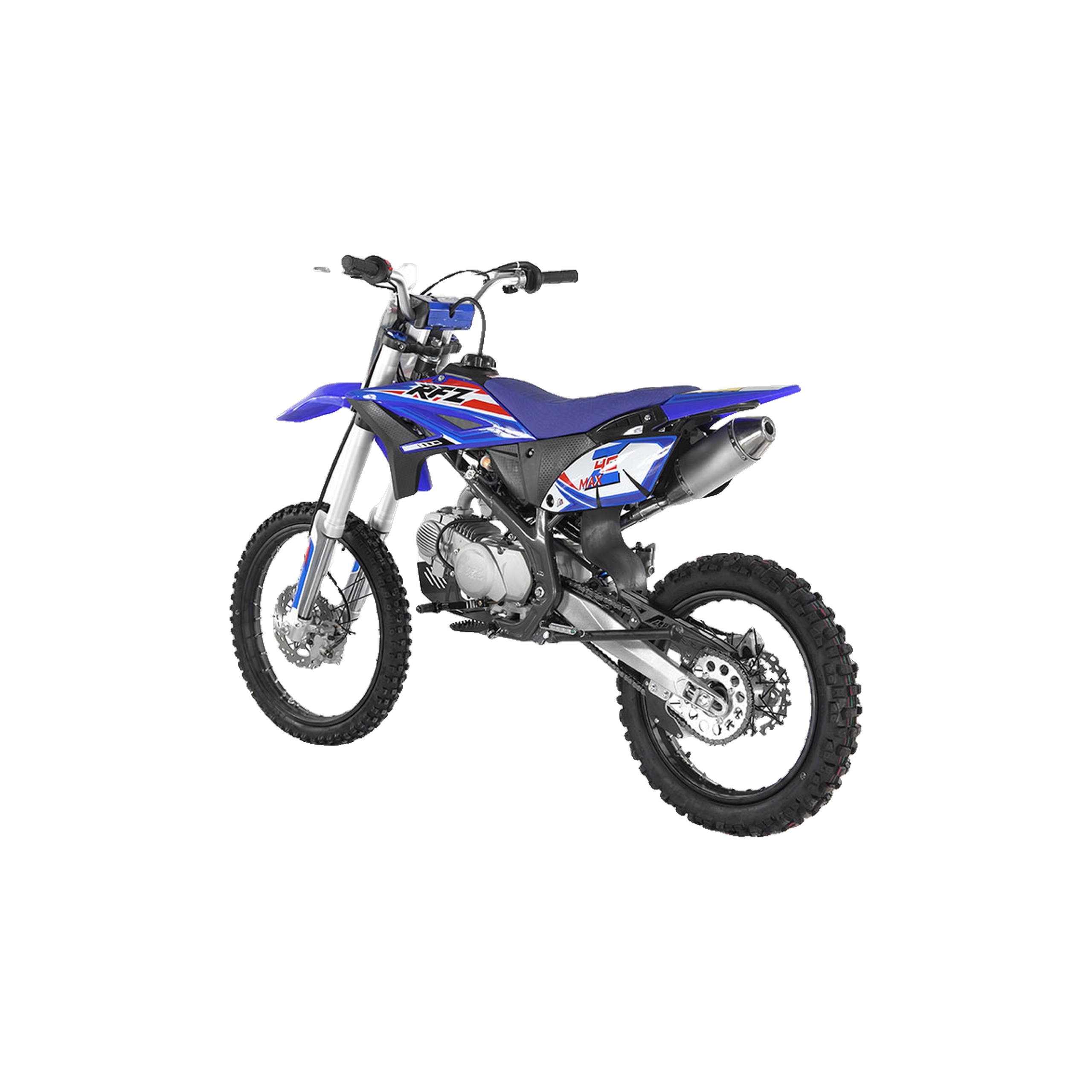

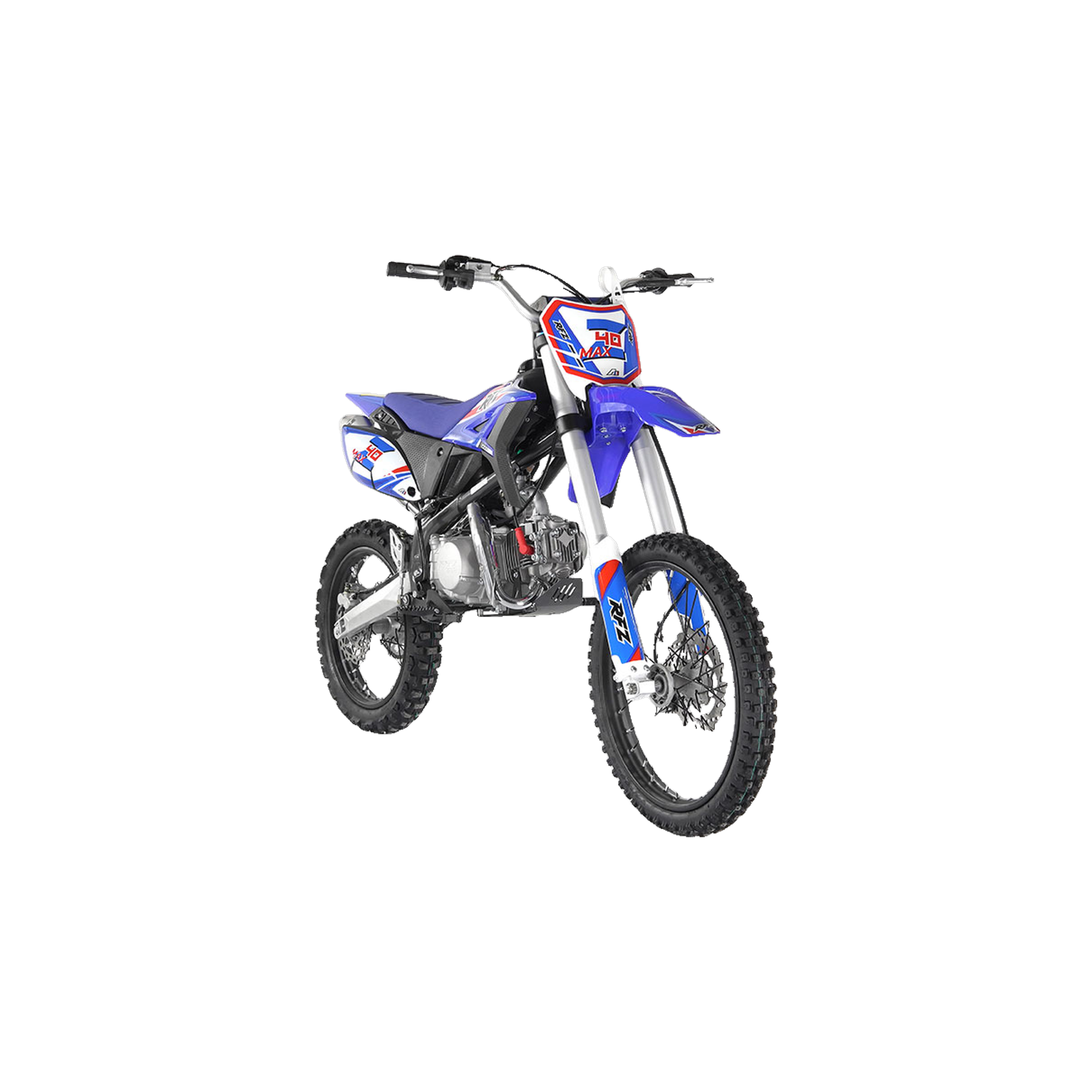

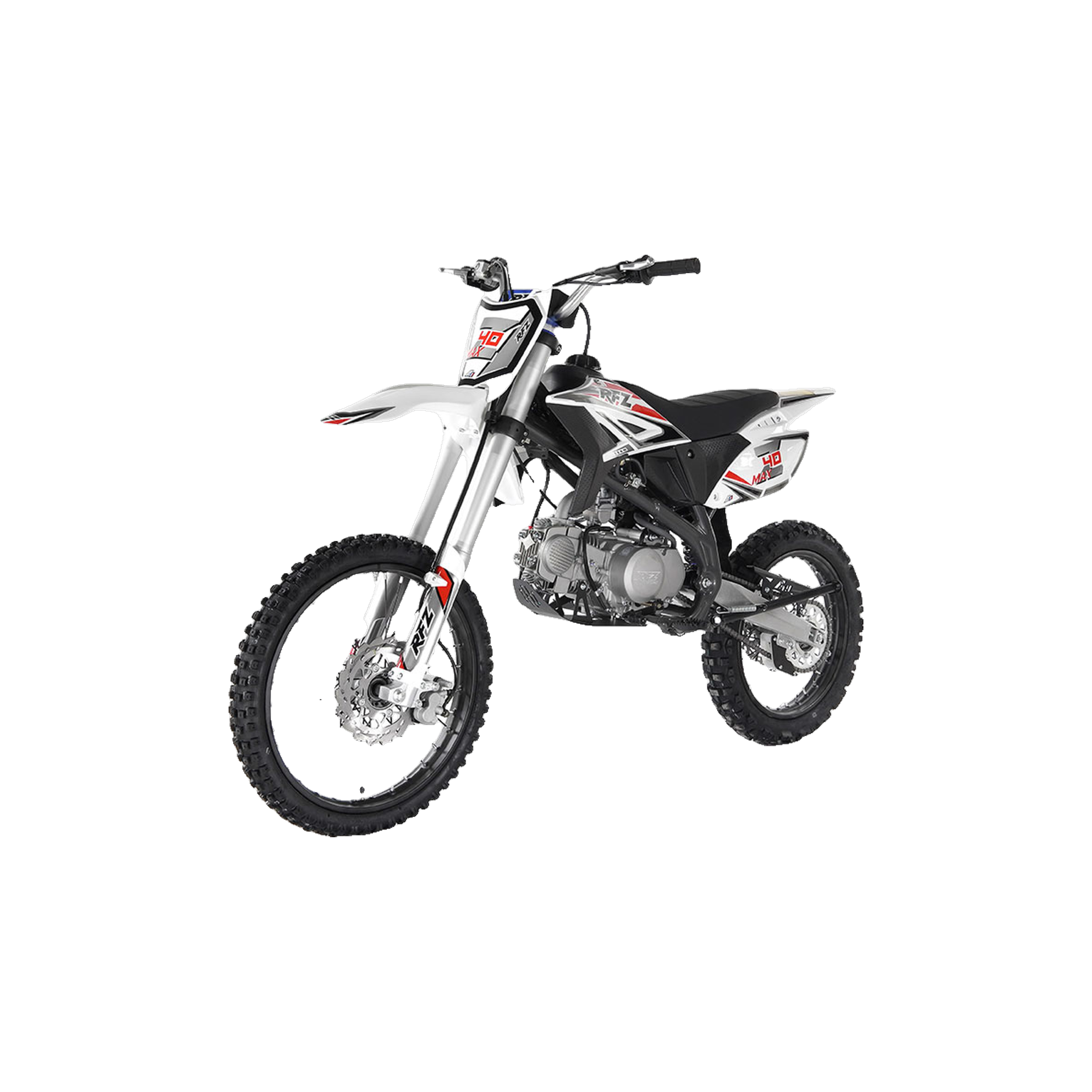

Z40 MAX 140cc

Carb-Approved-Logo

140cc

4-stroke, single-cylinder

3 Months

Limited Warranty

NA

Top Speed

Auto (No Reverse)

(CVT) Transmission

140cc4-stroke, single-cylinder
Top Speed
Auto (No Reverse)Transmission
3 MonthsWarranty
Make an Enquiry

SPECIFICATIONS

Engine4-stroke, single-cylinder
Displacement140cc
Fuel SystemCarb
CarburatorNIBBI PE22
CoolingAir cooled
TransmissionAuto (No Reverse)
Final DriveChain Drive
Start SystemKick Start
Battery
Front Suspension31.9 inches Non-Adjustable
Rear Suspension13.8 inches Adjustable
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires70/100-19
Rear Tires90/100-16
FrameDouble beam Heavy Duty Steel frame
Dimensions74*30.7*48 inches
Seat Height34.5 inches
Wheelbase49.2 inches
Ground Clearance14.5 inches
Fuel Capacity1.03 Gallon
Weight192 LBS
Top Speed
Max Load
Age6+
Warranty3 Months
Z40 MAX
carburetor NIBBI PE22
engine Brand YX
engine 140cc Air cooled, 4-stroke, single-cylinder
Engine Gear 4-speed Manual  (N-1-2-3-4)
Transmission Chain Drive
Shift Gear Hand
Engine Bore X Stroke 56×57mm
compression ratio  9.8：1
max power 11HP/8000r/min
Max torque 10.2N.m/7500r/min
Ignition CDI
Engine Oil total capacity 0.24 Gallon
Fuel Tank Capacity 1.03 Gallon
Start way Kick Start
Front wheel 70/100-19
Rear wheel 90/100-16
Drive train Chain drive
Front and rear absorber brand SYD
Front absorber 31.9 inches Non-Adjustable
Rear absorber 13.8 inches Adjustable
Front Hand Brake Hydraulic Disc
Rear Foot Brake Hydraulic Disc
Frame Double beam Heavy Duty Steel frame
N.W: 192 LBS
G.W 221 LBS
Products size(L*W*H) 74*30.7*48 inches
seat high 34.5 inches
wheel base 49.2 inches
Ground Clearance 14.5 inches
box size(L*W*H) 57.5*15*29.5inches
