Recommended Age

6+

Dirt Bikes

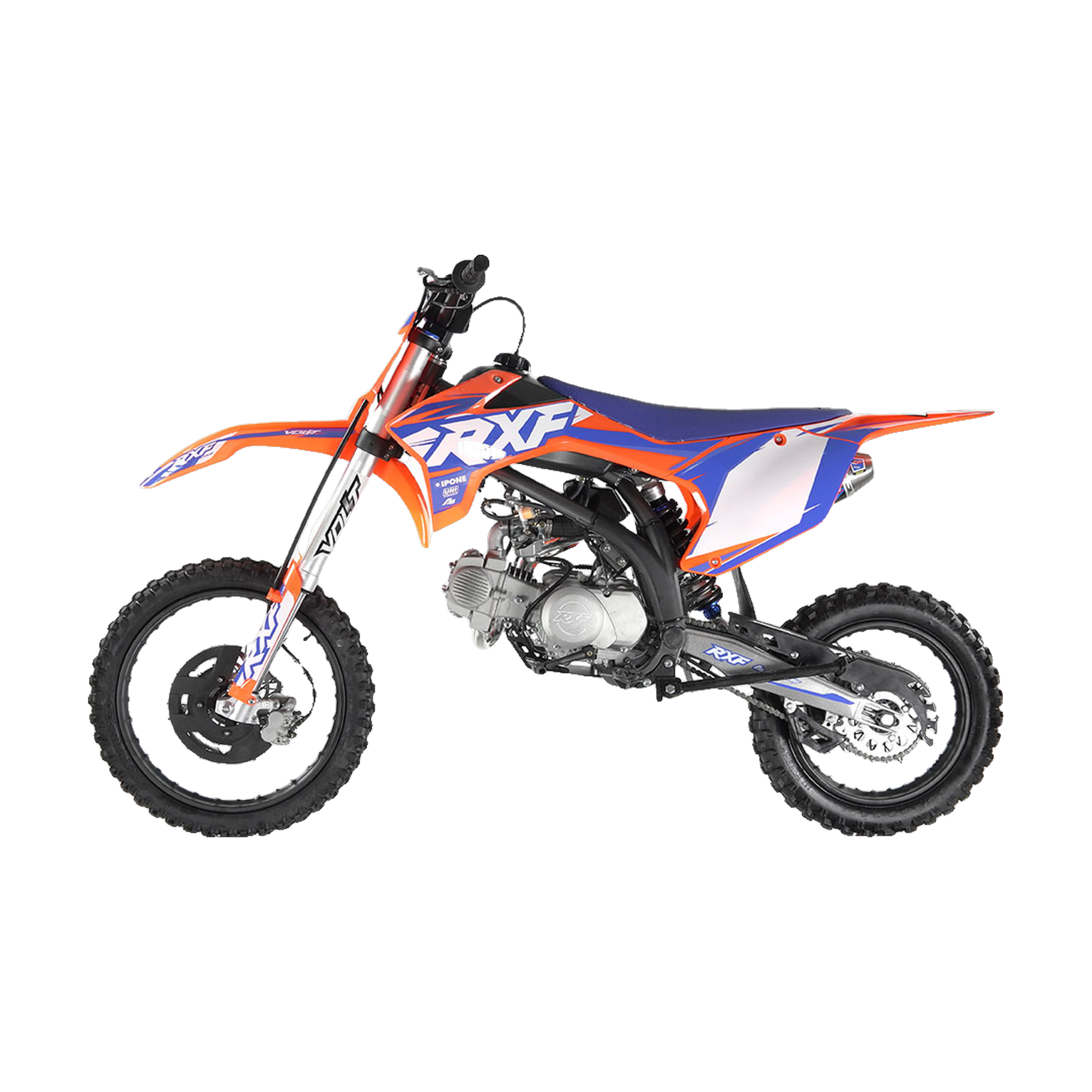

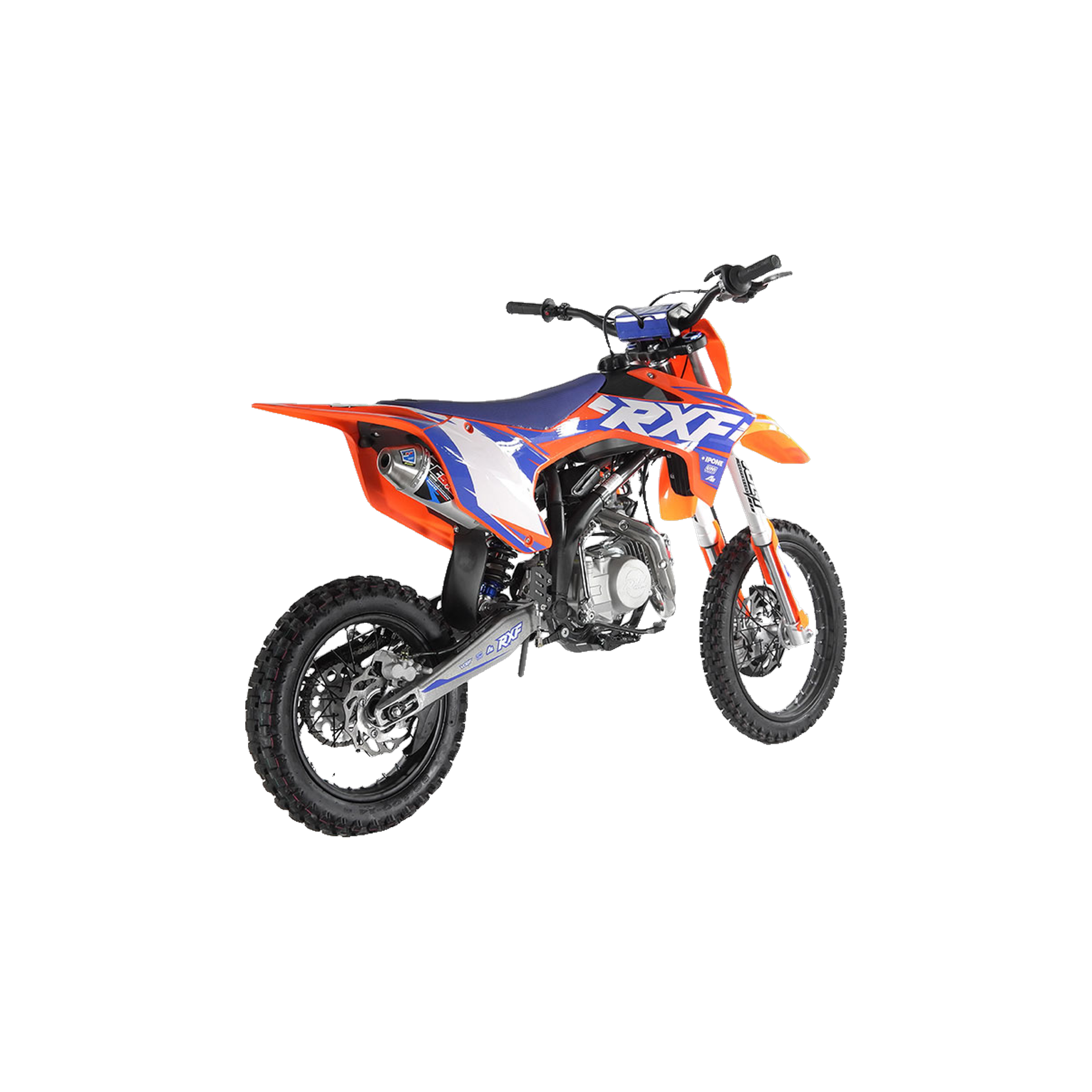

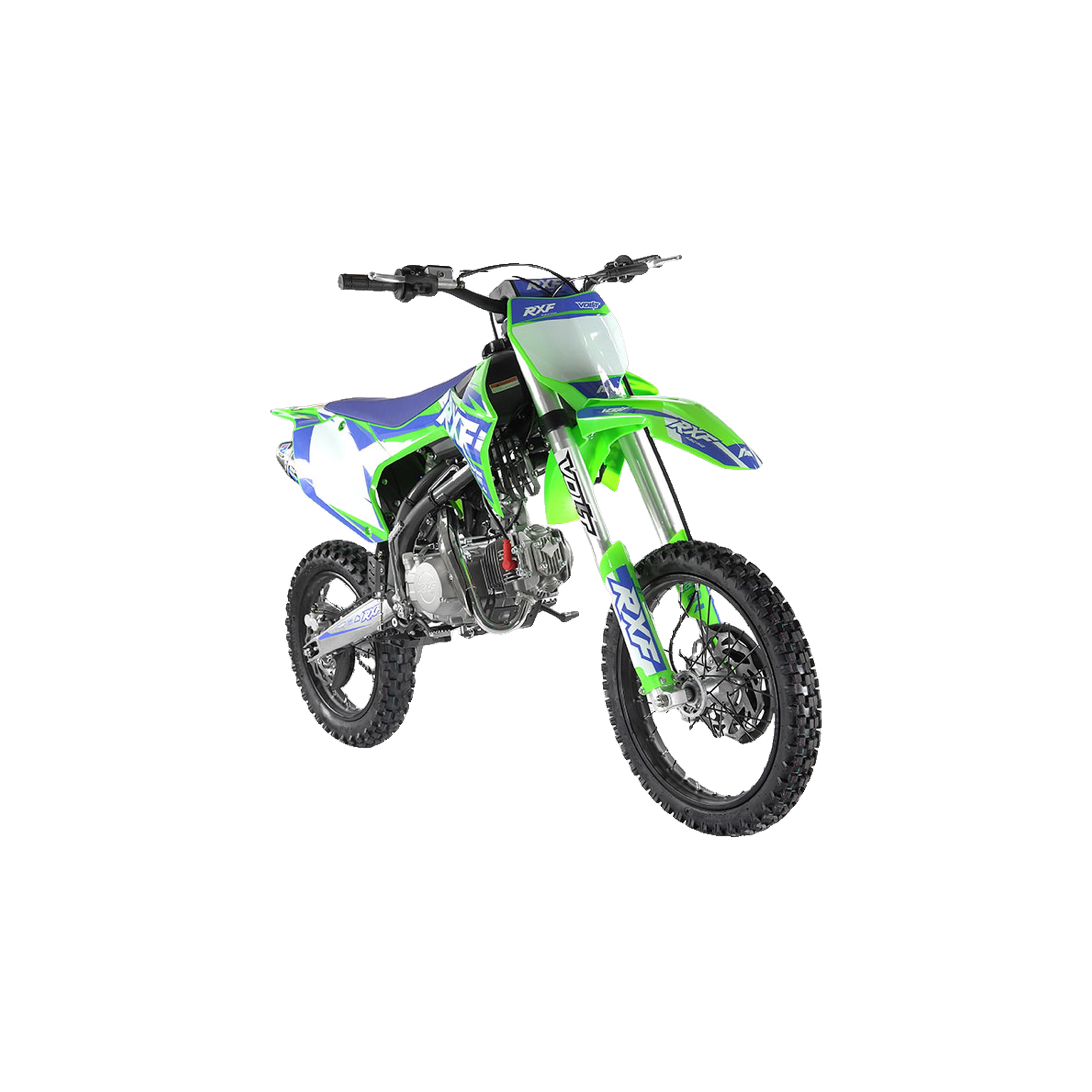

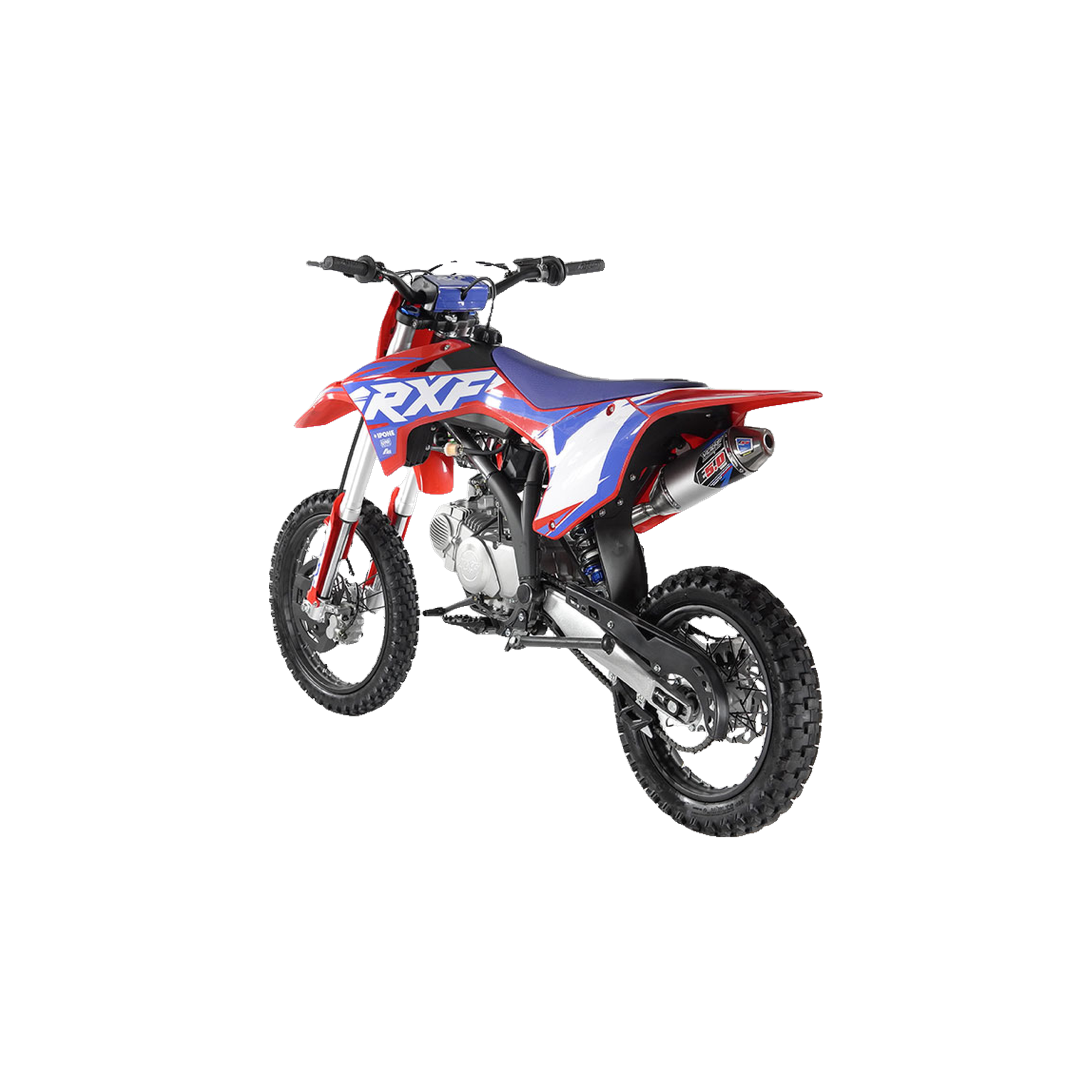

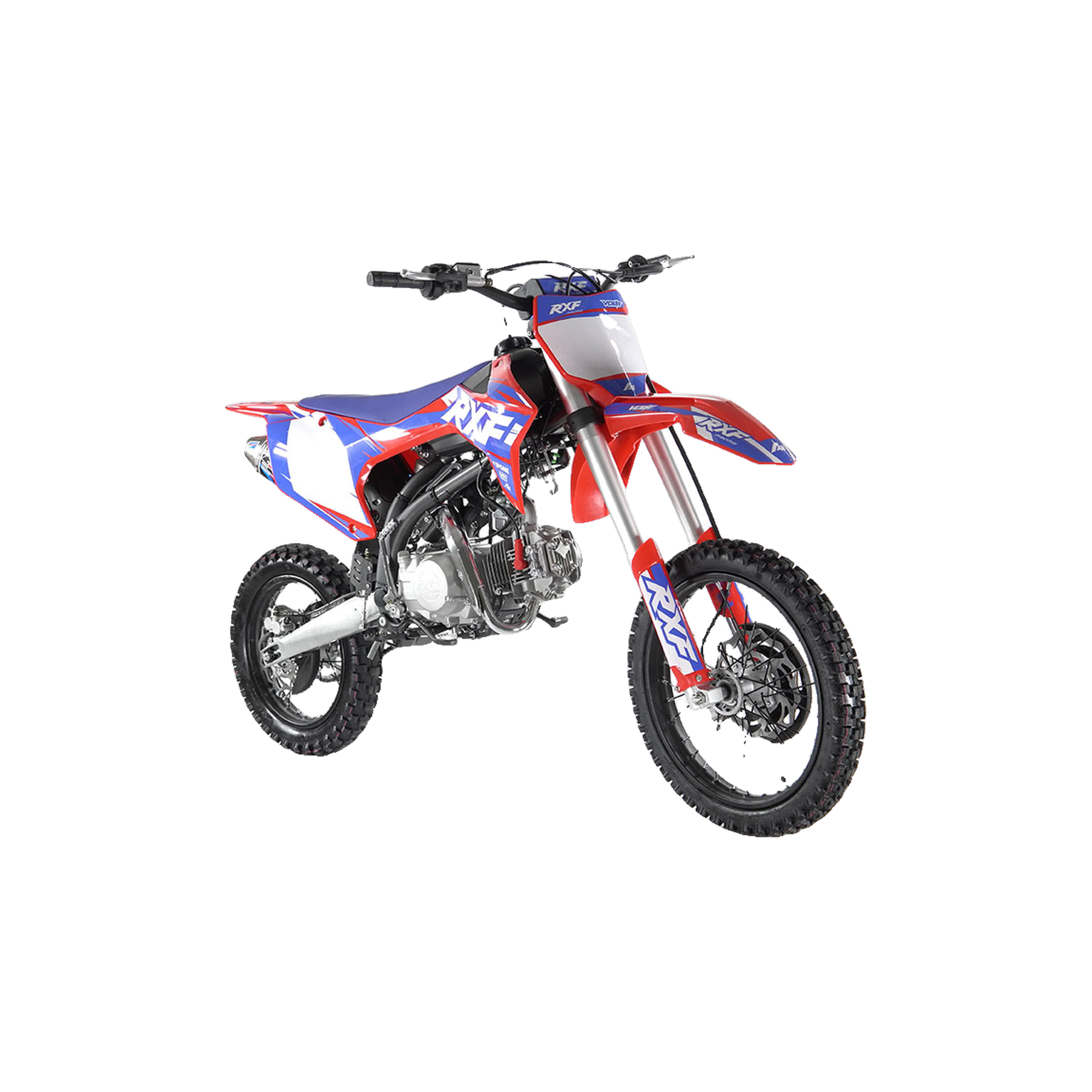

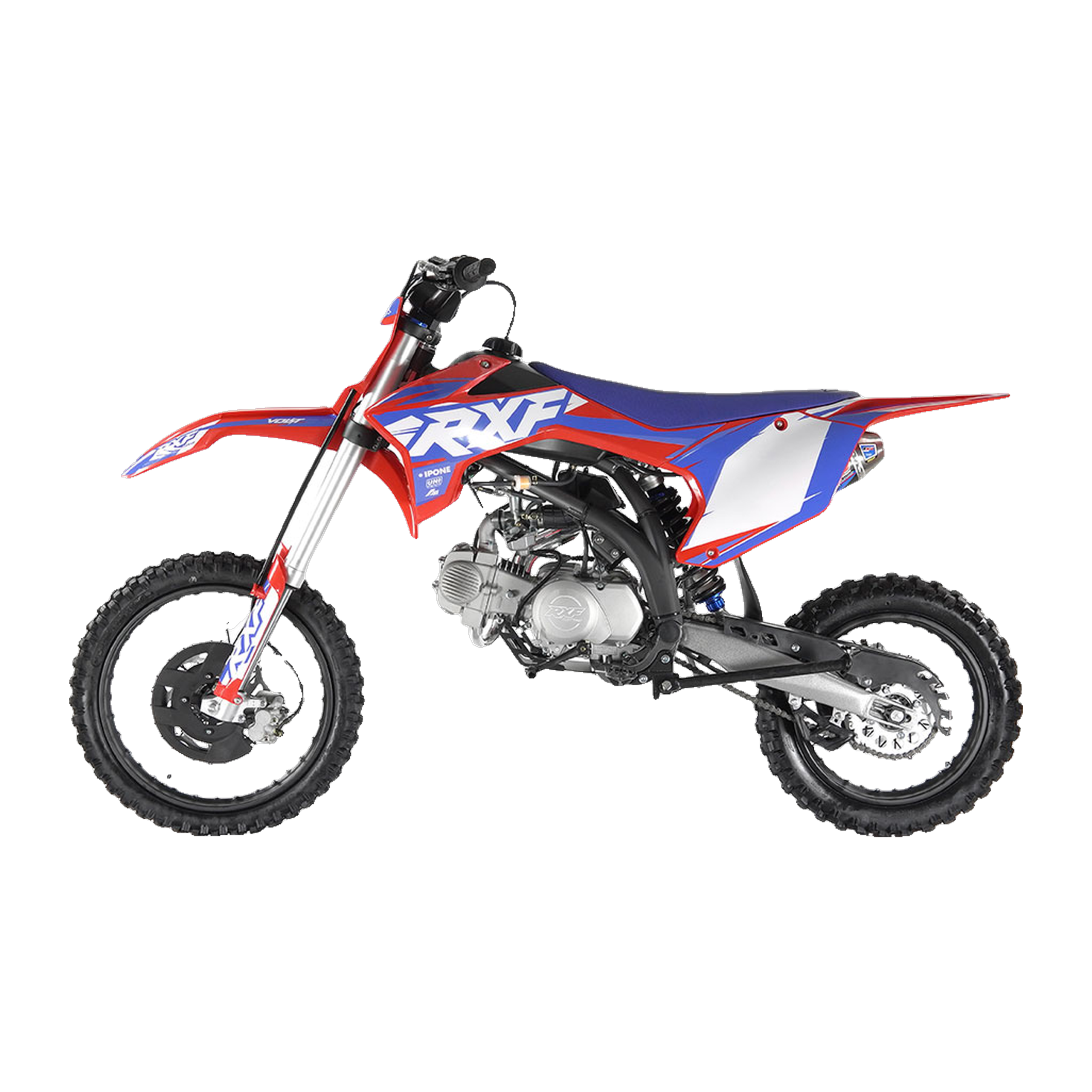

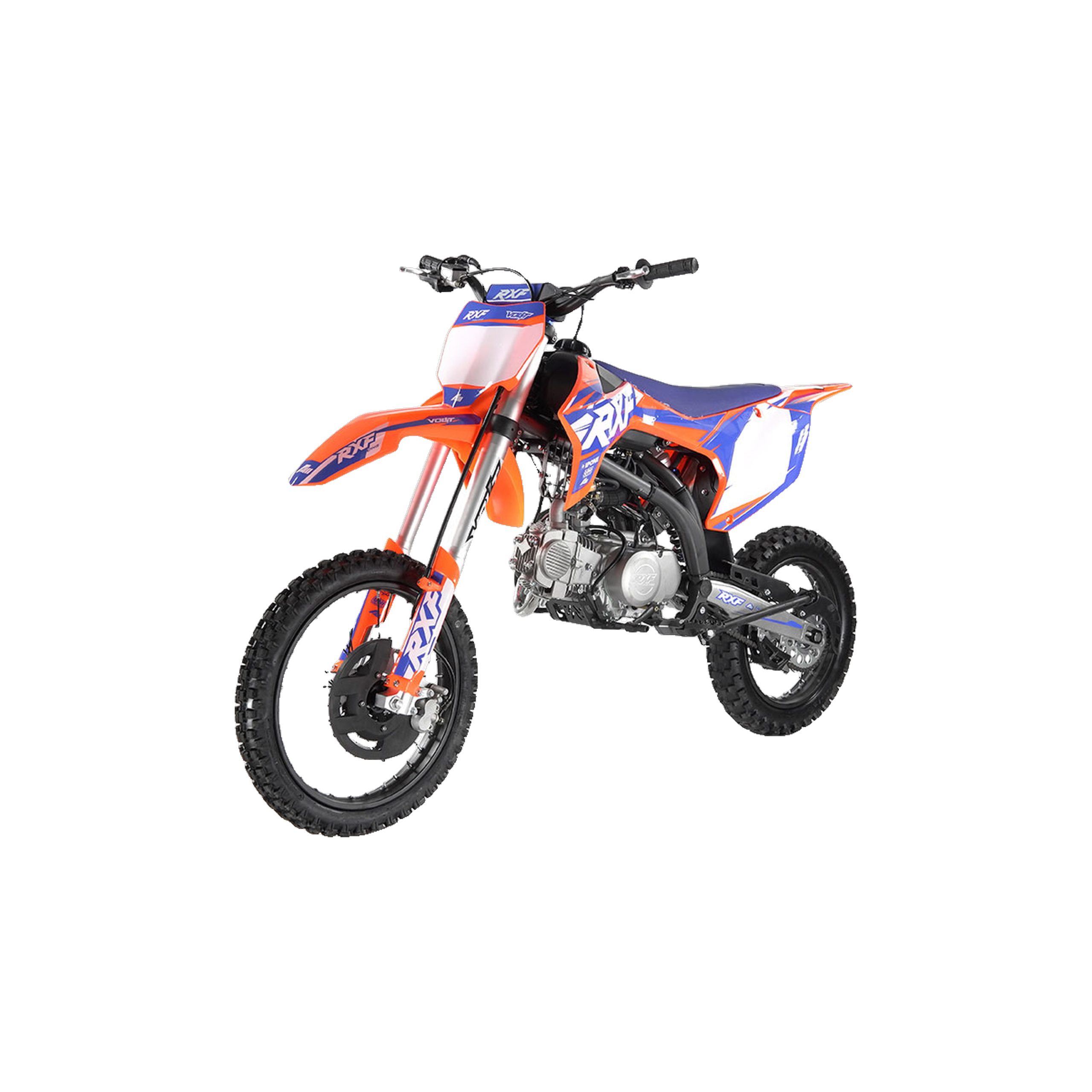

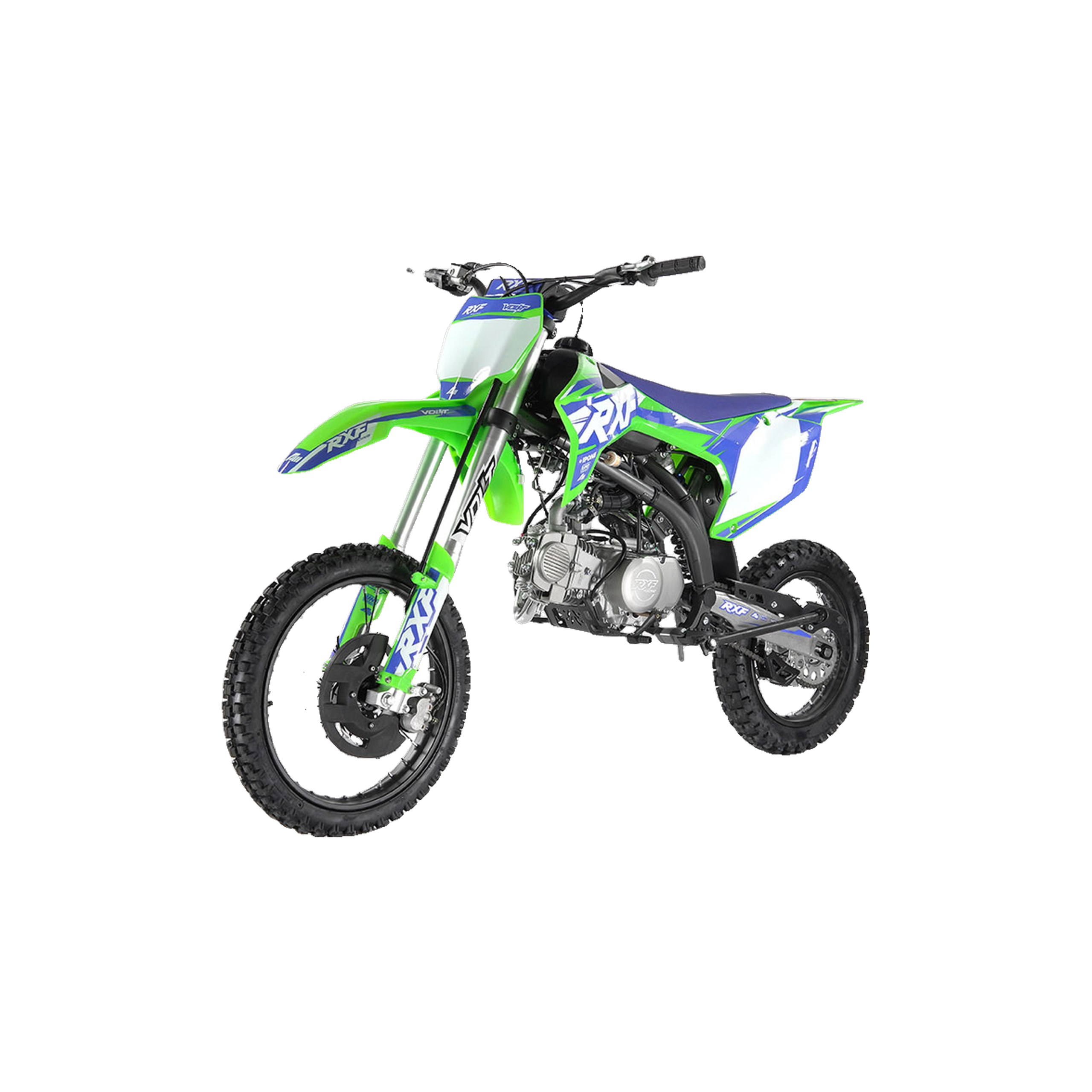

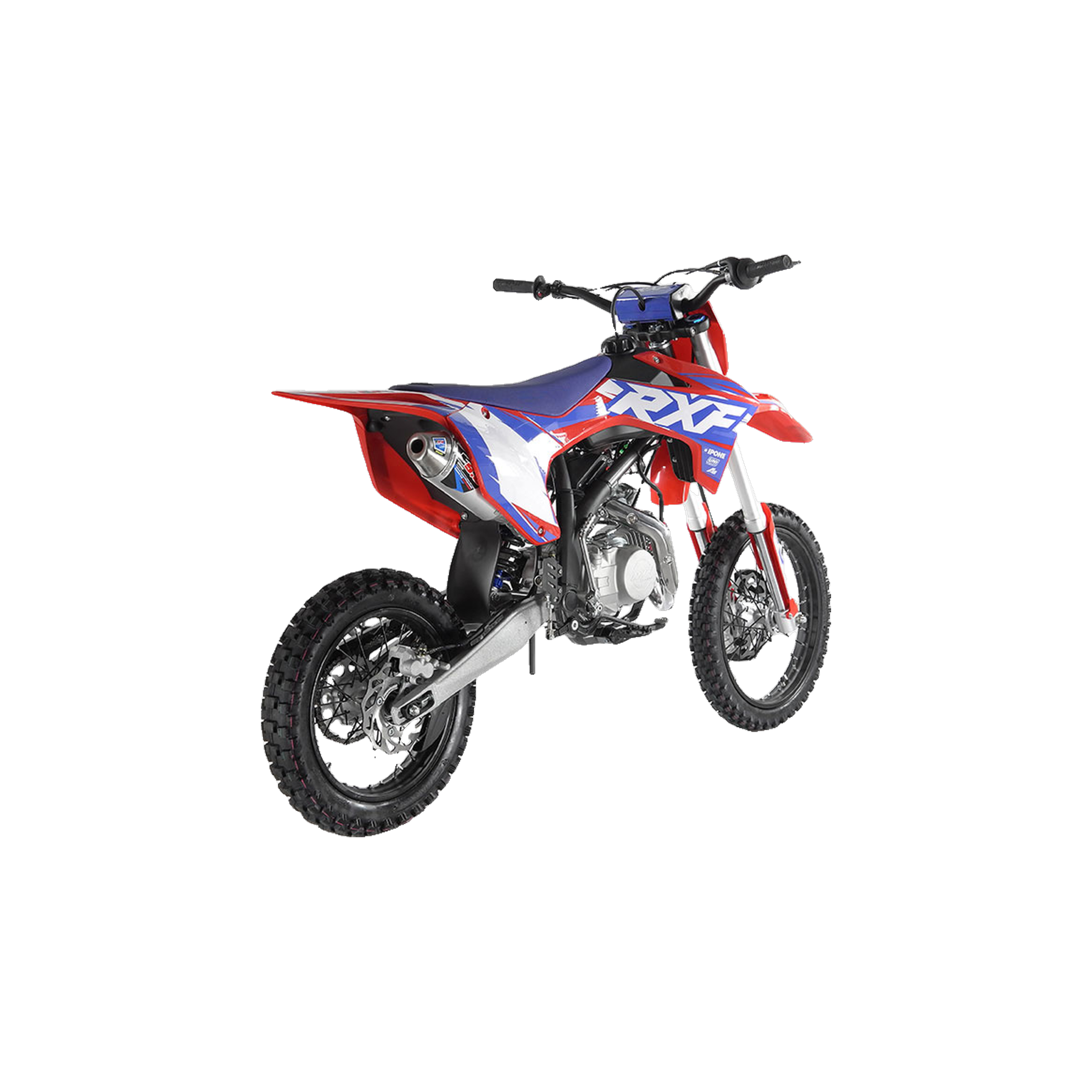

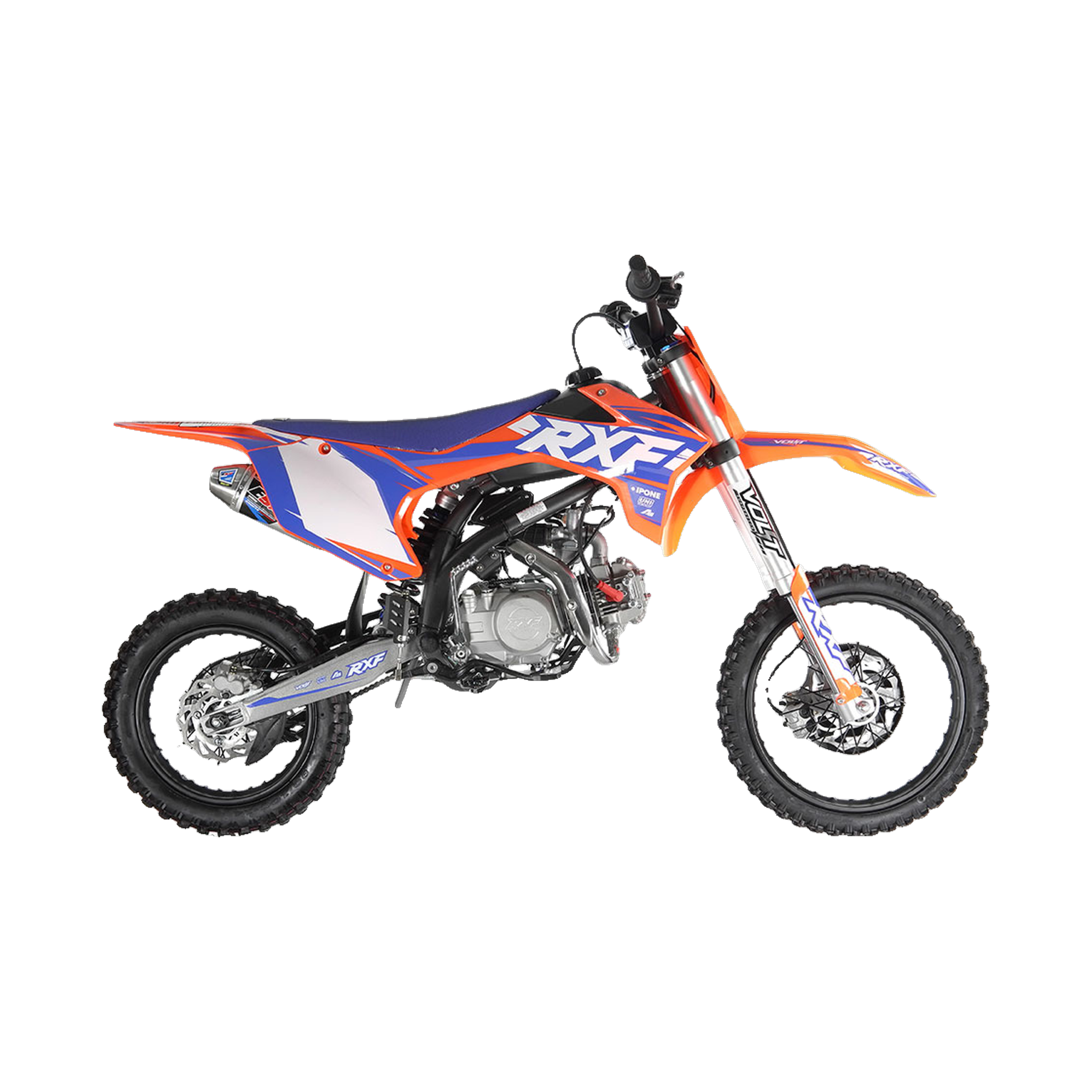

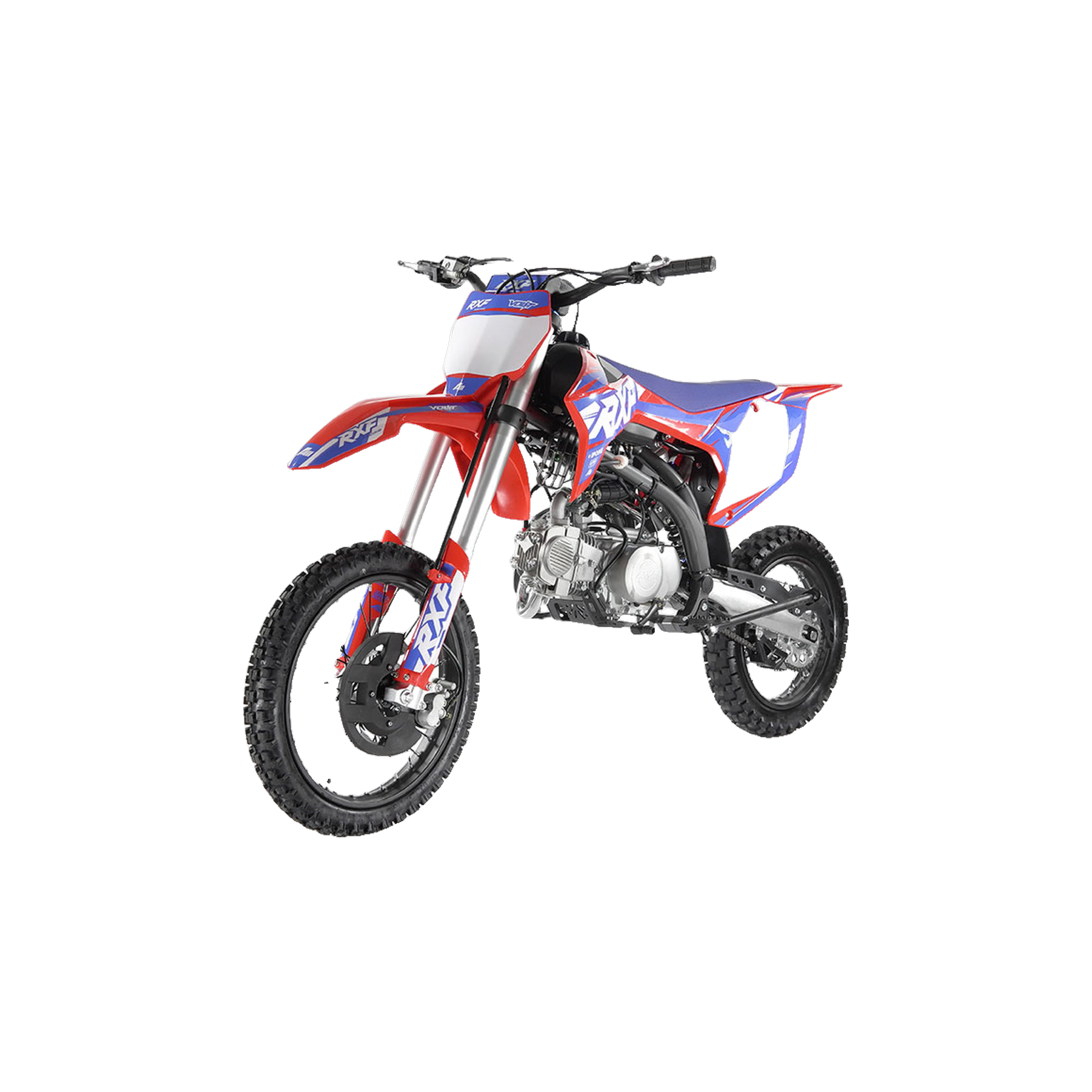

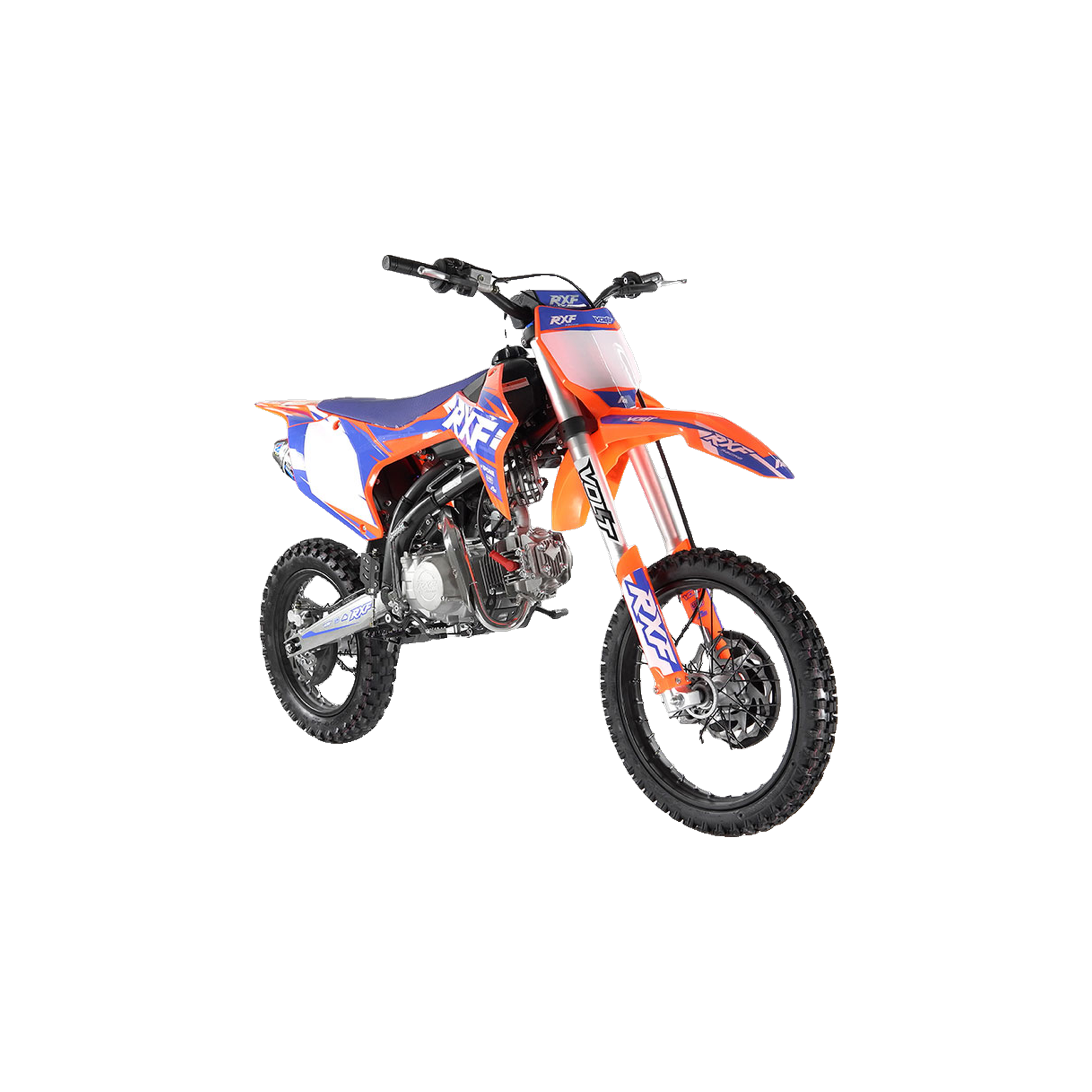

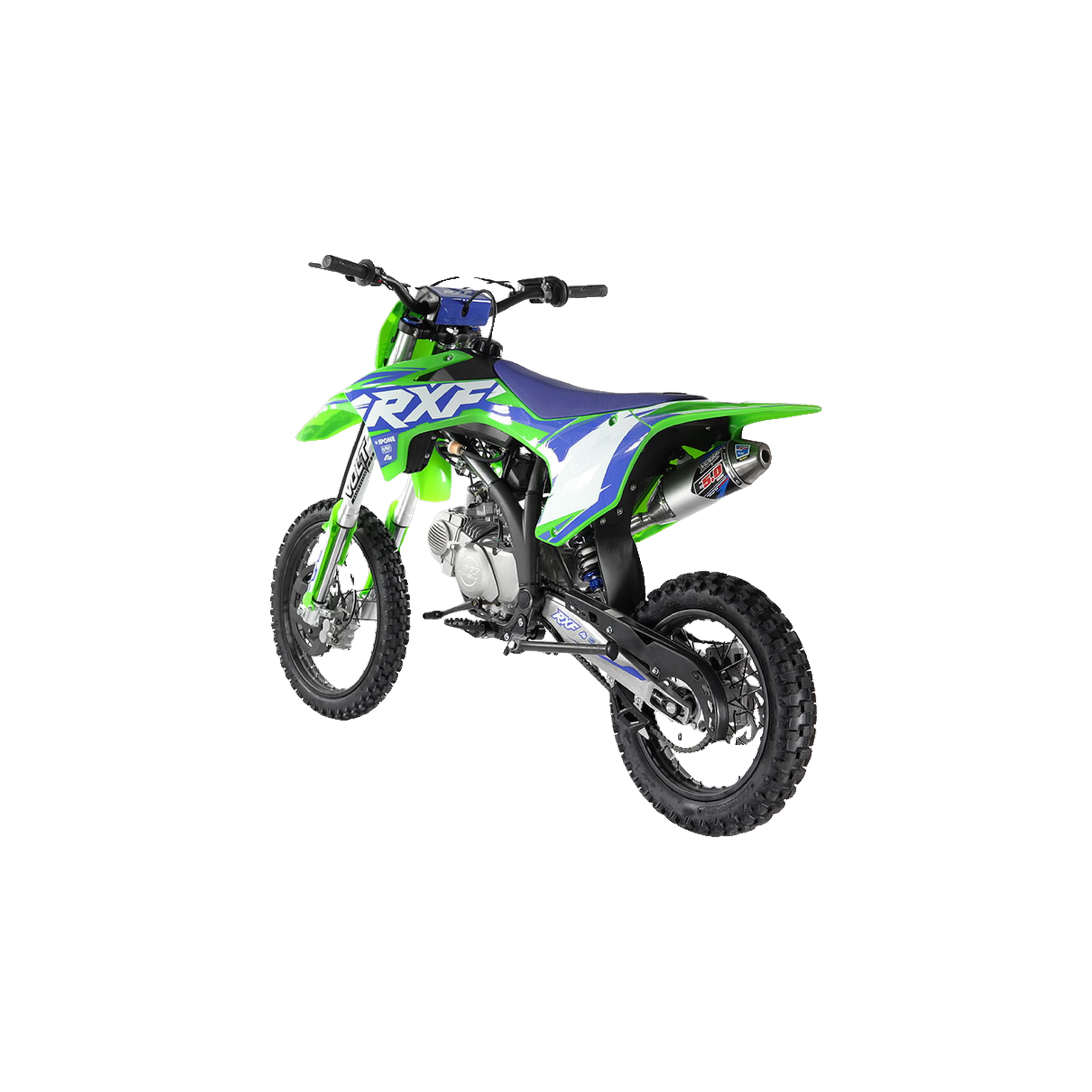

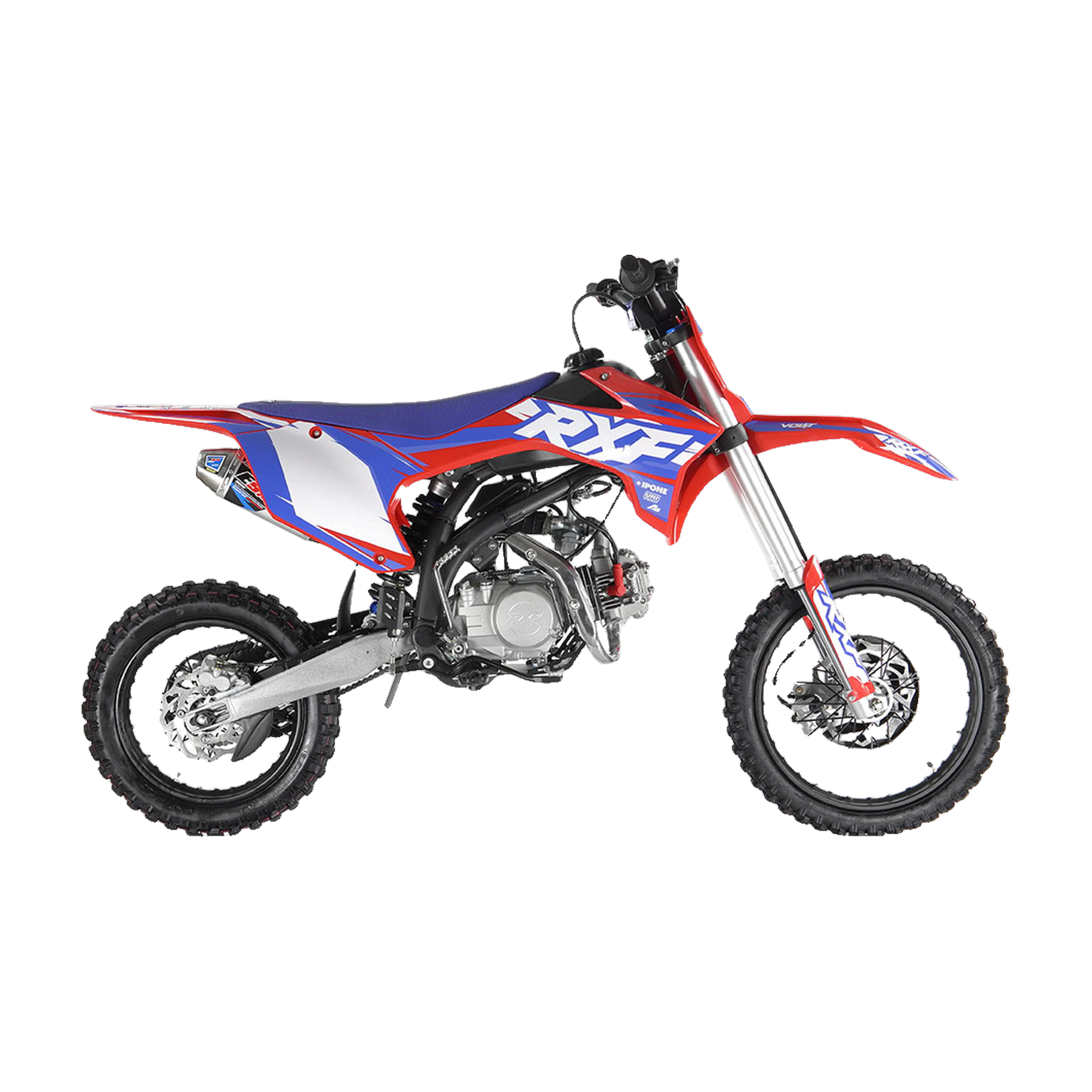

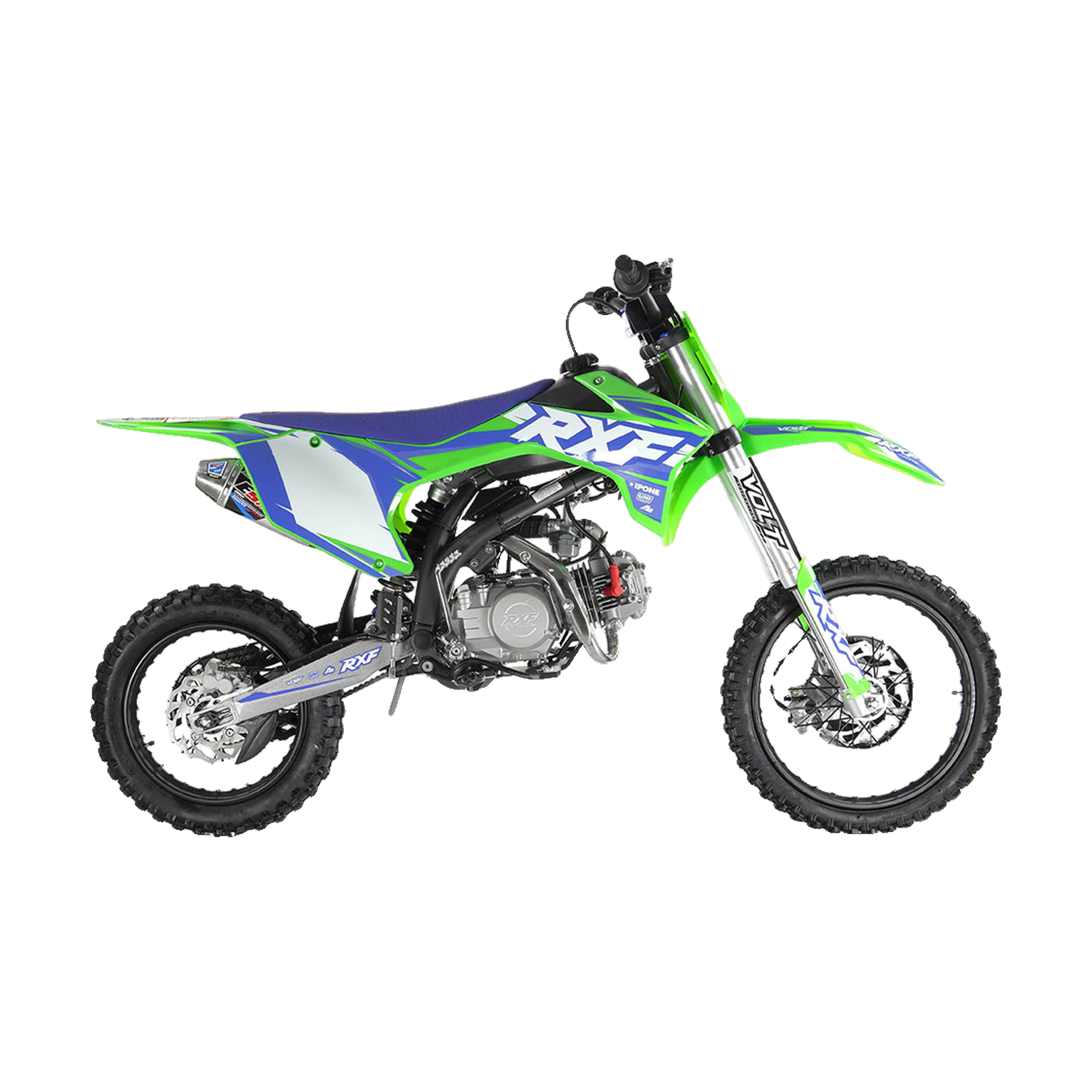

RXF150 FREERIDE MAX

Carb-Approved-Logo

140cc

Air cooled, 4-stroke, single-cylinder

3 Months

Limited Warranty

NA

Top Speed

4-speed Manual  (N-1-2-3-4)

(CVT) Transmission

140ccAir cooled, 4-stroke, single-cylinder
Top Speed
4-speed Manual  (N-1-2-3-4)Transmission
3 MonthsWarranty
Make an Enquiry

SPECIFICATIONS

EngineAir cooled, 4-stroke, single-cylinder
Displacement140cc
Fuel SystemCarb
CarburatorPZ26
Cooling
Transmission4-speed Manual  (N-1-2-3-4)
Final DriveChain Drive
Start SystemKick Start
Battery
Front Suspension32.7 inches Non-Adjustable
Rear Suspension13.8 inches Adjustable
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires70/100-19
Rear Tires90/100-16
FrameDouble beam Heavy Duty Steel frame
Dimensions74*33*46.5 inches
Seat Height35.8 inches
Wheelbase51.2 inches
Ground Clearance14.5 inches
Fuel Capacity1.4 Gallon
Weight196 LBS
Top Speed
Max Load
Age6+
Warranty3 Months

RXF Freeride 150-19/16
carburetor PZ26
engine Brand YX
engine 140cc Air cooled, 4-stroke, single-cylinder
Engine Gear 4-speed Manual  (N-1-2-3-4)
Transmission Chain Drive
Shift Gear Hand
Engine Bore X Stroke 56×57mm
compression ratio  9.8：1
max power 11HP/8000r/min
Max torque 10.2N.m/7500r/min
Ignition CDI
Engine Oil total capacity 0.24 Gallon
Fuel Tank Capacity 1.4 Gallon
Start way Kick Start
Front wheel 70/100-19
Rear wheel 90/100-16
Drive train Chain drive
Front and rear absorber brand SYD VOLT
Front absorber 32.7 inches Non-Adjustable
Rear absorber 13.8 inches Adjustable
Front Hand Brake Hydraulic Disc
Rear Foot Brake Hydraulic Disc
Frame Double beam Heavy Duty Steel frame
N.W: 196 LBS
G.W 231 LBS
Products size(L*W*H) 74*33*46.5 inches
seat high 35.8 inches
wheel base 51.2 inches
Ground Clearance 14.5 inches
