Recommended Age

6+

Dirt Bikes

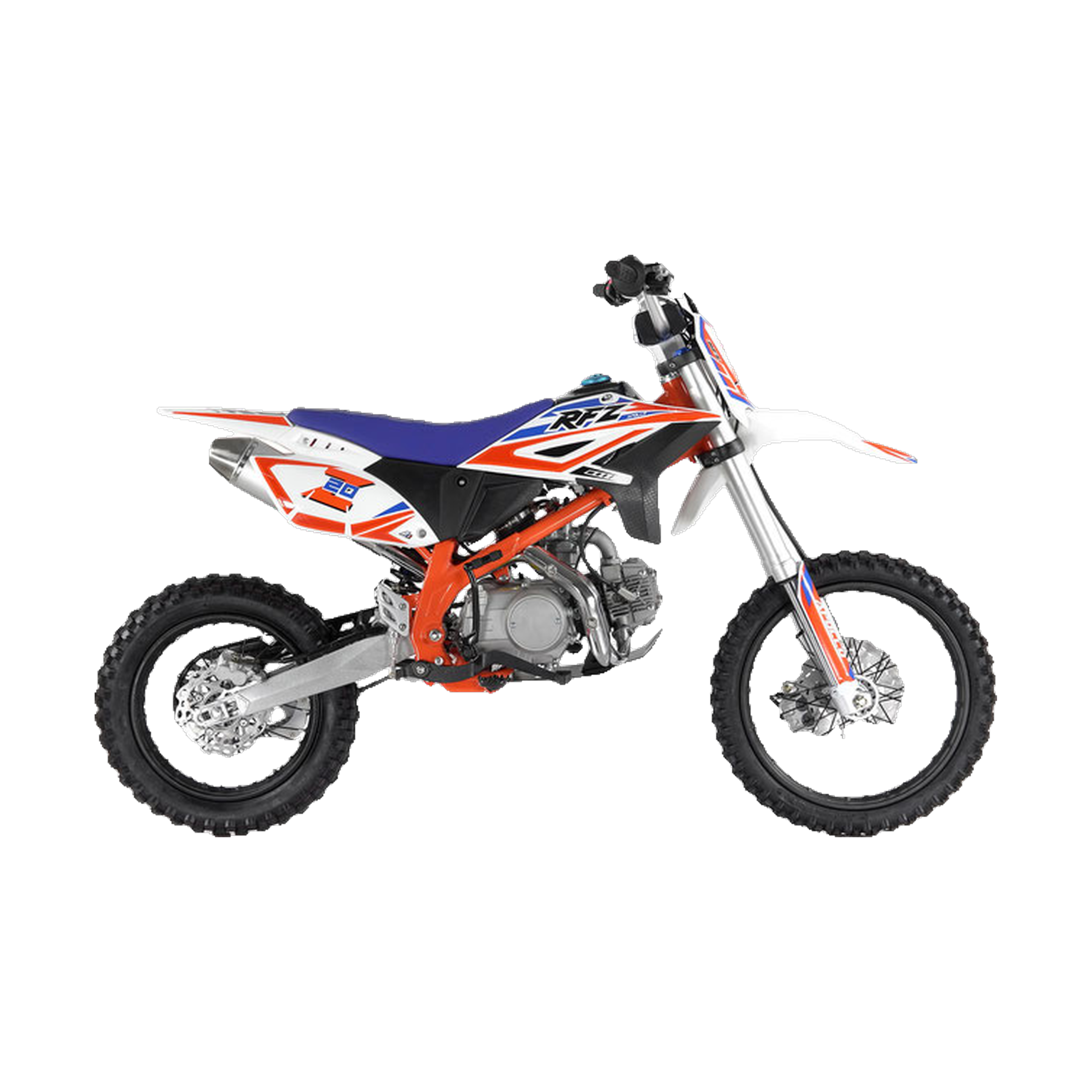

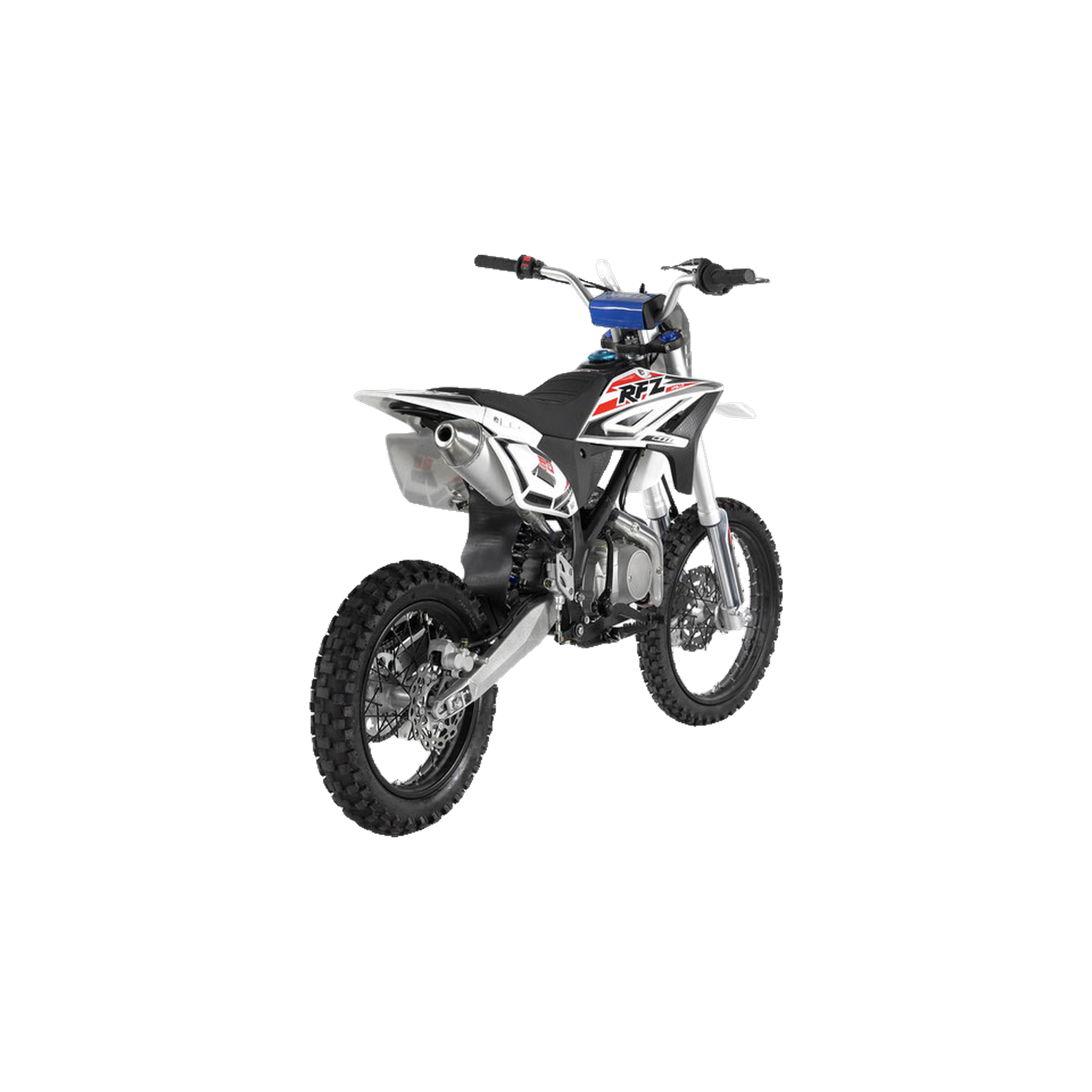

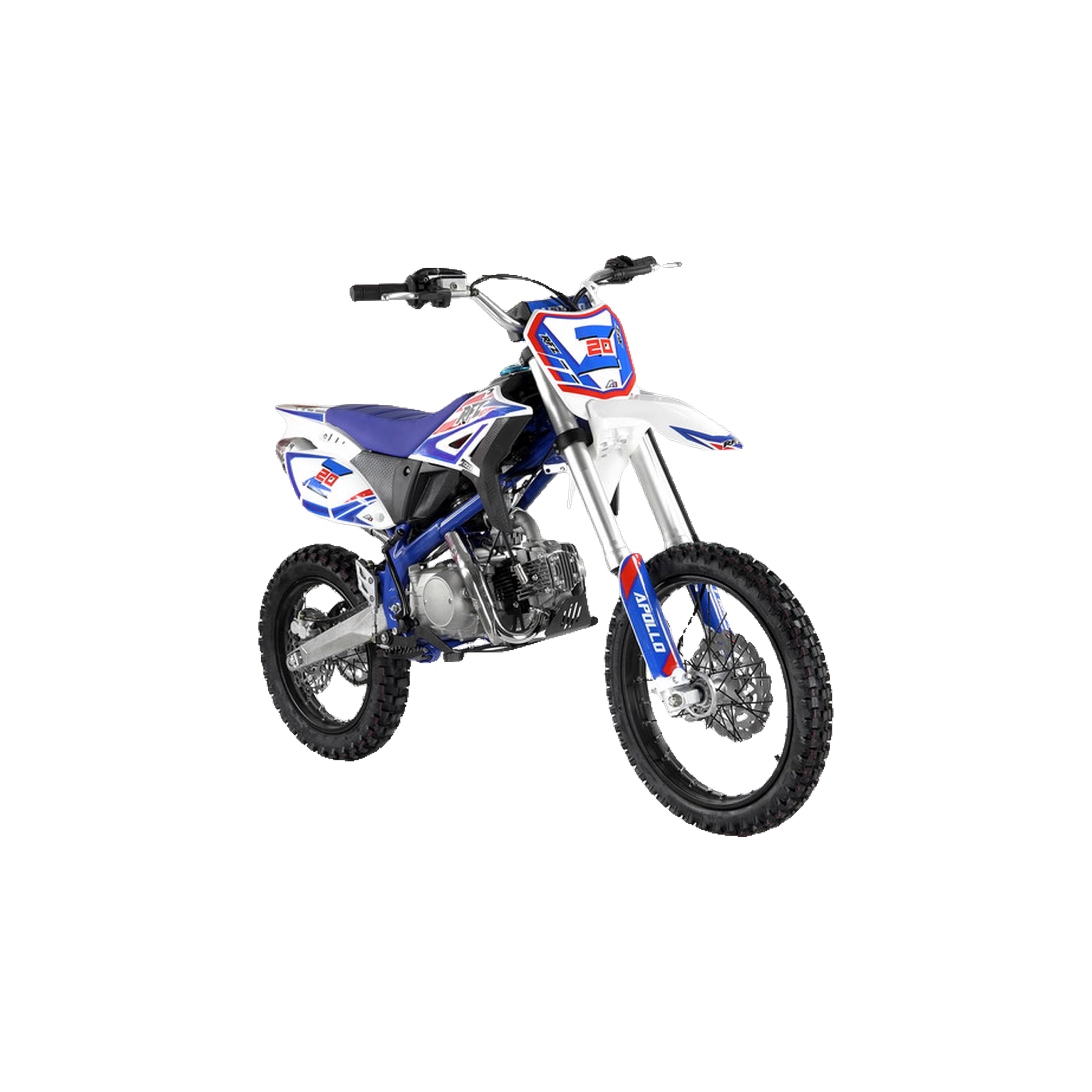

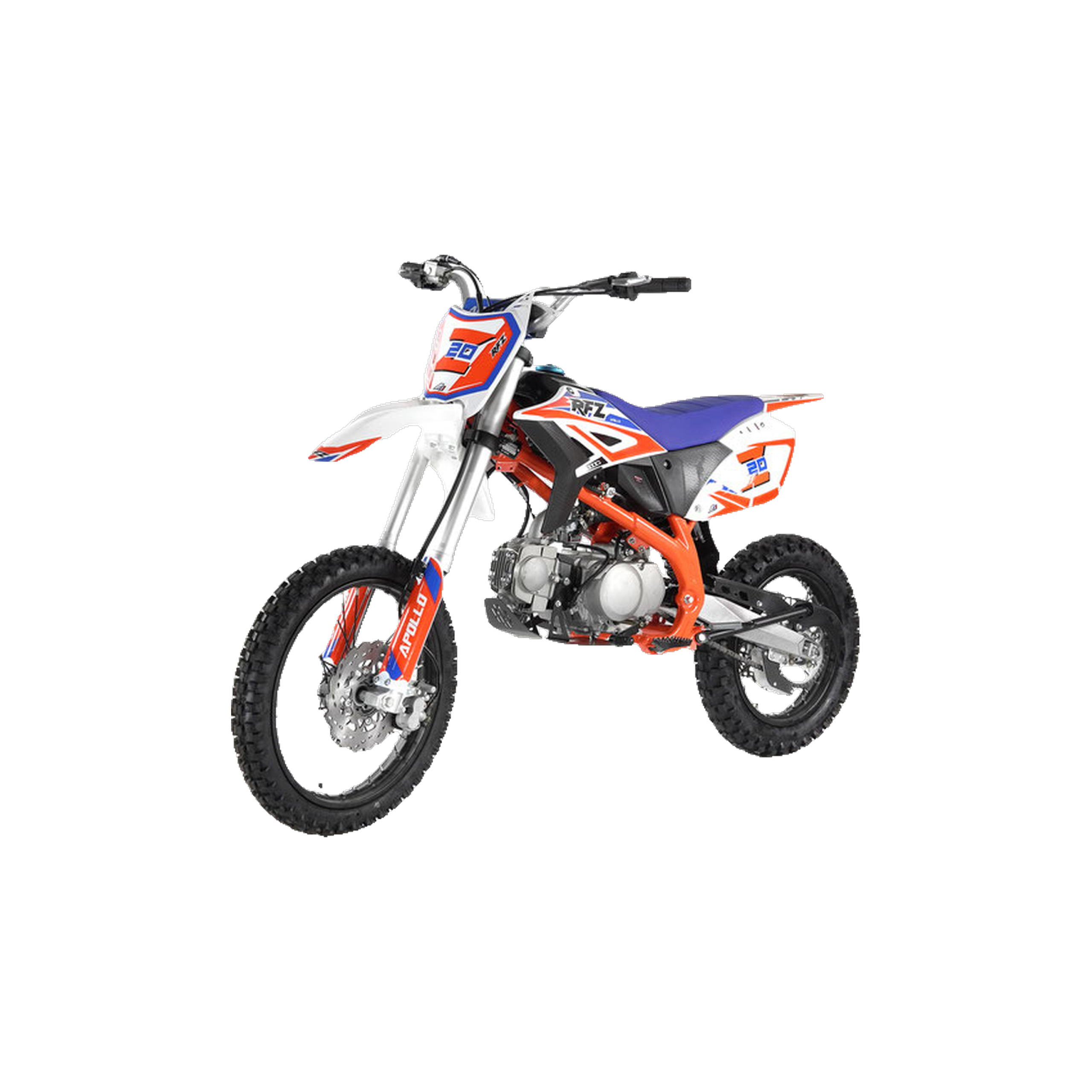

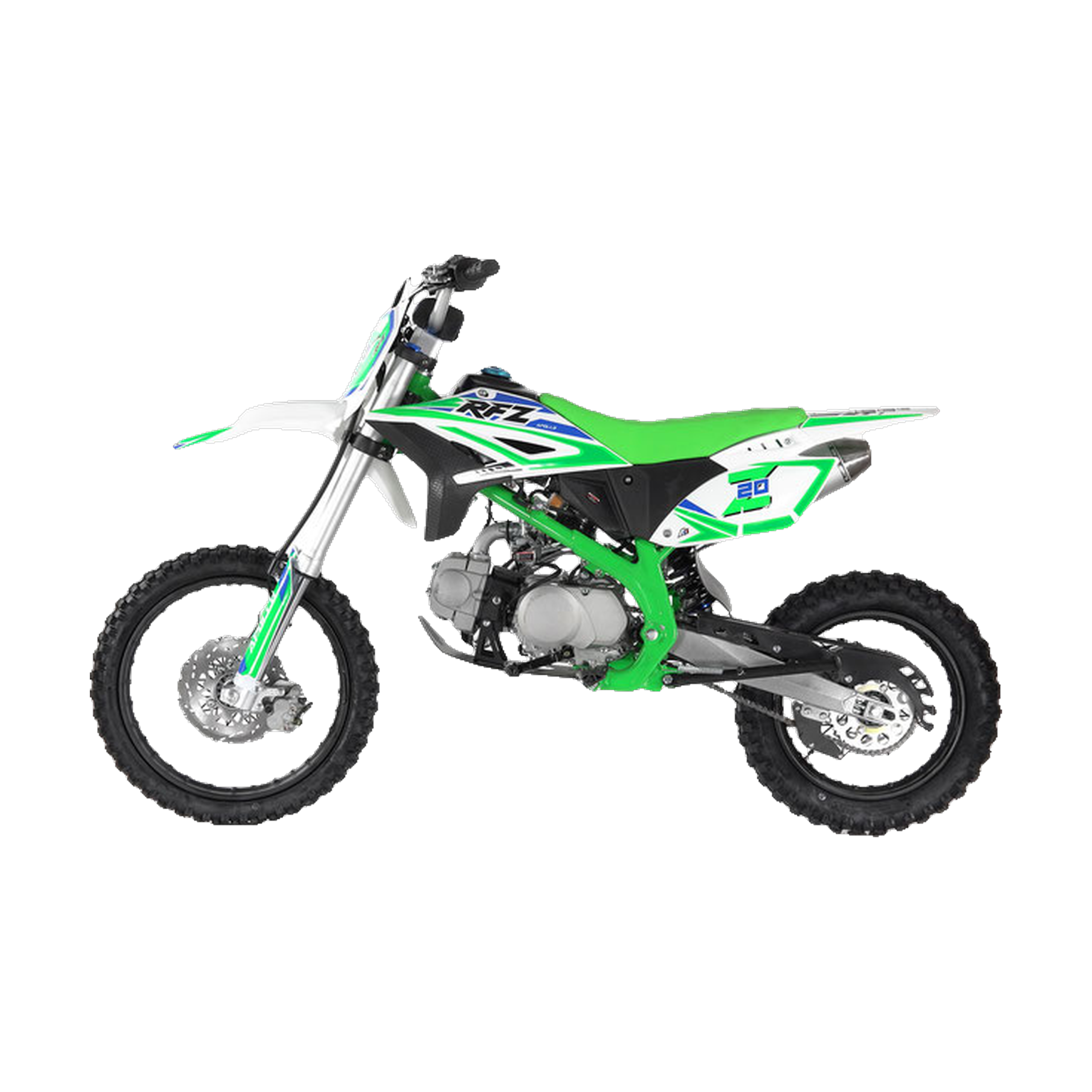

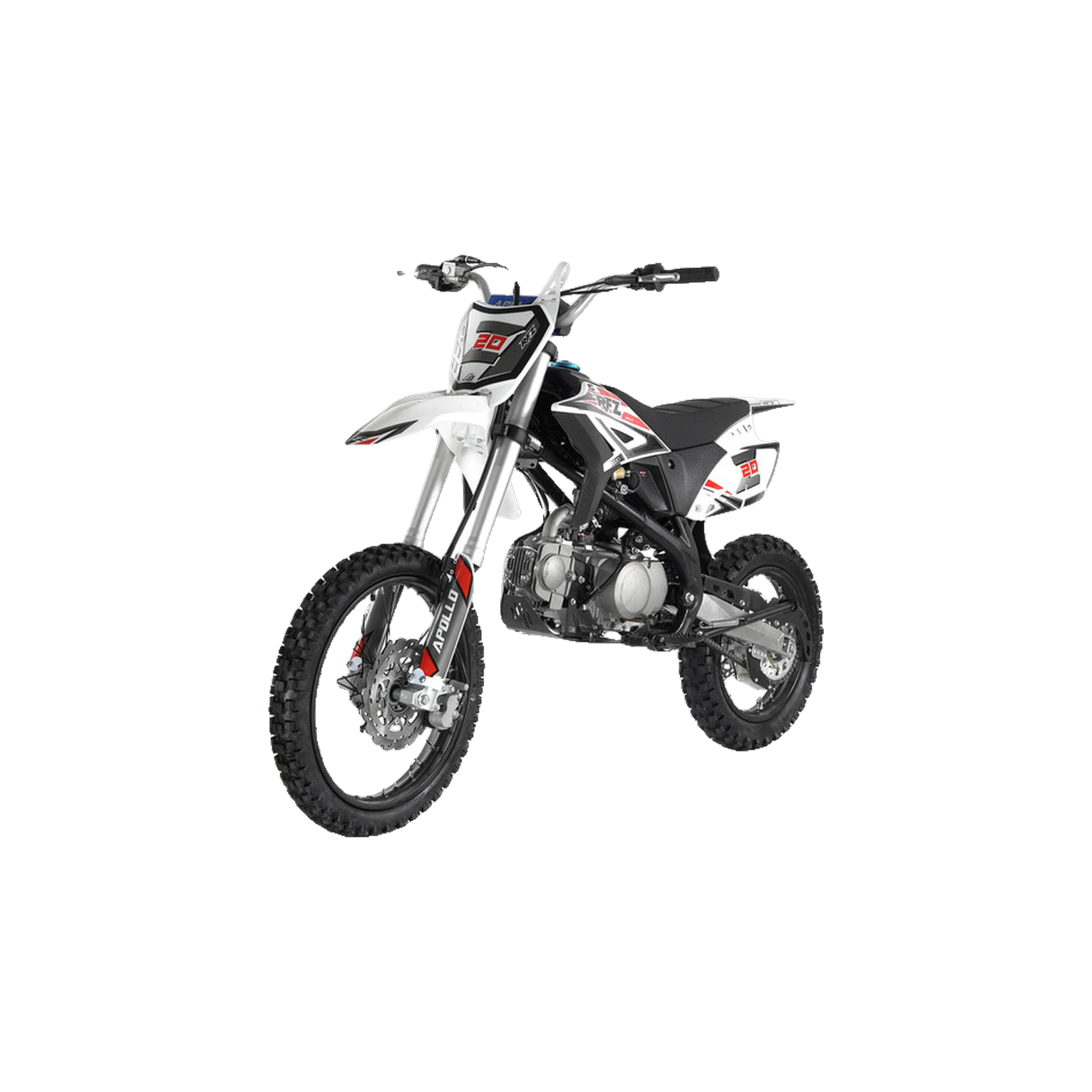

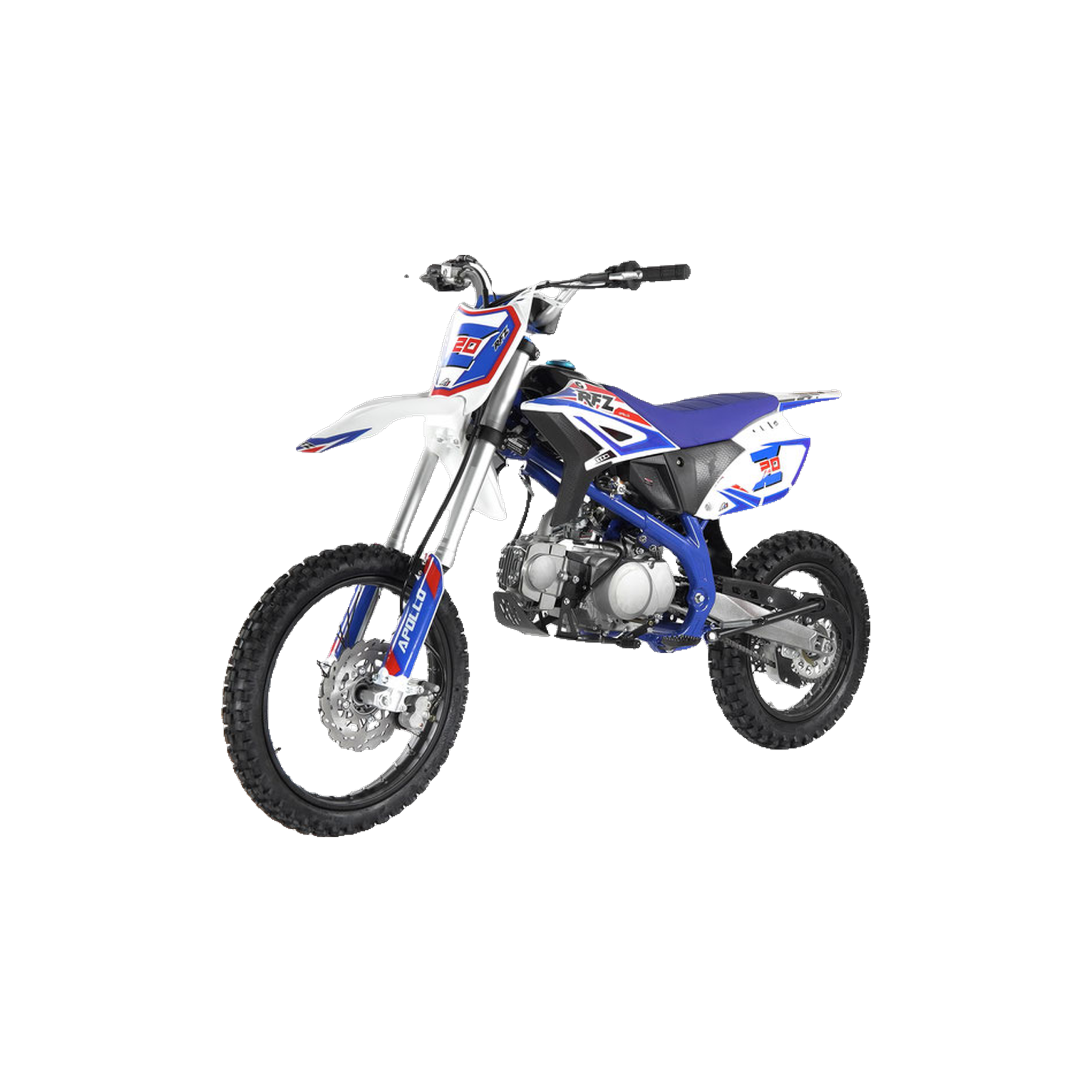

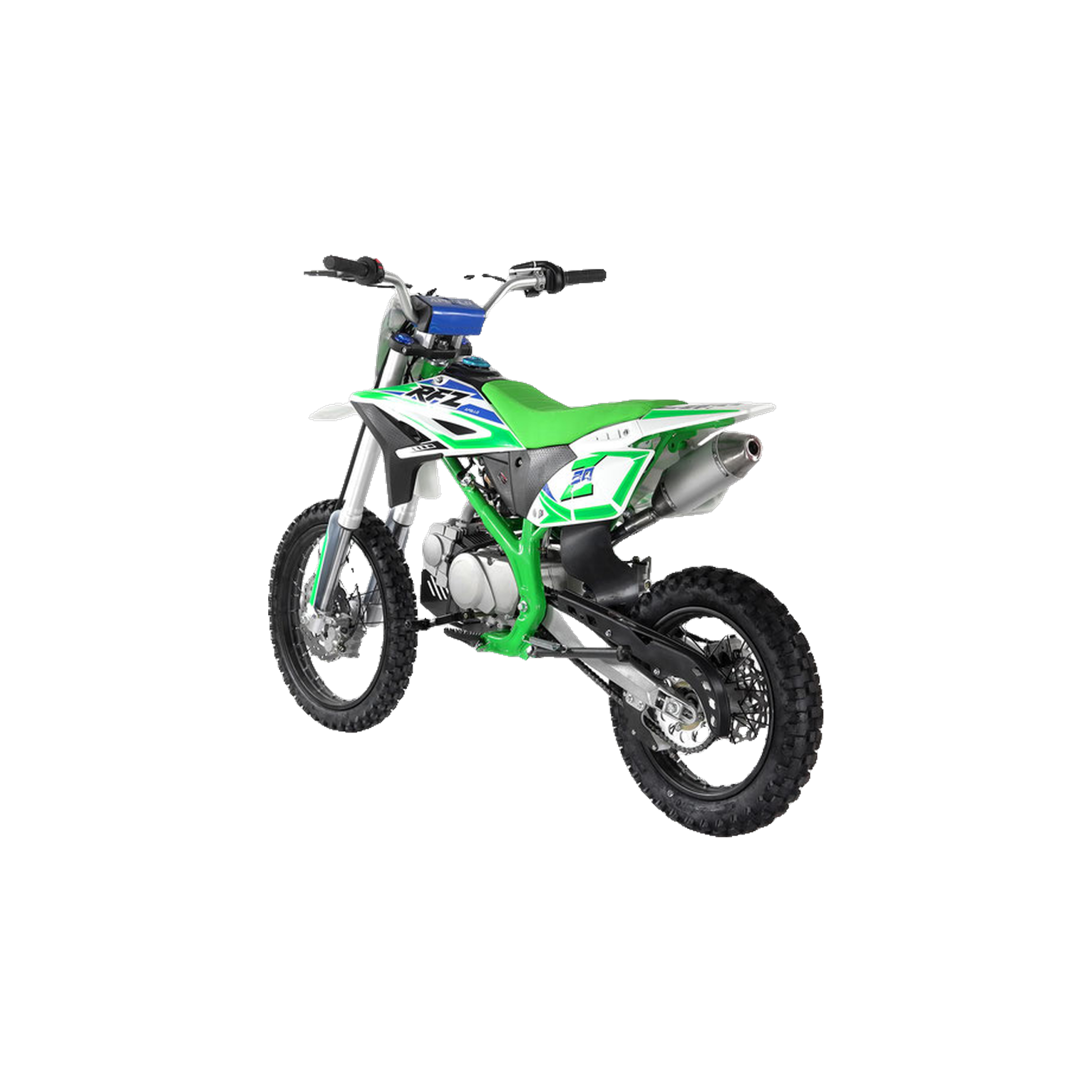

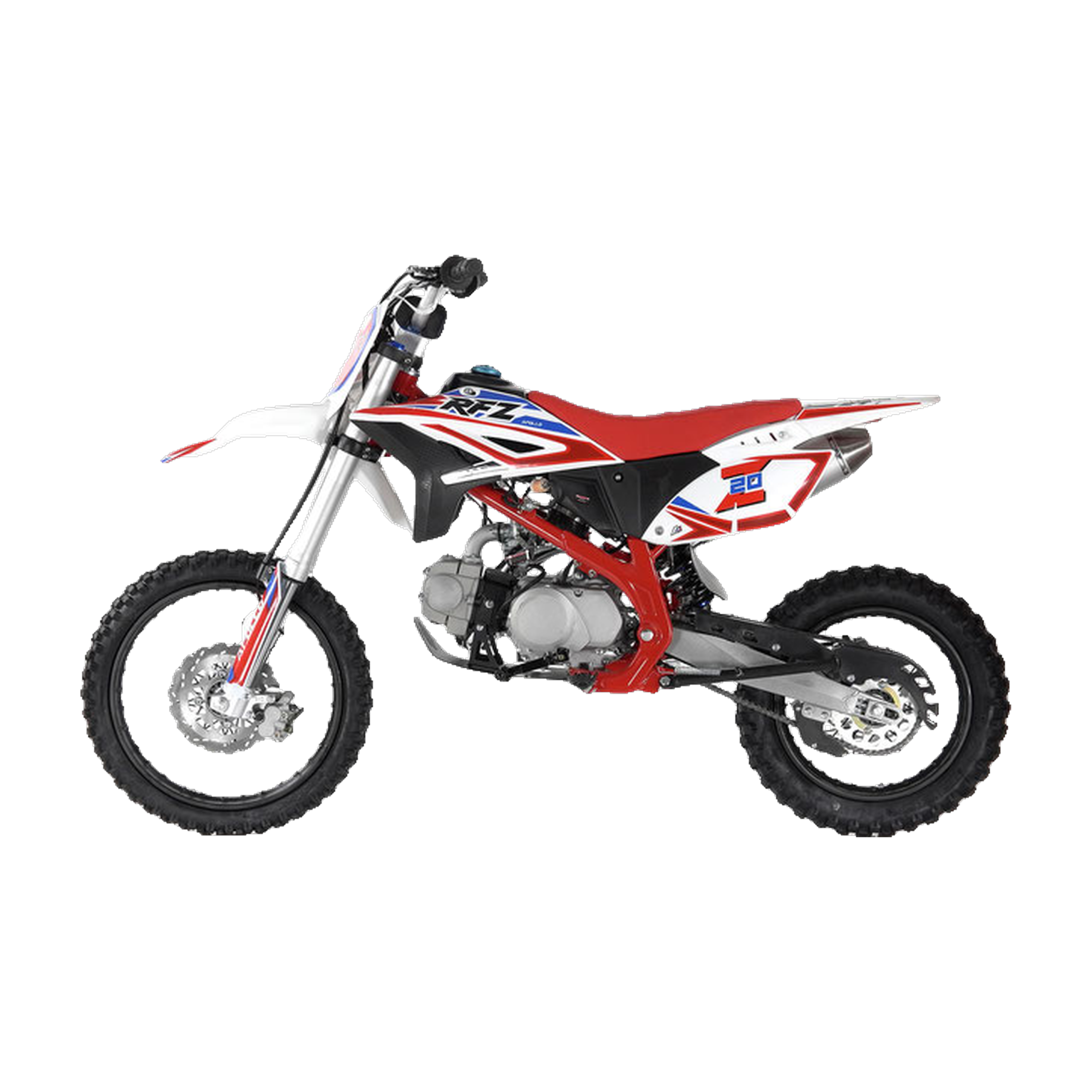

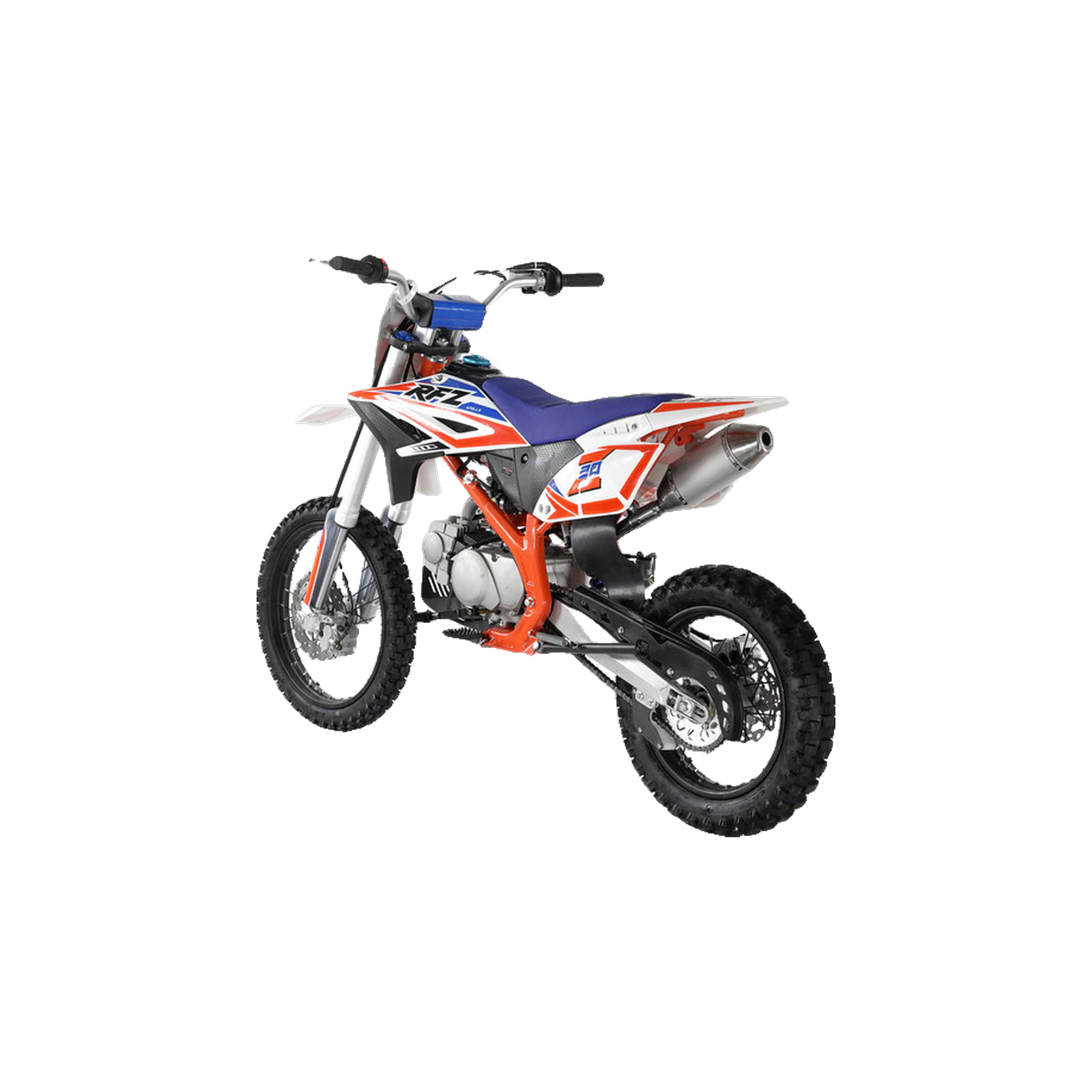

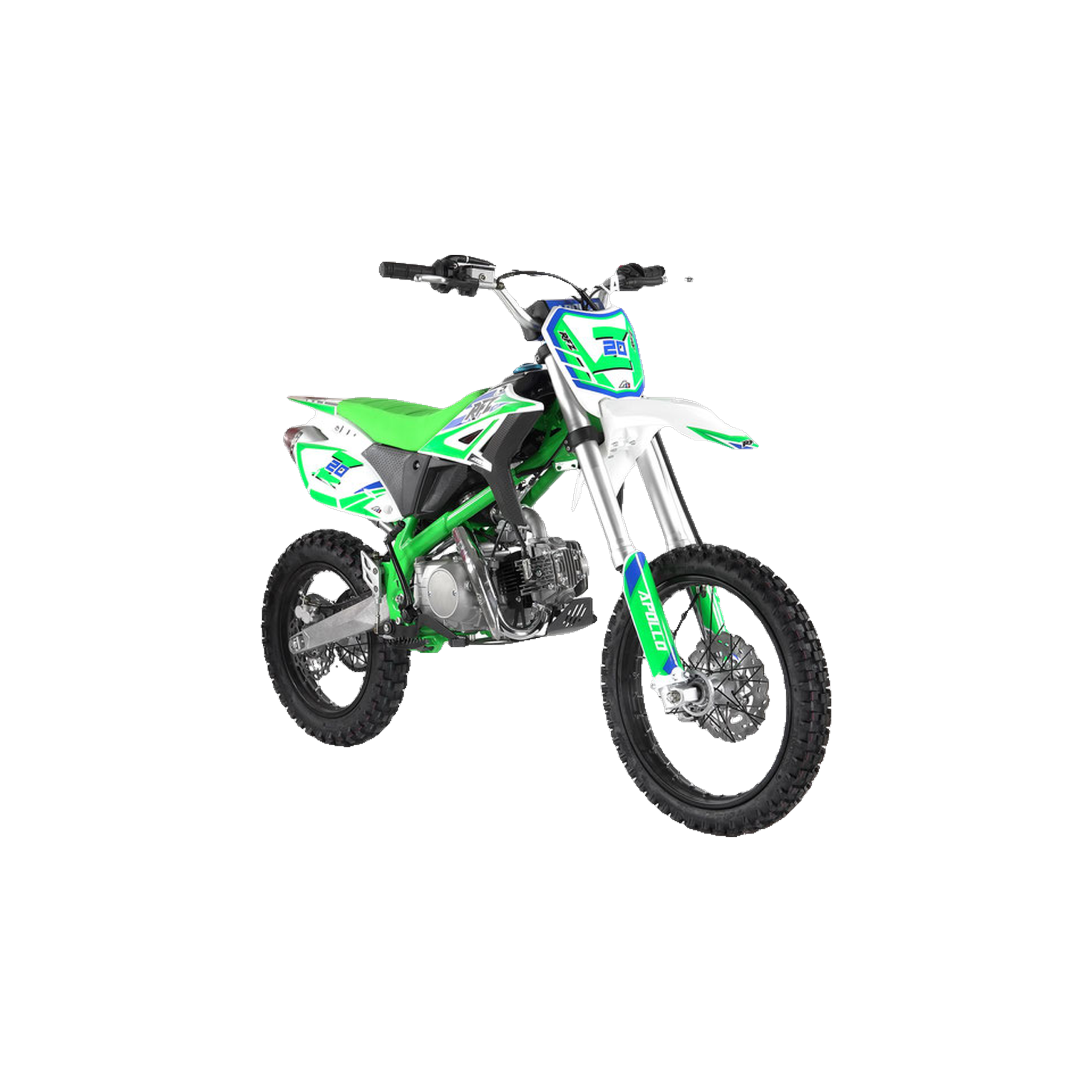

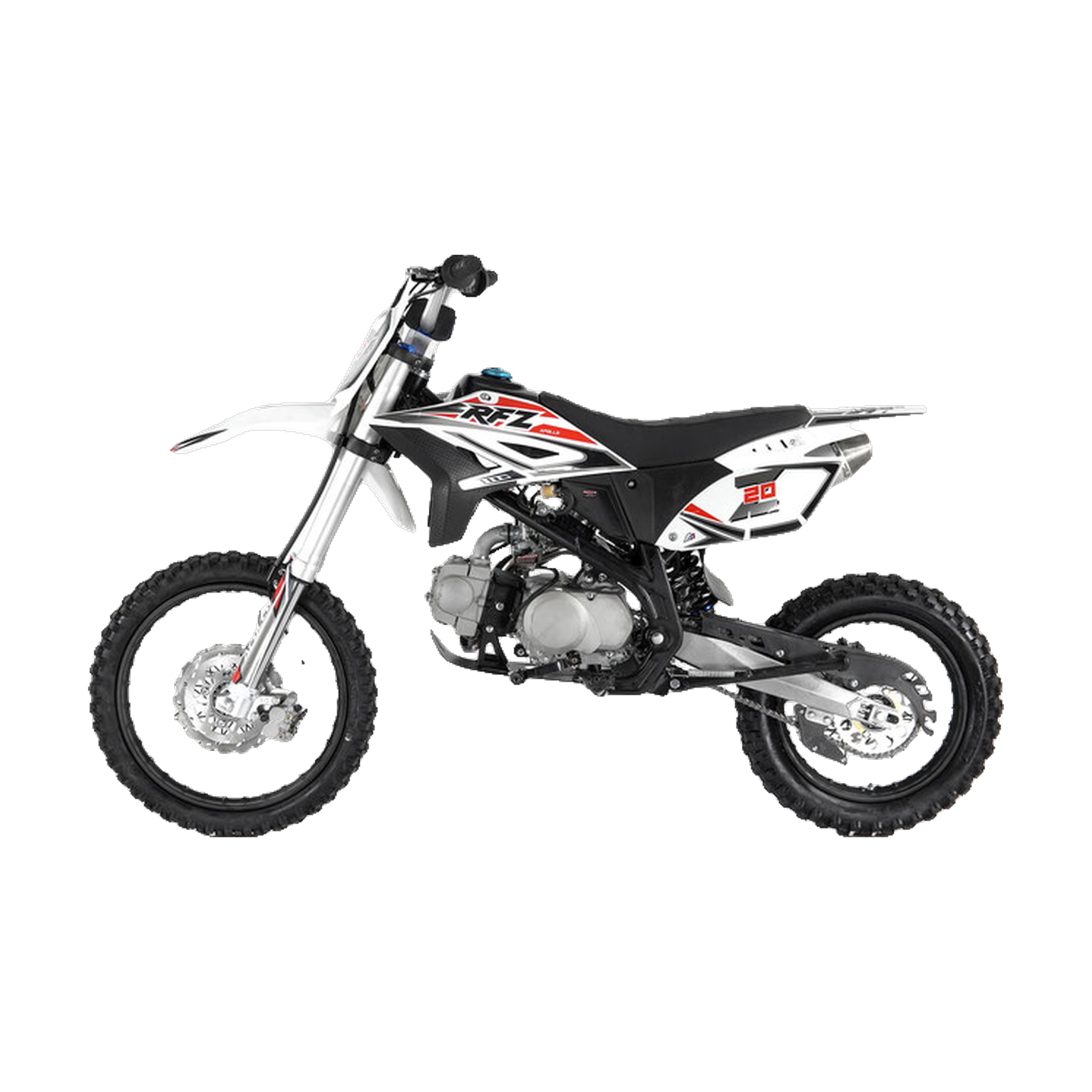

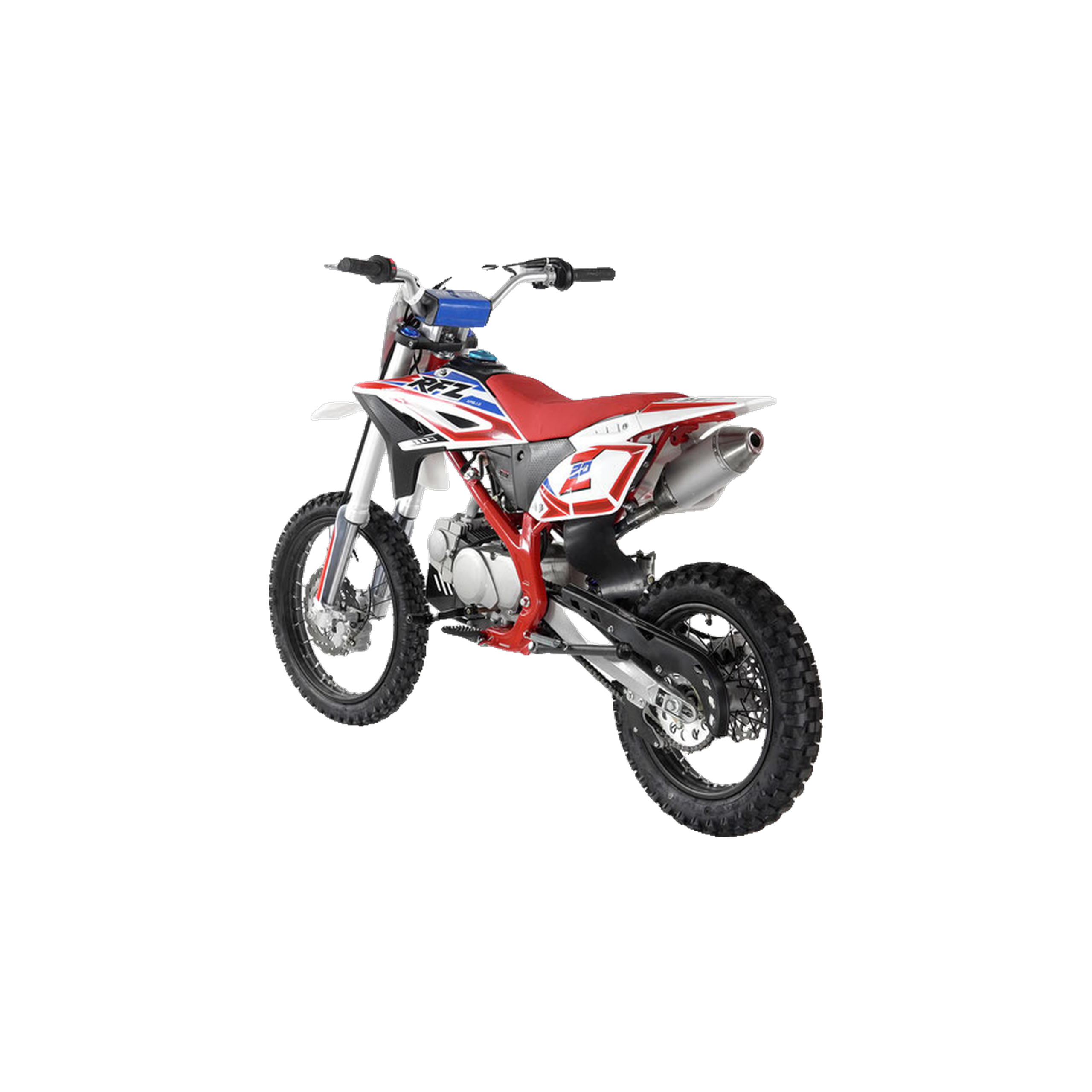

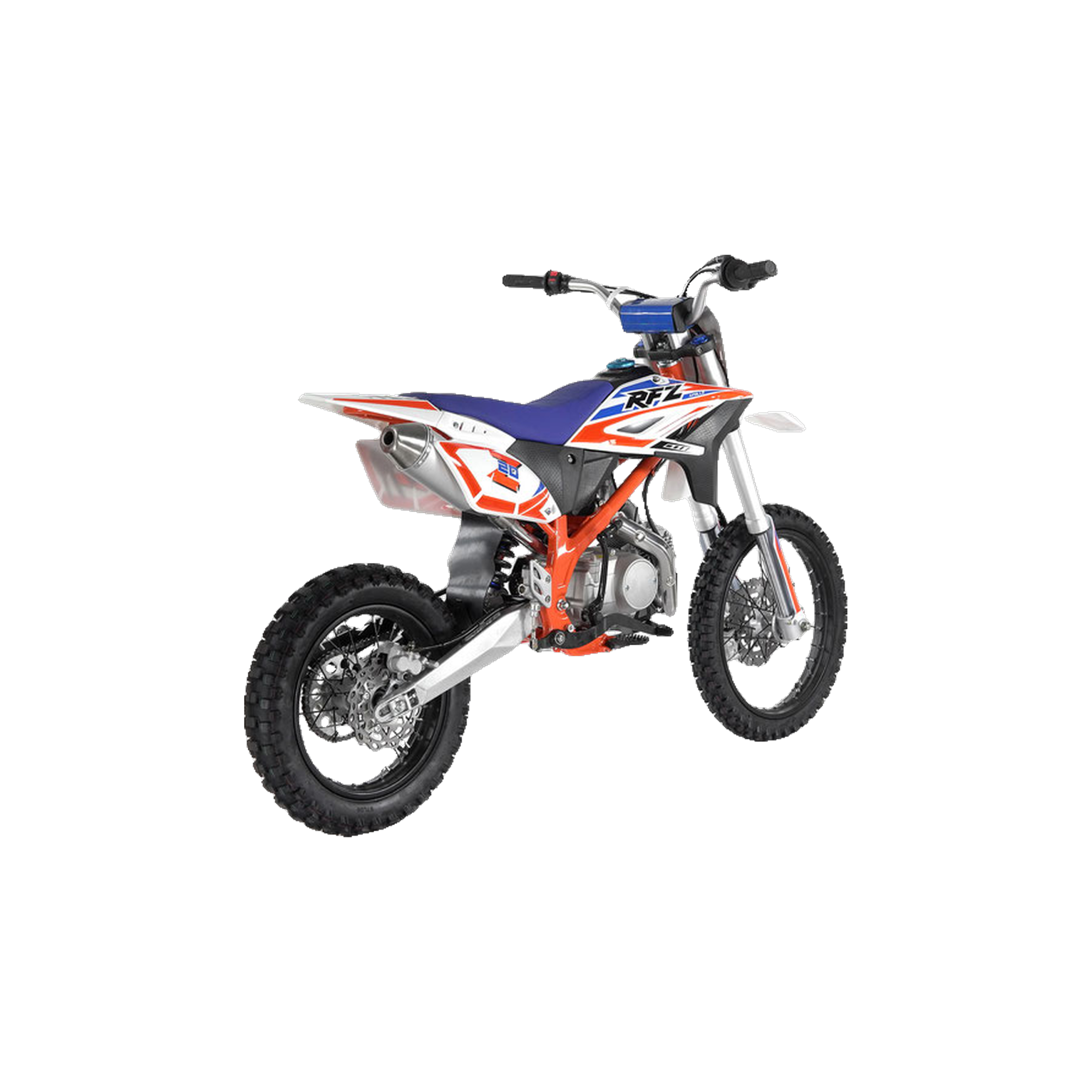

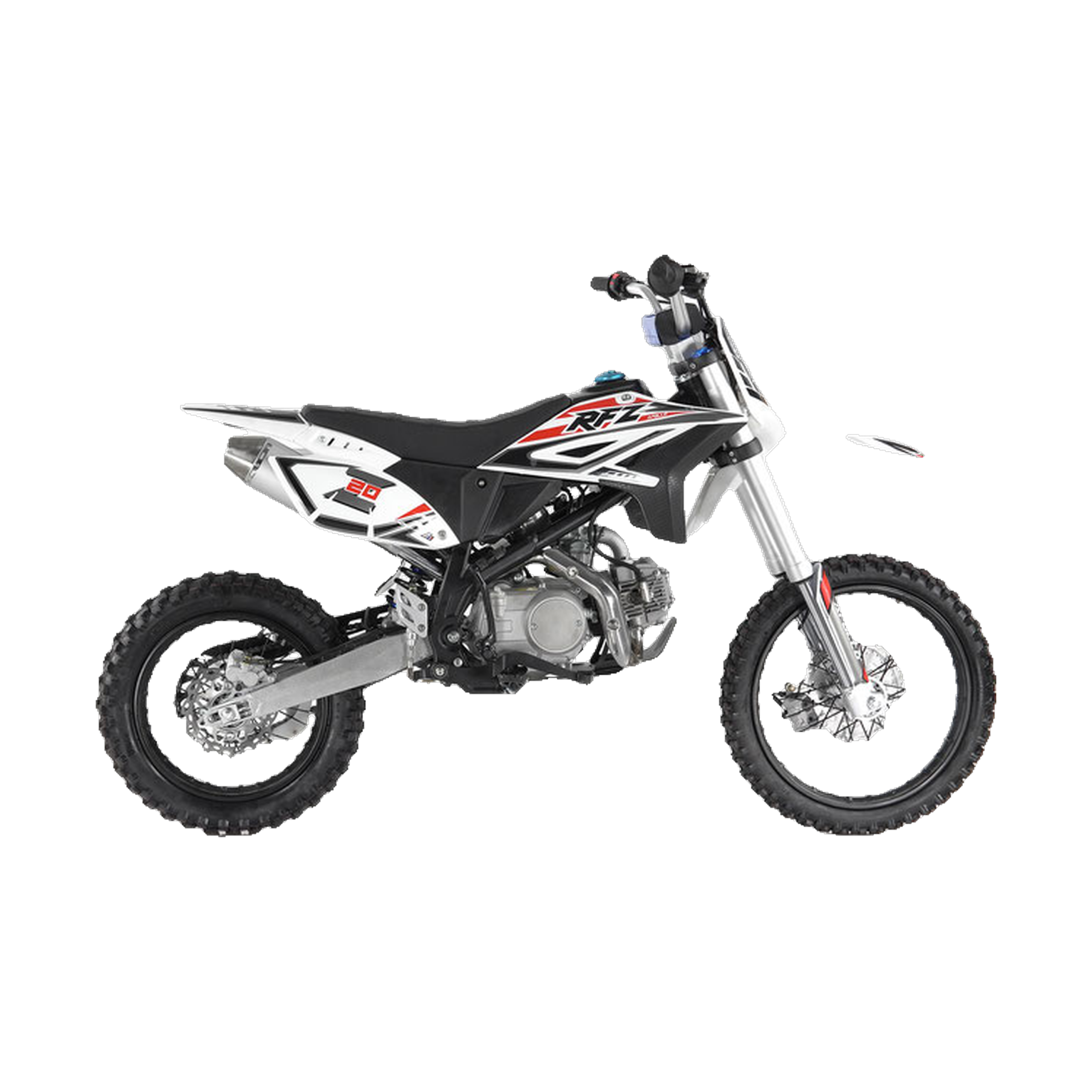

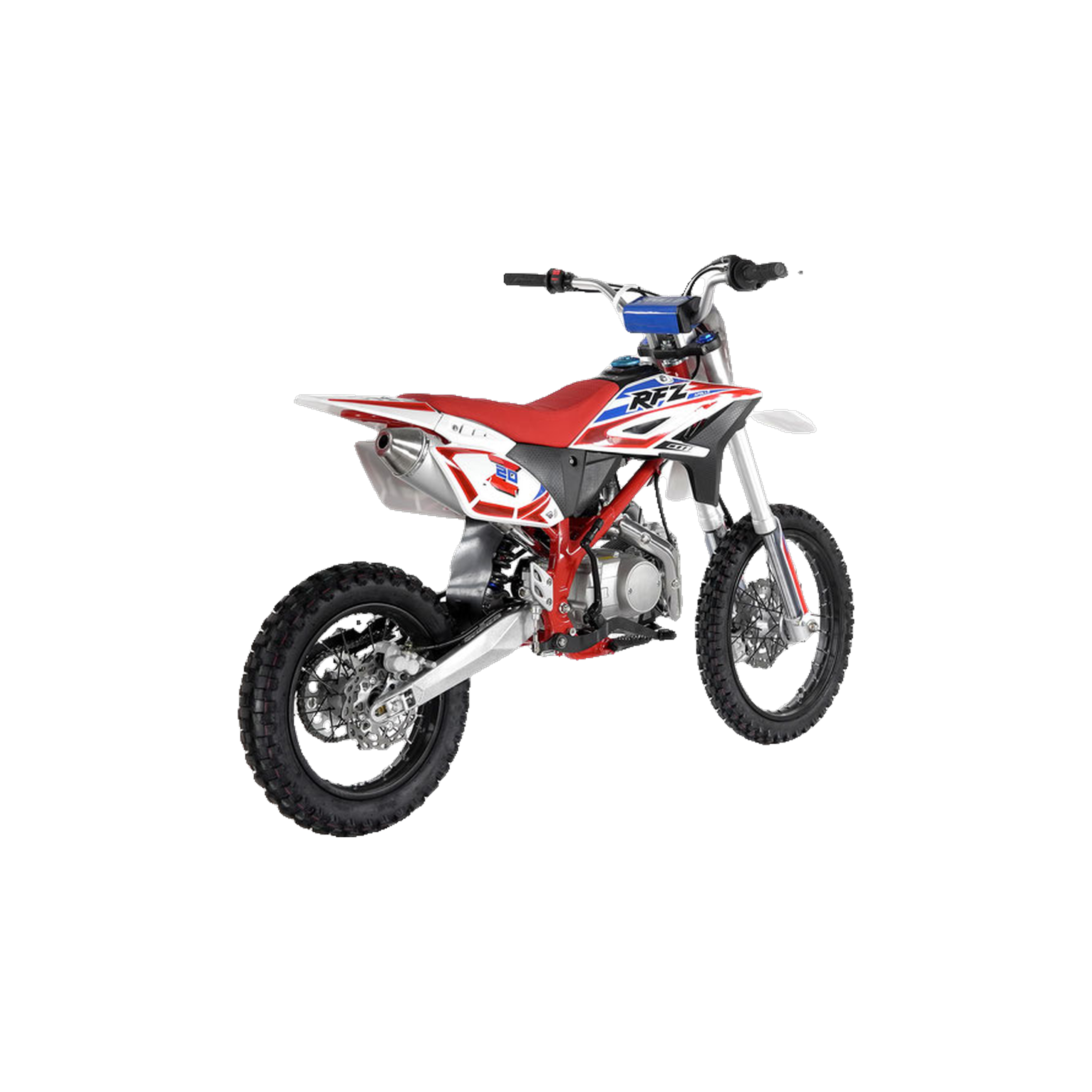

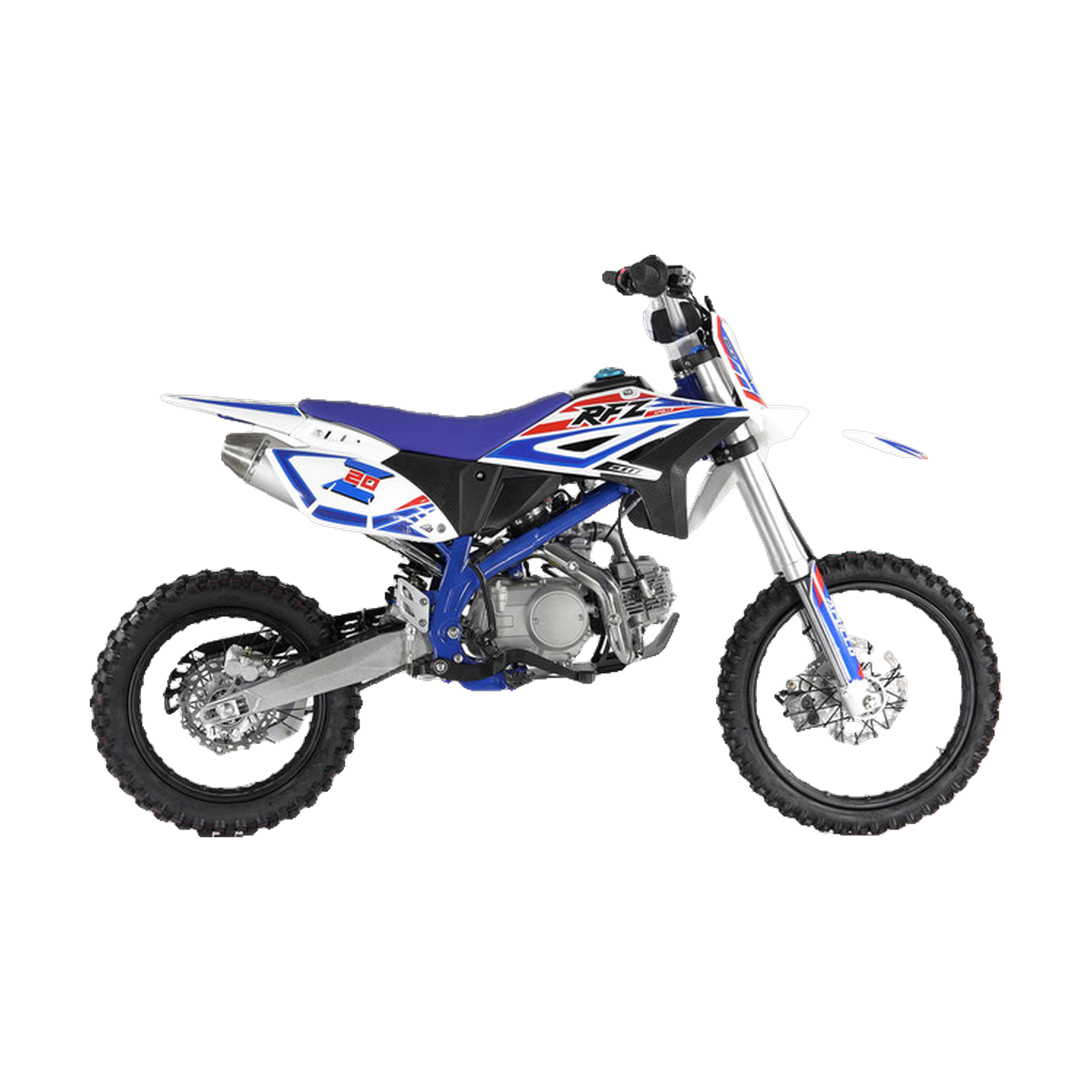

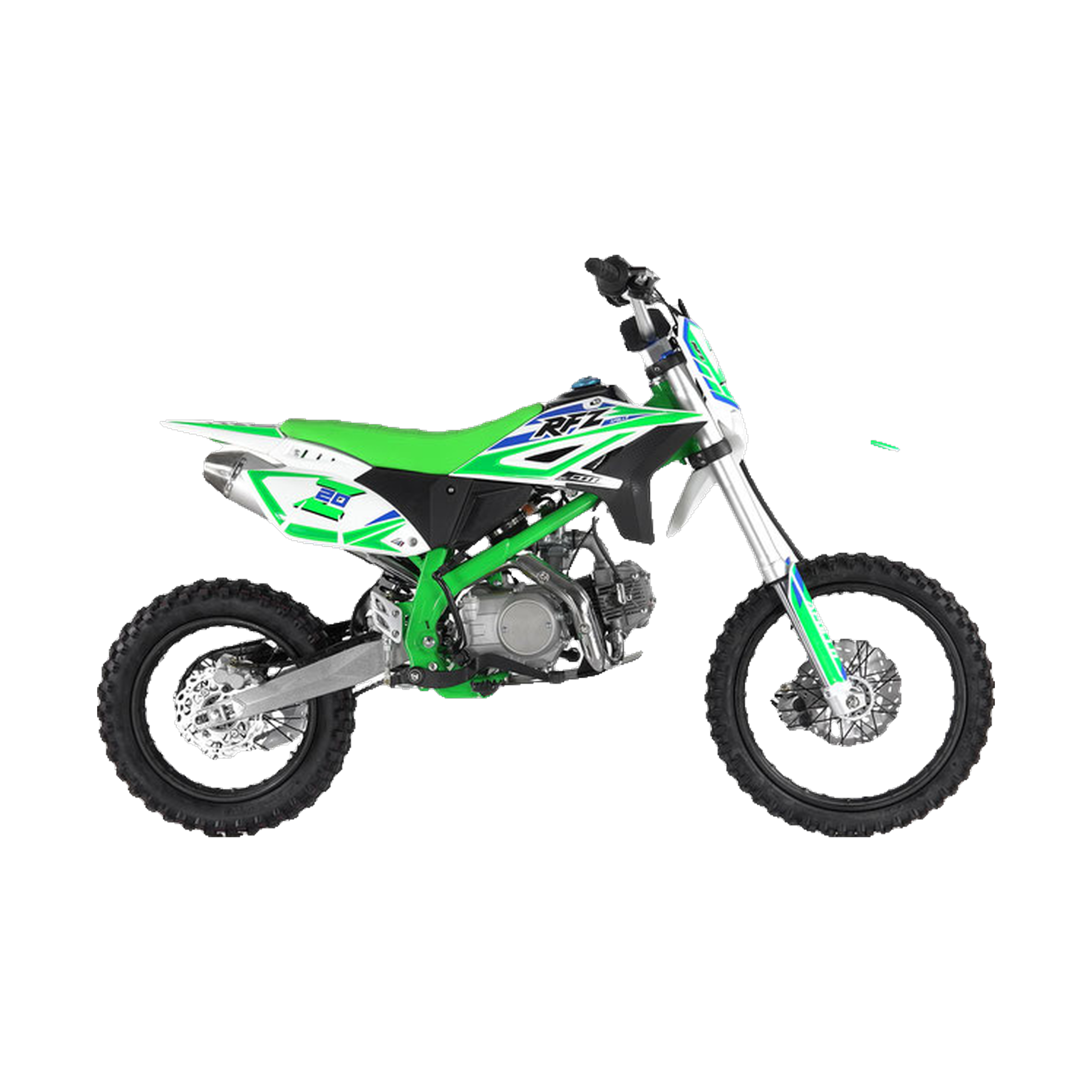

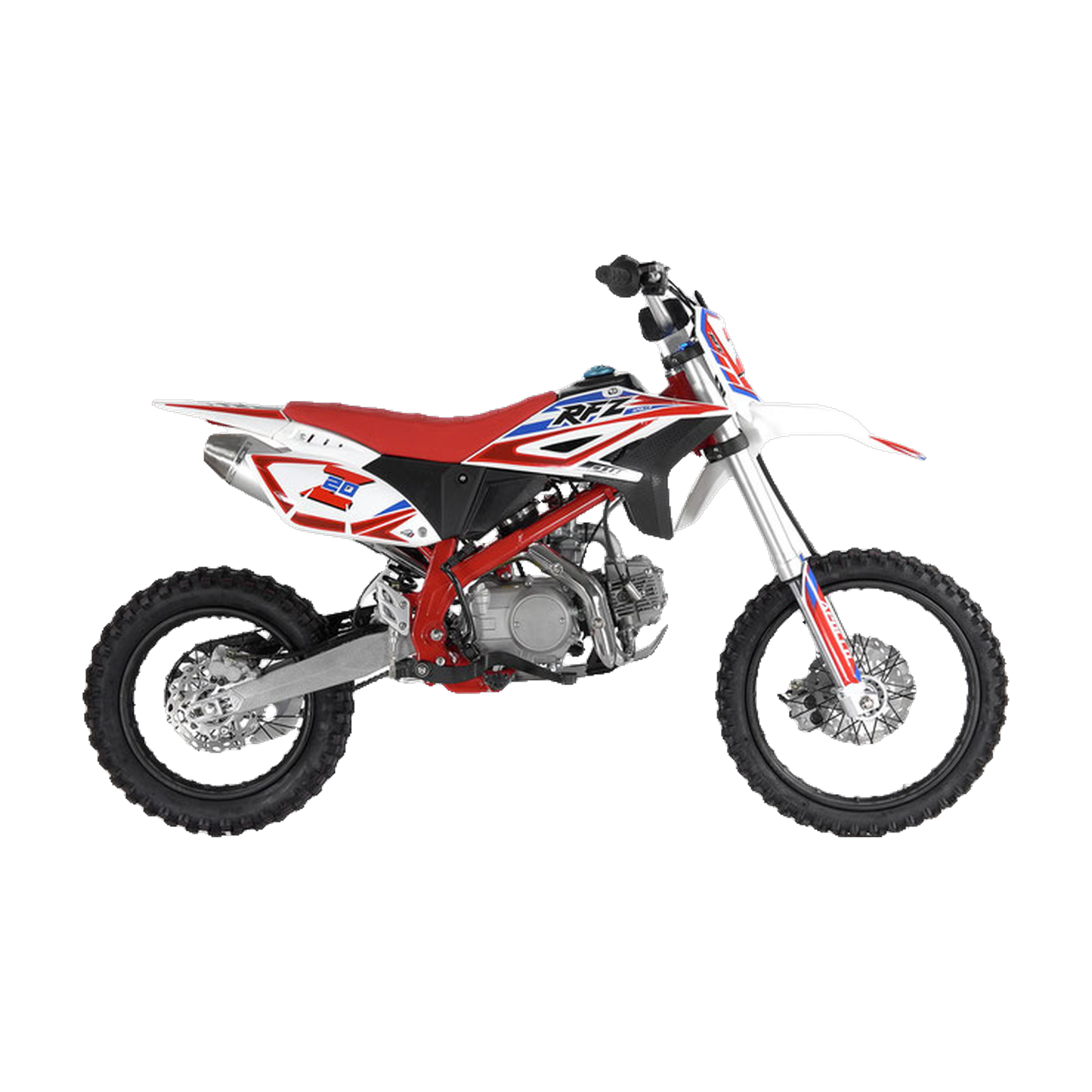

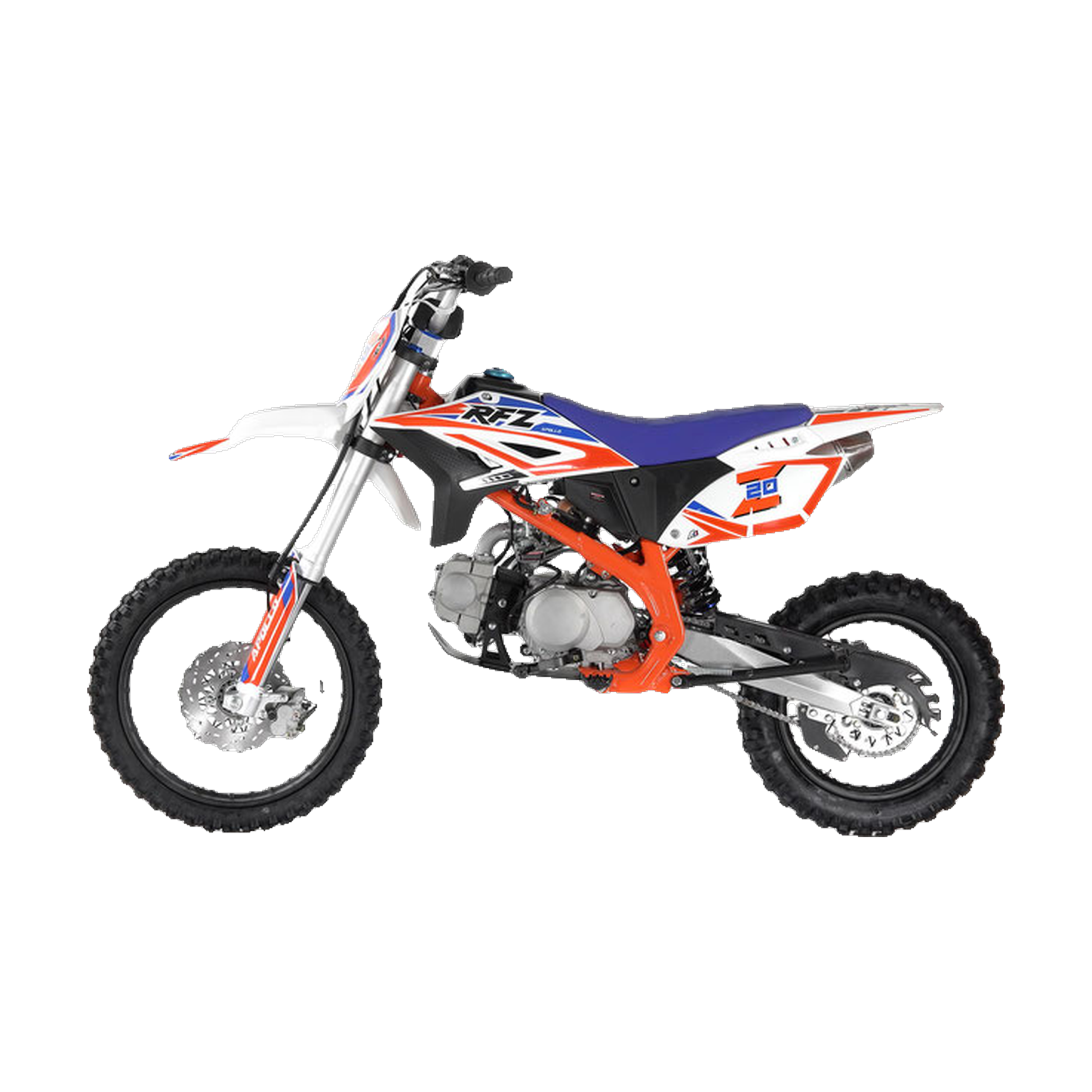

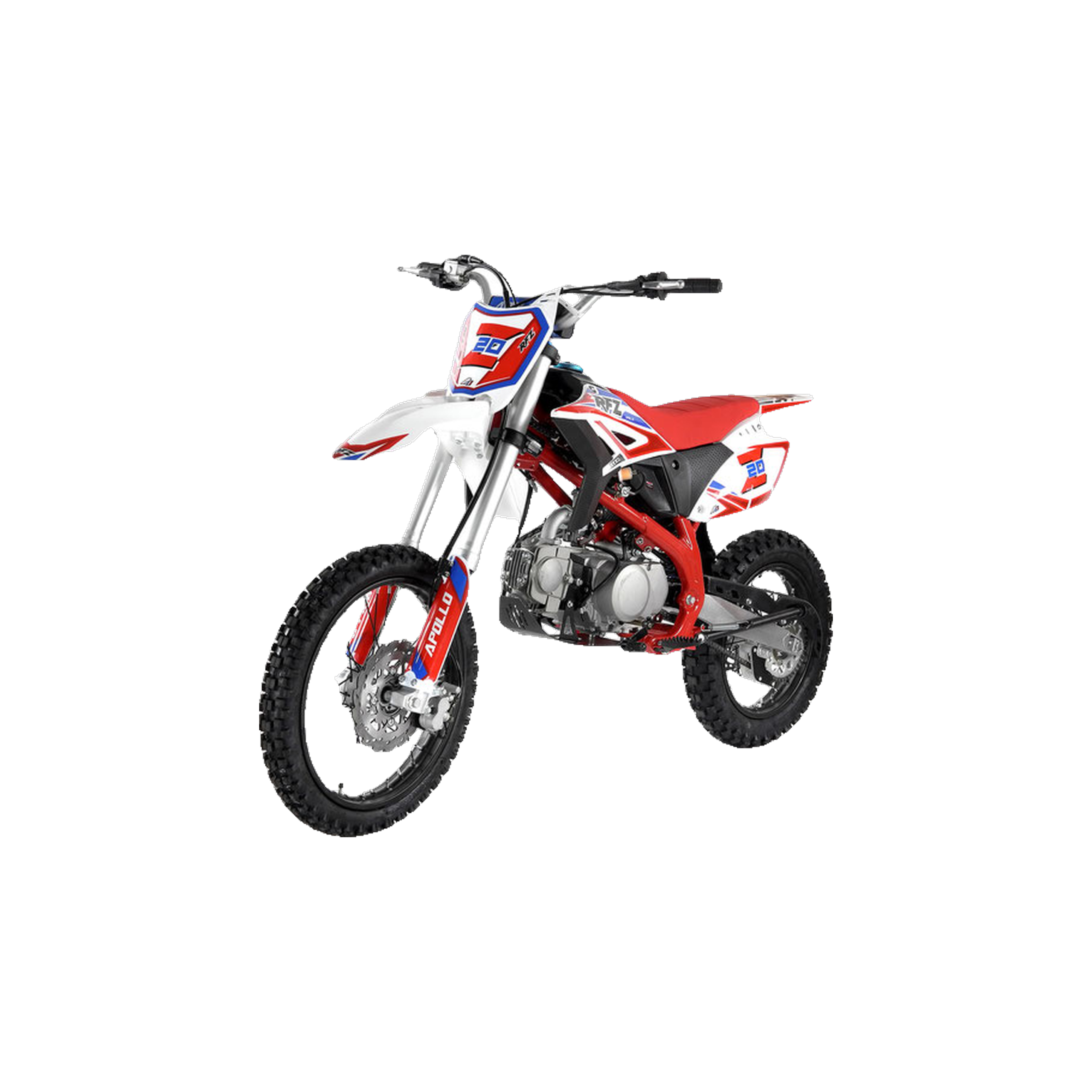

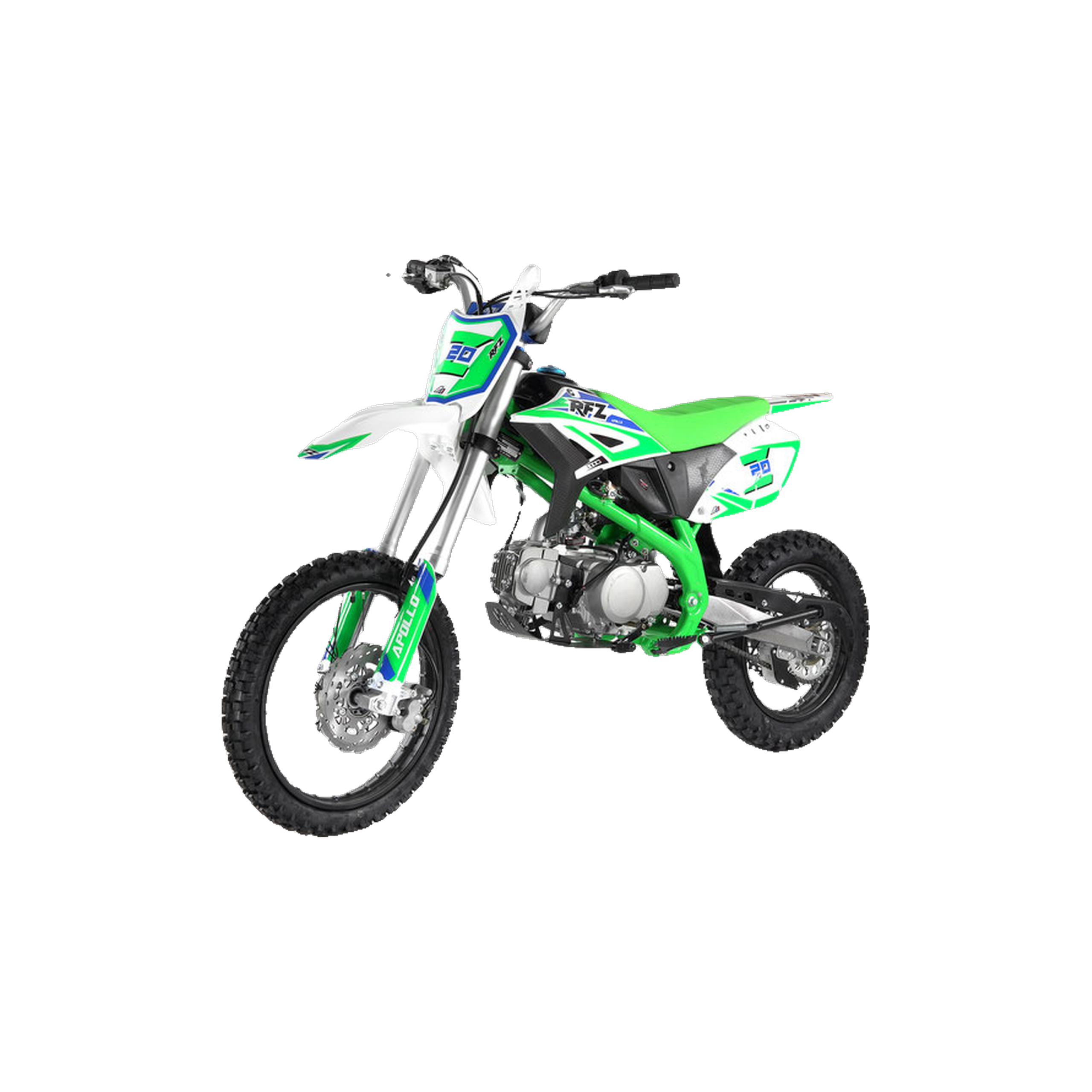

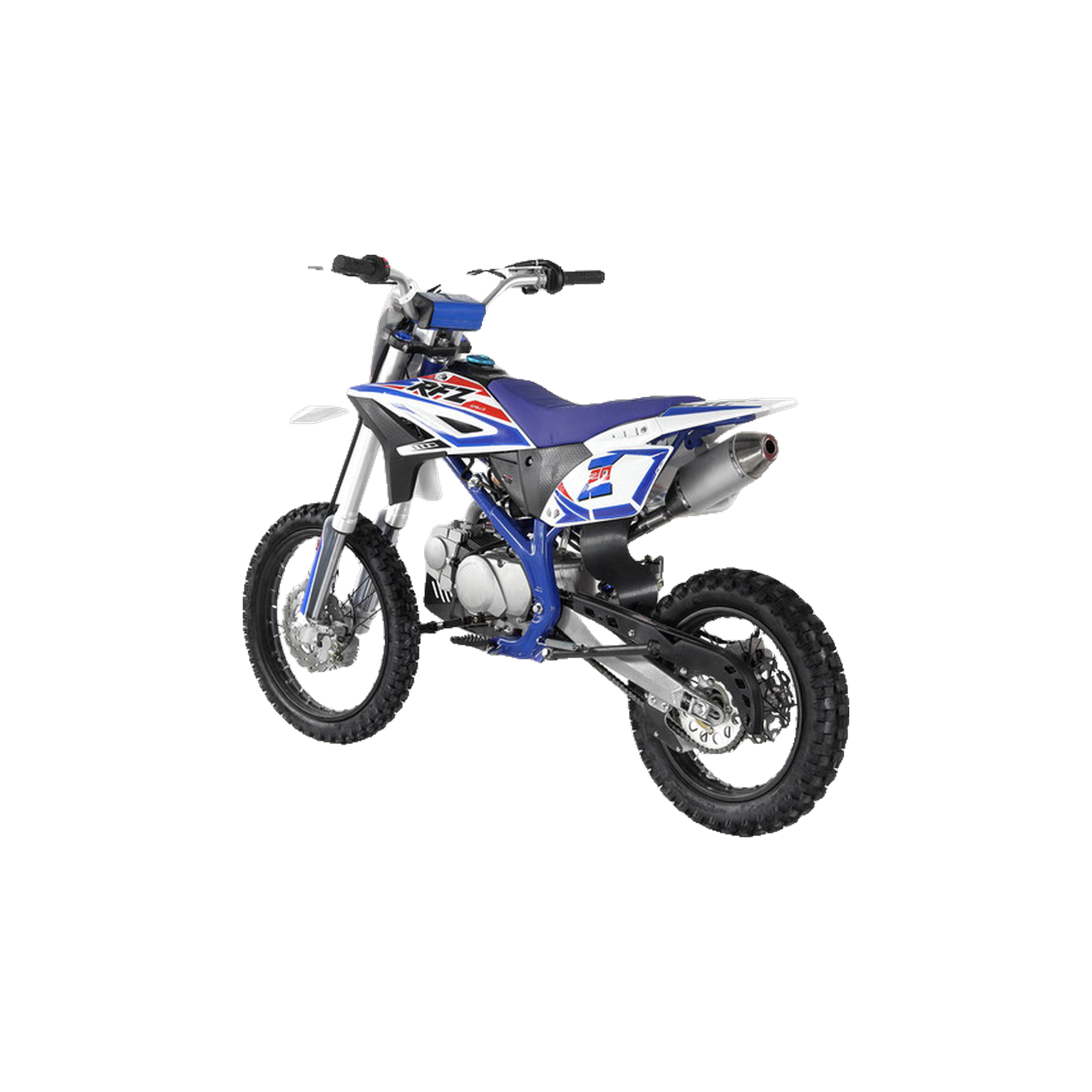

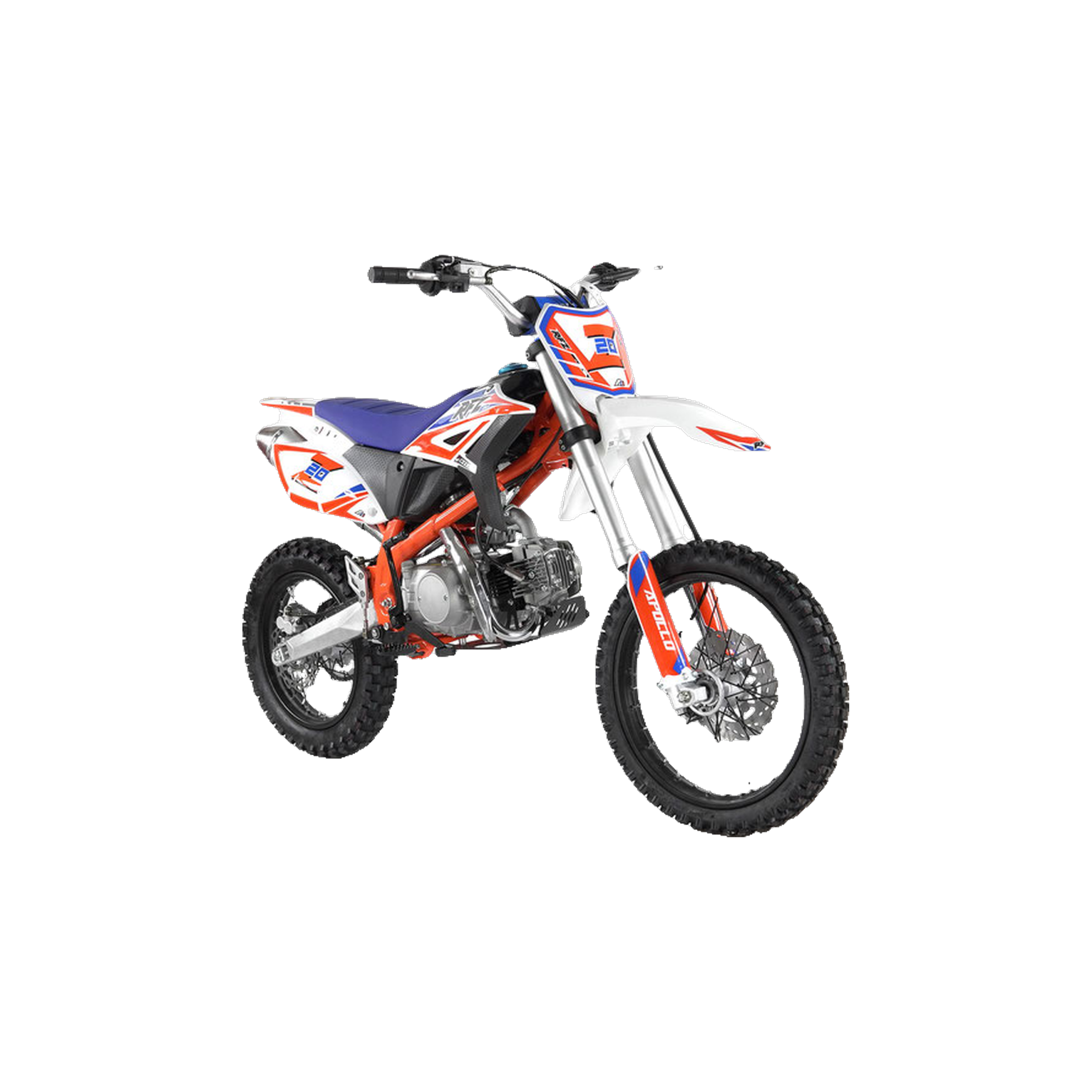

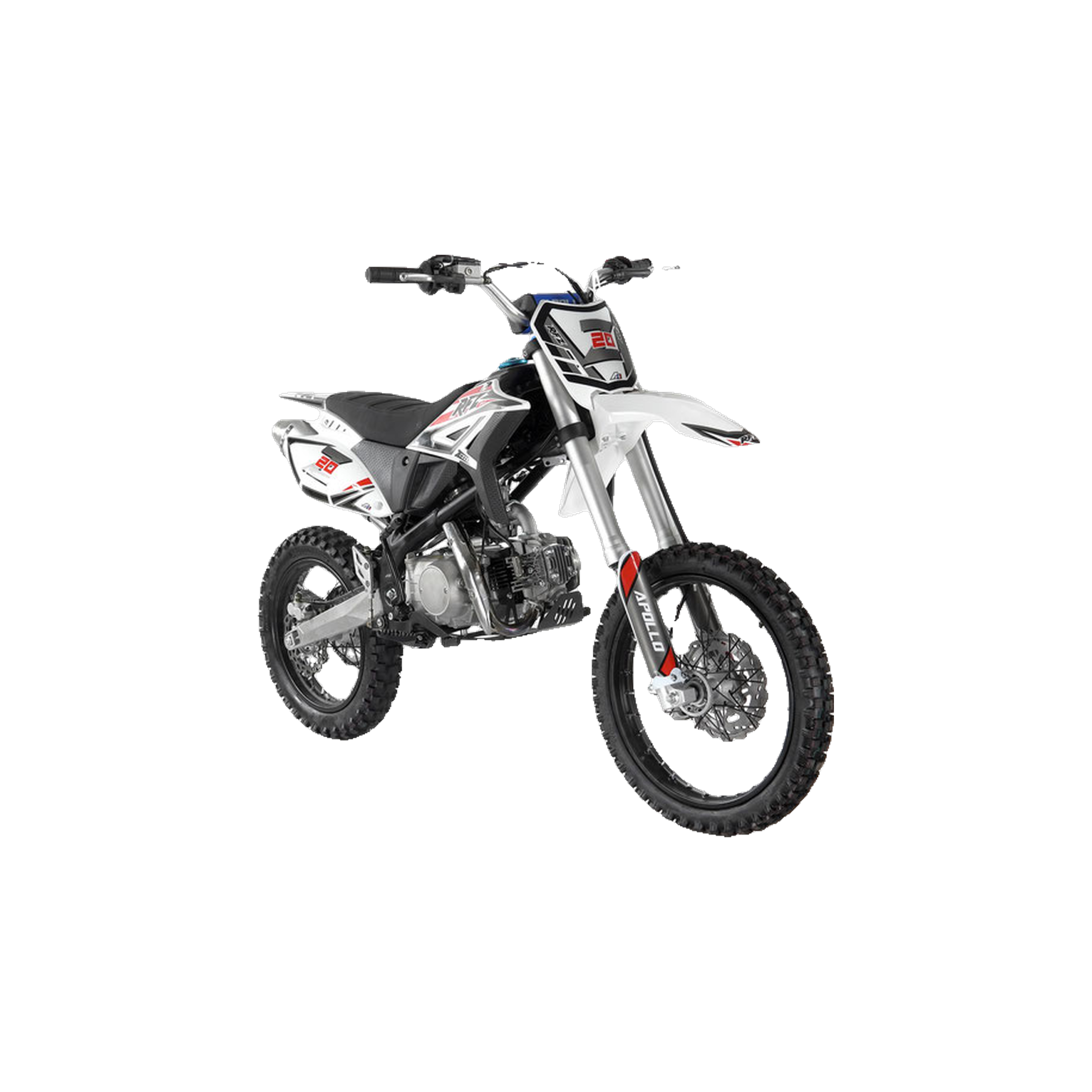

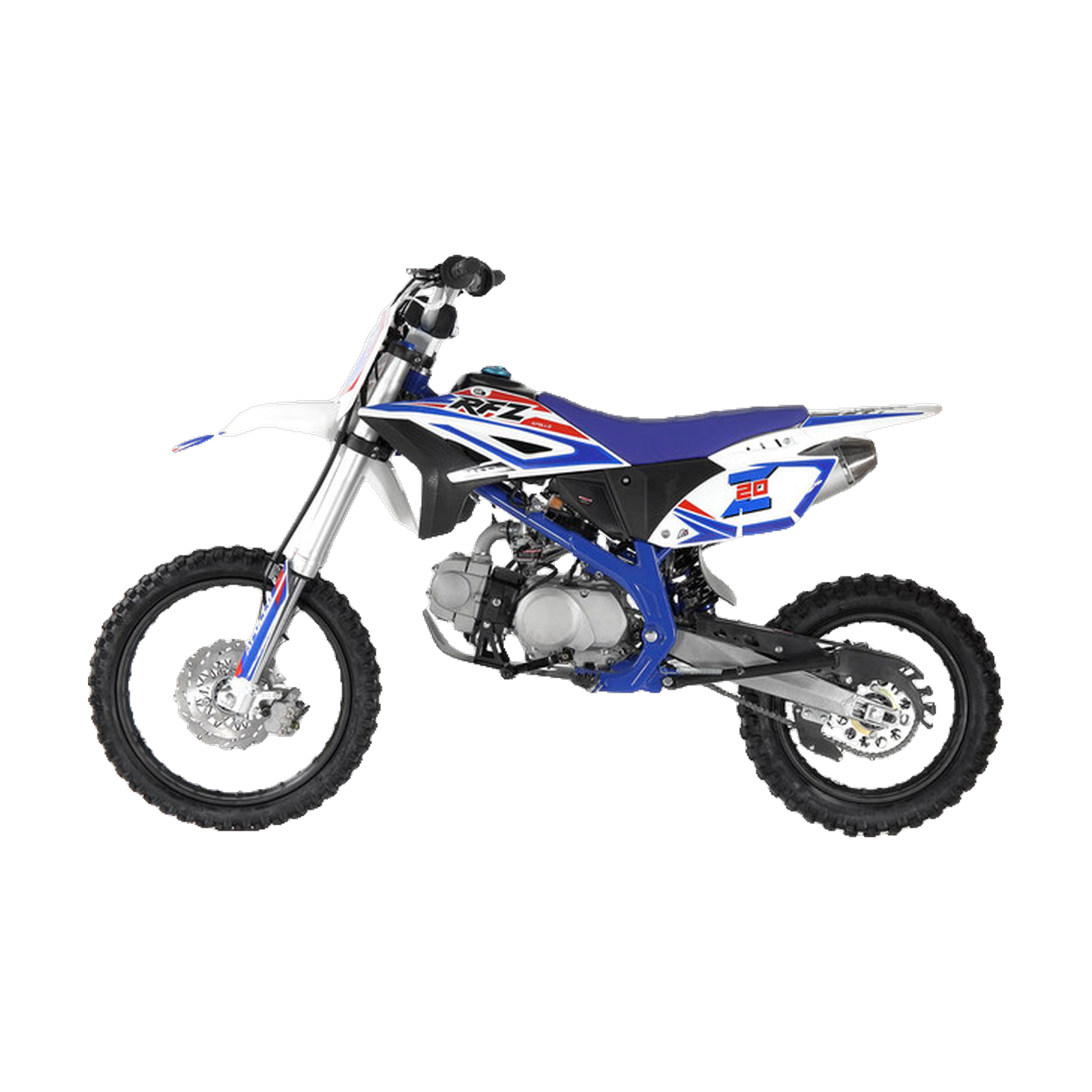

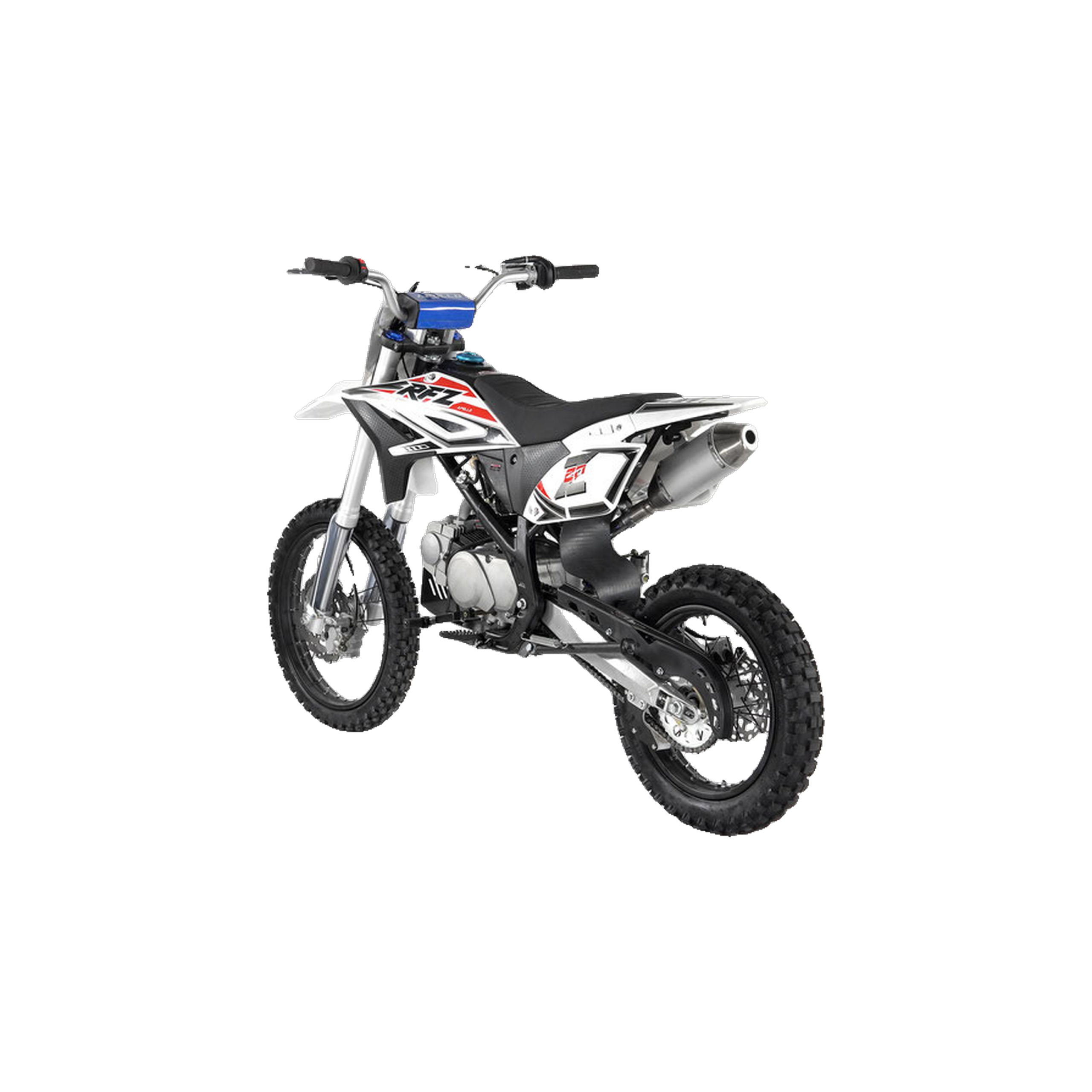

Z20 125cc

Carb-Approved-Logo

125cc

4-stroke, single-cylinder

3 Months

Limited Warranty

NA

Top Speed

4-speed Manual  (N-1-2-3-4)

(CVT) Transmission

125cc4-stroke, single-cylinder
Top Speed
4-speed Manual  (N-1-2-3-4)Transmission
3 MonthsWarranty
Make an Enquiry

SPECIFICATIONS

Engine4-stroke, single-cylinder
Displacement125cc
Fuel SystemCarb
CarburatorPZ26
CoolingAir cooled
Transmission4-speed Manual  (N-1-2-3-4)
Final DriveChain Drive
Start SystemKick Start
Battery
Front Suspension30.3 inches Non-Adjustable
Rear Suspension13.8 inches Adjustable
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front Tires70/100-17
Rear Tires90/100-14
FrameDouble beam Heavy Duty Steel frame
Dimensions70*30.7*46 inches
Seat Height32.5 inches
Wheelbase49.2 inches
Ground Clearance14.5 inches
Fuel Capacity1.03 Gallon
Weight168 LBS
Top Speed
Max Load
Age6+
Warranty3 Months



Z20
carburetor PZ26
engine Brand YX
engine 125cc Air cooled, 4-stroke, single-cylinder
Engine Gear 4-speed Manual  (N-1-2-3-4)
Transmission Chain Drive
Shift Gear Hand
Engine Bore X Stroke 54×54mm
compression ratio 8.8：1
max power 7.8HP/7500r/min
Max torque 8.6N.m/5000r/min
Ignition CDI
Engine Oil total capacity 0.24 Gallon
Fuel Tank Capacity 1.03 Gallon
Start way Kick Start
Front wheel 70/100-17
Rear wheel 90/100-14
Drive train Chain drive
Front and rear absorber brand SYD
Front absorber 30.3 inches Non-Adjustable
Rear absorber 13.8 inches Adjustable
Front Hand Brake Hydraulic Disc
Rear Foot Brake Hydraulic Disc
Frame Double beam Heavy Duty Steel frame
N.W: 168 LBS
G.W 196 LBS
Products size(L*W*H) 70*30.7*46 inches
seat high 32.5 inches
wheel base 49.2 inches
Ground Clearance 14.5 inches
