Minimum Age

16+

ATVs

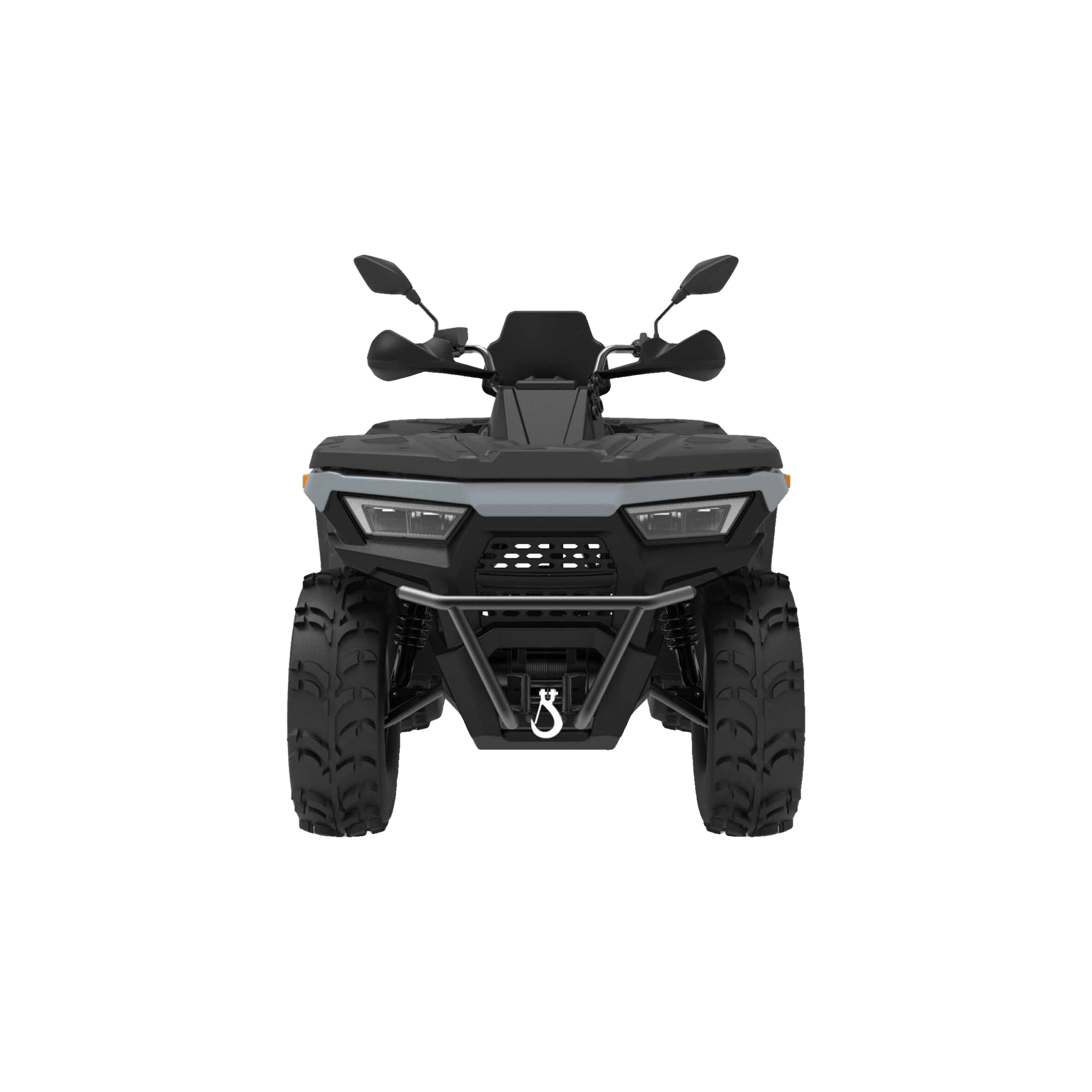

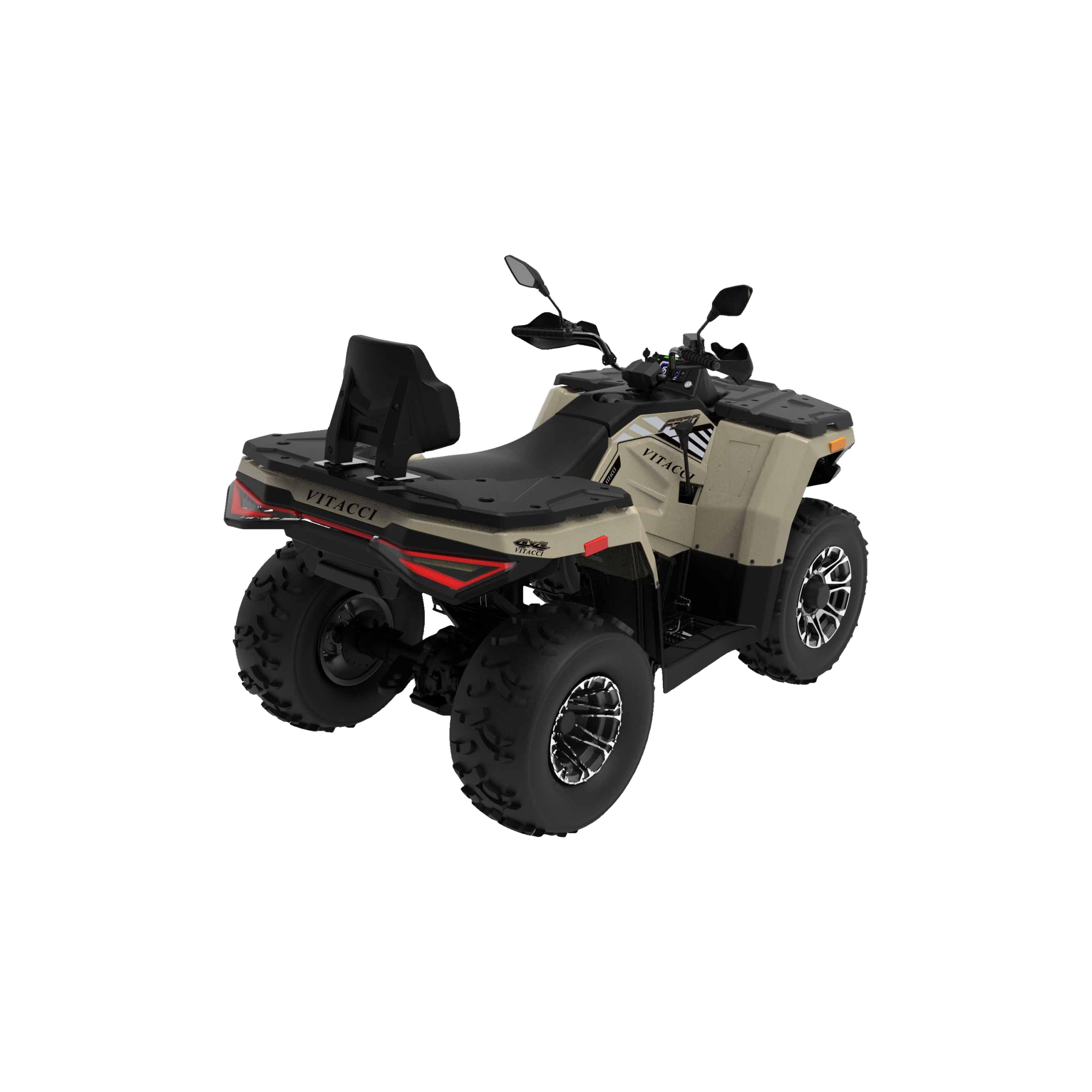

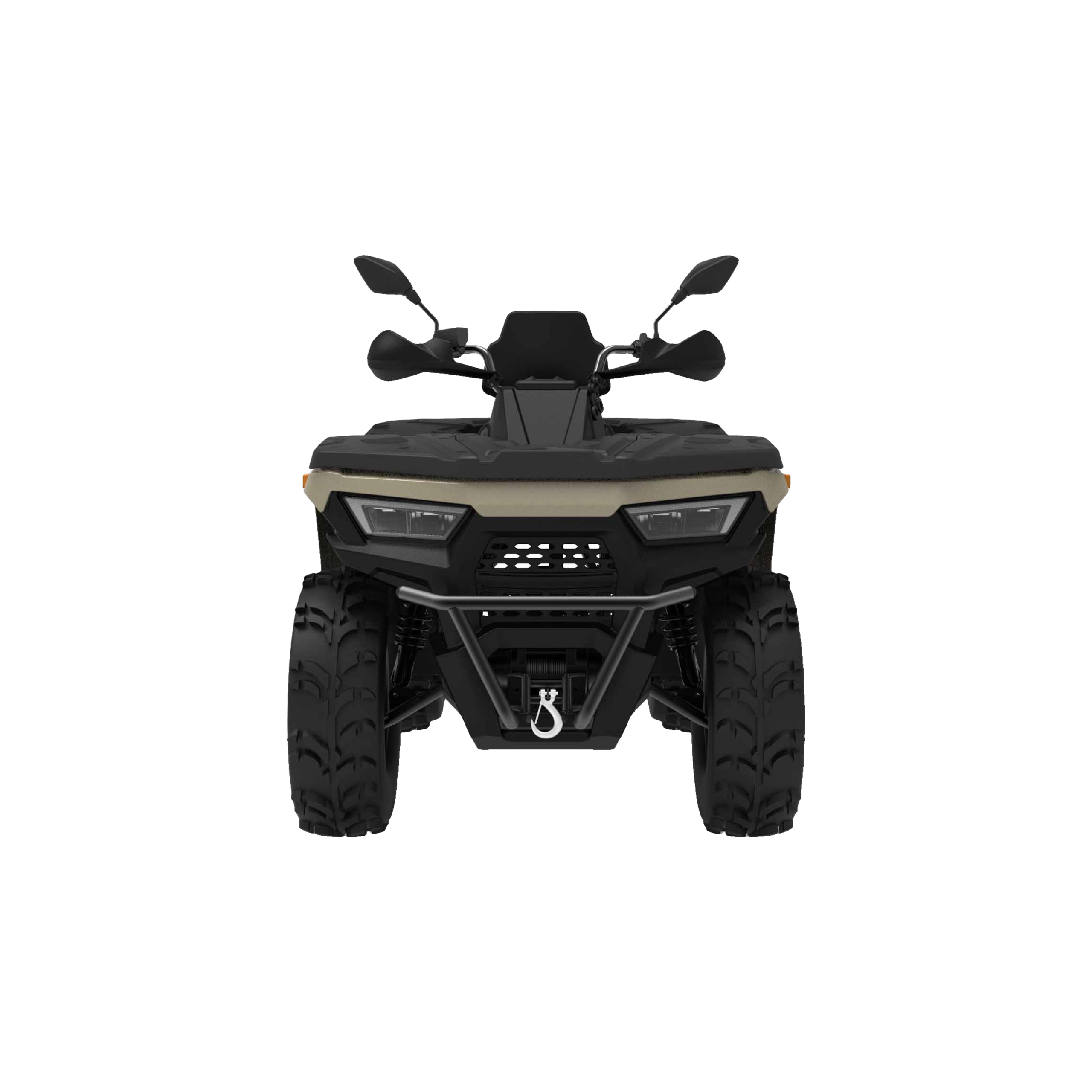

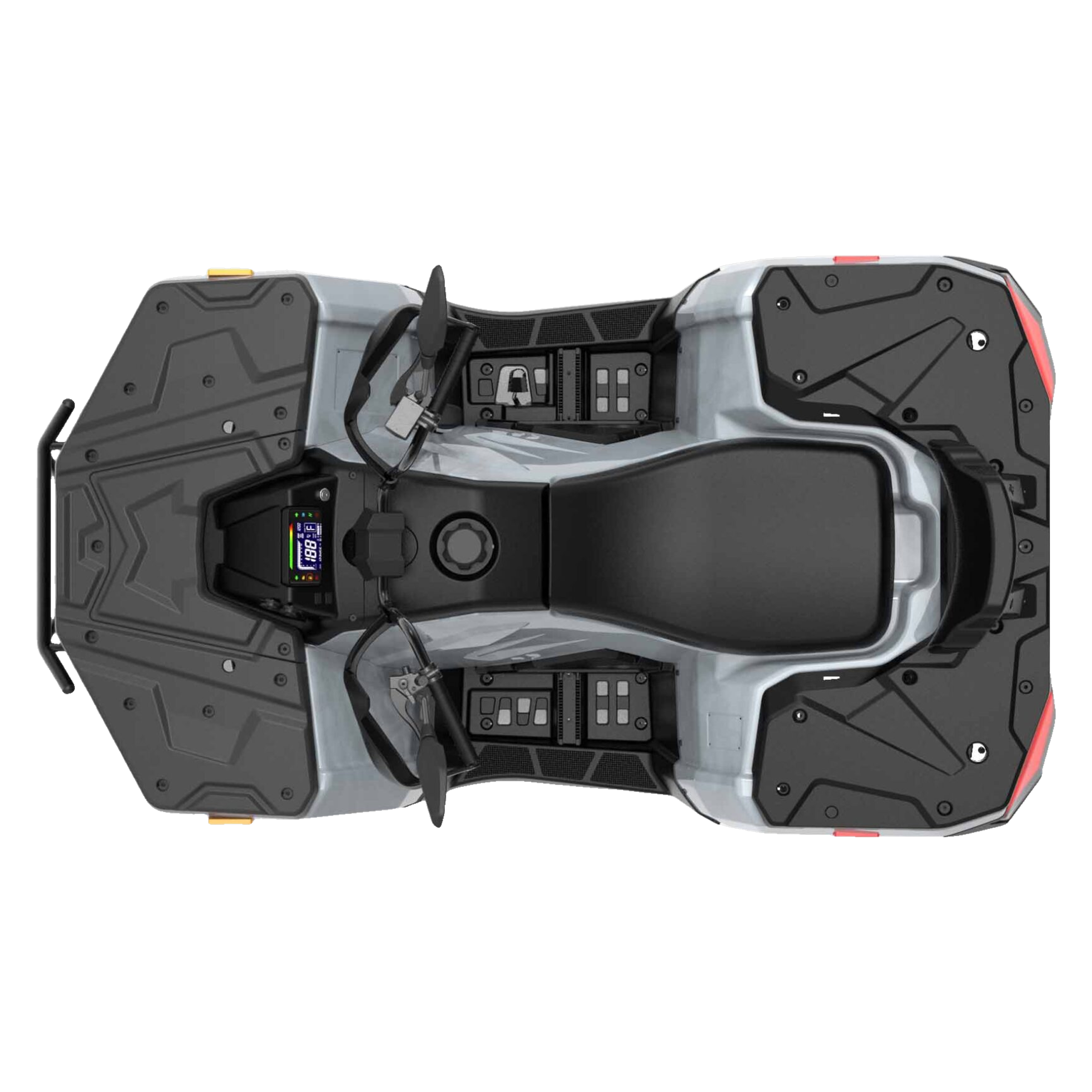

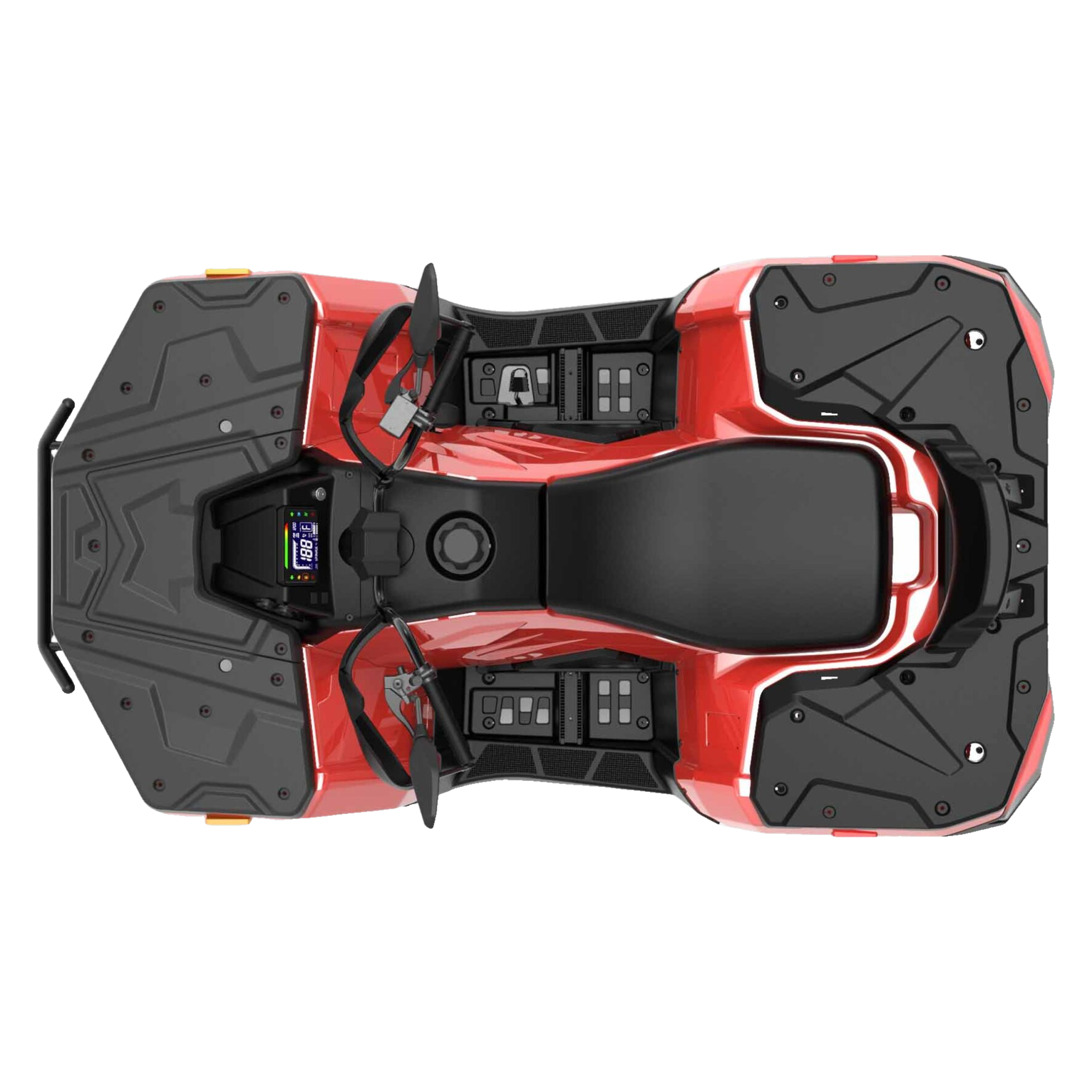

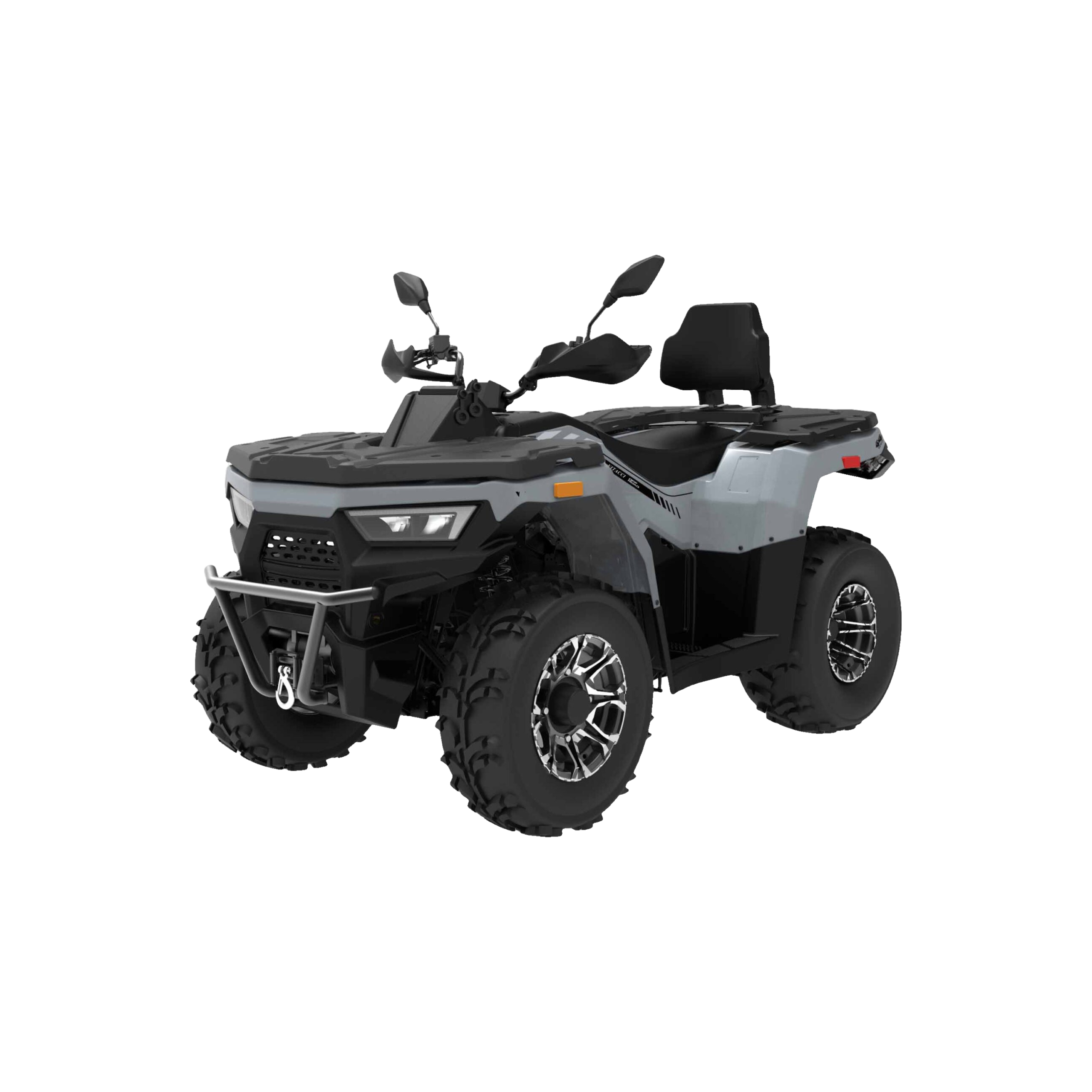

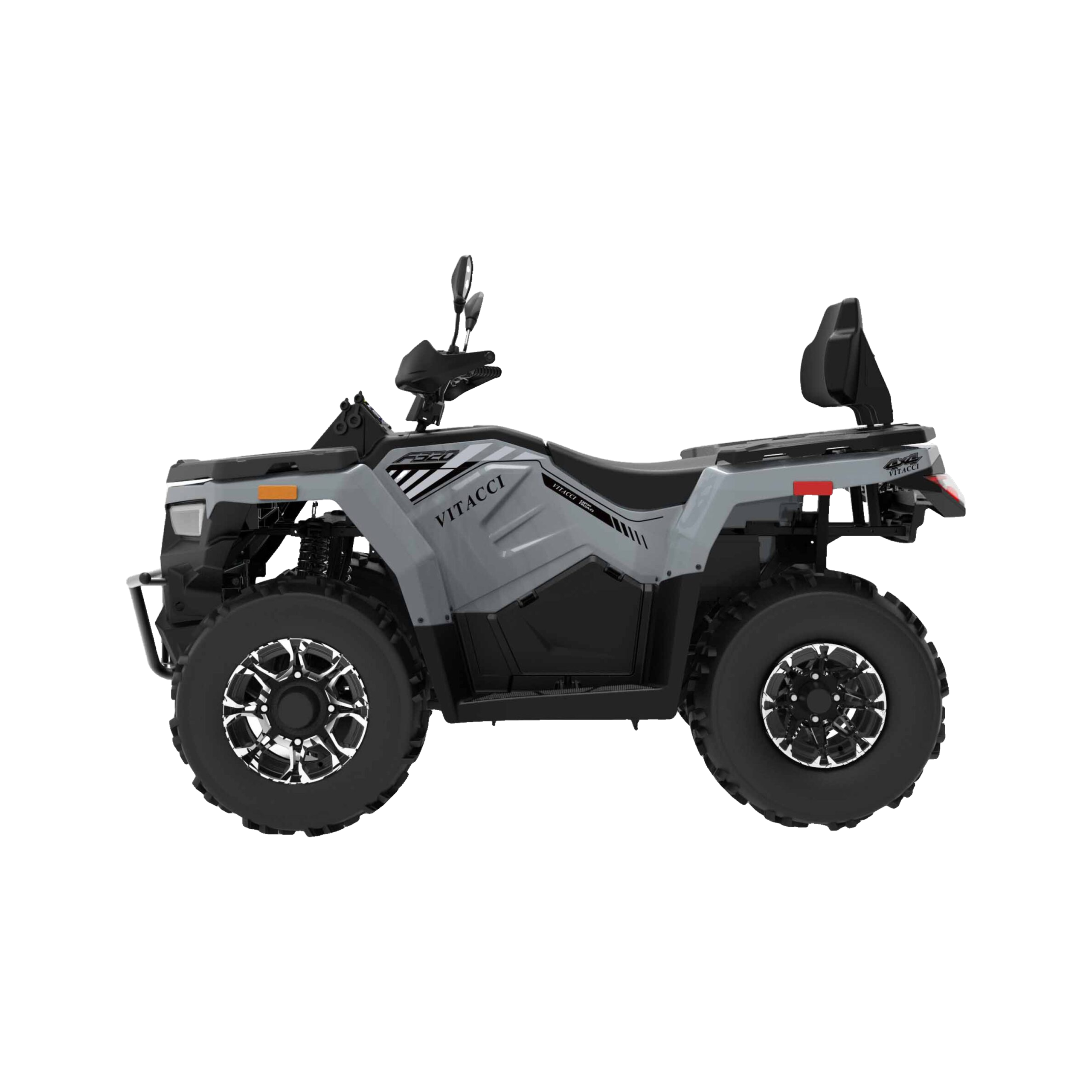

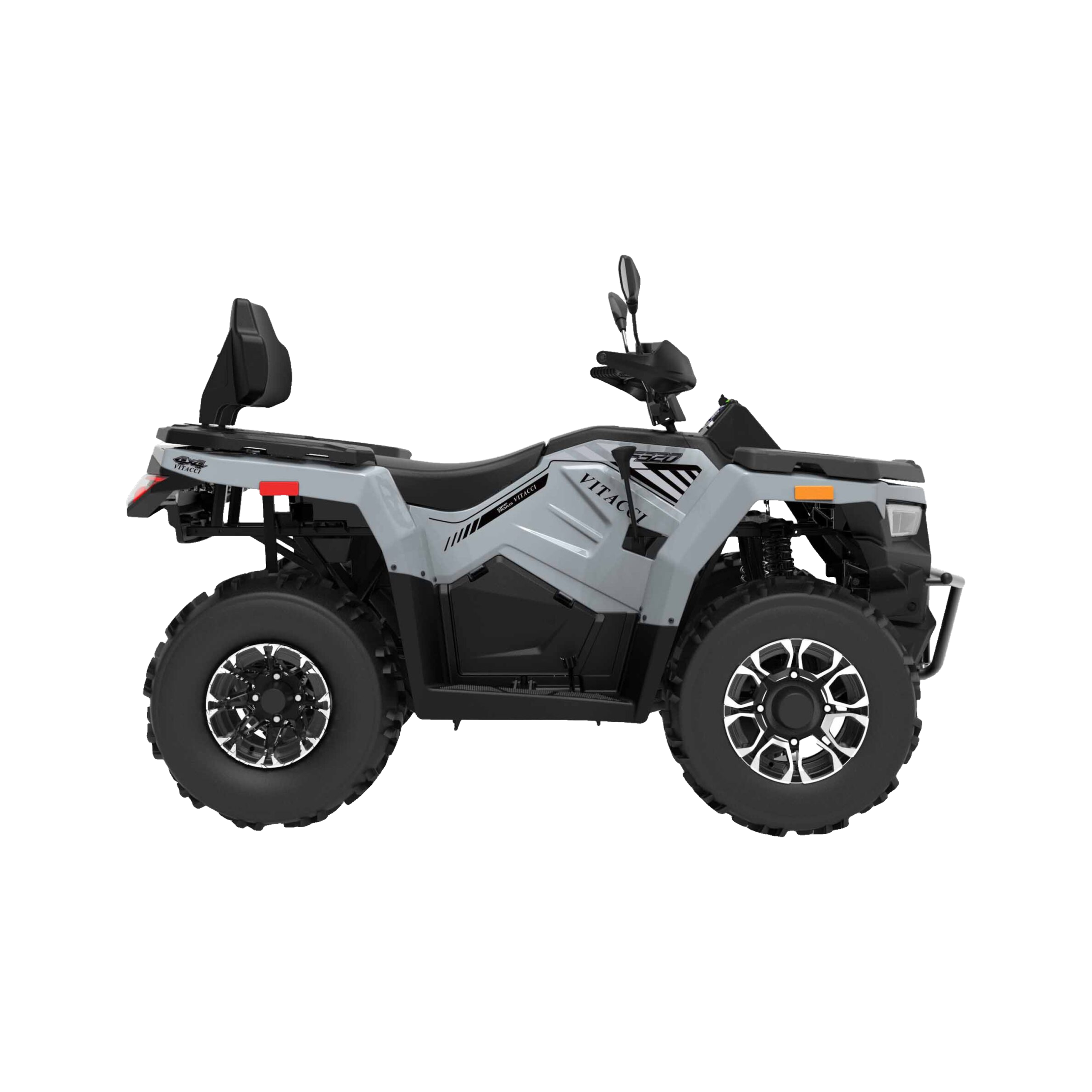

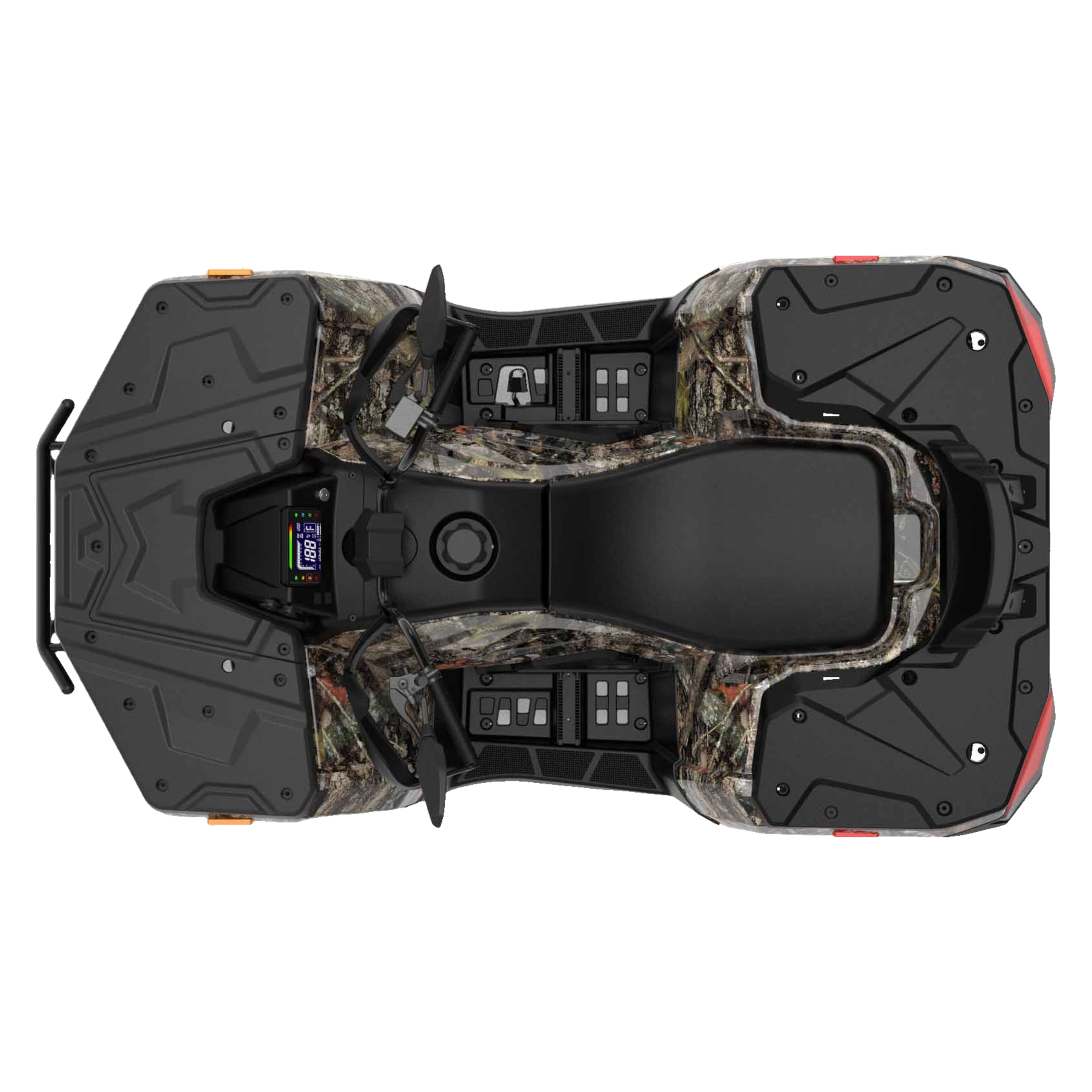

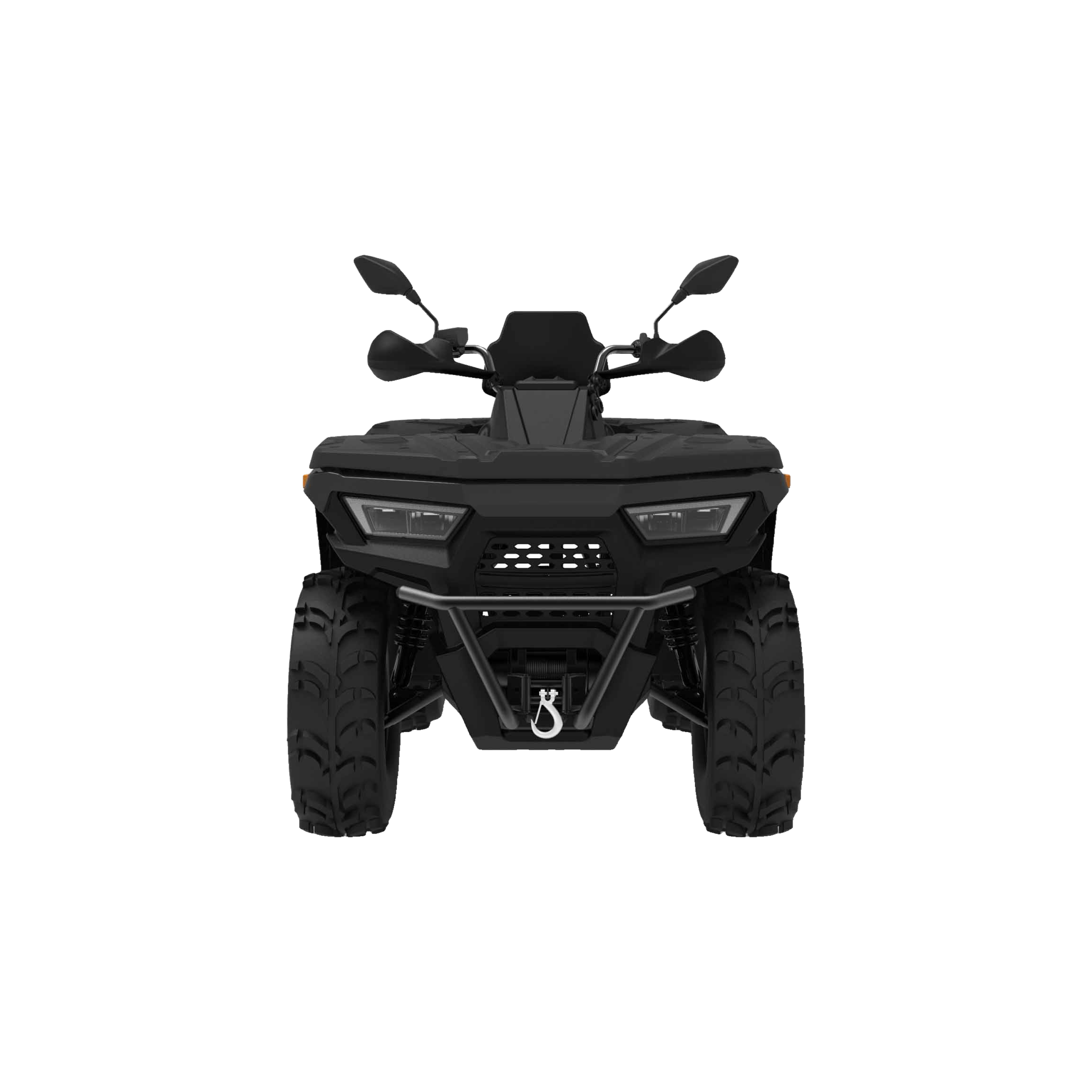

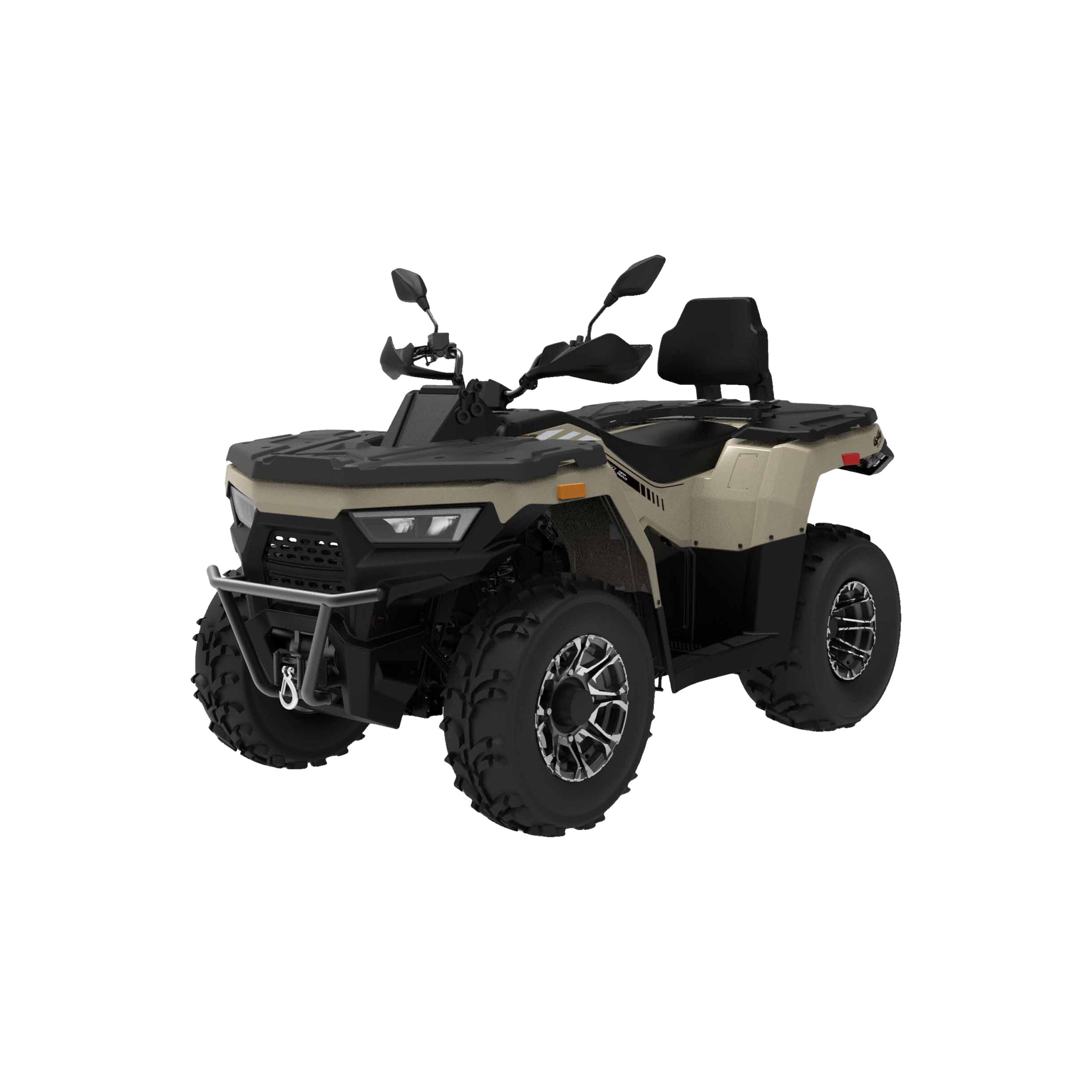

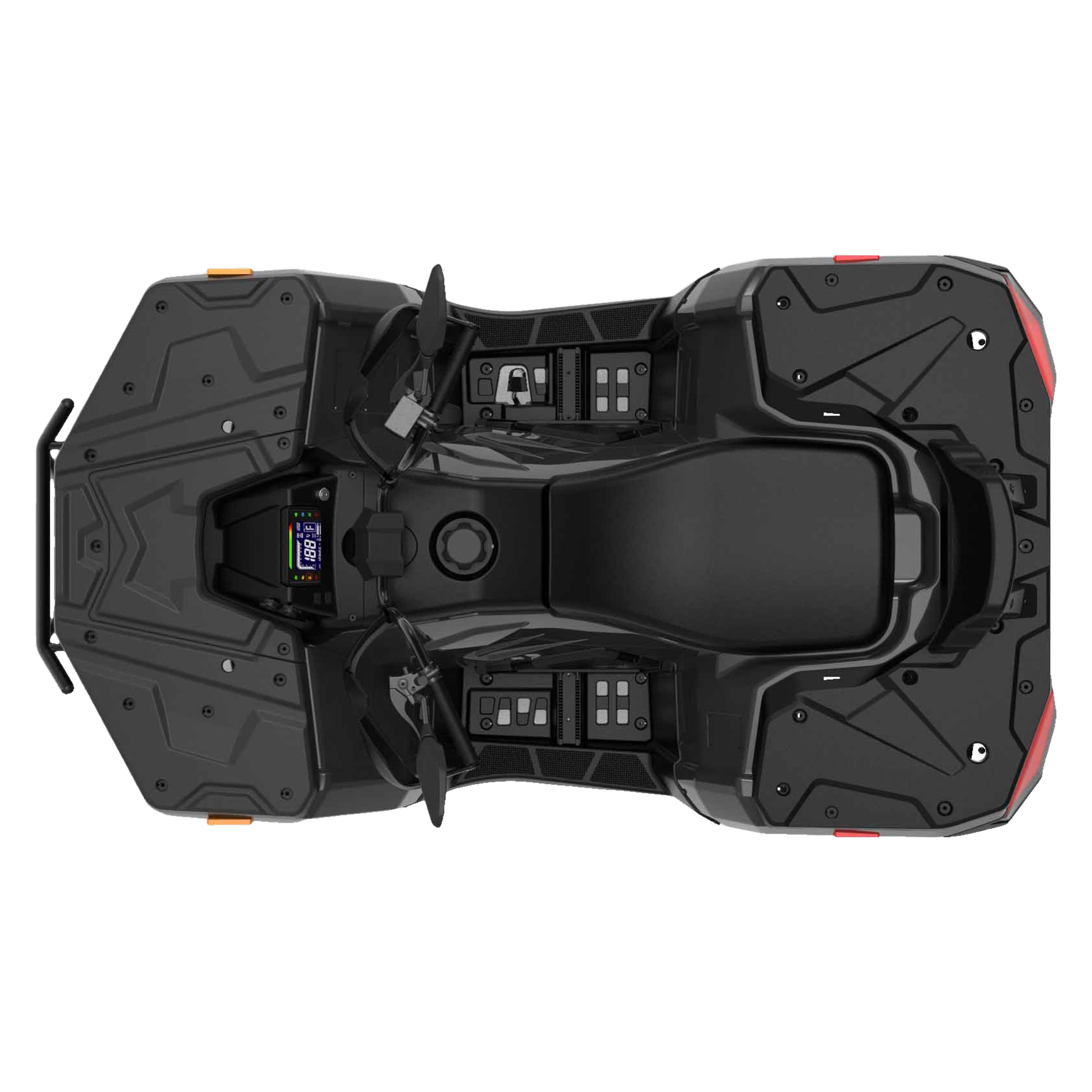

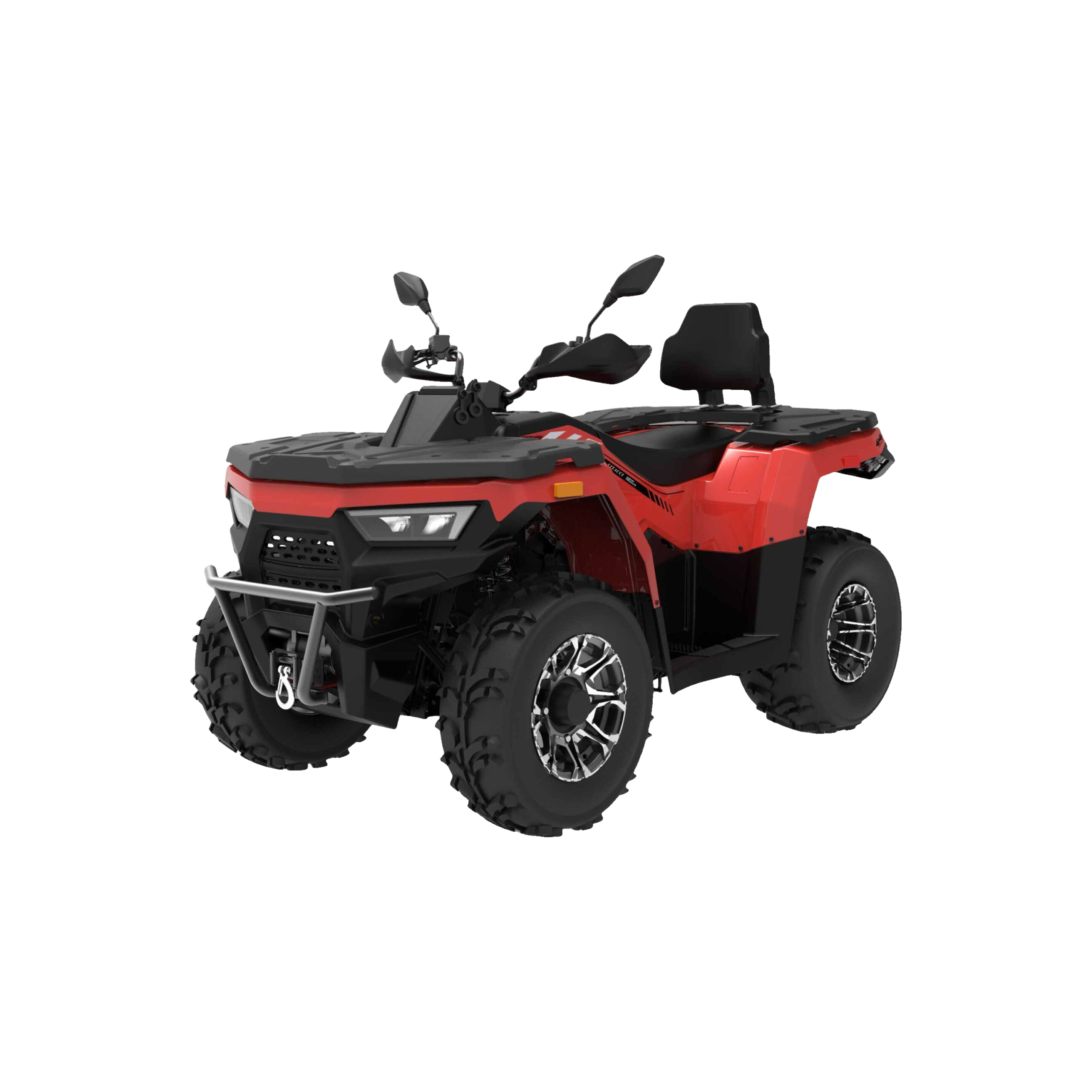

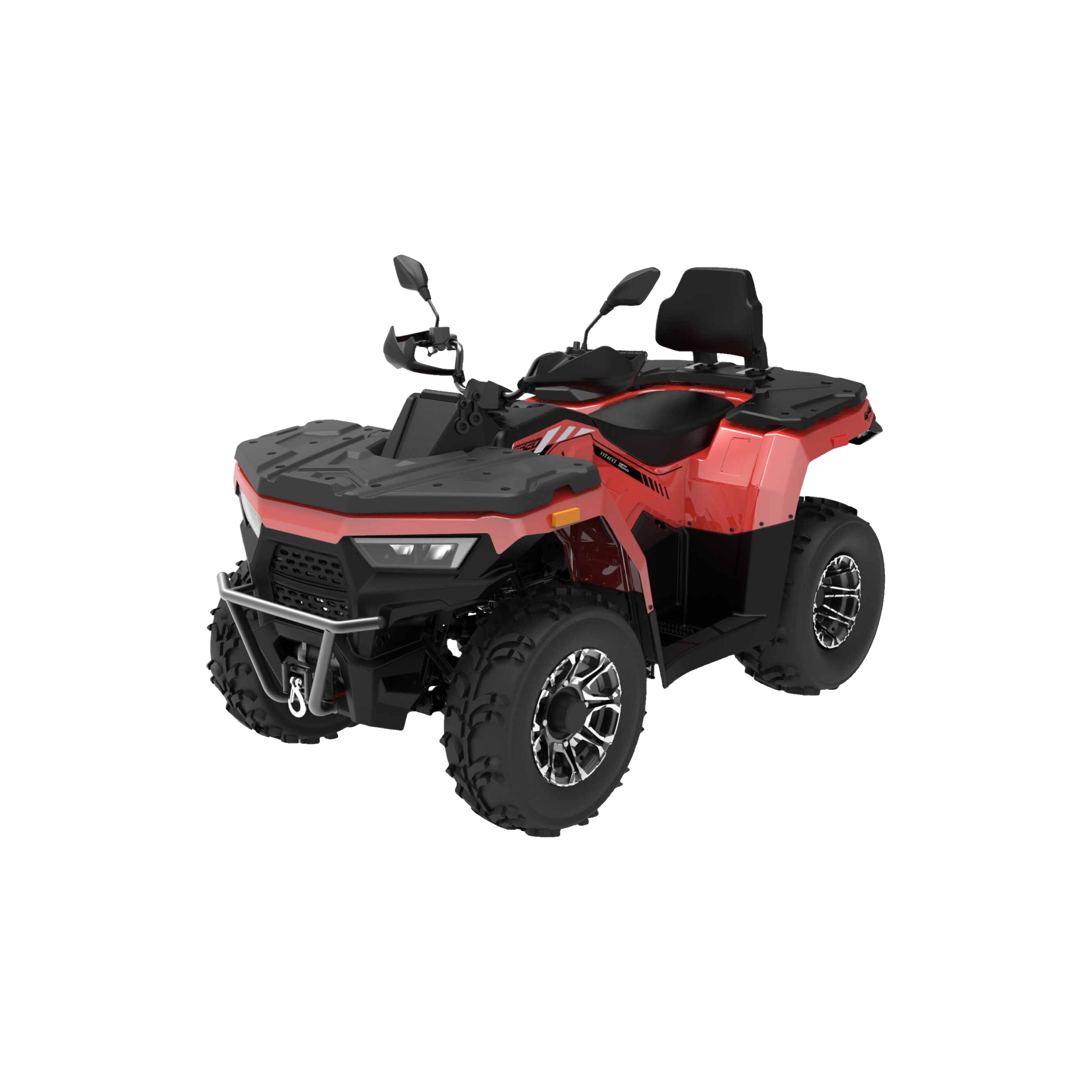

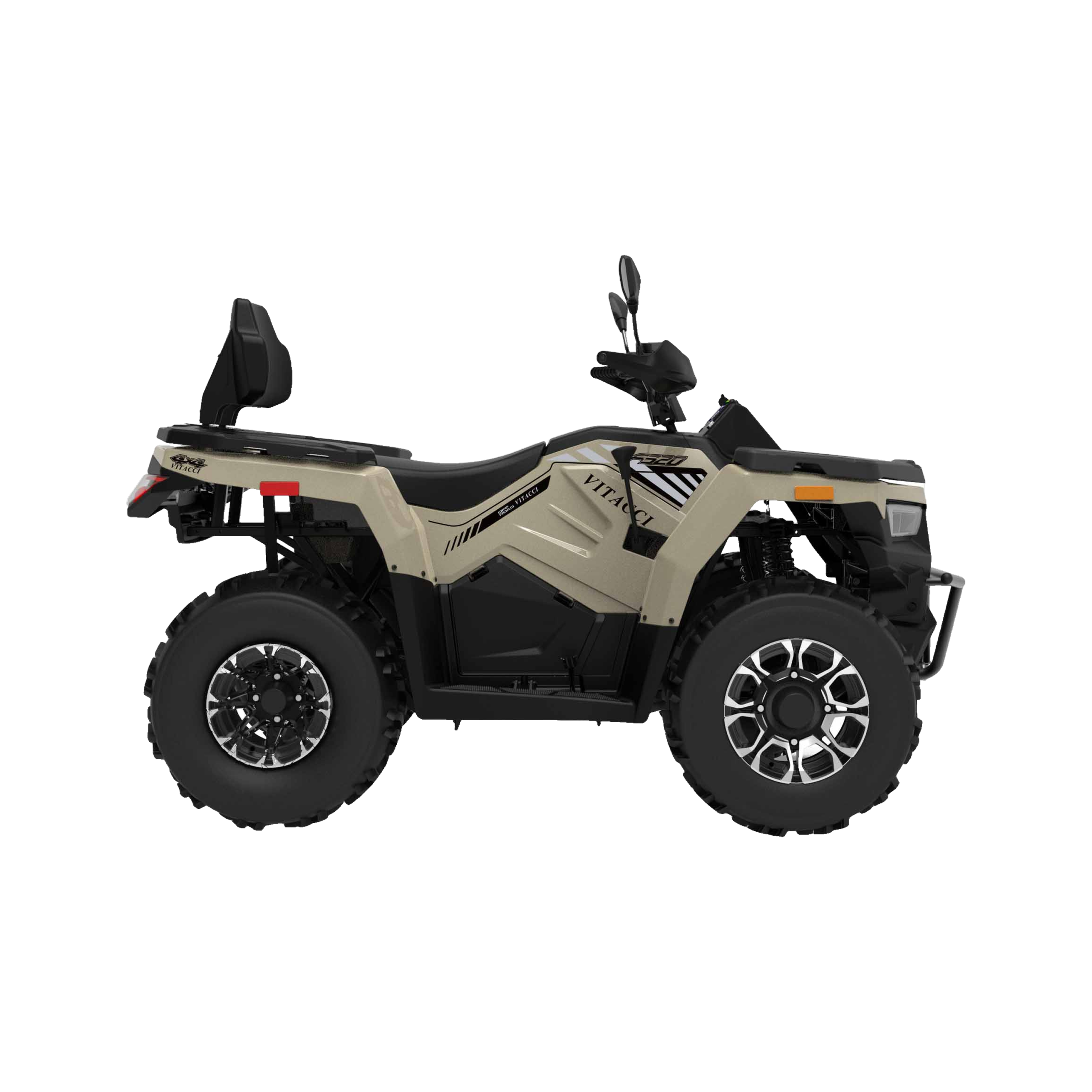

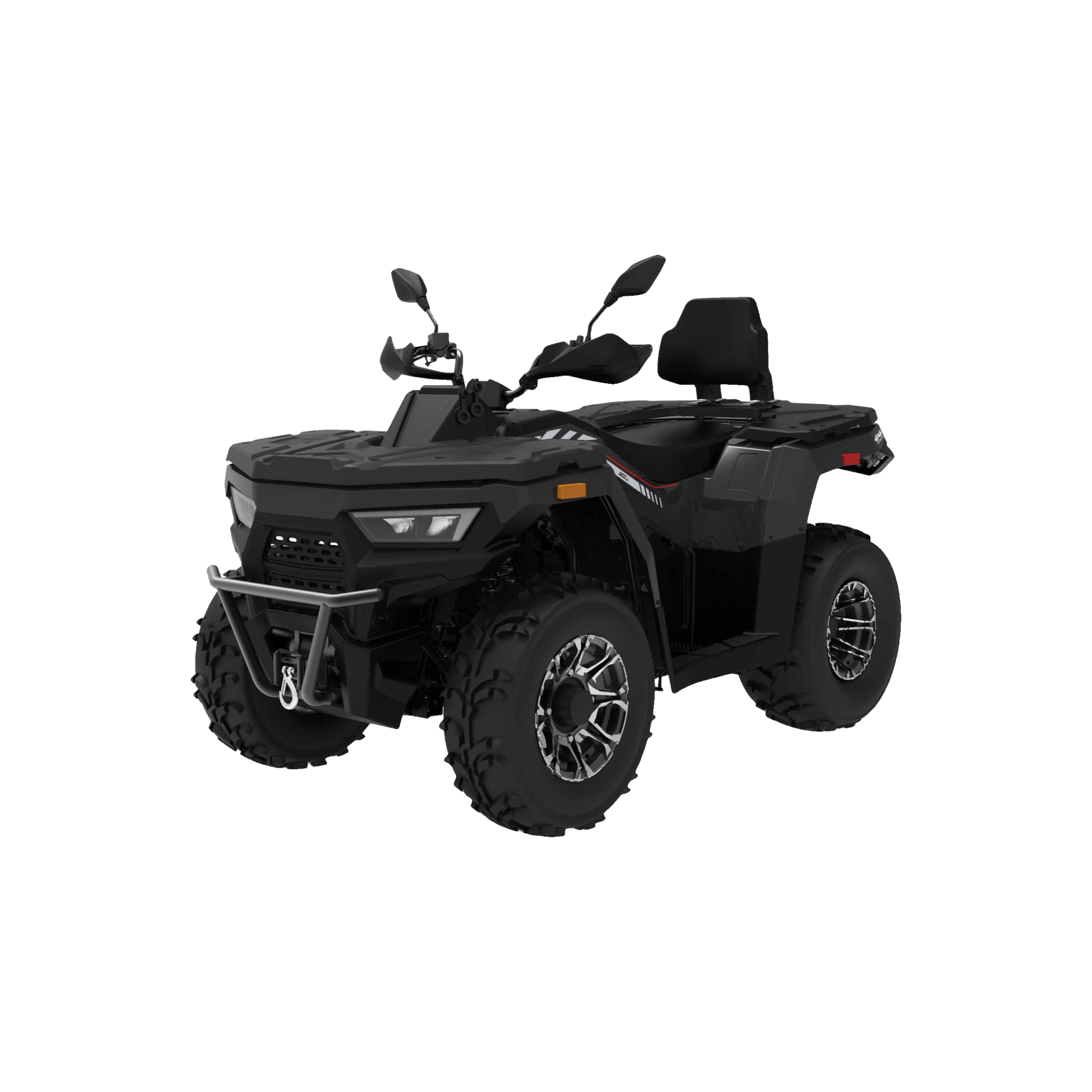

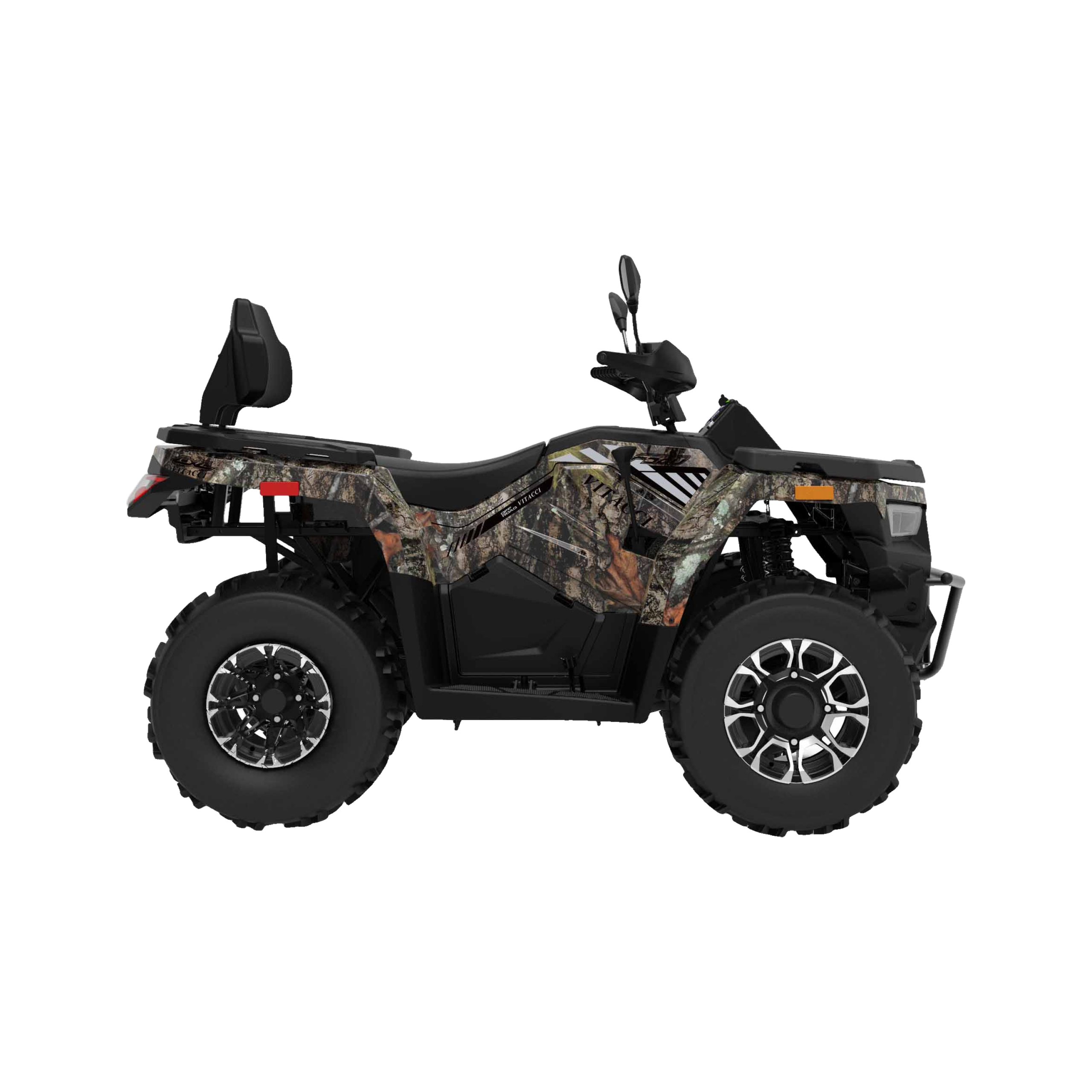

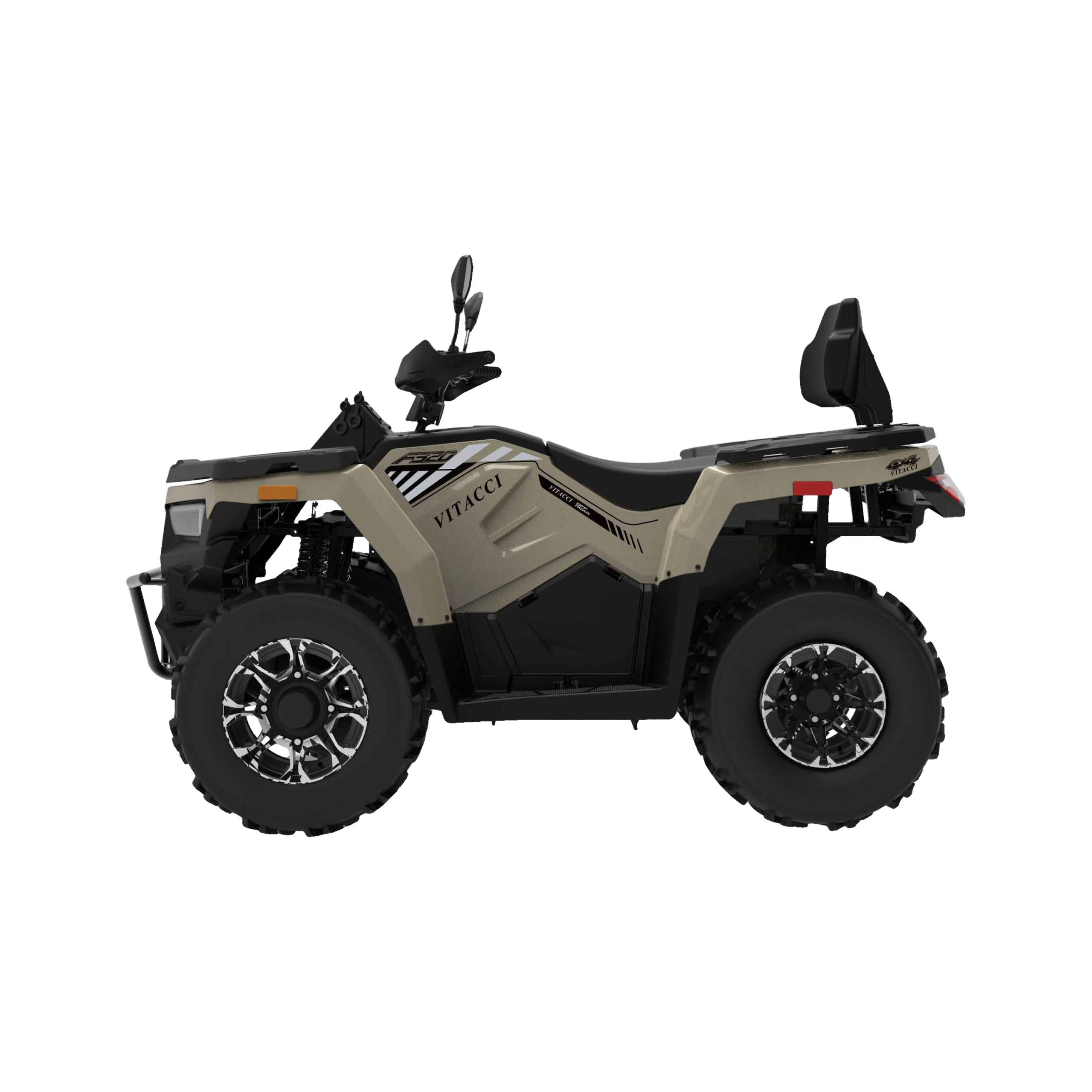

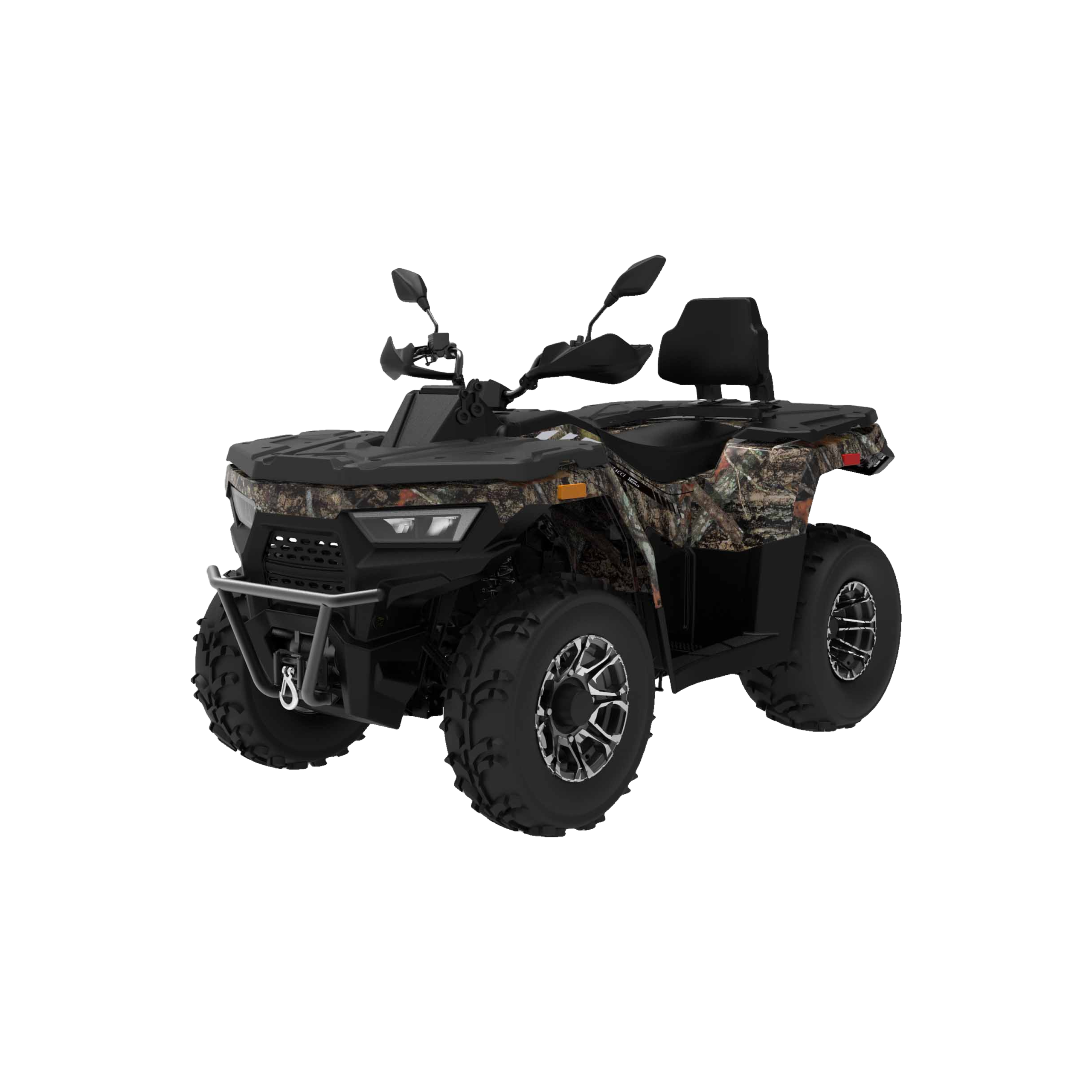

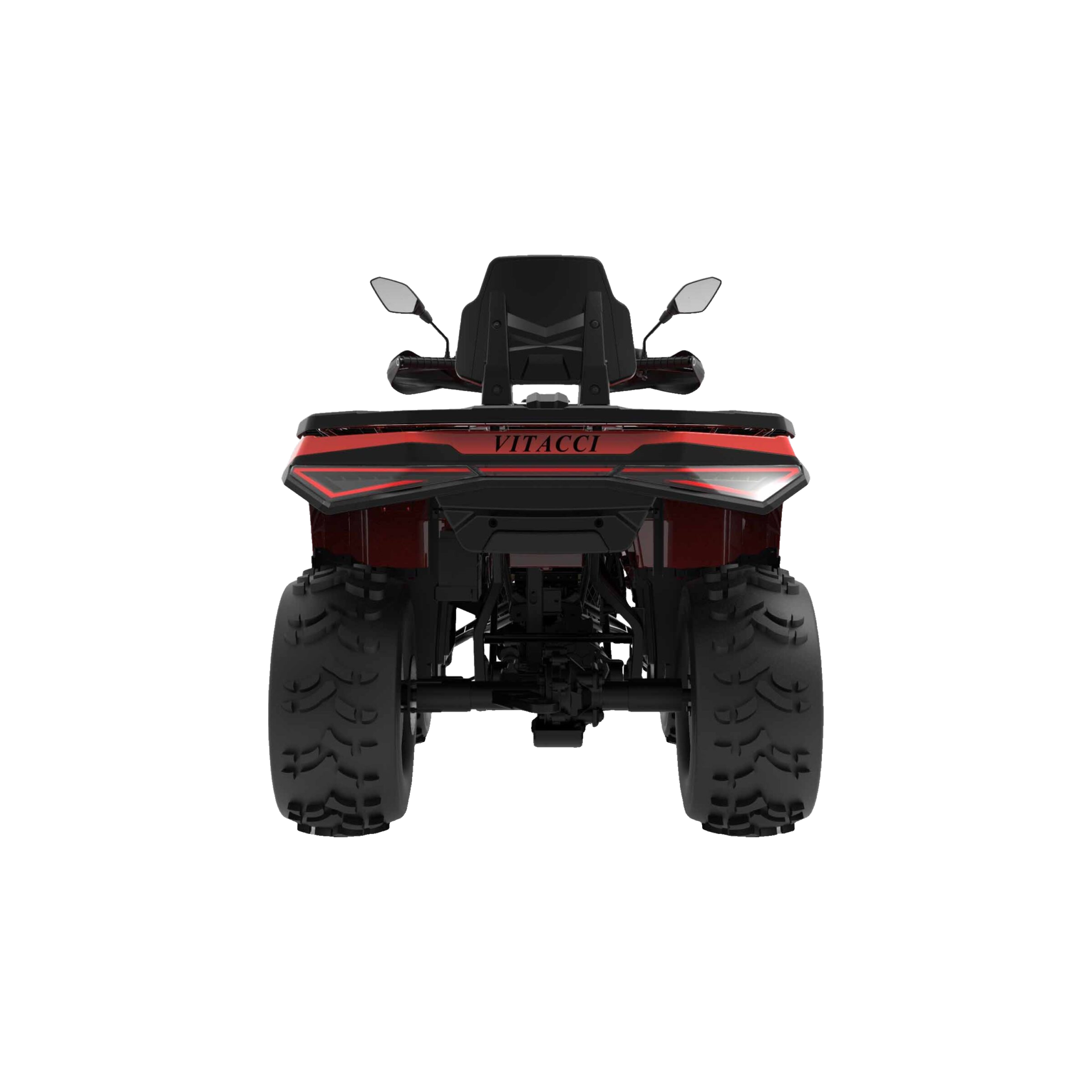

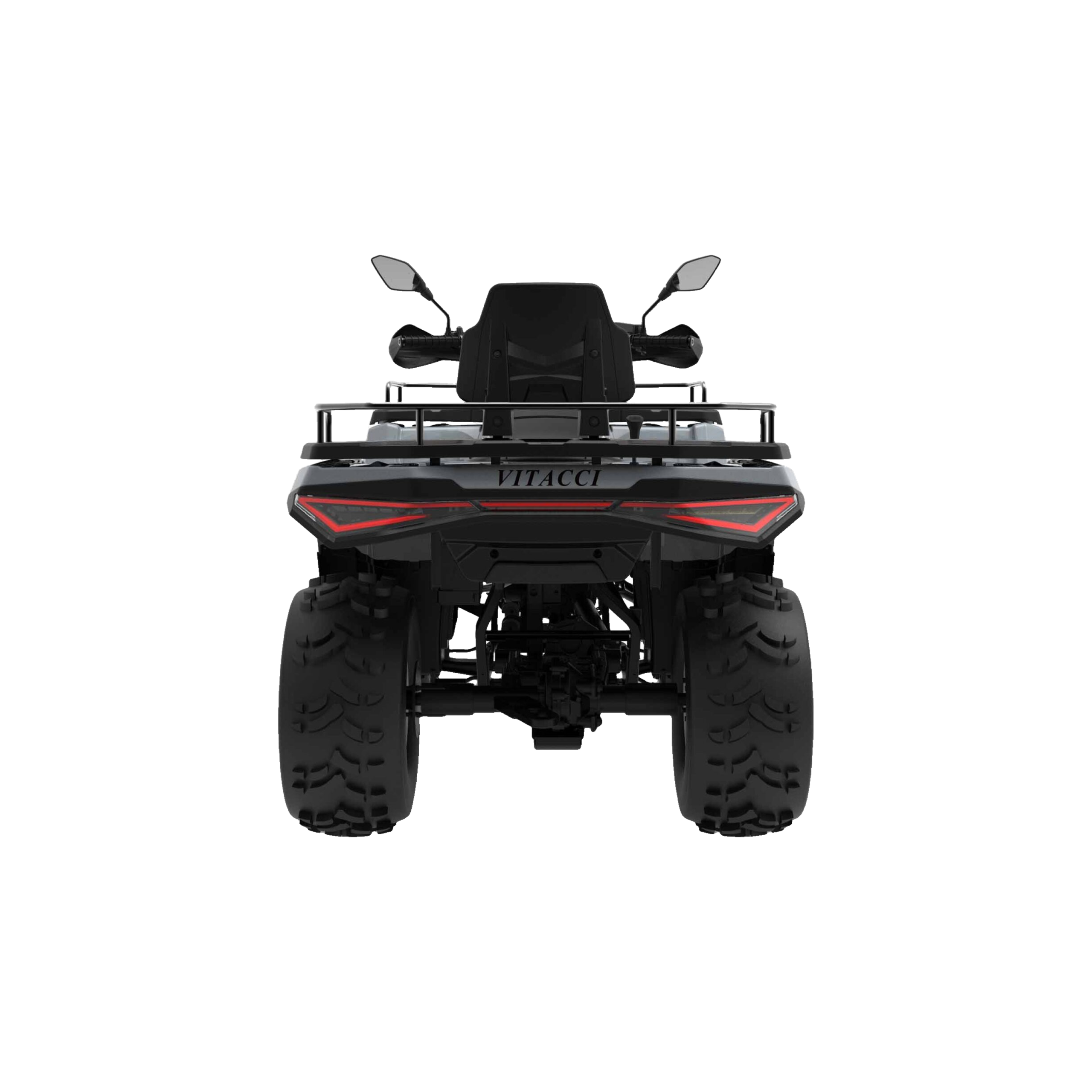

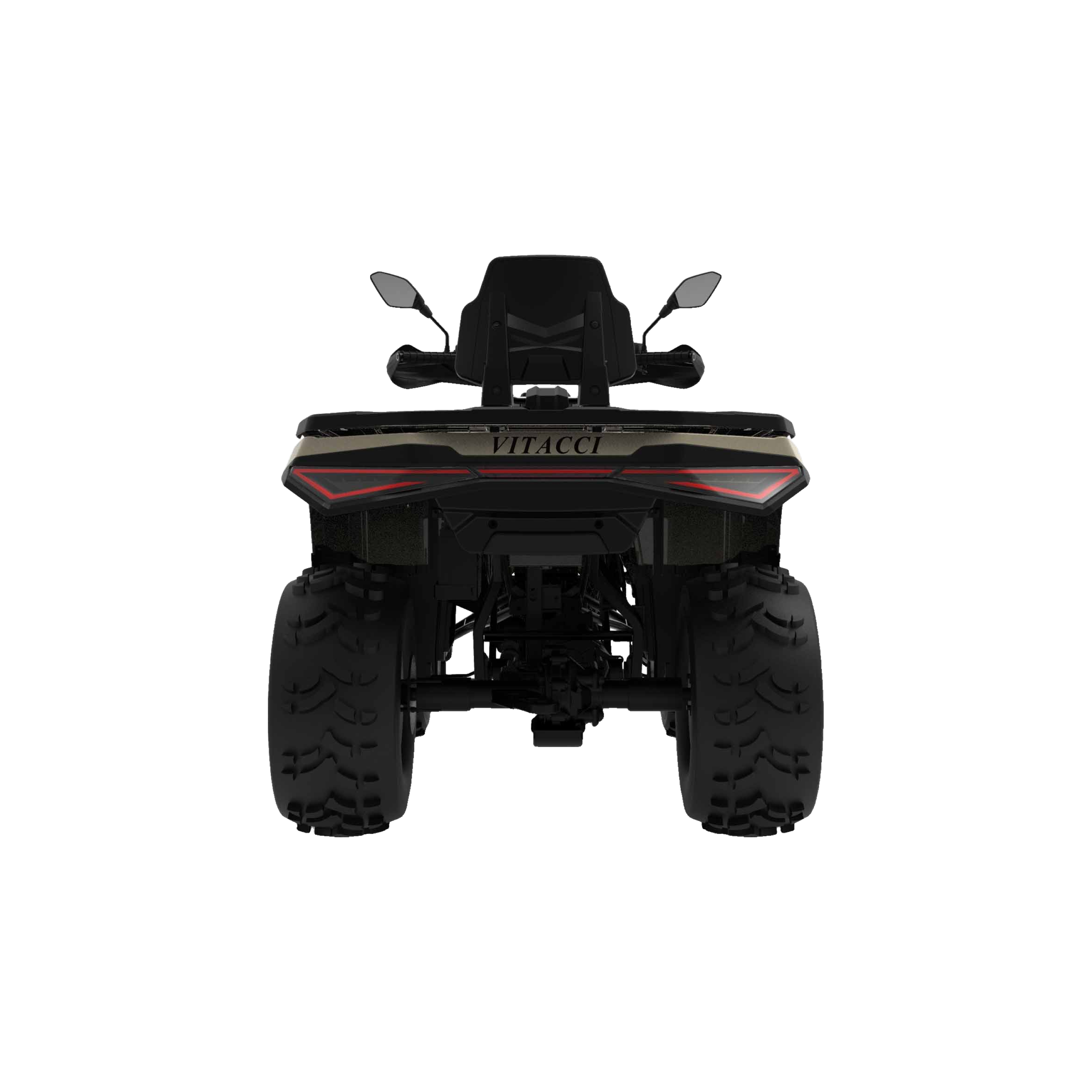

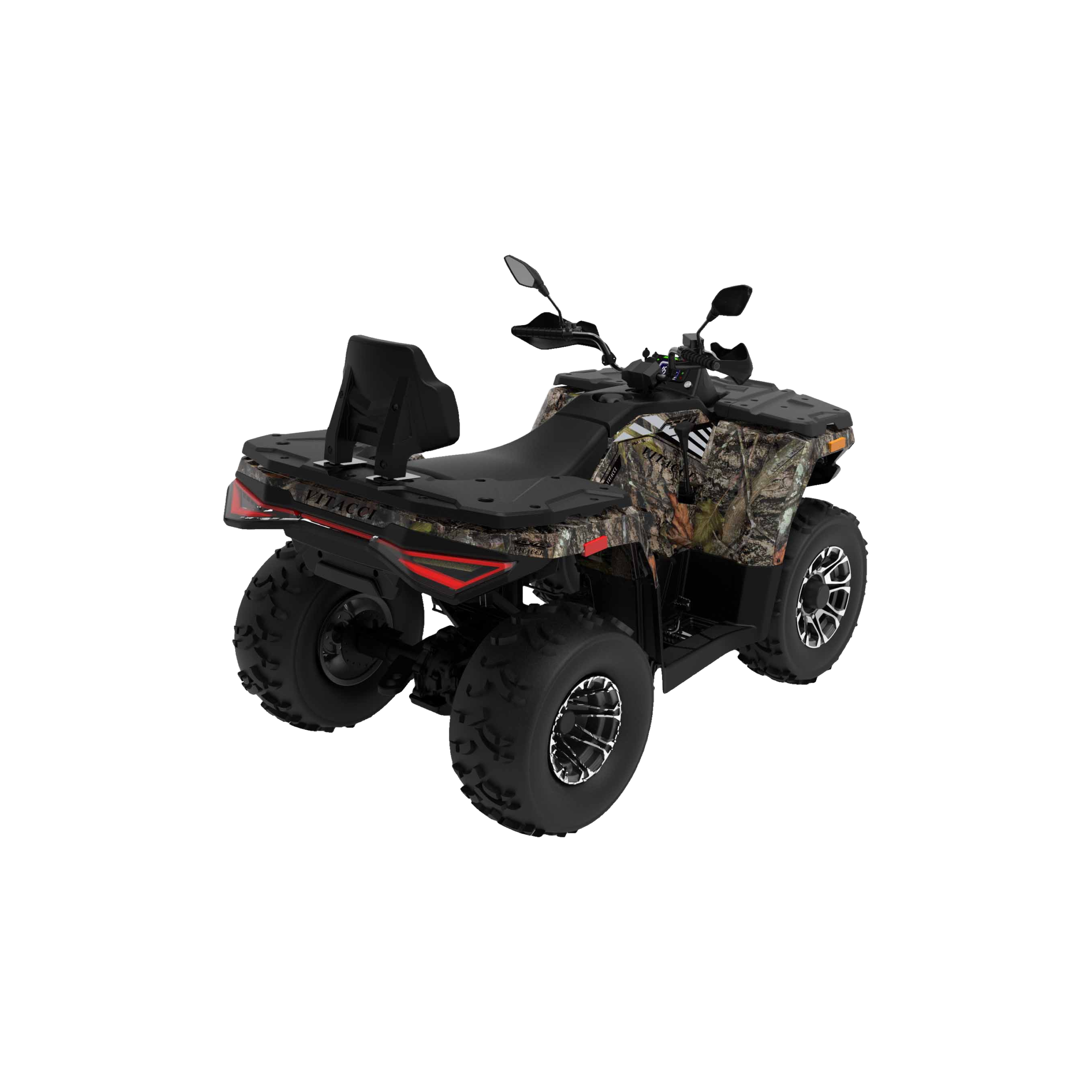

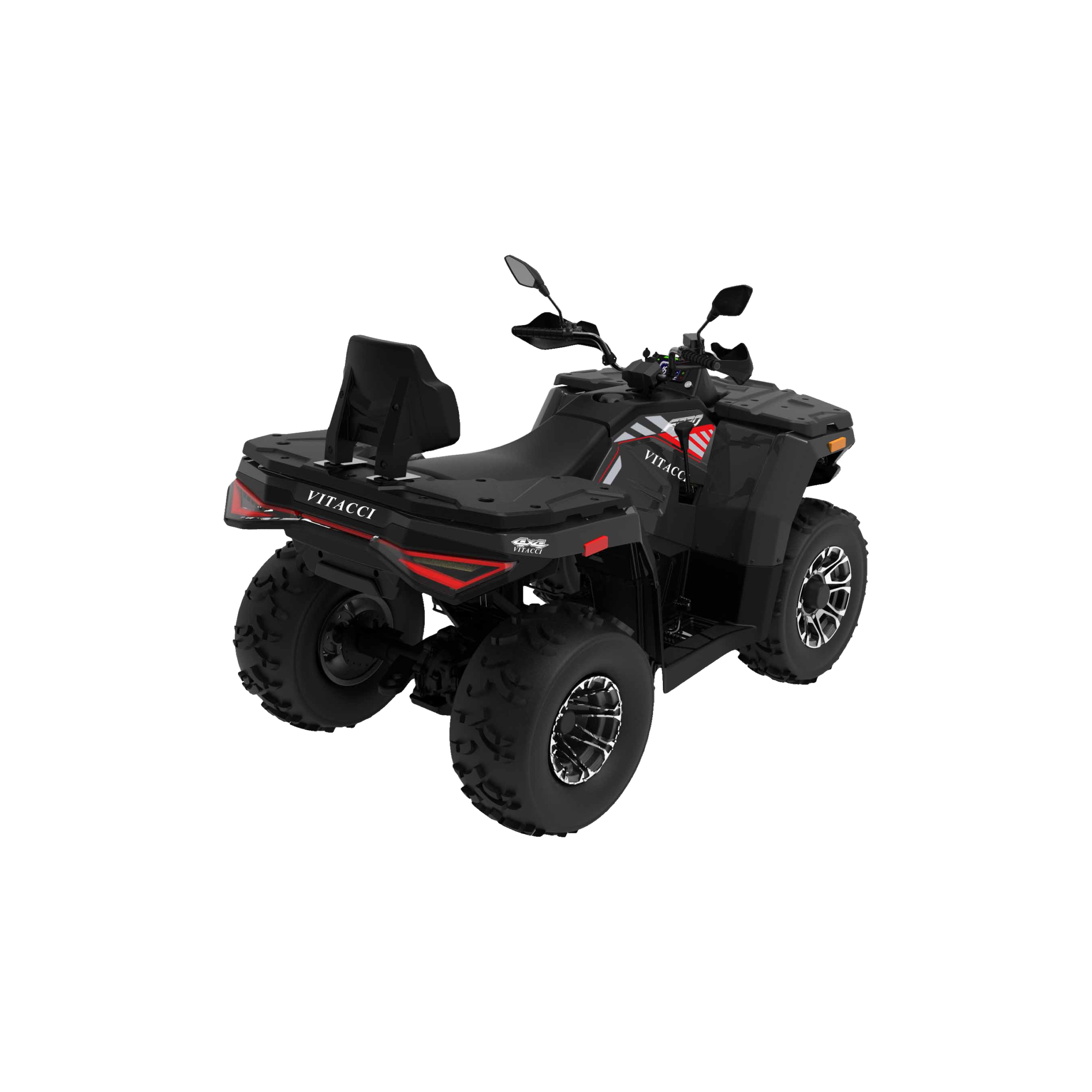

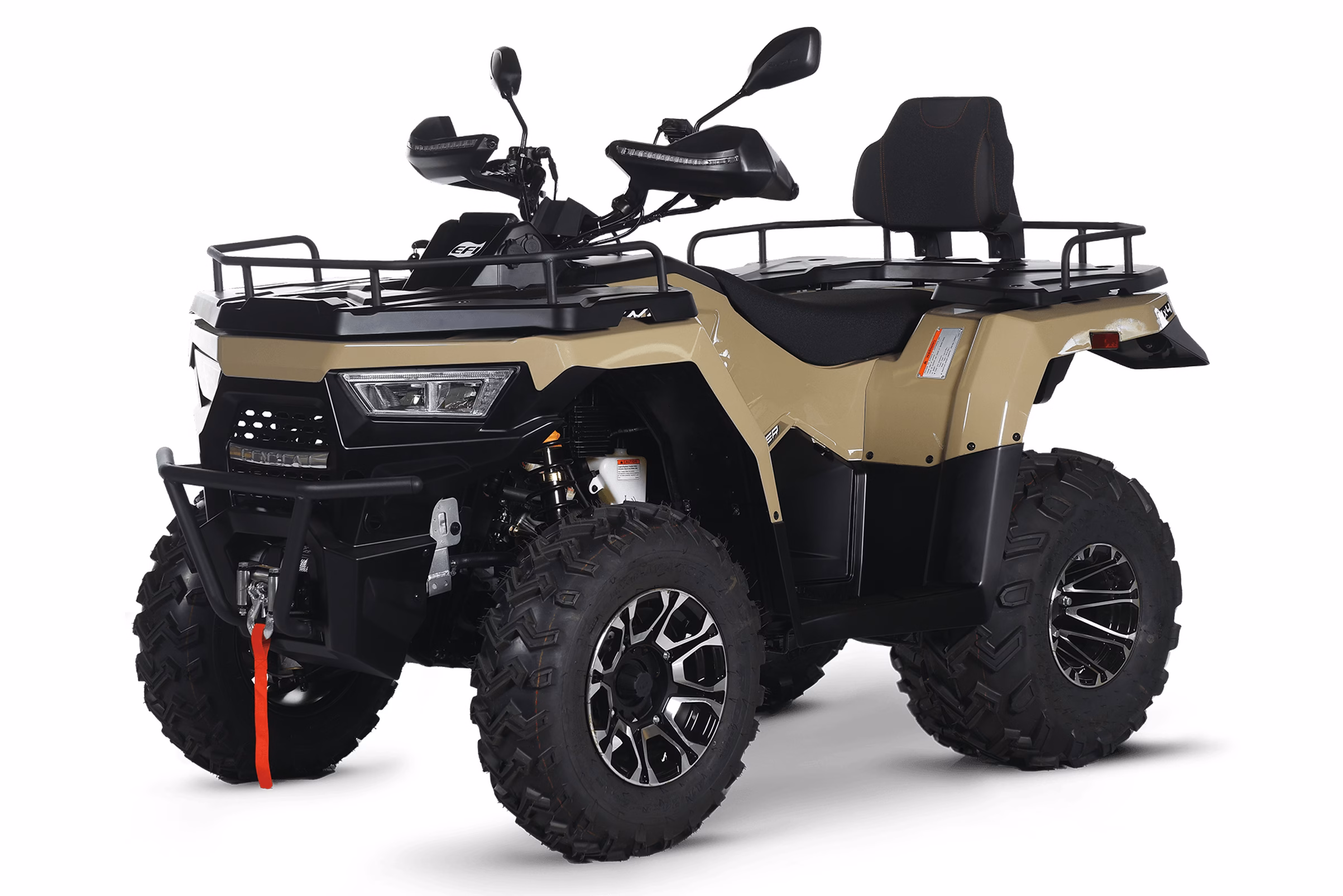

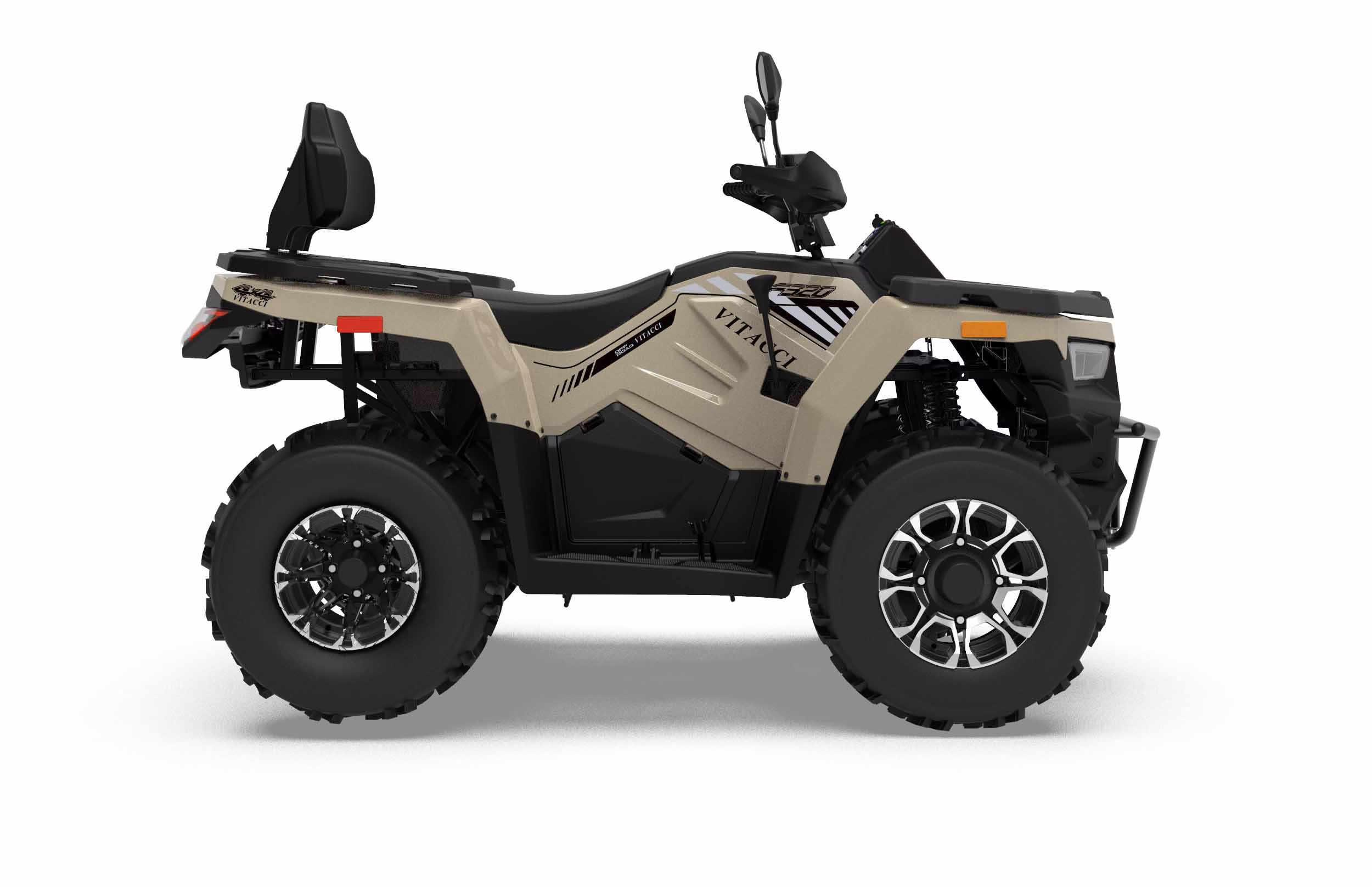

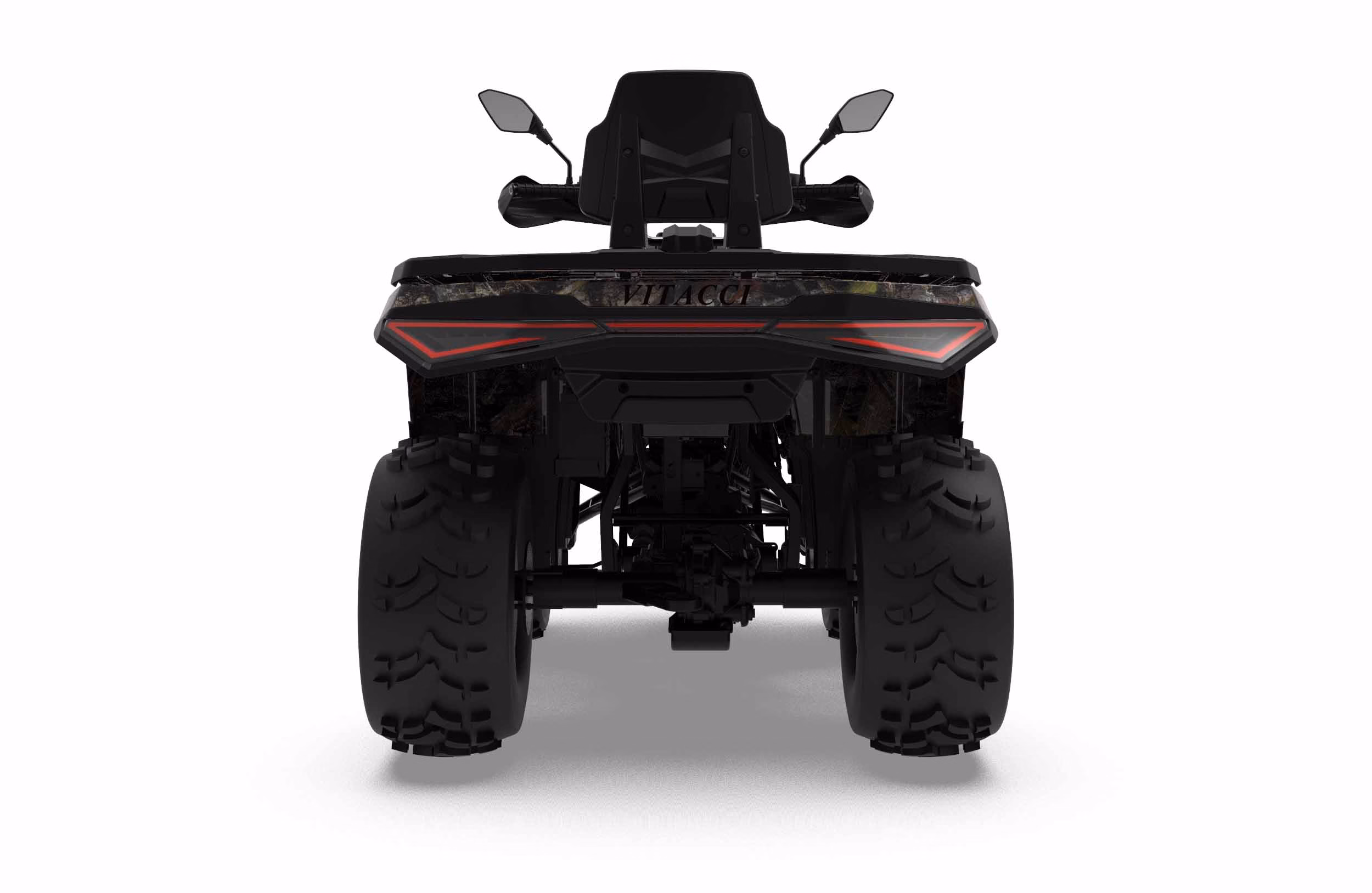

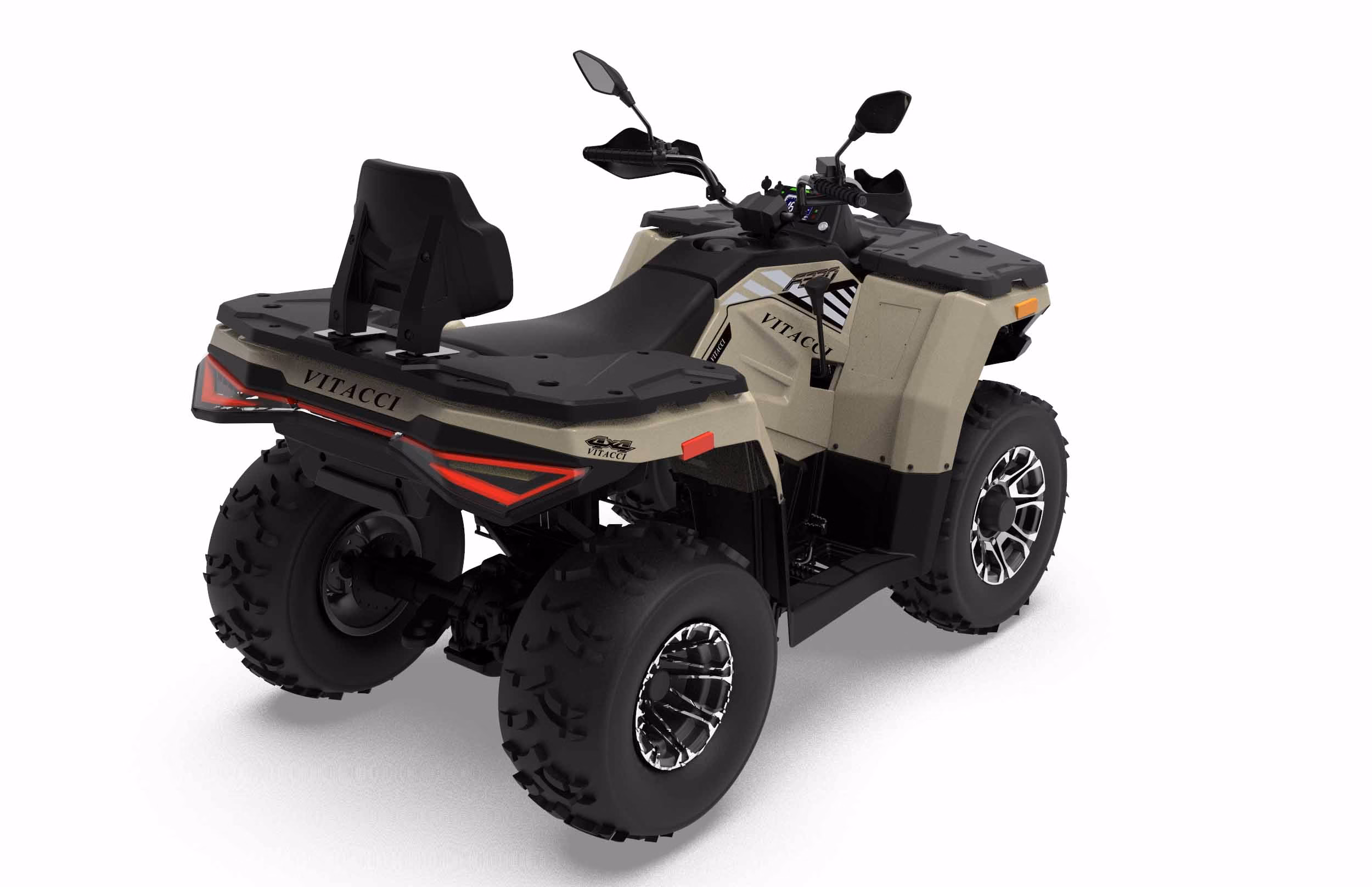

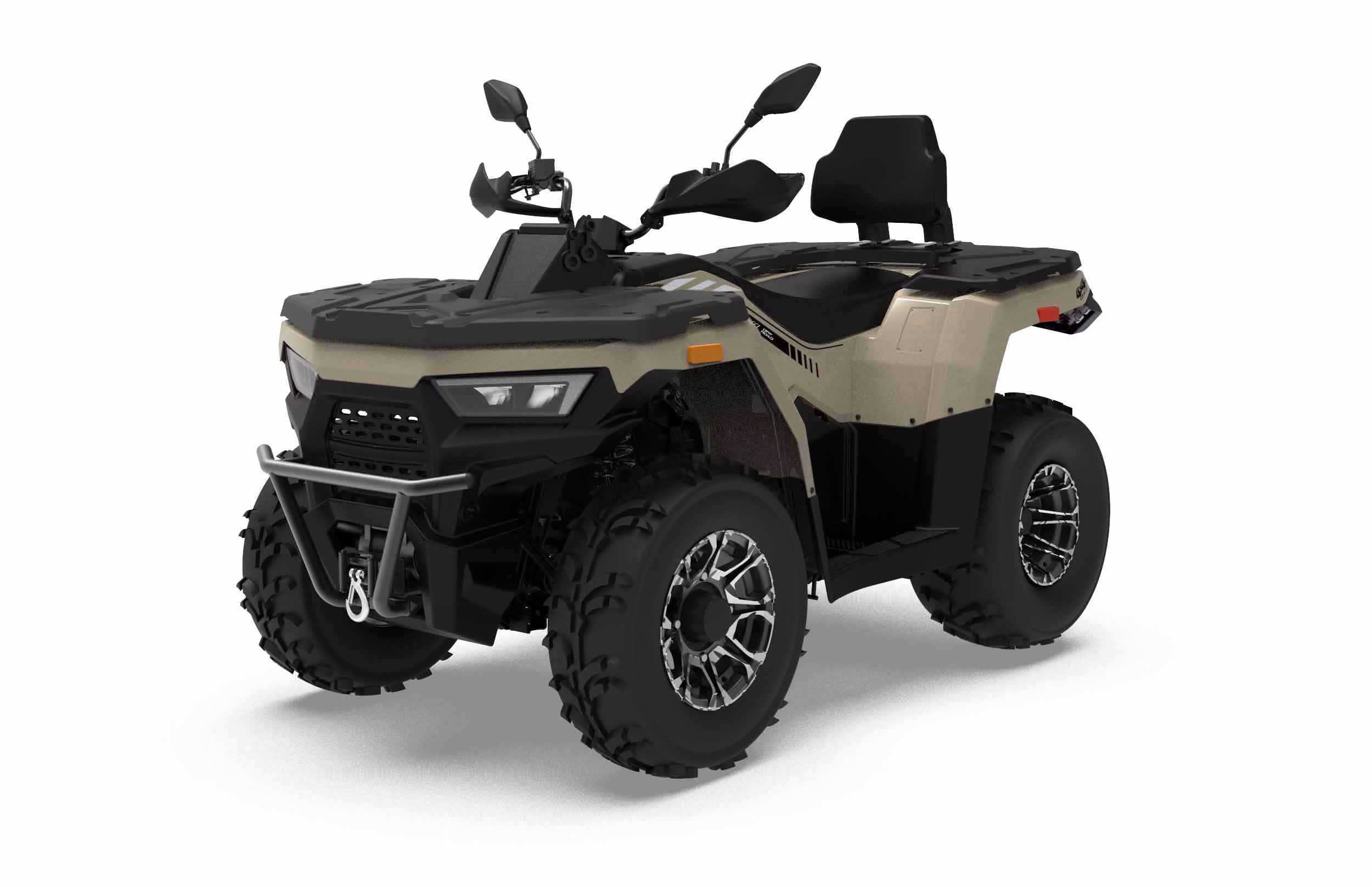

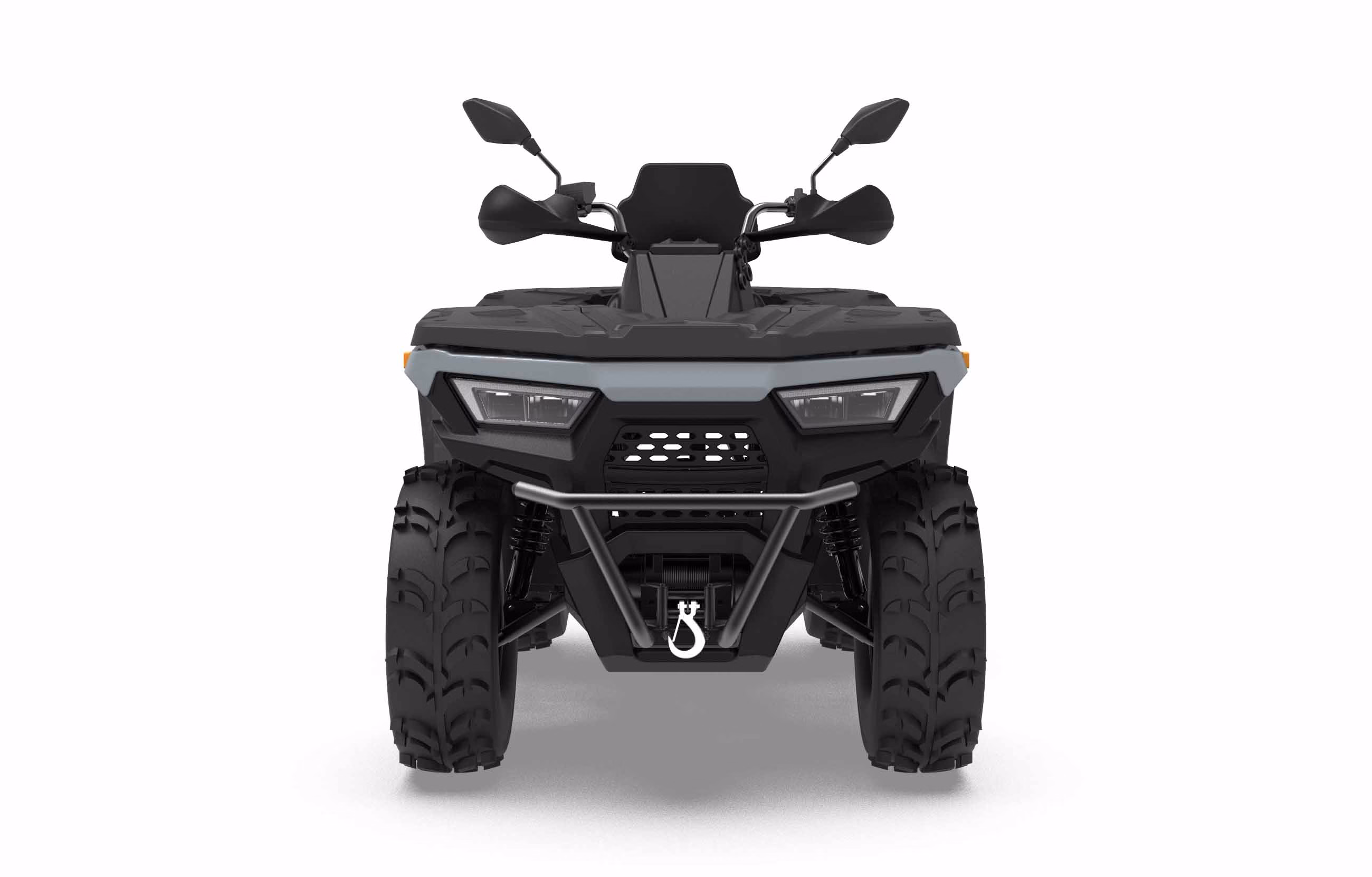

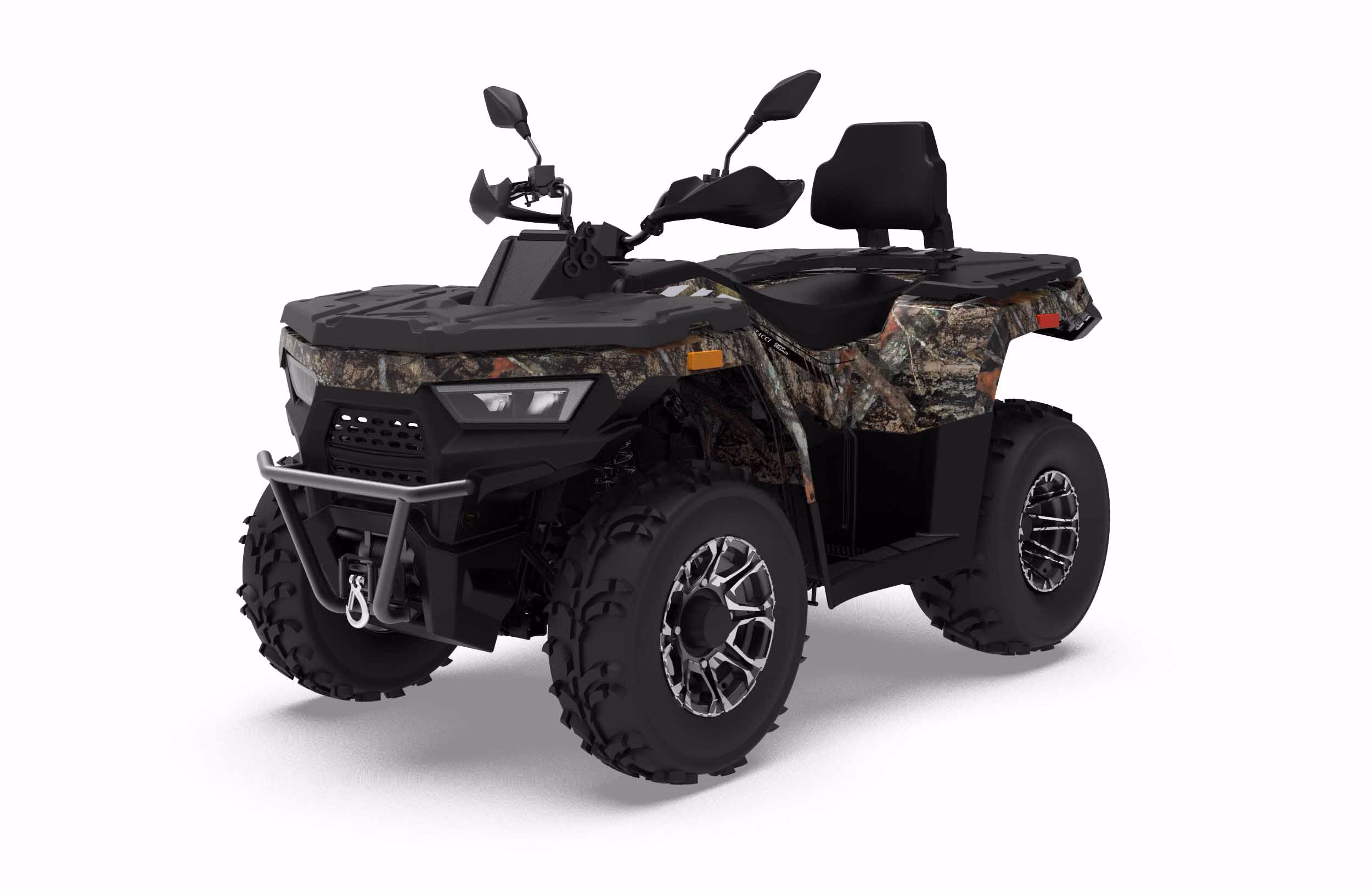

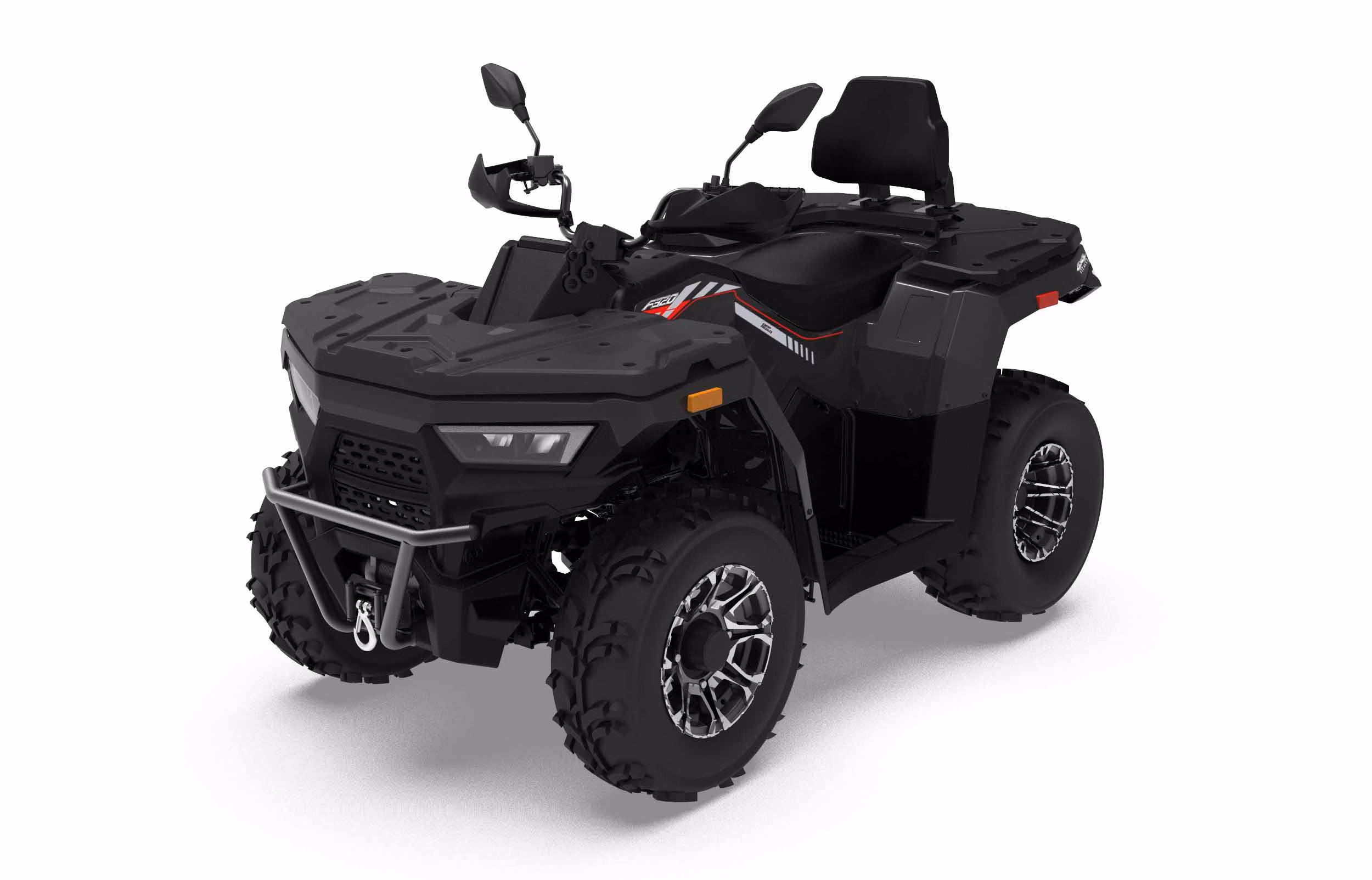

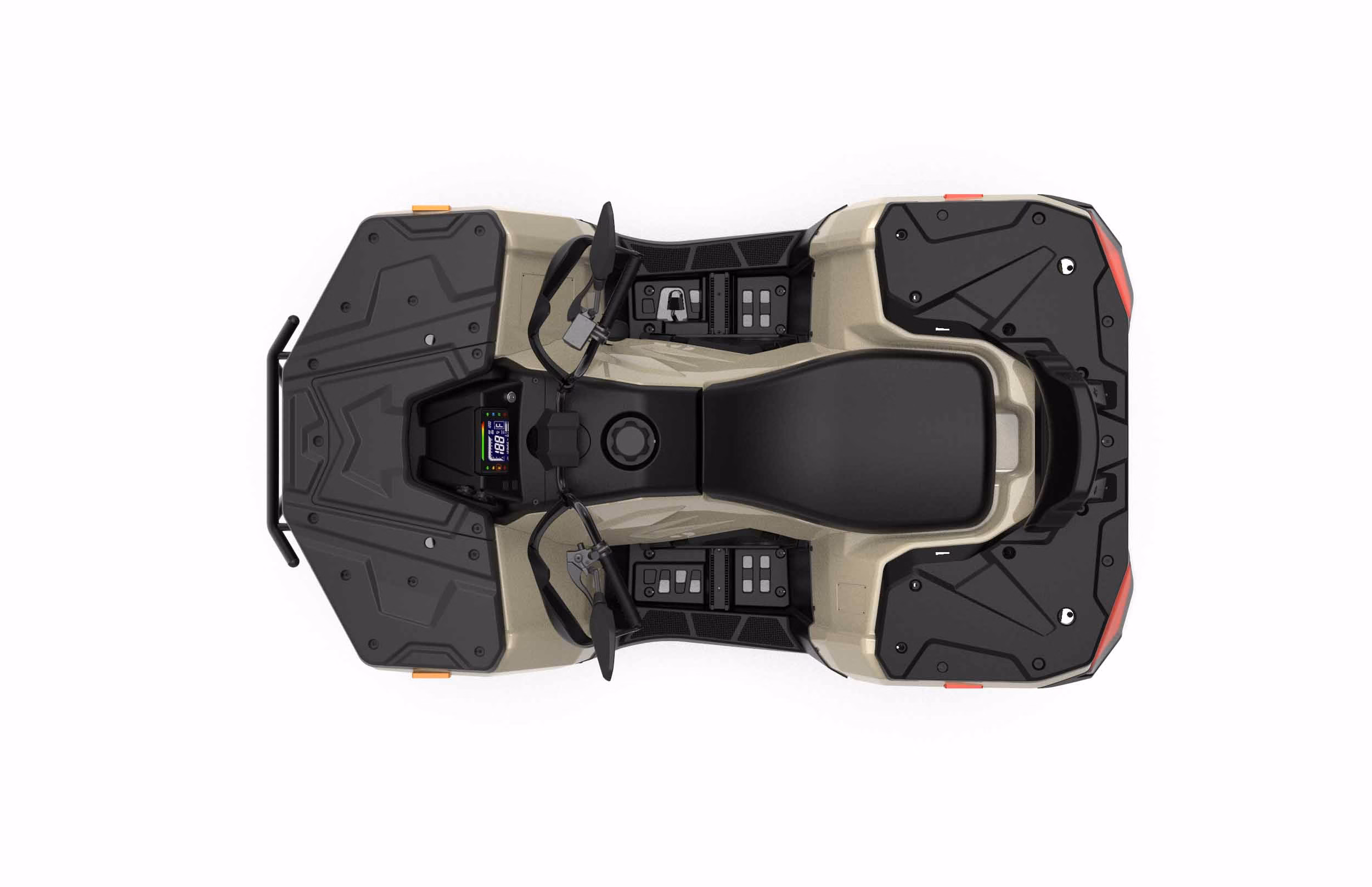

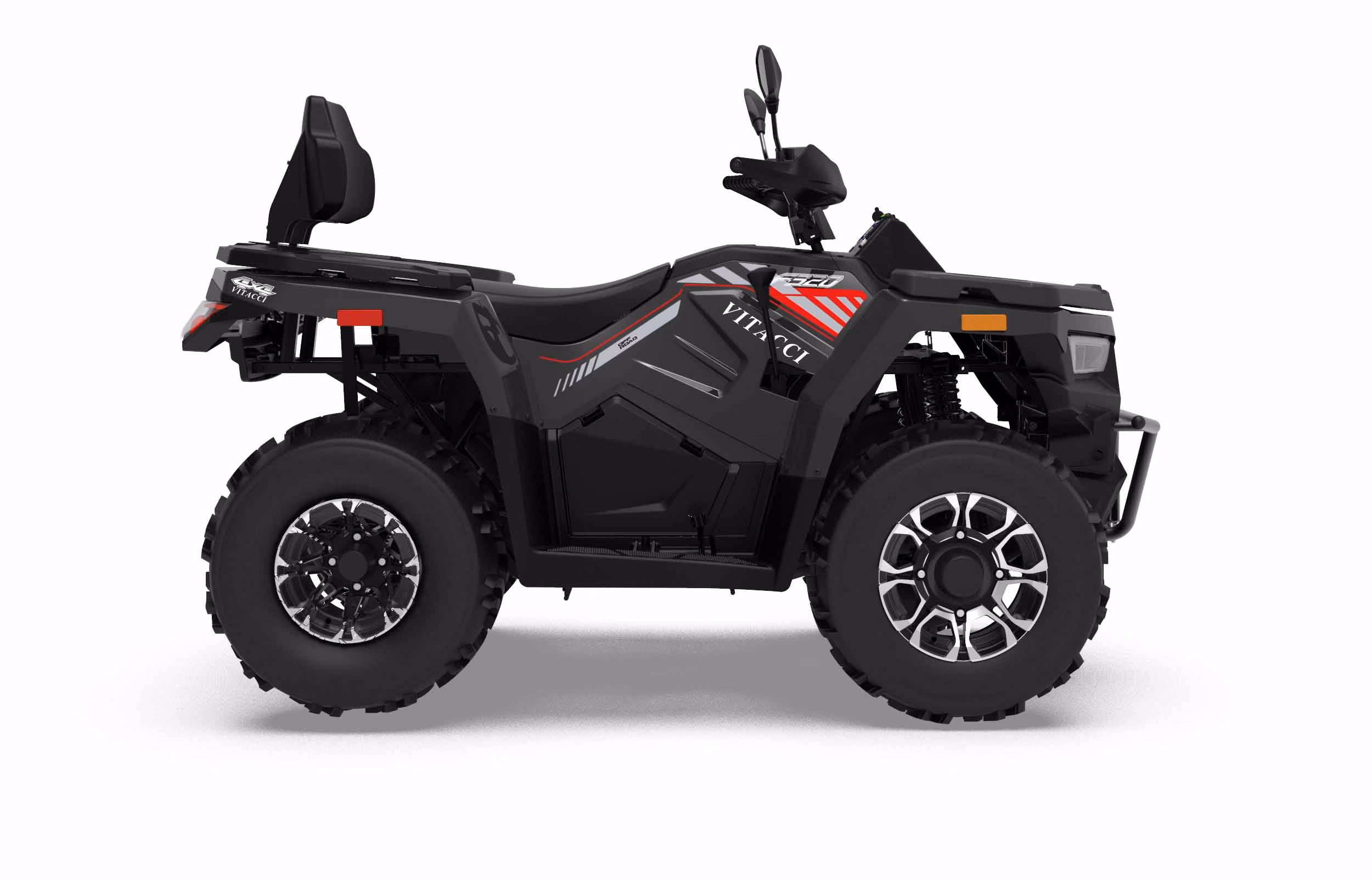

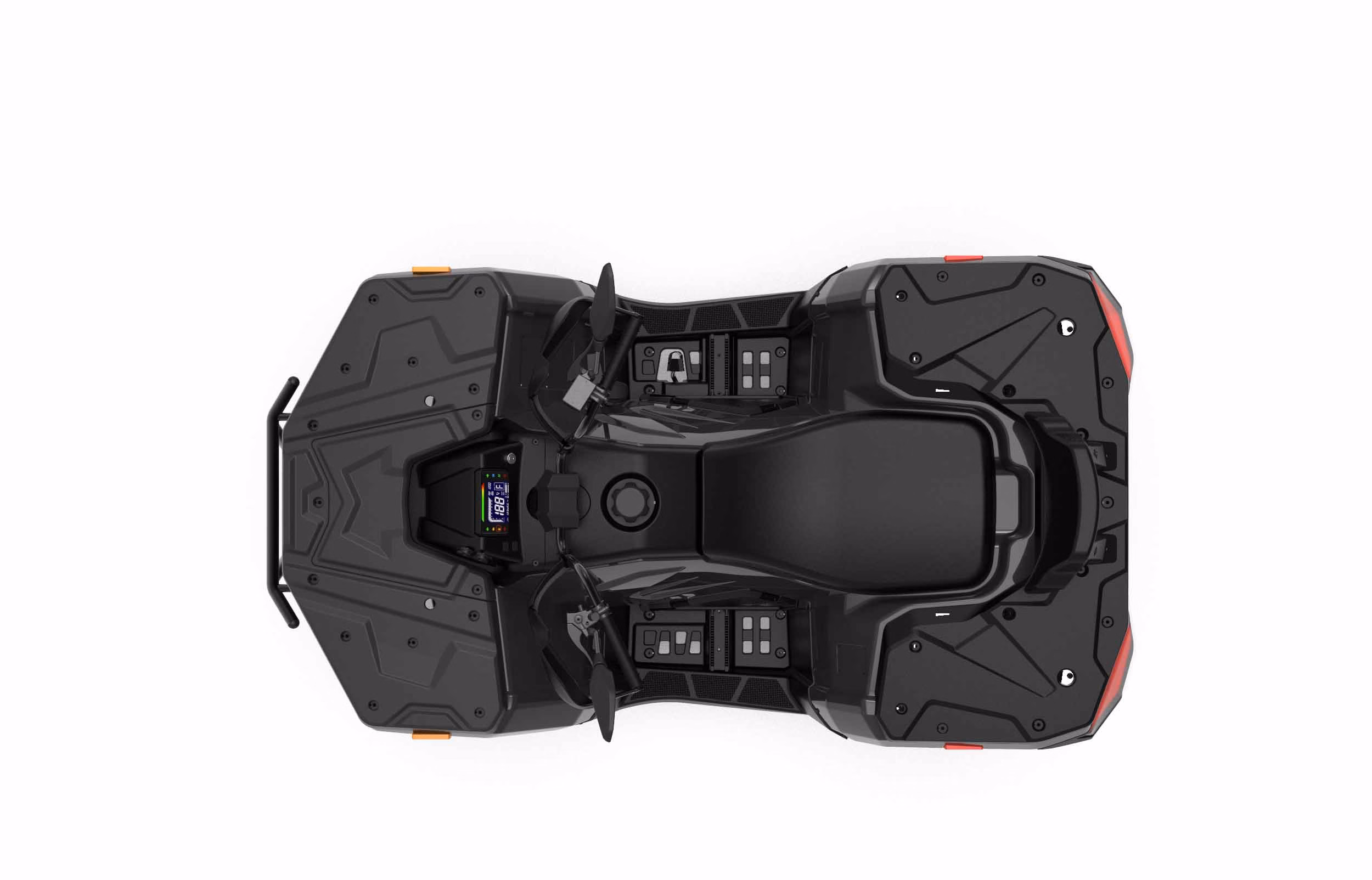

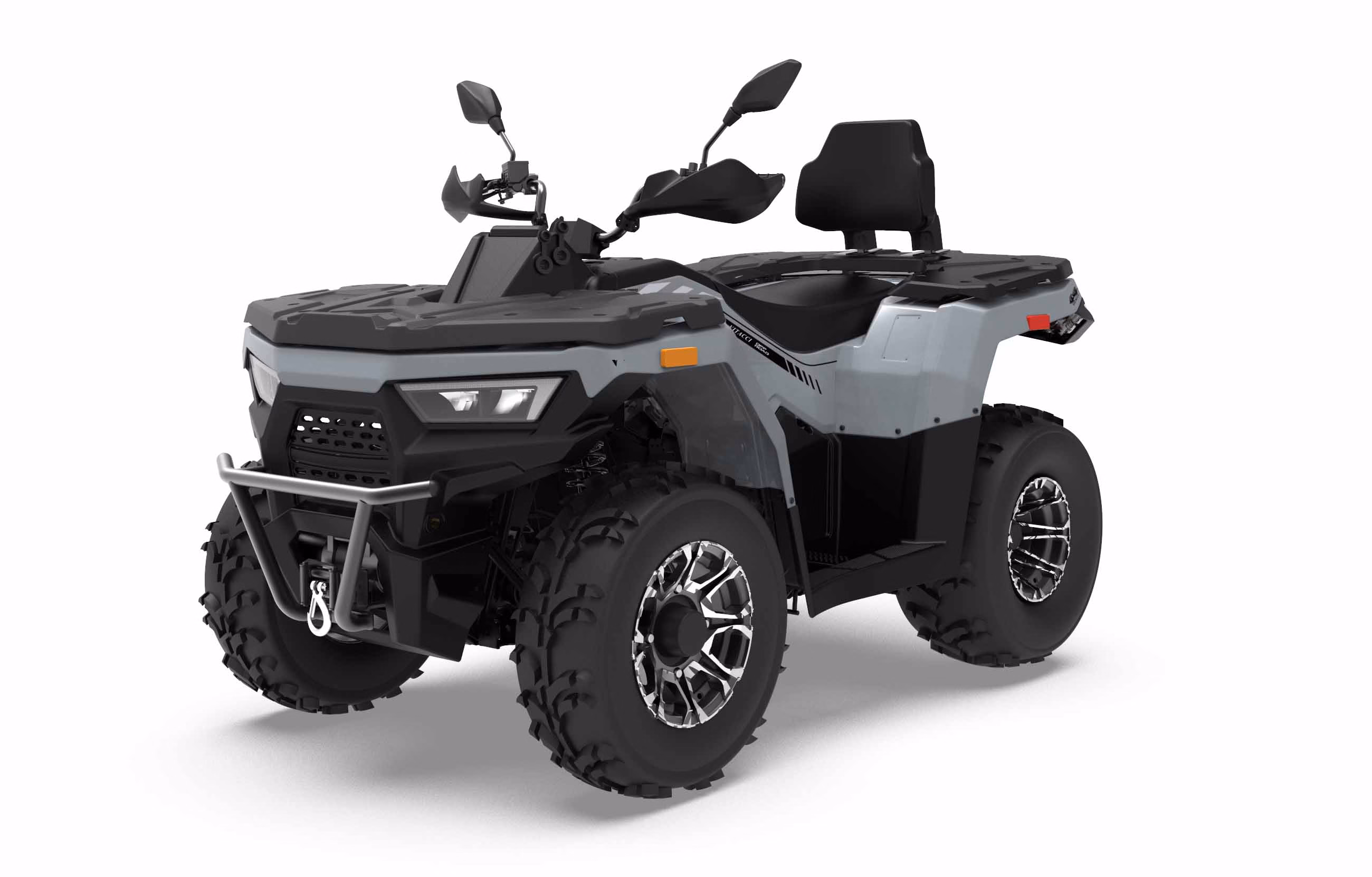

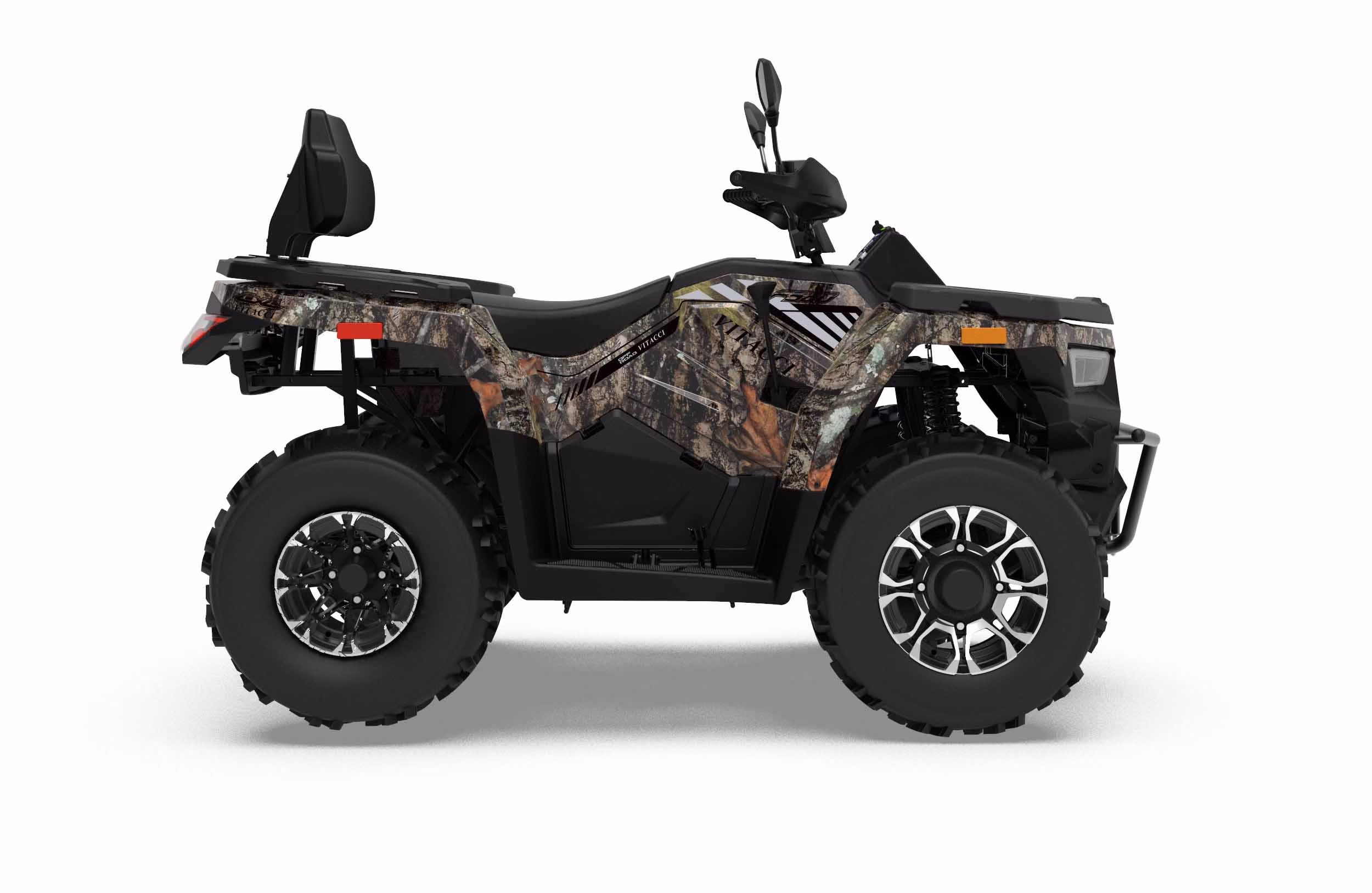

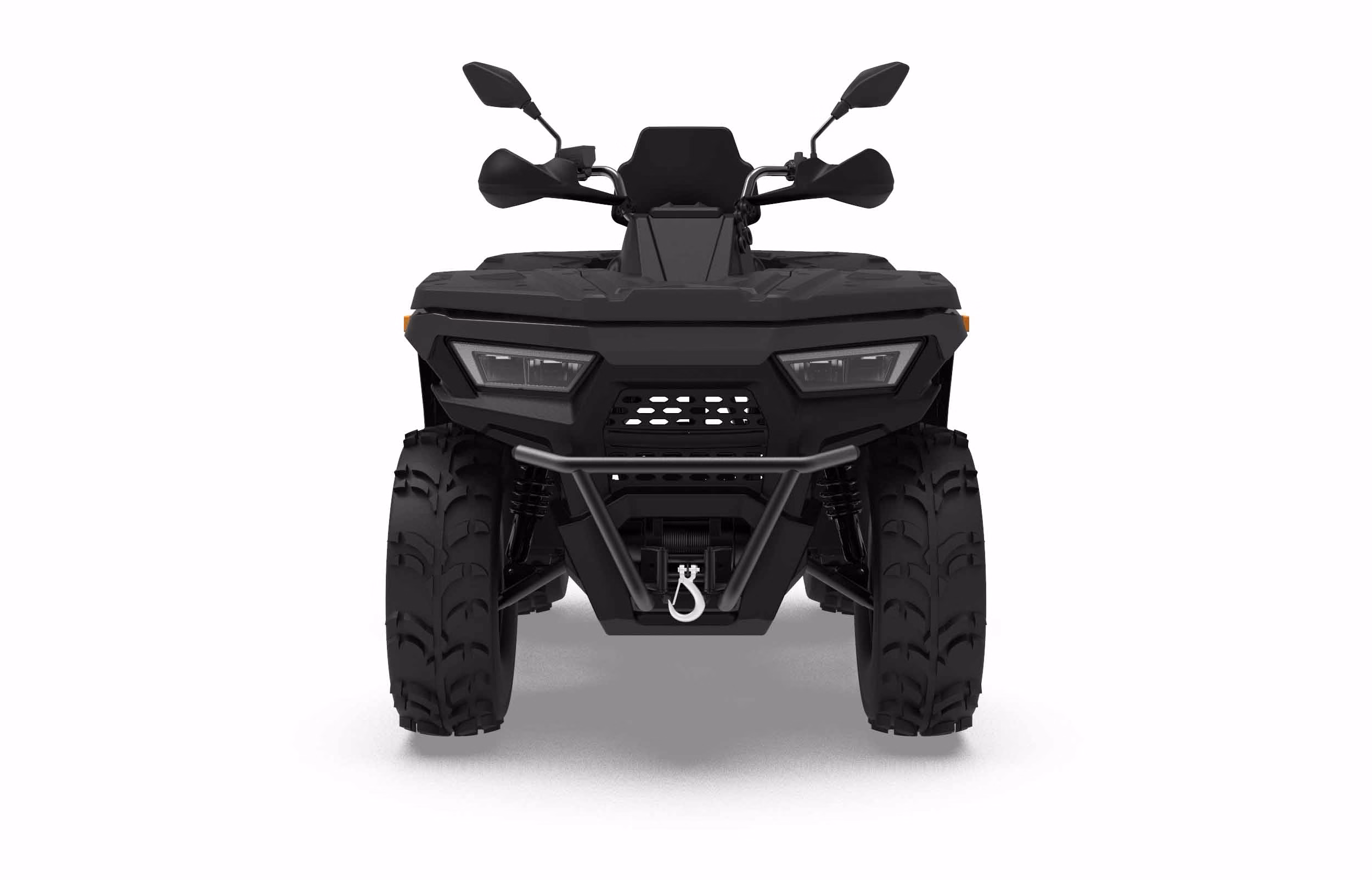

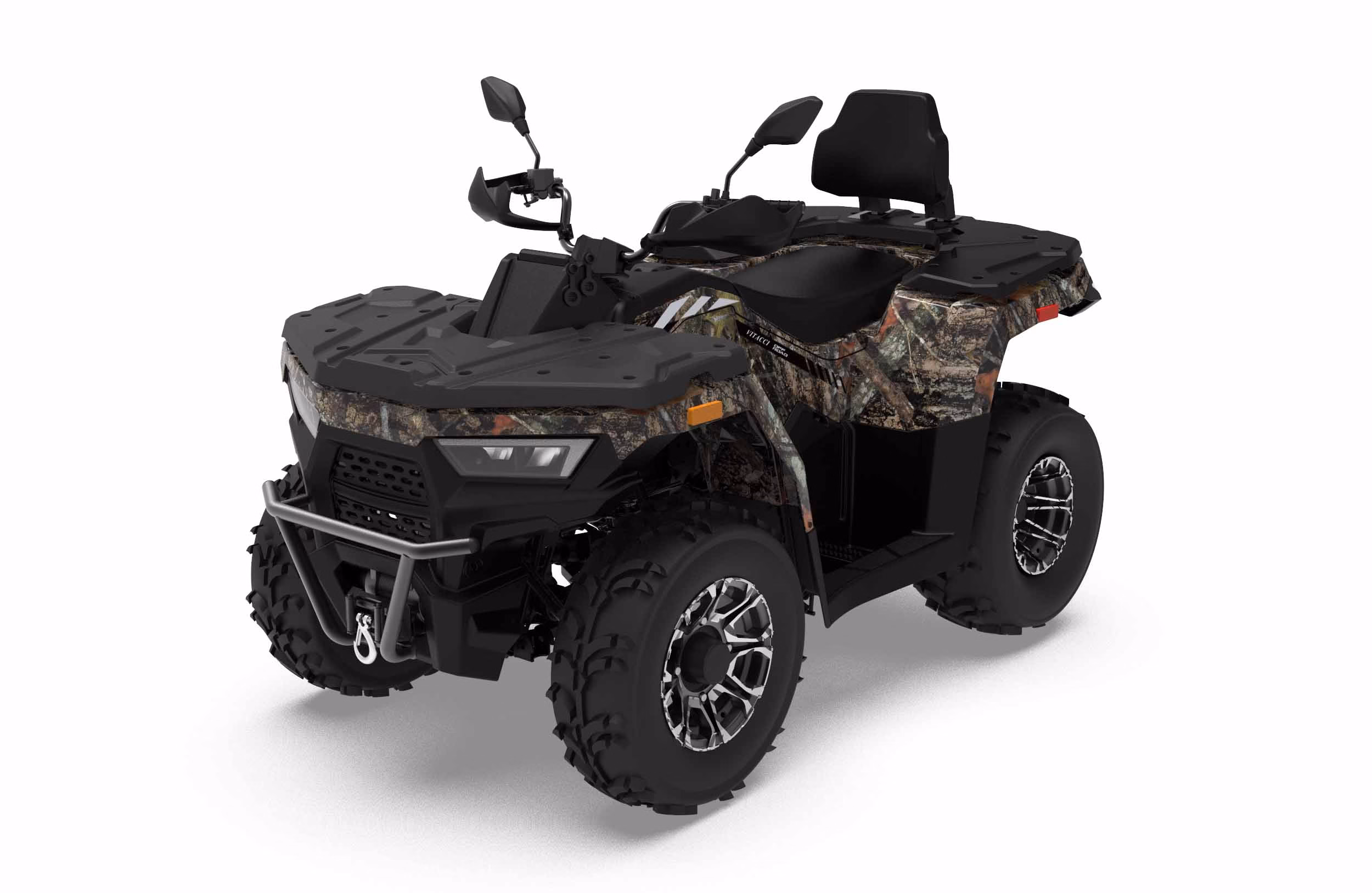

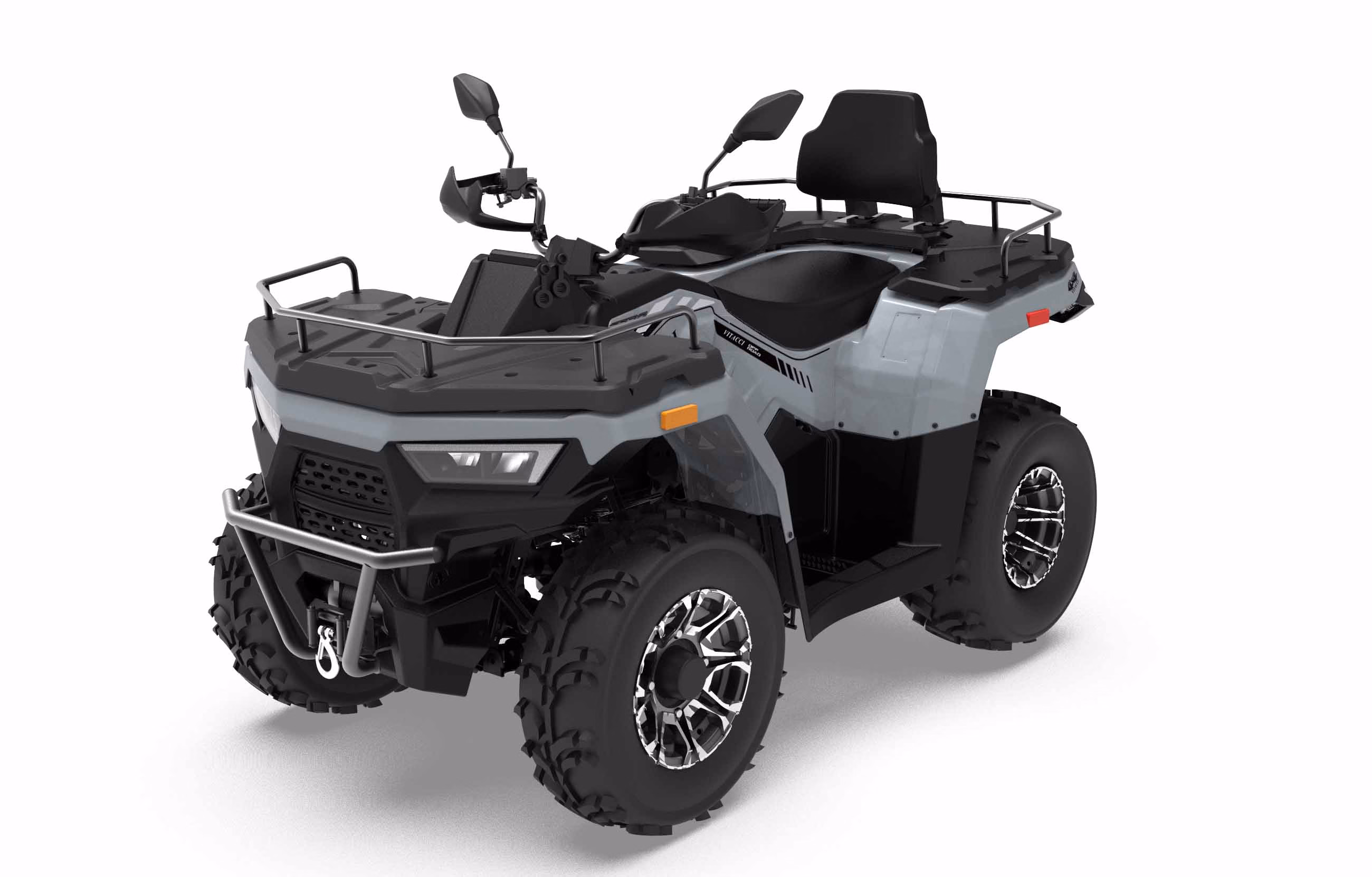

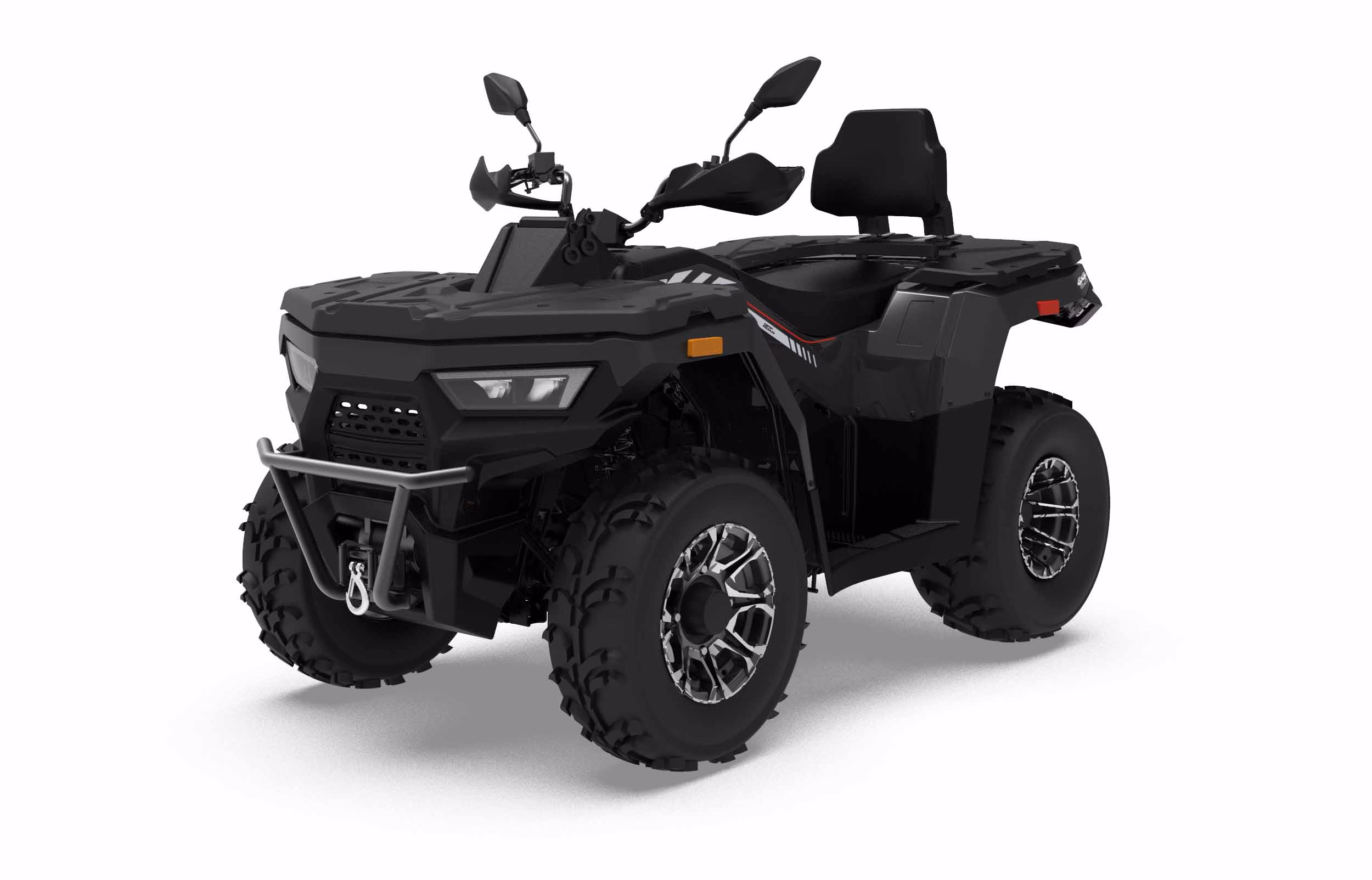

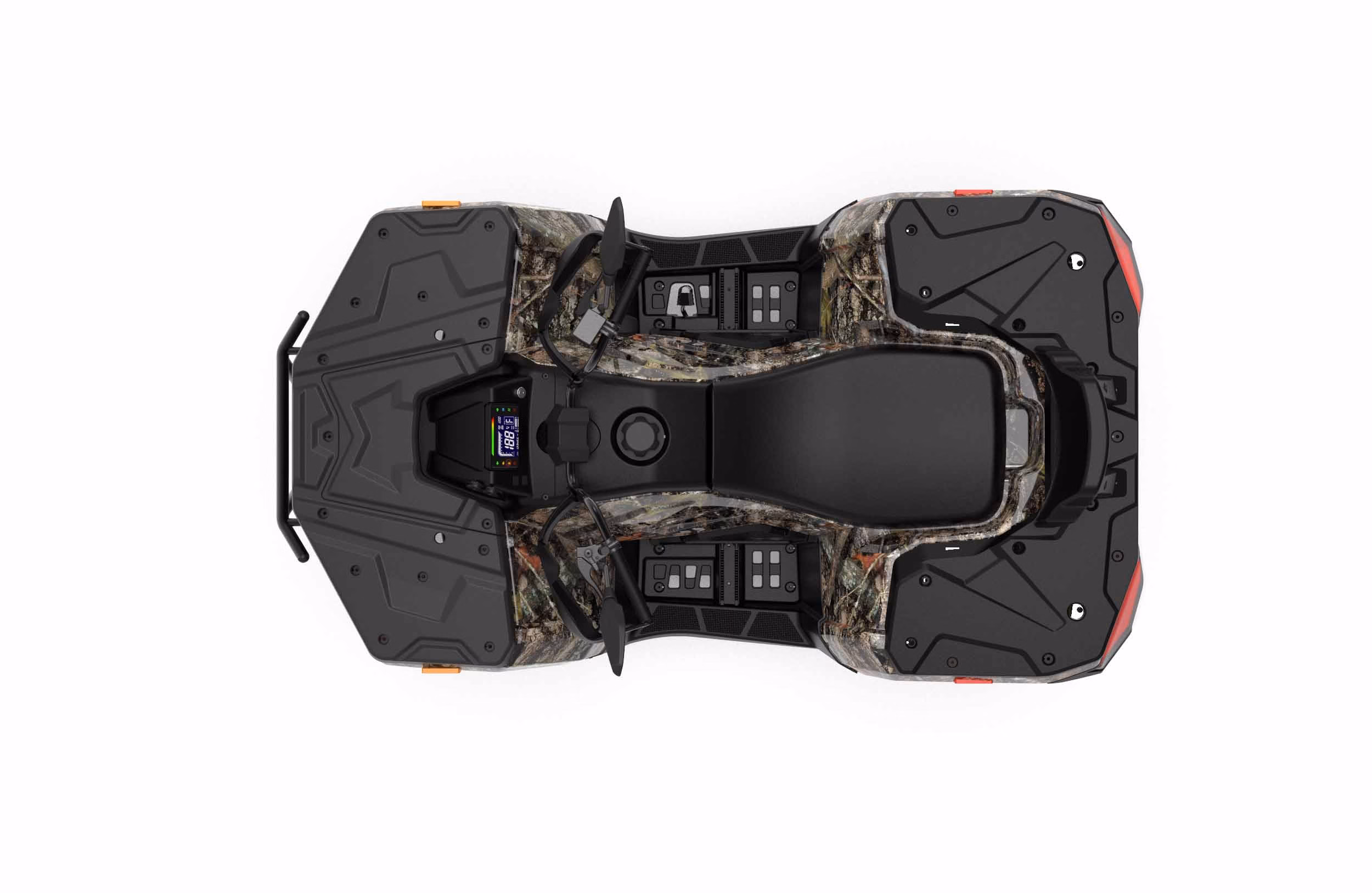

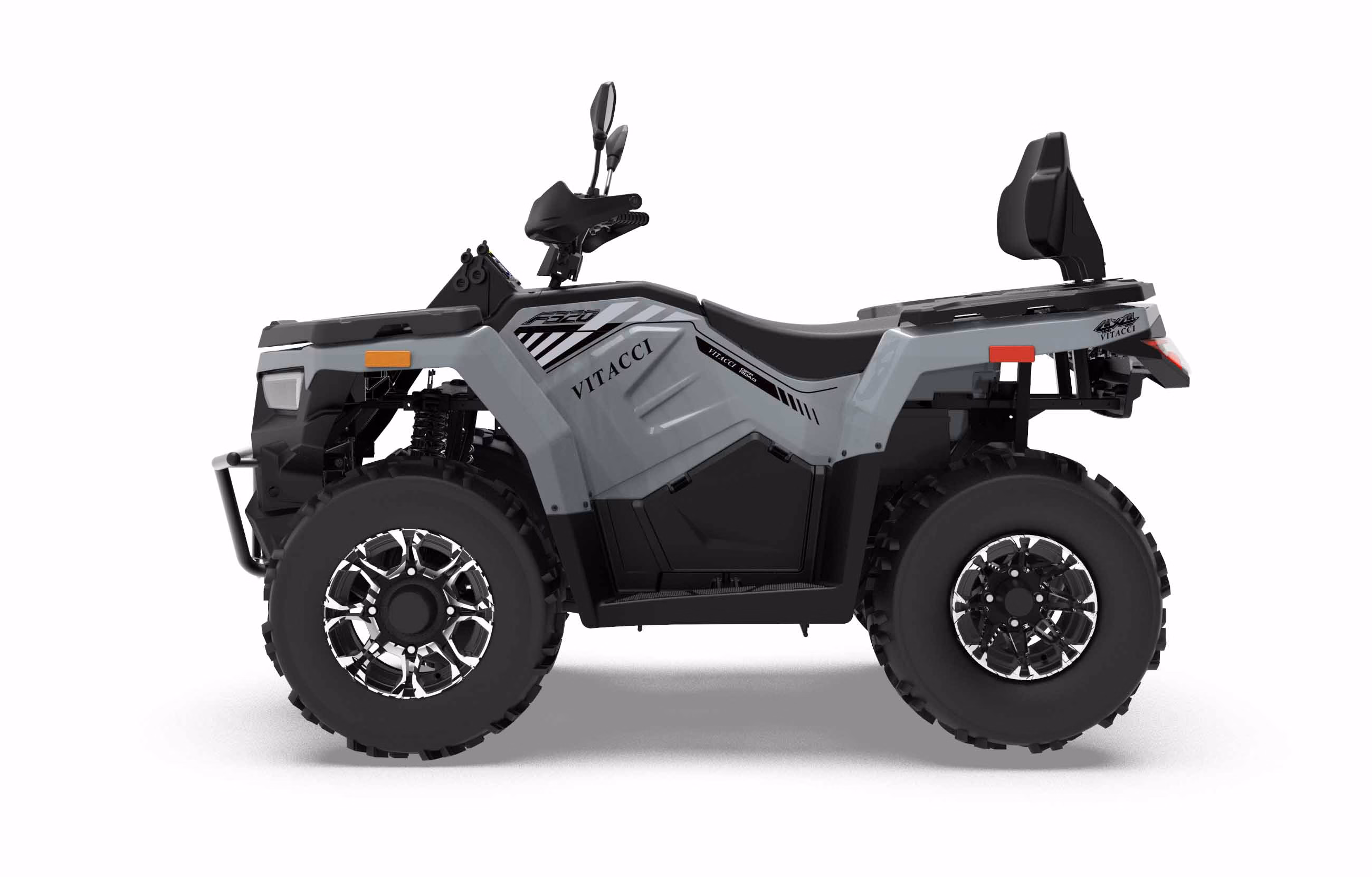

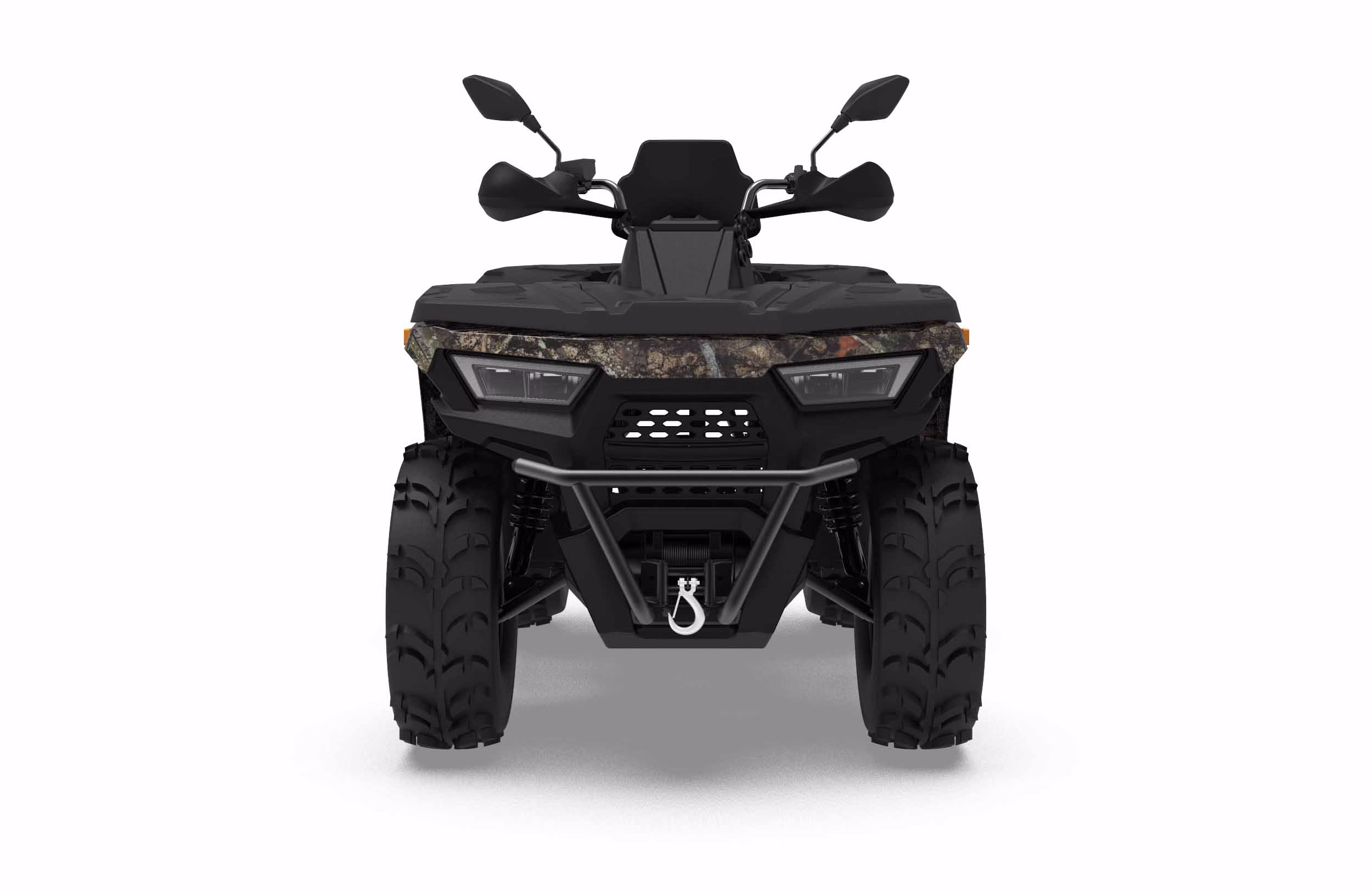

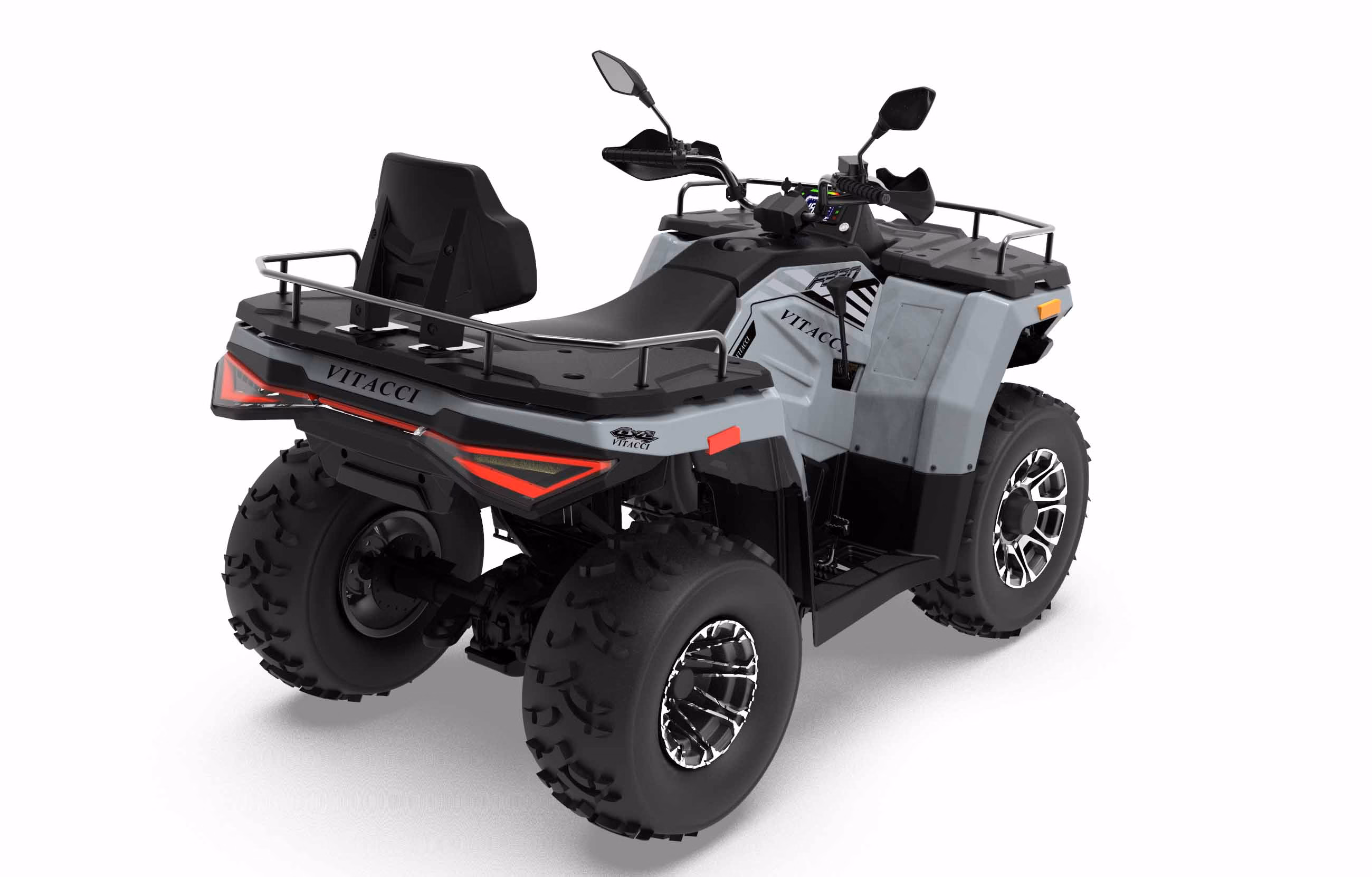

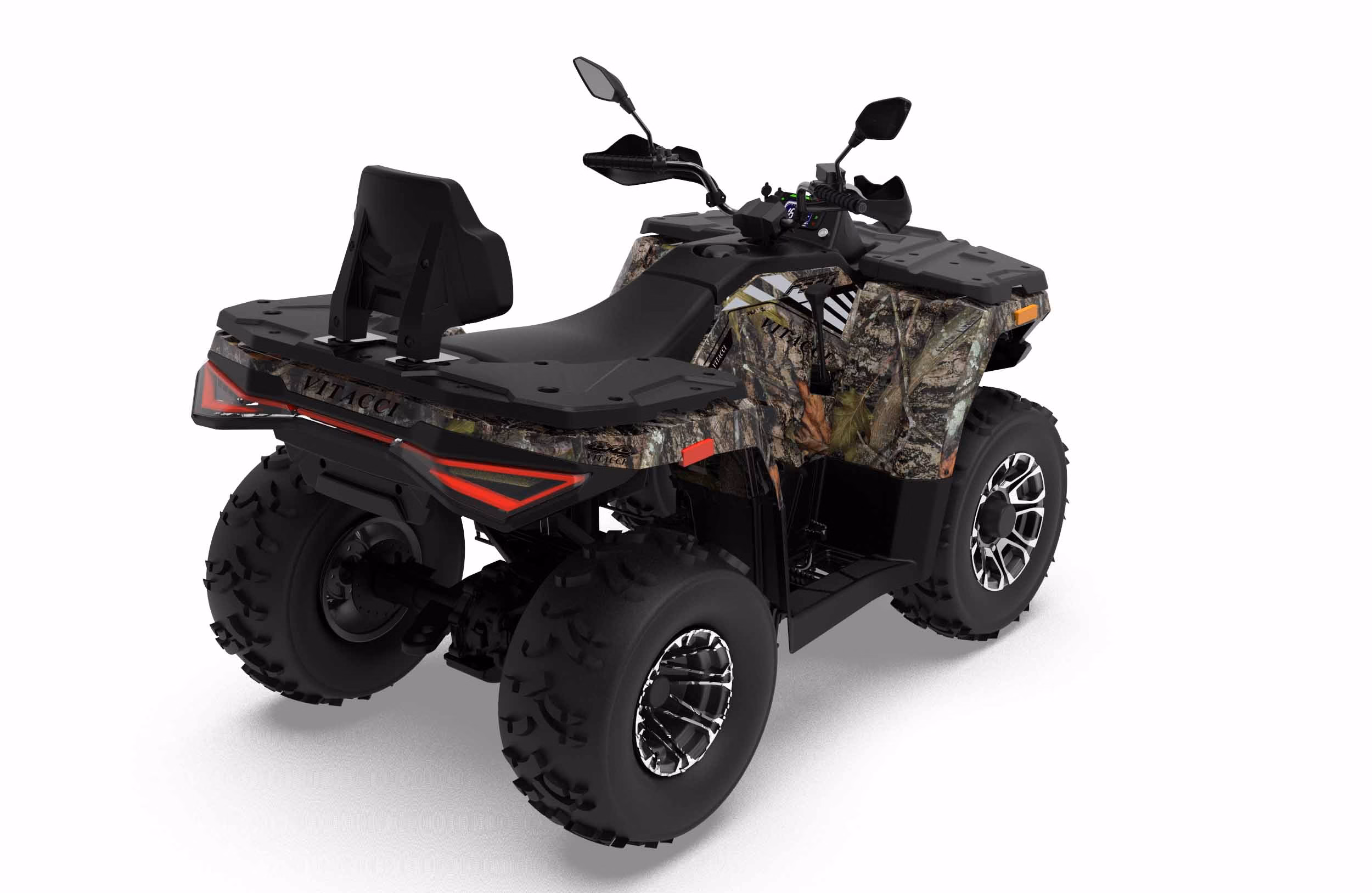

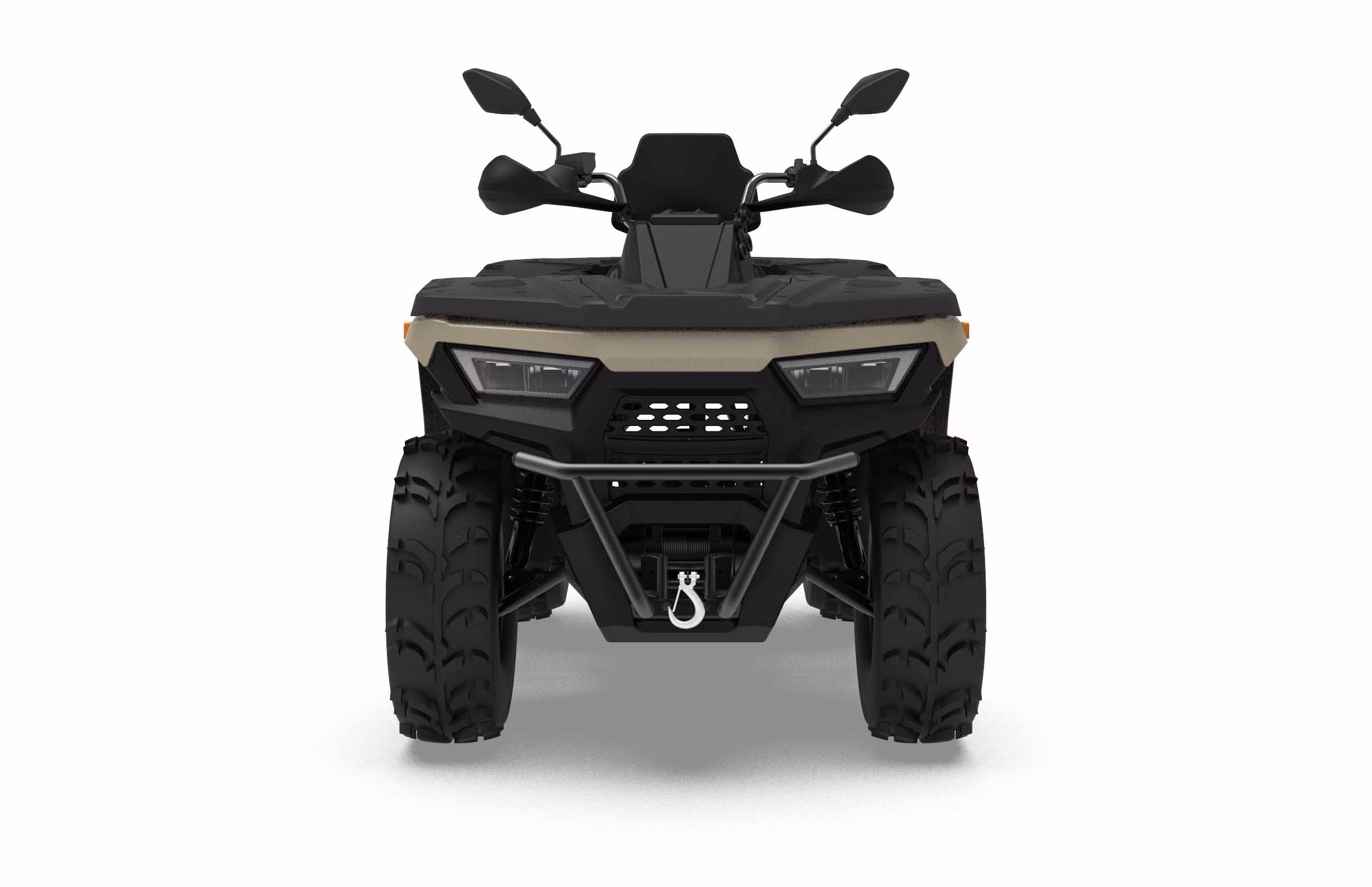

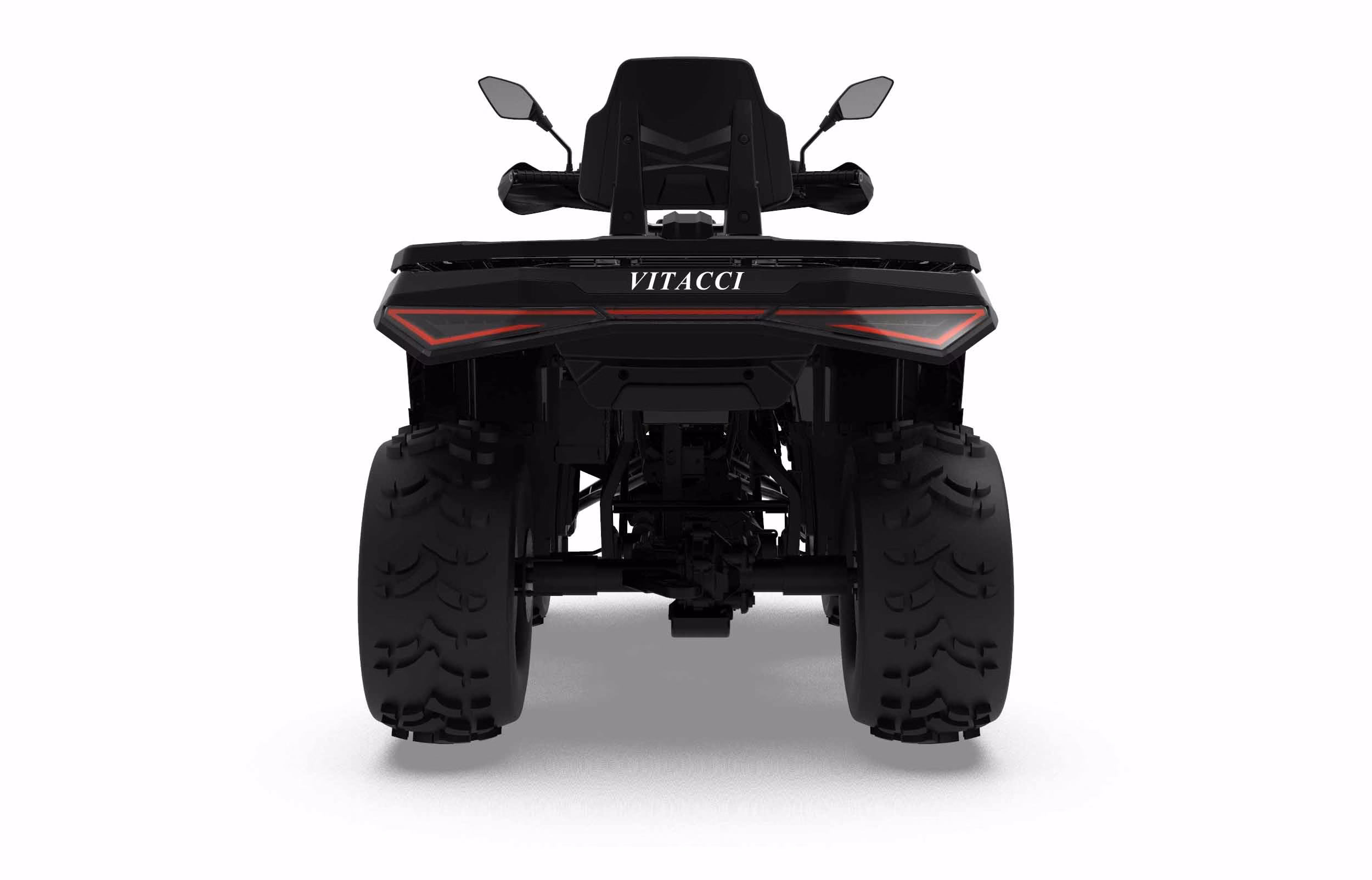

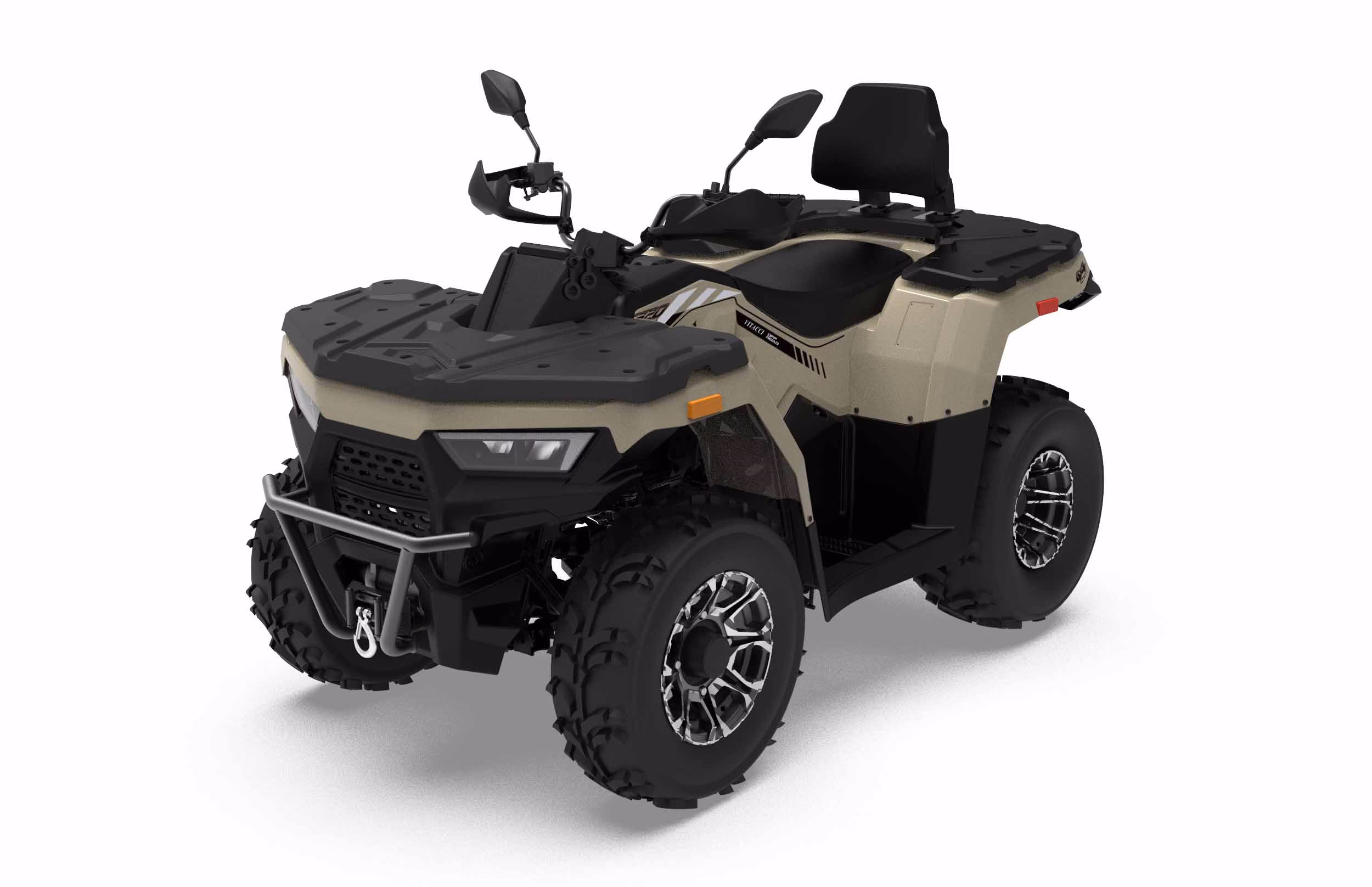

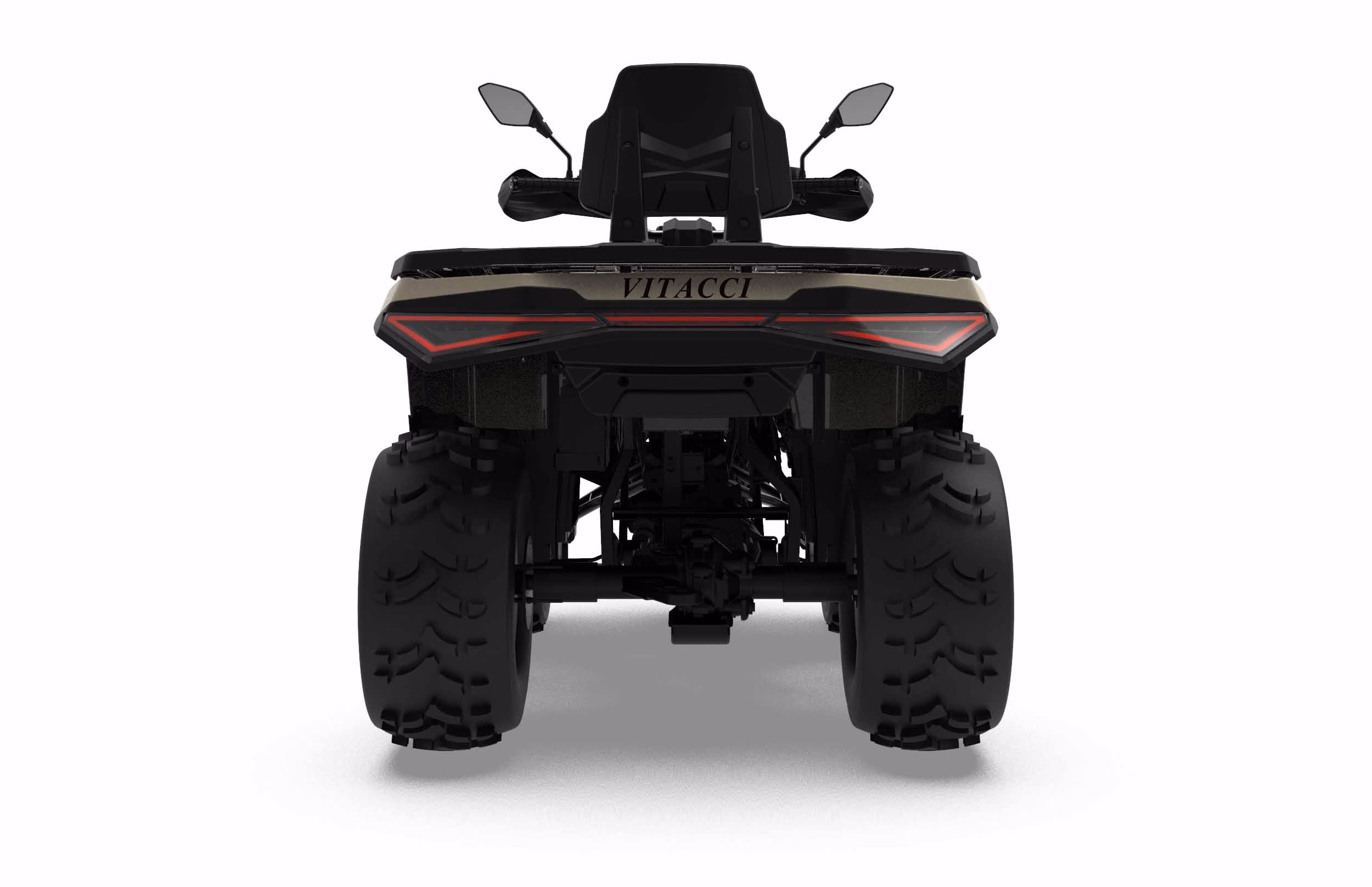

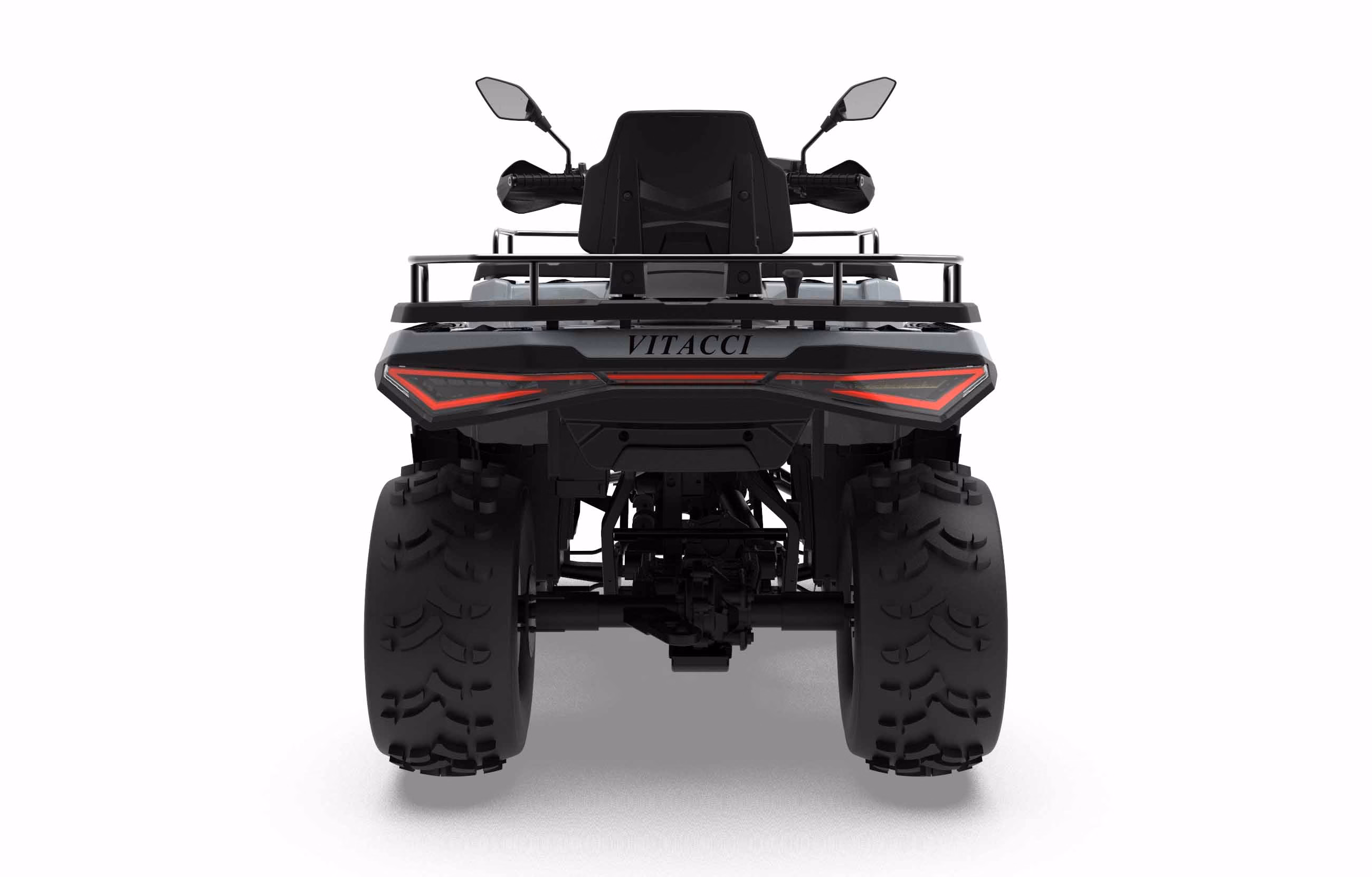

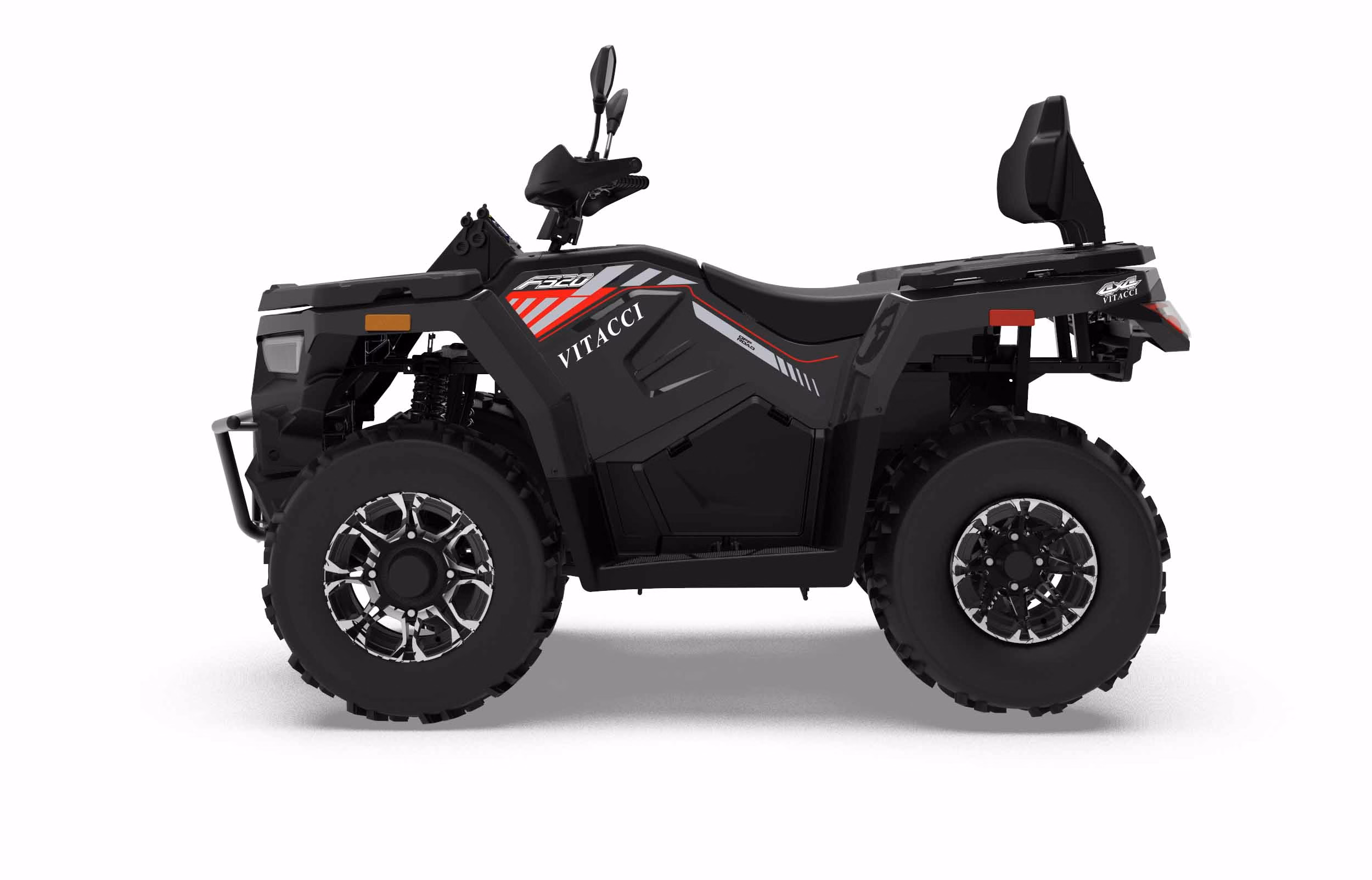

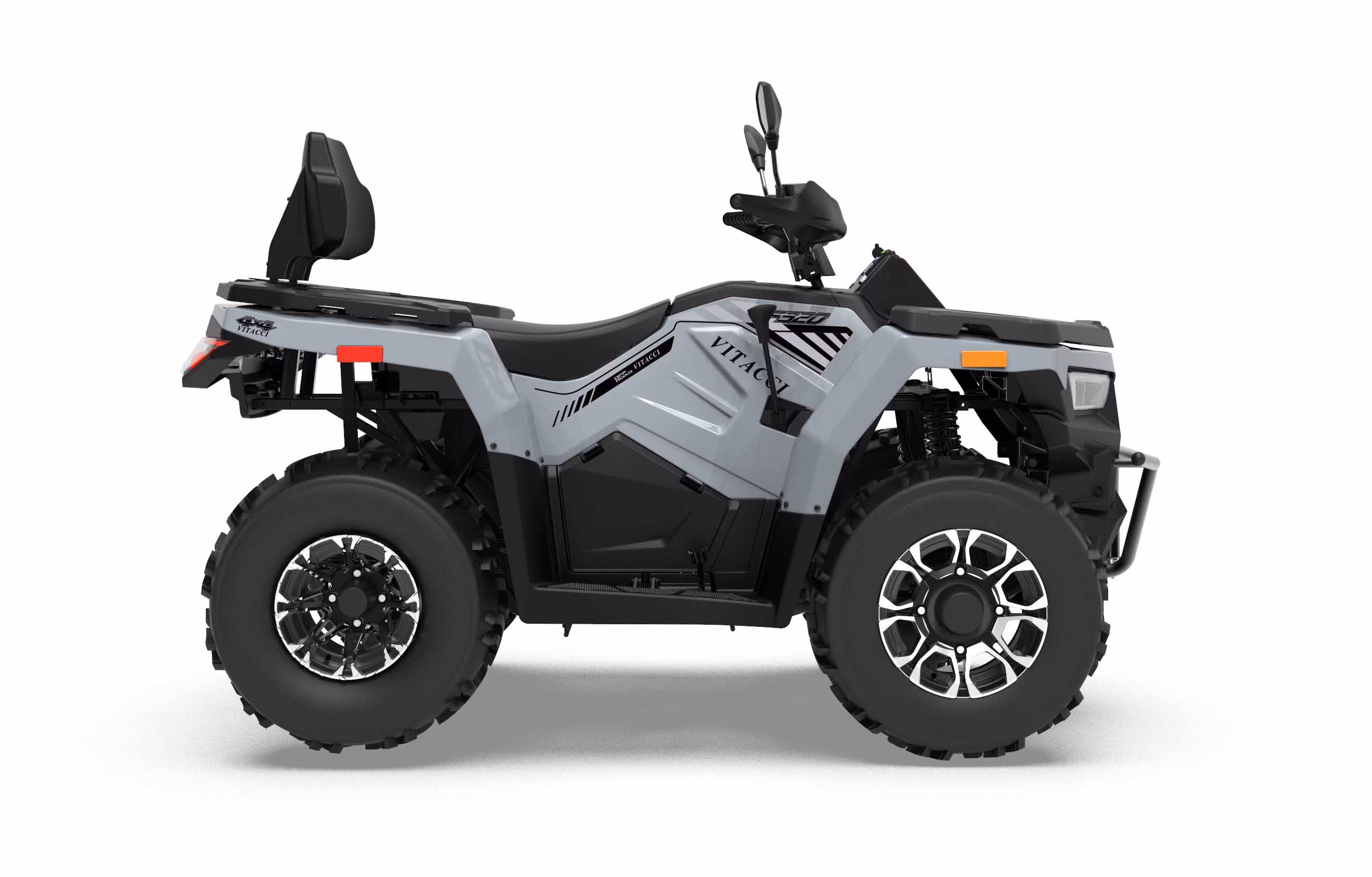

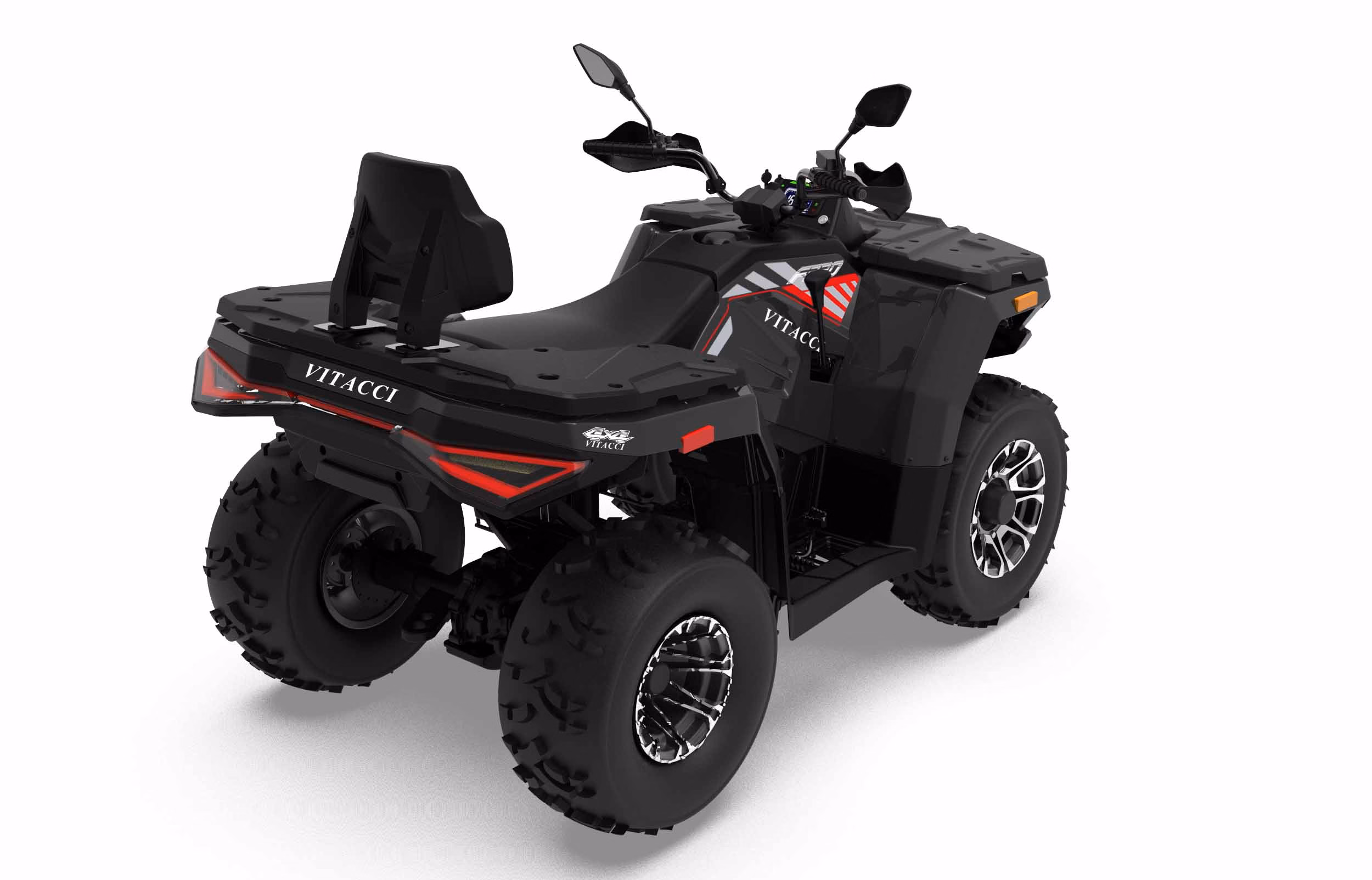

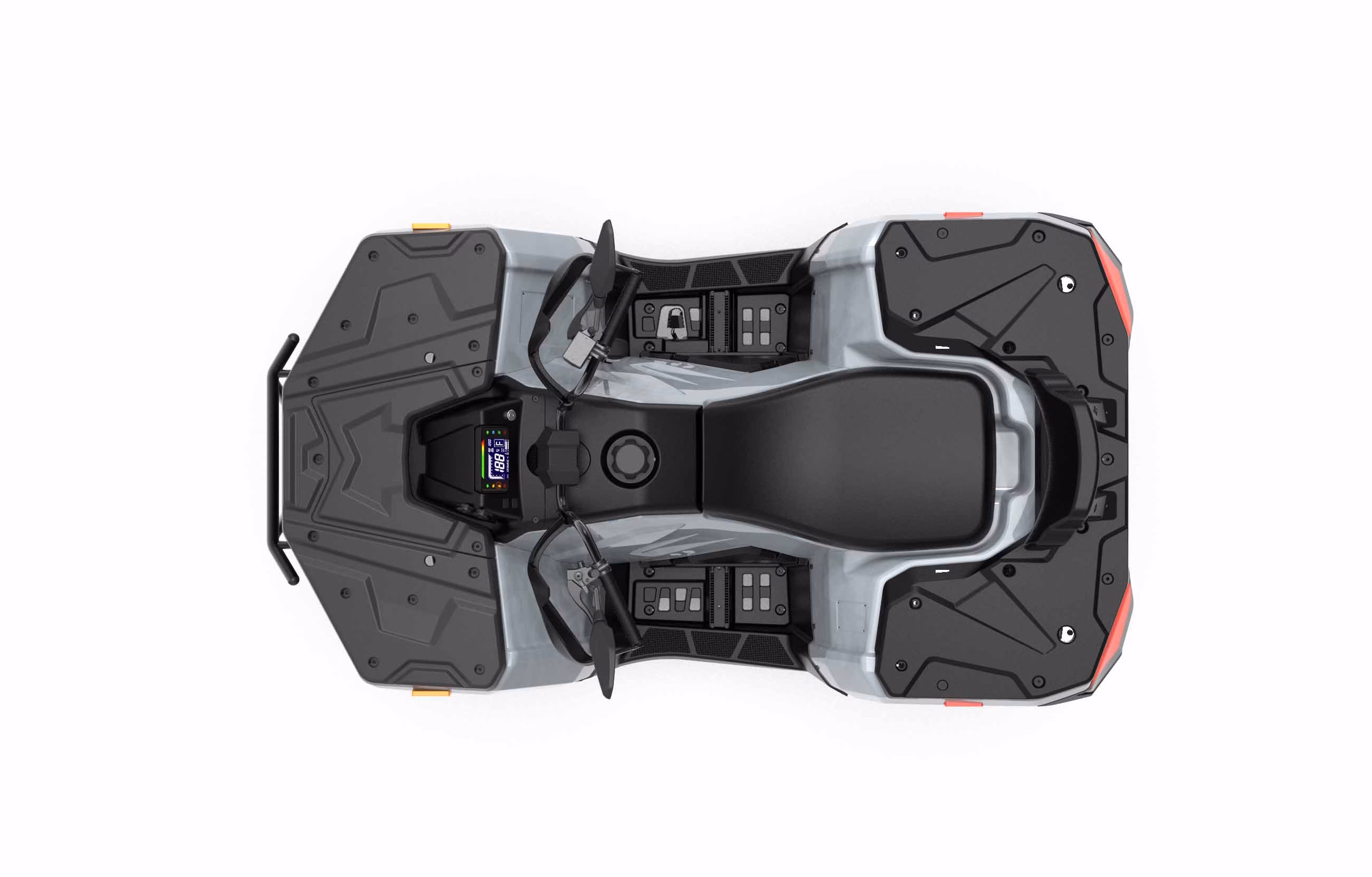

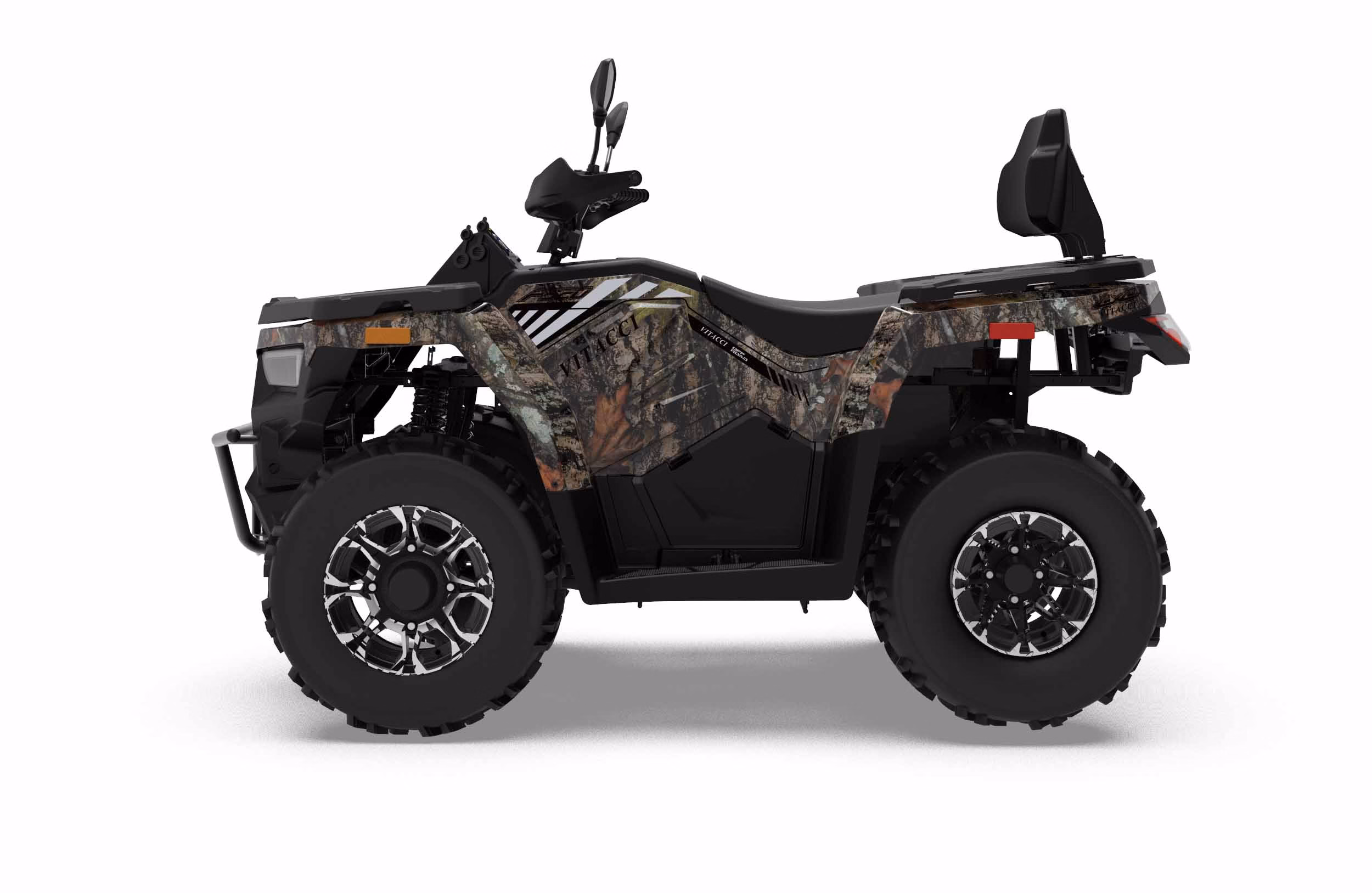

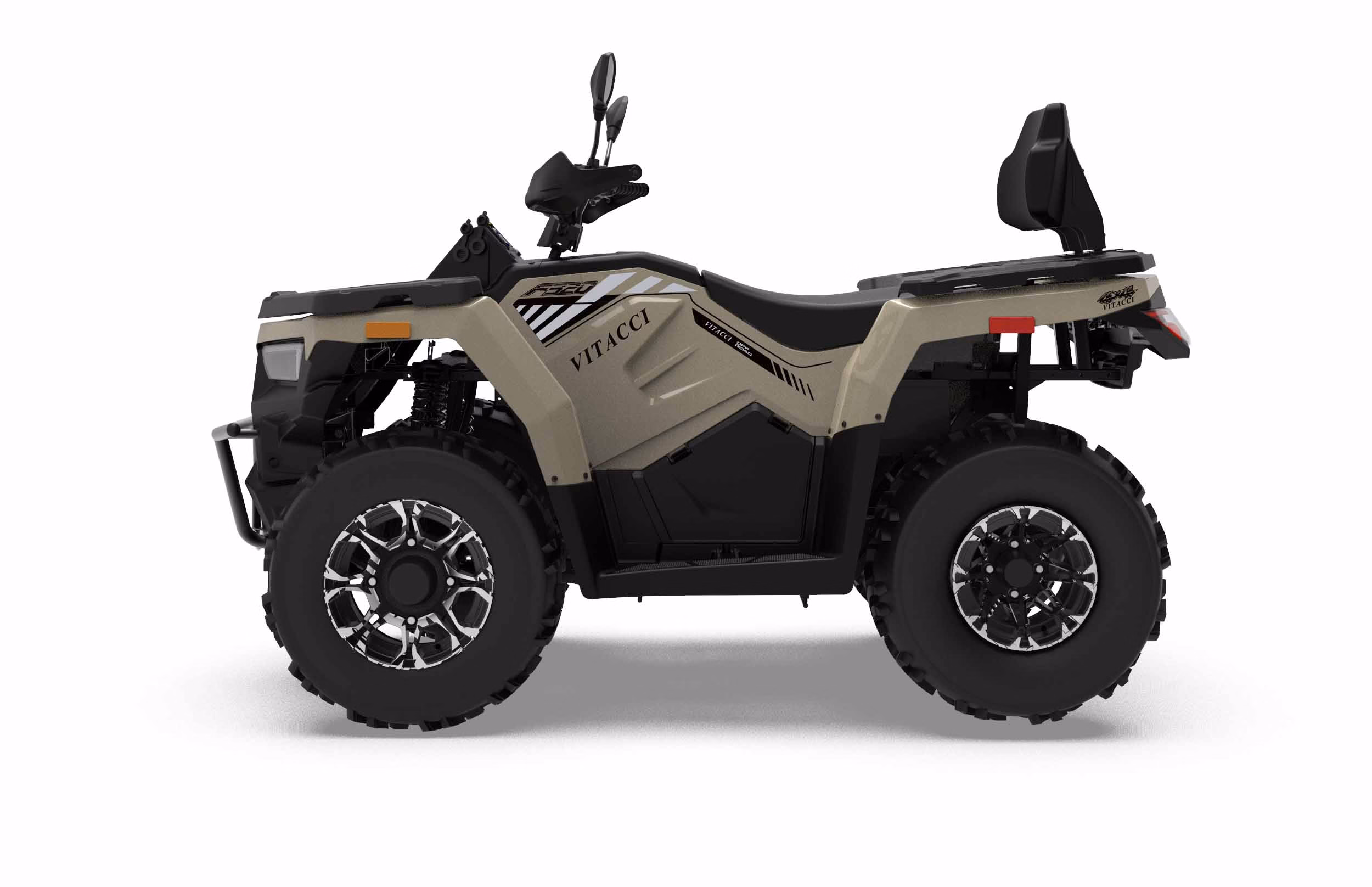

MONSTOR F320 EFI

275 cc

Single-cylinder, 4-stroke, Water-cooled

3 Months

Limited Warranty

36MPH

Top Speed

H-L-N-R

(CVT) Transmission

275 ccSingle-cylinder, 4-stroke, Water-cooled
36 MPHTop Speed
H-L-N-RTransmission
3 MonthsWarranty
Make an Enquiry

SPECIFICATIONS

EngineSingle-cylinder, 4-stroke, Water-cooled
Displacement275 cc
Fuel SystemEFI
CoolingWater-cooled
TransmissionH-L-N-R
Final Drive2WD / 4WD
Start System
Battery
Front SuspensionMcPherson independent
Rear SuspensionSwing arm
Front BrakesHydraulic Disc
Rear BrakesHydraulic Disc
Front TiresAT24×8-12
Rear TiresAT24×11-10
Dimensions2120 × 1140 × 1270 mm
Seat Height
Wheelbase1215 mm
Ground Clearance183 mm
Fuel Capacity14L
Weight650 lbs
Top Speed36 MPH
Max Load
Age16+
Warranty3 Months

[vc_row][vc_column][vc_column_text]Model F320
Size: L×W×H 2120×1140×1270mm
Wheelbase 1215 mm
Ground clearance 183 mm
Dry weight 295kg
Fuel Tank Capacity 14 L
Max speed >60 km/h
Drive System Type 2WD/4WD

Specification of tire Front: AT24×8-12
Rear: AT24×11-10
Brake system model Front: Hydraulic Disc
Rear: Hydraulic Disc
Suspension type Front:McPherson independent suspension
Rear:Swing arm

Engine model LH173MN
Engine type Single cylinder,4 stroke, water cooled
Engine displacement 275 cc
Bore and Stroke 72.5×66.8 mm
Max power 16/6500~7000 (kw/r/min)
Horse power 21.4 hp
Max torque 23/5500 (Nm/r/min)
Compression Ratio 9.5:1
Fuel system EFI
Start type Electric starting
Transmission H-L-N-R
40’HQ QTY 30 Units



AGE REQUIREMENT:  (G16) 16 years old and up

[/vc_column_text][/vc_column][/vc_row]
